Brand	Güde
Model	GMH 602
Product type	Petrol hedge trimmer
Order number	93998
Displacement	25.4 cc
Engine power	0.9 kW / 1.2 HP
Max. engine speed	8500 min⁻¹
Blade speed	1950 min⁻¹
Tank capacity	0.39 l
Fuel consumption	0.59 l/h
Fuel mixture	1:40 (petrol:2-stroke oil)
Cutting length	620 mm
Total bar length	720 mm
Max. cutting thickness	23 mm
Weight	7.5 kg
Sound pressure level (LpA)	95.61 dB(A)
Guaranteed sound power level (LWA)	107 dB(A)
Vibrations (ah)	2.991 m/s²
Rotating handle	Yes
Hearing protection	Recommended
Starting type	Recoil start (choke)
Blade maintenance	Regular cleaning and lubrication
Warranty	24 months (domestic use)

Frequently Asked Questions - GMH 602 Güde

What type of fuel to use for the Güde GMH 602?

Use a mixture of unleaded petrol and high-quality 2-stroke oil in a ratio of 1:40 (1 litre of petrol to 40 ml of oil). Do not use an old mixture.

How to start the GMH 602 hedge trimmer?

Ensure the tank contains fresh fuel. Activate the choke (6 to 8 times). Pull the starter cord until the engine starts. Once started, deactivate the choke.

What to do if the engine does not start?

Check the fuel level, the spark plug (clean or replace if dirty), the air filter (clean it), and ensure the mixture is correct. If the engine is flooded, dry the spark plug.

How to maintain the hedge trimmer blade?

After each use, clean the blade with a cloth soaked in oil or a metal treatment spray. Regularly lubricate the moving parts with an ecological oil. Replace blunt or damaged blades immediately.

What is the cutting length of the GMH 602?

The cutting length is 620 mm, with a maximum branch thickness of 23 mm.

What safety precautions should be taken?

Always wear safety glasses, hearing protection, gloves and safety shoes. Keep a distance of at least 10 m from people and power lines. Never work in an enclosed space due to toxic exhaust gases.

How to store the hedge trimmer after use?

Empty the fuel tank outdoors. Let the engine cool down. Clean the blade and apply a light coat of oil. Store the device in a dry place out of reach of children.

Can I use the GMH 602 to cut hardwood or thick branches?

No, this hedge trimmer is designed for trimming hedges and soft shrubs. Do not attempt to cut hardwood, branches over 23 mm thick, or composting materials, as this could damage the device.

How to adjust the spark plug electrode gap?

The gap between the electrodes should be between 0.6 and 0.8 mm. Use a feeler gauge to adjust.

Where can I find spare parts for the GMH 602?

Spare parts are available on the website www.guede.com or from Güde customer service. You will need the order number (93998) and the serial number.

USER MANUAL GMH 602 Güde

Black-and-white photo of a hatched tool with a blade extending into the center (no visible text or symbols)

GMH 602

93998

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

CE

Güde®

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with title, subtitle, and a small logo at the bottom right corner.

Black-and-white photo of a hatched tool with a blade and three parallel metal strips, no visible text or symbols.

Close-up of a metallic tool with a curved blade and two screws (no text or symbols visible)

White rectangular plastic bottle with a cylindrical cap, shown in 3D rendering (no text or symbols)

Metal T-shaped tool with a black square marker on the left (no text or symbols visible)

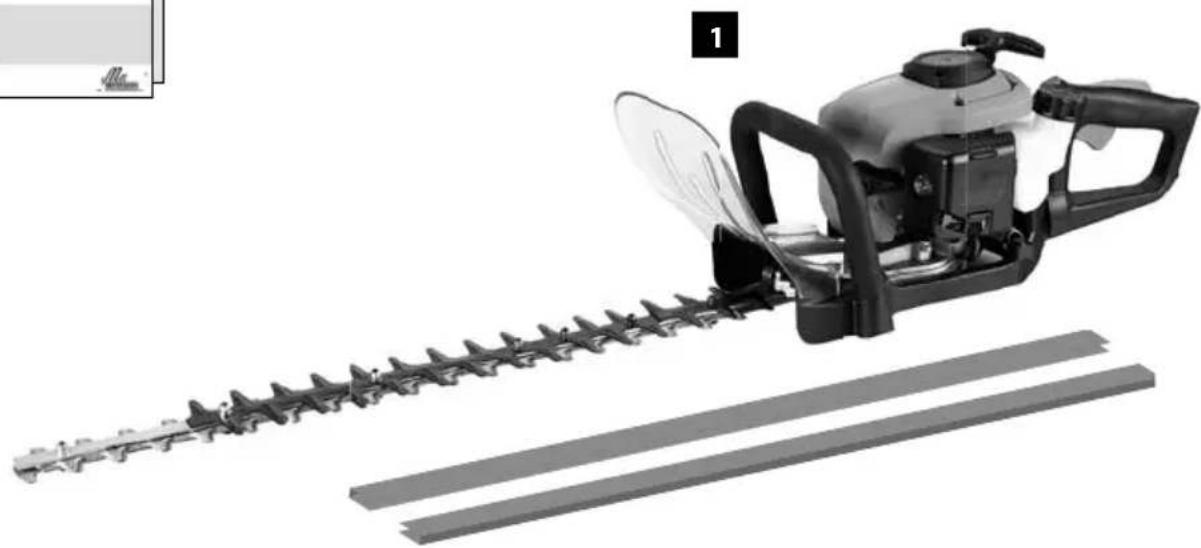

D	Montage	SLO	Montaža
GB	Assembly	HR	Montaža
F	Assemblage	BG	Монтаж
I	Montaggio	RO	Montaj
NL	Montage	BIH	Montaža
CZ	Montáž
SK	Montáž
H	Szerelés

1

2

D	Inbetriebnahme	SLO	Uvedba v pogon
GB	Starting-up the machine	HR	Puštanje u rad
F	mise en service	BG	Пускане в действие
I	Messa in funzione	RO	Punerea în funcțiune
NL	Inbedrijfstelling	BIH	Puštanje u rad
CZ	Uvedení do provozu
SK	Uvedenie do prevádzky
H	Üzembe helyezés

2

3

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik	BIH	Rad
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

3

4-6

D	Arbeitsanweisungen	SLO	Napotki za delo
GB	Work instructions	HR	Radne upute
F	Instructions	BG	Инструкции за експлоатация
I	Istruzioni di lavoro	RO	Instrucțiuni de lucru
NL	Werkaanwijzing	BIH	Radna uputstva
CZ	Pracovní instrukce
SK	Pracovné inštrukcie
H	Munkavégzési utasítások

4

7-8

D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čiščenje / Održavanje
F	Nettoyage / Entretien	BG	Чистене / Поддръжка
I	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
H	Tisztítás / Karbantartás

5

9-12

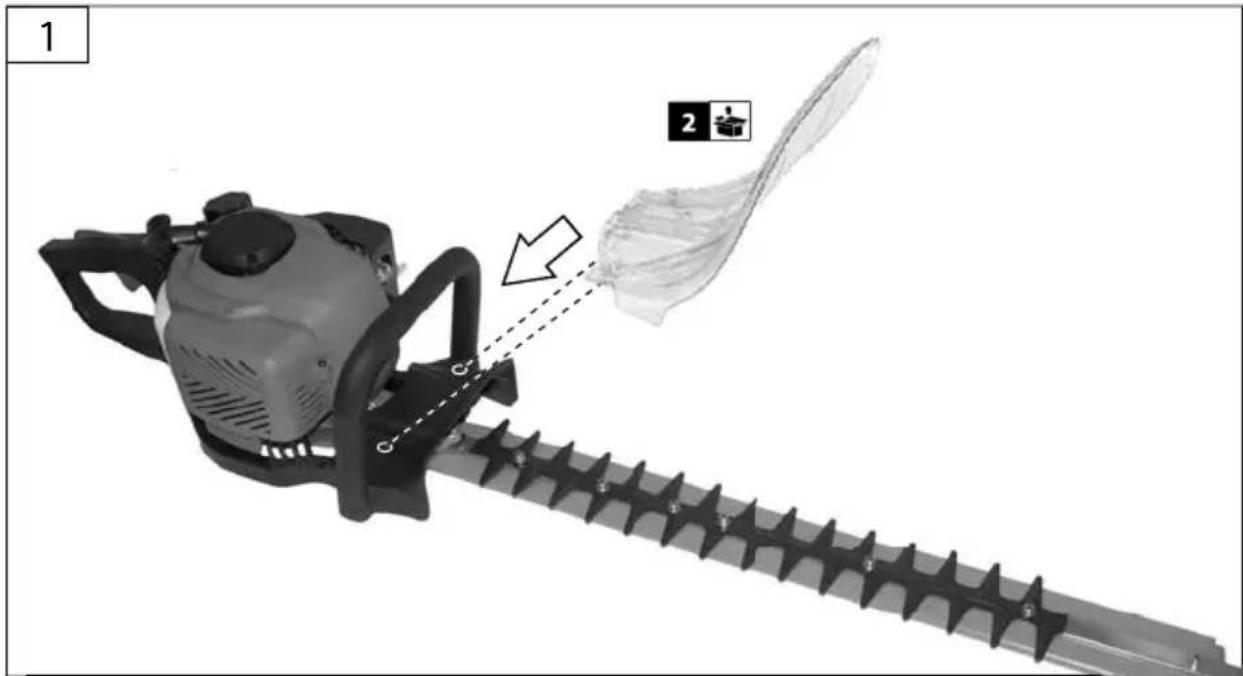

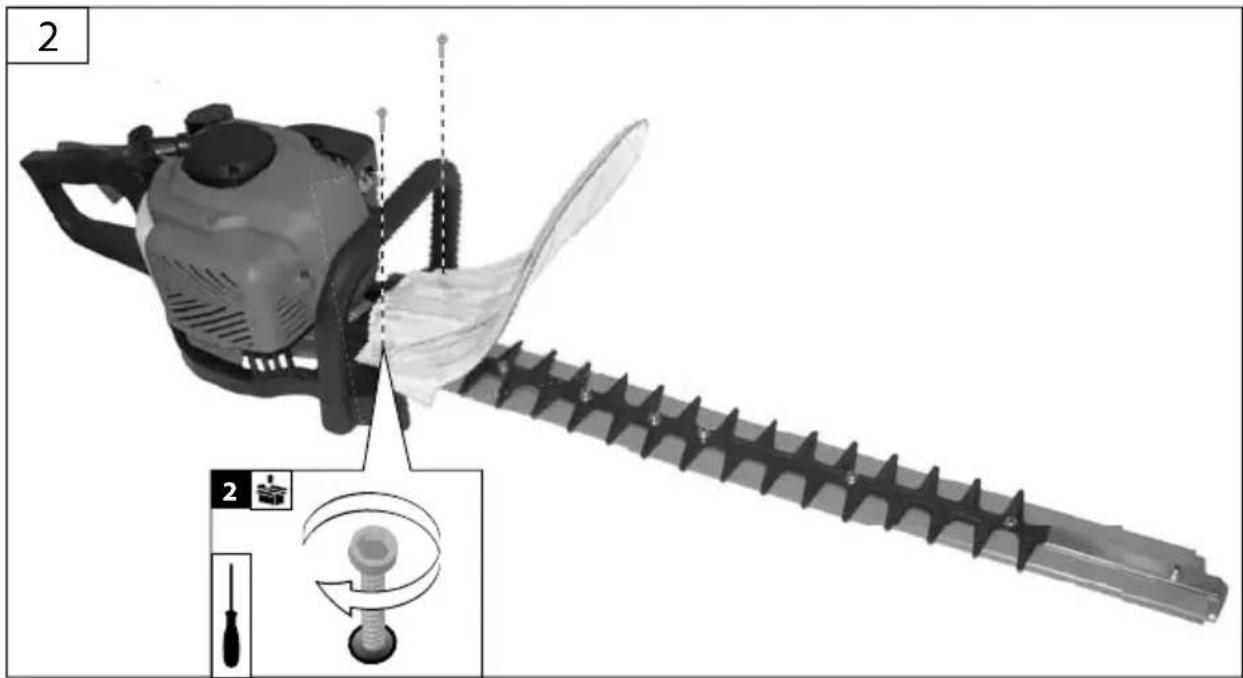

1	D	Montage	SLO	Montaža
	GB	Assembly	HR	Montaža
	F	Assemblage	BG	Монтаж
	I	Montaggio	RO	Montaj
	NL	Montage	BIH	Montaža
	CZ	Montáž
	SK	Montáž
	H	Szerelés

1 2 等

2 2

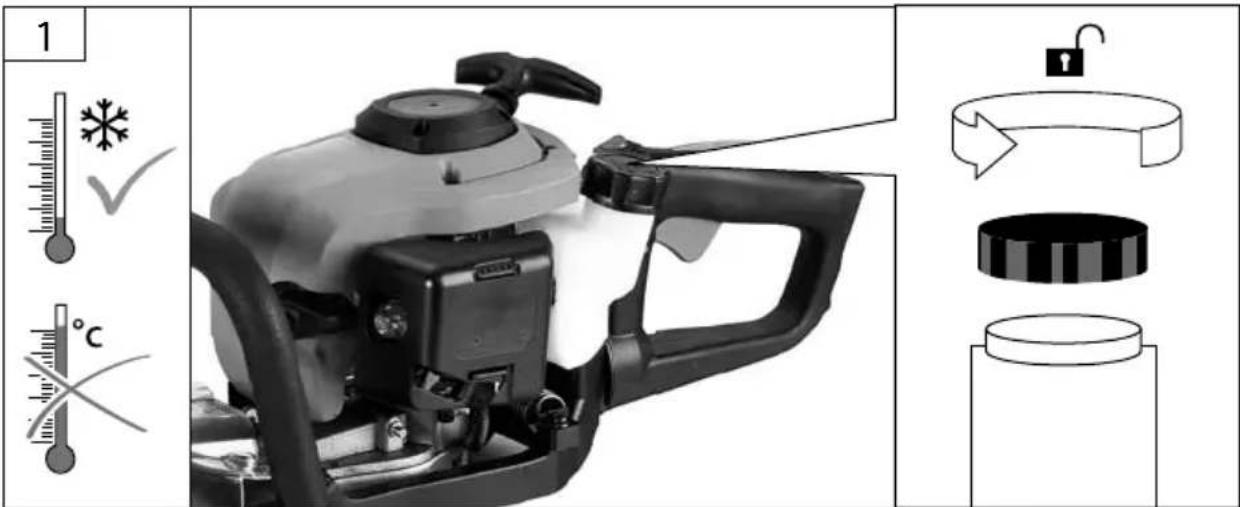

D	Tanken	SLO	Dolivanje goriva
GB	Fuel tank fi lling	HR	Dopunjavanje goriva
F	Ravitaillement	BG	Зареждане
I	Rabbocco	RO	Alimentarea cu combustibil
NL	Tanken	BIH	Dopunjavanje goriva
CZ	Tankování
SK	Tankovanie
H	Tankolás

Six safety and hazard symbols including warning triangle, circuit diagram, cigarette stopper, no-smoking circle, cigarette flame, fire extinguisher, and explosion hazard triangle.

1 ✓ °C

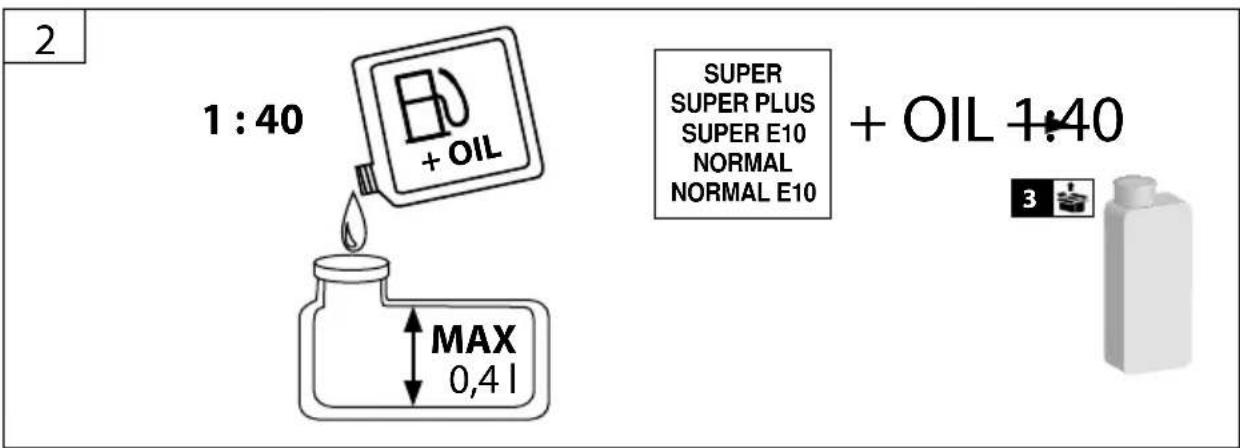

2 1:40 E0 + OIL SUPER SUPER PLUS SUPER E10 NORMAL NORMAL E10 MAX 0,4 l + OIL 1:40 3

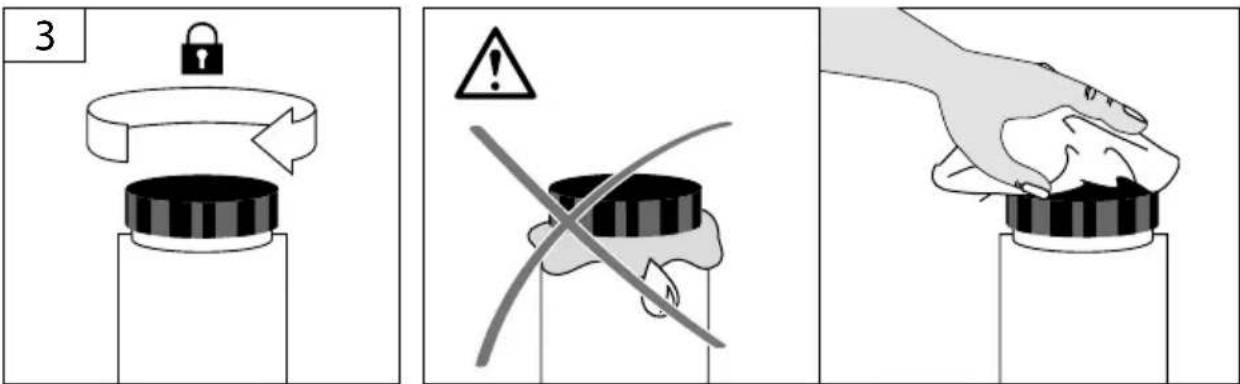

3 1 2 3

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pabota
	I	Esercizio	RO	Functionare
	NL	Gebruik	BIH	Rad
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

Six circular icons representing different occupational and safety symbols (head, helmet, gear, hand, shoe, glove, hand) with a warning triangle symbol (no text or labels)

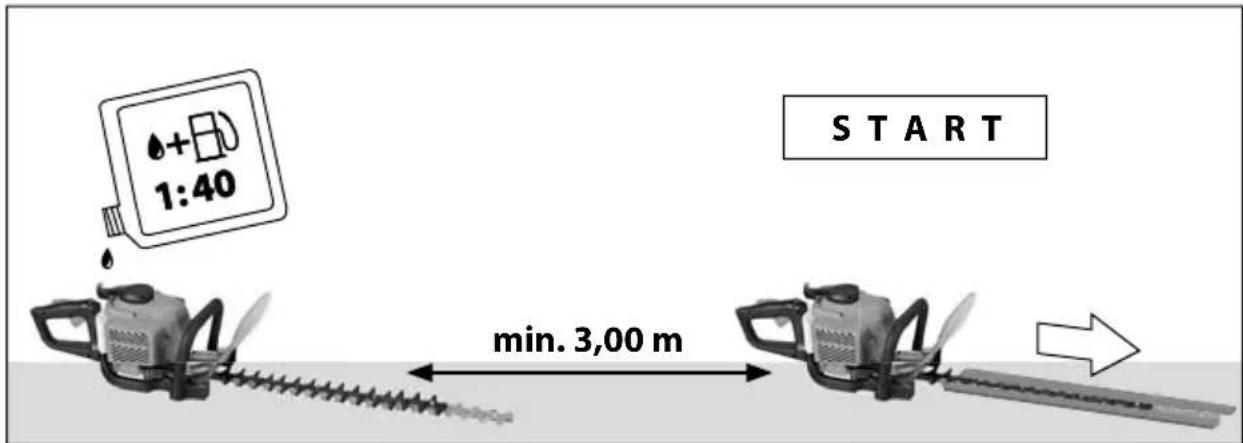

START 1:40 min. 3,00 m

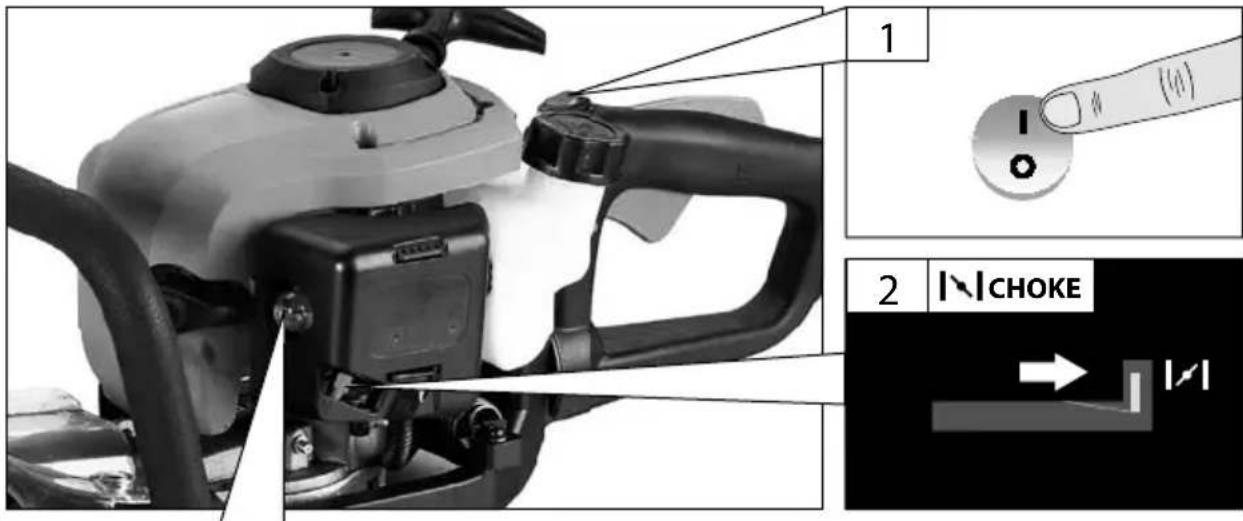

1 2 |CHOKE

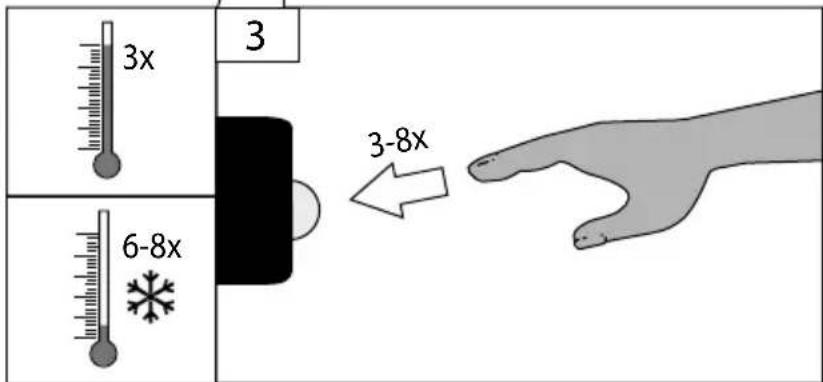

3x 3 6-8x 3-8x

D	Betrieb	SLO	Delovanje
GB	Operation	HR	Rad
F	Fonctionnement	BG	Pábota
I	Esercizio	RO	Functionare
NL	Gebruik	BIH	Rad
CZ	Provoz
SK	Prevádzka
H	Üzemeltetés

Six circular icons representing different occupational and safety symbols (head, helmet, helmet, hand, shoe, glove, hand) with a warning triangle symbol (no text or labels)

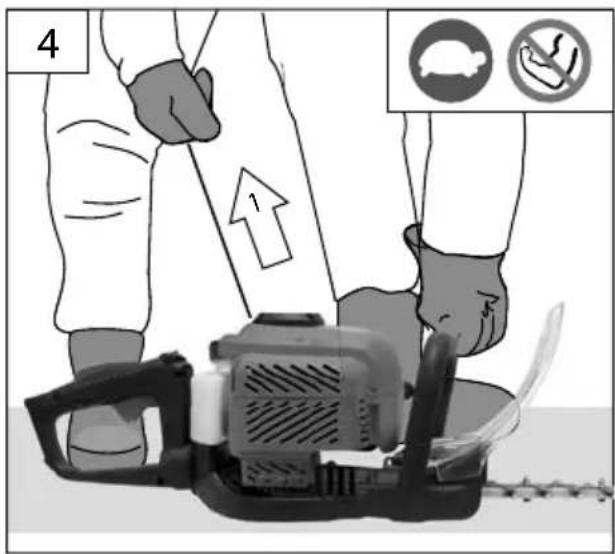

4

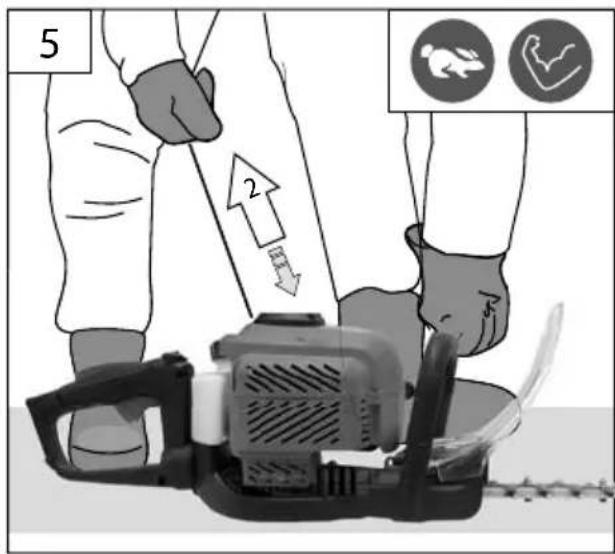

5 2

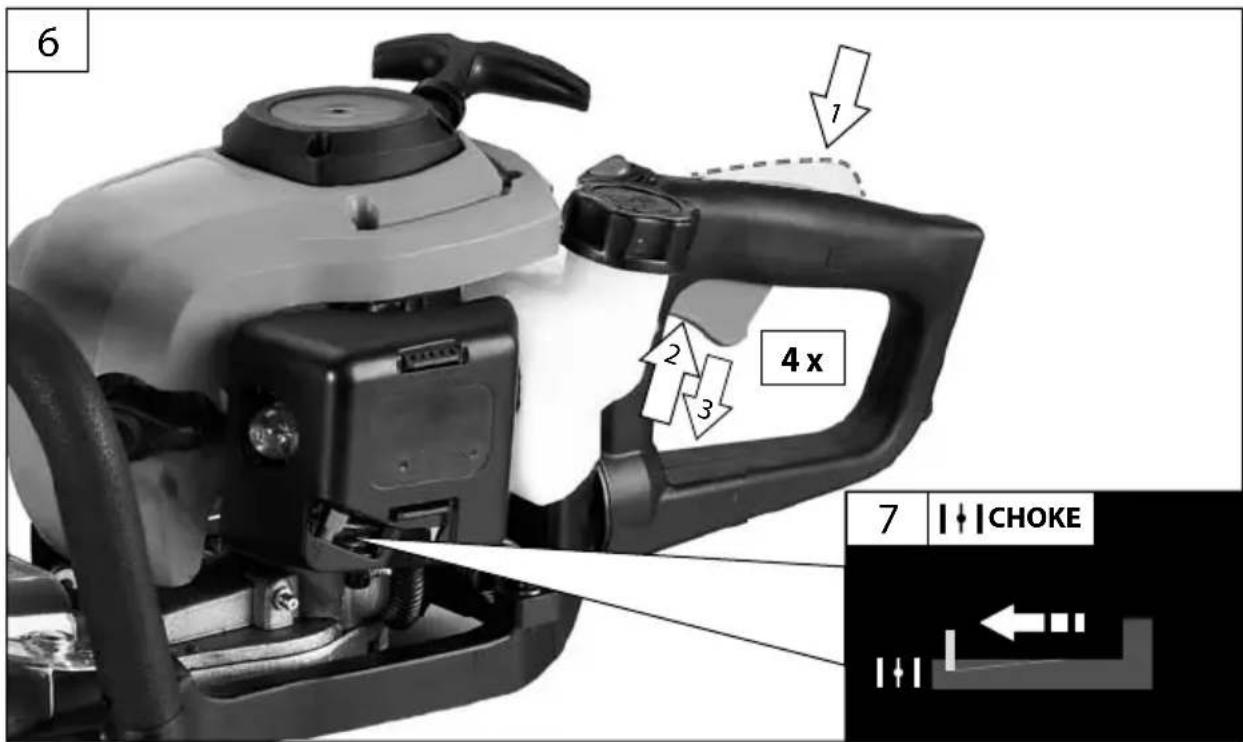

6 1 2 3 4 x 7 | | C H O K E

	D	Betrieb	SLO	Delovanje
	GB	Operation	HR	Rad
	F	Fonctionnement	BG	Pábota
	I	Esercizio	RO	Functionare
	NL	Gebruik	BIH	Rad
	CZ	Provoz
	SK	Prevádzka
	H	Üzemeltetés

Six circular icons representing different occupational and safety symbols (head, helmet, gear, hand, boot, glove) with a warning triangle symbol below (no text or labels)

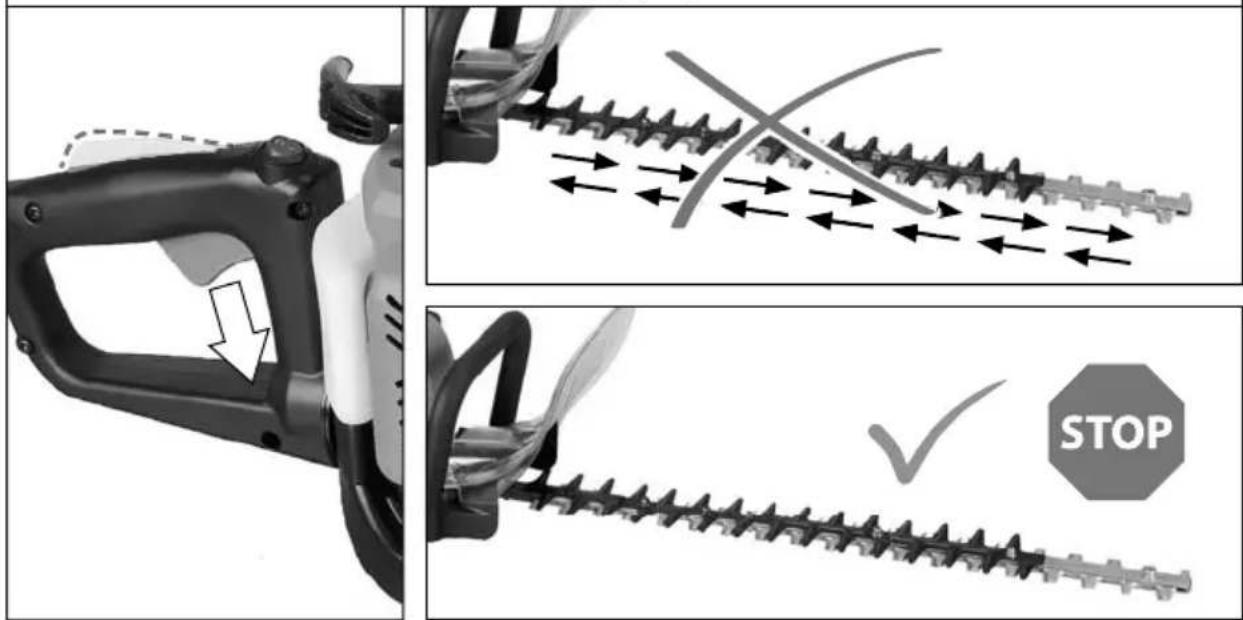

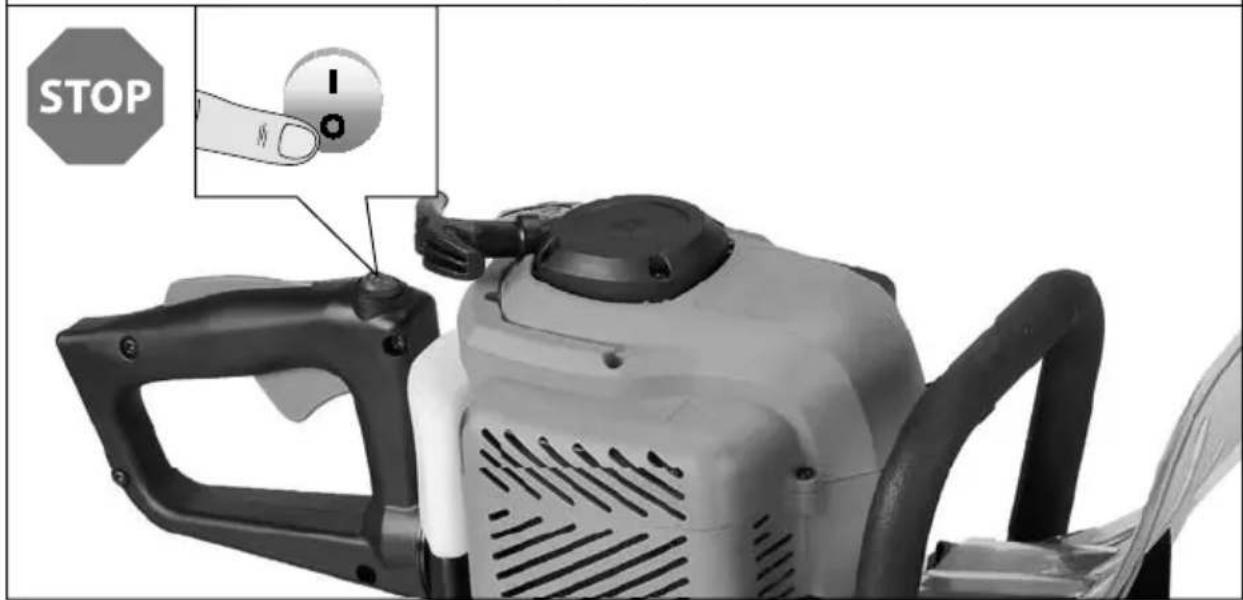

STOP 1

Diagram illustrating how to cut a hatched tool with directional arrows and a stop button, showing mechanical components and process steps.

STOP 2

STOP I O

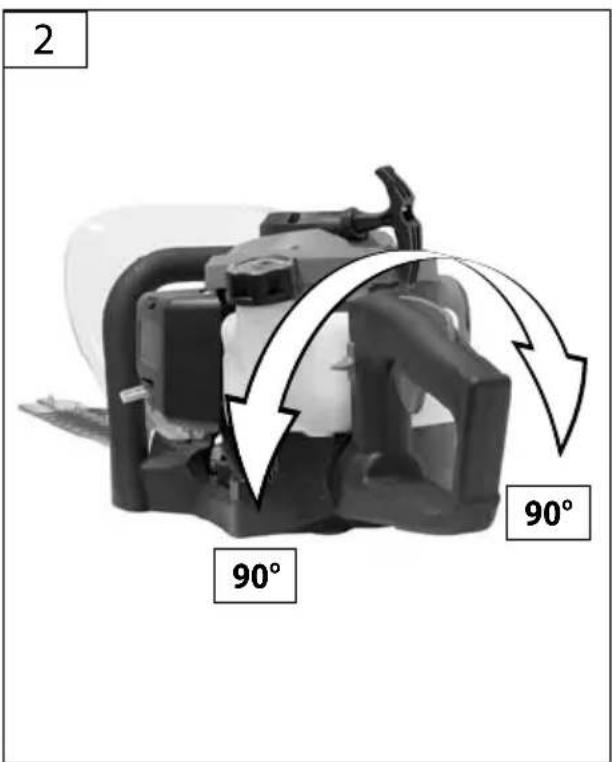

D Griff drehen

SLO Zavrtite ročaj

GB Turn handle

HR Ručku okrenuti

Two-panel black-and-white photo showing a robotic device with a triangular pointer and a hand holding a lock (no text or symbols visible)

2 90° 90° 90°

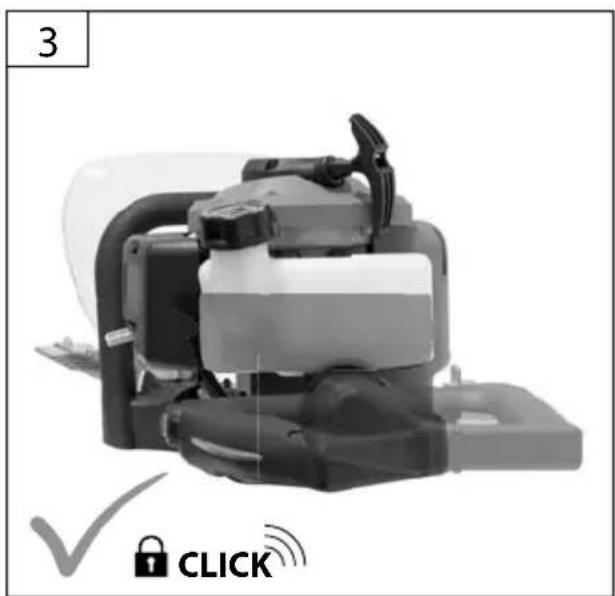

Black and white photo of a mechanical device with a lock icon and 'CLICK' button, no readable text or symbols on the device itself.

Four-panel diagram showing a car seatbelt with warning symbols and checkmark indicators, likely illustrating safety or repair instructions.

4

Close-up of hands using a tool to cut or mark a textured surface with directional arrows (no text or symbols)

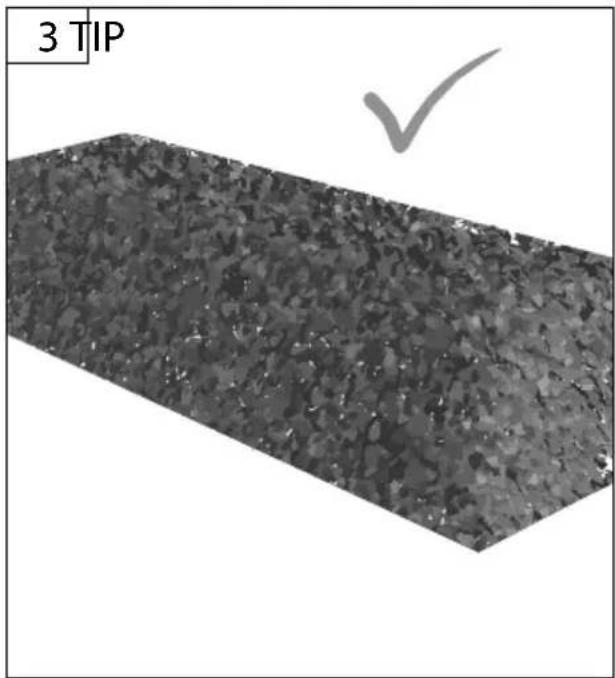

3 TIP

10 cm 100 cm

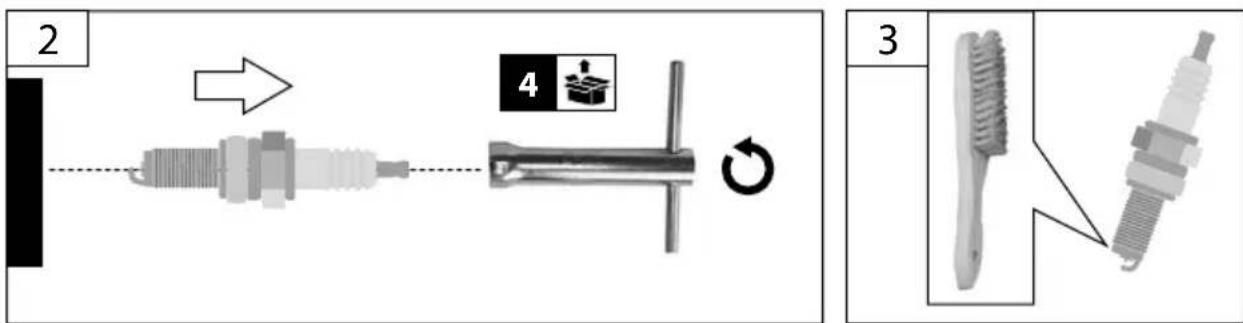

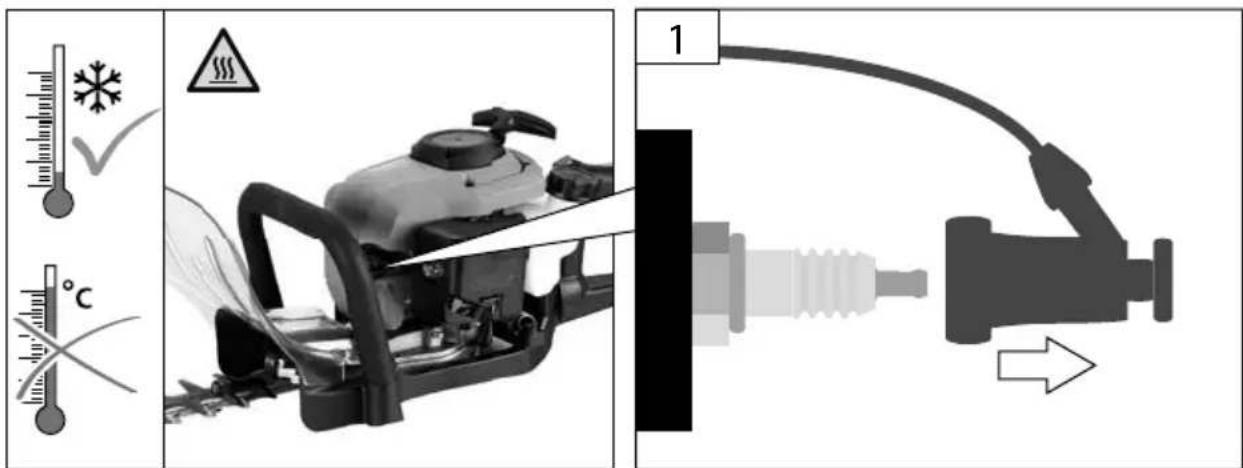

D	Zündkerze	SLO	Vžigalna svečka
GB	Spark plug	HR	Svijeća za paljenje
F	Bougie d'allumage	BG	Запалваща свещ
I	Candela d'accensione	RO	Bujie
NL	Bougie	BIH	Svijeća za paljenje
CZ	Zapalovací svíčka
SK	Zapaľovacia sviečka
H	Gyújtógyertya

Warning symbols including warning triangle, electrical circuit, no-smoking circle, cigarette stopper, and lightning triangle

Technical diagram illustrating a mechanical device with temperature and humidity indicators, including a warning symbol and labeled parts.

Diagram illustrating the assembly process of a spark plug, showing steps from pinning to final product with labeled parts.

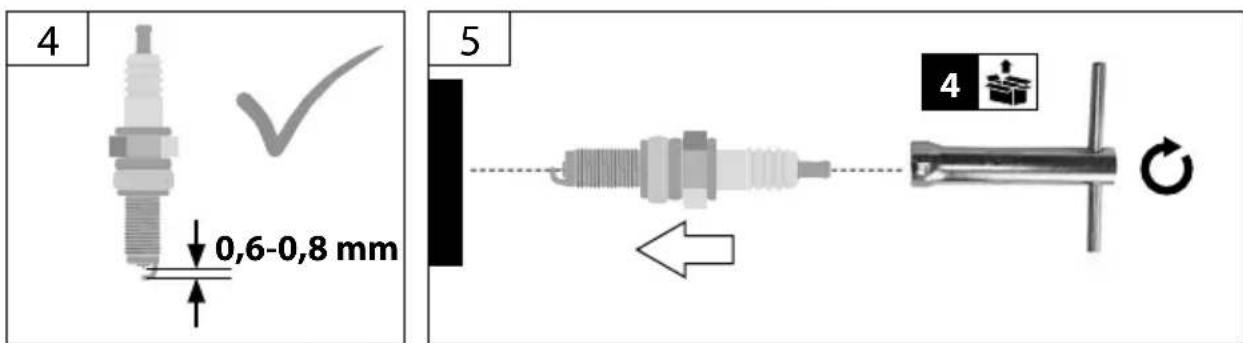

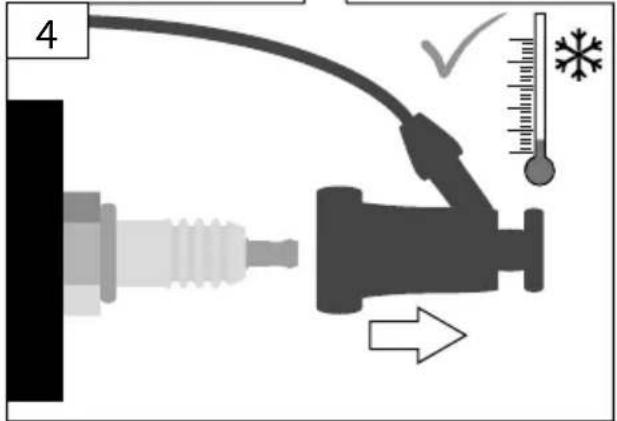

4 0,6-0,8 mm 5 4

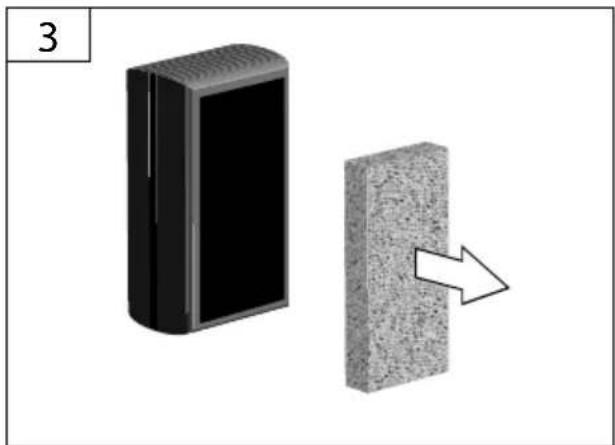

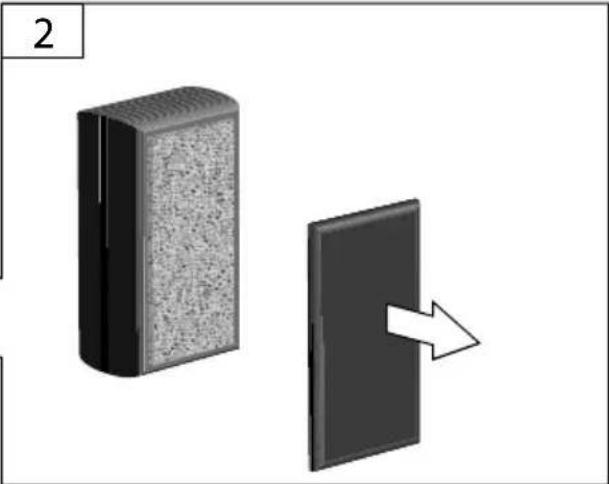

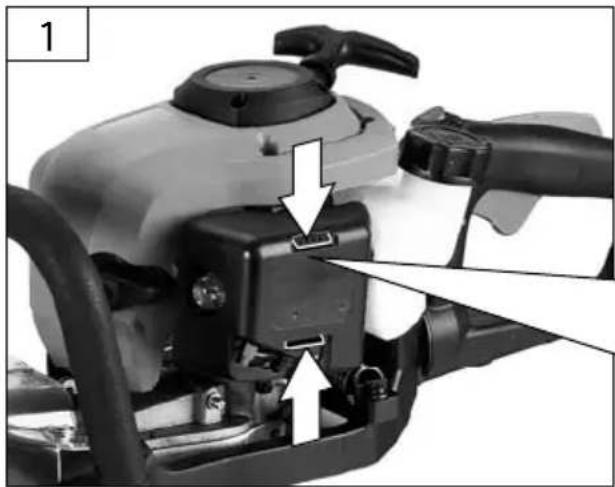

5	D Luftfi Iter	SLO Zračni fi Iter
	GB Air fi Iter	HR Zračni fi Itar
	F Filtre à air	BG Въздушен филтър
	I Filtro d'aria	RO Filtru de aer
	NL Luchtfi Iter	BIH Zračni fi Itar
	CZ Vzduchový fi ltr
	SK Vzduchový fi Iter
	H Levegőszűrő

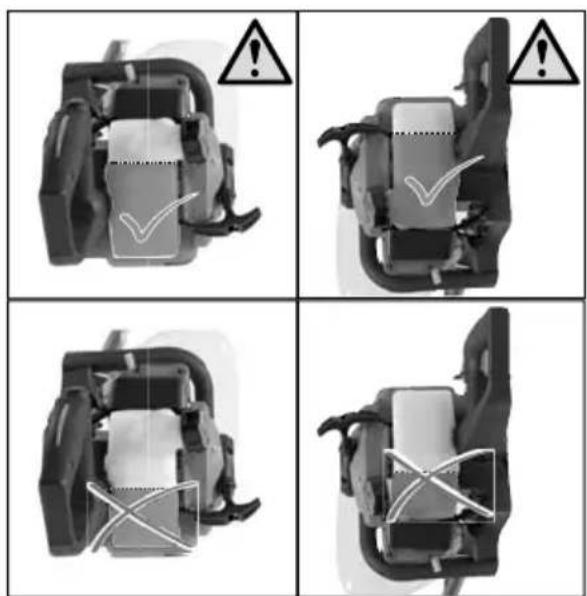

Four safety and hazard symbols: warning triangle, circuit diagram with arrows, open book with crossed-out lines, and no-smoking circle.

Close-up of a mechanical device with arrows indicating parts of the component (no visible text or symbols)

Two 3D blocks: a textured rectangular block and a dark rectangular panel with an arrow indicating direction (no text or symbols)

Two 3D objects: a black rectangular device and a textured stone block, with a white arrow pointing to it (no text or symbols)

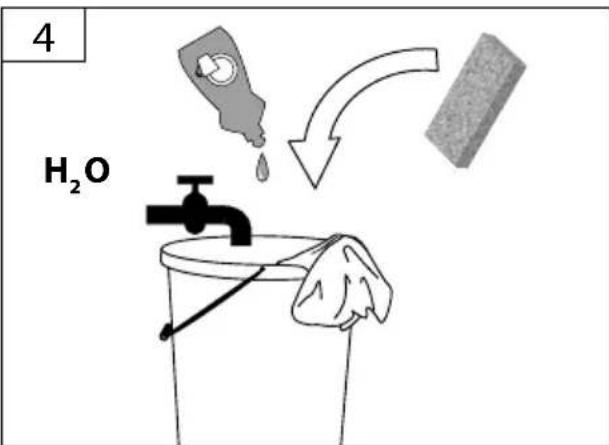

4 H₂O

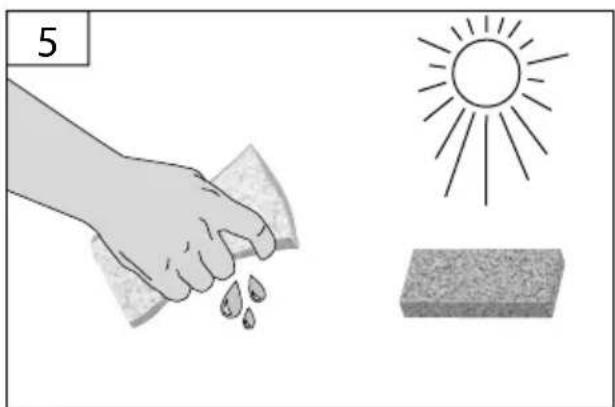

Illustration showing a hand cleaning a surface with a sun icon above and a brick nearby (no text or symbols)

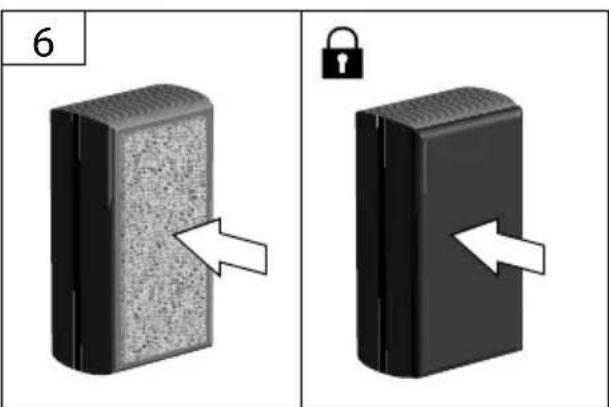

6 Lock

D	Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
GB	Cleaning / Maintenance	HR	Čišćenje / Održavanje
F	Nettoyage / Entretien	BG	Чистене / Поддръжка
I	Pulizia / Manutenzione	RO	Curățare / Întreținere
NL	Schoonmaken / Onderhoud	BIH	Čišćenje / Održavanje
CZ	Čištění / Údržba
SK	Čistenie / Údrzba
H	Tisztítás / Karbantartás

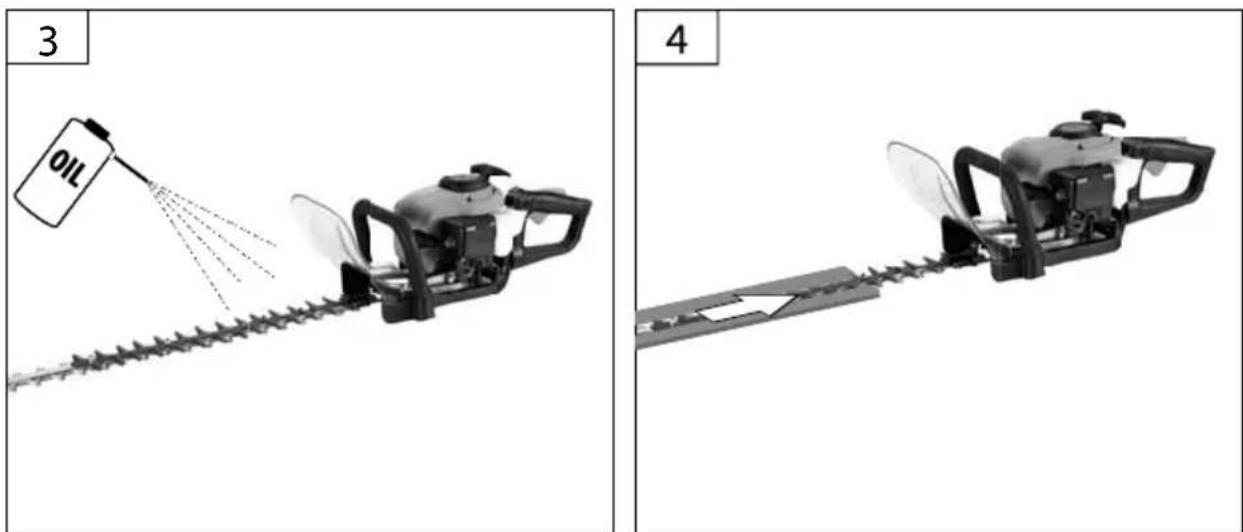

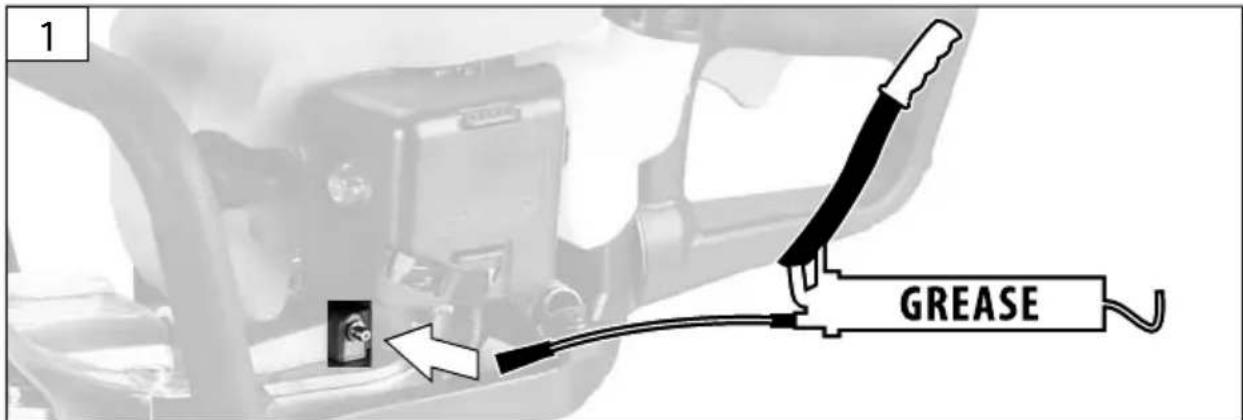

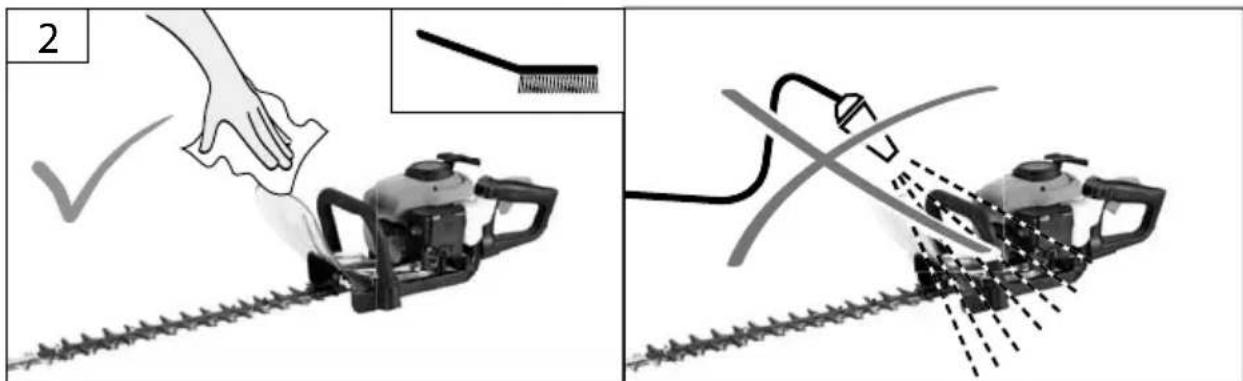

1 GREASE

2

3 OIL 4

5	D Reinigung / Wartung	SLO	Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR	Čiščenje / Održavanje
	F Nettoyage / Entretien	BG	Чистене / Поддръжка
	I Pulizia / Manutenzione	RO	Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BIH	Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	H Tisztítás / Karbantartás

Two crossed-out smoking-related symbols: one with a cigarette and flame, the other with a cigarette and smoke.

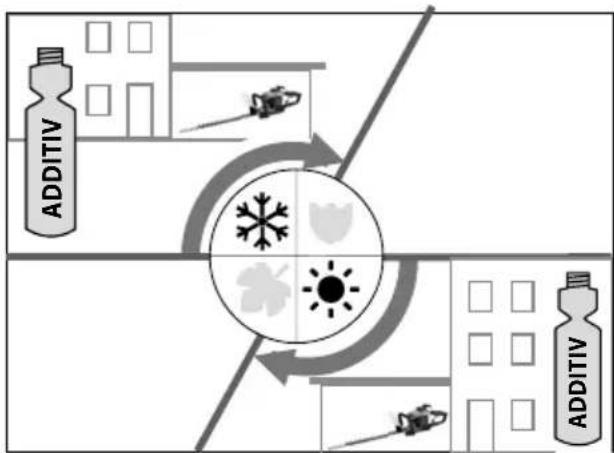

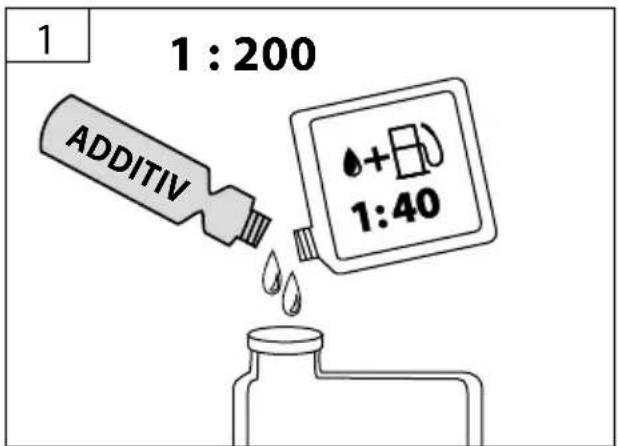

1 : 200 ADDITIV 1:40

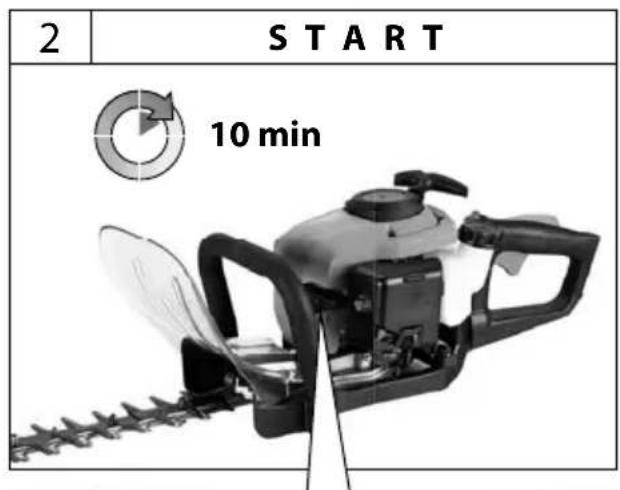

2 START 10 min

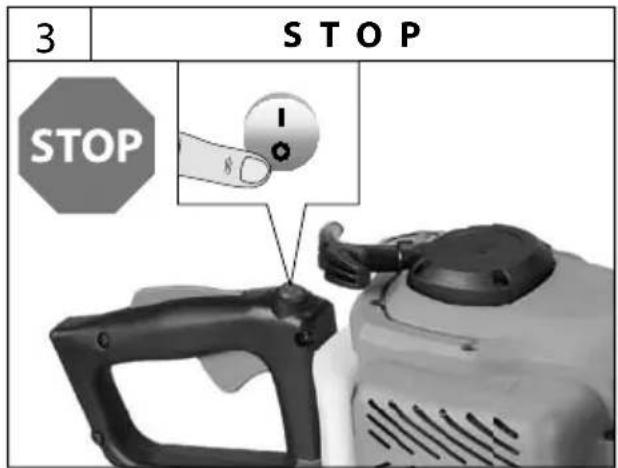

3 STOP STOP

4 √ mmHg *

5 ✓

Technische Daten

WARNING: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

Use the appliance only outside, never use it in confined and bad ventilated areas.

Specified Conditions Of Use

The hedge trimmer has been designed to cut hedges and brushes in private house gardens or hobby gardens.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Comply with the local injury prevention regulations and safety regulations in the work area.

WARNING! Danger of injury! The hedge trimmer may not be used to cut grass, hard brushes and wood or to crush material for composting purposes.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Qualification: Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Residual risks

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

• Cutting injury
• Hearing damage

A longer stay in the immediate vicinity of the running unit may cause hearing damage. Wear ear protectors!

- Damage to health arising from vibrations to hand and arms if the device is used for a long time or if the device is not guided and evaluated properly.

Risk of poisoning!

Exhaust gases, fuel and lubricants are toxic. Inhaling exhaust gases may be fatal!

Do not operate the unit in closed spaces where dangerous carbon monoxide gases may accumulate.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated.

Contacting hot parts of the unit may cause burns.

Let the unit cool down after its operation is over.

Risk of explosion

Petrol and petrol vapours are highly flammable, explosive.

Do not work with the unit in an environment with a risk of explosion where there are flammable liquids, gases or dust.

Refuel the engine only when switched off.

Do not store any fuel near the unit.

Never keep the unit with petrol in the tank inside a building where petrol vapours could get in contact with open fire or sparks.

Risk of fire!

Prohibited smoking and open fire using.

Never operate the unit near highly flammable materials.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

After use, let the unit cool down for at least 5 minutes before refuelling.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

Replace all fuel tank and container caps securely.

Fuel tank to be emptied outdoors only.

Despite the observance of the operating instructions there still may be some hidden residual risks.

Emergency procedure

Conduct a fi rst-aid procedure adequate to the injury and summon qualifi ed medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Warning/caution!

Read the operating instructions to reduce the risk of injury.

Wear eye protective goggles!

Wear ear protectors!

Wear protective helmet!

Wear safety cut through resistant shoes with safety sole and steel toe!

Wear protective gloves!

Slow

Quickly

Use of crane

Switch the engine off and remove the socket plug before any work on the engine.

Warning against cutting injuries

Warning against thrown-off items

Keep bystanders in safe distance from the appliance (at least 10 m)

Warning against hot surfaces! Danger of burns!

Warning against dangerous voltage

CAUTION! Risk of explosion

Risk of poisoning! Use the appliance only outside, never use it in confined and bad ventilated areas.

Protect against humidity. Never expose tool to rain.

Prohibited smoking and open fire using.

Switch off the engine before any work on it.

CE marking

Protect against humidity

This side up

Safety Instructions

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 10 m.

Wear suitable work clothing such as sturdy shoes with non-slip sole, safety glasses and hearing protection!

Do not wear loose clothing or jewels. Hear, clothing and gloves must be out of reach of moving parts as they could get caught by the rotating parts. Do not use the appliance when barefooted or in open sandals.

When knives are blocked, switch the appliance immediately off and remove the blocked object.

Before work, check the area for any hidden items such as wire fences.

Electrical hazard, keep at least 10 m distance away from electrical power lines.

When working, keep the appliance firmly with both hands and with a distance from your body.

During appliance operation, it is necessary to take a safe and firm posture, especially when steps or a ladder are being used.

Keep all parts of the body in safe distance from the knife. Do not try to remove the material being cut or hold material to be cut when the knife is running. Jammed cuttings to be removed only when the machine is off. A moment of inattention when using the hedge trimmer may result in serious injuries.

Carry the hedge trimmer by the handle when the knife is off. Fit the protective cover whenever the hedge trimmer is to be transported or stored.

Careful appliance handling reduces the risk of injury by knife.

Hold the power tools by the insulated handles as the cutting knife may come into contact with hidden cables/lines. Contact of the cutting knife with a live conductor may bring the metal parts of the appliance under voltage and cause electric shock.

Provide adequate lighting or good lighting conditions when working with the machine.

⚠ Be careful when going backwards – risk of tripping!

Do not run! Immediately remove cut branches/knots from the work area to prevent injuries. Watch out for falling branches!

The ON/OFF switch and safety switch must not be locked.

Turn the appliance on only when in a normal working position.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Fuel mix

Caution! Correct mix ratio must be provided in respect of fuel.

Caution! Do not use old fuel mix as it gets segregated over time and engine lubrication will no longer be guaranteed.

Do not keep the mix in the tank for a long time - weeks or months as there is a risk of segregation.

High-quality 2-stroke oil to be used only to prevent damage to the combustion engine.

Damage resulting from a failure to respect any of the points given above is not covered by warranty! The same applies to damage arising from unit overloading!

95307 → 12

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and appliance has cooled down.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Use only original accessories and original spare parts. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Apply environment-friendly oil to all moving parts.

After each use, clean the cutter bar carefully. Wipe it with a cloth immersed in oil or apply metal treatment spray on it.

Blunt, bent or damaged knives must be immediately replaced.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

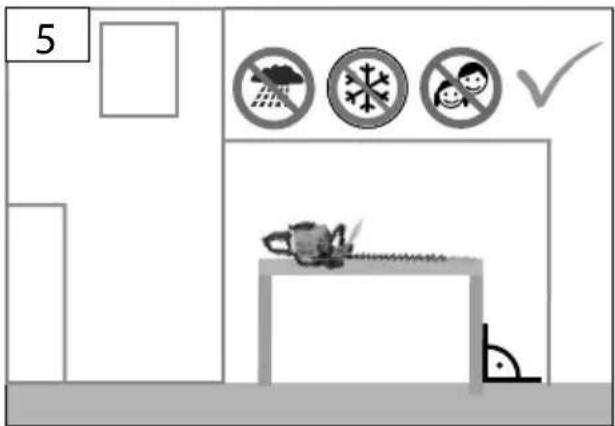

Machine to be stored in a dry place.

Disposal

The disposal instructions are based on the icons placed on the appliance or its package.

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children.

Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Inspection and maintenance plan

Regular servicing period Before any		start-up	After every take out of service	After 1 month	After 12 months	After 24 months
Air fi Iter Inspection		√
	Change				√
Spark plug Inspection Clean					√
	Change					√
Knife/cutter bar	Clean		√
	Lubrication		√
	Lubrication				√

Defects searching

Defect	Cause	Removal
The motor does not start	Empty fuel tank/Lack of fuel	Add some fuel → 3
	Choke has not been used	Use the choke → 4
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm → 9
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refi t it. → 9
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big.	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm → 9
	Dirty air fi liter	Clean or replace the air fi lter→ 10
	Bad fuel/oil mix (too much oil)	Add some fuel → 3

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

2006/95/EC 2004/108/EC

2009/105/EC 1907/2006/EC

□ 2011/65/EC ROHS 2009/142/EC

89/686/EEC (PPE) 1935/2004/EC

2006/42/EC

Annex IV

Notified Body: No:

2010/26/EC

Name:

Adress:

Type Ex. Cert.-No.:

97/68/EC_2010/26/EC

Emission No.: e11*97/68SA*2010/26*2904*00

2000/14/EC_2005/88/EC
