Product type	Unidirectional vibratory plate
Brand	Altrad
Model	BELLE PCEL 320X
Engine	Honda GXR120
Engine power	3.1 hp / 2.3 kW at 3600 rpm
Operating dimensions (L x W x H)	720 x 320 x 980 mm
Length in storage	830 mm
Height in storage	545 mm
Weight	50 kg
Centrifugal force	11 kN
Vibration frequency	101 Hz
Max. travel speed	23 m/min
Compaction force	425 kg/m²
Sound power level	105 dB(A)
Vibration level (3 axes)	4.43 m/s²
Operating time (autonomy)	5.6 hours
Fuel tank capacity	2.0 liters (unleaded)
Engine oil type	SAE 10W30
Engine oil quantity	0.6 liter
Vibrator oil type	Turbine Oil 32
Vibrator oil quantity	0.22 liter
Spark plug	BM4A or BMR4A (gap 0.6-0.7 mm)
Maintenance	Check engine oil, air filter, belt; change engine oil after 20h then 100h; change vibrator oil after 100h then 500h
Safety	Mandatory PPE (goggles, gloves, ear muffs, steel-toed shoes); do not use in confined space; flammable fuel

Frequently Asked Questions - BELLE PCEL 320X ALTRAD

What type of fuel to use for the BELLE PCEL 320X vibratory plate?

Use unleaded gasoline. The tank has a capacity of 2.0 liters. Do not smoke and turn off the engine before refueling.

What engine oil is recommended and how much?

The recommended engine oil is SAE 10W30, with a quantity of 0.6 liter. Check the level using the dipstick.

How to start the vibratory plate when cold?

Open the fuel valve, pull the choke to the right, turn the switch to I, set the throttle to idle, then pull the recoil starter. Once the engine is running, push the choke back gradually.

How to stop the engine safely?

Set the throttle to idle, let it run for 2 minutes, then turn the switch to 0 (counterclockwise) and close the fuel valve.

What is the compaction force of this plate?

The centrifugal force is 11 kN, corresponding to a compaction force of 425 kg/m². It is suitable for granular and bituminous materials.

What PPE must I wear during use?

It is mandatory to wear safety glasses, gloves, ear muffs, and steel-toed shoes. Tie back long hair and remove jewelry.

How often should the vibrator oil be changed?

Change the vibrator housing oil after the first 100 hours of operation, then every 500 hours thereafter. Use Turbine Oil 32 (0.22 liter).

What to do if the engine does not start?

Check the fuel level, the valve opening, the switch set to I, and the condition of the spark plug. If the engine is flooded, open the choke, full throttle, and pull the starter. If the problem persists, contact technical service.

Can I use the vibratory plate on a slope?

Yes, but with caution. Work up and down the slope, never across. Use a rope attached to a low point on the frame to help control movement.

Where to find spare parts for this plate?

Spare parts are available from authorized Altrad Belle dealers or on the website www.Altrad-Belle.com. Use only genuine Altrad parts to preserve the warranty.

USER MANUAL BELLE PCEL 320X ALTRAD

Technical line drawing of a mechanical device with a handle and control panel (no text or symbols)

2

UKCA Declaration of Conformity

3 - 14

EC Declaration of Conformity

GB Operators Manual
US Operators Manual
F Manuel De L'Opérateur
E Manual del Operador
DK Betjeningsvejledning
D Bedienungshandbuch
① Manuale Dell'Operatore
s Bruksanvisning
SF Käyttöohje
PL Instrukcja Obstugi
RUS Руководство для оператора
EST Kasutusjuhend
LV Lietotāja rokasgrāmata
LT Naudojimo Instrukcija

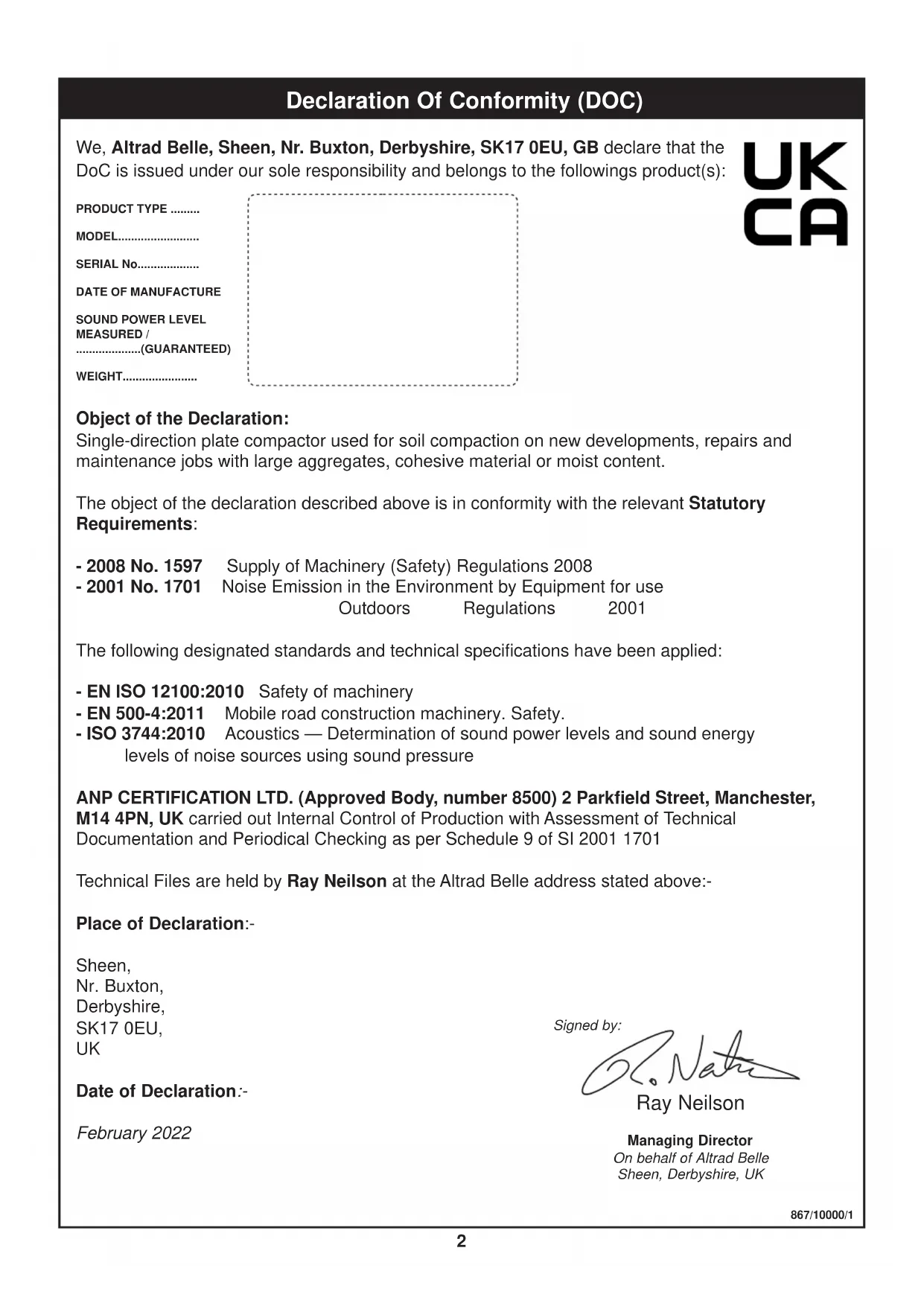

Declaration Of Conformity (DOC)

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

UK CA

PRODUCT TYPE ......

MODEL......

SERIAL No......

DATE OF MANUFACTURE

SOUND POWER LEVEL MEASURED / ........(GUARANTEED)

WEIGHT......

Object of the Declaration:

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

The object of the declaration described above is in conformity with the relevant Statutory Requirements:

- 2008 No. 1597 Supply of Machinery (Safety) Regulations 2008

- 2001 No. 1701 Noise Emission in the Environment by Equipment for use

Outdoors

Regulations

2001

The following designated standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

ANP CERTIFICATION LTD. (Approved Body, number 8500) 2 Parkfield Street, Manchester, M14 4PN, UK carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Schedule 9 of SI 2001 1701

Technical Files are held by Ray Neilson at the Altrad Belle address stated above:-

Place of Declaration:-

Sheen,

Nr. Buxton,

Derbyshire,

SK17 0EU,

UK

Date of Declaration:-

February 2022

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle

Sheen, Derbyshire, UK

We, Altrad Belle, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB declare that the DoC is issued under our sole responsibility and belongs to the followings product(s):

CE

PRODUCT TYPE ......

MODEL......

SERIAL No......

DATE OF MANUFACTURE.....

SOUND POWER LEVEL MEASURED / ......(GUARANTEED)

WEIGHT......

Object of the Declaration:

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

The object of the declaration described above is in conformity with the relevant Union Harmonisation Legislation:

- 2006/42/EC New machinery directive

- 2000/14/EC Noise - equipment for use outdoors

The following harmonised standards and technical specifications have been applied:

- EN ISO 12100:2010 Safety of machinery

- EN 500-4:2011 Mobile road construction machinery. Safety.

- ISO 3744:2010 Acoustics — Determination of sound power levels and sound energy levels of noise sources using sound pressure

VINÇOTTE nv/sa (NB0026) carried out Internal Control of Production with Assessment of Technical Documentation and Periodical Checking as per Annex VI of 2000/14/EC

Technical Files are held by Hugues Menager at the following address:-

Altrad (Group Holding), 125 Rue du Mas Carbonnier, 34000, Montpellier, France.

Place of Declaration:-

Sheen,

Nr. Buxton,

Derbyshire,

SK17 0EU,

UK

Date of Declaration:-

April 2021

Signed by:

Ray Neilson

Managing Director

On behalf of Altrad Belle

Sheen, Derbyshire, UK

Single-direction plate compactor used for soil compaction on new developments, repairs and maintenance jobs with large aggregates, cohesive material or moist content.

- 2006/42/EC Directive relative aux machines

Ray Neilson

Director General

Por Altrad Belle

Sheen, Derbyshire, Reino Unido

O. Nath Ray Neilson

O. Nath Ray Neilson

Ray Neilson

Sheen, Derbyshire, UK"

866/10000/0_PL

This manual has been written to help you operate and service the 'PCEL 320X 320X' Plate compactor safely. This manual is intended for dealers and operators of the 'PCEL 320X' Plate compactor.

Foreword

The 'Machine Description' section helps you to familiarise yourself with the machine's layout and controls.

The ‘Environment’ section gives instructions on how to handle the recycling of discarded apparatus in an environmentally friendly way.

The ‘General Safety’ and ‘Health and Safety’ sections explain how to use the machine to ensure your safety and the safety of the general public.

The 'Operating Instructions' section helps you with the setting up and use of the machine.

The 'Trouble Shooting' guide helps you if you have a problem with your machine.

The 'Service & Maintenance' section is to help you with the general maintenance and servicing of your machine.

The 'Warranty' Section details the nature of the warranty cover and the claims procedure.

Directives with regard to the notations.

Text in this manual to which special attention must be paid are shown in the following way:

CAUTION

The product can be at risk. The machine or yourself can be damaged or injured if procedures are not carried out in the correct way.

WARNING

The life of the operator can be at risk.

WARNING

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

KNOW how to safely use the unit's controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the machine off before you switch on, in case you get into difficulty.)

ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): [phone]

Contents

How to use this manual....10

Warning 10

Machine Description....11

Technical Data....11

Environment 12

Reasons For compaction 12

Compaction Specification....12

Applications 13

Safety Instructions....13

Health and Safety....14

Pre-Start Checks....14

Operating Instructions 14 - 15

Trouble Shooting Guide ....15

Service & Maintenance 16

Warning Decals 16

Warranty 17

Replacement Parts....17

UKCA Declaration of Conformity 2

EC Declaration of Conformity....3

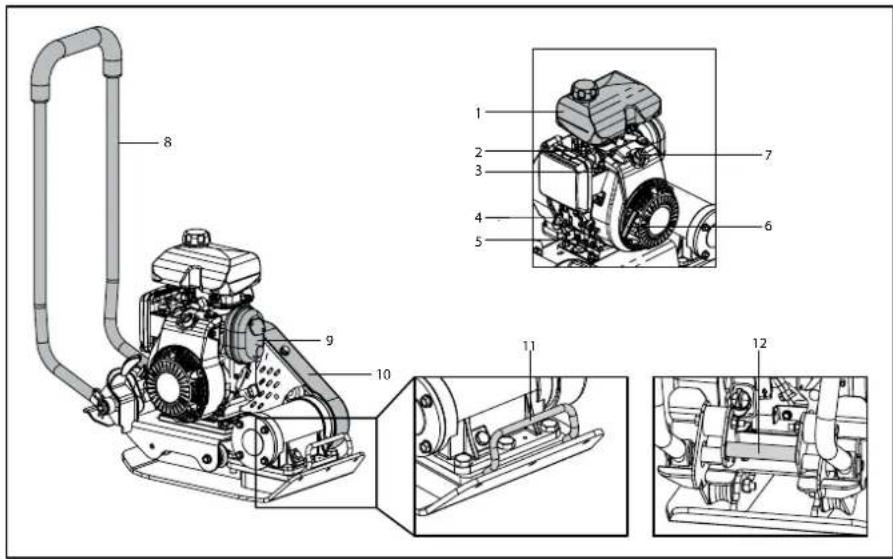

Machine Description

Technical diagram of a mechanical device with numbered parts and exploded views, likely for assembly or maintenance instructions.

Machine type:

Single Direction Plate Compactor

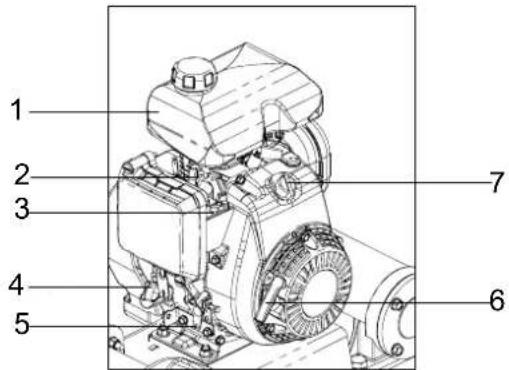

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch
8. Operating Handle,
9. Exhaust,
10. Belt Guard,
11. Hand Lifting Point
12. Hand Lifting Point (Strut)

DO NOT use a Mechanical Hoist on the Hand

Lifting Points (No's 11 & 12)

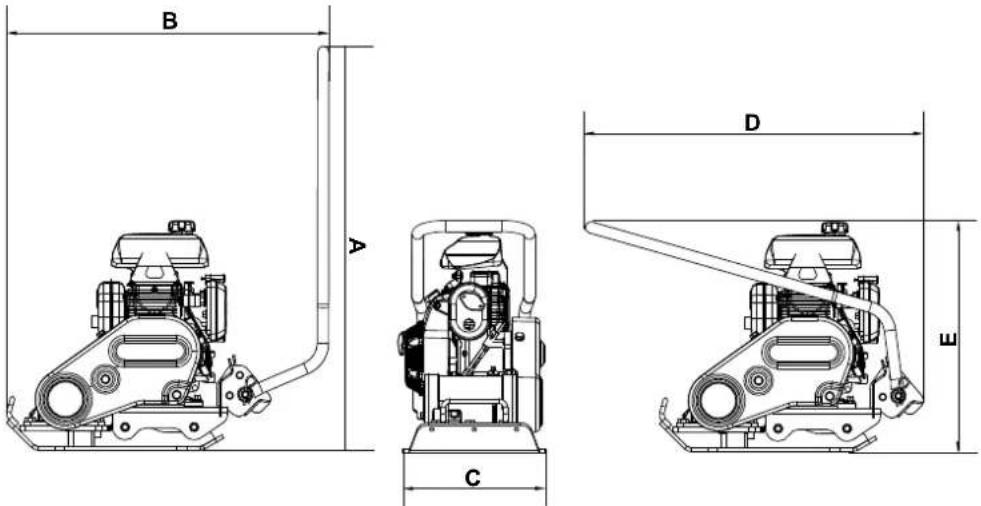

Technical Data

B A C D E

Model PCEL 320X
A - Height - Operation (mm) 980
B - Length - Operation (mm) 720
C - Width (mm) 320
D - Length - Storage (mm) 830
E - Height - Storage (mm) 545
Engine Honda GXR120
Engine Power (Hp/kW) 3.1/2.3 @ 3600Rpm
Weight (kg) 50
Vibrator Force (kN)	11
Frequency (Hz)	101
Maximum Travel Speed (m/min)	23
Compaction Force (kg/m2)	425
3 Axis Vibration* (m/sec2)	4.43
Usage Time (Hrs)	5.6
Sound Power Level (dB(A))	105

* Minimum level to EN500 Part 4

Safe Disposal.

Instructions for the protection of the environment. The machine contains valuable materials. Take the discarded apparatus and accessories to the relevant recycling facilities.

Component	Material
Operator Handle Steel
Hand Grip Rubber
Base Plate Steel
Eccentric weights Steel
Petrol engine housing Aluminium
Petrol engine covers Synthetic material
Various parts Steel & Aluminium

Reasons For Compaction

Soil, which has been disturbed or new infill, subbase and blacktop, will have small voids or air pockets which, if not compacted, will lead to one or more problems occurring.

1. As traffic crosses the surface of an uncompacted area, the material is compressed. This leads to subsidence of the top surface as the material fills the voids.
2. A similar situation occurs with static loads on uncompacted ground. The load (e.g. a building) will sink.
3. Materials with voids are more susceptible to water seepage, leading to erosion. Water ingress may also cause the soil to expand during freezing temperatures and contract during dry spells. Expansion and contraction is a major cause of damage to building foundations and normally leads to the structure requiring underpinning.

Compaction increases the density of the material and therefore increases its load bearing capacity. Reduces air voids and therefore reduces the risk of subsidence, expansion and contraction, due to ingress of water.

Compaction Specification

Various methods have been employed in the past to specify the compaction required for various applications. The factors to consider are, material properties, layer thickness, pressure applied, vibration and number of passess. Greater understanding of how compaction works has lead to new compaction specifications being introduced. The most up to date specification is part of the U.K.'s NRSWA (New Roads & Street Works Act). Civil Engineers are now adopting these specifications to ensure good compaction for all site work.

NRSWA (HAUC specification).

The specification was compiled by HAUC (Highways Authorities & Utilities Committee). The 'New Roads and Street Works Act 1991, set a new standard for road repairs and reinstatements in the UK. It covers materials, methods, equipment and safety when carrying out reinstatements on roads and footways. The reason for the act is to ensure repairs and reinstatements are carried out to a higher standard and ultimately last longer. This in turn will reduce the need for costly remedial work and reduce traffic delays.

There are two categories specified for plate compactors.

1. 1400 to 1800kg/m ^2 2. Over 1800kg/m ^2

These figures relate to the static pressure applied by the machine

Applications

Applications/materials fall into three categories:

1. Cohesive materials (less than 20% granular) e.g clay, silt & heavy soils.
2. Granular materials (more than 20% granular) e.g hard core, sand & light soils.
3. Bituminous materials e.g asphalt (tarmac), cold lay (bitumin emulsion products).

The chart shows the HAUC specifications for layer depth and number of passes for Dual Force' plates. If standard machines are used, optimum compaction can not be guaranteed, however, if layer depths are reduced and number of passes increased, results can be improved.

Moisture content of cohesive & granular materials is critical to effective compaction. If granular material is too dry it will flow around the plate instead of compacting. If the moisture content is too high the material may dry out after compaction and shrinkage will occur.

1400 -1800 kg/m2		COMPACTION PASSESS REQUIRED PER LAYER OF COMPACTED THICKNESS UP TO.
40MM 60MM 80MM 100MM 150MM 200MM
Cohesive Materials**		-*	-*	-*	NP	NP	NP
Granular Materials		-*	-*	-*	5	NP	NP
Bituminous		6	NP	NP	NP	NP	-

* Usually placed in 100mm minimum layer so not specified by HAUC.
** The nature of cohesive materials makes plate compaction difficult. Optimum compaction is not guaranteed and not recommended by HAUC.

Safety Instructions

For your own personal protection and for the safety of those around you, please read and ensure you fully understand the following safety information. It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the 'PCEL 320X' Plate compactor, consult your supervisor or Altrad Belle.

CAUTION

Improper maintenance can be hazardous. Read and Understand this section before you perform any maintenance, service or repairs.

• This equipment is heavy and must not be lifted single-handedly, either GET HELP or use suitable lifting equipment.
• Cordon off the work area and keep members of the public and unauthorized personnel at a safe distance.
• Personal Protective Equipment (PPE) must be worn by the operator whenever this equipment is being used (see Health & Safety).
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you get into difficulty.
• Always switch OFF the engine before transporting, moving it around the site or servicing it.
- During use the engine becomes very hot, allow the engine to cool before touching it. Never leave the engine running and unattended.
- Never remove or tamper with any guards fitted, they are there for your protection. Always check guards for condition and security, if any are damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• Do not operate the MACHINE when you are ill, feeling tired, or when under the influence of alcohol or drugs.

CAUTION

Fuel is flammable. It may cause injury and property damage. Shut down the engine, extinguish all open flames and do not smoke while filling the fuel tank. Always wipe up any spilled fuel.

Fuel Safety.

• Before refuelling, switch off the engine and allow it to cool.
- When refuelling, DO NOT smoke or allow naked flames in the area.
• Spilt fuel must be made safe immediately, using sand. If fuel is spilt on your clothes, change them.
• Store fuel in an approved, purpose made container away from heat and ignition sources.

Vibration

Some vibration from the trowelling operation is transmitted through the handle to the operator's hands. Refer to specifications & technical data for vibration levels and usage times (recommended maximum daily exposure time). DO NOT exceed the maximum usage times.

PPE (Personal Protective Equipment).

Suitable PPE must be worn when using this equipment i.e. Safety Goggles, Gloves, Ear Defenders, Dust Mask and Steel Toe capped footwear (with anti-slip soles for added protection). Wear clothing suitable for the work you are doing. Always protect skin from contact with concrete.

Dust.

The compaction process can produce dust, which may be hazardous to your health. Always wear a mask that is suited to the type of dust being produced.

Fuel.

Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of water and seek medical attention as soon as possible.

Exhaust Fumes.

Do not operate your 'PCEL 320X' indoors or in a confined space, make sure the work area is adequately ventilated.

WARNING

The exhaust fumes produced by this equipment are highly toxic and can kill!

Pre-start Checks

Pre start-up inspection.

The following Pre-start-up inspection must be performed before the start of each work session or after every four hours of use, whichever is first. Please refer to the service section for detailed guidance. If any fault is discovered, the 'PCEL 320X' must not be used until the fault is rectified.

1. Thoroughly inspect the 'PCEL 320X' for signs of damage. Make sure that the belt guard is secure before using the machine.
2. Check hoses, filler openings, drain plugs and any other areas for signs of leakage. Fix any leaks before operating.
3. Check the engine oil level and top up as necessary.
4. Check the engine fuel level and top up as necessary.
5. Check for fuel and oil leaks.

Operating Instructions

• Take the compactor to where it is required.

Where it is necessary to use lifting equipment to position the 'PCEL 320X', make sure the lifting equipment has a WLL (Working Load Limit) suitable for the 'PCEL 320X's weight (see Technical Data section or machine serial plate). Attach suitable chains or slings ONLY to the lifting point on the top of the 'PCEL 320X'.

• NEVER leave the engine running whilst transporting or moving the 'PCEL 320X', even if it is only a short distance.
  • Having carried out the checks listed in the 'pre start' section, you may start the engine.

The Altrad Belle 'PCEL 320X' range of compactors are fitted with a centrifugal clutch, this allows the engine to run at idle without driving the vibrator. As the engine speed is increased the clutch will engage and will drive the vibrator. For correct operation, the engine speed should be set to maximum.

- Set the throttle to maximum and use the control handle to steer or turn the 'PCEL 320X'.

The vibrator will not only cause the baseplate to vibrate but will also cause it to travel forward. During normal operation you should not have to push the 'PCEL 320X' but allow it to travel at its own pace. The speed of travel will be determined by the condition of the surface being compacted. If the surface to be compacted is on a slope, great care must be taken when controlling the 'PCEL 320X's direction of travel. If necessary, use a suitable rope attached to the 'PCEL 320X' at a low point on the chassis, to allow a helper to take part of the 'PCEL 320X's weight. Work up and down a slope not across.

• Work the 'PCEL 320X' over the surface in an organized pattern until the required compaction has been achieved.

Where there are a number of different layers to be compacted on top of each other, compact each layer individually.

WARNING

Before you operate or carry out any maintenance on this machine YOU MUST READ and STUDY this manual.

1 2 3 4 5 6 7

Honda GXR120

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch

Stopping the engine

1. To stop the engine, set the throttle to idle. Allow the engine to idle for at least 2 minutes
2. Turn the engine ON / OFF switch anti-clockwise to the '0' position.
3. Turn the fuel off.

Starting the engine

1. Open the fuel tap by moving the fuel ON / OFF lever fully to the right.
2. If starting the engine from cold, set the choke ON by moving the choke lever fully to the right. If restarting a warm engine, the choke is usually not required, however, if the engine has cooled to a degree, partial choke may be required.
3. Turn the engine ON / OFF switch clockwise to the 'l' position.
4. Set the throttle to the idle position by moving the throttle lever fully to the bottom.
5. Taking a firm hold of the control handle with one hand, grasp the recoil starter handle with the other. Pull the recoil starter until engine resistance is felt, then let starter return.
6. Taking care not to pull the starter's rope fully out and pull the starter handle briskly.
7. Repeat until the engine fires.
8. Once the engine fires gradually set the choke lever to the OFF position by moving it to the left.
9. If the engine fails to fire after several attempts, follow the trouble-shooting guide.
10. Due to the centrifugal clutch, the plate will not vibrate until the engine speed is increased.

Troubleshooting Guide

Problem Cause Remedy
Engine will not start. No fuel. Fill fuel tank.	Open fuel tap.
Engine switched off. Spark plug fouled. Clean Engine cold. Close choke.	switch engine on.
	an and reset plug gap.
	choke.
	Engine flooded.	Open choke, fully open throttle, pull recoil starter until
Engine still will not start Unit will not vibrate. Drive belt tension loose. Air filter blocked. Drive failure. Vibrator failure.	Major Fault	Contact Agent or Altrad Belle.
	Engine speed too slow.	Set engine speed control to fast.
	Adjust belt tension
	Clean or renew air filter.
	Contact Agent or Altrad Belle.
	Contact Agent or Altrad Belle.
Asphalt adhering to plate. Bituminous surface flaking (laminating).	Lack of lubrication.	Use water
	Over compaction.	Remove and relay.
Low travel speed (plate sinking).	Layer thickness too deep.	Remove some of the material.
	Moisture content too high or too low.	Remove material and adjust.

Service & Maintenance

Maintenance

The Altrad Belle 'PCEL 320X' is designed to give many years of trouble free operation. It is recommended that an approved Altrad Belle dealer carries out all major maintenance and repairs. Always use genuine Altrad Belle replacement parts, the use of spurious parts may void your warranty.

Before any maintenance is carried out on the machine, switch off the engine and disconnect the HT lead from the sparkplug.

Always set the 'PCEL 320X' on level ground to ensure any fluid levels will be correctly read. Only use recommended oils (see chart on following page).

Running In Period

When the 'PCEL 320X' is first used from new, the engine oil must be changed after the initial running in period (see engine manual for full detail). The vibrator shaft case oil must be replaced after the first 100 hours use, then after every 500 working hours. For detail on vibrator shaft case oil replacement, see 'Vibrator unit'. The belt tension should be checked after 4 hours use.

Routine Maintenance After First First month / 3 Months 6 months4 hours 20Hours 50 Hours 100 Hours
Engine Oil Check Level	√
	Change		√		√
Air Filter	Check Condition		√		√
	Clean / Replace			√
Spark Plug	Check / Clean				√
Drive Belt	Tension	√	√	√

Oil / Fuel Type & Quantity - Spark Plug Type

	Oil type	Quantity (Litre)	Fuel Type	Capacity (Litre)	Spark Plug Type	Electrode Gap (mm)
Petrol Honda GXR120	S.A.E. 10W 30	0.6	Unleaded	2.0	BM4a or BmR4a	0.6 - 0.7
Vibrator	Turbine Oil 32	0.22	N/A	N/A	N/A	N/A

Plug Seal Regular Level Lower part of screw thread

Vibrator Unit.

Remove the plug complete with seal, check that the oil level reaches the bottom thread on the oil plug hole. Top up as necessary with the correct oil (see chart).

Warning Symbols

Wear Ear Protection

Fire And Explosive Risk

Caution Taken When Handling

Wear Eye Protection

Wear Protective Footwear

Read This Manual

This Way Up

Do Not Hang

Your new Altrad Belle 'PCEL 320X' Single Direction Plate Compactor is warranted to the original purchaser for a period of one-year (12 months) from the original date of purchase. The Altrad Belle warranty is against defects in design, materials and workmanship.

The following are not covered under the Altrad Belle warranty:

1. Damage caused by abuse, misuse, dropping or other similar damage caused by or as a result of failure to follow assembly, operation or user maintenance instructions.
2. Alterations, additions or repairs carried out by persons other than Altrad Belle or their recognised agents.
3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
4. Materials and/or labour costs to renew, repair or replace components due to fair wear and tear.

The following components are not covered by warranty.

• Drivebelt/s
• Engine air filter
• Engine spark plug

Altrad Belle and/or their recognised agents, directors, employees or insurers will not be held liable for consequential or other damages, losses or expenses in connection with or by reason of or the inability to use the machine for any purpose.

Warranty Claims

All warranty claims should firstly be directed to Altrad Belle, either by telephone, by Fax, by Email, or in writing.

For warranty claims:

Tel: [phone]

Fax: [phone]

Email : [e-mail]

Write to:

Altrad Belle Warranty Department,

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

Warranty Registration:

In the bid for ALTRAD Belle to become greener and more eco friendly, we have now introduced online Warranty registration. To access the registration page of our website, please use the following address:-

http://www.bellegroup.com/index.php?p=warranty_registration

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the registration page.

QR code image containing encoded data, no visible human-readable text

Replacement Parts

When maintaining this product only the manufacturers original, genuine replacement parts may be used.

The user will lose any possible claims if replacement parts used are other than the makers original replacement parts.

Replacement parts for this product can be ordered online 24 hours a day, 7 days a week at www.Altrad-Belle247.com

For more information regarding the availability of replacement parts for this product, please contact Altrad Belle using the following contact details:-

Tel:- [phone]

Fax:- [phone]

Email:- [e-mail]

Alternatively, please scan the adjacent QR Code (Quick Response Code) using your smartphone to access the Altrad Belle online parts portal.

Technical diagram of a mechanical device with numbered parts and exploded views, likely for assembly or maintenance instructions.

Type de machine :

B A C D W

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England.

Angleterre

QR code image containing encoded data, no visible human-readable text

Pièces de Rechange

Technical diagram of a mechanical device with numbered parts and exploded views, likely for assembly or maintenance instructions.

Wear Protective Footwear

Read This Manual

This Way Up Do Not Hang

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

Inglaterra

Registro de Garantia :

QR code image containing encoded data, no visible human-readable text

Piezas de Repuesto

Technical diagram of a mechanical device with numbered parts and exploded views, likely for assembly or maintenance instructions.

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

England

QR code image containing encoded data, no visible human-readable text

Ersatzteile

Technical diagram of a mechanical pump assembly with numbered parts and exploded views

Tipo di macchina;

Piastra Vibrante a senso unico.

1. Fuel Tank,
2. Choke Lever,
3. Fuel ON/OFF Lever,
4. Engine Oil Filler / Dipstick,
5. Throttle Lever,
6. Recoil Starter Handle,
7. Engine ON/OFF Switch

Fermare il motore

Altrad Belle Warranty Department,

Sheen, Nr. Buxton

Derbyshire

SK17 0EU

Inghilterra

QR code image containing encoded data, no visible human-readable text

Parti di Ricambio

Technical diagram of a mechanical device with numbered parts and exploded views, likely for assembly or maintenance instructions.

Altrad Belle Warranty Department

Sheen, Nr. Buxton,

Derbyshire,

SK17 0EU

England.

QR code image containing encoded data, no visible human-readable text

Części Zamienne
