Spezial-Zoomar 7-35x50 - Binoculars BRESSER - Free user manual and instructions

Product Type	Binoculars
Brand	Bresser
Model	Spezial-Zoomar 7-35x50
Magnification	7x to 35x (variable zoom)
Objective lens diameter	50 mm
Prism type	Porro (P models) or compact (C models)
Focus	Central focusing wheel
Diopter adjustment	Diopter ring on right eyepiece
Interpupillary distance adjustment	Folding at central hinge (adjustable range)
Zoom control	Zoom lever with magnification scale
Eyepieces	Twist-up eyecups or rubber eyecups (depending on model)
Eyeglass wearer adaptation	Fold-down eyecups for glasses
Tripod thread	Yes (connection thread under cap, adapter optional)
Power supply	None (optical binoculars)
Cleaning	Microfiber cloth, lens cleaning liquid, avoid dust and moisture
Maximum temperature	60°C
Warranty	2 years standard, extension possible upon registration
Customer service	www.bresser.fr / [e-mail]
Safety warnings	Never look at the sun (risk of blindness); do not expose to direct sunlight (risk of fire); do not disassemble; keep out of reach of children (choking hazard)

Frequently Asked Questions - Spezial-Zoomar 7-35x50 BRESSER

How to adjust focus on the Spezial-Zoomar binoculars?

Close your right eye and turn the central focusing wheel (6) to focus on the left eye. Then close your left eye and turn the diopter ring (3) for the right eye.

How to use the zoom?

Move the zoom lever (10) forward or backward to change the magnification. The magnification scale (11) indicates the factor. After each change, refocus with the central focusing wheel.

How to clean the lenses?

Use a soft, lint-free microfiber cloth. For stubborn dirt, lightly dampen the cloth with lens cleaning liquid. Do not press too hard to avoid scratches.

Can I use the binoculars with glasses?

Yes. If your binoculars have twist-up eyecups (2a), fold them down. If they have rubber eyecups (2b), fold them laterally downwards. This reduces the distance between the eyepiece and your eyes.

How to mount the binoculars on a tripod?

The binoculars are equipped with a tripod connection thread (9). Use a tripod adapter (ref. 19-16000 or 19-16500) to attach them to a standard tripod.

What to do if the image is blurry?

First check the focus with the central focusing wheel. If the image remains blurry, adjust the diopter adjustment on the right eyepiece. Also ensure the interpupillary distance is correctly set (you should see a single image circle).

How to adjust the interpupillary distance?

Fold the binoculars at the central hinge (1) until you see a single image circle (12). This adjustment is personal and should be remembered for future use.

What is the warranty of these binoculars?

The standard warranty is 2 years from the date of purchase. You can extend the warranty by registering at www.bresser.de/warranty_terms.

Can I look at the sun with these binoculars?

No, absolutely not. Never look directly at the sun or near it. This can cause irreversible blindness.

How to store the binoculars after use?

Let the binoculars reach room temperature to remove moisture, then put on the protective caps and store them in the provided case. Avoid dust and moisture.

USER MANUAL Spezial-Zoomar 7-35x50 BRESSER

Black binoculars with visible lenses and case (no text or symbols)

BRESSER®

P = Porro-Zoomfernglas

C = Kompaktes Zoomfernglas

This instruction manual was created for various models in our series of binoculars. Pages 2-4 present the relevant features in pictures. Depending on the model you have purchased, this chapter of the manual covers the binoculars in full or in part. As a result, please pay attention to the letters (P or C) to make sure that a chapter applies to your model.

Please read this manual carefully and completely before using the binoculars.

Your BRESSER Team

P = Porro prism model

C = Compact model

General Safety Informations!

RISK of physical injury!

Never look through this device directly at or near the sun. There is a risk of BLINDING

YOURSELF!

Children should only use this device under supervision. Keep packaging materials (plastic bags, rubber bands, etc.) away from children There is a risk of SUFFOCATION.

Fire/Burning RISK!

Never subject the device - especially the lenses - to direct sunlight. Light ray concentration can cause fires and/or burns.

RISK of material damage!

Never take the device apart. Please consult your dealer if there are any defects. The dealer will contact our service centre and send the device in for repair if needed.

BINOCULARS

Do not subject the device to temperatures exceeding 60^ C!

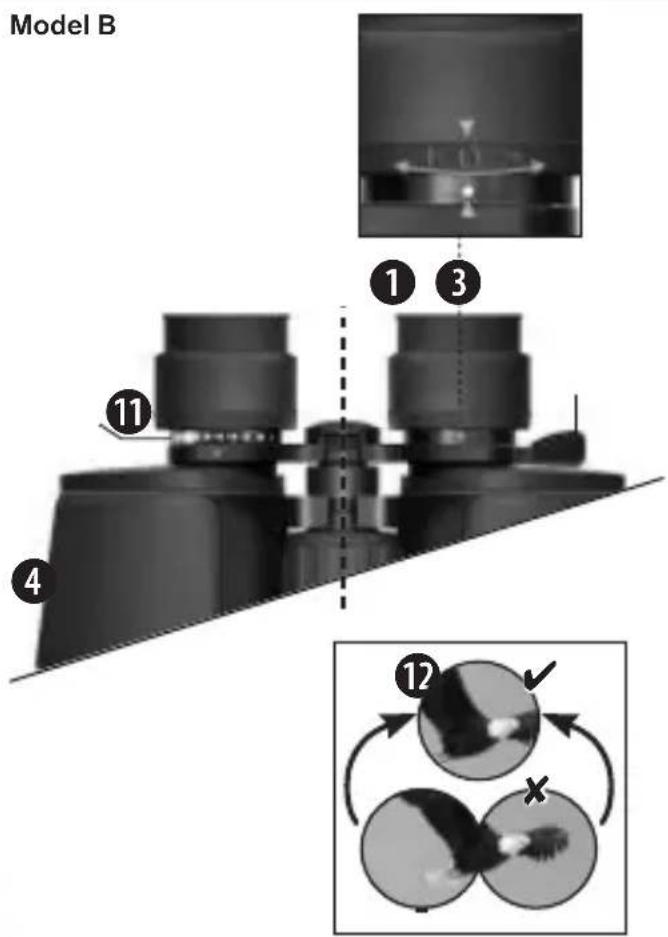

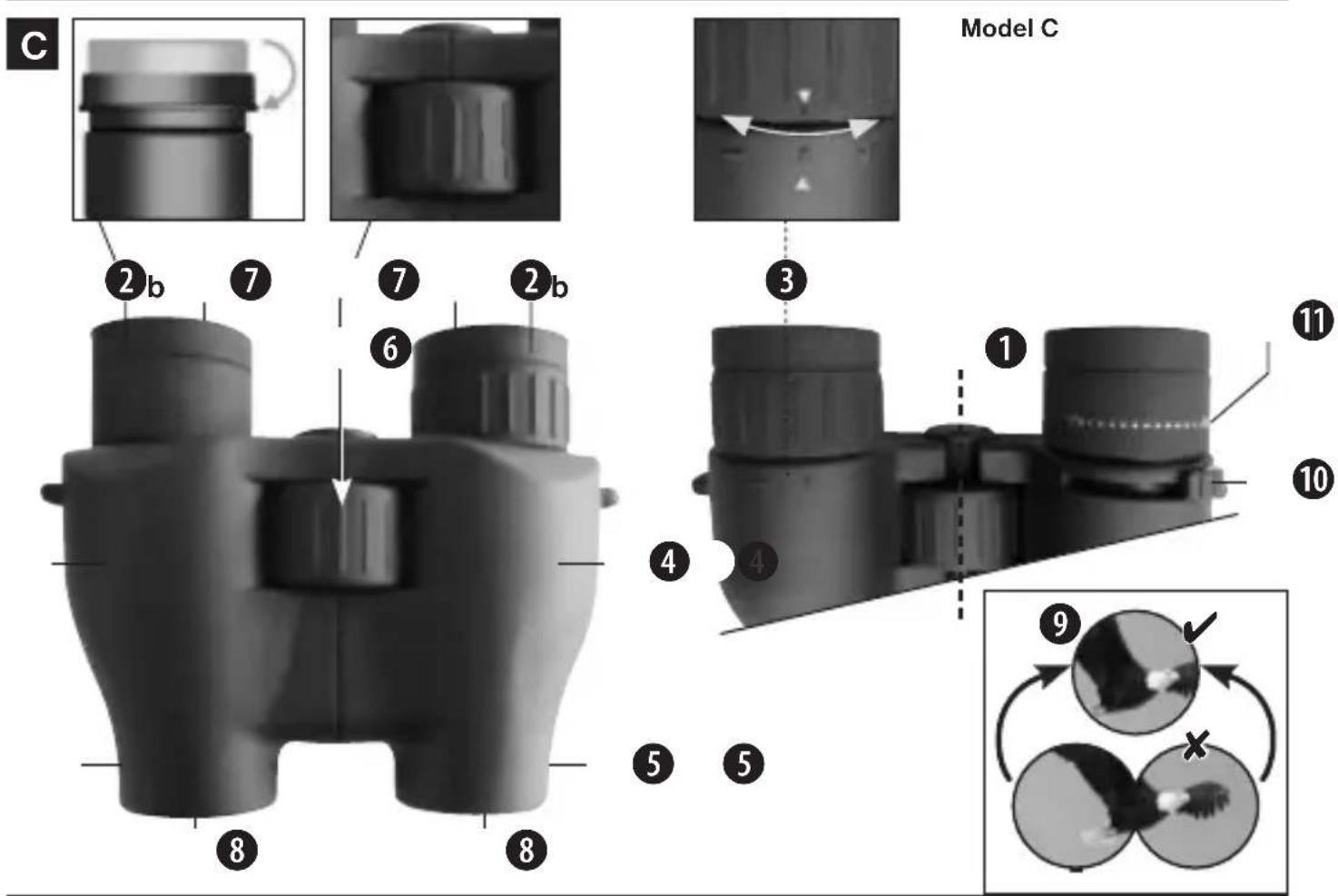

List of Parts

① Centre axle
②a Twist-up eyecups or
②b Rubber eyecups
3 Dioptre adjustment
4 Body of the binoculars
5 Lens tube
6 Central focussing wheel
⑦ Eyepiece
8 Objective lens
9 Threaded tripod connection
10 Zoom lever
11 Magnification scale
12 Image circle with correctly set eye distance

Eyepieces for spectacle wearers P C

Depending on the model, your binoculars are equipped with either twist-up eyecups (2a) or rubber eyecups (2b). Since there is a larger distance between the binocular eyepiece and the pupil for those wearing glasses, both eyecup varieties can be adjusted individually.

Twist-up Eyecups (2a)

Screw in the twist-up eyecups (2a) to use the binoculars while wearing glasses. If you are not wearing glasses, unscrew the eyecups to achieve the required distance from the pupils.

OR

Rubber Eyecups (2b)

To use the binoculars while wearing glasses, turn the rubber eyecups (2b) towards the sides and down. If you are not wearing glasses, leave the eyecups in the upright position to achieve the required distance from the pupils.

Adjusting the eyepiece distance P C

The distance between the eyes differs between individuals. To achieve perfect interaction between your eyes and the eyepieces of your binoculars set the angle at the centre of the binoculars (1) so that you see a circular image (12). Note this setting for later use.

Adjusting the focus P C

Look through your binoculars with your right eye closed. Now adjust the image for your left eye using the centre wheel (6) until it is sharp and clear. Close your left eye and adjust the image for your right eye using the dioptre ring (3) until it too is sharp and clear.

Using the Zoom Function P C

You can use the zoom lever (10) to select various levels of magnification (11); in general, the zoom is continuous. Simply move the lever back or forth to zoom.

Please note: When changing the magnification setting, it is necessary to re-adjust the image sharpness using the centre focussing wheel (6).

Mounting the binoculars on a tripod P

Your binoculars have a threaded tripod connection (9) built in. The required tripod adapter is available as an optional accessory (Art. No. 19-16000 or 19-16500). With this accessory, you are able to mount your binoculars on a tri-

pod with a DIN mounting thread (e.g. Art. No 49-22100).

TIPS on cleaning

Lenses (eyepieces and object lenses) should be cleaned with a soft, lint-free cloth (e.g. microfibre) only. Do not use excessive pressure - this may scratch the lens.

Dampen the cleaning cloth with a spectacle cleaning fluid and use it on very dirty lenses.

Protect the device against dirt and dust. Leave it to dry properly after use at room temperature. Then put the dust caps on and store the device in the case provided.

Chère cliente, cher client,

GB Warranty & Service

The regular guarantee period is 2 years and begins on the day of purchase. To benefit from an extended voluntary guarantee period as stated on the gift box, registration on our website is required.

You can consult the full guarantee terms as well as information on extending the guarantee period and details of our services at www.bresser.de/warranty_terms.
