USER MANUAL SUP80 Eco-Flo

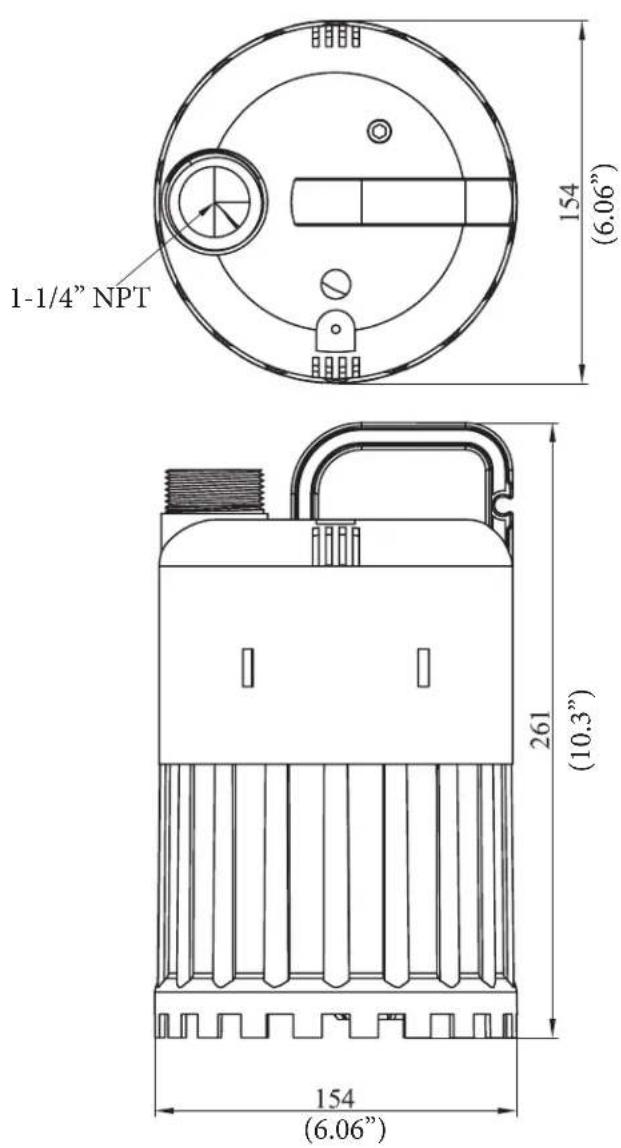

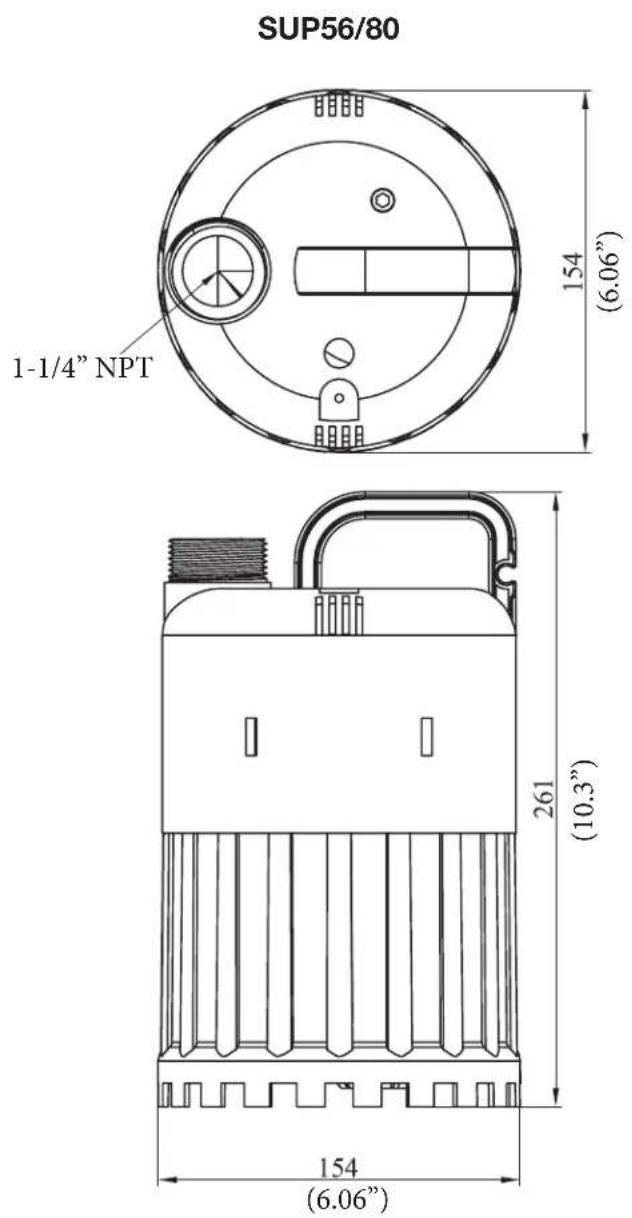

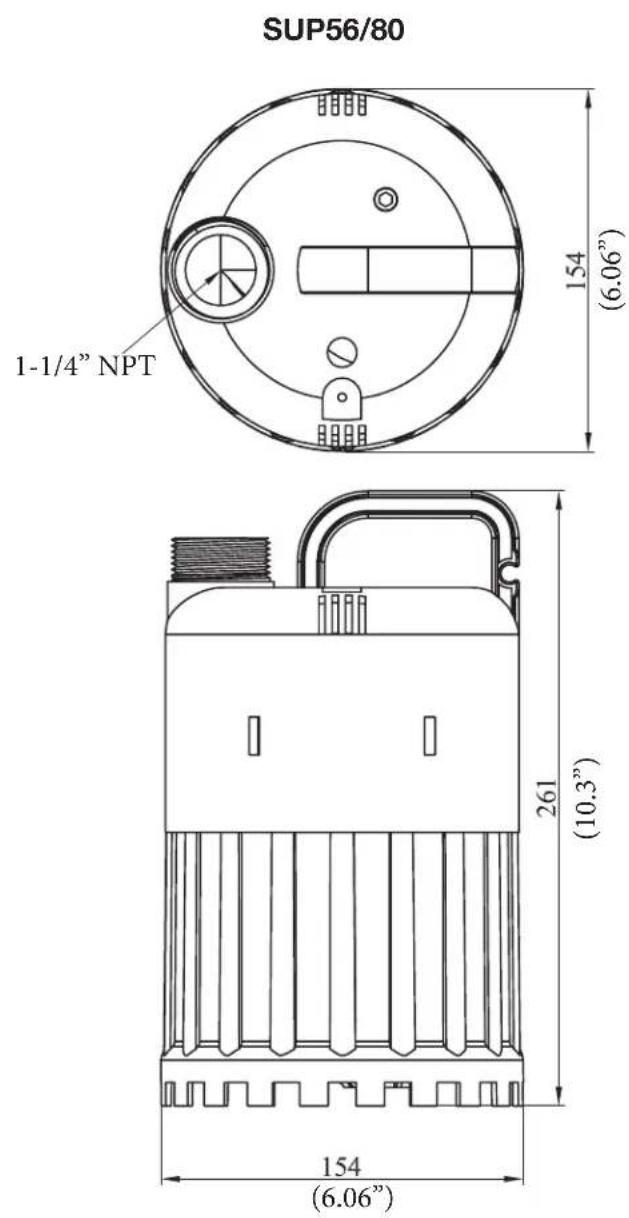

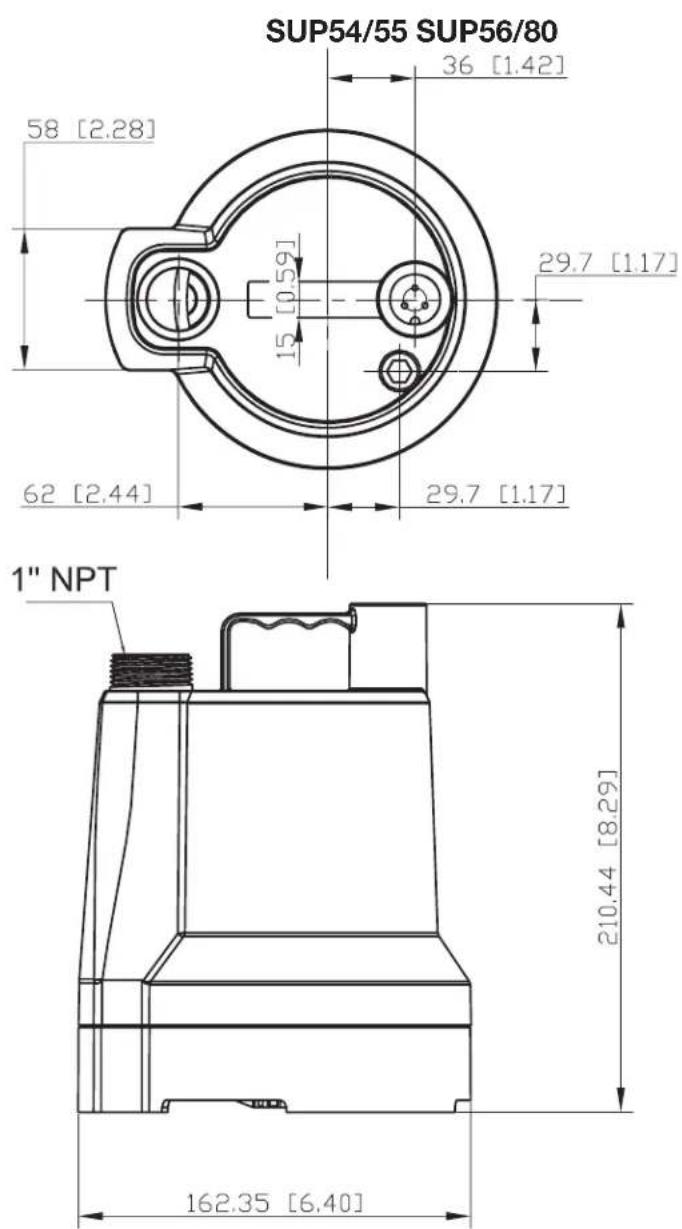

SUP54/55 Manual SUP56/80 Manual2 A sump pump is an electrical device designed to operate in inherently wet environments.

ALWAYS USE EXTREME CAUTION

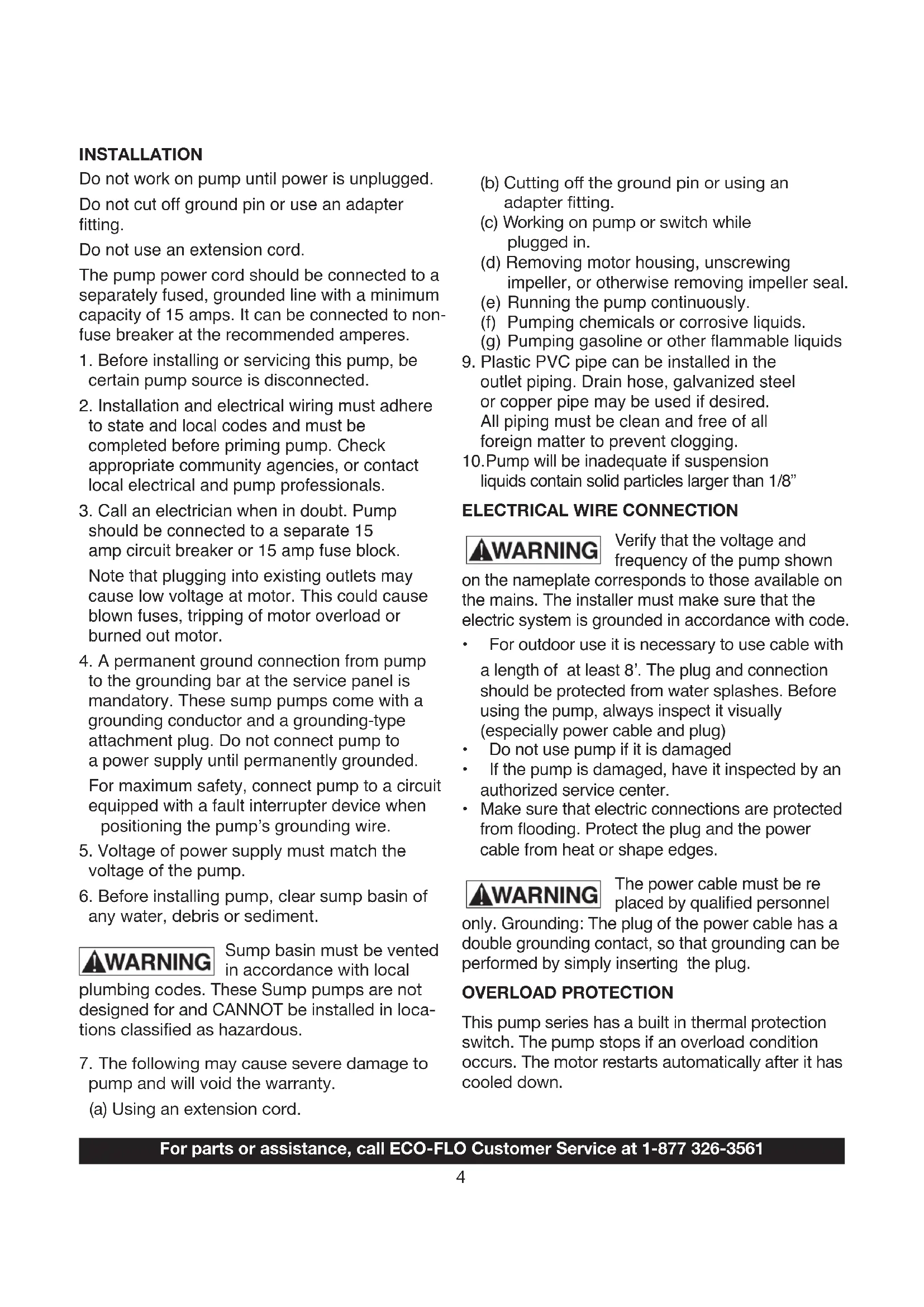

when installing or maintaining this product! Need Help: Call 1-877-326-3561 for assistance; Do Not Return to Store Important Safety Instructions Carefully read and follow all safety instructions in this manual and on pump. SAVE THESE INSTRUCTIONS – This manual contains important instructions that should be followed during installation, operation, and maintenance of the product. Save this manual for future reference. Safety Labels This is the safety alert symbol. When you see this symbol on your pump or in this manual, look for one of the following signal words and be alert to the potential for personal injury! Indicates a hazard which, if not avoided, will result in death or serious injury. Indicates a hazard which, if not avoided, could result in death or serious injury. Indicates a hazard which, if not avoided, could result in minor or moderate injury. NOTICE indicates practices not related to personal injury. Keep safety labels in good condition. Replace missing or damaged safety labels. General Safety Risk of burns. Do not touch an operating motor. Motors are de- signed to operate at high temperatures. To avoid burns when servicing pump, allow it to cool for 20 minutes after shut-down before handling. Do not allow pump or any system compo- nent to freeze. To do so will void warranty. Pump water only with this pump. Periodically inspect pump and system com- ponents. Wear safety glasses at all times when work- ing on pumps. Risk of explosion. Pump body may explode if used as a booster pump. GENERAL SAFETY STOP Before you start For parts or assistance, call ECO-FLO Customer Service at 1-877 326-35613 For parts or assistance, call ECO-FLO Customer Service at 1-877 326-3561 APPLICATIONS For Flooded Basement Floors, Window Wells, Spas, Cisterns and Sumps SUP54/55 SUP56/80 SPECIFICATIONS & PERFORMANCE Capacity Cord Solids Model HP Volt Ph Amps (GPH at 0’) Max Head Construction Impeller Length Pumped SUP54 1/6 115 1 2.9 1680 20’ Thermoplastic Thermoplastic 10’ 1/8” SUP55 1/4 115 1 3.3 1980 25’ Thermoplastic Thermoplastic 10’ 1/8” SUP56 1/3 115 1 3.0 2880 25’ Thermoplastic Thermoplastic 10’ 1/8” SUP80 1/2 115 1 3.3 3180 27’ Thermoplastic Thermoplastic 10’ 1/8” 1-1/4” NPT (6.06”) (6.06”) (10.3”)INSTALLATION

ELECTRICAL WIRE CONNECTION

OVERLOAD PROTECTION Do not work on pump until power is unplugged. Do not cut off ground pin or use an adapter tting. Do not use an extension cord. The pump power cord should be connected to a separately fused, grounded line with a minimum capacity of 15 amps. It can be connected to non- fuse breaker at the recommended amperes.

1. Before installing or servicing this pump, be

certain pump source is disconnected.

2. Installation and electrical wiring must adhere

to state and local codes and must be completed before priming pump. Check appropriate community agencies, or contact local electrical and pump professionals.

3. Call an electrician when in doubt. Pump

should be connected to a separate 15 amp circuit breaker or 15 amp fuse block. Note that plugging into existing outlets may cause low voltage at motor. This could cause blown fuses, tripping of motor overload or burned out motor.

4. A permanent ground connection from pump

to the grounding bar at the service panel is mandatory. These sump pumps come with a grounding conductor and a grounding-type attachment plug. Do not connect pump to a power supply until permanently grounded. For maximum safety, connect pump to a circuit equipped with a fault interrupter device when positioningthepump’sgroundingwire.

5. Voltage of power supply must match the

voltage of the pump.

6. Before installing pump, clear sump basin of

any water, debris or sediment. Sump basin must be vented in accordance with local plumbing codes. These Sump pumps are not designed for and CANNOT be installed in loca- tions classied as hazardous.

7. The following may cause severe damage to

pump and will void the warranty. (a) Using an extension cord. (b) Cutting o the ground pin or using an adapter tting. (c) Working on pump or switch while plugged in. (d) Removing motor housing, unscrewing impeller, or otherwise removing impeller seal. (e) Running the pump continuously. (f) Pumping chemicals or corrosive liquids. (g)Pumpinggasolineorotherammableliquids

9. Plastic PVC pipe can be installed in the

outlet piping. Drain hose, galvanized steel or copper pipe may be used if desired. All piping must be clean and free of all foreign matter to prevent clogging. 10.Pump will be inadequate if suspension liquids contain solid particles larger than 1/8” Verify that the voltage and frequency of the pump shown on the nameplate corresponds to those available on the mains. The installer must make sure that the electric system is grounded in accordance with code.

• Ifthepumpisdamaged,haveitinspectedbyan authorized service center.

• Makesurethatelectricconnectionsareprotected fromooding.Protecttheplugandthepower cable from heat or shape edges. The power cable must be re placedbyqualiedpersonnel only. Grounding: The plug of the power cable has a double grounding contact, so that grounding can be performed by simply inserting the plug. This pump series has a built in thermal protection switch. The pump stops if an overload condition occurs. The motor restarts automatically after it has cooled down.

For parts or assistance, call ECO-FLO Customer Service at 1-877 326-35615 For parts or assistance, call ECO-FLO Customer Service at 1-877 326-3561 TROUBLESHOOTING CHECKLIST (Caution: shut off power to pump) PROBLEMS PUMPDOESNOTRUN ANDMAKESHUMMING SOUND

POSSIBLE CAUSES/SOLUTIONS

• Line circuit breaker is o, or fuse is blown or loose

• Water level in sump has not reached turn-on level as indicated in installation drawing.

• Pump cord is not making contact in receptacle.

• Float is stuck. It should operate freely in basin.

• If all of the above are OK, then the motor could be malfunctioning.

• Check if valve is installed backwards. Arrow on valve should point direction of ow

• Discharge shut-o valve (if used) may be closed.

• Impeller or volute openings are fully or partially clogged. Remove pump and clean.

• Pump is air-locked. Start and stop several times by plugging and unplugging cord. Check for clogged vent hole in pump case.

• Inlet holes in pump base are clogged. Remove pump and clean the openings.

• Vertical pumping distance is too high. Reduce distance or change the discharge ttings of the pump.

• Float is stuck in up position. Be sure oat operates freely in basin.

• Pump is air-locked. Start and stop several times by plugging in and unplugging cord. Check for clogged vent hole in pump case.

• Vertical pumping distance is too high. Reduce distance or change the discharge tting of the pump. Inlet holes in pump base are clogged. Remove pump and clean the strainer and openings.

• Impeller or volute openings are fully or partially clogged. Remove pump and clean.

• Pump impeller is partially clogged with tar or paint, causing motor to run slow and overload. Remove pump and clean.

• Pump impeller is partially clogged causing motor to run slow and overload. Remove pump and clean.

• Motor stator may be defective.

• Fuse size or circuit breaker may be too small. (must be 15 amps).

• Impeller or volute opening are fully or partially clogged. Remove pump and clean .

• Inlet holes in pump base are clogged. Remove pump and clean the openings.

• Pump impeller is partially clogged causing motor to run slow and overload. Remove pump and clean.

• Motor stator may be defective.

• Impeller or volute openings are fully or partially clogged. Remove pump and clean. Also clean the strainer if one is installed. ELECTRICAL PRECAUTIONS Before servicing a pump, always shut o the main power breaker and then unplug the pump. Make sure you are not standing in water and are wearing insulated protective sole shoes, under ooded conditions. Contact your local electric company or a qualied licensed electrician for disconnecting electrical service prior to pump removal1899 Cottage Street, Ashland, Ohio 44805 Telephone: [phone] Fax: [phone] www.ecooproducts.com Retain Original Purchase Receipt for Warranty Eligibility Limited Warranty Manufacturerwarrantstotheoriginalconsumerpurchaser(“Purchaser”or“You”)thatitsproductsarefreefromdefectsin material and workmanship for a period of twelve (12) months from the date of the original consumer purchase. If, within twelve (12) months from the original consumer purchase, any such product shall prove to be defective, it shall be repaired orreplacedatmanufacturer’soption,subjecttothetermsandconditionssetforthherein.Notethatthislimitedwarranty applies to manufacturing defects only and not to ordinary wear and tear. All mechanical devices need periodic parts and service to perform well. This limited warranty does not cover repair when normal use has exhausted the life of a part or the equipment. The original purchase receipt and product warranty information label are required to determine warranty eligibility. Eligibil- ity is based on purchase date or original product – not the date of replacement under warranty. The warranty is limited to repair or replacement of original purchased product only, not replacement product (i.e. one warranty replacement allowed per purchase). Purchaser pays all removal, installation, labor, shipping, and incidental charges. Claims made under this warranty shall be made by returning the product to the retail outlet where it was purchased or to thefactoryimmediatelyafterthediscoveryoranyallegeddefect.Manufacturerwillsubsequentlytakecorrectiveactionas promptly as reasonably possible. No requests for service will be accepted if received more than 30 days after the warranty expires. Warranty is not transferable and does not apply to products used in commercial/rental applications. General Terms and Conditions; Limitations of Remedies Youmustpayalllaborandshippingchargesnecessarytoreplaceproductcoveredbythiswarranty.Thiswarrantydoes notapplytothefollowing:(1)actsofGod;(2)productswhich,inmanufacturer’ssolejudgment,havebeensubjectto negligence, abuse, accident, misapplication, tampering, or alteration; (3) failures due to improper installation, operation, maintenance or storage; (4) atypical or unapproved application, use or service; (5) failures caused by corrosion, rust or other foreign materials in the system, or operation at pressures in excess of recommended maximums. Thiswarrantysetsforthmanufacturer’ssoleobligationandpurchaser’sexclusiveremedyfordefectiveproducts.

CAUSES/SOLUTIONS POSSIBLES

• Fusesizeorcircuit breakermaybetoosmall.(mustbe15 amps).
