THFP9275A - Food Processor THOMSON - Free user manual and instructions

USER MANUAL THFP9275A THOMSON

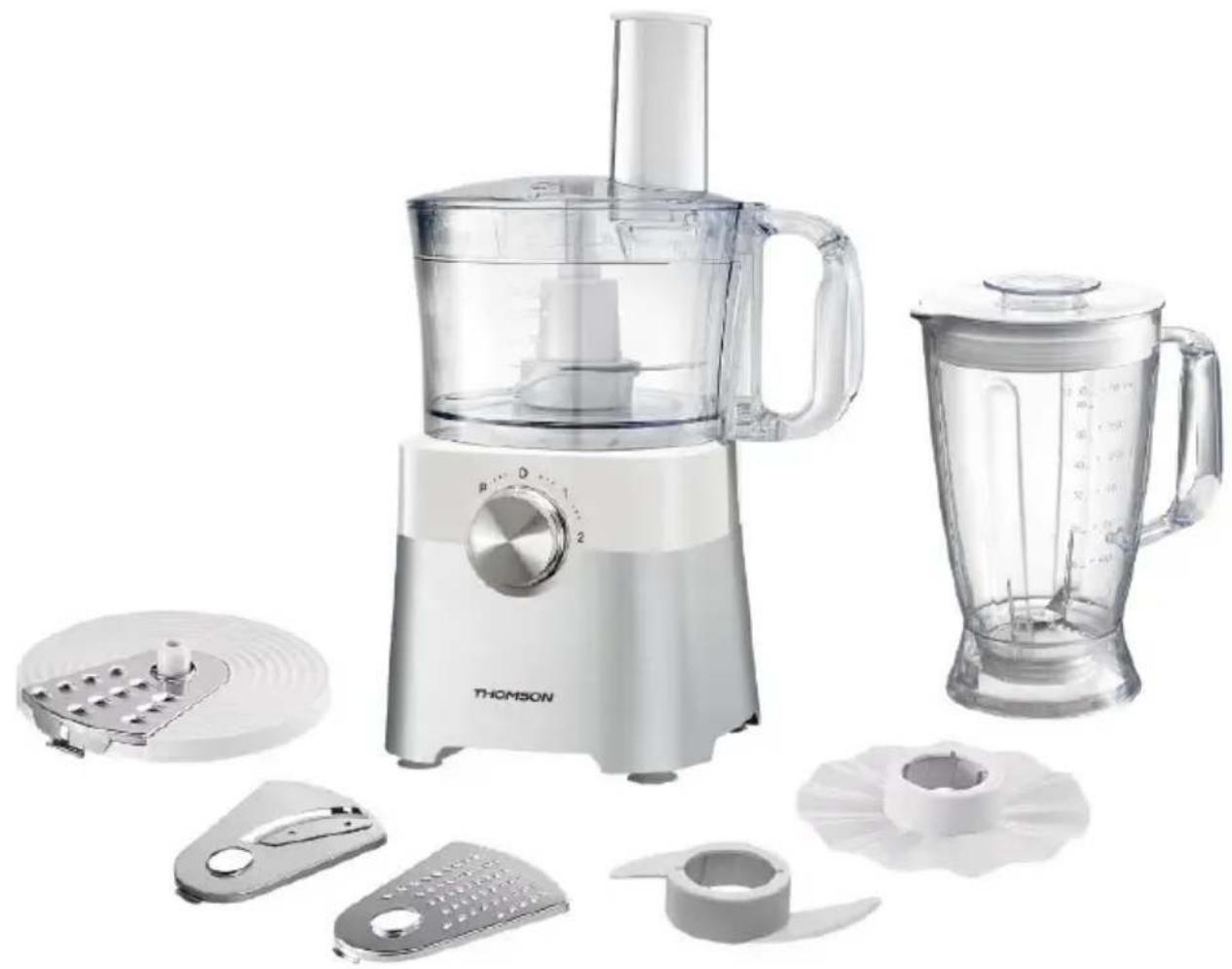

Product photo of a white THOMSON kitchen blender with various kitchen utensils and a side blade (no text or symbols visible)

Exploded view diagram of a kitchen appliance with numbered parts for identification

FR-9

AVANT LA PREMIERE UTILISATION

Product photo of a white THOMSON kitchen blender with various kitchen utensils and a side dish (no visible text or labels)

Read the instructions carefully before use.

This product complies with the requirements of Directives 2014/35/EU (repealing Directive 73/23/EEC as amended by Directive 93/68/EEC) and 2014/30/EU Directive (repealing Directive 89/336/EEC).

IMPORTANT SAFETY INSTRUCTIONS

When using this product, observe the following safety precautions:

- This food processor is equipped with a protection device against overheating. When the temperature is too high, the unit will turn off automatically and resume operation after the motor has sufficiently cooled down (after about 15 minutes).

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Children shall not play with the appliance.

- Warning: potential injury from misuse. Care shall be taken when handling the sharp cutting blades,

emptying the bowl and during cleaning.

• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

- This appliance is intended to be used in household.

- Do not operate the unit continuously for more than a minute.

- If the operation needs to last more than a minute, operate the unit for a minute and then turn it off and let it cool for ten minutes before continuing. If the operation needs to last a total of more than five minutes, repeat as described above and then let the unit cool for 90 minutes

before turning it on again. This would extend the service life of your food processor.

• the accessible surfaces may become hot during use.
• This appliance is not designed to operate with an external timer or remote control.

- The blades and discs are very sharp, handle with care. Always hold the blade by the finger grip away from the cutting edge when handling and cleaning.

• Always remove the blade before pouring the contents from the bowl.
- Keep hands and all utensils out of the mixing bowl and blender jar while the unit is plugged into the power supply.

- Turn off and unplug the appliance: - before fitting or removing attachments; - when not in use; and - before cleaning.

- Never push food into the feeder tube with your fingers. Always use

the supplied pusher.

- Before removing the cover from the mixing bowl or blender jar from the motor unit:

• turn off the power;
• make sure that the accessories/ blades have completely stopped; and
• be careful not to unscrew the mixing bowl or blender jar from the motor unit.

- Let the liquid cool to room temperature before placing them in the blender.

- Do not apply excessive force on the locking mechanism; otherwise the unit could be damaged and cause injury.

- Never use unauthorized attachment.

- Never leave the appliance unattended when in use.

- Never use a damaged appliance. Send it fort inspection or repair.

- Never wet the motor unit, power cord or plug.

- Do not let the cord hang over the

edge of a table or countertop. Do not allow it to come into contact with hot surfaces.

• Do not exceed the maximum capacity indicated in the product.
• Only use the appliance for its intended domestic use. We decline all liability if the appliance is used improperly or if the present instructions are not followed.
• Improper use of your food processor can cause injury.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

Before plugging in

• Make sure the mains voltage is the same as indicated under your

appliance.

For food contact use

IMPORTANT

It is forbidden to replace the power cable by yourself. In case of damage, it should be repaired by the after-sales service of local distributors, the manufacturer or similarqualified person.

If the appliance is dropped, please ask professional qualified person to check before using it again. Internal damage may cause accidents.

For any kind of problems or repairs, please contact the after-sales service of local distributors, the manufacturer or similar qualified person in order to prevent any risks.

Disposal and environmental responsibility:

In order to be environmental friendly, we

encourage you to dispose of the appliance. You can contact local authorities or recycling centres for more information.

SPECIFICATIONS

Voltage : 220-240V-50/60Hz

Power : 750 Watts

Maximum Capacity : 2 liter (Bowl)

1.8 liter (Blender)

PRODUCT OVERVIEW

1. Motor unit

2. Spindle

3. Accessories holder

4. Pusher

5. Slicing disc

6. Fine shredding blade

7. Dough blade(Plastic)

8. Measuring cup

9. Blender Jar

10. Swivel Stand

11. Rotary switch

12. Bowl

13. Bowl cover

14. Blade adapter

15. Coarse Shredding blade

16. Chopping blade(Steel)

17. Emulsifying disc

18. Blender Jar Cover

19. Mixing blade

Exploded view diagram of a kitchen appliance with numbered parts for identification

BEFORE FIRST USE

Unpack the product and disassemble all parts. Refer to the section "Disassembling the Appliance" for instructions.

Wash all parts in warm soapy water except the motor unit. Dry them immediately. DO NOT IMMERSE THE MOTOR UNIT IN WATER OR ANY OTHER LIQUID.

INSTRUCTION FOR USE

Chopping Blade

1. Fix the spindle onto the motor unit.
2. Place the bowl on the motor unit and turn it clockwise in order to secure it firmly in place.
3. Fit the accessory holder onto the spindle.
4. Position the chopping blade onto the accessory holder.
5. Turn the blade to secure it in place.
6. Put the cover on the bowl and turn it clockwise until it is locked on the bowl.
7. Insert the pusher into the feeder tube.

Food	Quantity	Accessories	Speed	Time for batch
Chocolate	≤ 100 g	Chopper	2	30~60sec
Cheese	≤ 200 g	Kneading	2	10~30sec
Meat	≤ 500 g	Emulsify	2	30~70sec
Tea/Spices	50 to 100 g	Grating	1 or 2	30~70sec
Fruit/vegetable	100 to 300 g	Slicing	1 or 2	30~70sec
Onions	≤ 500 g	Blender	2	30~60sec

Notes for Use:

Install the chopping blade in the bowl before adding the ingredients. To avoid over-chopping food, use the "PULSE" function. Repeat if necessary. Do not chop hard cheese or chocolate for too long to avoid melting them.

Standard Chopping Time: 30 to 60 seconds

Slicing and Shredding Blades

1. Fix the spindle onto the motor unit.
2. Place the bowl on the motor unit and turn it clockwise in order to secure it firmly in place.
3. Attach the suitable disc to the blade adapter.
4. Fit the blade adapter onto the spindle.

5. Put the cover on the bowl.

6. Turn the cover clockwise until it is locked on the bowl.

7. Add the food into the bowl through the feeder tube.
8. Use the pusher to press the food down.

Notes for Use:

Choose the appropriate blade according to the recipe and ingredients. Gently push the food down with the pusher.

Cut food into small pieces in order to insert them into the feeder tube more easily.

For best results, add the food progressively. For soft foods, select a slower speed to avoid making them liquid. If you need to prepare a large amount of food, divide them into several lots. Do not slice or shred over 1,200ml of ingredients at a time. Never exceed the maximum capacity of the appliance.

Blender

1. Make sure the swivel stand is firmly fixed in place.
2. Add the food in the blender jar.
3. Put the measuring cup and cover in place.
4. Position the blender jar on the motor unit then turn it clockwise in order to lock it.

Tips

It is recommended to use the "PULSE" function to stir the ingredients before blending them. Do not blend more than 1,800ml of ingredients at a time.

Make sure the swivel stand is properly installed before switching on the appliance. You can use the measuring cup for adding ingredients during operation.

Do not operate the food processor continuously for more than one minute; otherwise it may overheat.

DISASSEMBLING THE APPLIANCE

1. Remove the pusher. Turn the cover anticlockwise and take it away.
2. Lift the blade adapter from the spindle.
3. Remove the blade from the adapter.
4. Turn the bowl anticlockwise to unlock it from the motor unit then lift it up.

CLEANING

Wash all parts in warm soapy water except the motor unit. The blades and discs are detachable and can be washed with water. Handle them with care.

DO NOT IMMERSE THE MOTOR UNIT IN WATER OR ANY OTHER LIQUID.

TROUBLESHOOTING

Problem	Solution
The food processor does not start.	Check if the unit is mounted correctly.Make sure the power cord is plugged securely into the socket.Check if there is a power outage.
The unit suddenly stops.	The bowl may not be mounted securely onto the motor unit. Install it firmly again.
The motor is running but the unit does not work.	Make sure the spindle is installed correctly.

ATTENTION

Symbol of a waste sorting machine with crossed-out bins and a blank rectangular block below

This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC Directive of, on Waste Electrical and Electronic Equipment (WEEE).

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product. Thus, at the end of the life of this appliance, it should not be

disposed of with unsorted household waste.

As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors.

You have the responsibility to use the selective waste collection systems at your disposal.

Disposal and environmental protection If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal.

WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair
(4) improper maintenance, improper use
Concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer.
The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.

This product is imported by SCHNEIDERCONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE

THOMSON

Multifunctionele keukenmachine THFP9275 / THFP9275A HANDLEIDING

Product photo of a white THOMSON kitchen blender with various kitchen utensils and a side bowl (no visible text or symbols)

Exploded diagram of a kitchen appliance with numbered parts for identification

HET APPARAAT DEMONTEREN

Symbol of a trash bin crossed out by two crossed lines (no text or numbers present)

Product photo of a white THOMSON kitchen blender with various kitchen utensils and a side dish (no visible text or symbols)

Exploded view diagram of a kitchen appliance with numbered parts for identification

VOR DEM ERSTEN GEBRAUCH

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Product photo of a white THOMSON kitchen blender with side dishes and kitchen utensils (no text or symbols visible)

Exploded view diagram of a kitchen appliance with numbered parts for identification

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)
