THFP93510A - Food processor THOMSON - Free user manual and instructions

Product type	Food processor
Brand	Thomson
Model	THFP93510A
Power supply	220-240V ~ 50/60Hz, 1000 W
Bowl capacity	1.8 L (mixing), 2 L (blender)
Included accessories	Chopper blade, kneading blade, 4 grating/slicing blades (coarse/fine), French fry blade, emulsifying disc, blender, pushers, spatula
Main functions	Chop, knead, grate, slice, blend, emulsify
Speeds	2 speeds + pulse
Overheat protection	Automatic shut-off, restart after cooling (~30 min)
Safety lock	Lockable lid and bowl
Maintenance	Accessories washable with water; motor unit wipe with a damp cloth
Repairability	Contact customer service or a qualified professional
Warranty	Legal warranty (excluding wear parts, improper use)
Approximate weight	4.5 kg
Dimensions (L x W x H)	30 x 25 x 35 cm
Color	White and gray
Bowl material	Plastic
Cable length	1 m
Noise level	~75 dB
Compliance	Directives 2014/35/EU and 2014/30/EU
Use	Domestic

Frequently Asked Questions - THFP93510A THOMSON

What is the maximum continuous usage time?

The maximum continuous usage time is 1 minute. Beyond that, turn off the appliance and let it cool for 10 minutes before resuming. For operations totaling more than 5 minutes, let it cool for 90 minutes.

Can I blend hot liquids?

No, always let liquids cool to room temperature before placing them in the blender.

How to clean the food processor?

Unplug the appliance. The motor unit must not be immersed; wipe it with a damp cloth. All removable accessories can be washed with warm water and mild detergent. Use the pulse function with water and dish soap to easily clean the bowl.

The appliance stops while in use, why?

This may be due to overheating (the appliance shuts off automatically and restarts after ~30 min of cooling) or unlocking of the bowl (replace the lid correctly). Also check that the assembly is correct.

Which accessories can I use?

Use only the accessories provided or approved by the manufacturer: chopper blade, kneading blade, grating/slicing blades, French fry blade, emulsifying disc, blender. Use only one blade at a time.

How to knead dough?

Use the kneading blade (13) with a flour/water ratio of 1:0.6 (e.g., 100 g flour + 60 g water). The maximum duration is 30 seconds. Do not exceed 800 g of flour.

Can I grate hard vegetables like carrots?

Yes, use the appropriate grating blade (coarse or fine). Cut the food into pieces suitable for the chute. Use the pusher, but without forcing. Adjust the speed according to the hardness of the food.

What to do if the motor runs but the blades do not turn?

Check that the drive shaft (4) is correctly installed vertically on the rotor. Make sure the blade is properly engaged.

How to use the blender?

Place the ingredients in the blender, close the lid, screw it onto the motor unit. First use the pulse function 2-3 times, then speeds 1 or 2. Always add a little water. The maximum duration is 1 minute.

Where to find spare parts or get the appliance repaired?

Contact the customer service of your distributor or the manufacturer (Schneider Consumer Group). Do not attempt to repair it yourself. For damaged cords, have them replaced by a qualified professional.

USER MANUAL THFP93510A THOMSON

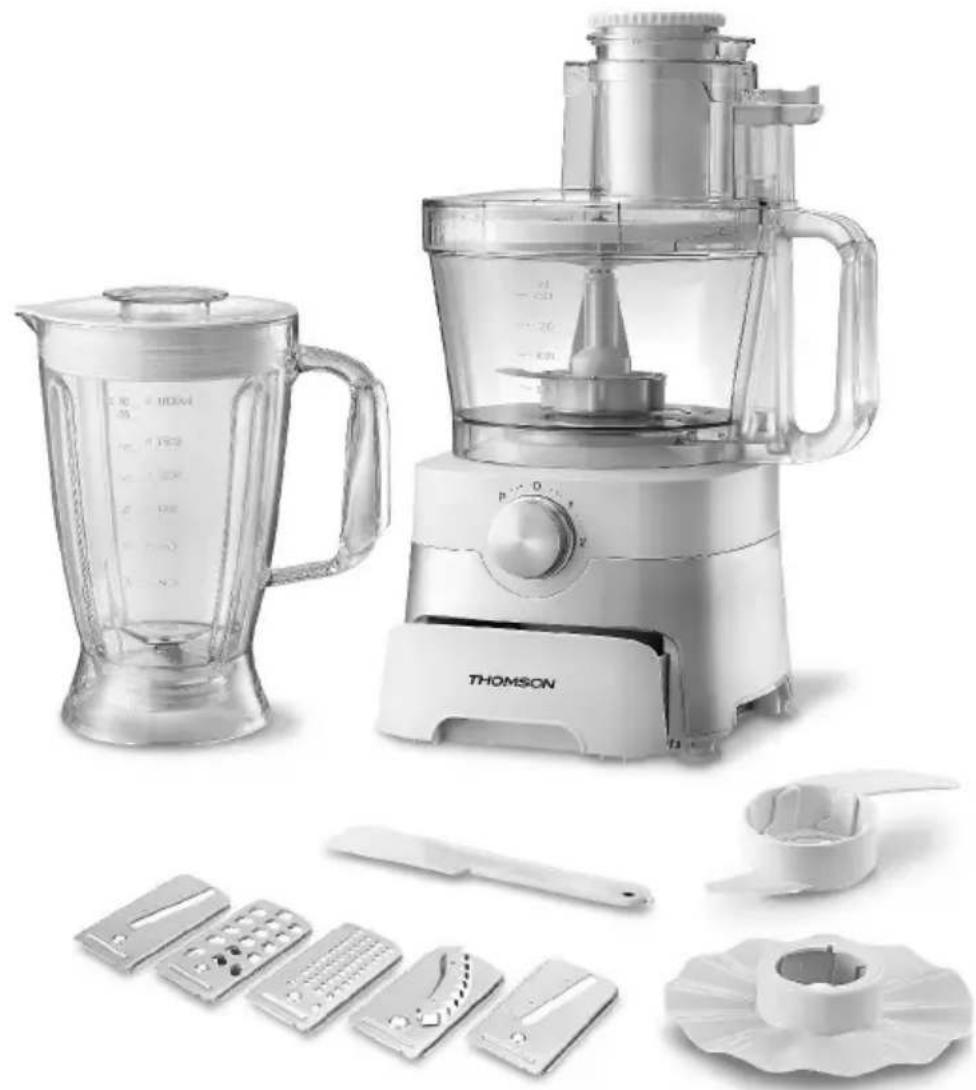

Product photo of a modern kitchen blender with a blender and a white cloth, accompanied by various kitchen utensils (no visible text or labels)

Product photo of a modern kitchen blender with plastic cup and side kitchen tool, no visible text or symbols on main objects

Read the instructions carefully before use.

This product complies with the requirements of the 2014/35/EC Directive (repealing the 73/23/EEC Directive, amended by the 93/68/EEC Directive) and the 2014/30/EC Directive (repealing the 89/336/EEC Directive).

CE

IMPORTANT SAFETY INSTRUCTIONS

When using this product, observe the following safety precautions:

- This food processor is equipped with a protection device against overheating. When the temperature is too high, the unit will turn off automatically and resume operation after the motor has sufficiently cooled down (after about 15 minutes).

- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

- Children shall not play with the appliance.

- Warning: potential injury from misuse. Care shall be taken when handling the sharp cutting blades,

emptying the bowl and during cleaning.

- Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

- This appliance is intended to be used in household.

- Do not operate the unit continuously for more than a minute.

- If the operation needs to last more than a minute, operate the unit for a minute and then turn it off and let it cool for ten minutes before continuing. If the operation needs to last a total of more than five minutes, repeat as described above and then let the unit cool for 90 minutes before turning it on again. This would extend the

service life of your food processor.

• The accessible surfaces may become hot during use.
• This appliance is not designed to operate with an external timer or remote control.
• The blades and discs are very sharp, handle with care. Always hold the blade by the finger grip away from the cutting edge when handling and cleaning.
  • Always remove the blade before pouring the contents from the bowl.
• Keep hands and all utensils out of the mixing bowl and blender jar while the unit is plugged into the power supply.
• Turn off and unplug the appliance:
• before fitting or removing attachments;
• when not in use; and
• before cleaning.
• Never push food into the feeder tube with your fingers. Always use the supplied pusher.
• Before removing the cover from the

mixing bowl or blender jar from themotor unit:

• turn off the power;
• make sure that the accessories/ blades have completely stopped; and

• be careful not to unscrew the mixing bowl or blender jar from the motor unit.

• Let the liquid cool to room temperature before placing them in the blender.

• Do not apply excessive force on the locking mechanism; otherwise, the unit could be damaged and cause injury.
• Never use unauthorized attachment.
• Never leave the appliance unattended when in use.
• Never use a damaged appliance. Send it fort inspection or repair.
• Never wet the motor unit, power cord or plug.

• Do not let the cord hang over the edge of a table or countertop. Do not allow it to come into contact with hot surfaces.

• Do not exceed the maximum capacity indicated in the product.

• Only use the appliance for its intended domestic use. We decline all liability if the appliance is used improperly or if the present instructions are not followed.
• Improper use of your food processor can cause injury.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified persons in order to avoid a hazard.

Before plugging in

- Make sure the mains voltage is the same as indicated under your appliance.

For food contact use

IMPORTANT

It is forbidden to replace the power cable by yourself. In case of damage, it should be repaired by the after-sales service of local distributors, the manufacturer or similar qualified person.

If the appliance is dropped, please ask professional qualified person to check before using it again. Internal damage may cause accidents.

For any kind of problems or repairs, please contact the after-sales service of local distributors, the manufacturer or similar qualified person in order to prevent any risks.

Disposal and environmental responsibility:

In order to be environmentally friendly, we

encourage you to dispose of the appliance. You can contact local authorities or recycling centers for more information.

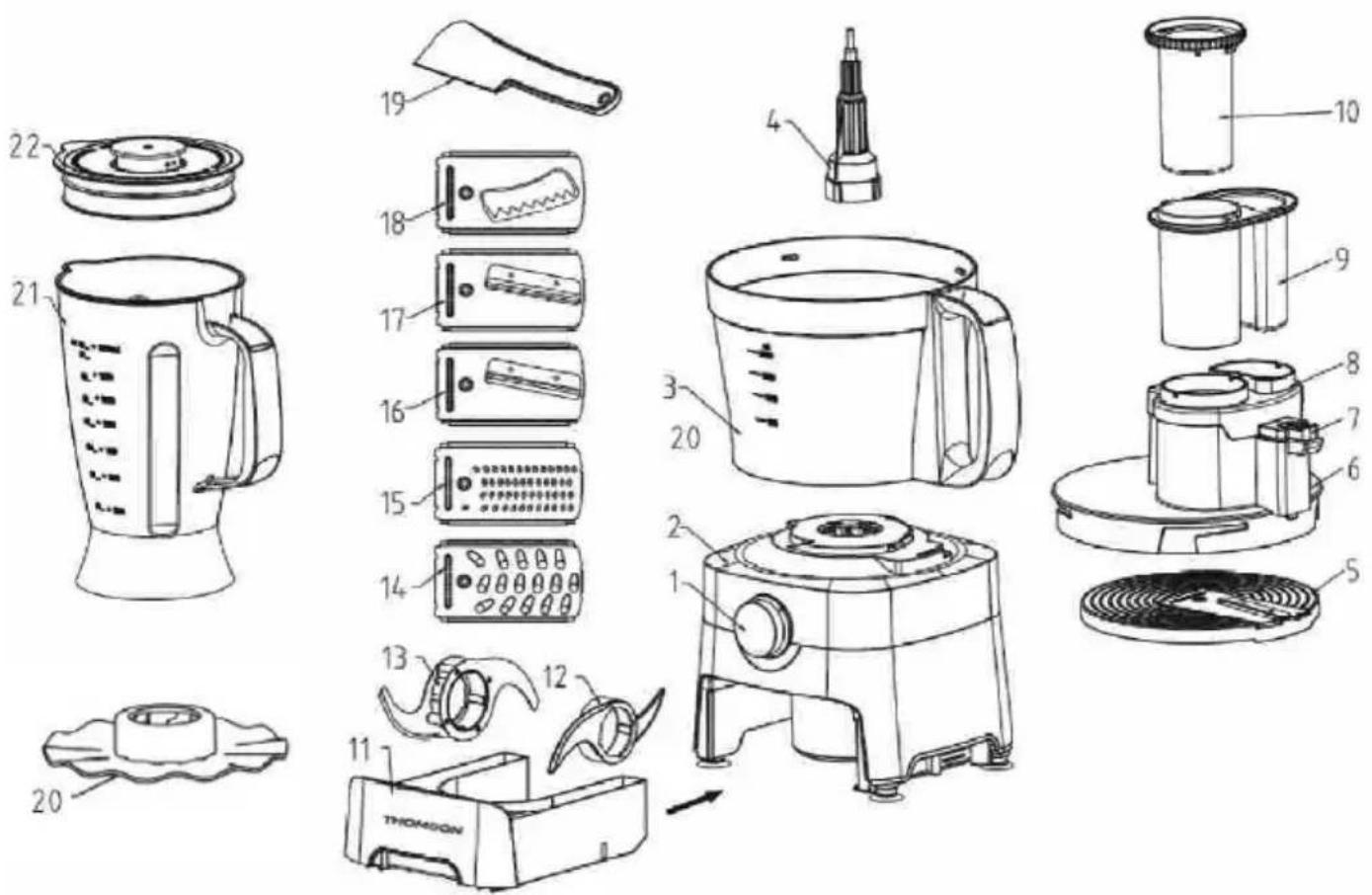

Features

1. Rotary switch
2. Motor base
3. Processing bowl
4. Driving shaft
5. Disc holder
6. Bowl cover
7. Safety lock
8. Protection cover
9. Big pusher
10. Small pusher
11. Blade box

12. Dough blade (plastic)

13. Chopping blade (steel)

14. Coarse shredding blade
15. Fine shredding blade
16. Coarse slicing blade
17. Fine slicing blade
18. French fries' blade
19. Emulsify disc
20. Blender jar
21. Blender cover

Operation

NOTE: this appliance is equipped with a protective device against high temperature. If the temperature becomes too high, the unit will turn off automatically and resume operation after the motor has cooled down sufficiently (after about 30 minutes).

· Chopping blade (13)

Standard processing time is 30 sec to 1 minute, the volume per one batch refers to the following table:

Ingredient	Volume
Chocolate	≤ 200g
Cheese	≤ 350g
Meat	≤ 500g
Vegetable & Spice	100-150g
Fruit	300-500g
Onion	≤ 500g

· Dough blade (12)

Standard processing time is 20 sec to 30 sec, the volume per one batch refers to the following table:

Ingredient	Volume
Flour & soft cheese	≤ 800g
Eggs	≤ 10 pcs

Tips and warning:

The ratio of flour to water while dough is 1 / 0.6, means 100g flour need 60g water to make best effect; the standard of processing time is within 30 sec, that's because the flour will become sticky and stick to the blade adapter if the time lasts too long. Then it will make the machine shake, and work abnormally.

• Disc for shredding and slicing {14-18}

Standard processing time is 1 minute.

Choose the blade disc according to ingredients and the shape you want. Put the blade disc you choose into the plastic disc holder (5), then seat it in the driving shaft (4), close the processing bowl cover, and lock the feed chute cover by safety lock (7) on lid.

You can start to process the food when the machine works normally. If the food shape is small, put the big pusher (9) onto the feed chute cover,

and use the small pusher (10) for easier operation.

If the food shape is big such as potato, please open the chute cover, put the food in, close the c over, and then use the big pusher (9) with small pusher (10) locked on it for operation.

DO NOT be violent while pushing the ingredients in feed chute by pusher. It is best to cut a large food into smaller pieces to fit more easily into the chute.

It is recommended to lower the speed when slicing soft foods to avoid tampering.

- Blender jar (20-21)

Standard processing time is 1 minute.

Prepare the ingredients and put them in the blender jar (20), mount the blender cover (21) well.

Position the blender jar (20. 21) on motor base; turn clockwise to make it fixed firmly. Aware that switch should be in "0" speed, plug in and use pulse 2-3 times as pre-blending. Then choose "1" or "2" speed for processing. During the operation, you can take out the small lid on blender cover (21) and add water or any other ingredients you want through the feeding hole.

DO NOT open the blender cover (21) for adding ingredients during operation! Always add in some water when using the blender.

Tips and Warning

Please always operate the appliance according to above instruction manual to avoid reducing the product life due to working overtime.

INSTALLATION AND MAINTENANCE

- Installation

1. Position the motor base (2) on a flat and dry board.

2. Position the processing bowl (3) onto motor base, turn clockwise to make it fixed firmly.

3. Place driving shaft (4) onto the rotor inside the bowl, seat it vertically.

4. Open the blade box (I I) of the motor base and take the blade you want. For example, when using the chopping blade (13) or dough blade (12), just seat it in driving shaft (4); when using slicing or

shredding, please fix it on the disc holder (5) first, then seat the disc holder (5) in driving shaft (4).

ATTENTION: every time it can use only one blade at a time.

1. Put the food into the processing bowl (3) and then close the bowl cover (6) while using the chopping blade (13) or dough blade (12). When using slicing, shredding or cutting blade, make sure to lock the bowl cover (6) first, ingredient should be filled through feed chute after the machine is ready.

2. Lock the bowl cover (6) and protection cover (8), the safety lock (7) is active now.

3. ATTENTION: the switch should be in the "0" speed; connect the plug with socket, using pulse function or speed I or 2 to confirm whether the machine is assembled well. If there is anything abnormal, unplug the machine and re-assemble it as above.

-Maintenance

1. Please unplug the power cord to protect from electric shock while cleaning the machine, do not immerse the motor base and power cord in water.

2. All removable accessories can be cleaned in water except the motor base, dry the wet parts after cleaning.

3. For easy cleaning, you can put in some warm water and detergent and let it run for a while when cleaning the bowl and the blender jar.

4. Always place the machine in dry and ventilated place

5. DO NOT use hard (solid) detergent to avoid scratch on product.

6. DO NOT operate the appliance for more than 1 minute at a stretch.

7. If operation is completed around 1 minute, it is recommended to turn off the machine and let it cool down for 3 minutes before the next round of operation. If more than 5 rounds of operation are required, cool down the machine to room temperature before the next 5 rounds. This can lengthen lifespan of the machine.

Problem	Solution
Machine doesn't work.	Ensure correct assembly.Make sure power plug is plugged in properly. Check if the mains have tripped, or if there is a power outage.
Machine stops running suddenly.	Processing bowl may lose during vigorous processing.Please re-install the bowl cover.
Motor is running, while components do not run.	Make sure the driving shaft is correctly installed.

TECHNICAL SPECIFICATION

Reference: THFP93510 / THFP93510A

Voltage: 220-240V\~50/60Hz

Power: 1000 W

Blender jar capacity: 1.8L

Useful capacity: 2L

ATTENTION

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

This logo affixed to the product indicates that is an appliance of which the waste processing falls within the framework of the 2012/19/EC Directive of, on Waste Electrical and Electronic Equipment (WEEE).

The presence of hazardous substances in electrical and electronic equipment may have potential effects on the environment and human health in the reprocessing cycle of the product.

Thus, at the end of the life of this appliance, it should not be

disposed of with unsorted household waste.

As a consumer, your role is crucial in the cycle of reuse, recycling and other forms of recovery of electrical and electronic equipment. Waste reception center and collection facilities are implemented at your disposal by local communities (recycling facilities) and distributors.

You have the responsibility to use the selective waste collection systems at your disposal.

Disposal and environmental protection If you want to dispose of your electrical appliance as it needs to be replaced or is no longer used, think about protecting the environment. Consult local authorities for environmental friendly ways for waste disposal.

WARRANTY

The warranty does not cover the wear parts of the product, nor the problems or damage resulting from:

(1) surface deterioration due to normal wear and tear of the product;
(2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects;
(3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair
(4) improper maintenance, improper use
(1) surface deterioration due to normal wear and tear of the product; (2) defects or deterioration due to contact with liquids and corrosion caused by rust or the presence of insects; (3) any incident, abuse, misuse, alteration, disassembly or Unauthorized repair (4) improper maintenance, improper use
Concerning the product or connection to an incorrect voltage;
(5) any use of accessories not supplied or not approved by the manufacturer. The guarantee will be cancelled if the nameplate and / or serial number of the product are removed.

THOMSON is a trademark of Technicolor SA used under license by SCHNEIDER CONSUMER GROUP.

This product is imported by SCHNEIDERCONSUMER GROUP 12, rue Jules Ferry, 93110 Rosny-sous-Bois, FRANCE
