| Product type | Rechargeable LED work light |
| Brand | Vonroc |
| Model | S3_WL503DC |
| Nominal voltage | 20 V |
| Luminous power (mode I / II) | 10 W / 20 W |
| Luminous flux (mode I / II) | 900 lm / 1800 lm |
| Color temperature | 6500 K (cold light) |
| Protection rating | IP20 (indoor use only) |
| Weight (lamp only) | 1.0 kg |
| Included battery | 1 x Lithium-Ion 20 V 4.0 Ah (model CD803AA) |
| Included charger | Rapid charger 220-240 V, 50 Hz (model CD802AA) |
| Battery charging time (4 Ah) | Approximately 120 minutes |
| Maximum runtime (mode I / 4 Ah battery) | 8 hours |
| Number of light modes | 2 (I: 900 lm, II: 1800 lm) |
| Angle adjustment | Body rotation up to 300° |
| Suspension hook | Yes, integrated into the base |
| Light source type | Non-replaceable LED |
| Care and cleaning | Soft slightly damp cloth, no solvents |
| Warranty | Statutory warranty against manufacturing defects |
| Safety standards | Double insulation (class II), CE |
Frequently Asked Questions - S3_WL503DC Vonroc
User questions about S3_WL503DC Vonroc
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lamp in PDF format for free! Find your manual S3_WL503DC - Vonroc and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. S3_WL503DC by Vonroc.
USER MANUAL S3_WL503DC Vonroc
Read the enclosed safety warnings, the additional safety warnings and the instructions. Failure to follow the safety warnings and the instructions may result in electric shock, fire and/or serious injury. Save the safety warnings and the instructions for future reference.
The following symbols are used in the user manual or on the product:
Read the user manual.
Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.
Risk of electric shock.
Protection class III.
Indoor use only.
Time-lag miniature fuse-link.
Class II machine - Double insulation - You don't need any earthed plug.
Max temperature 45°C.
Do not throw the battery into fire.
Do not throw the battery into water.
Do not cover the lens while operating the work light. This may cause the work light to overheat.
Do not use in rain.
Separate collection for Li-ion battery.
Do not dispose of the product in unsuitable containers.
The product is in accordance with the applicable safety standards in the European directives.
SAFETY WARNINGS FOR WORK LIGHT
a) Please read and observe all safety warnings and instructions enclosed with the battery or the power tool with which the battery was provided.
b) Do not work with the rechargeable work light in hazardous areas.
c) After the automatic shut-off of the rechargeable work light, do not continue to press the On/Off button. The work light should be recharged first.
d) Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
e) Do not cover off the lens while operating the rechargeable work light. The work light heats up during operation and can cause burns when the heat is allowed to accumulate.
f) Do not use the rechargeable work light in road traffic. The rechargeable work light is not approved for illumination in road traffic.
g) Do not allow children to use the rechargeable work light. It is intended for professional use. Children can unintentionally blind themselves or other persons.
SAFETY WARNINGS FOR BATTERY
a) Do not open the battery. Danger of short-circuiting.
b) Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
c) In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
d) Use the battery only in conjunction with your Vonroc product. This measure alone protects the battery against dangerous overload.
e) The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
SAFETY WARNINGS FOR CHARGER
Intended use
Charge only CD801AA and CD803AA type rechargeable Battery packs with the charger. Other types of batteries may burst causing personal injury and damage.
a) The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of expe-
rience and knowledge, unless they have been given supervision or instruction.
b) Children being supervised not to play with the appliance.
c) Do not recharging non-rechargeable batteries!
d) During charging, batteries must be placed in the well ventilated area!
2.MACHINEINFORMATION
Intended use
The work light is intended as mobile illumination for temporary use in dry indoor areas. It is not suitable for permanent room lighting.
TECHNICAL SPECIFICATIONS
This manual has been drawn up for different sets / article numbers. Check the corresponding article number in below specifications table for the correct composition and contents of your set.
| Model No. | Batteries included | Chargers included |
| WL503DC | - | - |
| S_WL503DC | CD801AA CD802AA | |
| S2_WL503DC | 2 x CD801AA CD802AA | |
| S3_WL503DC | CD803AA CD802AA |
| Machine information | |
| Voltage 20V | --- |
| Power (I) 10W | |
| Power (II) 20W | |
| Luminous flux (I) 900lm | |
| Luminous flux (II) 1800lm | |
| Colour temperature | 6500K |
| Weight | 1.0kg |
| Model No. | CD801AA |
| Battery Type | Lithium-Ion |
| Voltage | 20V--- |
| Capacity | 2.0 Ah |
| Recommended charger | CD802AA |
| Weight | 0.3 kg |
| Model No. | CD802AA |
| Charger input | 220-240V, 50Hz 0.4A |
| Charger output | 21V = 2.5A |
| Charging time 2Ah battery | 60 minutes |
| Charging time 4Ah battery | 120 minutes |
| Recommended batteries | CD801AA, CD803AA |
| Weight | 0.36 kg |
| Model No. | CD803AA |
| Battery Type | Lithium-Ion |
| Voltage | 20V= |
| Capacity | 4.0 Ah |
| Recommended charger | CD802AA |
| Weight | 0.65 kg |
Only use the following batteries of the VONROC VPOWER 20V battery platform. Using any other batteries could cause serious injury or damage the tool.
CD801AA 20V, 2Ah Lithium-Ion
CD803AA 20V, 4Ah Lithium-Ion
The following charger of the can be used to charge these batteries.
CD802AA Quick charger
The batteries of the VONROC VPOWER 20V battery platform are interchangeable with all the VONROC VPOWER 20V battery platform tools.
DESCRIPTION
The numbers in the text refer to the diagrams on page 2-3.
- Carryinghandle
- Lamp body
- Lamp cover
- Locking knob
- Lamp base
- Hanging hook
- On/Off switch
- Battery
- Battery charger
- Battery release button
- Battery LED button
- Battery LED indicators
- Charger LED indicators
3.ASEMBLY
Before any work on the power tool, remove the battery.
The battery must be charged before first use.

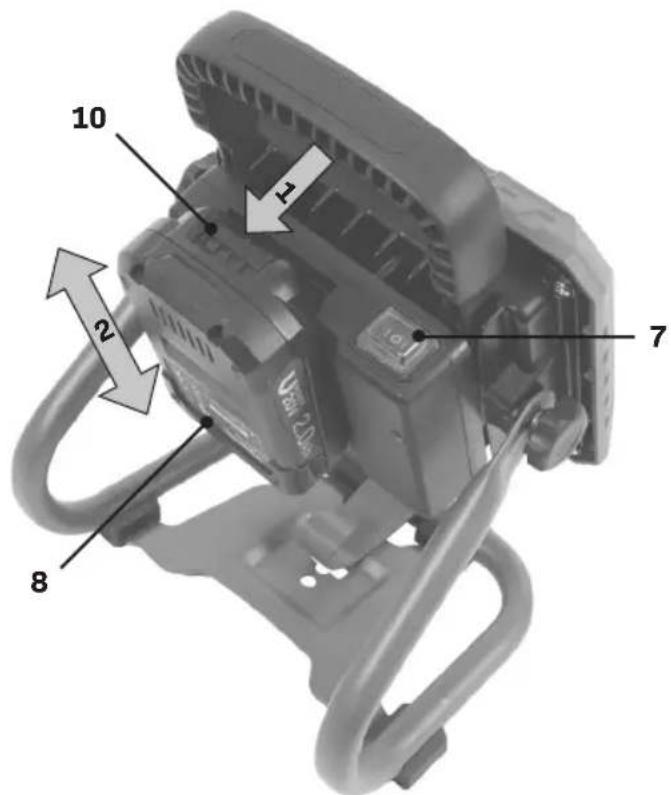

Inserting the battery into the machine (Fig. D)
Ensure that the exterior of the battery is clean and dry before connecting to the charger or machine.
- Insert the battery (8) into the base of the machine as shown in Fig. D.
- Push the battery forward until t clicks into place.
Removing the battery from the machine (Fig. D)
- Push the battery unlock button (10)
- Pull the battery out of the machine as shown in Fig. D.
Checking the battery charging status (Fig. E)
- To check the battery charge status, push the button (11) on the battery shortly.
- The battery has 3 LED lights indicating the charge level.
- When none of the indicators light up the battery is empty and must be charged immediately.

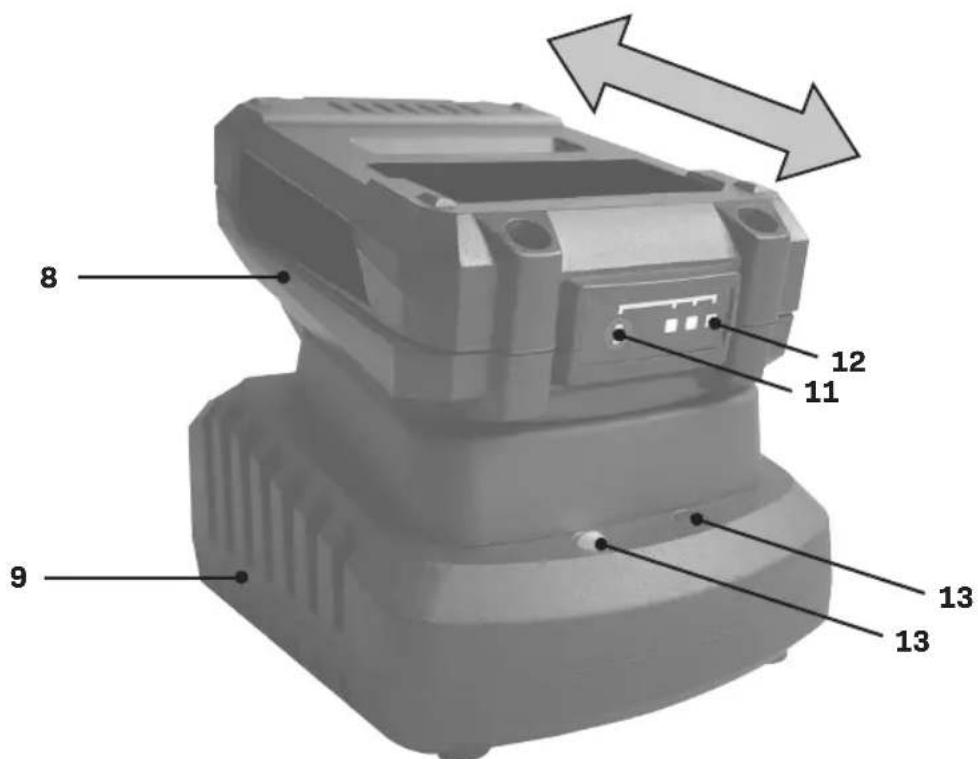

Charging the battery with the charger (Fig. E)
- Remove the battery (8) from the machine.
- Turn the battery (8) to upside down position and slide it onto the charger (9) as shown in Fig. E.
- Make sure that the battery (8) is fully inserted into the slot.
- Plug the charger into an electrical outlet. After a short while the LED indicators on the charger (13) will light up to show the charger status.
The charger has 2 LED indicators (13) which indicate the status of the charging process
| Red LED Status | Green LED status | Charger status |
| Off Off No power | ||
| Off On | Standby mode:- No battery is inserted or,- Battery inserted but charging has finished | |
| On Off | Battery charging in progress |
- Fully charging a 2Ah battery may take up to 60 minutes.
- Fully charging a 4Ah battery may take up to 120 minutes.
After the battery is fully charged remove the charger plug from the outlet and remove the battery from the charger.
When the machine is not being used over a longer period of time it is best to store the battery in charged condition.
4. OPERATION

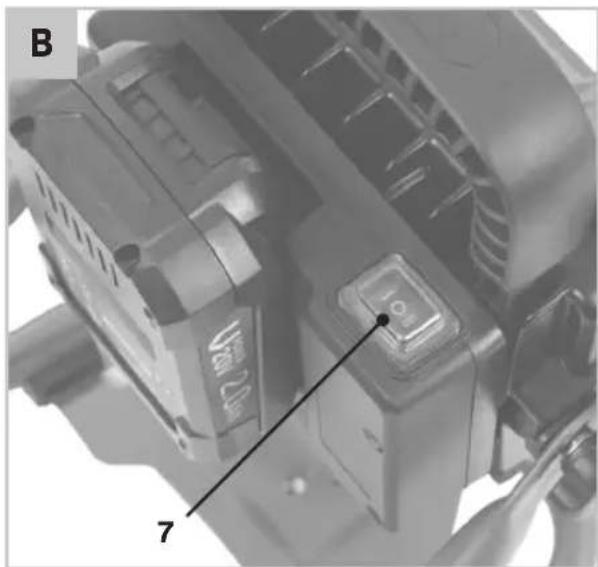

On/Off switch (Fig. B)
- To turn on the work light, select the desired operating mode (I / II) using the On/Off switch (7).
- To switch the work light off, select '0' using the On/Off switch (7).
| Operating mode | Power | Luminous flux | Runtime (2Ah battery) | Runtime (4Ah battery) |
| I 10W 900lm | 4 hours | 8 hours | ||
| II | 20W 1800lm | 2 hours | 4 hours |

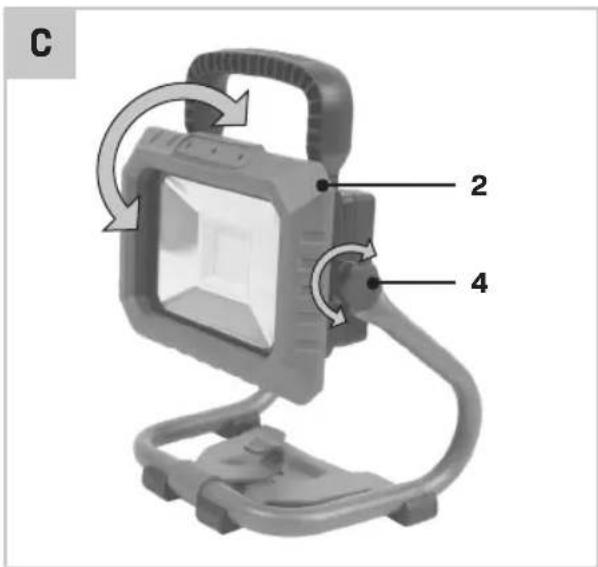

Adjusting the lamp body (Fig. C)
The position of the lamp body (2) may be adjusted over a 300^ range by swiveling up and down.
- Release the locking knobs (4) on both sides of the lamp body (2)
- Adjust the lamp body (2) to the desired position
- Secure the lamp body (2) in place by tightening the locking knobs (4) on both sides.
Hanging hook (Fig. A)
The lamp base (5) is equipped with a hanging hook (6). The hanging hook may be used to hang the lamp upside down to light your work area from above. When not in use, the hanging hook (6) should be folded back into its initial position on the lamp base (5).
5.MAINTENANCE
Before cleaning and maintenance, always switch off the machine and remove the battery pack from the machine.
Replace the light in case the glass covers become damaged. Damaged lights can not be repaired and must be disposed of.
The LED light source in this lamp is not replaceable. When the LED light source has reached the end of its life the light must be disposed of.
Cleaning
Clean the machine exterior regularly with a soft cloth, preferably after each use. Remove very persistent dirt using a soft cloth moistened with soapsuds. Do not use any solvents such as gasoline, alcohol, ammonia, etc. Chemicals such as these will damage the synthetic components of the work light.
ENVIRONMENT
ulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.
Only for EC countries
Do not dispose of power tools into domestic waste. According to the European Guideline 2012/19/EU for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
WARRANTY
VONROC products are developed to the highest quality standards and are guaranteed free of defects in both materials and workmanship for the period lawfully stipulated starting from the date of original purchase. Should the product develop any
failure during this period due to defective material and/or workmanship then contact VONROC directly.
The following circumstances are excluded from this guarantee:
- Repairs and or alterations have been made or attempted to the machine by unauthorized service centers;
- Normal wear and tear;
- The tool has been abused, misused or improperly maintained;
- Non-original spare parts have been used.
This constitutes the sole warranty made by company either expressed or implied. There are no other warranties expressed or implied which extend beyond the face hereof, herein, including the implied warranties of merchantability and fitness for a particular purpose. In no event shall VONROC be liable for any incidental or consequential damages. The dealers remedies shall be limited to repair or replacement of nonconforming units or parts.
The product and the user manual are subject to change. Specifications can be changed without further notice.
