Dept. 10 Dual Drive - Guitar amp BLACKSTAR - Free user manual and instructions

Product type	Tube effects pedal / guitar amplifier
Brand	Blackstar
Model	Dept. 10 Dual Drive
Power supply	DC 9V, 500 mA (PSU-500 adapter included)
Tube	1 x ECC83 / 12AX7
Dimensions (W x H x D)	157 x 76 x 117 mm
Weight	0.63 kg
Input impedance	1 MΩ
Output impedance	< 1 kΩ
Channels	2 channels: channel 1 (Clean/Crunch), channel 2 (Crunch/Overdrive)
Controls	Gain 1, Level 1, Bass, Middle, Treble, ISF, Gain 2, Level 2
Selectors	Channel 1 mode (CL/CR), Channel 2 mode (CR/OD), Cab Rig (3 positions)
Outputs	Output (6.35 mm jack), Cab Rig (6.35 mm stereo jack), Balanced XLR, USB audio, FX Loop
Inputs	Input, FX Loop Return, DC power
Key features	Patented ISF, Cab Rig speaker simulator, effects loop, headphone output, Architect software
Maintenance and cleaning	Clean with a dry cloth; do not open the enclosure; avoid humidity
Safety	Internal high voltage; do not open; use the provided adapter; do not expose to rain
Spare parts and repairability	No user-serviceable parts; refer to a qualified technician

Frequently Asked Questions - Dept. 10 Dual Drive BLACKSTAR

How to connect the Dept. 10 Dual Drive pedal?

Connect your guitar to the Input (1) jack with a shielded cable. Connect the Output (14) to your amplifier's input or other pedals. Use the provided power adapter (DC 9V, 500 mA) on the DC (3) input.

What is the difference between Clean and Crunch modes on channel 1?

In Clean (CL) mode, channel 1 delivers a clear sound with progressive saturation. In Crunch (CR) mode, it produces a saturated crunch tone, and can act as a booster with Level high and Gain low.

How to use the Cab Rig selector?

The Cab Rig selector (11) allows you to choose from three cabinet simulation presets. These presets apply to the Cab Rig and XLR outputs. You can customize them with the free Architect software via USB.

What does the ISF control do?

The ISF (Infinite Shape Feature) control (8) modifies the equalizer's tonal signature. Turned counterclockwise, it gives an American character (tight lows, aggressive mids). Clockwise gives a British character (thick, less aggressive sound).

How to use the FX Loop?

Connect the input of your external effect to the FX Loop Send (1) output and the effect's output to the FX Loop Return (2) input. This allows you to insert effects like reverb or delay after the gain section.

Can the Cab Rig output be used with headphones?

Yes, the Cab Rig (15) output is a stereo jack with a built-in headphone amplifier. It can drive all standard headphone impedances for silent practice.

How to customize the Cab Rig presets?

Download the Architect software from the Blackstar website. Connect the pedal via USB (4) to a PC or Mac. You can then deeply modify the cabinet, microphone, and other simulations and load them into the three Cab Rig selector positions.

What power supply to use for the Dept. 10 Dual Drive?

Use exclusively the provided power adapter (PSU-500) or an equivalent adapter: DC 9V, 500 mA, center negative (tip negative). Inadequate power may damage the pedal.

What to do if I get no sound?

Check that the channel footswitches (17, 19) are engaged to activate the channel. Make sure the power supply is connected and the guitar cable is working. If the problem persists, consult a qualified technician.

How to clean the Dept. 10 Dual Drive pedal?

Use a dry cloth to clean the enclosure. Never use liquids or abrasive cleaners. Do not attempt to open the enclosure; no user-serviceable parts inside.

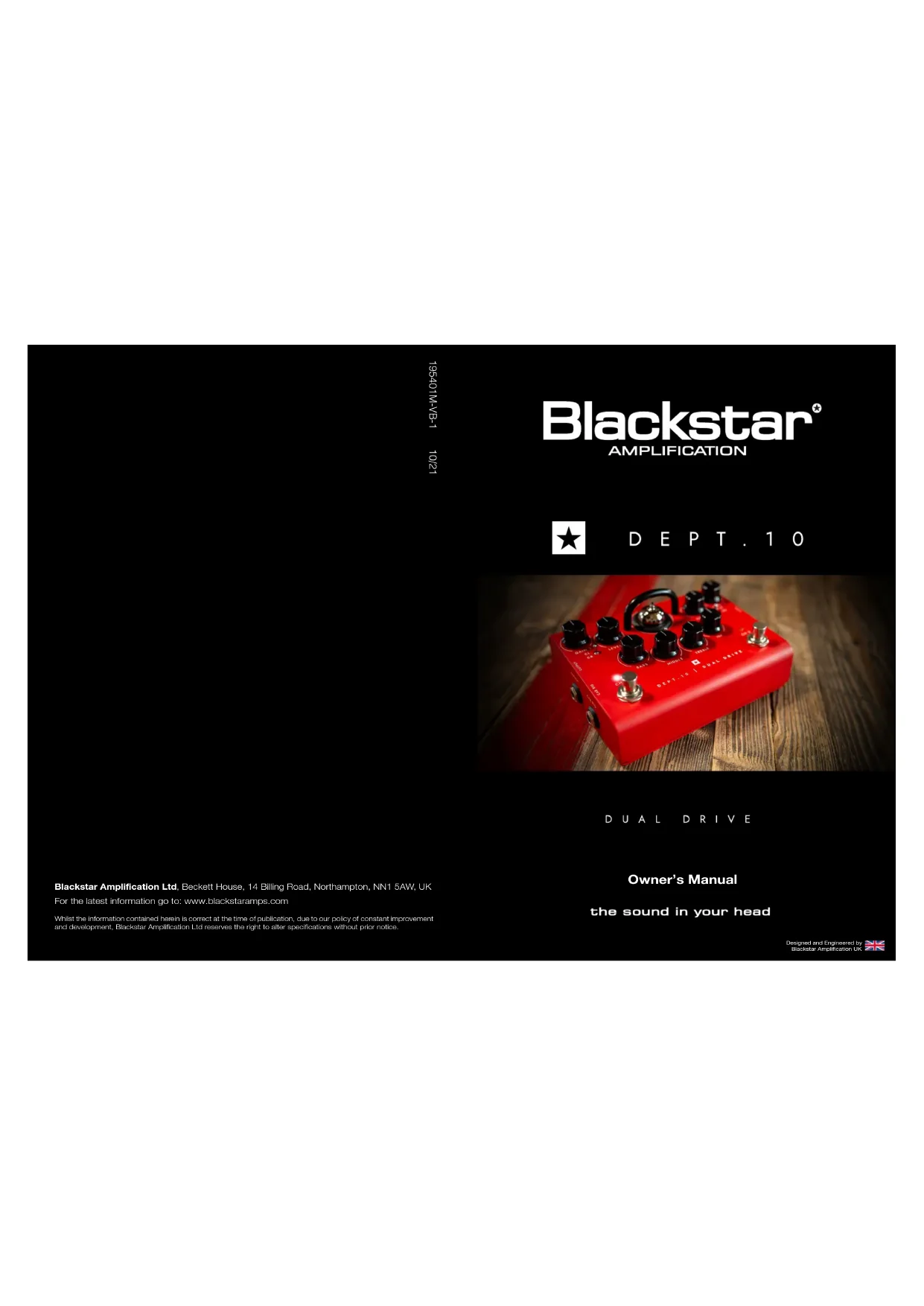

USER MANUAL Dept. 10 Dual Drive BLACKSTAR

Blackstar ^

AMPLIFICATION

DEPT.10

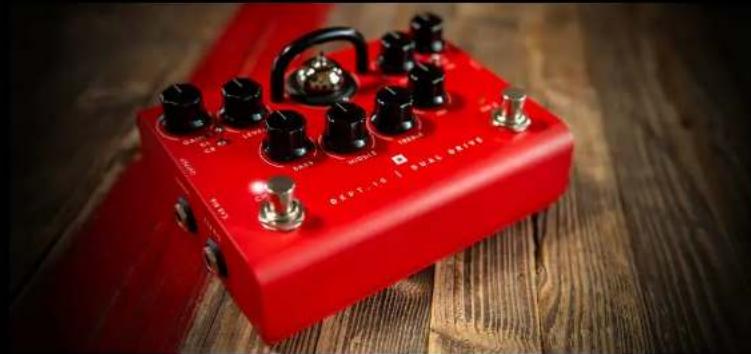

Red audio amplifier device with black knobs and a metallic knob, placed on a wooden surface (no visible text or symbols)

DUAL DRIVE

Owner's Manual

the sound in your head

Blackstar Amplification Ltd, Beckett House, 14 Billing Road, Northampton, NN1 5AW, UK

For the latest information go to: www.blackstaramps.com

Whilst the information contained herein is correct at the time of publication, due to our policy of constant improvement and development, Blackstar Amplification Ltd reserves the right to alter specifications without prior notice.

Designed and Engineered by

Blackbar Amplification UK

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.
8. Install in accordance with the manufacturer's instructions.
9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
12. Only use attachments/accessories specified by the manufacturer.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

"TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE". "WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS".

This symbol is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying the appliance.

This symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Warning!

Important safety information!

READ THE FOLLOWING INFORMATION CAREFULLY. SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE!

Follow all warnings and instructions marked on the product! Danger! High internal operating voltages.

Do not open the equipment case. There are no user serviceable parts in this equipment. Refer all servicing to qualified service personnel.

Clean only with a dry cloth.

Condensation can form on the inside of an amplifier if it is moved from a cold environment to a warmer location. Before switching the unit on, it is recommended that the unit be allowed to reach room temperature.

Unauthorised modification of this equipment is expressly forbidden by Blackstar Amplification Ltd.

Never push objects of any kind into ventilation slots on the equipment casing.

Do not expose this apparatus to rain, liquids or moisture of any type.

Avoid placing vessels filled with liquid on top of the amplifier.

Do not place this product on an unstable trolley, stand or table. The product may fall, causing serious damage to the product or to persons!

Do not cover or block ventilation slots or openings.

This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.

Use only the supplied power adaptor which is compatible with the mains voltage supply in your area.

The power supply adaptor should always be handled carefully and should be replaced if damaged in any way.

Never break off the earth (ground) pin on the power supply adaptor.

The power supply adaptor should be unplugged when the unit is to be unused for long periods of time.

Before the unit is switched on, the loudspeaker should be connected as described in the handbook using the lead recommended by the manufacturer.

Always replace damaged fuses with the correct rating and type.

Never disconnect the protective mains earth connection.

High loudspeaker levels can cause permanent hearing damage. You should therefore avoid the direct vicinity of loudspeakers operating at high levels. Wear hearing protection if continuously exposed to high levels.

If the product does not operate normally when the operating instructions are followed, then refer the product to a qualified service engineer.

Only suitable for safe use under non-tropical climate conditions. Maximum ambient temperature for operation: 35°C

Always make sure that the power adaptor is connected to a socket/outlet with an earthed connection.

Mains Voltage: 100-240V\~50/60Hz.

This amplifier is only designed and evaluated for safety at a maximum altitude of 2000m.

The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

8	90
6	92
4	95
3	97
2	100
112	102
1		105
12		110
14 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.

Ear plug protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Introduction

Thank you for purchasing this Blackstar valve effects pedal. Like all our products this pedal is the result of countless hours of painstaking Research and Development by our world-class design team.

DEPT. 10 is the Blackstar R&D team responsible for blue sky innovation and design. Based in Northampton (UK), the Blackstar team are all experienced musicians themselves and the sole aim of the development process is to provide guitarists with products which are the ultimate tools for self expression.

All Blackstar products are subjected to extensive laboratory and road testing to ensure that they are truly uncompromising in terms of reliability, quality and above all TONE.

If you like what you hear and want to find out more about the Blackstar range of products please visit our website at www.blackstaramps.com.

Thanks!

The Blackstar Team

Features

The DEPT. 10 DUAL DRIVE offers the ultimate in high voltage valve overdrive flexibility. Channel 1's Clean and Crunch modes let you move from clean, to boost to overdrive. Channel 2 then takes you from super crunch right up to screaming lead. The Cab Rig output enables you to get the sound in your head from any speaker including headphones, studio monitors and front of house.

The unique switching operation will transform a single channel vintage amp into a three channel tone machine. Use the patented ISF (Infinite Shape Feature) control to take your tone from the USA to the UK and anywhere in between. With the array of controls over your dynamics, EQ, speaker response and speaker environment, you now have all the tools to achieve 'the sound in your head'.

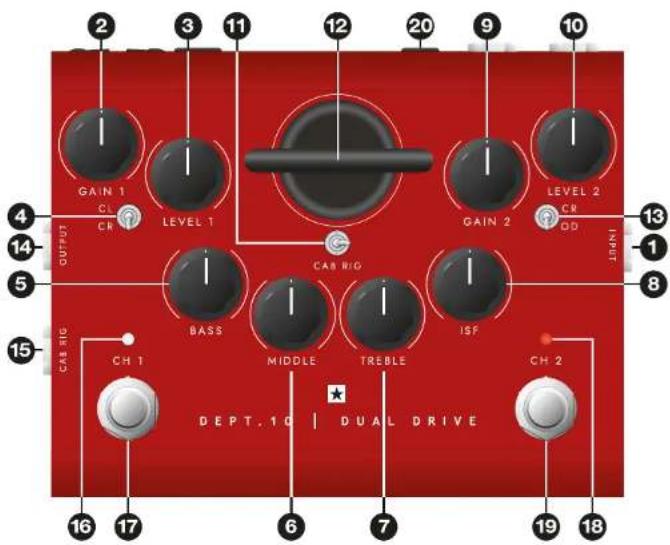

Top View

1. Input

Plug your guitar in here. Always use a good quality screened guitar lead.

2. Gain 1

This Gain control adjusts the amount of overdrive or distortion that Channel 1 will deliver. As the Gain control is increased clockwise (CW) the sound will become more overdriven moving through crunch tones until, at its maximum position, a full crunch tone is reached.

3. Level 1

This Level control sets the overall level or volume from Channel 1 of the pedal. It should be used in conjunction with the Gain 1 control to achieve the exact type of drive you require. Generally speaking, at lower Gain settings, the Volume will be increased and at higher Gain settings the Volume should be decreased.

4. Channel 1 Clean/Crunch Mode Switch

This switch enables Channel 1 to be set up as a Clean or Crunch channel. The Crunch channel can also be used as a clean boost by running the level high and the gain low. This will add further saturation to an already overdriven amplifier.

5. Bass

The Bass control adjusts the amount of low end frequencies in your tone. This pedal has an advanced tone shaping circuit (shared by Channel 1 and Channel 2) which allows the tone to be tight and cutting, counter clockwise (CCW), to warm and thumping (CW).

6. Middle

The Middle control adjusts the amount of middle frequencies in your tone. The middle frequencies are particularly important in getting the amount of 'body' your tone has. With the Middle control set to its minimum position (fully CCW) the sound will be aggressive and scooped, this is a tone ideal for aggressive rhythm playing. As the Middle control is increased (CW) the amount of 'body' is increased, which is more suitable for sustained lead guitar tones.

7. Treble

The treble control allows exact adjustment of the treble frequencies within the sound. At low settings (CCW) the sound will be warm and darker in character. As the Treble control is increased (CW) the sound will become brighter. At the maximum settings the sound will be aggressive and cutting.

8. ISF (Infinite Shape Feature)

The patented ISF control works in conjunction with the Bass, Middle and Treble controls. It allows you to choose the exact tone signature you prefer. Fully CCW is a more American characteristic with a light bottom end and more aggressive middle, and fully CW is a British characteristic which is more 'woody' and less aggressive. See illustration below.

We recommend that to start with the ISF is set to half way and the Bass, Middle and Treble are set to taste. Then try gradually adjusting the ISF CW and COW until you find the sound you prefer.

9. Gain 2

This Gain control adjusts the amount of overdrive or distortion that Channel 2 will deliver. As the Gain control is increased (CW) the sound becomes more overdriven moving through crunch tones until, at its maximum position, a full overdriven tone is reached.

10. Level 2

This Level control sets the overall level or volume from Channel 2 of the pedal. It should be used in conjunction with the Gain 2 control to achieve the exact type of drive you require. Generally speaking, at lower Gain settings, the Volume will be increased and at higher Gain settings the Volume should be decreased.

11. Cab Rig Switch

Select one of three Cab Rig environments. You can deep edit and load in your own Cab Rig settings using the free Architect software.

12. Valve Guard

Through this guard you can see the ECC83 valve at the heart of your pedal.

WARNING: Do not attempt to remove the fixing screws or guard. No user serviceable parts inside.

13. Channel 2 Crunch/Overdrive Mode Switch

This switch enables Channel 2 to be set up as a Crunch or Overdrive Channel.

Crunch mode is very dynamic, from a light crunch to medium breakup. Switching to Overdrive mode gives more gain and saturation with a slight lift in presence.

14. Output

This output is designed for connection to the input of other pedals or the input of a valve solid state, digital or hybrid amplifier. For best noise performance we recommend you place the overdrive pedal first in the effects chain. The built-in buffer/line driver is perfect for preserving your tone when using long cables, or large pedalboards, even driving low impedance pedals like many wah-wahs. Always use a good quality screened guitar lead.

15. Cab Rig Output

Cab Rig is our next generation DSP speaker simulator that reproduces the sound and feel of a mic'd up guitar cab in incredible detail. Deep dive edit, make custom patches for your cabinet, microphone, power amp and more by plugging your pedal into our free Architect software via USB. This source will output the selected Cab Rig switch preset, Left = 1, Middle = 2 and Right = 3. This output has the selected Cab Rig preset applied. A DI signal can be selected within the Cab Rig software to bypass the cabinet simulation.

NOTE: The Cab Rig output is a fully stereo 6.35mm connection and should only be used with a stereo jack. Cab Rig output also features a low noise and low distortion headphone driver circuit which can drive all standard headphone impedances and can be used for silent practice.

Download Architect here: https://www.blackstaramps.com/uk/architect

16. Channel 1 On/Off LED

When the WHITE LED is on Channel 1 is on. When the LED is not on, Channel 1 is off.

17. Channel 1 On/Off Footswitch

Press this switch to turn Channel 1 on or off.

18. Channel 2 On/Off LED

When the RED LED is on Channel 2 is on. When the LED is not on, Channel 2 is off.

19. Channel 2 On/Off Footswitch

Press this switch to turn Channel 2 on or off.

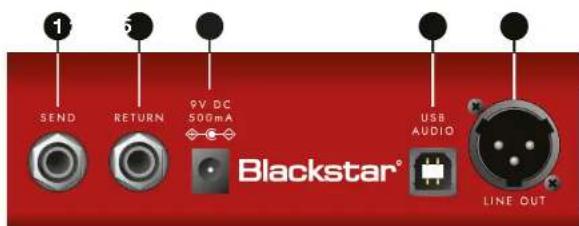

Rear View

1. FX Loop Send

Connect the (mono) input of an external effects unit here. Insert any external effects you want to keep clean such as reverb, delay, or modulation.

2. FX Loop Return

Connect the (mono) output of an external effects unit here.

3. DC Inlet

For the input of the 9V DC / 500mA adaptor supplied. Only use the included power supply.

4. USB Audio Output

Plug a USB cable in here to connect the amplifier to a Windows PC or Mac. The amplifier will appear on a personal computer as an audio capture device within recording software. This output has the selected Cab Rig preset applied. A DI signal can be selected within the Cab Rig software to bypass the cabinet simulation.

5. XLR Line/DI Output

A balanced output for connection to a PA, mixing desk or interface for recording and monitoring. This source will output the selected Cab Rig switch preset. This output has the selected Cab Rig preset applied. A DI signal can be selected within the Cab Rig software to bypass the cabinet simulation.

DEPT. 10 DUAL DRIVE

Power: 9V DC

Maximum Current Draw: 500mA

Valve: 1 x ECC83 / 12AX7

Input Impedance: 1MΩ

Output Impedance: < 1kΩ

Weight (kg): 0.63

Dimensions (mm): 157(W) × 76(H) × 117(D)

DC Adaptor: PSU-500 supplied (9VDC 500mA tip negative)

Warnung!

8. ISF (Infinite Shape Feature)

5. XLR Line / DI Output

8. ISF (Infinite Shape Feature)

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

BLACK ★

3736 3

Presentación

8. ISF (Infinite Shape Feature)

5. Salida XLR Line / DI

At electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

介绍

Dept. 10 Dual Drive Top View Dept. 10 Dual Drive Rear View
