USER MANUAL Snacktastic 5801 FRITEL

J. Ventilation grid K. Cable storage L. Extractable cable We reserve the right to execute technical modifications.

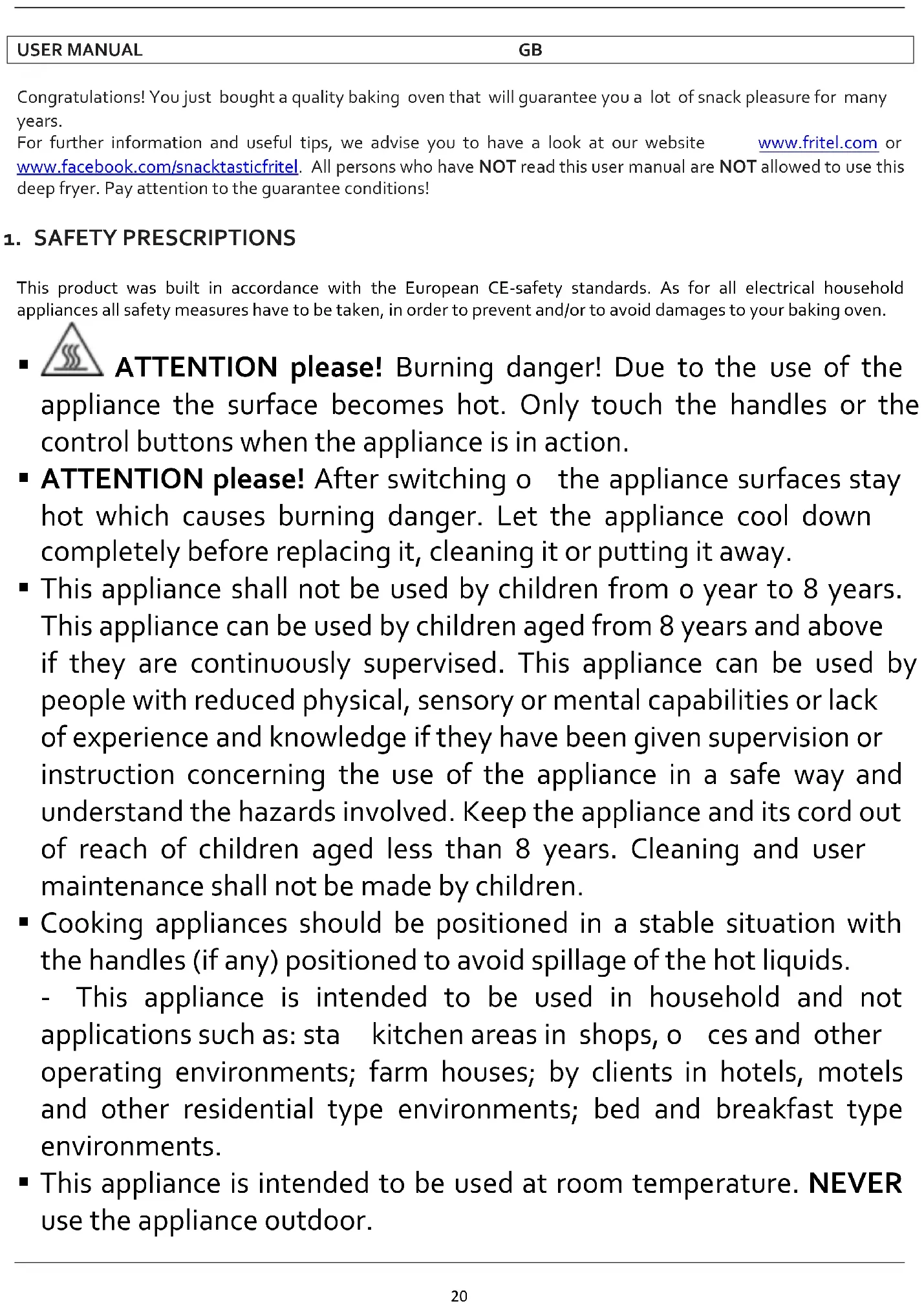

Congratulations! You just bought a quality baking oven that will guarantee you a lot of snack pleasure for many years. For further information and useful tips, we advise you to have a look at our website www.fritel.com or www.facebook.com/snacktasticfritel. All persons who have NOT read this user manual are NOT allowed to use this deep fryer. Pay attention to the guarantee conditions!

1. SAFETY PRESCRIPTIONS

This product was built in accordance with the European CE-safety standards. As for all electrical household appliances all safety measures have to be taken, in order to prevent and/or to avoid damages to your baking oven.

ATTENTION please! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handles or the control buttons when the appliance is in action.

• ATTENTION please! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away.

• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids. - This appliance is intended to be used in household and not applications such as: staff kitchen areas in shops, offices and other operating environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• This appliance is intended to be used at room temperature. NEVER use the appliance outdoor.21

• A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

• NEVER touch the control buttons, the electrical cord or the plug with wet hands, and NEVER immerse them in water or any other liquid. They are only to be cleaned with a damp cloth. Should they get wet anyway, immediately pull out the plug from the socket.

• NEVER use separate timers or remote control systems.

• Immediately switch off the appliance and pull out the plug: after use or when the appliance is NOT in use, if the appliance does not function properly and when cleaning the appliance.

• NEVER cover the ventilation grid when the appliance is operating.

• NEVER put oil in the drawer. This may cause fire.

• NEVER touch the inside or the appliance while it is operating.

• While baking, hot steam might come out of the openings of the appliance. ALWAYS keep hands and face at a safe distance from the steam. Also ALWAYS be careful when you remove the drawer when the appliance is operating, steam might come out.

• IMMEDIATELY unplug the appliance if dark smoke comes out of it. Only remove the drawer when no more smoke is coming out.

• ALWAYS place the appliance on a stable and flat surface, such as a kitchen counter or table, so that the appliance won’t move or turn over.

• NEVER pull the power cord, only the plug.

• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS unroll the power cord completely.

• NEVER let the cord hang over the edge of the table or the counter.

• NEVER place the power supply cord near heat sources such as cookers, heatings or ovens.

• NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects. Always make sure to have 10 cm on all sides of the appliance.

• NEVER place anything on top of the appliance.

• Only use the baking oven with 230 Volt AC.

• In accordance with the legal safety standards, the baking oven must always be plugged into an earthed socket.

• For your own safety, the appliance will only work if it has been assembled correctly. Check that all parts were assembled correctly.

• Only use this appliance to fry without oil, bake and roast food.

• NEVER leave the appliance unattended and NEVER move it when operating.

• Always unroll the cord completely. NEVER turn the power cord around the baking oven, NEVER bend it or squeeze it.

• ALWAYS switch off the appliance and pull out the plug: after use or when the appliance is not in use, if the appliance doesn’t work properly and when cleaning the appliance.

• NEVER use accessories or spare parts from other appliances or brands.

• Repairs may only be done by a recognized repairer or service center.22

• Remove all packagings and stickers.

• Keep all packing material out of children’s reach.

• Check the appliance and the power cord for any damage. Do not use the baking oven and return it to the sales point in case of damage.

• Before using the baking oven for the first time, it is recommended to clean the drawer and the basket. (See MAINTENANCE)

• Clean the drawer and the basket with hot soapy water and a soft sponge. These pieces are dishwasher proof.

• Ensure that the voltage marked on the appliance is the same as your main voltage.

The chart below indicates which settings should be used for which food. ATTENTION: these settings are merely indicative. Since each ingredient may differ from brand to brand, but also from size, shape, content… it is possible that the indicated settings don’t always entirely correspond. TIPS: - Smaller ingredients often require a shorter baking time than larger ingredients. - Shaking small ingredients during the baking process might improve the final result. (See USE). - Add a little bit of oil on fresh potatoes for a crispier result. Add the oil before putting the ingredients in the basket. Bake the ingredients within a few minutes after adding the oil. - Snacks that can be prepared in a traditional oven can be prepared in the SnackTastic®. Snacks or fries only meant to be prepared in a deep fryer will not provide the desired result. - You can use the SnackTastic® to heat up ingredients. To do so, see Reheat function, point 4. Use.23

Min-Max capacity (gram) Time (minutes) Temperature (°C) Shake Other Potatoes and fries

Use the baking tin Cake 500 (Total weight of the dough)

NOTE: add 3 minutes to the baking time if the appliance is cold. NOTE: * Check if the ingredients are suited for preparation in the oven. ** See USE – point 12 Homemade fries For the best result we advise to use prebaked fries (e.g. frozen fries). If you want to make homemade fries, follow steps below.

1. Peel the potatoes and cut them into fries.

2. Soak the fries in a bowl of water for at least 30 minutes, take them out and dry them properly with some

3. Pour ½ spoon of oil in a bowl, add the fries and mix carefully until all fries are equally covered with oil.

4. Remove the fries from the bowl with your hands or a kitchen utensil so redundant oil stays behind in the

bowl. Put the fries in the basket. NOTE: don’t pour the fries from the bowl into the basket to avoid redundant from ending up in the drawer.

5. Bake the fries as mentioned earlier.

1. Place the appliance on a stable, flat and heat resistant surface.

2. Pull the cord entirely out of the cable storage.

CAUTION: Do not put oil or any other liquid in the drawer. CAUTION: Don’t put anything on top of the appliance.

3. Carefully pull the drawer out of the appliance.

NOTE: always completely remove the drawer from the appliance before adding ingredients to the basket.

4. Take out the basket of the drawer.

5. Place the food into the basket.

NOTE: Do not fill the basket more than 4/5, or the mentioned amount indicated in the above grid. Larger quantities will give a lesser result. CAKE FUNCTION: put the cake dough into the baking tin, the baking tin into the basket and place the basket in the drawer.

6. Place the basket in the drawer.

7. Put the drawer back into the appliance. Never use the drawer without basket.

CAUTION: Don’t touch the drawer during or for some time after use, as it gets very hot. Only hold the drawer by the handle.

8. Put the plug into the socket.

9. Set the desired temperature by turning the temperature controller.

10. Set the baking time for the ingredients by turning the TIMER button. The control light POWER will switch on.

11. The control light HEAT will switch on. When the desired temperature is reached, the control light switches off.

Time and temperature can be adjusted while operating. The appliance starts heating as soon as the baking time is set. NOTE: You can let the appliance preheat if you want. Set the desired temperature. Turn the button to 3 minutes and wait until the control light HEAT switches off. Then continue from point 4 as described above.

12. Some ingredients require shaking halfway through the baking process. To shake the food, take the

handle, pull the drawer out of the appliance and shake. Then replace the drawer into the appliance. NOTE: do not press the release button on the basket while shaking.25 TIP: to minimize the weight, you can remove the basket out of the drawer and only shake the basket. To do so, remove drawer with basket from the appliance, place on a heat resistant surface, and press the release button to release the basket. NOTE: The control light HEAT will go on and off during the baking time, which is normal. It indicates the appliance switches itself on and off in order to keep the set temperature.

13. When the baking time is finished, you will hear a short sound signal and the appliance will switch off

automatically. Remove the drawer from the appliance and put it on a heat resistant surface. TIP: In order to switch off the appliance manually, turn the TIMER button back to 0.

14. Check if the ingredients are ready. If not, put the drawer back in the appliance and set a few more minutes.

15. To remove small ingredients out of the basket (e.g. fries), press the release button and remove the

basket from the drawer. Do not turn the basket upside down when it is still in the drawer. Any redundant oil or residues that fell in the drawer could fall on your ingredients. After use, the drawer and the ingredients are still very hot. Depending on the type of ingredients steam may escape from the drawer. TIP: To remove large or fragile food, it is best to use kitchen pincers.

16. When a serving of ingredients is ready, the baking oven is instantly ready for preparing another

serving. Reheat function The appliance is equipped with a Reheat Function to warm up food. To use this function: - Turn the timer knob to Reheat - Turn the thermostat knob to Reheat The appliance will heat for 5 minutes at 200°C. Keep Warm function The appliance is equipped with a Keep Warm Function keep food warm. To use this function: - Turn the timer knob to Keep Warm - Turn the thermostat knob to Keep Warm The appliance will heat for 60 minutes at 70°C.

1. Clean the appliance after each use.

2. The drawer, basket and inside of the appliance have a non-stick coating. Do not use metal kitchen ware or

abrasive cleaning materials to clean them. This may damage the non-stick coating.

3. First remove the plug from the socket and let the baking oven cool down completely before cleaning.

TIP: in order to make the appliance cool down more quickly you can remove the drawer.

4. Only clean the housing with a moist cloth.

5. The basket and the drawer can be cleaned with hot soapy water and a cleaning brush.

TIP: The basket and the drawer are dishwasher proof.26 TIP: Use fat dissolver to remove remains. TIP: If the food sticks to the basket or to the drawer: put the basket in the drawer and let it soak for about 10 minutes in water.

6. The inside of the appliance can be cleaned with warm water and a soft sponge.

7. Clean the heating elements with a cleaning brush to remove sticking residues.

1. Pull the plug from the socket and let the appliance cool down completely.

2. Make sure all parts are clean and dry.

3. Store the cord in the cable storage and fix the cord by inserting it into the cord fixing slot.

The SnackTastic® does not work. The plug is not plugged in. Insert the plug into the socket. The timer was not set. Turn the timer to set the desired baking time. There is no drawer in the appliance. Put the drawer (correctly) in the appliance.

The ingredients are not done. There are too much ingredients in the basket. Put smaller amount at once in the basket. The set temperature is too low. Increase the temperature. The baking time is too short. Increase baking time.

The ingredients are not equally baked. Some ingredients need to be shaken halfway through the baking process. Shake ingredients which are piled up (f. ex. fries) halfway through the baking process.

The fried ingredients are not crispy.

You used snacks only suited for a traditional or a cool zone deep fryer.

Use oven snacks or slightly grease the ingredients with oil for crispier.

I cannot slide the drawer into the appliance properly. There are too much ingredients in the basket. Fill maximum 4/5 of the basket. The basket is not correctly placed in the drawer. Press the basket until you hear a click. White smoke coming out of the appliance. You’re using very greasy ingredients. When baking greasy ingredients, the redundant oil drips on the hot drawer and causes smoke. This will not affect the final cooking result.

There are some residues from prior bakings in the drawer. The smoke is caused by greasy residues heating up. Carefully clean the drawer after each use.

Fries are fried unequally.

Crispiness depends on the amount of water in the fries. Carefully dry the fries before you grease them with oil.

The fries are not crispy.

The crispiness depends on the amount of water and oil in the fries.

Cut smaller fries. Grease with a little bit more oil. If you still have troubles, immediately bring your appliance to your sales point.27

The appliance has been developed for household use. When using it for professional purpose, the conditions of warranty will change. Any damage caused due to incorrect use (non-observance of this user manual) will invalidate the warranty.

8. WARRANTY CONDITIONS

Your warranty starts on the day of purchase. Warranty period: 2 years. In order to apply for warranty, please keep your purchase invoice.

• The warranty covers every repair and / or replacement free of charge of the parts recognized defective by our technical department and for which the defects are caused by material-, construction- or production defects.

• The warranty is only valid for the original user.

• Carriage both ways is for the purchaser’s account.

• The warranty only applies after submitting the purchase invoice.

• The warranty cannot be invoked for normal wear and tear.

• The warranty does not apply in the following cases:

• Incorrect connection, e.g. electric voltages.

• Abnormal use, misuse handling or professional use.

• Modifications or repairs made to the appliance by persons not authorized by us as manufacturer.

• When reference numbers are altered or removed.

• When the instructions in this user manual are not followed.

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing so, you will help to preserve the environment.

For all supplementary information, recipes and practical tips about all our appliances please visit our website www.fritel.com ! Find us on facebook: www.fb.com/fritel.vanratingen!
