USER MANUAL Snacktastic 8180 DUO FRITEL

1. Symbol for program for fresh fries

2. Symbol for program for steak

3. Symbol for program for fish

4. Symbol for program for cupcakes

5. Symbol for program for poultry

6. Symbol for program for frozen fries

7. Symbol for program for frozen snacks

8. Symbol for program for pizza

9. Symbol for keep warm function

10. Symbol for reheat function

Not all symbols are always visible.

Congratulations! You just bought a quality baking oven that will guarantee you a lot of snack pleasure for many years. For further information and useful tips, we advise you to have a look at our website www.fritel.com or www.facebook.com/snacktasticfritel. All persons who have not read this user manual are not allowed to use this appliance. Violation of the prescriptions and instructions mentioned in this user manual makes the warranty expire automatically!

1. SAFETY PRESCRIPTIONS

This product was built in accordance with the European CE-safety standards. As for all electrical household appliances, all safety measures have to be taken, in order to prevent and/or to avoid damages to your baking oven.

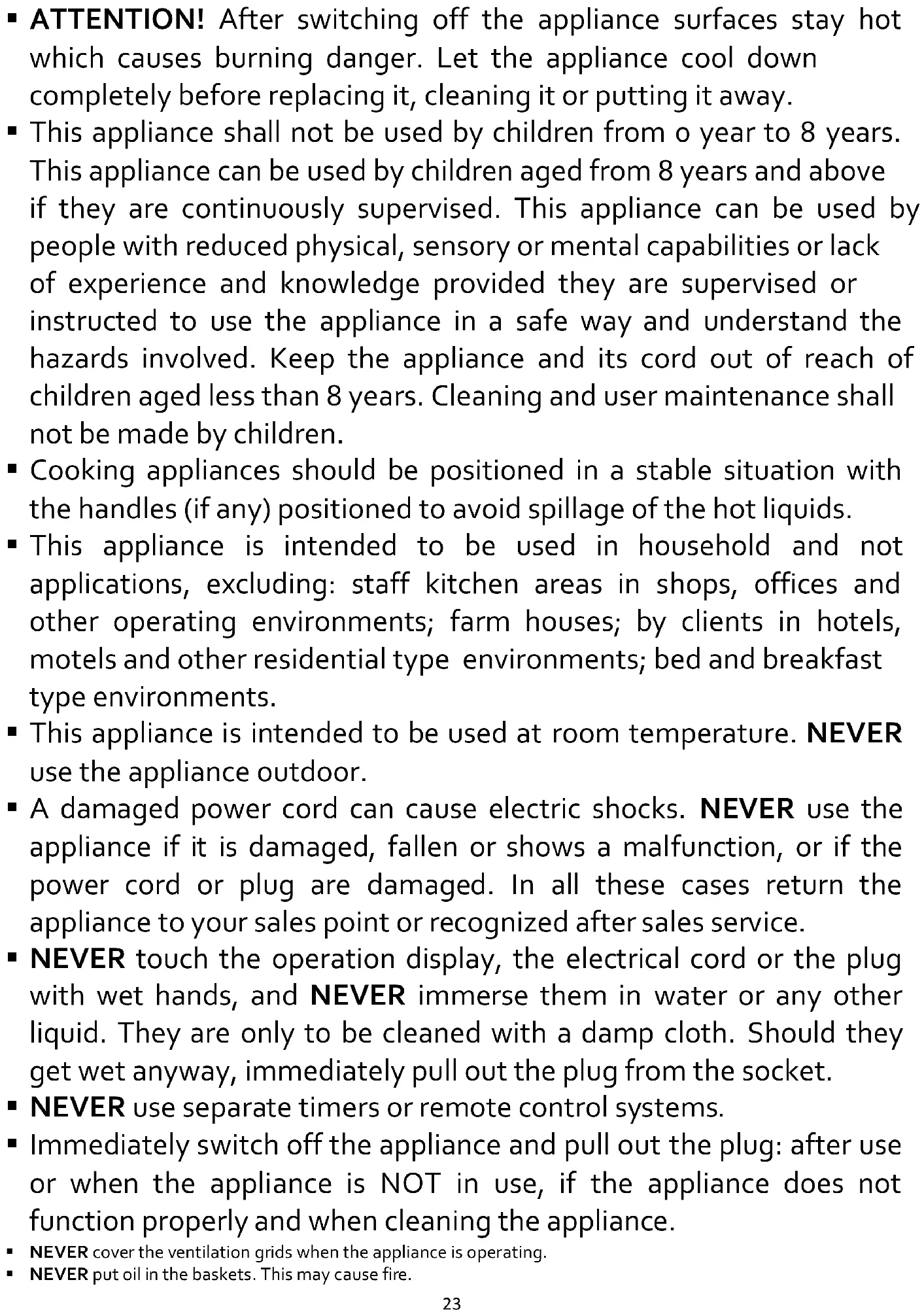

• ATTENTION! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handle or the control buttons when the appliance is operating.23

• ATTENTION! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away.

• This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided they are supervised or instructed to use the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children.

• Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids.

• This appliance is intended to be used in household and not applications, excluding: staff kitchen areas in shops, offices and other operating environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

• This appliance is intended to be used at room temperature. NEVER use the appliance outdoor.

• A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service.

• NEVER touch the operation display, the electrical cord or the plug with wet hands, and NEVER immerse them in water or any other liquid. They are only to be cleaned with a damp cloth. Should they get wet anyway, immediately pull out the plug from the socket.

• NEVER use separate timers or remote control systems.

• Immediately switch off the appliance and pull out the plug: after use or when the appliance is NOT in use, if the appliance does not function properly and when cleaning the appliance.

• NEVER cover the ventilation grids when the appliance is operating.

• NEVER put oil in the baskets. This may cause fire.24

• NEVER touch the inside or the appliance while it is operating.

• While baking, hot steam might come out of the openings of the appliance. ALWAYS keep hands and face at a safe distance from the steam. Also, ALWAYS be careful when you remove the baskets when the appliance is operating, steam might come out.

• IMMEDIATELY unplug the appliance if dark smoke comes out of it. Only remove the baskets when no more smoke is coming out.

• ALWAYS place the appliance on a stable and flat surface, such as a kitchen counter or table, so that the appliance won’t move or turn over.

• NEVER pull the power cord, only the plug to unplug the appliance.

• NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS unroll the power cord completely.

• NEVER let the cord hang over the edge of the table or the counter.

• NEVER place the power supply cord near heat sources such as cookers, heatings or ovens.

• NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects. Always make sure to have 10 cm on all sides of the appliance.

• NEVER place anything on top of the appliance.

• Only use the baking oven with 230 Volt AC.

• In accordance with the legal safety standards, the baking oven must always be plugged into an earthed socket.

• For your own safety, the appliance will only work if it has been assembled correctly. Check that all parts were assembled correctly.

• Only use this appliance to fry without oil, bake and roast food.

• NEVER leave the appliance unattended and NEVER move it when plugged in.

• ALWAYS let the appliance cool down entirely before moving it.

• NEVER wrap the power cord around the appliance when it is operating, NEVER bend it or squeeze it.

• ALWAYS switch off the appliance and pull out the plug: after use or when the appliance is not in use, if the appliance doesn’t work properly and when cleaning the appliance.

• NEVER use accessories or spare parts from other appliances or brands.

• Repairs may only be done by a recognized repairer or service center.

• Remove all packaging and stickers.

• Keep all packing material out of children’s reach.

• Check the appliance and the power cord for any damage. Do NOT use the appliance and return it to the sales point in case of damage.

• Before using the baking oven for the first time, it is recommended to clean the baskets. (See 7. MAINTENANCE)

• Ensure that the voltage marked on the appliance is the same as your main voltage.

The chart below indicates which settings should be used for which food. ATTENTION: these settings are merely indicative. Since each ingredient may differ from kind to kind, brand to brand, but also from size, shape, content… it is possible that the indicated settings don’t always entirely correspond. TIPS: - Smaller ingredients often require a shorter baking time than larger ingredients. - Shaking small ingredients during the baking process might improve the final result. (See 4. USE). - Add a little bit of oil on fresh potatoes for a crispier result. Add the oil before putting the ingredients in the baskets. Bake the ingredients within a few minutes after adding the oil. - Snacks that can be prepared in a traditional oven can be prepared in the SnackTastic®. Snacks or fries only meant to be prepared in a deep fryer will not always provide the desired result. - You can use the SnackTastic® to heat up ingredients. To do so, use the reheat function.25

Min-Max capacity (gram) Time (minutes) Temperature (°C) Shake Other Potatoes and fries

Use a suitable baking tin Cake 500 (total weight of the dough)

Use a suitable baking tin tin TIP: oven suited food always works, however, the time or temperature needed are less. TIP: If you prefer your appliance pre-heated before starting the desired programme, you can also use the reheat function (180° C - 4 min.) NOTE: * Check if the ingredients are suited for preparation in the oven. ** See 4. Use Homemade fries For the best result, we advise to use prebaked fries (e.g. frozen fries). If you want to make homemade fries, follow steps below.

1. Peel the potatoes and cut them into fries.

2. Soak the fries in a bowl of water for at least 30 minutes, take them out and dry them properly with some paper

3. Pour ½ spoon of oil in a bowl, add the fries and mix carefully until all fries are equally covered with oil.

4. Remove the fries from the bowl with your hands or a kitchen utensil so redundant oil stays behind in the bowl.

Put the fries in the basket.26 NOTE: don’t pour the fries from the bowl into the basket to avoid the excess oil ending up in the basket.

5. Bake the fries as mentioned earlier.

1. Place the appliance on a stable, flat and heat resistant surface.

CAUTION: Do not put oil or any other liquid in the baskets. CAUTION: Don’t put anything on top of the appliance.

2. Carefully pull the basket out of the appliance.

ATTENTION: always completely pull the basket out of the appliance before adding ingredients.

3. Put the ingredients in the basket.

ATTENTION: do not fill the basket more than 4/5

, or the indicated quantity in the chart above. Larger quantities will provide a less result.

4. Put the basket back in the appliance.

ATTENTION: never touch the baskets during or some time after use. They get really hot. Only touch the baskets by the handle.

5. Put the plug in the socket.

6. Set the desired setting (see chart below).

7. Some ingredients require shaking halfway through the baking process. To shake the food, take the handle,

pull the basket out of the appliance and shake. Then place the basket back into the appliance.

8. Check if the ingredients are ready. If not, put the bask back in the appliance and set a few more minutes.

ATTENTION: After use, the baskets and the ingredients are still very hot. Depending on the type of ingredients steam may escape. TIP: To remove large or fragile food, it is best to use kitchen pincers.

9. When a serving of ingredients is ready, the baking oven is instantly ready for preparing another serving.

USERS CHART Symbol Command On/Off Plug in the appliance. A sound signal well be heard, and all lights will light up for 1 second. Then the appliance will go into standby mode. Only will be shown on the display. On/off Press and the display will light up. ON” You can now select basket 1 or basket 2. The appliance will go back to standby mode after 1 minute if no function has been chosen. Only will be shown on the display. Preprogrammed functions

Once you have selected the desired basket, you can select a pre- programmed function for this basket. Press : Program for fries Press : Program for steak Press : Program for fish Press : Program for cupcakes Press : Program for poultry Press : Program for frozen fries Press : Program for frozen snacks Press : Program for pizza27 Only the chosen program will start to blink. If required, the temperature and/or time can be adjusted. The appliance will go back to standby mode after 1 minute if no function has been chosen.Press to start the appliance. When you hear a sound signal, the program is finished, will show on the display. Press the symbol to interrupt a started function or open the appliance.An interrupted program can be restarted by pressing , during the interruption the temperature and time will blink. When the basket is open the message "OPEN" appears on the display, the programme restarts automatically when the appliance is closed. Temperature Press or to set the desired temperature for basket 1 or basket

The temperature can be set from 80° to 200°C. Time Press or to set the desired time. The time can be set from 1 to 60 minutes. The timer will count down per minute. The last minute it will count down in seconds. Keep Warm Function Press the symbol to keep food warm. The Keep Warm symbol will blink. Preset: 70°C – 60 min. The time can be set between 1 and 60 minutes. Temperature setting is not possible for this function. Press or to set desired time. Press to start the appliance. When you hear a sound signal, the program is finished. will show on the display. Reheat function Press the symbol to heat up food. The Reheat symbol will blink. Preset: 180°C – 4 min. This can be adjusted between 80 and 200°C and between 1 to 30 minutes. Press or to set the desired temperature. Press or to set the desired time. Press to start the appliance. When you hear a sound signal, the program is finished. will show on the display. Defrost function Press the symbol to defrost food. The Defrost symbol will blink. Preset: 40°C – 5 min. The time can be set between 1 and 60 minutes. Temperature setting is not possible for this function. Press or to set desired time. Press to start the appliance. When you hear a sound signal, the program is finished. will show on the display.

Synchronizes the cooking times of both baskets so that both dishes are ready at the same time.

• For exact content of the functions, see below Preprogrammed functions.28

5. PREPROGRAMMED FUNCTIONS

Function Time Temperature Fries 25 min. 180°C Steak 12 min. 180°C Fish 9 min. 180°C Cupcakes 18 min. 160 °C Poultry* *Entire chicken 60 min. 180°C Frozen fries 16 min. 200°C Frozen Snacks 10 min. 200°C Pizza 25 min. 200°C ATTENTION: these settings are merely indicative. Since each ingredient may differ from kind to kind, brand to brand, but also from size, shape, content… it is possible that the indicated settings don’t always entirely correspond.

Each program can be personalised and memorised by holding one of the selected programs for 5 seconds. First follow the steps under “Preprogrammed functions”. Press or to set the desired temperature. Press or to set the desired time. Hold down the chosen program for 5 seconds, you will hear a sound signal and the preferred setting is stored.

All memorised settings can be reset to the chart above (Preprogrammed functions) by pushing and simultaneously for 10 seconds.

1. Clean the appliance after each use.

2. The baskets and insert grids have a non-stick coating. Do not use metal kitchen ware or abrasive cleaning

materials to clean them. This may damage the non-stick coating.

3. First remove the plug from the socket and let the baking oven cool down completely before cleaning.

TIP: in order to make the appliance cool down more quickly you can remove the baskets out of the appliance.

4. Only clean the housing with a moist cloth.

5. The baskets and the insert grids can be cleaned with hot soapy water and a cleaning brush.

TIP: The baskets and the insert grids are dishwasher proof. TIP: Use the FRITEL airfryer cleaner to remove remains. TIP: If the food sticks to the baskets or to the grids: let it soak for about 20 minutes in hot water.

6. The inside of the appliance can be cleaned with warm water and a soft sponge.

7. Clean the heating elements with a cleaning brush to remove sticking residues.

1. Pull the plug from the socket and let the appliance cool down completely.

2. Make sure all parts are clean and dry.29

The SnackTastic® does not work. The plug is not plugged in. Insert the plug into the socket.

The symbol wasn’t pressed. Press after having chosen all settings to start the appliance. There is no basket in the appliance or the basket is not correctly placed. Put the baskets (correctly) in the appliance.

The ingredients are not done. There are too much ingredients in the basket. Put smaller quantities at once in the basket. The set temperature is too low. Increase the temperature. The baking time is too short. Increase baking time.

The ingredients are not equally baked. Some ingredients need to be shaken halfway through the baking process. Shake ingredients which are piled up (f. ex. fries) halfway through the baking process.

The fried ingredients are not crispy. You used snacks only suited for a traditional or a cool zone deep fryer. Use oven snacks or slightly grease the ingredients with oil for crispier result. I cannot slide the basket into the appliance properly. There are too much ingredients in the basket. Fill maximum 4/5 of the basket.

White smoke coming out of the appliance.

You’re using very greasy ingredients. When baking greasy ingredients, the excess oil drips and causes smoke. This will not affect the final cooking result.

There are some residues from prior bakings in the basket. The smoke is caused by greasy residues heating up. Carefully clean the baskets after each use.

Fries are fried unequally. You used the wrong kind of potato. Use another kind of potato. You didn’t use any oil or didn’t spread them equally. Use some oil (see point 4. Homemade fries) Spread them equally in the basket. Color depends on the amount of water and oil in the fries. Carefully dry the fries before you grease them with oil. The fries are not crispy. The crispiness depends on the amount of water and oil in the fries. Cut smaller fries. Grease with a little bit more oil, see point 3.

Bring the appliance to your sales point. Bring the appliance to your sales point. Bring the appliance to your sales point. Bring the appliance to your sales point.

If the problem has not been solved, bring the appliance to your sales point. The appliance has been developed for household use. When using it for professional purpose, the conditions of warranty will change. Any damage caused due to incorrect use (non-observance of this user manual) will invalidate the warranty.30

10. WARRANTY CONDITIONS

Your warranty starts on the day of purchase and is valid for 2 years. The user is responsible for cleaning and proper packaging of the defective appliance before presenting it for repair. It is insufficient to wrap the device in cardboard packaging with paper. Fritel is not liable for damage resulting from insufficient packaging, which also irrevocably invalidates the warranty. Determination of the warranty:

• The warranty covers every repair and / or replacement free of charge of the parts recognized defective by our technical department and for which the defects are caused by material-, construction- or production defects.

• The warranty is only valid for the original user.

• The transport costs, in case of reparation, are at the expenses of the purchaser.

• The warranty is only granted after presentation of your purchase invoice.

• The warranty cannot be invoked for normal wear and tear. The warranty does not apply in the following cases:

• Incorrect connection, e.g. electric voltages.

• Abnormal or professional use or misuse handling.

• In case of insufficient packaging and bad transport in case of return shipping.

• Lack of care and cleaning.

• Modifications or repairs made to the appliance by persons not authorized by us as a manufacturer.

• When reference numbers have been altered or been removed.

• For faults not due to the appliance itself, but to an external cause, collision, damage, fire, earthquake, flood, lightning, etc.

• When not respecting the instructions in the user instructions. For appliances that are not under warranty for any of the above reasons, all costs (transport, administration, research, handling) will be charged. The most recent version of the detailed legal warranty conditions, as well as the detailed commercial warranty conditions can always be consulted on www.fritel.com.

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing so, you will help to preserve the environment.

All liabilities, towards both consumer(s) and third parties, which could result from not observing all the safety regulations prescribed in this user manual, shall under no circumstances be charged to the manufacturer. In case of non-observation of these safety regulations, the user of the appliance, or any other person not having observed these safety regulations, protects the manufacturer from all responsibilities that he could be charged with.

13. ACCESSORIES, SPARE PARTS AND OTHER FRITEL PRODUCTS

Visit our webshop on www.fritel.com and discover our FAQ’s, available spare parts and accessories, as well as all other products in the FRITEL range for even more FRITEL fun!31

For all supplementary information, recipes and practical tips about all our appliances please visit our website www.fritel.com! Find us on facebook: www.fb.com/ snacktasticfritel !
