USER MANUAL Profi 3505 FRITEL

1. Front plate stainless steel 18/10

5. RESET-button (red)

6. Heating element with TURBO SF® System

7. Stainles steel 18/10bowl

8. Basket supports on heating element (only

9. Maximum oil level

10. Minimum oil level

13. Basket with handle

14. Iddling tap (the bowl of fryers with a tap

is not removable) We reserve the right to execute technical modifications

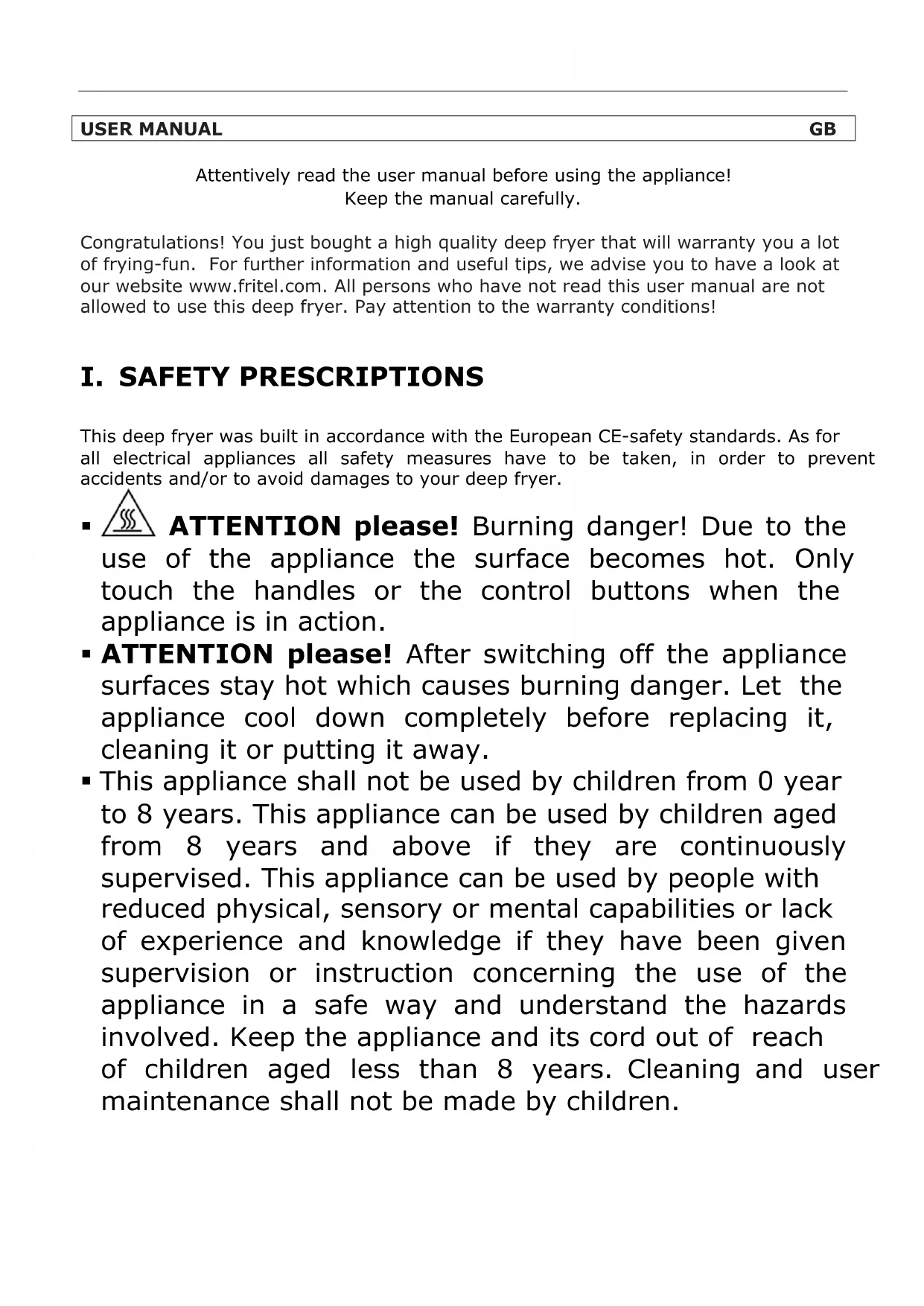

This deep fryer was built in accordance with the European CE-safety standards. As for all electrical appliances all safety measures have to be taken, in order to prevent accidents and/or to avoid damages to your deep fryer. ATTENTION please! Burning danger! Due to the use of the appliance the surface becomes hot. Only touch the handles or the control buttons when the appliance is in action. ATTENTION please! After switching off the appliance surfaces stay hot which causes burning danger. Let the appliance cool down completely before replacing it, cleaning it or putting it away. This appliance shall not be used by children from 0 year to 8 years. This appliance can be used by children aged from 8 years and above if they are continuously supervised. This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children. Cooking appliances should be positioned in a stable situation with the handles (if any) positioned to avoid spillage of the hot liquids. This (these) fryer(s) is (are) not intended for domestic use. This appliance is intended to be used at roomtemperature. NEVER use the appliance outdoor. A damaged power cord can cause electric shocks. NEVER use the appliance if it is damaged, fallen or shows a malfunction, or if the power cord or plug are damaged. In all these cases return the appliance to your sales point or recognized after sales service. NEVER touch the heating element, the electrical cord or the plug with wet hands, and NEVER immerse them in water or any other liquid. They are only to be cleaned with a damp cloth. Should they get wet anyway, immediately pull out the plug from the socket. NEVER use separate timers or remote control systems. Immediately switch off the appliance and pull out the plug: after use or when the appliance is NOT in use, if the appliance does not function properly and when cleaning the appliance. Always remove all redundant icing-up in advance, again to avoid oil splashes. NEVER hang the basket, filled with frozen products above the oil. This causes dangerous splashes of the oil/frying fat. NEVER move the fryer as long as the oil or frying fat is hot. ALWAYS place the appliance on a solid and flat base, such as a kitchen counter or table, so that the appliance won’t move or turn over. NEVER pull the power cord tu unplug the appliance, but only the plug. NEVER use extension cords or sockets. Place the appliance near a power point and connect it directly. ALWAYS complete unroll the power cord. NEVER let the cord hang over the edge of the table or the counter. NEVER place the power supply cord near heat sources such as cookers, heatings or ovens. NEVER place the appliance near curtains, wall decoration, clothing, towels or other inflammable objects. Only use the deep fryer with 230 V AC. In accordance with the legal safety standards, the deep fryer must always be plugged into an earthed socket. For your own safety, the deep fryer will only work if it has been assembled correctly. Check that all parts were correctly assembled. Only use the deep fryer for frying food. NEVER leave the appliance unattended and NEVER move it when it is plugged in. The oil must be completely cooled off before folding in the handle or disassembling the deep fryer. NEVER turn the power cord around the deep fryer, NEVER bend it or squeeze it. ALWAYS switch off the appliance and pull out the plug: after use or when the appliance is not in use, if the appliance doesn’t work properly and when cleaning the appliance NEVER use accessories or spare parts from other appliances or brands. Repairs may only be done by a recognized repairer or service center.

II. BEFORE THE FIRST USE

Remove all packagings and stickers. Keep all packing material out of reach of children. Check that there is no damage to the deep fryer or the power cord. If there is any damage, do not use the deep fryer and return it to the sales point. Before using the deep fryer for the first time, clean the bowl and the basket (see point IV) Disassemble the deep fryer in this order: basket – control panel – bowl. Clean the bowl and the basket Assemble the deep fryer in this order: bowl – control panel with heating element – basket !When placing the bowl back into the housing, the basket hook (inside bowl) must be positioned opposite to the sliders (backside of the deep fryer). ! Then check if your fryer has been correctly mounted, namely if the sliders fit precisely in the openings made for that purpose (backside control panel) Ensure that the voltage marked on the rating-plate is the same as your main voltage. The double deep fryers have separate cable cords, so they can be used separately. They are also separately dismantable. They are to be connected to 2 separate circuits.

1. Fill the bowl with oil or fat between the min MIN and MAX level.

! NEVER warm up the deep fryer without oil or with unsufficient oil. If you do so, the deep fryer may get damaged permanently. NEVER switch the deep fryer on before it is filled with enough oil or fat. NEVER leave water in the stainless steel bowl when filling it with oil or fat. The oil must always be between MIN and MAX, otherwise the safety thermostat switches off. We recommend using oil. When using fat, you first have to cut the fat into little pieces and put these pieces directly on the heating element (NEVER put the fat in the basket).Turn the thermostat knob to the melting point “ “ and wait until the fat has melted, before turning the thermostatic knob to the desired temperature.

2. Before inserting the plug into the socket, fold out the basket handle and suspend

the basket on the hook.

3. Now turn the thermostat knob clockwise to the desired temperature. The heating

control lamp lights up. As soon as the selected temperature is reached, the heating control lamp goes out.

4. The fryer is ready for frying. When the oil temperature drops, the heater and the

control lamp will switch back on and will go out as soon as the selected temperature has been reached again.

5. Put the previously dried food in the basket (max. two third full). For an optimal

frying result, we advise the following quantities : - Frozen French fries : Fill the basket max. 2/3 - Fresh French fries : max. 150 gr./litre oil or per 900 gr. solid fat - Delicate dishes like croquettes, fish, …: only cover the bottom of the basket. ! Always remove all redundant icing-up in advance, again to avoid oil splashes. ! NEVER hang the basket, filled with frozen products above the oil as long as 130°C is not reached. This causes dangerous splashes of the oil/fat.

6. Immerse the basket gently in the oil or fat to allow the water contained in the food

to evaporate. IMPORTANT:To avoid damage to the oil, NEVER add salt or spices during the frying. It’s better not to thaw out frozen portions, this way the quality will be much better. 7. NEVER warm the deep fryer with the lid on and NEVER fry with the lid on8. After frying pull the basket up and suspend it on the hook.

9. Bring the thermostat knob back to the position of the lowest temperature and

disconnect the plug. Allow complete cooling before emptying and cleaning the deep fryer. Only fold in the basket handle when the oil has completely cooled off. Put the cord into the cord case.

Clarification on pre-frying french fries: We advise to pre-fry fresh fries at 150°C. ATTENTION: new harvest potatoes contain more water, so in this case we recommend to pre-fry at 170°C. But if you use older potatoes, they will already get brown/coloured during the first baking cycle.

1. Remove the plug and let the deep fryer completely cool off before disassembling

it. First remove the basket, then the control panel with heating element and the bowl. The 4 – 5 and 2x5 L have a stainless steel cover (Covering

System). With a simple pull you can remove the front plate from the control panel. After cleaning the stainless steel panel can easily be put back into place.

2. -NEVER immerse the control panel in water or any other liquid. Only clean it with

a damp cloth. -Stainless steel housing, stainless steel lid and stainless steel bowl can be cleaned in the dishwasher or in hot water with detergent. Nevertheless, we recommend to clean the stainless steel parts in hot water with detergent, considering the aggressive detergents used in the dishwasher may affect the shine of the stainless steel. -Clean the basket in hot water with detergent with a washing-up brush. NEVER let the basket soak in the water to avoid rusting.

3. If you want to clean your deep fryer quickly, easily and safely, we advise you to

use the FRITEL cleaner for fryers. Fill the bowl of the deep fryer with warm water at + 40°C and add about 10 caps of FRITEL cleaner for fryers. The product must soak in for +/- 20 minutes, then empty the bowl.Rinse thoroughly and wipe with a soft towel.The FRITEL cleaner for fryers contains natural enzymes. So it’s environment-friendly, biodegradable and non-toxic. The FRITEL cleaner for fryers can be applied to all materials like stainless steel, synthetic, enamel, etc.

Do not use the appliance, when damaged. First go through the following check-list: 1.The fuse blows : Let the deep fryer cool off first, remove the problem, then press the Reset button. The deep fryer is ready to be used again. 2.The deep fryer does not heat up : The safety thermostat is interrupted: Press the Reset button The safety switch is interrupted: The control panel is not mounted correctly onto the sliders, the bowl is mounted falsely, or one of the sliders has broken off. In the first two cases : mount the fryer correctly. In the last case : note the data in the cord storage, then go to your sales point. 3.The oil gives off smoke or boils over : The oil/fat is old or degraded: Replace the oil/fat The chosen temperature is too high : Choose a lower temperature The fried food contains too much water or contains too much redundant ice. 4.The fried food is too greasy : The oil/fat is old and degraded: Replace the oil/fat The chosen temperature is too low : Choose a higher temperature If the supply cord is damaged, immediately bring your deep fryer to your sales point.

5. If the supply cord is damaged, immediately bring your deep fryer to your sales

point. If you still haven’t repaired the defect, please call your sales point. The appliance has been developed for household use. When using it for professional purpose, the conditions of warranty will change. Any damage caused due to incorrect use (non-observance of this user manual) will cancel the warranty.VII. WARRANTY CONDITIONS Your warranty starts on the day of purchase. Warranty period: 2 years. In order to apply for warranty, please keep your purchase invoice. The warranty covers every repair and / or replacement free of charge of the parts recognized defective by our technical department and for which the defects are caused by material-, contruction- or production defects. The warranty is only valid for the original user. Carriage both ways is for the purchaser’s account. The warranty only applies after submitting the purchase invoice. The warranty cannot be invoked for normal wear and tear. The warranty does not apply in the following cases: Incorrect connection, e.g. electric voltages. Abnormal use, misuse handling or professional use. Lack of care. Modifications or repairs made to the appliance by persons not authorized by us as manufacturer. When reference numbers are altered or removed. When the instructions in this user manual are not followed.

Do not throw the appliance away with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you will help to preserve the environment.

For all supplementary information, recipes and practical tips about all our appliances please visit our website www.fritel.com ! Find us on facebook: www.fb.com/fritel.vanratingen!
