PG180 - Shaver REMINGTON - Free user manual and instructions

Product type	Multi-purpose trimmer and shaver
Brand	Remington
Model	PG180
Power source	2 AA alkaline batteries (not included)
Main functions	Beard, mustache, sideburns, neck, nose, ears, eyebrows trimming and precision shaving
Number of heads	3 interchangeable heads: trimmer, mini-foil shaver, nose/ears/eyebrows trimmer
Cutting guide	Adjustable with 5 lengths
Usage	Dry use only, do not use underwater or in the bath
Maintenance	Rinse heads with water, brush, regular oiling of blades
Safety	Do not use near water, turn off before cleaning, keep out of reach of children
Storage temperature	15°C to 35°C
Use	Household use only

Frequently Asked Questions - PG180 REMINGTON

How to change the batteries of the Remington PG180?

Turn off the device, slide open the battery compartment cover, insert two AA alkaline batteries respecting the polarities (+ and -), then close the cover.

Can I use the PG180 in the shower?

No, the device is not designed for underwater use. It can be rinsed under running water for cleaning, but must remain turned off and not be immersed.

How to adjust the cutting length?

The adjustable cutting guide allows you to choose from 5 lengths. Attach it to the back of the precision trimmer head and slide the selector to set the desired length.

How to clean the trimmer?

After each use, rinse the heads under water, shake off excess water, brush off hair residue, and apply one or two drops of oil to the blades. Wipe the device with a damp cloth.

What to do if the trimmer stops working?

Check that the batteries are correctly inserted and not depleted. If the problem persists, the device may be damaged; contact Remington customer service.

Are the heads interchangeable?

Yes, the PG180 comes with three heads: a trimmer, a mini-foil shaver, and a nose/ears/eyebrows head. They attach easily by snapping onto the device body.

How to draw beard outlines?

Attach the trimmer blade, hold it facing you, then make slow movements along the edge of the beard while applying gentle pressure on the skin.

Can I shave my entire face with the mini-shaver?

No, the mini-foil shaver head is designed only for precision shaving around the beard, mustache, or sideburns. For a full shave, use a dedicated Remington electric shaver.

How to maintain the blades?

Clean the blades after each use, brush off hairs, then apply a drop of oil to the blades. Briefly turn on the device to distribute the oil, then wipe off excess.

Where can I download the PG180 manual?

You can download the manual in PDF format for free at notice-facile.com by selecting the desired language.

USER MANUAL PG180 REMINGTON

Battery Operated Grooming Kit

Black Remington 11 hair curler with a circular button and metal clip (no text or symbols on the device itself)

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFETY INSTRUCTIONS

1 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.
2 Do not use attachments other than those we supply.
3 This appliance is battery operated only.
4 This product uses alkaline batteries. At the end of their life the batteries must be removed from the appliance and be recycled or disposed of properly in accordance with your state and local requirements.
5 Do not put in fire or mutilate your batteries when disposing as they may burst and release toxic materials.
6 Do not short circuit as it may cause burns.
7 Do not use the appliance if it is damaged or malfunctions.
8 Do not use this product if it is not working correctly, if it has been dropped or damaged, or dropped in water.
9 Store the product at a temperature between 15^ C and 35^ C.
10 Turn the product off before cleaning or when using under running water.
11 Warning: Do not use this appliance near bathtubs, showers, basins or other vessels containing water.
12 Do not immerse the appliance in liquid; do not use it near water in a bath-tub, basin or other vessel; and don't use it outdoors.
13 For household use only.

Close-up of a black plastic hairbrush with textured surface and side grooves (no text or symbols visible)

Black plastic spray nozzle with tapered tip and ridged side (no text or symbols)

Close-up of a white mechanical component with ventilation grilles and a black central component (no visible text or symbols)

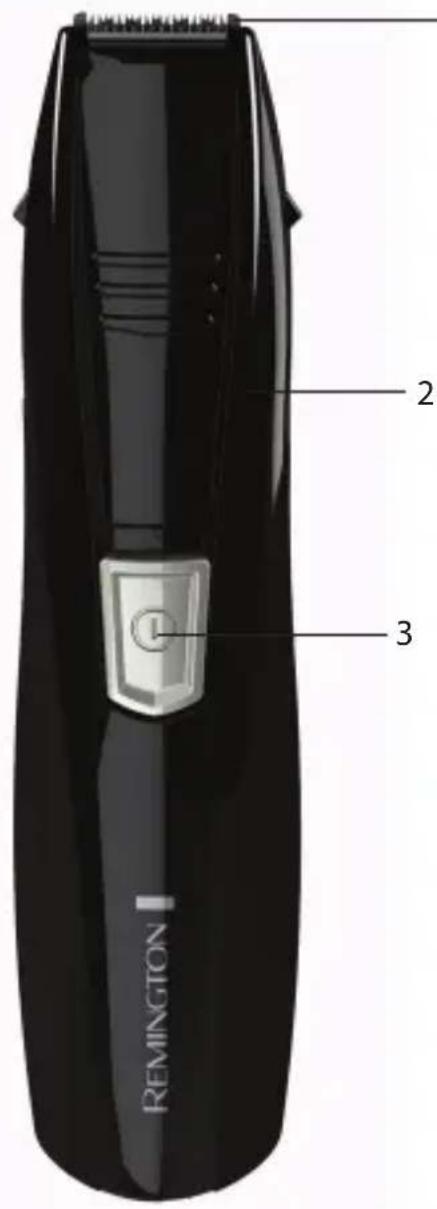

KEY FEATURES

1 Detail trimmer 4 Miniscreen shaver
2 Groomer 5 Nose, ear, eyebrow trimmer
3 On/off switch 6 Attachment guide comb

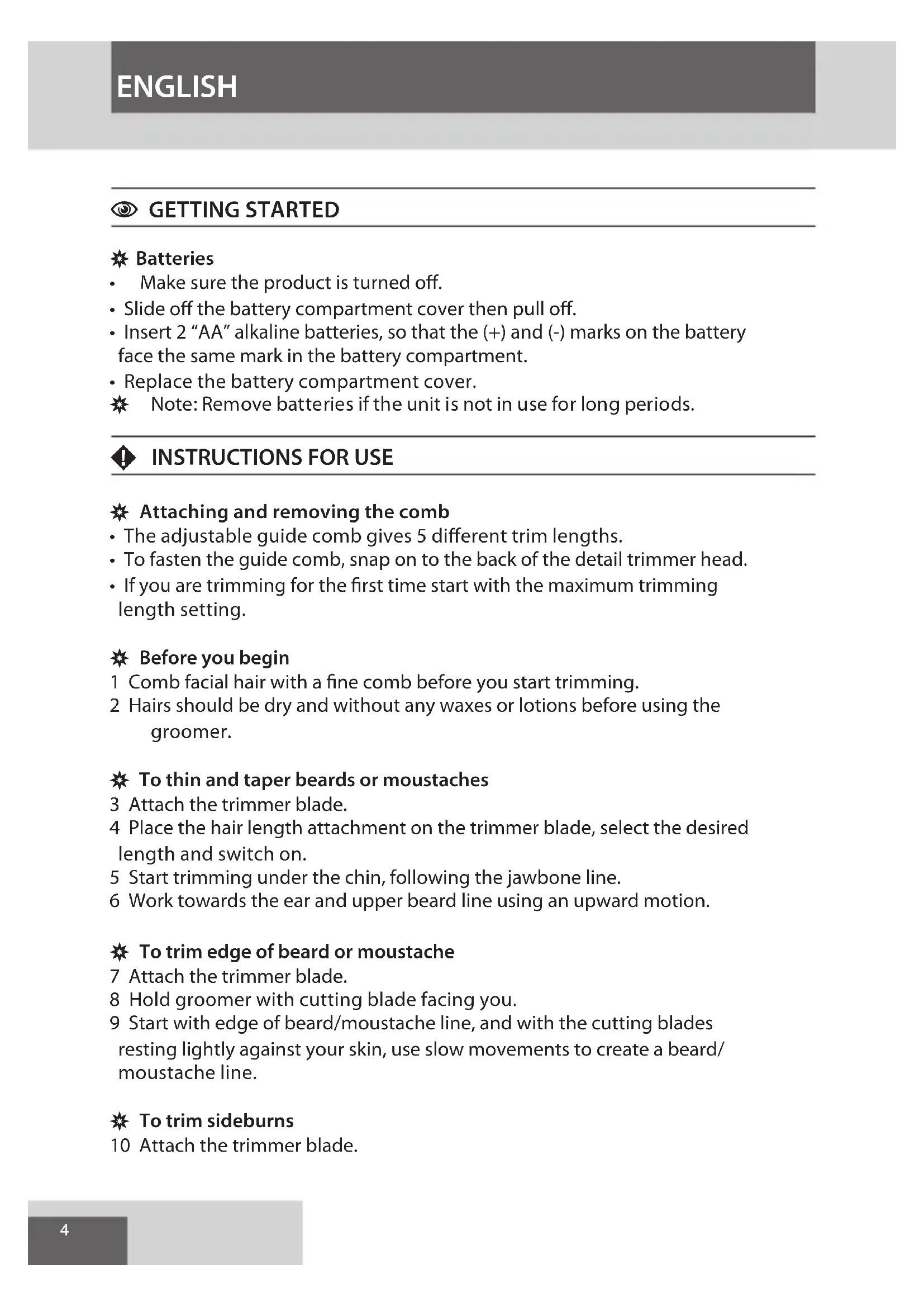

GETTING STARTED

Batteries

• Make sure the product is turned off.
- Slide off the battery compartment cover then pull off.
- Insert 2 "AA" alkaline batteries, so that the (+) and (-) marks on the battery face the same mark in the battery compartment.
- Replace the battery compartment cover.

Note: Remove batteries if the unit is not in use for long periods.

INSTRUCTIONS FOR USE

Attaching and removing the comb

• The adjustable guide comb gives 5 different trim lengths.
• To fasten the guide comb, snap on to the back of the detail trimmer head.
- If you are trimming for the first time start with the maximum trimming length setting.

Before you begin

1 Comb facial hair with a fine comb before you start trimming.
2 Hairs should be dry and without any waxes or lotions before using the groomer.

To thin and taper beards or moustaches

3 Attach the trimmer blade.
4 Place the hair length attachment on the trimmer blade, select the desired length and switch on.
5 Start trimming under the chin, following the jawbone line.
6 Work towards the ear and upper beard line using an upward motion.

To trim edge of beard or moustache

7 Attach the trimmer blade.
8 Hold groomer with cutting blade facing you.
9 Start with edge of beard/moustache line, and with the cutting blades resting lightly against your skin, use slow movements to create a beard/moustache line.

To trim sideburns

10 Attach the trimmer blade.

11 Use a small comb to lift the hairs. Hold the comb at the desired beard or moustache length.
12 Move the groomer along the comb to cut the hairs. Use light pressure and well-controlled movements to trim hair.

\* Trimming the nape of your neck

13 Attach the trimmer blade.
14 Use your fingers to lift the hair at the base of your head up off the neck. Your index finger should be covering the roots of the hairs you are lifting to prevent accidental removal by groomer.

15 Using your other hand, hold the groomer to the base of your neck with the cutting unit facing up, and move the groomer up the length of the neck until the unit touches your finger covering the hair roots at the base of your head. Move the unit slowly when performing this operation and to keep the hair roots at the base of your head out of the way of the groomer.

To remove hair from nose and ear

16 Attach nose, ear and eyebrow attachment.
17 Insert the groomer's cutting unit gently into the nostril or ear.
18 Gently move the groomer in and out of the nostril or ear and at the same time rotate the groomer.
19 Avoid inserting the cutting unit more than 6mm into your nostril or ear.

To remove hair from eyebrows

20 Attach nose, ear and eyebrow attachment.
21 Gently guide the cutting unit to stray, unwanted hairs along the eyebrow line or protruding from the eyebrow itself.
22 To remove the hairs completely, lower onto the skin and move over desired area.
23 Use slow and well-controlled movements.

\* Using your miniscreen shaver

24 Hold the groomer so the miniscreen gently touches your face.

25 Use short, well-controlled movements to shave around your beard/moustache. Use your free hand to stretch your skin. This encourages the hair to stand upright, making it easier to shave.

Note: The miniscreen shaver was designed to shave the detail areas around your beard/moustache/sideburns. It was not designed to shave your entire face. For a close comfortable shave, guaranteed, use one of Remington's electric shavers.

→ Tips for best results

• Comb your hair in the direction that it grows so that the hairs are at their maximum height and facing in the same direction.
• After trimming, lightly go over the trimmed areas with the foil to get a smooth clean finish.
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards or across) for better results.

• Care for your product to ensure a long lasting performance. We recommend that you clean your groomer after each use.
• The easiest and the most hygienic way to clean the groomer is by rinsing the product head after use with warm water. Always keep the protective cap on the shaving head and keep the trimmer in the “off” position when the shaver is not in use.

After each use

• Rinse the accumulated hair from the cutters and shake off excess water. Alternatively, use a brush.
• Gently tap on a flat surface to remove hair particles and brush the remaining hairs away.
• Place one or two drops of cutter oil or sewing machine oil on the blades.
• Turn the clipper on to distribute the oil evenly, wipe off any excess oil.
• Wipe the main unit with a damp cloth and dry immediately.

Note: Ensure that the groomer is turned off when applying the oil or rinsing under the tap.

ENVIRONMENTAL PROTECTION

To avoid environmental and health problems due to hazardous substances in electrical and electronic goods, appliances marked with this symbol must not be disposed of with unsorted municipal waste, but recovered, reused or recycled.

UW APPARAAT VERZORGEN

10 Turn the product off before cleaning or when using under running water.

Solid gray rectangular shape with no text, numbers, or symbols

Model No PG180

Remington ^® is a Registered Trade Mark of Spectrum Brands, Inc.,

or one of its subsidiaries

VARTA Consumer Batteries GmbH & Co. KGaA, Alfred-Krupp-Str. 9, 73479 Ellwangen, Germany

www.remington-europe.com

© 2013 SBI
