| Product type | High-pressure cleaner |
| Brand | Kärcher |
| Model | K Mini Plus |
| Supply voltage | 220-240 V, 50-60 Hz |
| Current consumption | 6 A |
| Protection class | II |
| Protection index | IPX5 |
| Service pressure | 7.4 MPa (74 bar) |
| Maximum allowable pressure | 11 MPa (110 bar) |
| Water flow rate | 5.5 l/min |
| Maximum flow rate | 6.0 l/min |
| Max. water supply pressure | 1.2 MPa (12 bar) |
| Max. feed temperature | 40 °C |
| Weight in working order | 4.7 kg |
| Dimensions (L x W x H) | 278 x 233 x 296 mm |
| Sound pressure level | 77 dB(A) |
| Guaranteed sound power level | 91 dB(A) |
| Hand-arm vibration | 0.7 m/s² |
| Lance | Vario Power (adjustment SOFT to HARD) |
| High-pressure hose | Included |
| Features | Automatic pump stop by trigger release, trigger gun lock |
| Safety | Relief valve with pressure switch, frost protection |
| Maintenance | Regular cleaning of water inlet strainer |
| Warranty | According to country conditions (see manual) |
Frequently Asked Questions - K Mini Plus Kärcher
User questions about K Mini Plus Kärcher
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Pressure washer in PDF format for free! Find your manual K Mini Plus - Kärcher and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K Mini Plus by Kärcher.
USER MANUAL K Mini Plus Kärcher
English 8
Français 12
Italiano 16
Nederlands 20
Español 24
Português 28
Dansk 32
Norsk 36
Svenska 40
Suomi 44
Ελληνικά 48
Türkçe 52
Русский 56
Magyar 60
Čeština 64
Slovenščina 68
Polski 72
Românește 76
Slovenčina 80
Hrvatski 84
Srpski 88
Български 92
Eesti 96
Latviešu 100
Lietuviškai 104
Українська 108
Қазақша 112
لعربيية
www.kaercher.com/dealersearch
Technische Daten
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01

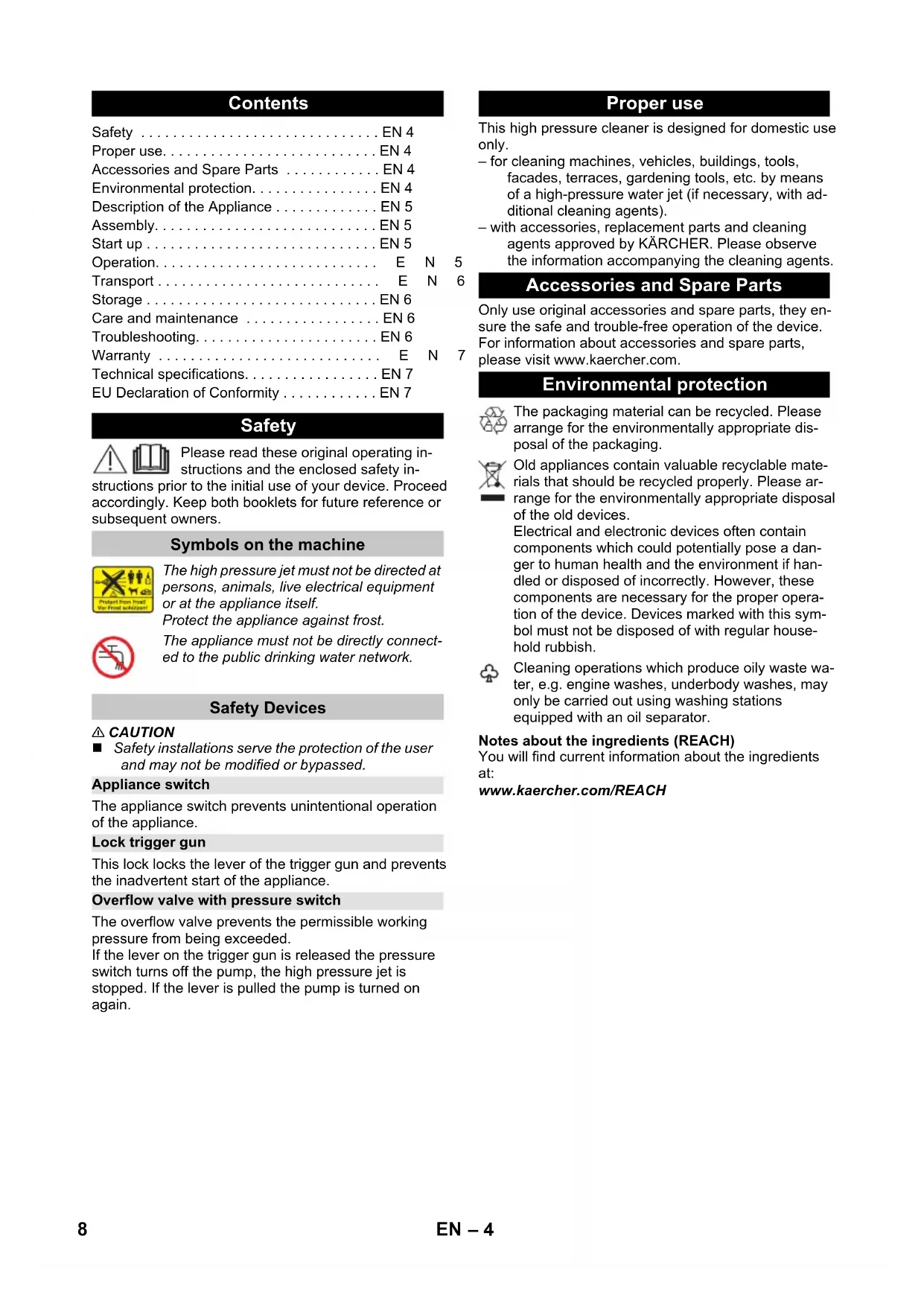

Contents
Safety ...... EN 4
Proper use.....EN 4
Accessories and Spare Parts ..... EN 4
Environmental protection....EN 4
Description of the Appliance ..... EN 5
Assembly.....EN 5
Start up....EN 5
Operation. E N 5
Transport E N 6
Storage....EN 6
Care and maintenance ..... EN 6
Troubleshooting.....EN 6
Warranty E N
Technical specifications.....EN 7
EU Declaration of Conformity ..... EN 7
Safety
Please read these original operating instructions and the enclosed safety in-
structions prior to the initial use of your device. Proceed accordingly. Keep both booklets for future reference or subsequent owners.
Symbols on the machine
The high pressure jet must not be directed at persons, animals, live electrical equipment or at the appliance itself.
Protect the appliance against frost.
The appliance must not be directly connected to the public drinking water network.
Safety Devices
⚠ CAUTION
■ Safety installations serve the protection of the user and may not be modified or bypassed.
Appliance switch
The appliance switch prevents unintentional operation of the appliance.
Lock trigger gun
This lock locks the lever of the trigger gun and prevents the inadvertent start of the appliance.
Overflow valve with pressure switch
The overflow valve prevents the permissible working pressure from being exceeded.
If the lever on the trigger gun is released the pressure switch turns off the pump, the high pressure jet is stopped. If the lever is pulled the pump is turned on again.
Proper use
This high pressure cleaner is designed for domestic use only.
– for cleaning machines, vehicles, buildings, tools, facades, terraces, gardening tools, etc. by means of a high-pressure water jet (if necessary, with additional cleaning agents).
– with accessories, replacement parts and cleaning agents approved by KÄRCHER. Please observe the information accompanying the cleaning agents.
Accessories and Spare Parts
Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device.
For information about accessories and spare parts, please visit www.kaercher.com.
Environmental protection
The packaging material can be recycled. Please arrange for the environmentally appropriate disposal of the packaging.
Old appliances contain valuable recyclable materials that should be recycled properly. Please arrange for the environmentally appropriate disposal of the old devices.
Electrical and electronic devices often contain components which could potentially pose a danger to human health and the environment if handled or disposed of incorrectly. However, these components are necessary for the proper operation of the device. Devices marked with this symbol must not be disposed of with regular household rubbish.
Cleaning operations which produce oily waste water, e.g. engine washes, underbody washes, may only be carried out using washing stations equipped with an oil separator.
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Description of the Appliance
The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.
In the event of missing accessories or any transport damage, please contact your dealer.
Illustrations on Page 2
1 Water connection with integrated sieve
2 Coupling element for water connection
3 High pressure connection
4 Accessory compartment
5 Carrying handle
6 Mains cable with mains plug
7 Cable clip
8 Storage for mains cable
9 Appliance switch „0/OFF“ / „I/ON“
10 Trigger gun
11 Lock trigger gun
12 Clamp for high pressure hose
13 Safety cover
14 Spray lance extension
15 Spray lance with pressure regulation (Vario Power) The working pressure can be continuously increased from "SOFT" to "HARD". To adjust the working pressure, release the trigger gun lever and turn the spray lance to the desired position.
16 High pressure hose
17 Water supply hose
18 Hose coupling
19 Hose coupling (Aquastop)
20 Tap adaptor for inhouse fittings
Assembly
Mount loose parts delivered with appliance prior to start-up.
Illustrations on Page 3
Illustration A
→ Screw the coupling element to the water connection on the appliance.
Illustration B
→ Pull out the clamp for the high pressure hose from the trigger gun.
Illustration C
→ Connect high pressure hose to trigger gun.
→ Push the clamp in until it locks. Check the secure connection by pulling on the high-pressure hose.
Start up
→ Park the appliance on an even surface.
Illustration D
→ Connect the high pressure hose to the high pressure connection of the appliance. Check the secure connection by pulling on the high pressure hose.
→ Insert the mains plug into the socket.
Water supply
For connection values, see type plate/technical data. Observe regulations of water supplier.
ATTENTION
Impurities in the water can damage the high-pressure pump and the accessories. For protection, the use of the KÄRCHER water filter (optional accessory, order no. 4.730-059) is recommended.
→ Attach the water supply hose to the coupling on the water connection.
→ Connect the water supply hose to the water supply.
→ Completely open the water tap.
Operation
ATTENTION
Dry running of more than 2 minutes leads to damage of the high-pressure pump. If the appliance does not build up pressure within 2 minutes, switch the appliance off and proceed in accordance with the instructions in Chapter "Troubleshooting".
High pressure operation
CAUTION
Keep a distance of at least 30 cm when using the jet for cleaning painted surfaces to avoid damage.
Illustration E
→ Push the spray lance extension into the trigger gun and fasten it by a 90° rotation.
Illustration F
→ Tighten the safety cover.
Illustration G
→ Push the spray lance into the spray lance extension and fasten it by a 90° rotation.
→ Turn on the appliance "I/ON".
→ Unlock the lever on the trigger gun.
→ Pull on the lever of the trigger gun; the device will switch on.
Note: Release the lever of the trigger gun; the device will switch off again. High pressure remains in the system.
Interrupting operation
→ Release the lever on the trigger gun.
→ Lock the lever on the trigger gun.
→ During longer breaks (more than 5 minutes), also turn the appliance off using the "0/OFF" switch.
Finish operation
CAUTION
Only separate the high-pressure hose from the trigger gun or the appliance when there is no pressure in the system.
→ Release the lever on the trigger gun.
→ Turn off the appliance "0/OFF".
→ Disconnect the mains plug from the socket.
→ Turn off tap.
→ Press the lever on the trigger gun to release any remaining pressure in the system.
→ Lock the lever on the trigger gun.
→ Detach the appliance from the water supply.
Transport
⚠ CAUTION
Risk of personal injury or damage!
Mind the weight of the appliance during transport.
When transporting by hand
→ Lift appliance by the carrying handle and carry it.
→ Secure the appliance against shifting and tipping over.
When transporting in vehicles
Storage
△ CAUTION
Risk of personal injury or damage!
Consider the weight of the appliance when storing it.
Storing the Appliance
Prior to extended storage periods, as during the winter, also observe the instructions in the Care section.
→ Park the machine on an even surface.
→ Remove the high pressure hose from the high pressure connection.
→ Detach spray lance from the trigger gun.
→ Stow away the accessories in the accessory holder.
→ Wrap the mains cable around the storage and attach the mains plug with the cable clamp.
Frost protection
ATTENTION
Appliances and accessories that are not completely drained can be destroyed by frost. Completely drain appliance and accessories and protect them against frost. To avoid damage:
→ Completely drain all water from the appliance: Switch the appliance on with detached high pressure hose and detached water supply (max. 1 minute) and wait, until no more water exits at the high pressure connection. Turn off the appliance.
→ Store the appliance and the entire accessories in a frost free room.
Care and maintenance
DANGER
Risk of electric shock.
■ Prior to all work on the appliance, switch off the appliance and pull the power plug.
Clean the sieve in the water connection
Clean the sieve in the water connection regularly.
ATTENTION
The sieve must not be damaged.
→ Remove coupling from the water connection.
Illustration H
→ Pull the sieve out using flat pliers.
→ Clean the sieve under running water.
→ Reinsert the sieve into the water connection.
Maintenance
The appliance is maintenance free.
Troubleshooting
You can rectify minor faults yourself with the help of the following overview.
If in doubt, please consult the authorized customer service.
⚠️ DANGER
Risk of electric shock.
→ Prior to all work on the appliance, switch off the appliance and pull the power plug.
Appliance is not running
→ Pull on the lever of the trigger gun; the device will switch on.
→ Check whether the voltage indicated on the type plate corresponds to the voltage of the mains supply.
→ Check the mains connection cable for damages.
Pressure does not build up in the appliance
→ Check setting at the spray lance.
→ Check water supply for adequate delivery rate.
→ Appliance ventilation: Switch the appliance on with the high-pressure hose detached and operate (max. 2 minutes) until the water exits the high-pressure connection without bubbles. Switch off appliance and reconnect high-pressure hose.
→ Pull out the sieve in the water connection using flat-nose pliers and clean under running water.
Strong pressure fluctuations
→ Clean high-pressure nozzle: Remove dirt and debris from the nozzle bore, using a needle and rinse through with water from the front.
→ Check water flow quantity.
Unusual operating noises
Gear defective, contact Customer Service.
Appliance is leaking
→ Slight leakage from the appliance pump is normal. If the leakage increases contact the authorized customer service.
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service center. Please submit the proof of purchase. Addresses can be found under: www.kaercher.com/dealersearch
Technical specifications
| Electrical connection | |
| Voltage 220-240 | V1~50-60 Hz |
| Power consumption 6 A | |
| Protection class IPX5 | |
| Protective class II | 回 |
| Water connection | |
| Max. feed pressure 1,2 MPa | |
| Max. feed temperature 40 °C | |
| Min. feed volume 7 l/min | |
| Performance data | |
| Working pressure 7,4 MPa | |
| Max. permissible pressure 11 MPa | |
| Water flow rate 5,5 l/min | |
| Max. flow rate 6,0 l/min | |
| Recoil force of trigger gun 11 N | |
| Dimensions and weights | |
| Length 278 mm | |
| Width 233 mm | |
| Height | 296 mm |
| Typical operating weight | 4,7 kg |
| Values determined as per EN 60335-2-79 | |
| Hand-arm vibration value | 0,7 m/s ^2 |
| Uncertainty K | 0,6 m/s ^2 |
| Sound pressure level L_pA | 77 dB(A) |
| Uncertainty K_pA | 2 dB(A) |
| Sound power level L_WA + Uncertainty K_WA | 91 dB(A) |
Subject to technical changes.
EU Declaration of Conformity
We hereby declare that the machine described below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval.
Product: High pressure cleaner
Type: 1.600-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2014/30/EU
2011/65/EU
2000/14/EC
Applied harmonized standards
EN 60335-1
EN 60335-2-79
EN 62233: 2008
EN 55014-1: 2017
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN IEC 63000: 2018
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
Measured: 89
Guaranteed: 91
The signatories act on behalf of and with of the authority of the company management.
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
Documentation supervisor:
S. Reiser
Alfred Kärcher SE & Co. KG
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Contenu
Sécurité .... FR 4
www.kaercher.com/REACH
www.kaercher.com/dealersearch
2006/42/CE (+2009/127/CE)
2014/30/UE
2011/65/UE
2000/14/CE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Indice
Sicurezza. I T
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Dati tecnici
2006/42/CE (+2009/127/CE)
2014/30/UE
2011/65/UE
2000/14/CE
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Inhoud
Veiligheid ....NL 4
www.kaercher.com/dealersearch
Technische gegevens
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Datos técnicos
2006/42/CE (+2009/127/CE)
2014/30/UE
2011/65/UE
2000/14/CE
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Índice
Segurança PT4
www.kaercher.com/REACH
9 Interruptor do aparelho "0/OFF" / "I/ON"
www.kaercher.com/dealersearch
Dados técnicos
2006/42/CE (+2009/127/CE)
2014/30/UE
2011/65/UE
2000/14/CE
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Indhold
Sikkerhed DA 4
www.kaercher.com/REACH
→ Skru sikringshylsteret fast.
Figur G
www.kaercher.com/dealersearch
Tekniske data
2006/42/EF (+2009/127/EF)
2014/30/EU
2011/65/EU
2000/14/EF
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Innhold
Sikkerhet N O
www.kaercher.com/REACH
9 Apparatbryter "0/OFF" / "I/ON"
10 Høytrykkspistol
www.kaercher.com/dealersearch
Tekniske data
2006/42/EF (+2009/127/EF)
2014/30/EU
2011/65/EU
2000/14/EF
2000/14/EF: Vedlegg V
Lydeffektnivå dB(A)
Målt: 89
Garantert: 91
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Innehåll
Säkerhet S V
www.kaercher.com/REACH
→ Starta aggregatet "I/ON".
www.kaercher.com/dealersearch
Tekniska data
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Sisältö
www.kaercher.com/REACH
Laitekuvaus
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Περιεχόμενα
www.kaercher.com/REACH
Περιγραφή συσκευής
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
İçindekiler
Güvenlik T R
www.kaercher.com/REACH
Cihaz tanımı
www.kaercher.com/dealersearch
Teknik Bilgiler
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Содержание
www.kaercher.com/REACH
Описание прибора
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Tartalom
Biztonság. H U
www.kaercher.com/REACH
Készülék leírása
www.kaercher.com/REACH
Popis zařízení
www.kaercher.com/dealersearch
Technické údaje
2006/42/ES (+2009/127/ES)
2014/30/EU
2011/65/EU
2000/14/ES
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Kazalo
Varnost SL 4
Namenska uporaba .... SL 4
Pribor in nadomestni deli. SL 4
Varstvo okolja SL4
Opis naprave SL 5
Montaža. S L 5
Zagon SL 5
Obratovanje. SL5
Transport S
Skladiščenje SL6
Vzdrževanje. SL6
www.kaercher.com/REACH
Opis naprave
www.kaercher.com/dealersearch
Tehnični podatki
2006/42/ES (+2009/127/ES)
2014/30/EU
2011/65/EU
2000/14/ES
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Spis treści
Bezpieczeństwo PL 4
www.kaercher.com/REACH
Opis urządzenia
www.kaercher.com/dealersearch
Dane techniczne
2006/42/WE (+2009/127/WE)
2014/30/UE
2011/65/UE
2000/14/WE
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Cuprins
Siguranța R O
www.kaercher.com/REACH
www.kaercher.com/dealersearch
Date tehnice
Directive UE respectate:
2006/42/CE (+2009/127/CE)
2014/30/UE
2011/65/UE
2000/14/CE
Norme armonizate utilize:
EN 60335-1
EN 60335-2-79
EN 62233: 2008
EN 55014-1: 2017
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN IEC 63000: 2018
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Obsah
www.kaercher.com/REACH
Popis prístroja
www.kaercher.com/dealersearch
Technické údaje
2006/42/ES (+2009/127/ES)
2014/30/EÚ
2011/65/EÚ
2000/14/ES
Uplatňované harmonizované normy:
EN 60335-1
EN 60335-2-79
EN 62233: 2008
EN 55014-1: 2017
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN IEC 63000: 2018
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Sadržaj
Sigurnost.... H R
www.kaercher.com/REACH
Opis uređaja
Sadržaj isporuke Vašeg uređaja prikazan je na ambala-
www.kaercher.com/dealersearch
Tehnički podaci
| Električni priključak | |
| Napon 220-240 | V1~50-60 Hz |
| Potrošnja struje 6 A | |
| Stupanj zaštite IPX5 | |
| Klasa zaštite II | 回 |
| Priključak za vodu | |
| Dovodni tlak (maks.) 1,2 MPa | |
| Dovodna temperatura (maks.) 40 °C | |
| Dovodni protok (min.) 7 l/min | |
| Podaci o snazi | |
| Radni tlak 7,4 MPa | |
| Maks. dozvoljeni tlak 11 MPa | |
| Protok vode 5,5 l/min | |
| Maksimalni protok 6,0 l/min | |
| Povratna udarna sila ručnog pištolja za prskanje | 11 N |
| Dimenzije i težine | |
| Duljina 278 mm | |
| Širina 233 mm | |
| Visina 296 mm | |
| Težina u stanju pripravnosti za rad, s priborom | 4,7 kg |
| Utvrdene vrijednosti prema EN 60335-2-79 | |
| Vrijednost vibracije na ruci | 0,7 m/s2 |
| Nepouzdanost K | 0,6 m/s2 |
| Razina zvučnog tlaka LpA | 77 dB(A) |
| Nepouzdanost KpA | 2 dB(A) |
| Razina zvučne snage LWA + nepouzdanost KWA | 91 dB(A) |
2006/42/EZ (+2009/127/EZ)
2014/30/EU
2011/65/EU
2000/14/EZ
Chairman of the Board of Management
Director Regulatory Affairs & Certification
Opunomoćeni za izradu dokumentacije: S. Reiser
Alfred Kärcher SE & Co. KG
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Sadržaj
Sigurnost S R
Namensko korišćenje .... SR 4
Pribor i rezervni delovi. SR 4
Zaštita životne sredine ....SR 4
Opis uređaja ....SR5
Montaža. S R
Stavljanje u pogon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SR 5
Rad ....SR 5
Transport S R
www.kaercher.com/REACH
Opis uređaja
Sadržaj isporuke Vašeg uređaja je prikazan na ambalaži. Pre vađenja uređaja iz ambalaže proverite da li je sadržaj potpun.
Ako pribor nedostaje ili je došlo do oštećenja prilikom transporta, molimo da o tome obavestite svog prodavca.
Slike pogledajte na stranici 2
www.kaercher.com/dealersearch
Tehnički podaci
| Električni priključak | |
| Napon 220-240 | V1~50-60 Hz |
| Potrošnja struje 6 A | |
| Stepen zaštite IPX5 | |
| Klasa zaštite II | 回 |
| Priključak za vodu | |
| Dovodni pritisak (maks.) 1,2 MPa | |
| Dovodna temperatura (maks.) 40 °C | |
| Dovodni protok (min.) 7 l/min | |
| Podaci o snazi | |
| Radni pritisak 7,4 MPa | |
| Maks. dozvoljeni pritisak 11 MPa | |
| Protok vode 5,5 l/min | |
| Maksimalni protok 6,0 l/min | |
| Povratna udarna sila ručnog pištolja za prskanje | 11 N |
| Dimenzije i težine | |
| Dužina 278 mm | |
| Širina 233 mm | |
| Visina | 296 mm |
| Težina u stanju spremnom za rad, sa priborom | 4,7 kg |
| Izračunate vrednosti prema EN 60335-2-79 | |
| Vrednost vibracije na ruci | 0,7 m/s ^2 |
| Nepouzdanost K | 0,6 m/s ^2 |
| Nivo zvučnog pritiska L _pA | 77 dB(A) |
| Nepouzdanost K _pA | 2 dB(A) |
| Nivo zvučne snage L _WA + nepouzdanost K _WA | 91 dB(A) |
Pridržano pravo na tehničke promene.
Izjava o usklađenosti sa propisima EU
Ovim izjavljujemo da ovde opisana mašina po svojoj koncepciji i načinu izrade, sa svim njenim modelima koje smo izneli na tržište, odgovara osnovnim zahtevima dole navedenih propisa Evropske Zajednice o sigurnosti i zdravstvenoj zaštiti. Ova izjava prestaje da važi ako se bez naše saglasnosti na mašini izvedu bilo kakve promene.
Proizvod: Uređaj za čišćenje pod visokim pritiskom
Tip: 1.600-xxx
2006/42/EZ (+2009/127/EZ)
2014/30/EU
2011/65/EU
2000/14/EZ
Primenjene uskladene norme:
EN 60335-1
EN 60335-2-79
EN 62233: 2008
EN 55014-1: 2017
EN 55014-2: 2015
EN 61000-3-2: 2014
EN 61000-3-3: 2013
EN IEC 63000: 2018
Chairman of the Board of Management
S. Reiser
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Съдържание
Сигурност......BG4
Употреба по предназначение ..... BG 4
www.kaercher.com/REACH
Описание на уреда
www.kaercher.com/dealersearch
Технически данни
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Sisukord
Ohutus.... ET 4
www.kaercher.com/REACH
Seadme osad
www.kaercher.com/dealersearch
Tehnilised andmed
Toode: Körgsurvepesur
Tüüp: 1.600-xxx
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Saturs
www.kaercher.com/REACH
Aparāta apraksts
www.kaercher.com/dealersearch
Tehniskie dati
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Turinys
www.kaercher.com/REACH
Prietaiso aprašymas
www.kaercher.com/dealersearch
Techniniai duomenys
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Зміст
Безпека. U K
www.kaercher.com/REACH
Опис пристрою
www.kaercher.com/dealersearch
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
Мазмуны
Қауіпсіздік. K K
www.kaercher.com/REACH
Буйым сипаттамасы
Chairman of the Board of Management
Director Regulatory Affairs & Certification
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
Winnenden, 2020/08/01
اليyanات الفنية
www.kaercher.com/dealersearch
العناية والصيانة
خطر ⚠
www.kaercher.com/REACH
وصف Jingaz
MERCI! DANKE! iGRACIAS!
Register your product and benefit from many advantages.
www.kaercher.com/welcome
Rate your product and tell us your opinion.
71364 Winnenden (Germany)
Tel.: +49 7195 14-0
Fax: +49 7195 14-2212
