USER MANUAL EFSE1004 Casselin

CBIN - CBINM - CBINL

1.2 Description of symbols

1.4 Declaration of conformity

2.3 Safety instructions for using the device

3. TRANSPORT, PACKAGING AND STORAGE

3.1 Inspection after transport

6.1 Safety instructions

This user guide serves as information for all its users. It describes the installation and handling of the device. The safety instructions and technical knowledge of the device are detailed in this manual. They are essential conditions for the proper use of professional equipment. Each user must scrupulously follow all the instructions for use. This user manual must be kept next to the product for proper use and access to the instructions at all times for each user.

1.2 Description of symbols

Information, advice on use and safety instructions are represented by symbols. It is essential to follow these instructions in order to avoid material damage and bodily injury. WARNING This symbol means that there is a danger that could result in injury. Concentration and caution are imperative in operating this device. ELECTRICAL HAZARD This means that there is a danger associated with electric current. Failure to follow the instructions may result in the risk of injury and death. WARNING This symbol is used to indicate that failure to comply with the instruction may result in a breakdown or destruction of the device. NOTE This symbol indicates good practices and advice that must be followed for the efficient use of the device. NOTE It is essential to read these operating instructions before commissioning the device. We do not accept any liability for damage and breakdowns resulting from failure to observe the operating instructions. The Casselin company reserves the right to make any technical, informative and marketing changes to our product without notice.

The operating instructions are protected by copyright law. Reproductions of all types and in all forms - even partial - as well as the use and / or transmission of its content are not permitted without our authorization. Any violation of these provisions gives rise to the right to damages. The other rights remain reserved.

1.4 Declaration of conformity

The device corresponds to the current standards and directives of the European Union. We confirm this in the CE declaration of conformity.

The instructions given in these operating instructions have been drawn up taking into account the current regulations, current technical development, our knowledge and experience. All translations have been prepared with professionalism. However, we accept no responsibility for any translation error. The attached French version is authentic.EN

The safety instructions serve to prevent dangers. They are mentioned in the individual chapters and are characterized by symbols. Their observance guarantees optimum protection against risks and allows the device to function optimally. The safety instructions must be available and legible on the devices.

Safety instructions are established to prevent errors, dangerous uses and breakdowns. Therefore, the device must not be transformed or used for improper use. The device is designed according to technical rules currently developed. This notice must be kept. The appliance must be used in premises provided for this purpose and only by a responsible person who has knowledge of the operation of the appliance.

The functioning of the device and the safety of use are only guaranteed in the event of normal and correct use of the device. Assembly and technical interventions must be carried out by professionals. WARNING Any other use is considered improper. Any accusation related to improper use of the device is not admissible and will lapse. Correct use corresponds to the use described in these operating instructions. Proper use corresponds to compliance with the rules of safety, hygiene, cleaning and maintenance.

2.3 Safety instructions for the use of the device

The indications relating to occupational safety refer to the European Union ordinances valid at the time of manufacture of the device. For commercial use of the device, the operator undertakes, throughout the duration of its use, to ascertain the compliance of the measures cited in terms of work safety with the current state of the arsenal of advice and to comply with the new regulations. For countries outside the EU, the laws and provisions of the country must be observed. All environmental protection provisions must also be observed. WARNING The device must be handled by people with sufficient physical and intellectual means. People with limited physical and intellectual means must be supervised to use this device. Use prohibited for children and minors (exceptions made within a legal framework provided for by law) In case of use of the device by a third person, the user manual must be available before any use. All new users must have read the instructions for use. The device must only be used in rooms provided for this purpose.EN

3. TRANSPORT, PACKAGING AND STORAGE

3.1 Inspection after transport

The check for the absence of damage and the completeness of the device must be made upon receipt of the package. In the event of identification of damage due to transport, refuse or accept the delivered product only with reservations *. A complaint detailing the defects observed must then be made. The perception of damage is only possible in the event of a complaint formulated within the prescribed time limits, ie 24-48 hours maximum.

• written on the carrier's delivery papers or digital.

The packaging of the device must be kept in case of moving, or for a return to the after-sales service. The inner and outer packaging must be completely removed before using the device. The standards in force in your country concerning environmental protection must be observed before destroying the packaging. 3.3. Storage WARNING The device can be kept in stock, but only in its original, closed packaging. Storage can be carried out in accordance with these conditions:

• Storage in a dry and non-humid place

• Sheltered from the sun

• Control of the stock exceeding 2 months (general condition of the device and all the constituent elements)

• Storage in closed room and not outside.

4. EQUIPMENT CHARACTERISTICS

• Subject to change Model Operating temperature Electrical data Dimensions Weight

ELECTRICAL HAZARD Danger from electric current!

• No contact with heat sources should take place with the power cord.

• Cord should not hang over edge of table or counter.

• Do not pour water into an appliance that is in operation or that is still hot.

• The device must be properly connected and comply with the regulations in force. CBIN 30°C – 90°C 1 160 W / 230 V W 800 x D 640 x H 691 mm 41 Kg CBINM 30°C – 90°C 1 160 W / 230 V W 1 106 x D 700 x H 691 mm 49 Kg CBINL 30°C – 90°C 1 860 W / 230 V L 1 106 x P 700 x H 691 mm 55 KgEN WARNING In operation, the device can reach high temperatures. To avoid burns and accidents, do not use the device in malfunction, and do not use spare parts that are not original. ELECTRICAL HAZARD Danger from electric current! If incorrectly installed, the device can be dangerous and cause injury. Before any installation, check the data of the electrical network. Connect the device only when there is compliance. The appliance must be unpacked and checked completely before connection by a professional.

WARNING The set-up of the device installation and maintenance must be carried out by professionals only.

• Do not leave the appliance running without supervising it.

• During use, your hands should be dry.

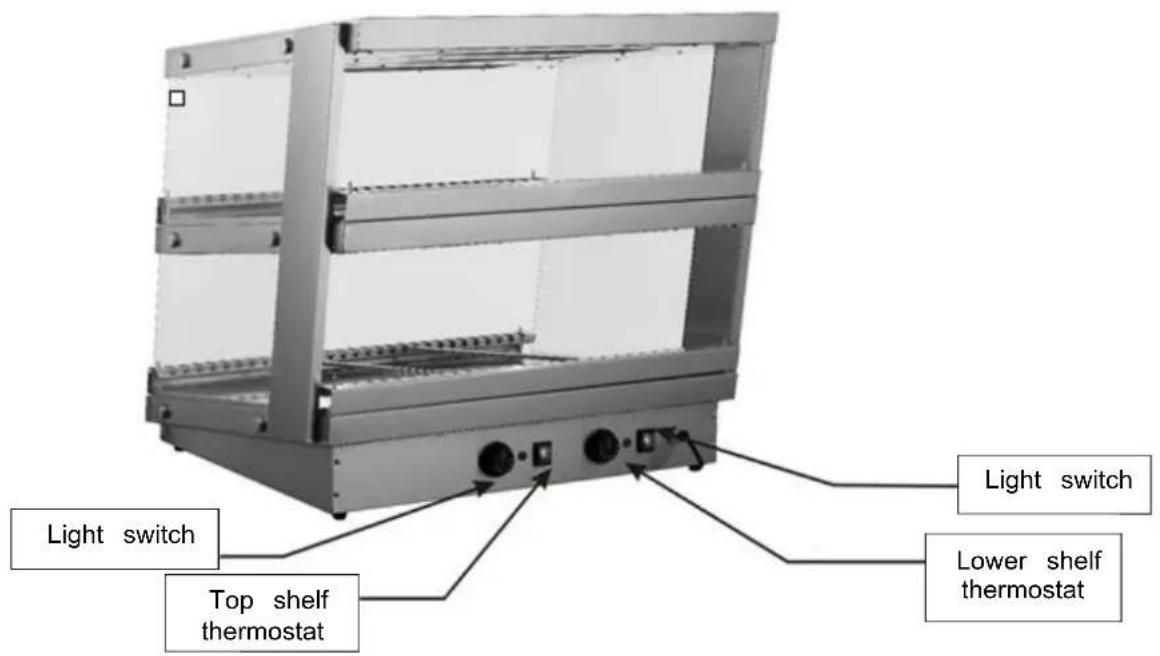

• Do not move or tilt the device during operation. MANUAL INSTALLATION Place the appliance on a level, secure surface that can support the weight of the appliance and is not sensitive to heat. Never place the device on a flammable surface (such as a tablecloth, carpet, etc.) You should not place the appliance near fireplaces, electric ovens / arc furnaces / electric heaters or other sources of heat. Position the device so that the plug is easily accessible. Lower shelf thermostat Top shelf thermostat Light switch Light switchEN USE Before first use, clean the interior sides and grilles with a soft cloth and a mild cleaning agent. Then dry the device thoroughly. Connect the device to a grounded outlet. Adjust the temperature according to the foods chosen. You can set the desired temperature within the range of 30 ° C to 85 ° C. The temperature inside the device can be read on the front display. Place the food in suitable containers before placing it inside the display case and close the display case using the sliding door. Some parts of the appliance can be very hot, always use protective gloves when placing or removing food. The food is kept warm at the temperature you set previously. In order to place or remove food ; you can open the door at the back. Turn on the interior light if needed using the device light switch. Unplug the device from the power outlet when you are finished using it. NOTE The device is fitted with a safety system in the event of overheating. If tripped, unplug the device and allow it to cool. If this protection system operates regularly, it is imperative to contact your dealer. After automatic shutdown, the device can only be put into service by pressing the Reset button on the back of the device, wait for the temperature to drop, press the Reset button.EN

6. CLEANING AND MAINTENANCE

6.1 Safety instructions

All maintenance, cleaning and repair of the appliance must be done with a disconnected appliance (isolated from all electrical sources). The use of caustic detergents and baking soda for cleaning is prohibited. Water must not get inside the device. Never immerse the device in water or other liquid. Use Casselin brand products intended for this purpose. WARNING The device cannot be cleaned by direct water jet (no pressurized water jet).

6.2 Daily maintenance

Unplug the device Clean the inside and outside of the device with a soft, damp cloth and mild detergent. Clean the positioning grids and the body of the appliance with a soft, damp cloth and mild detergent. Clean the water bowl regularly. Calcification in the water bowl can be removed with conventional cleaning products. Use only a soft cloth and be careful never to use abrasives or pads that may scratch the surface. After the cleaning procedure, use a soft, dry cloth to wipe and polish the surface. Make sure the device has been cleaned properly before storing it in a dry place.

6.3 Safety instructions for maintaining the device

Daily check for damage to the power cord. Never use the appliance when the cord is damaged. If the cord is faulty, it must be replaced by a qualified technician. In the event of a fault, contact your dealer. Any maintenance or repair intervention must only be carried out by a professional. NOTE In the event of a fault, unplug the appliance, let it cool down and contact your dealer. If the device does not start, check your power cord. The device should not be plugged into a multiple socket, but directly to a wall outlet. For any other anomaly, contact your dealer. NOTE Waste from used devices : any used device must, when disposing of it, comply with the regulations in force in its country *. It is essential to make the device unusable before disposal by removing the power supply cable.

• in terms of ecology and recyclingEN

7. IRREGULARITY OF OPERATION

NOTE The above-mentioned malfunctions are only cited as an indication and remain virtual. For any hesitation, contact your dealer.

ANOMALY CAUSES EXPLANATION

The appliance does not work, the heating indicator light does not come on. > The power cable is not plugged in. > The power supply fuse has tripped. > The power supply unit does not work. > The safety thermostat has tripped. > The safety thermostat is damaged. > Connect the power cable properly. > Check all of your fuses. > Check the location of the box. > Press the reset button located in the box. > Contact your dealer. The appliance is on but it does not heat up. The heating indicator light remains off. > The safety thermostat has started up. > The resistance no longer works. > Contact with damaged heating element. Contact your dealer. The requested temperature is not reached. Thermostat is damaged. Contact your dealer. The heating element stops after a certain time. The safety thermostat has started up. Press the Reset button in the distribution box.DE
