USER MANUAL Plug&View OptiView Pro Digitus

Quick Installation Guide.

(QIG)

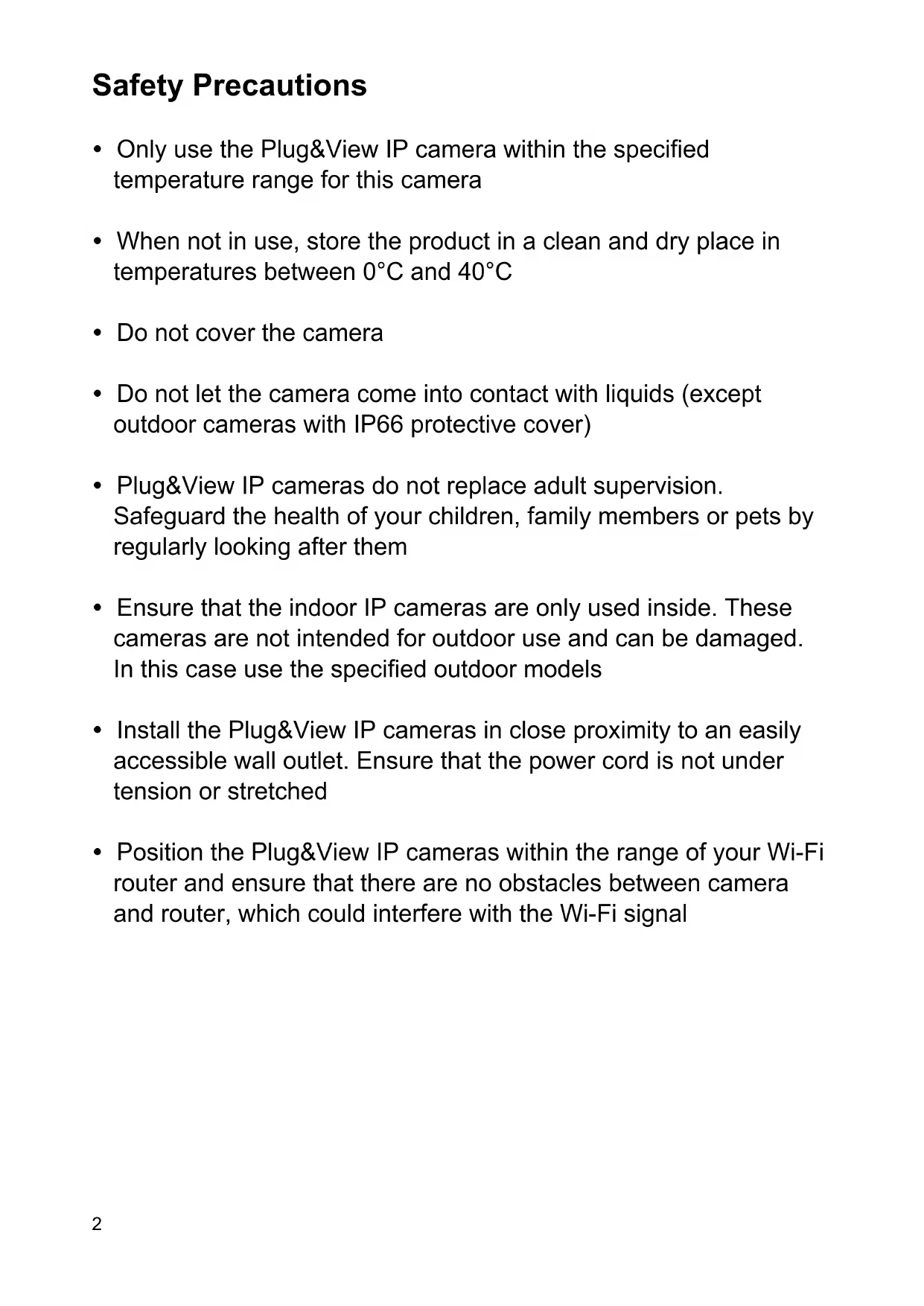

Safety Precautions

• Only use the Plug&View IP camera within the specified temperature range for this camera
• When not in use, store the product in a clean and dry place in temperatures between 0°C and 40°C
• Do not cover the camera
• Do not let the camera come into contact with liquids (except outdoor cameras with IP66 protective cover)
• Plug&View IP cameras do not replace adult supervision. Safeguard the health of your children, family members or pets by regularly looking after them
• Ensure that the indoor IP cameras are only used inside. These cameras are not intended for outdoor use and can be damaged. In this case use the specified outdoor models
• Install the Plug&View IP cameras in close proximity to an easily accessible wall outlet. Ensure that the power cord is not under tension or stretched
• Position the Plug&View IP cameras within the range of your Wi-Fi router and ensure that there are no obstacles between camera and router, which could interfere with the Wi-Fi signal

- Protect the Plug&View IP cameras from electrical and other HF devices generating interferences (microwaves, mobile phones, etc.)

- Keep camera, network cable and power cord outside the reach of children, since these components can be dangerous

- Only use the supplied power adapter.

- Never try to repair Plug&View IP cameras yourself. Repair and maintenance work must be carried out by specialists.

- In case of problems contact our customer service.

- Observe all applicable laws regarding camera monitoring. The Plug&View IP cameras are intended for private use at home. Inform your family members, relatives and domestic helpers in your household with regard to video monitoring. Ensure that public areas and your neighbors' properties cannot be seen.

Personal Information

• Read and accept the privacy policy for using the DIGITUS ^® Plug&View systems under http://plug-view.com/privacy-policy-for-platform-apps/.
• Select a password with a high degree of safety for your Plug&View account to protect it from unauthorized access.
• The password should contain at least 8 characters; we recommend case-sensitive letters and alphanumeric characters.
• Furthermore, the standard password of the camera should be changed to avoid unauthorized access here as well.

Live stream, push notification and further services are available via a cloud server. Despite backup solutions, system stability and bandwidth management the uninterrupted availability of the system cannot be guaranteed.

What's in the box

1 x Plug&View IP camera
1 x Power supply with cable
1 x Quick Installation Guide
1 x CD with utilities
Optional:
1 x Ethernet cable
1 x Ceiling/Wall mount
1 x Removable antenna*

*The following cameras are equipped with a removable antenna: DN-16029, DN-16039, DN-16043, DN-16048, DN-16049

Thank you for choosing a Plug&view IP-camera, which can be up-and-running quick and easy without complicated network settings.

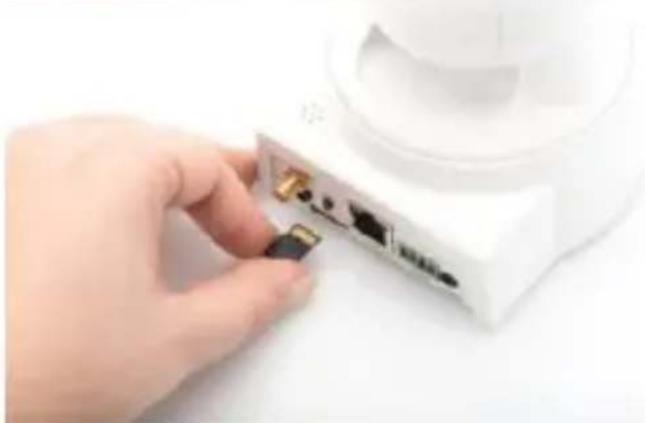

Install MicroSD Card

DIGITUS ^® indoor Plug&View cameras can be equipped with a microSD card for recording.

Check installation option by means of the installation illustration.

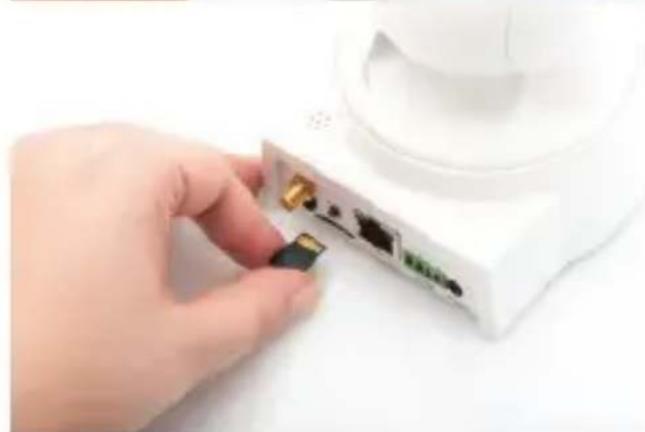

DN-16047

Install the SD card as illustrated, with the golden contacts towards the camera lens.

DN-16046

Install the SD card as illustrated, with the golden contacts towards the camera lens.

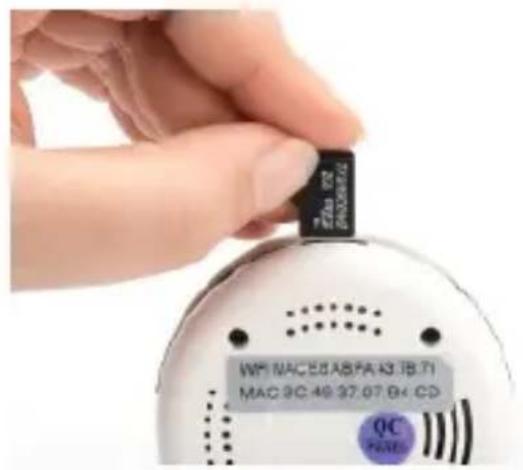

DN-16029

Install the SD card as illustrated, with the golden contacts up.

2018/2019 Mac 3C WPS MACES ABPA 43.78.71 MAC 3C 49.37.07.04.CD QC PATE

Hand inserting a small USB into a white digital camera module (no visible text or symbols)

Hand inserting a USB into a white electronic device (no visible text or symbols)

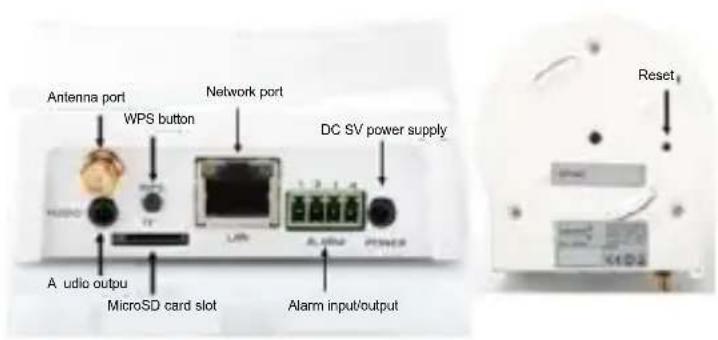

Camera Connections

LAN:

Connect the camera to the LAN port of your router.

Reset:

Press and hold the Reset button for 10 seconds after starting the camera to reset the camera to default settings.

Power:

Connect the supplied power cord to supply the camera with power.

MicroSD:

Insert a microSD card for local storage.

Mic: Microphone (Audio In).

Audio output:

Connect an external speaker via the 3.5mm audio cable.

WPS:

Press and hold the WPS button for 3 seconds after starting the camera to activate WPS mode.

Alarm:

Pin1: Alarm input

Pin2: Ground

Pin3: Not in use

Pin4: NO

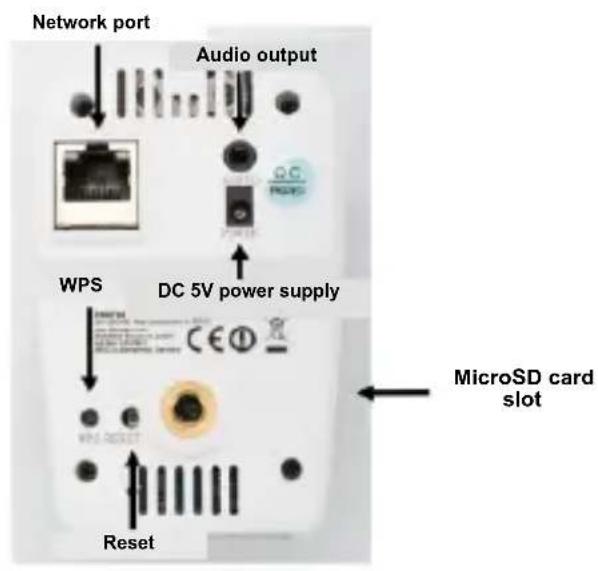

Antenna port WPS button Network port DC SV power supply A udio output MicroSD card slot Alarm input/output Reset

Network port Audio output WPS DC 5V power supply Reset MicroSD card slot

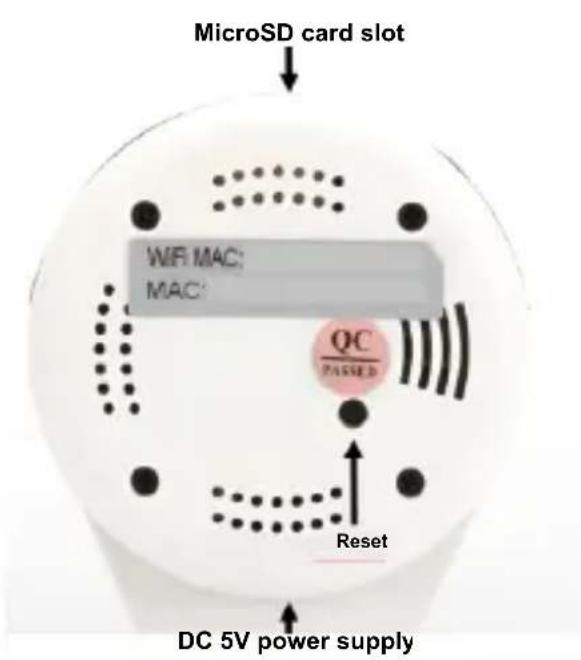

MicroSD card slot WiFi MAC: MAC: QC PASSED Reset DC 5V power supply

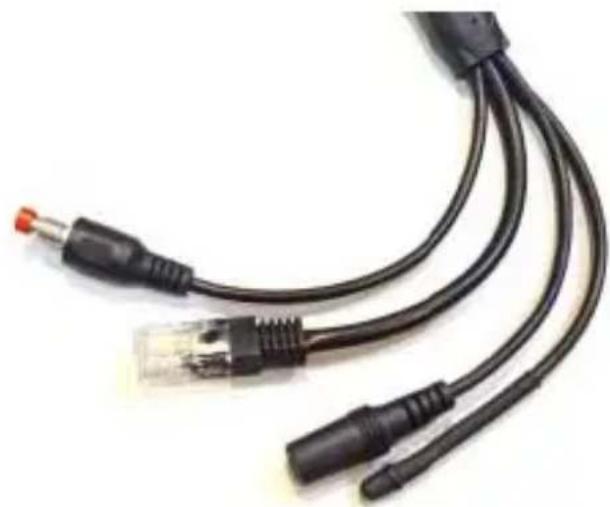

DIGITUS® outdoor Plug&View cameras are equipped with a special cable.

Check installation option by means of the installation illustration.

- Reset button:

Press and hold this button for 10 seconds after the camera is connected and ready-to-use. This resets the camera to default settings.

- Network cable:

Connect the network cable to you router on the network to establish Internet connection.

• DC 12V power connection:

Connect the external power adapter to supply the camera with power.

• LED status indicator:

The blue LED status indicator shows if the camera is supplied with power.

Close-up of black USB connectors with red connectors, no visible text or symbols

For models DN-16039, DN-16043 and DN-16048 power can be supplied directly to the camera via the network cable in connection with a PoE injector or PoE switch.

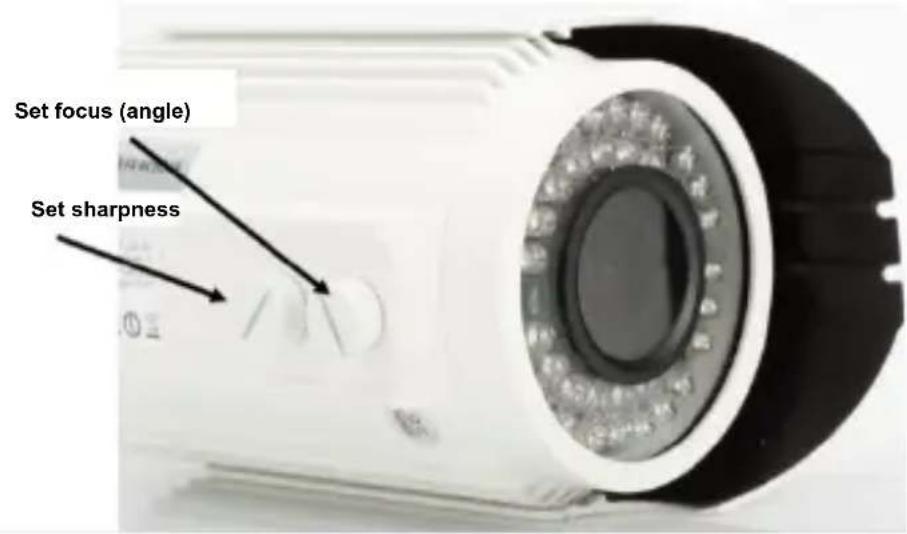

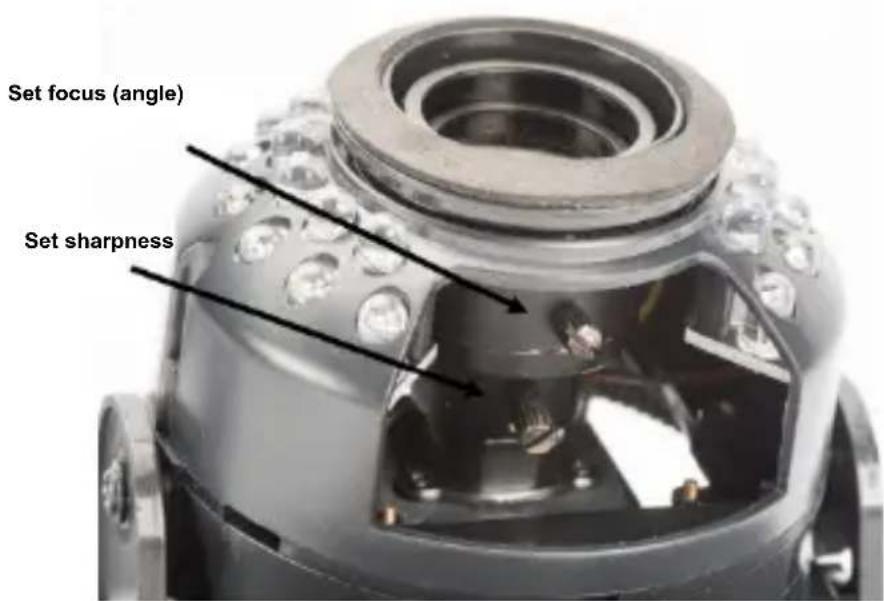

Lens Settings

DN-16039

DN-16043

You can adjust focus and sharpness via manual controls. Use the camera live image to adjust focus and sharpness as required.

Set focus (angle) Set sharpness

Set focus (angle) Set sharpness

1. Preparation

Before you can use your IP camera, some preparations must be taken care of.

Connect antenna

Plug the wireless antenna into the connector and tighten the mounting bolts.

Insert SD-card

The Plug&View IP cameras support MicroSD cards with up to 32 GB storage capacity, which you can buy at your resellers. Pictures or videos taken with your IP camera are then stored on this card.

If your camera has an external port and does not have existing internal memory, insert your MicroSD card into the corresponding slot until it firmly snaps into place.

Connect power supply

Plug the cable of the enclosed power supply into the "Power" connection of the camera.

Connect camera to router (e.g. AVM Fritz!Box, Telekom Speedport etc.)\*

Connect one end of the supplied network cable to the LAN port of the camera. Connect the other end of the network cable to one of the connectors marked as 'LAN' on the back of your router. Some routers have only one LAN connection, others have multiple connections. Your router must have a working Internet connection.

*You can skip this point with the access point mode of the cameras. For DN-16047 this point must be skipped.

2. Setting up the Plug&View User Account

In order to use your Plug&View camera and to have a video image at any time and anywhere, you need to register your camera in a Plug&View user account. The setup and control can both be done from your Smartphone/tablet as well as from a PC.

2.1 Create a user account with your Smarthpone/tablet

If you have an Apple ^® iOS device, then you will find our "DIGITUS ^® Plug&View" App in the Apple App Store ^® . For Smartphones and tablets running on Google Android OS you can find our "DIGITUS ^® Plug&View"-App in the Google ^™ Play Store.

In the search field of the respective App Stores ^® enter "Digitus" or "DIGITUS Plug&View".

Apple App Store®

Store DIGITUS

Google ^TM

Play

Google play Digitus

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

In the Search results the "DIGITUS® Plug&View"-App will be marked with this symbol.

Then install the App on your mobile device.

Start the App on your tablet or on your Smartphone. You have 2 options to create your account:

1. If you already have a Google account, you can use your Google account to use your plug&View App, or
2. You directly create a new Plug&View account with an individual user name and password.

mydou mydou MIDU 8

1. Sign in with Google account

Click on "Google account". Then you can use your Google Mail address and password to log in.

Or

2. Create new account with Plug&View

Click on "Create Account".

Terms of use agreement

I have acknowledged the privacy policy of Autotom Electric (Antel et al. 2017) consensus to the data agreement according to the privacy policy. I may review my consent at my time by contacting [e-mail]

However, we must present that in the event cannot be reached, the Play&Leaving command will just be good.

Accept the privacy policy for using the DIGITUS® Plug&View system.

On the next page, please choose a user name, a password, and confirm your e-mail address.

Agree

◀ ○ □

Then tap on "Apply" to your Plug&View Account to create. Next you will receive an e-mail with instructions on how to unlock your account. Then log into the App with "Login" using your user name and password. Now you can add your camera to the account (proceed to item 3).

2.2 Create user account with your PC

For using the Plug&View system on a PC, Java add-on must be installed.

Install the current Java version if you do not have Java installed on your PC (http://www.java.com/de/).

Check if you have the latest version if you already have Java installed on your PC (www.java.com/de/download/installed8.jsp).

Please visit the website http://plug-view.com/.

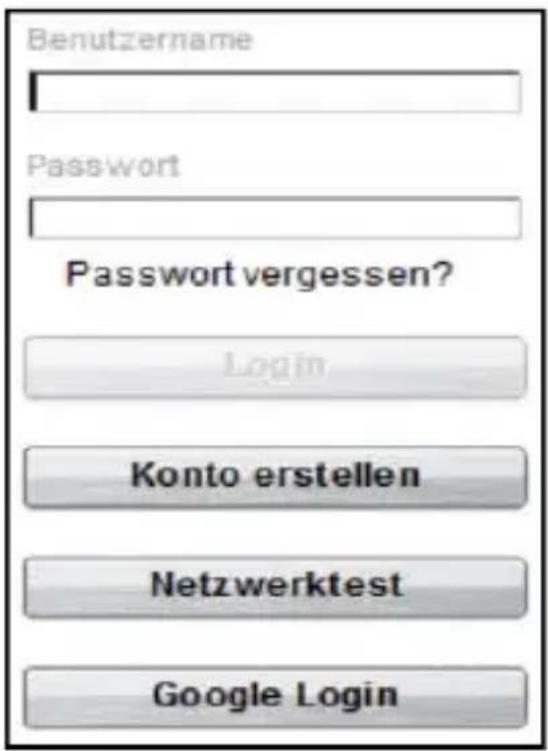

Then right click on "Login | My camera administration".

1. Sign in with Google account

Click on "Google Login". Then you can use your Google Mail address and password to log in.

Or

2. Create new account with Plug&View

Click on "Create Account". Please complete the information on the next page and confirm your entries with "Apply". Next you will receive an e-mail with instructions on how to unlock your account. On the login page you can then log in with your user data and add your camera.

Use this point if you want to connect the camera to your wireless network directly in access point mode.

For DN-16047 this point must be carried out.

Skip to step 4 if your camera is connected to your router via LAN cable.

3. Connect Plug&View IP Camera Via Wi-Fi

3.1 With Smartphone/tablet

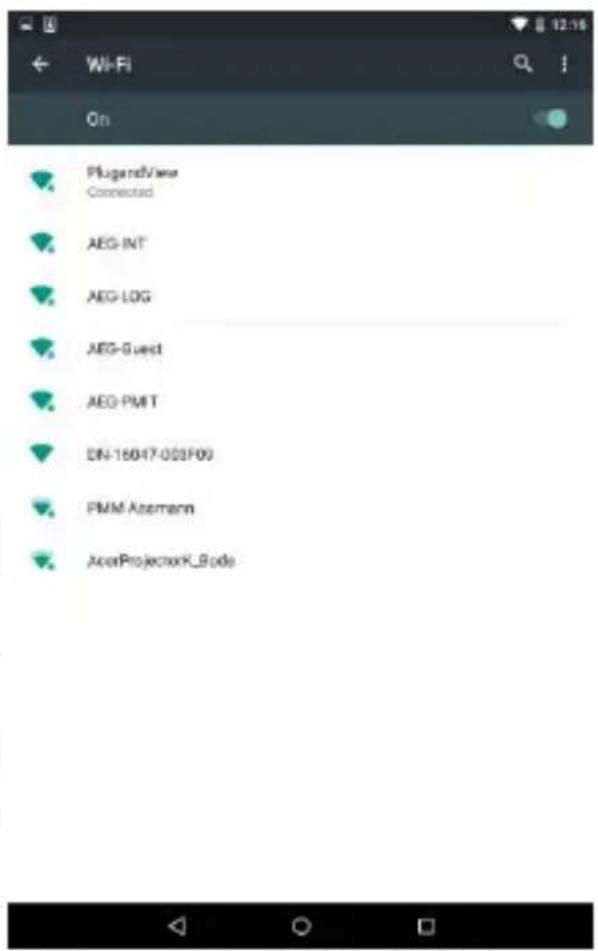

Open the Wi-Fi settings on your smartphone/tablet.

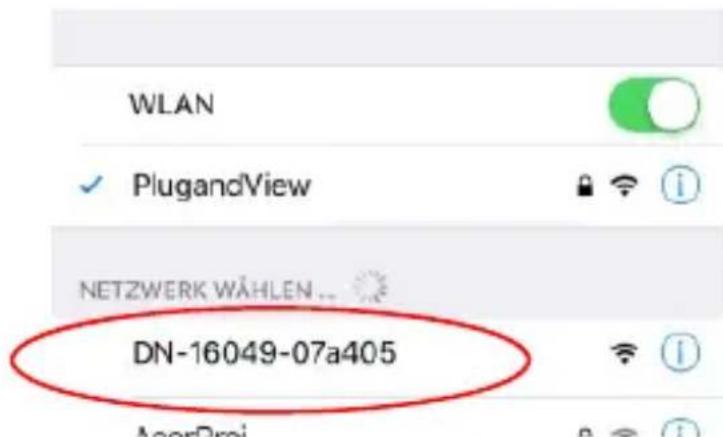

Search for available wireless networks in the immediate vicinity. The camera will be displayed as a wireless network with its model number and the last 6 characters of its MAC address.

PlugandView Connected AEG INT AEG LOG AEG Guest AEG PMT DN-16047-009F09 PMM Asemann AcerProjectorK_Bode

WLAN ✓ PlugandView NETZWERK WÄHLEN ... DN-16049-07a405

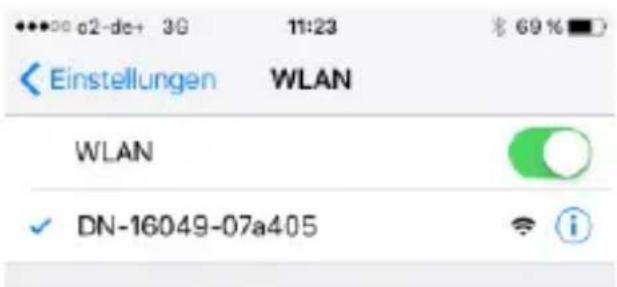

Connect your smartphone/tablet to the IP camera via the Wi-Fi connection.

After smartphone/tablet are connected to the camera you can continue the Plug&View app installation. Open the Plug&View app.

•••••o2-de+ 3G 11:23 $ 69% Einstellungen WLAN WLAN ✓ DN-16049-07a405

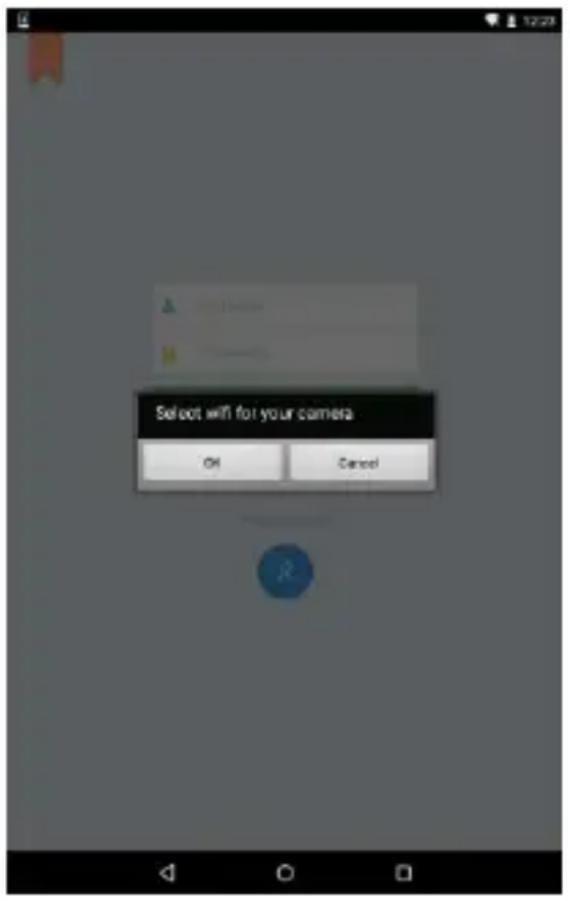

The Plug&View app detects connection to a Plug&View camera operated in access point mode and prompts you to select the Wi-Fi network, to which the camera is to be connected.

Select wifi for your camera OK Cancel

Back Choose your wireless network bssid signal ssid PlugandView HD Print File

Available networks in the vicinity will be indicated. Please select here the network, with which the camera should be connected. If your network is not displayed, the camera may need to be repositioned.

ATTENTION: Hidden SSID's, meaning hidden Wi-Fi networks, are not supported by the camera. Please make your network visible, if you want to install your camera into one of these.

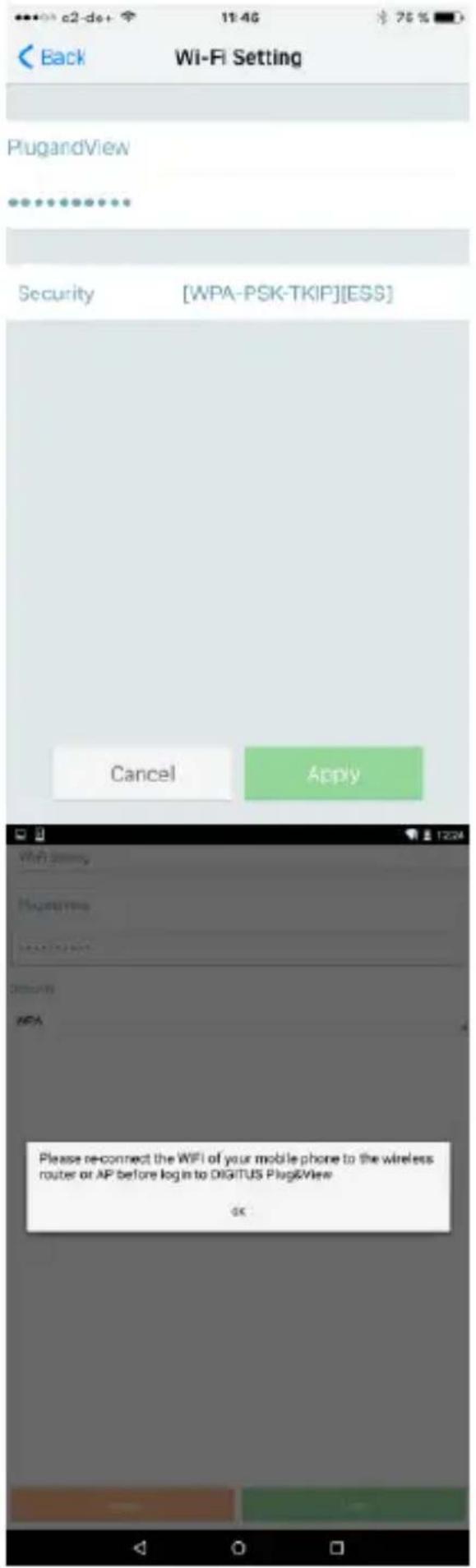

c2-do+ 11:4G Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

Enter the network password in the password field, with which your Wi-Fi network is encrypted and confirm the input with OK.

Under Android operating systems you are prompted after successful connection to reconnect your Smartphone/Tablet to your Wi-Fi network again.

As a rule, this will happen automatically. Should this not be the case, please go to your Smartphone/Tablet Wi-Fi settings and connect to your Wi-Fi network there.

4. Add Plug&view IP camera

4.1 With Smartphone/tablet

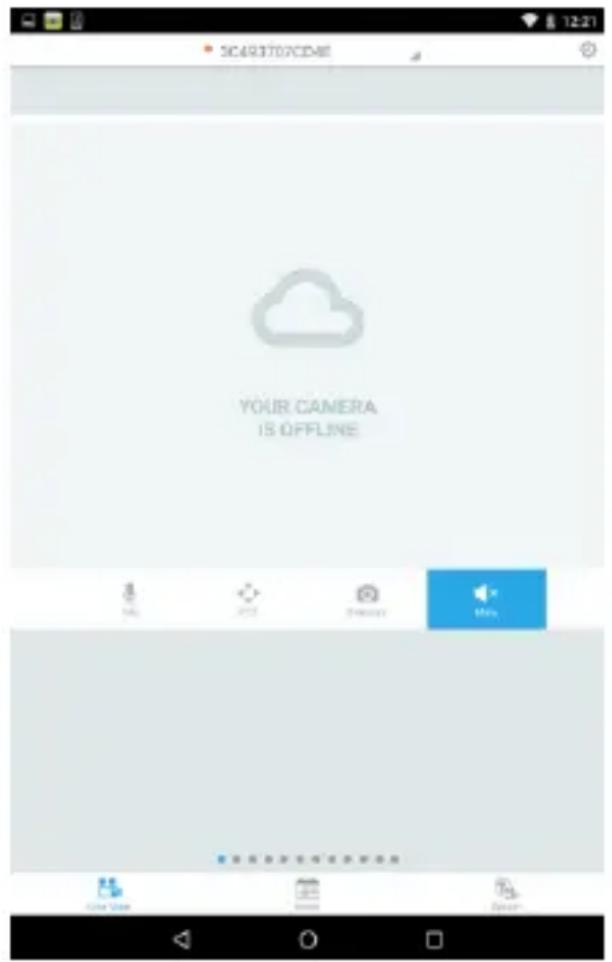

Press "+" to add a new camera during the first Plug&View camera installation.

Navigate to settings (cogwheel icon top right) and tap on "Add camera" if there are already cameras. This is easily done by scanning the QR-code with your Smartphone/tablet or through manual entry of the activation data.

SCARISTO7CDME YOUR CAMERA IS OFFLINE

The following devices are suitable for scanning the QR-code: Apple iPhone ^® , Apple iPad ^® , Android-Smartphone, Android-tablet (with integrated rear camera).

The MAC-address, the activation code, and the QR-code can be found on the last page of this guide.

Note: The Android version of the mobile device should be at least 2.3.5 or higher.

Adding the camera by scanning the QR-Codes

On the next page, select the option "Scan QR code". The QR code scan function of your mobile device is activated.

Scan QR Code Manual Input + MAC Address Activate Care-

Pure graphical interface element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

For scanning the QR code, you may have to move the device several times backwards and forwards, until the code is recognized.

Adding the camera though manual input of MAC-address and activation code

The MAC-address and the activation code are located on the last page of this guide. Navigate to "Manual input" after selecting "Add camera" in the Plug&View app.

Enter the alphanumeric combination, which you find under "MAC". Then enter your activation code and click "Apply".

MAC:

40D855070000

Act.Code:

wcdAcAcACAcAc

QR code image containing encoded data, no visible human-readable text

4.2 Add the camera to the PC via the Browser

After the first login into your camera administration on "http://www.plug-view.com", you will be routed automatically to the registration page for the MAC-address and the activation code.

No.	MAC Address	Activate Code
1

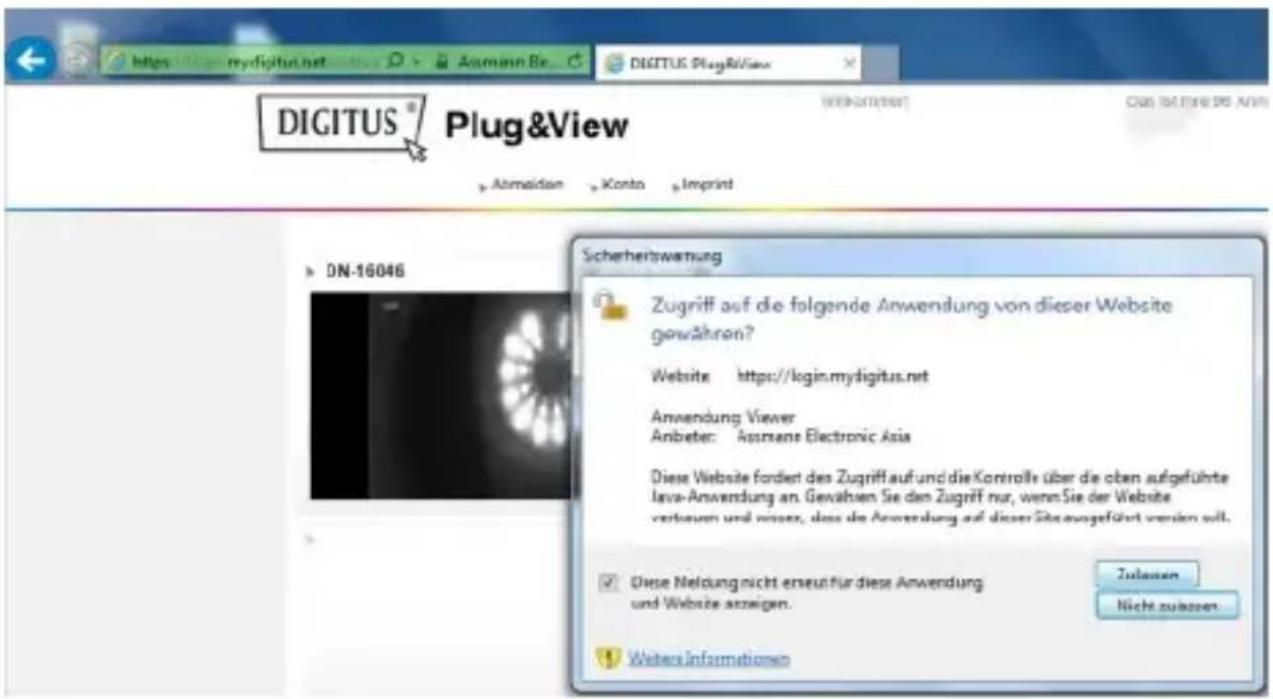

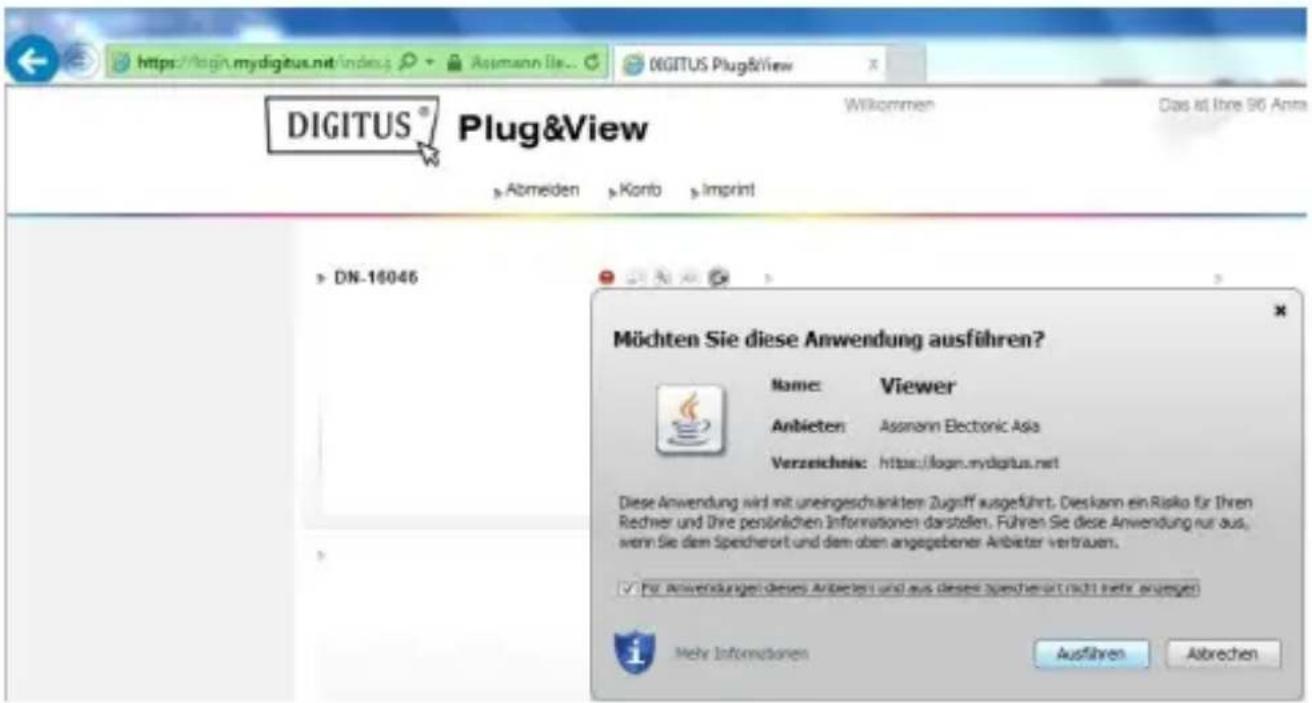

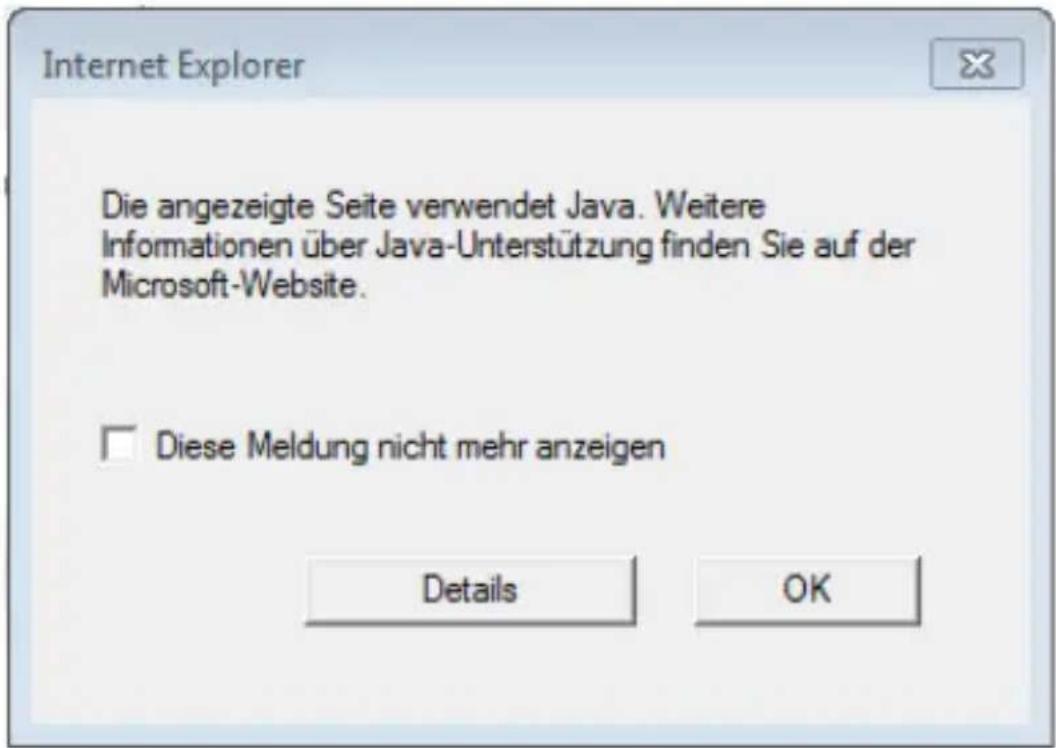

If you see a message telling you that the page uses Java, please click on "Details" and follow the instructions on the next screen to install Java on your computer. This is a precondition for using the video capabilities of the web site. After the successful installation of Java, reload the web page.

Should the security settings of your PC display a warning message after the Java installation, agree to run Java by clicking on OK.

In the same way confirm in a possible message of the Windows Firewall, that Java is allowed to communicate with the Internet. In order to be able to use the multimedia and control functions, the OCX component must be installed in Internet Explorer and the VLC Mediaplayer in Firefox and Chrome. A download link will be displayed in the user interface if necessary.

The MAC-address and the activation code are located on the last page of this guide. Enter both in the appropriate fields and click on "Apply".

After successfully adding the camera to the camera list, please check whether your camera is displayed with a small preview image.

If you plan to continue using your Plug&View camera with a network cable, the setup is completed here.

If, however, you intend to use the wireless variant in the Wi-Fi for the greatest possible flexibility in the choice of location, please continue reading.

5. Setting up Wi-Fi

The setup of the wireless (Wi-Fi) connection between the IP camera and the Wi-Fi router/ Accesspoint is done on the PC via the browser

After the successful installation of your camera, log in to the web site "http://www.plug-view.com". Please click on "Login | My camera administration".

Use your Plug&View user name or select the Google-Login. If you are not signed in to your Google account, you will be automatically redirected to the Google login page.

After entering your login details you can see the camera-overview page. Please check here if your camera is displayed with a small preview image.

To the right side, above the camera image, you will see some icons. Click on the "Settings" icon to be directed to the user interface of the camera.

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file icon.

In the following window login with user name "admin" and password "admin". If you select the option "Autologin", you will be logged in automatically next time you access the configuration menu. Click on "Login".

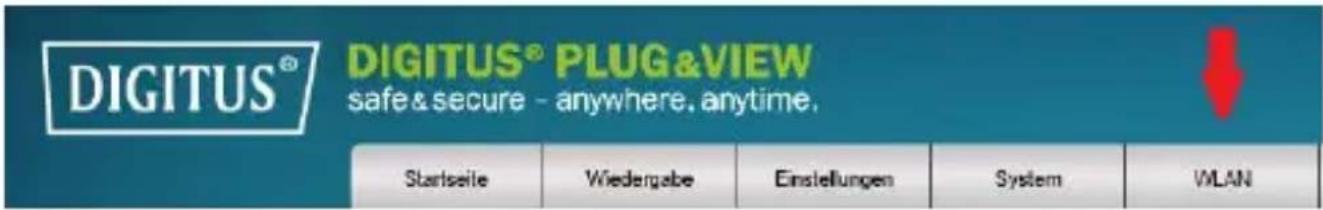

In the user interface of the camera, click on Wi-Fi to carry out Wi-Fi settings.

DIGITUS® DIGITUS® PLUG&VIEW safe & secure - anywhere, anytime. Startseite Wiedergabe Einstellungen System WLAN

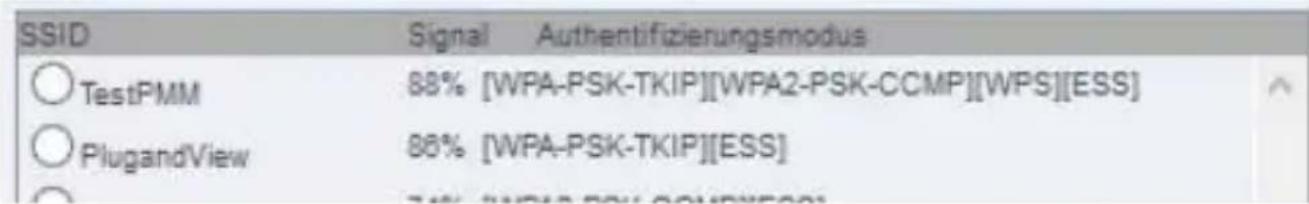

A search window will appear, in which the available wireless networks in your environment will be displayed. Please select the identifier (SSID) of your network and confirm with "OK".

SSID Signal Authentifizierungsmodus ○TestPMM 88% [WPA-PSK-TKIP][WPA2-PSK-CCMP][WPS][ESS] ○PlugandView 88% [WPA-PSK-TKIP][ESS]

In the next window enter the Wi-Fi-key and confirm with "OK".

Password: ok

Please ensure that your router is functioning as a DHCP-server. This is the factory setting of almost all routers. Next, the connection to your wireless LAN is established. If the connection was successfully established, this will be displayed in a separate window.

You can now remove the network cable from the camera and close the browser window.

Congratulations. You have just completed your Plug&view IP camera set up. Now you can access your IP camera at any time from your Smartphone, tablet PC, or from a browser.

6. Set Motion Detection and Recording

The DIGITUS ^® Plug&View system offers the options motion detection and recording. To use this function, the SD card must be formatted in the camera and motion detection must be activated. For formatting the SD card, access the camera via the web portal.

To the right side, above the camera image, you will see some icons. Click on the "Settings" icon to be directed to the user interface of the camera.

Screenshot of a software toolbar with icons and a red arrow pointing to a document or folder

In the following window login with user name "admin" and password "admin". If you select the option "Autologin", you will be logged in automatically next time you access the configuration menu. Click on "Login".

You access the SD card information via menu items System, Local storage.

Format the SD card via menu item "Format".

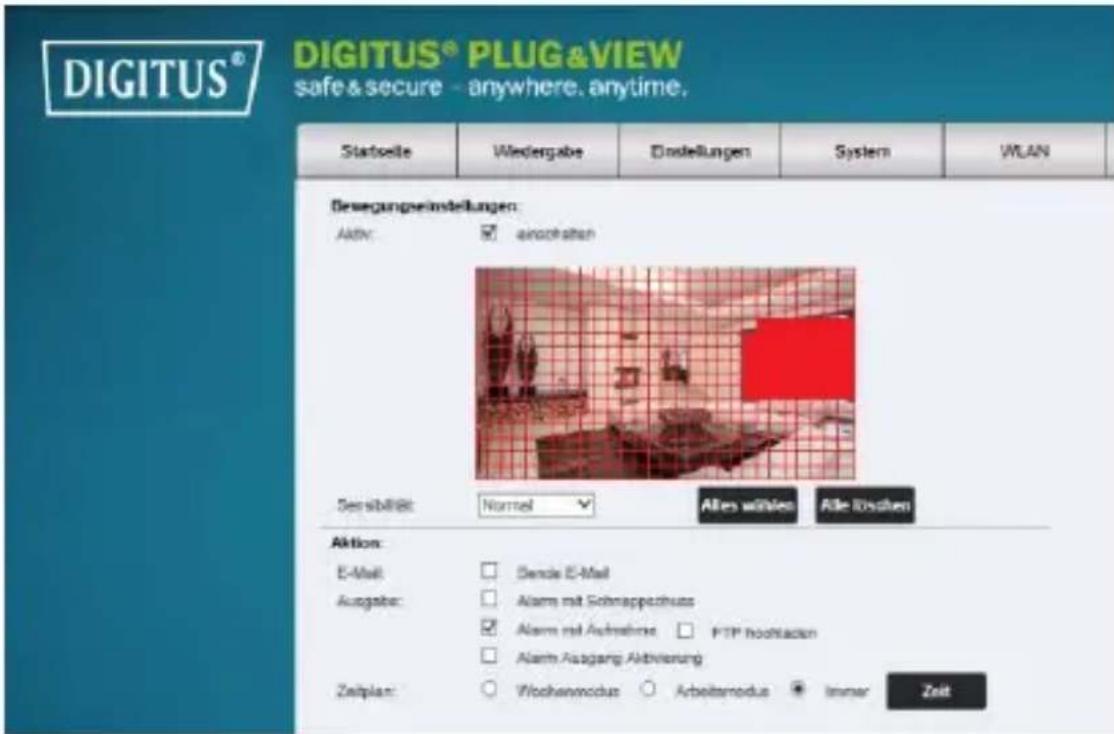

After formatting, motion detection can be activated. Navigate to Settings, Motion.

Activate motion detection by clicking on "ON". The colored area within the video image is the motion detection area, i.e. the area in which a movement triggers a picture or a video recording. In the original delivery condition, almost the entire screen is covered with red boxes. Click on the color markings to exclude certain areas from motion detection. By doing this, you delete the marker for that area. You can set the motion detection sensitivity in "Sensitivity". Select from the following four levels: "Very high", "High", "Normal" and "Low".

Activate "Alarm with recording" to save in case of detected motion to SD card.

Time setting is affected via the schedule for motion detection. You can record in Weekly, Workday or Full-time modes.

You can individually adjust the schedule.

Save the configuration with "Apply".

You have successfully set motion detection with recording.

For explanations regarding the camera's web interface see the camera manual supplied on CD.

With questions access the FAQ area on our Plug&View page (http://www.plug-view.com/) or contact our Hotline (http://www.plug-view.com/support-de/support/).

Trademarks

DIGITUS is a registered trademark ASSMANN Electronic GmbH. Apple, Apple App Store are registered trademarks of Apple Inc. Android, Google, Google play are registered trademarks of Google Inc.

AVM Fritz!Box is a registered trademark of AVM Computersysteme Vertriebs GMBH.

Telekom Speedport is a registered trademark of Deutsche Telekom AG.

Note:

All other trademarks not listed here, are the property of their respective owners.

Trademarks or trade names mentioned in this manual are used to describe the operating steps and do not imply that they are freely available. In any case they are the property of the respective holder of the rights.

ASSMANN Electronic GmbH declares that the product complies with the requirements and provisions of directives 1999/5/EG and RoHS 2011/65/EG. You can request the complete Declaration of Conformity by mail at the manufacturer's address as stated below.

ASSMANN Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany

CE http://www.digitus.info

Please scan the QR Code below to enjoy

DIGITUS® PLUG&VIEW

safe & secure - anywhere. anytime.

Empty white image with a thin black border (no text, symbols, or markings)

Please scan this QR code using DIGITUS® Plug&View APP

DIGITUS®

DIGITUS® Plug&View IP Kameras

Quick Installation Guide

(QIG)

Sicherheitshinweise

Close-up of a hand inserting a small USB into a white handheld device (no visible text or symbols)

Hand inserting a small USB into a network device (no visible text or symbols)

Kameraanschlüsse

LAN:

Close-up of black USB cable with connectors and ports (no text or symbols visible)

Close-up of a camera lens icon on a green background (no text or symbols)

weilong 6-245989 WEELI

13.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.2.7

8

Terms of use agreement

Pages from protocols, via the Internet of Help. The necessary text you should be the platform code, which you can find an http://plug-hen.com/private policy for platform apps

召开期间情况

I have acknowledged the privacy policy of Axteomar Electronic, Bandet, authority counsel to the data agreement according to the privacy policy. Many resolutions cannot be given here by contacting support3.digitus.info

These were not planned that it is the event cannot be resolved, the PlayDending condition target is used.

Select with for your camera OK Cancel

Back Choose your wireless network bssid signal ssid PlugandView HD Print 5.1a

Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply WiFi Privacy PlugandView Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software toolbar with icons and a red arrow pointing to a document or interface element.

Password: ok

Screenshot of a software interface with icons and a red arrow pointing to a document or folder.

Please scan the QR Code below to enjoy

DIGITUS® PLUG&VIEW

safe & secure - anywhere. anytime.

Please scan this QR code using DIGITUS® Plug&View APP

DIGITUS®

Caméra IP DIGITUS® Plug&View

Hand inserting a small USB into a white device with a circular dial (no visible text or symbols)

Hand inserting a USB into a white network device (no visible text or symbols)

Coiled black cable with connectors and ports, no visible text or symbols

Close-up of a camera lens with concentric rings on a gradient green-yellow background (no text or symbols)

Select wifi for your camera OK Cancel

Back Choose your wireless network bssid signal ssid > PlugandView > UP Print 461a

PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WiFi of your mobile phone to the wireless router or AP before login to DIGITUS Plug&View OK

Scan QR Code Manual input MAC Address Accurate Code

Pure graphical UI element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Computer interface toolbar with icons and a red arrow pointing to a window (no readable text or symbols)

Password: ok

Computer interface toolbar with icons for view, file, gear, speaker, and Google (no readable text or symbols)

safe&secure-anywhere.anytime.

DIGITUS® Plug&View IP camera's

Coiled black cable with connectors and ports, no visible text or symbols

Close-up of a camera lens with concentric rings on a gradient green-yellow background (no text or symbols)

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
UP Print 46.1.2	>

PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WiFi of your mobile phone to the wireless router or AP before login to DIGITUS Plug&View OK

Scan QR Code Manual Input MAC Address Accurate Code

Pure graphical UI element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software interface with icons and a red arrow pointing to a document or folder.

Password: ok

Screenshot of a software interface with icons and a red arrow pointing to a document or folder

safe&secure - anywhere.anytime.

Empty white rectangle with black border (no text or symbols)

Telecamere IP DIGITUS® Plug&View

1 telecamera IP Plug&View

Hand inserting a USB into a white handheld device with a circular dial (no visible text or symbols)

Close-up of a hand inserting a USB into a white electronic device (no visible text or symbols)

Coiled black cable with connectors and ports, no visible text or symbols

Close-up of a camera lens with concentric rings on a gradient green-yellow background (no text or symbols)

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
UP Print 46.1.2	>

PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WiFi of your mobile phone to the wireless router or AP before login to DIGITUS Plug&View OK

Scan QR Code Manual input MAC Address Accurate Code

Pure graphical UI element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software interface with icons and a red arrow pointing to a document or folder.

Screenshot of a software interface with icons and a red arrow pointing to a document or folder

safe & secure - anywhere. anytime.

Empty white image with a thin black border (no text, symbols, or markings)

Coiled black cable with connectors and connectors, no visible text or symbols

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

Terms of use agreement

Plaglakore properties via the Network, or, up to 10th anniversary that now agree with the accuracy of a project you ever look at. http://plug.gov.com/erpine-agency-for-platform-pass

Fraser, menny.

I have a knowledge that the primary college of California, California, and hereby could not be done to the data agency according to the privacy journal. I may involve my own team at any time by performing [e-mail]

conseer, external, broadcast that at the event concert is enacted, We Play View ago only. Impact in ROAD

Select wifi for your camera OK Cancel

Back

Choose your wireless network

bssid signal ssid

PlugandView

UD Print # 1c

Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply WiFi Security PlugandView Secure WPA Please re-connect the WIFI of your mobile phone to the wireless router or AP before login to DIGITUS Plug&View

Pure graphical interface element with three icons: play triangle, circle, and square (no text or symbols)

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Computer interface toolbar with icons and a red arrow pointing to a document or file (no readable text)

Password: ok

Screenshot of a software interface with icons and a large red arrow pointing right, likely indicating navigation or progress.

safe & secure - anywhere. anytime.

Wi-Fi MAC; MAC; QC PASSED C6poc

Close-up of black USB connectors with connectors and ports (no text or symbols visible)

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

Terms of use agreement

Particular properties by the Department of Health and Technology Trust, Inc. (www.jjrc.gov.cn) and this report can be found at http://plug.gov.com/private-policy-for-platform-apps?

产品说明书

I have acknowledged the privacy policy of Autumn Electric. Denoted with twenty correct to the data agreement according to the privacy policy. I may review my content at any time for contacting [e-mail]

Inconema, we must permit that if the event cannot be enacted, the Plug&Weeegs control target be found.

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
UP Print # 1.0	>

c2-do+ 11:4G Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

Pure graphical interface element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file.

Password: ok

Screenshot of a software toolbar with icons and a red arrow pointing to a document or folder

safe & secure - anywhere. anytime.

Close-up of black USB connectors with connectors and a connector, no visible text or symbols

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

Terms of use agreement

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
UP Print file	>

c2-do+ 11:4G Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

Pure graphical interface element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file icon.

Password: ok

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file icon.

safe & secure - anywhere. anytime.

1 x Câmara IP Plug&View

Close-up of black USB cable with connectors and ports (no text or symbols visible)

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
HD Print file	>

c2-do+ 11:4G Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

Pure graphical interface element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file.

Password: ok

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file icon.

safe&secure - anywhere.anytime.

Empty white image with black border (no text or symbols)

Hand inserting a small USB into a white digital camera module (no visible text or symbols)

Hand inserting a USB into a white electronic device (no visible text or symbols)

Kamera Bağlantıları

LAN:

Close-up of black USB cable connectors with red connectors (no text or symbols visible)

Close-up of a camera lens with concentric rings on a yellow-green background (no text or symbols)

Terms of use agreement

Particular properties by the Department of Health and Technology Trust, Inc. (www.jjrc.gov.cn) and this report can be found at http://plug.gov.com/private-policy-for-platform-apps?

产品说明书

I have acknowledged the privacy policy of Autumn Electric. Denoted with twenty correct to the data agreement according to the privacy policy. I may resolve my content at any time for contacting [e-mail]

Inconema, we must permit that if the event cannot be enacted, the Plug&Weeegs control target be found.

Select wifi for your camera OK Cancel

Back
Choose your wireless network
bssid signal ssid	>
PlugandView	>
UP Print # 1o	>

c2-do+ 11:4G Back Wi-Fi Setting PlugandView Security [WPA-PSK-TKIP][ESS] Cancel Apply Please re-connect the WIFI of your mobile phone to the wireless router or AP before log in to DIGITUS Plug&View OK

Pure graphical interface element with four basic icons (triangle, circle, square) on black background, no text or symbols present.

QR code image containing encoded data, no visible human-readable text

No.	MAC Address	Activate Code
1

Screenshot of a software toolbar with icons and a red arrow pointing to a document or file icon.

Password: ok

Screenshot of a software toolbar with icons and a red arrow pointing to a document or folder

safe & secure - anywhere. anytime.

Empty white image with a thin black border (no text, symbols, or markings)
