LEDA303 - Lighting VELLEMAN - Free user manual and instructions

Product type	Outdoor LED projector
Brand	Velleman
Model	LEDA303
Power supply	230 VAC
Power	50 W
LED type	COB Epistar
Color temperature	6500 K (daylight)
Beam angle	120°
Luminous flux	4500-5000 lm
Protection rating	IP65 (water and dust proof)
Housing material	Die-cast aluminum
Protective glass	Tempered glass
Bracket	Adjustable bracket with hinges
Dimensions	290 x 240 mm
Weight	2.61 kg
Usage	Outdoor and indoor (residential or commercial)
Minimum lighting distance	1 m between light output and illuminated surface
Minimum distance to walls/ceilings	20 cm
Dimmer compatibility	Not compatible
Warranty	24 months (consumer)
Cleaning	Non-linting damp cloth, avoid alcohol and solvents
Replaceable parts	Protective glass (by a professional), integrated LED not individually replaceable
Safety	Do not look directly at the beam; risk of burns; installation by qualified personnel

Frequently Asked Questions - LEDA303 VELLEMAN

How to install the LEDA303 projector?

Installation must be carried out by qualified personnel. Fix the bracket to the wall using appropriate screws, then connect the power cable to a suitable junction box (not included). Maintain a distance of at least 20 cm from walls/ceilings and 1 m from the illuminated surface. Do not use with a dimmer.

Can I use a dimmer with this projector?

No, the projector is not compatible with a dimmer. Using it with a dimmer could damage the device and void the warranty.

What is the color temperature of the LEDA303?

The color temperature is 6500 K, which corresponds to cold white daylight-like light.

Is the projector waterproof?

Yes, it has an IP65 protection rating, making it completely dust-tight and protected against water jets. Hence, it is perfectly suitable for outdoor use.

How to clean the projector?

Unplug the device before any cleaning. Wipe regularly with a non-linting damp cloth. Do not use alcohol or aggressive solvents, as they could damage the housing or glass.

Can I replace the LED myself?

No, the LED is integrated and not user-replaceable. In case of defect, contact your dealer or a qualified technician. The protective glass can be replaced, but only by a professional.

What is the warranty for the LEDA303?

The warranty is 24 months for consumer use (6 months for professional use). It covers manufacturing and material defects, but not damage caused by incorrect use or normal wear.

Can I use this projector indoors?

Yes, it can be used both indoors and outdoors, but be sure to respect safety distances and do not install it in a location where it might be exposed to water splashes if used indoors.

What safety distance should I maintain?

Maintain a minimum distance of 1 meter between the light output and any illuminated surface. Also, keep at least 20 cm of space between the projector and walls or ceilings to ensure good heat dissipation.

How to adjust the light beam?

To adjust the projector, loosen the hinges of the bracket using a wrench, tilt the lamp to the desired angle, then tighten the hinges. Make sure the orientation is stable before releasing.

USER MANUAL LEDA303 VELLEMAN

OUTDOOR FLOODLIGHT - EPISTAR CHIP - 6500K SCHI JNWERPER VOOR BUITENSH UIS - EPISTAR CHIP - 6500K PROJECTEUR POUR L'EXTÉ RIEUR - PUCE EPISTAR- 6500K PROYECTOR LED PARA EXTERIORES - EPISTAR CHIP - 6500K LED-SCHEINV ERFER FÜR DEN AUßENBEREICH - EPISTAR CHIP - 6500K

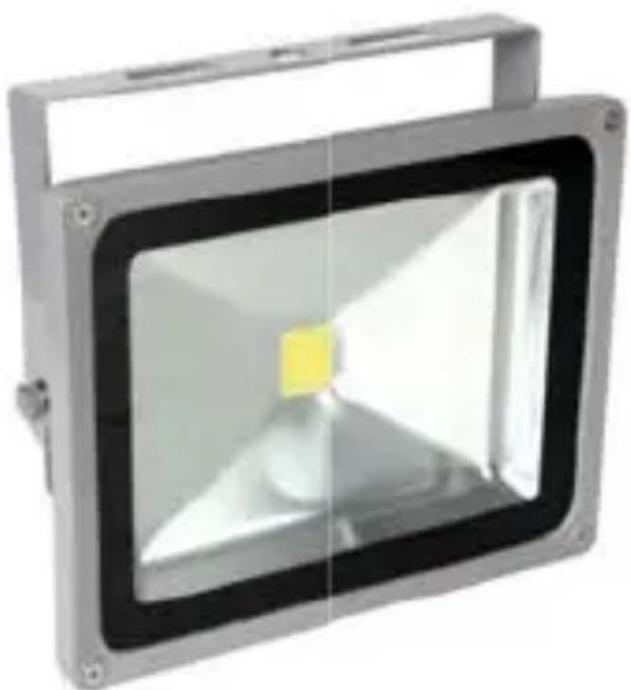

Exterior view of a modern LED flood light fixture (no text or symbols visible)

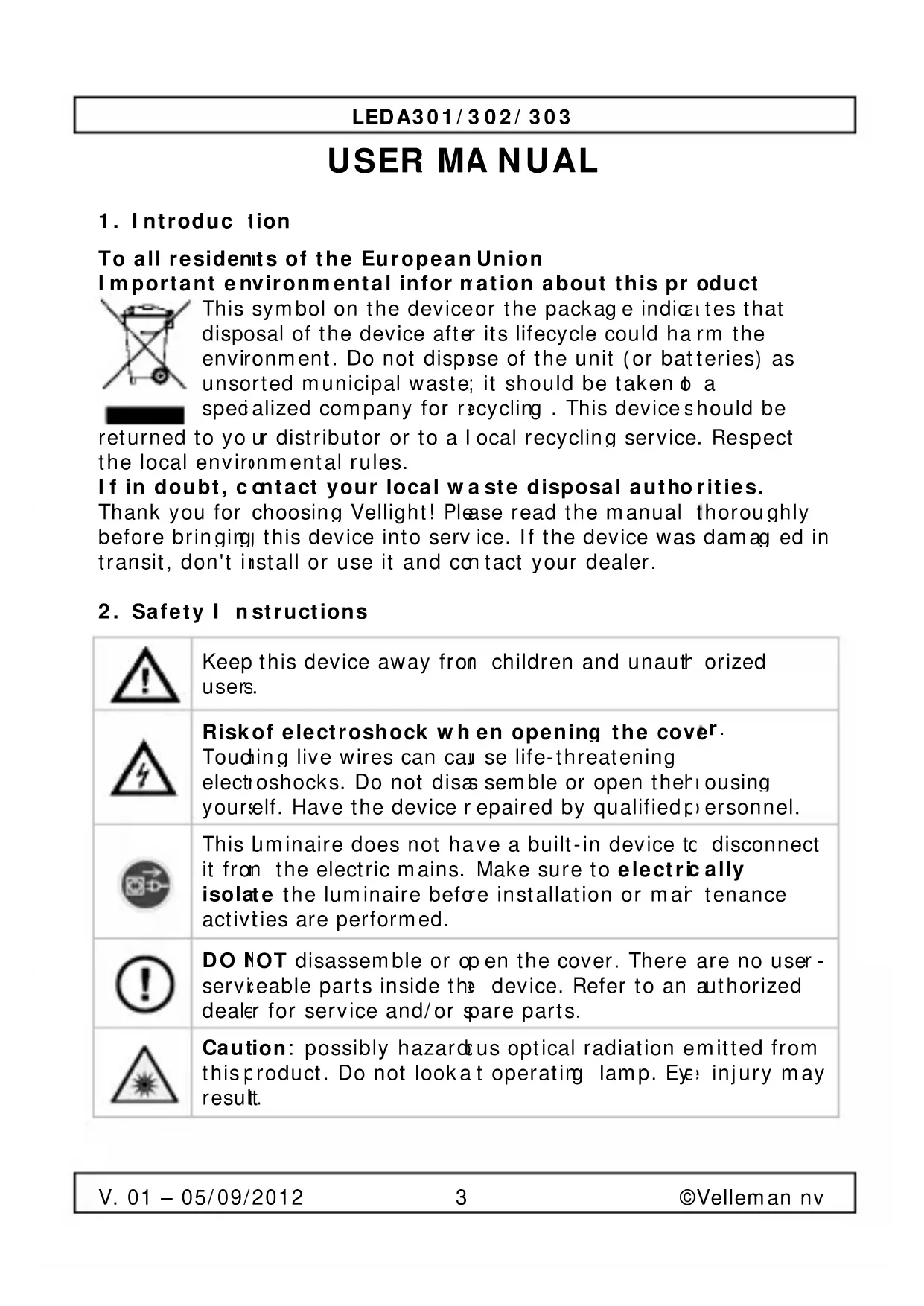

USER MANUAL 3

GEBRUIKERSHANDLEIDING 8

MODE D'EMPLOI 13

MANUAL DEL USUARIO 18

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken a specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Vellight! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

Keep this device away from children and unauthorized users.

Riskof electroshock when opening the cover.

Touding live wires can cause life-threatening electroshocks. Do not disassemble or open the housing yourself. Have the device repaired by qualified personnel.

This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.

DO NOT disassemble or open the cover. There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Caution: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp. Eye: injury may result.

Caution: device heats up during use.

Respect a minimum distance of 1m between the device's light output and any illuminated surface.

• A qualified technician should install and service this device.
• Make sure that the available voltage does not exceed the voltage gestated in the specifications of this manual.
• Do not crimp the power cord and protect it against damage. Have an authorised dealer replace it if necessary.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

Keep this device away from extreme temperatures.

Protect this device from shocks and abuse. Avoid brute force when operating the device.

This device is not suitable for dimming.

Do not use the luminaire with a cracked or broken protective glass. Disconnect in mediately from the mains and have it repaired by a qualified technician.

• Familiarise yourself with the functions of the device before actually using it.
• All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, eled roshocks, lamp explosion, crash, etc. Using the device in an unauthorised way will void the warranty.

LEDA301/302/303

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Use the original packaging if the device is to be transported.
• Keep this manual for future reference.

4. Features

• floodlight for commercial or residential use, entry monuments or façades
  • die-cast aluminium housing with tempered glass
• ribbed for maximum heat dissipation
  • with adjustable bracket
• suited for outdoor use (IP65).

5. Overview

Refer to the illustrations on page 2 of this manual.

1	mounting bracket	3	protective glass
2	hinge	4	LED

6. Installation

Guidelines

• A qualified technician should install and service this device.
• The construction to which the device is attached should be able to support 4 times the weight of the device for one hour without deformation.
• Never stand directly below the device when it is being mounted, removed or serviced. Have a qualified technician check the device once a year and once before you bring it into service.
• Overhead mounting requires extensive experience: calculating workload limits, determining the installation material to be used... Have the material and the device itself checked regularly. Do not attempt to install the device yourself if you lack these qualifications as improper installation may result in serious injuries.
• This device is not suitable for dimming.

Distances

• Keep the device at least 20 cm away from ceilings or walls.
• Respect a minimum distance of 1 m between the device's light output and any illuminated surface.

Mounting the lamp

1. This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
2. Use the mounting bracket [1] to determine the location of the mounting holes.
3. Drill the holes and secure the bracket using screws and wall plugs.
4. Connect the power cable to a suitable junction box (not incl.). Make sure the connection is properly earthed. Make sure there is no strain on the cable; leave sufficient slack.
   Warning: if the power cable is damaged, it must be replaced by the manufacturer, his service agent, or a similar qualified person in order to avoid any hazard.
5. To point the lamp in the desired direction: loosen the hinges [2] using a spanner.
6. Tilt the lamp in the desired angle and tighten the hinges.

7. Cleaning and maintenance

• All screws should be tight and free of corrosion.
• The housing, the visible parts, the mounting supports and the installation location (e.g. ceiling, suspension, trussing) should not be deformed, modified or tampered with; e.g. do not drill extra holes in mounting supports, do not change the location of the connections...
• Mechanically moving parts must not show any signs of wear and tear.
• The electric power supply cables must not show any damage. Have a qualified technician maintain the device.
• If the protective glass [3] is damaged, disconnect the lamp immediately from the mains. Have it repaired immediately by a qualified technician. Do not use the lamp with a cracked or broken protective glass.

LEDA301/302/303

• This luminaire does not have a built-in device to disconnect it from the electric mains. Make sure to electrically isolate the luminaire before installation or maintenance activities are performed.
• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts.
• Contact your dealer for spare parts if necessary.

8. Technical Specifications

	LEDA301	LEDA302	LEDA303
power supply 230 VAC 230 VACmax. power 10 W 30 W 50 W		230 VAC
LED	10 W COBEpistar	30 W COBEpistar	50 W COBEpistar
colourtemperature	6500 K 6500 K 6500 K
beam angle 120° 120° 120°
luminous flux 900 – 1000 lm 2700 – 3000 lm 4500 – 5000 lm dimensions	115 x 90 mm	225 x 185 mm	290 x 240 mm
weight	1 kg	1.87 kg 2.61 kg

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device.

For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
