Product type	Professional refrigerator
Brand	Scandomestic
Model	GUF700X
Working temperature	-2 to +8 °C
Climate class	4 (ambient up to 38°C)
Refrigerant	R-600a
Refrigerant charge	98 g
GWP	3
Net weight	144 kg
Supply voltage	230 V
Frequency	50 Hz
Rated current	0.9 A
Cooling capacity	309 W
Protection rating	IPX5
Interior lighting	LED (energy class F)
Defrosting	Automatic by drainage
Exterior material	Stainless steel
Cleaning	Non-abrasive, non-acidic products
Safety	Main switch, 30 mA differential protection
Repairability	Original parts, authorized technician
Standards	CE, WEEE (2012/19/EU)

Frequently Asked Questions - GUF700X Scandomestic

What is the ideal temperature for storing food?

For refrigeration, the working temperature is -2 to +8 °C. For fish, -6 to +2 °C. For frozen products, -18 to -22 °C.

How to install the appliance correctly?

Place the appliance in a clean and clear area. Leave a space of at least 50 mm at the back, 30 mm on the sides, and 500 mm above. Level it by turning the feet. Plug into an earthed socket with a 30 mA differential protection.

What to do if the appliance does not cool enough?

Check that the appliance is not near a heat source, the ambient temperature does not exceed 38°C, the load does not block the air outlets, the doors close properly, and the condenser is clean.

How to clean the condenser?

Unplug the appliance and clean the condenser fins carefully to avoid bending them. Use a soft brush or vacuum cleaner. A dirty condenser reduces efficiency and can damage the appliance.

Can I use abrasive cleaning products?

No, never use abrasive, corrosive, acidic, chlorine-based, or solvent-based products. Use a soft cloth with soapy water.

What to do in case of a power failure?

If the cut lasts less than 20 minutes, avoid opening the doors. If it exceeds 20 minutes, check that the food does not exceed the limit temperatures: +10°C for refrigeration, +2°C for fish, -15°C for frozen products.

How to handle a long absence?

Thoroughly clean the appliance, disconnect the main switch, and leave the doors ajar to prevent mold.

What are the normal noises?

Operating noises from the compressor and fan are normal. If excessive or strange noises occur, check the appliance's leveling and that no objects are rubbing against moving parts.

How to replace the power cord?

Replacement must be done by the manufacturer, its after-sales service, or a qualified technician. Never use a cable with a smaller cross-section.

How to recycle the appliance at end of life?

In accordance with the WEEE directive (2012/19/EU), do not dispose of the appliance with household waste. Contact the competent public service or retailer for separate collection.

USER MANUAL GUF700X Scandomestic

500mm 50mm

CARACTERISTICAS GENERALES CARACTÉRISTIQUES GÉNÉRALES GENERAL CHARACTERISTICS ALGEMENE KENMERKEN ALLMÄNNA EGENSKAPER

50mm 30mm 30mm 2.1 2.1

ALLGEMEINE EIGENSCHAFTEN CARATTERISTICHE GENERALI CHARAKTERYSTYKA OGÓLNA YLEISET OMINAISUUDET GENERELLE EGENSKABER
Tabla 1 / Table 1 / Tableau 1 / Table 1 / Tabelle 1 / Tabella 1 / Tabela 1 / Tabel 1 / Taulukko 1 / Tabell 1

Modelo	Puertas	Temp.	Gas	Potencia frigorífica (W)	W x D x H exterior (mm)	Peso neto (kg)
Modèle	Portes		Gaz	Puissance frigorifique (W)	L x P x H extérieur (mm)	Poids net (kg)
Model	Doors		Gas	Refrigerated power (W)	W x D x H external (mm)	Weight (kg)
Modell	Türen		Gas	Kühlleistung (W)	B x H x T außen (mm)	Nettogewicht (kg)
Modello	Porte		Gas	Potenza frigorifera (W)	W x D x H exterior (mm)	Peso netto (kg)
Model	Drzwi		Gaz	Moc chłodzenia (W)	W x D x H zewnętrzne (mm)	Masa netto (kg)
Model	Deur		Gas	Koelvermogen (W)	B x D x H (mm)	Netto gewicht (Kg)
Malli	Ovi		Kaasu	Jäähdytysteho (W)	L x S x K (mm) ulkomitat	Nettopaino
Modell	Dörr		Gas	Kylkraft (W)	B x D x H (mm)	Nettovikt (Kg)
Model	Døre		Gas	Køleeffekt (W)	B x D x H udvendigt (mm)	Vægt (kg)
GUR700X	1	+	R600a	296	653 x 842 x 2040	144
GUR700GDX
GUF700X	1	-	R290	364	653 x 842 x 2040	144
GUR1400X	2	+	R600a	357	1318 x 842 x 2040	225
GUF1400X	2	-	R290	735	1318 x 842 x 2040	225

^1 P: positivo/ positif / positive / positiv / positivo / pozytywny/ Positief/ Positiivinen / Positiv

^2 N: negativo/ négatif / negative / negativ / negativo / negatywny/ Negatief / Negatiivinen / Negativ

^3 PN: positivo+ negativo/ positif + négatif / positive+ negative / positiv + negativ / positivo + negativo / pozytywny+ negatywny/ Positief + Negatief / Positiivinen + Negatiivinen / Positiv + Negativ/ positiv + negativ

4 PP: positivo+ positivo (2 diferentes)/ positif + positif (2 différent) / positivo+ positivo (2 different) / positiv + negativ (2 verschiedene) / positivo + positivo (2 diversi) / pozytywny + pozytywny (2 różne) / Positief + Positief / Positiivinen + Positiivinen / Negativ + Negativ. PP: positiv+ positiv (2 forskellige)

PANEL DE CONTROL

PANNEAU DE COMMANDE

CONTROL PANEL

BEDIENINGSPANEEEL

KONTROLLPANEL

BEDIENFELD

PANNELLO DI CONTROLLO

PANEL STEROWANIA

OHJAUSPANEELI

KONTROLPANEL

Fig. 18

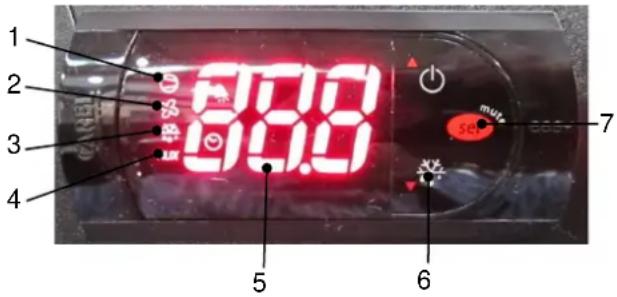

Option 1

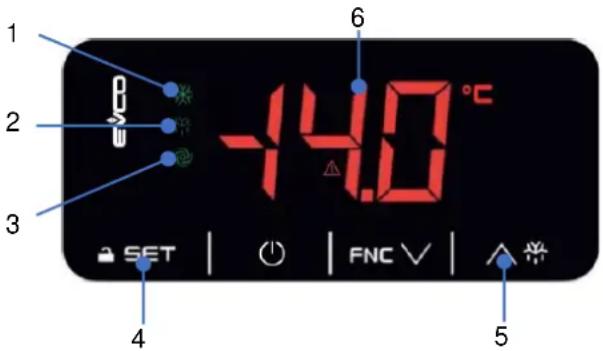

CARTEL 12.1 muts set Option 2 E F -14.0 °C SET | FNC √ | ∧ *

E

Termostato

Thermostat

Thermostat

Thermostat

Termostato

Termostat

Thermostaat

Termostaatti

Termostat

F

Interruptor

Interrupteur

On/off switch

Schalter

Interruttore

Przełącznik

Aan/Uit-schakelaar

Päälle/pois-kytkin

PÅ/AV-Knapp

Fig. 19

1: Estatus compressor/Statut compresseur/ Status compresora/ StatusKompressor/ Modalità compressore/ Status kompressor/ Compressorstatus/Kompressorintila/ Kompressorstatus/ Status, kompressor2: Estatus ventilador/ Statut ventilateu/ Status fan/ Status Lüfter/ Modalitàventilatore/ Status wentylatora/ Ventilatorstatus/ Tuulettimentila/Fläktstatus/ Status, blæser3: Estatus desescarche/ Statut dégivrage/ Status defrost/ Status Abtauen/Modalità sbrinamento/ Status odszraniania./ Ontdooistatus/ Sulatuksentila/Avfrostningsstatus/ Status, hjælpeoutput ikke aktiveret/ Status, afrimning4: Estatus salida auxiliar no activada/ Estatus sortie auxiliaire - non activée/Status auxiliary output not activated/ Status Hilfsausgang und -nichtaktiviert/ Modalità uscita ausiliaria- non attivo/ Status dodatkowego wyjścianieaktywne)/ Status extra uitgang niet geactiveerd/ Lisälitiāntā - eikäytössä/status för hjälpkretsar inte aktiverad/ Status, hjælpeoutput ikkeaktiveret5: Visor Ta / Afficheur temp./ Ta display / Temperaturanzeige / Visualizzatoredi temperatura / Wyświetlacz Ta/ Displaytemperatuur / Lämpötilanäyttö/Temperaturdisplay/ Ta skærm6: Desescarche manual / Dégivrage manuel / Manual defrost / ManuellesAbtauen / Sbrinamento manuale / Odszranianie ręczne/ Handmatigontdoolien / Manuaalinensulatus/ Manuell avfrostning/ Manuell avfrostning/Manuel afrimning7: Modificacion parametros frio (por personal autorizado) / Modification desparamètres de froid (par des techniciens autorisés) / Change of parameters(authorized personnel only) / Modifizierung Kühlungssparameter (fürautorisiertes Personal) / Modifica dei parametri del freddo (da personaleautorizzato) / Zmiana parametrów chłodzenia (autoryzowany personel)/Wijziging van parameters/ Jäähdytysparametrien muutokset (vainammattitaitoinen huolto)/ Ändra parameter/ AEndring af parametre (kunautiseret personale)

1: Kompressor/ Modalità compressore/ Status kompresora/Compressorstatus / Kompressorintila/ Kompressorstatus/ Status,kompressor2: Estatus desescarche/ Statut dégivrage/ Status defrost/ Status Abtauen/Modalità sbrinamento/ Status odszraniania./ Ontdooistatus/ Sulatuksentila/Avfrostningsstatus/ Status, afrimning3: Estatus ventilador/ Statut ventilateu/ Status fan/ Status Lüfter/ Modalitàventilatore/ Status wentylatora/ Ventilatorstatus/ Tuulettimentila/Fläktstatus/ Status, blæser4: Modificacion parametros frio (por personal autorizado) / Modification desparamètres de froid (par des techniciens autorisés) / Change of parameters(authorized personnel only) / Modifizierung Kühlungsparameter (fürautorisiertes Personal) / Modifica dei parametri del freddo (da personaleautorizzato) / Zmiana parametrów chłodzenia (autoryzowany personel)/Wijziging van parameters/ Jäähdytysparametrien muutokset (vainammattitaitoinen huolto)/ Ändra parameter/ Ändra parameter/ AEndring afparametre (kun autoriseret personale)5: Desescarche manual / Dégivrage manuel / Manual defrost / ManuellesAbtauen / Sbrinamento manuale / Odszranianie ręczne/ Handmatigontdoolien Manuaalinensulatus/ Manuell avfrostning/ Manuel afrimning6: Visor Ta / Afficheur temp./ Ta display / Temperaturanzeige / Visualizzatoredi temperatura / Wyświetlacz Temperature/ Displaytemperatuur /Lämpötilanäyttö/ Temperaturdisplay/ Ta skærm

1. ÍNDICE

Yellow triangular warning sign with black exclamation mark symbol

Pure diagram of a rectangular container with curved arrows indicating flow or movement, no text or symbols present.

A: CUERPO DE LA PATA

B: ROSCA:

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

7. RECICLAJE DEL PRODUCTO

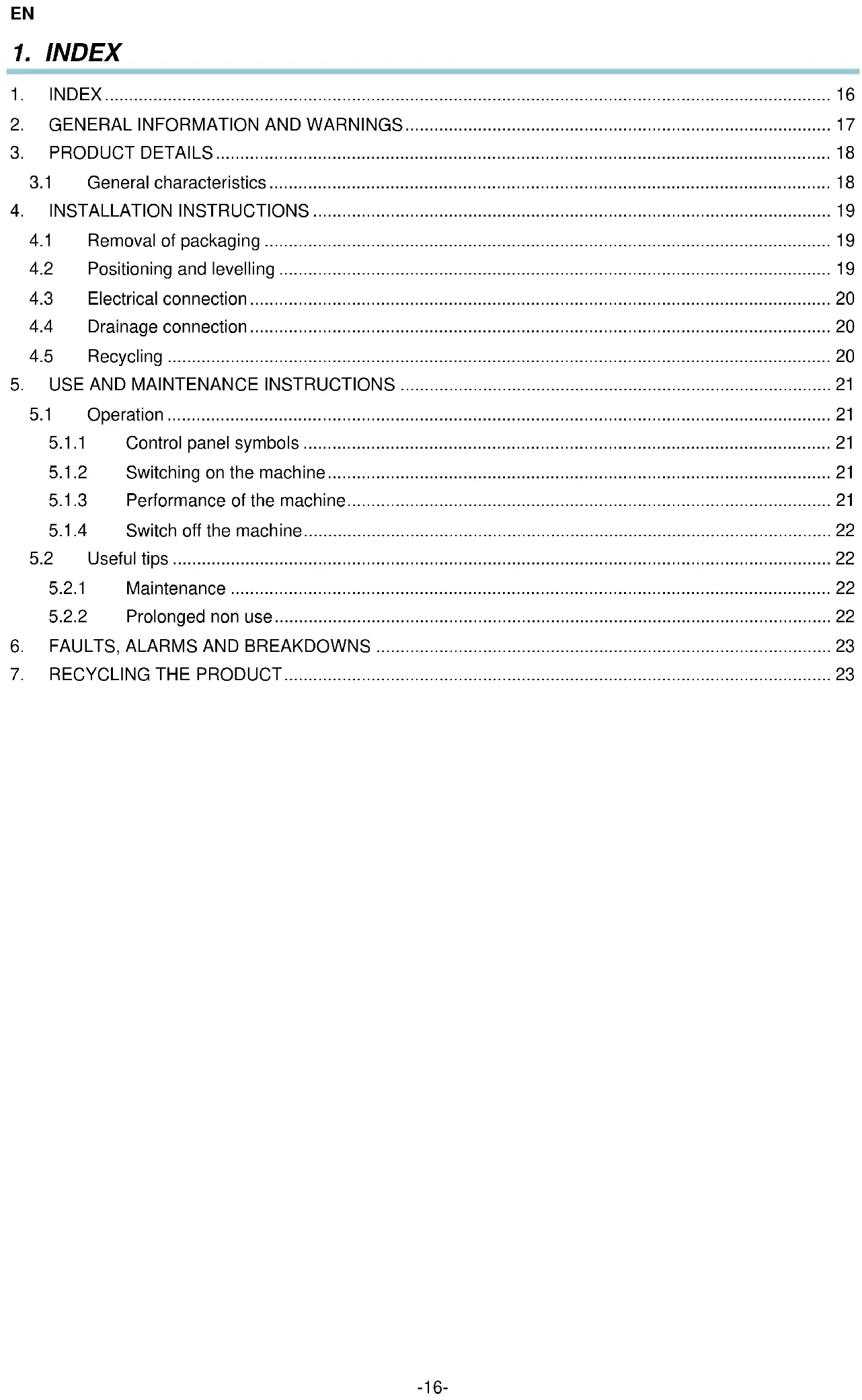

1. INDEX 16
2. GENERAL INFORMATION AND WARNINGS.... 17
3. PRODUCT DETAILS....18

3.1 General characteristics.... 18

1. INSTALLATION INSTRUCTIONS 19

4.1 Removal of packaging 19
4.2 Positioning and levelling 19
4.3 Electrical connection....20
4.4 Drainage connection....20
4.5 Recycling 20

1. USE AND MAINTENANCE INSTRUCTIONS 21

5.1 Operation 21

5.1.1 Control panel symbols 21
5.1.2 Switching on the machine.... 21
5.1.3 Performance of the machine....21
5.1.4 Switch off the machine....22

5.2 Useful tips 22

5.2.1 Maintenance 22
5.2.2 Prolonged non use 22

1. FAULTS, ALARMS AND BREAKDOWNS 23
2. RECYCLING THE PRODUCT 23

2. GENERAL INFORMATION AND WARNINGS

This manual has been created to help you understand the operation, installation and maintenance of the machine. It contains all the necessary information and warnings to ensure that the appliance is installed and used correctly, together with information about the characteristics and possibilities offered, so that you may enjoy your machine to the full.

BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY.

The manual should be kept safely to hand for future reference.

If the machine is sold or transferred, please pass the manual to the new user.

THIS APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL.

• The positioning and installation, and all repairs or modifications, should always be carried out by an AUTHORIZED TECHNICIAN, in accordance with the applicable legislation of the country. The manufacturer does not accept liability if the machine is incorrectly installed.
• The installation, incorrect adjustment, inappropriate maintenance or use of the appliance may cause material damages and injuries.

• If your machine breaks down, please call the Technical Service Centre.
• Unqualified or unauthorized personnel must NOT try to repair the machine
• Use of spare parts other than original parts will cancel the guarantee.
- During all maintenance operations, the refrigerator must be disconnected from the main power supply at the mains power switch.
- Abrasive or corrosive products, acids, solvents and chlorine-based detergents must NOT be used to clean the appliance, as this may damage the components.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS OR THE INCORRECT USE OF THE APPLIANCE SHALL RELIEVE THE MANUFACTURER OF ANY OBLIGATIONS REGARDING THE GUARANTEE OR POSSIBLE CLAIMS.

3. PRODUCT DETAILS

All the appliances have a specification plate which identifies it and indicates its technical characteristics; it is located on one side of the machine. Don't remove the specifications plate from the unit.

Brief introduction to the plate sticked to the machine:

CE 12 19038252 PL1132470571 1 Made in EU MOD GCP-701 L 2 SN 8101136688 3 2018/06 230V 4 50Hz 5 1N 0.9 A 6 IPX5 Pot. Frigorifica 7 309 W Lámpara Lamp 0 Descarche Defrost Refrig. Capacity Calefactor 0 Clase Climat. Climate Class 4 Temp. -2 +8 °C Heater Peso Neto 144 KG Agente Expandente Blowing Agent CO2 Condensación Condensation Vent. Net Weight PCA 3 Refrigerant R-600a 10 Carga Refrig. 98 g 11 GWP

NUMBER	DESCRIPTION
1	MANUFACTURER
2	MODEL
3	SERIAL NUMBER
4	VOLTAGE
5	FREQUENCY
6	CURRENT
7	REFRIGERATION POWER (W)
8	CLIMATIC CLASS (N=4)
9	WORKING TEMPERATURE
10	GAS TYPE
11	GAS (gr)
12	NORMATIVE

Note: This plate is an example; reality might differ slightly from it.

These details should be given when the technical service is called.

3.1 General characteristics

Adquired device is designed to preserve drinks and food.

We recommend to avoid putting hot food or containers, chemical, corrosive products or medicines inside the refrigerator, and avoiding the incorrect use of the unit.

Depending on the temperature that machine performs, it can be classified into the following families:

CHILLER(+ 8 to -2°C)	Machines to keep fresh or previously cooked food for short periods.Also used to chill drinks
FISH DEPARTMENT(-6 to 2°C)	For keeping fish covered in ice fresh for short periods of time.
FREEZER(-18 a -22°C)	Machines to keep food frozen for long periods. (up to 6 months)

The machine is designed to work under climate class 4 that consist of following conditions:

Environmental conditions	Limits
Dry bulb temperature (°C)	+38°C
Condensing temperature	+54°C
Relative Humidity (%)	60%

The versions with interior LED light contain a light source of energy efficiency class F. The light source of this product may only be replaced by a professional.

Check Figure 1 to 16 to know the dimensions of the machine and table 1 for the general characteristics.

4. INSTALLATION INSTRUCTIONS

Yellow triangular warning sign with black exclamation mark symbol

The location and installation, as well as all kind of repairs and transformation, always must be carried out by an AUTHORIZED TECHNICIAN, according to the regulation in force in each country

Installation, incorrect adjustment, service or unappropriated maintenance of the device, as well as a wrong handling of it, may cause both material damages and injuries.

4.1 Removal of packaging

Remove packaging from the machine and check if any damage during transportation. If any damage is observed, immediately notify the supplier and the transport company. In the event of doubt, do not use the machine until the problem has been assessed.

Packaging (plastic, expanded polyurethane, staples, etc...) must not be left in the reach of children, they are a potential hazard.

The cabinet should not be overturned. If necessary, some cabinets can be overturned by the side that is indicated on the packaging. If not indicated, it cannot be overturned. Wait at least 2 hours to turn the machine on since the machine is placed in the right location.

The machine should be moved using a fork-lift truck or similar to avoid damage to the structure. Transport the machine to the installation location and then remove packaging.

All the packaging can be recycled. Dispose of packaging correctly.

4.2 Positioning and levelling

Make sure the place to store the machine is free and clean, avoiding the fan absorbing the dust nearby which might block the condenser reducing the efficiency of the machine.

Remove the pallet carefully, avoiding any scratch to the machine. Level the machine by using the adjustable feet. Once the machine is levelled, pill the protective film off by using a no sharp knife to avoid scratches in the stainless steel.

Simple diagram of a rectangular structure with labeled points A and B, surrounded by curved arrows indicating rotation or movement (no text or symbols beyond labels)

A: BODY OF THE FEET

B: THREAD:

Rotate clock wise to lower down the machine.

Rotate counter-clock wise to elevate the machine.

The cabinet, once it is located definitively, backside must be placed 50mm from the wall, 30mm from sides lateral and 500mm from the ceiling as it is indicated in Fig.17.

If the machine is provided with castors, make sure the floor is totally flat.

In the commissioning make sure there is no any heat source nearby.

For an optimum performance of the equipment, it is really important that all air intakes, both in the fan located inside the chamber and in the condenser, are not clogged.

Do not install the device outdoors.

Do not introduce any element from the fan protector or in the refrigeration equipment area.

4.3 Electrical connection

Electrical connection must be carried out by an AUTHORISED TECHNICIAN

The legal standards in force in each country regarding connection to the mains should be taken into account.

• Check that the mains voltage corresponds to that indicated on the nameplate.
• It is essential that the electrical installation where the cabinet is going to be connected has an EARTHING SOCKET, in addition to the appropriate magneto-thermal switch and differential protection (we recommend 30 mA)
• The appliance must be earthed using a differential protector. The manufacturer will not be held liable for damage originated by failure to observe this requirement.
• The cross-section of the power cable must be suitable for the rated current of the machine.
• The plug should be Schuko type with grounding and terminals of 4.8mm (F type). It is forbidden to enlarge the plug for your safety. As optional, the equipment can be supplied with British type plugs (H type) or American type plugs (B type).
• If any faults are observed during the installation, the supplier should be notified immediately.

The manufacturer will not be held liable for any personal or material damage to the machine resulting from incorrect installation or failure to comply with the manufacturer's specifications.

The electric specifications of the machine are shown in the specification plate. Section 3. There are 220V 60Hz and 115v 60 Hz versions, with the currents on the nameplate

4.4 Drainage connection

In fish storage cabinet, drainage hose of the cabinet should be connected to the water drainage network. Check figures 1 - 16 to see the position of the drainage.

4.5 Recycling

The product packaging consists of:

• A wooden pallet.
• Cardboard.
  • A polypropylene band.
• Expanded polyethylene.

All the packaging used around the machine can be recycled; The correct disposal of these products will help to protect the environment. For further information regarding the recycling of these products, please refer to the relevant office of the local body. Dispose of these materials in accordance with current legislation.

5. USE AND MAINTENANCE INSTRUCTIONS

BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED IN THIS MANUAL CAREFULLY.

THE APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE, AND SHOULD ONLY BE USED BY QUALIFIED PERSONNEL.

5.1 Operation

The steps required to optimize the operation of your machine are shown below, with all the available options.

5.1.1 Control panel symbols

The control panel has an On/ Off switch and one thermostat. In the Figure 18 and 19 you can see them in detail.

5.1.2 Switching on the machine

• Once the machine is clean, connect the machine to the energy supply and turn the switch into ON position. The light will on.
• The thermostat displays the temperature inside the cabinet.
• Three minutes after switching ON the machine, the signal (Fig.19) of the compressor will light on until the device reaches set point temperature.
• In the beginning the temperature of the displayed will be ambient one. After some time, if the doors are closed, the temperature will descend till the set temperature.
  • In freezer cabinets the machine is set to make defrosting two hours after the start up.
• It is recommended to reach the set temperature before loading the cabinet.

5.1.3 Performance of the machine

This machine is designed for an optimum preservation of beverage and food. Therefore follow below advises:

1) In order to reach a proper performance, do not store warm products as well as beverage whose container is not correctly closed.
2) Avoid storage of chemical products, corrosive staff or drugs.
3) Protect the food and the smells with a sealed package. Store the product allowing and optimum air circulation.
4) Do not store unprotected/ unpacked food to avoid rust in the device.
5) As far as possible, avoid continuous opening of the doors and above all do not leave them open.
6) Do not load the device above the marked level.

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

7) Momentary power interruption. If the interruption does not exceed 20 minutes, no need to take any precautions, avoid opening the doors only to the extent possible, in order to avoid loss of temperature. If the interruption lasts more than 20 minutes, check that food does not exceed the critical temperature, check that they are not altered and avoid opening the door Maximum temperatures so that food are not deteriorated are as follows:

Type of equipment	Maximum T^a of the device
Chiller	+ 10°C
Fish	+ 2°C
Freezer	- 15°C

8) The water of the defrost is directed by a pipe to the evaporation tray in the back side of the container, where water is evaporated with the heat of the condenser.

EN

Precautions:

1) Stability is guaranteed, even with open doors, but it is forbidden to stand on them.
2) Is not recommended to load Internal grids and trays over 40 kg. The load must be evenly distributed.
3) It is complete forbidden to sit or lean over the drawers.
4) In case of breakdown, it is not allowed to approach the refrigerator barefoot, wet soil or wet hands.

5.1.4 Switch off the machine

Put the switch in OFF or in O position to switch off the machine, the light will off.

5.2 Useful tips

Read carefully the below advices so as to reach the full potential of the refrigeration cabinet.

5.2.1 Maintenance

Carry out necessary cleaning operation in order to enlarge the service life of the machine.

• Remove any waste from the machine at the end of each day. Before cleaning the machine, unplug the machine from the electricity supply and put the switch in OFF or O position. The cabinets include a drainage in the bottom of refrigerated chamber, to help the cleaning operation, as well as the eventual output of liquids from food. During the cleaning operation it is essential to remove the drain plug and clean it, to prevent clogging by solid elements. It prevents accumulated liquids from stagnating.
• Do not use abrasive, corrosive or acid products, chlorine-based detergents, solvents or petrol derivatives to clean the machine.
• Do not use pressurized water to clean the machine.
• Take precautions before accessing to the unit condenser zone, due to the high temperatures there might be risk of burns
• Cleaning the condenser: During cleaning, avoid any bending of the condenser aluminum fins. It could affect on the condenser air circulation, causing serious damage to the equipment, being the repair out of warranty in that case.
• Check that the doors close perfectly.
  • If any change of wires is needed, do not change for a lower section one
• The assembly of the electrical installation cover in the control panel is important. If disassembling is needed, it must be tightened back as it was.
  • Twice a year call the technical service to carry out the relevant revisions:
• Review of the status of the joints.
• Review of the state of the components.
• If the wire is damaged, it should be replaced by the manufacturer, its after sales service department or by an autorized technical to avoid any personal or equipment damage.

5.2.2 Prolonged non use

If the machine is kept out of service for a long period of time (holidays, temporary closure...), please observe the following:

• Clean the equipment carefully.
• Switch off the mains power supply.

6. FAULTS, ALARMS AND BREAKDOWNS

The steps to be followed in the event of a fault or operating error are described below. The possible causes and possible solutions are listed in the following table. In the event of doubt, or if you are unable to resolve the problem, please contact the technical service.

Do not handle electrical components, as there is a risk of death as the components are under network voltage

FAULT	POSSIBLE CAUSE	SOLUTION
The machine does not work	There is no power supply.	Check whether the circuit breaker has been triggered. If there is light in the switch the machine is powered.
Insufficient temperature	Location of the equipment	Check there is not a heat source nearby
	Thermostat parameters	Check the set temperature of the thermostat is around 0°C in refrigerators and -20 °C in freezers. Push “set” button to check it.
	Ambient temperature	Check that ambient temperatura is below +32°C in freezer cabinets and +38 °C in refrigeratios and fish storage cabinets. These are devices guaranteed maximum working temperature
	Door closing	Check that the doors close correctly
	Food distribution inside the machine	Check that food does not block the air ventilation and the time elapsed from the time the food is stored inside the cabinet is enough for cooling the products.
	Cleaning of the condenser	Check that the condenser is clean. Consider that the cleaner the refrigerator is the more energy will be saved. The cleaning frequency will depend on the conditions of the location. In case the condenser is dirty call after sales service.
Strange or loud noise	Incorrect levelling and bad closing of the doors.	Check the levelling and good closing of the doors.
	Friction in the movable zones	Check there is nothing in touch with the movable elements of the refrigerator.

NOTE: If a fault occurs and is not listed in the above table, please call the technical service. The manufacturer reserves the right to modify the technical characteristics with prior warning.

Together with this manual, it is supplied the instructions of the thermostat.

7. RECYCLING THE PRODUCT

The European Directive 2012/19/EU relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For more information, relating to the correct disposal of household appliances, owners should contact their local authorities or appliance dealer.

FR

1. SOMMAIRE

1. SOMMAIRE 24
2. INFORMATIONS ET AVERTISSEMENTS GÉNÉRAUX 25
3. CARACTÉRISTIQUES DU PRODUIT 26

1. INSTRUCTIONS D'INSTALLATION....27

Yellow triangular warning sign with black exclamation mark symbol

Pure diagram of a rectangular structure with curved arrows indicating rotation, no text or symbols present

A : CORPS DU PIED

B : VIS :

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

7. RECYCLAGE DU PRODUIT

Yellow triangular warning sign with black exclamation mark symbol

Simple geometric shape with two gray triangles on a yellow background (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Yellow triangular warning sign with black exclamation mark symbol

Pure diagram of a rectangular structure with labeled points A and B, no text or symbols present

A: CORPO DELLA GAMBA

B: FILETTATURA:

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

Simple diagram of a rectangular structure with curved arrows indicating rotation, no text or symbols present.

A: KORPUS NÓŻKI

B: GWINT

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

1. INHOUDSOPGAVE 56
2. ALGEMENE INFORMATIE EN WAARSCHUWINGEN 57
3. PRODUCTBESCHRIJVING 58

2. ALGEMENE INFORMATIE EN WAARSCHUWINGEN

3. PRODUCTBESCHRIJVING

The versions of this product with LED interior lighting contain a light source of energy efficiency class F. The light source of this product may only be replaced by a professional.

Yellow triangular warning sign with black exclamation mark symbol

Simple diagram of a rectangular structure with labeled points A and B, surrounded by curved arrows indicating rotation or movement (no text or symbols beyond labels)

A: BEHUIZING VAN DE VOETEN

B: SCHROEFDRAAD:

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

Pure diagram of a rectangular structure with curved arrows and labeled points A and B, no text or symbols present.

A: KAAPIN JALAN RUNKO

B: KIERRE:

The product packaging consists of:

5.1.2 Switching on the machine

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

Pure diagram of a rectangular container with curved arrows indicating flow or movement, no text or symbols present.

A: FÖTTERNAS KROPP

B: GÄNGA:

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

Yellow triangular warning sign with black exclamation mark symbol

Simple diagram of a rectangular container with labeled sections A and B, surrounded by curved arrows indicating flow or movement (no text or symbols beyond labels)

A: F∅DDERNE

B: TRÅD:

Pure geometric shape with two gray triangles on a yellow background (no text or symbols)

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUF700X

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1220547
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUF1400X

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1220572
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUR700GDX

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1221098
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUR700X

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1220588
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: GUR1400X

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	1220592
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	GUF700X
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Storage FreezerBrand: ScancoolColour: Stainless Steel
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 + A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO 22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	GUF1400X
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Storage FreezerBrand: ScancoolColour: Stainless Steel
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 + A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO 22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	GUR700GDX
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Storage RefrigeratorBrand: ScancoolColour: Stainless Steel
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 + A12:2017 + A13:2017, EN 62233:2009, 2019/2024/EC, EN ISO 23953-2:2016, RoHS, REACH
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	GUR700X
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Storage RefrigeratorBrand: ScancoolColour: Stainless Steel
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 + A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO 22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	GUR1400X
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product)Product: Storage RefrigeratorBrand: ScancoolColour: Stainless Steel
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	2006/42/EC, 2014/30/EU, 2004/108/EC, 89/336/EEC and its amendments 92/31/EEC and 93/68/EEC, EN 55014-1:2006 +A1:2009 +A2:2012, EN 61000 -3-2: 2014, EN 61000-3-3: 2013, EN 55014-2:2015, 2014/35/EU, 2006/95/EC, 73/23/EEC and its amendment 93/68/EEC, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 60335-1:2012 + AC:2014 + A11:2014 + A12:2017 + A13:2017, EN 62233:2009,1095/2015/ES, 1094/2015/EC, ISO 22041:2020, RoHS, 2011/65/UE, 2015/863/EU, 1907/2006/EC, REACH
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	EN 61000-3-2
Additional information:	The appliance is intended exclusively for storing food
