Product type	Pedestal fan
Brand	Orbegozo
Model	TW 0755
Power supply	220–240 V ~ 50 Hz
Fan speeds	3 (Low – I, Medium – II, High – III)
Oscillation	Yes, Swing function (on/off by button)
Timer	Yes, adjustable up to 120 minutes (positions 40, 80, 120, OFF)
Aromatic essence tray	Yes, located under the front grille with integrated sponge
Protective grille	Yes, front and rear
Control type	Rotary knobs (speed, timer, oscillation)
Usage	Household only, indoor
Assembly	Base to be attached to the body using the provided nut
Cleaning	Grilles: vacuum; body: soft dry cloth
Safety	Do not use outdoors or in a humid environment; unplug before moving or cleaning
Reparability	Authorized technical service mandatory for any repairs
Warranty	Legal warranty as per applicable legislation (keep the purchase receipt)
Standards	Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU
Main material	Plastic
Included accessories	Base, fixing nut, user manual
Maintenance	Unplug before any operation; do not immerse in water

Frequently Asked Questions - TW 0755 Orbegozo

How to assemble the TW 0755 fan?

Take the body and base out of the packaging. Pass the power cord through the hole on the base, then attach the base to the body using the provided nut. Tighten firmly.

How to use the timer?

Turn the timer knob clockwise to the desired duration (40, 80 or 120 minutes). The fan will stop automatically after that time. To deactivate the timer, set the knob to the OFF position.

How to activate oscillation?

Press the Swing button to activate automatic fan rotation. Press again to stop it.

Can I use the fan outdoors?

No, this fan is designed for indoor household use. Do not use it outdoors, in a humid place, or near a window where it could be exposed to rain.

How to clean the fan?

Always unplug the appliance before cleaning. Use the brush of your vacuum cleaner for the air inlet and outlet grilles. Clean the body with a soft cloth. Never immerse the appliance in water and do not use solvents or abrasive products.

What is the aromatic essence tray for?

Under the front grille there is a small tray containing a sponge. Remove it and pour a few drops of scented oil onto the sponge. The fan will then diffuse the fragrance into the air.

What to do if the power cord is damaged?

Do not plug in the appliance. Contact an authorized technical service to replace the cord. Do not attempt to repair it yourself.

Is the fan safe for children?

The appliance can be used by children over 8 years old under supervision. Do not let children play with the fan. Keep the cord and appliance out of reach of children under 8 years.

How to dispose of the fan at the end of its life?

Do not throw the appliance away with household waste. In accordance with the WEEE Directive (2012/19/EU), take it to a separate collection point for recycling. Contact your local authority or retailer for the procedure.

Where to find Orbegozo technical service?

Visit the official Orbegozo website at https://orbegozo.com/asistencia-tecnica/ to locate the nearest authorized service center. You can also contact them via the contact form.

USER MANUAL TW 0755 Orbegozo

White vertical industrial tower with vertical slats and a small attached component (no visible text or symbols)

TW 0755

Sonifer, S.A. Avenida de Santiago, 86 30007 Murcia España [e-mail] www.orbegozo.com Made in P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Exterior view of a white cylindrical air conditioner unit (no visible text or symbols)

Technical line drawing of a mechanical component with concentric circles and a separate inset view (no text or symbols)

INSTRUCCIONES DE USO:

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.

6. Never pull on the cord when unplugging.

7. Do not use the unit with a damaged cord or plug, or if it is not working properly.

8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.

12. This appliance is for household use only.

13. In case that you need a copy of the instruction manual, you can find it www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

- Make certain that the power source conforms to the electrical requirements of the Fan.

- Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.

- This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres.

- Where possible, avoid the use of extension cords. I minimize the risk of overheating by ensuring that they are UL listed. Never use a single extension cord to

operate more than one Fan.

- Do not block or manipulate the fan while it is working.

- Locate the Power Cord so the Fan or other objects are not resting on it. Do not run Power Cord under carpeting. Do not cover Power Cord with throw rugs, runners, or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.

- This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container.

- Do not use Fan outdoors.

- Never insert fingers, pencils or any other object through the grille when fan is running.

- Disconnect the plug when moving from one location to another.

- Disconnect plug when cleaning grills.

- Be sure fan is on a stable, even surface when operating to avoid overturning.

- DO NOT USE fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

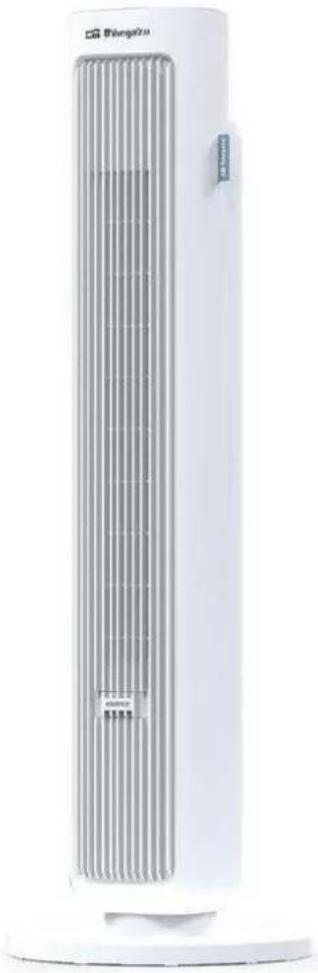

INSTALLATION INSTRUCTION

White vertical cylindrical device with gray ventilation grille and 'Bhengzhu' branding, no visible text or symbols on the device itself.

BASE INSTALLATION

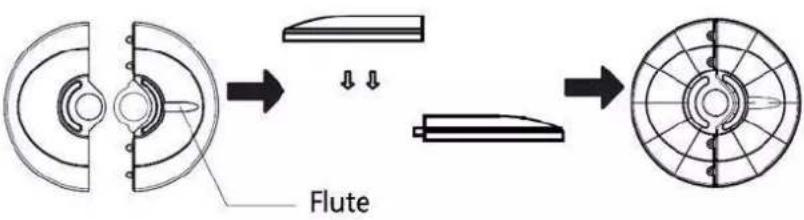

1. Take out the fan and the spare parts from the box. Put the front base onto rear base and join them together. Pass the power cord through the flute, then insert the fan body into the base.

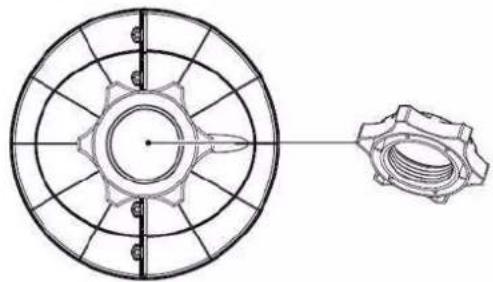

1. Fix the fan body on the base with the plastic nut.

Technical line drawing of a mechanical component with concentric circles and a separate inset view (no text or symbols)

HOW TO USE

• Connect the machine to the power supply.

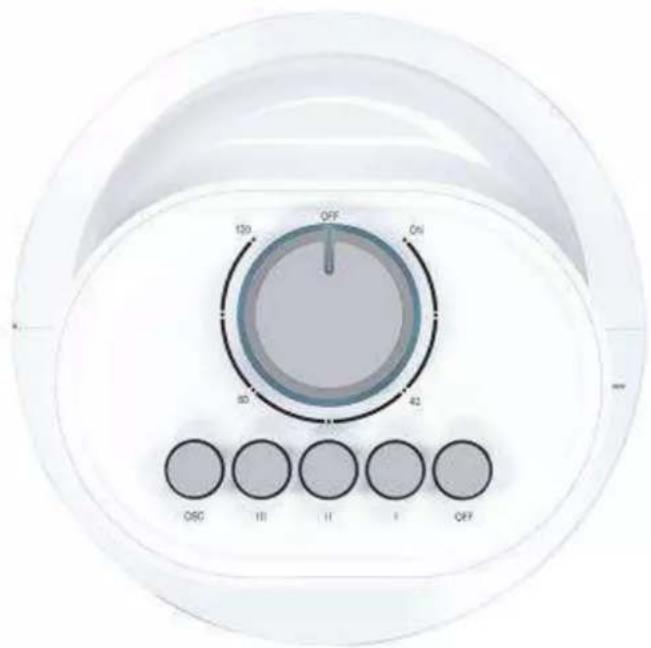

• Press "I", "II", and "III" for speed settings. Press "Off" to turn the fan OFF.
• Press "Swing" button to turn on the oscillation function. Press again to turn off.
• Timer: if timing is needed, turn the timer knob clockwise to desired position. The fan will stop on time automatically. If turn to OFF, it will stop work.

USE OF THE AROMATIC ESSENCE TRAY

Underneath the front grille of the fan, there is a small tray with a sponge. Remove it and put some essence in the sponge if you want the air of the fan to smell to the fragrance

MAINTENANCE

WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING. WARNING: DO NOT IMMERSE FAN IN WATER!

CLEANING: Clean the Fan intake and exhaust openings with the vacuum brush attachment on your vacuum cleaner..

This will remove dirt and lint that may accumulate over time. DO NOT ATTEMPT TO TAKE APART FAN. Clean the body of the Fan with a soft cloth.

CAUTION: Do not use gasoline, benzine, thinner, harsh cleaners, etc. as they may damage the Fan. NEVER use ALCOHOL OR SOLVENTS.

STORAGE:

Store the Fan, with these instructions, in the original carton in a cool, dry place.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. (Check the legal conditions on our website)..
