Product Type	Smart Wi-Fi motion sensor
Brand	Shelly
Model	Motion 2
Dimensions (without bracket)	89.3 x 41.4 x 22.9 mm
Dimensions (with bracket)	89.3 x 41.4 x 47.9 mm
Power supply	Rechargeable Li-ion battery 3.7 V / 6500 mAh
Charging	USB Type-C (compliant USB-C adapter required)
Battery life	Up to 3 years in standby, 12-18 months in active detection
Detection technology	High sensitivity passive infrared sensor
Detection range	9 meters
Integrated sensors	Motion, brightness, temperature, accelerometer
Connectivity	Wi-Fi 802.11 b/g/n, access point and client mode
Supported protocols	MQTT, CoAP, REST API, URL actions
Operating temperature	-10°C to 50°C
Mounting	Wall mount (indoor only) with swivel bracket
Maintenance	Clean with a dry cloth; protect from moisture and dirt
Safety	Indoor use only; do not repair yourself; keep out of reach of children
Box contents	Sensor, mounting bracket, USB-C cable, drilling template, documentation
Protection rating	Not waterproof (indoor only)
Processor	SiLabs
Flash memory	6 MB
Warranty	2 years (legal compliance)
Country of manufacture	Bulgaria (Allterco Robotics EOOD)

Frequently Asked Questions - Motion 2 Shelly

How to charge the Shelly Motion 2?

Use a compliant USB-C adapter and plug it into the charging port. The red LED lights up during charging and turns off when the battery is full. Do not use the device while charging.

How to turn on the device?

Briefly press the Reset button using a pin. The LED flashes red, green, and blue, then becomes solid blue in AP mode.

How to connect the sensor to my Wi-Fi network?

Put the device in AP mode (solid blue). Connect to the Shelly access point on your phone, then open http://192.168.33.1. Go to Internet & Security, select Client mode, enter your Wi-Fi credentials and save.

How to reset the Shelly Motion 2 to factory settings?

Press and hold the Reset button for 10 seconds. The device restarts in AP mode and all settings are erased.

What is the motion detection range?

The range is 9 meters maximum. Avoid transparent obstacles and direct heat sources to prevent false detections.

What do the LED indicators mean?

Solid blue = AP mode, blue flashing = firmware update, brief red = motion detected, brief green = motion not reported, red/green/blue sequence = startup or tamper detection. The LED can be disabled.

What is the battery life?

In standby, up to 3 years. In active use (approx. 6h of detection/day), between 12 and 18 months.

Can I use the device without Shelly cloud?

Yes, the device works locally via its web interface or protocols like MQTT, CoAP, or REST API. The cloud is not mandatory.

How to mount the sensor on the wall?

Use the provided template to mark the holes. Drill holes of max 2.5 mm, insert wall plugs, then screw the bracket (screw head 5-8 mm). Attach the device by sliding the bracket into the slots. Indoor use only.

What to do if the sensor detects false movements?

Check that it is not exposed to direct sunlight or a heat source (radiator). Clean the lens with a dry cloth. Avoid transparent objects in front of the sensor.

USER MANUAL Motion 2 Shelly

White wireless device with a handle and antenna, no visible text or symbols

Wi-Fi Motion Sensor

Pictures....2

EN User and safety guide....3

Shelly Cloud Application....57

fig. 1

fig.2

fig.3

READ BEFORE USE

This document contains important technical and safety information about the device, its safety use and installation.

CAUTION! Before beginning the installation, please read this guide and any other documents accompanying the device carefully and completely. Failure to follow the installation procedures could lead to malfunction, danger to your health and life, violation of the law or refusal of legal and/or commercial guarantee (if any). Allterco Robotics EOOD is not responsible for any loss or damage in case of incorrect installation or improper operation of this device due to failure of following the user and safety instructions in this guide.

PRODUCT INTRODUCTION

Shelly® is a line of innovative microprocessor-managed devices, which allow remote control of electric circuits through a mobile phone, tablet, PC, or home automation system. Shelly® devices can work standalone in a local Wi-Fi network or they can also be operated through cloud home automation services. Shelly Cloud is a service that can be accessed using either Android or iOS mobile application, or with any internet browser at https://home.shelly.cloud/. Shelly® devices can be accessed, controlled and monitored remotely from any place where the User has internet connectivity, as long as the devices are connected to a Wi-Fi

ENGLISH

router and the Internet. Shelly® devices have embedded Web Interface accessible at http://192.168.33.1 when connected directly to the device's access point, or at the device's IP address on the local Wi-Fi network. The embedded Web Interface can be used to monitor and control the device, as well as adjust its settings.

Shelly® devices can communicate directly with other Wi-Fi devices through HTTP protocol. An API is provided by Allterco Robotics EOOD. For more information, please visit: https://shelly-api-docs.shelly.cloud/#shelly-family-overview.

Shelly® devices are delivered with factory-installed firmware. If firmware updates are necessary to keep the devices in conformity, including security updates, Allterco Robotics EOOD will provide the updates free of charge through the device embedded Web Interface or Shelly Mobile Application, where the information about the current firmware version is available. The choice to install or not the Device firmware updates is User's sole responsibility. Allterco Robotics EOOD shall not be liable for any lack of conformity of the Device caused by failure of the User to install the provided updates in a timely manner.

Shelly Motion 2 (the Device) is a high-sensitivity, ultra-low power consumption Wi-Fi motion sensor, which also features light

ENGLISH

and temperature metering. The built-in light and temperature sensors provide additional opportunities for home or office automation. Shelly Motion 2 also has an integrated accelerometer for tamper protection and features vibration detection. The built-in 6500 mAh rechargeable Li-ion battery allows the Device to stay connected to the Internet in standby mode for up to 3 years, and in active transmission (approx. 6 hours/day motion detection) estimated between 12 and 18 months without recharging.

INSTALLATION INSTRUCTION

⚠️ CAUTION! Do not use the Device if it has been damaged.
⚠️ CAUTION! Do not attempt to service or repair the Device yourself.

1. Charging

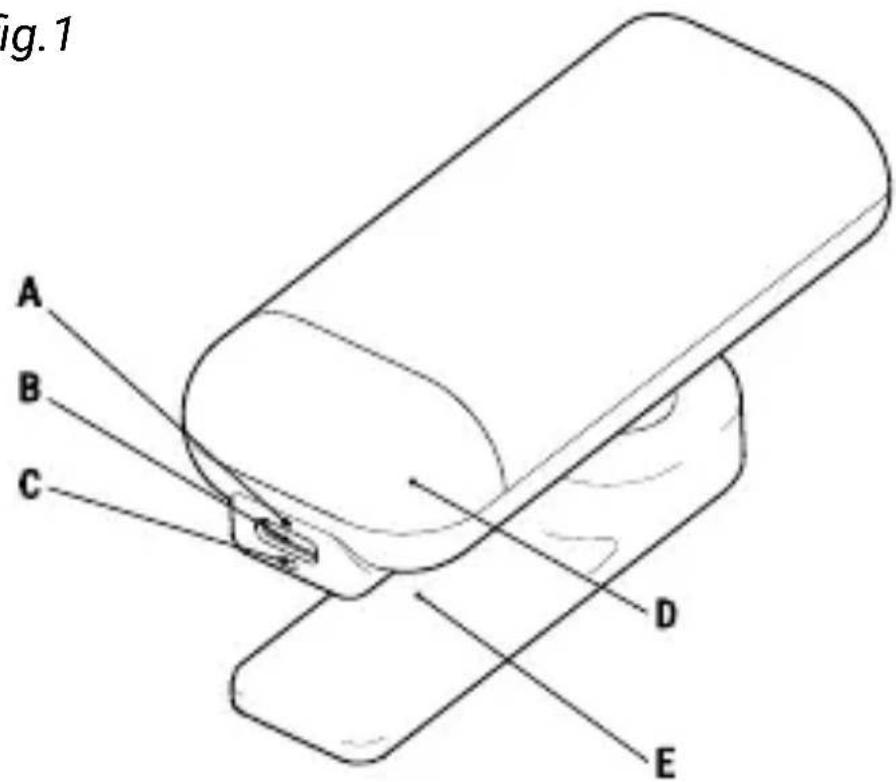

Prior to using the Shelly Motion 2, please fully charge its battery by plugging the USB Type-C charging adapter cable to the Device charging port (fig.1 B).

⚠️ CAUTION! Use only charging adapters that comply with USB-C standard. Do not charge the Device if the charging adapter or the charging cable are damaged.

The red charging indicator (fig. 1 A) next to the charging port will be on while the Device is charging. The indicator will go off when the battery is fully charged.

IMPORTANT: The device heats up during charging, which prevents it from measuring the room temperature correctly.

2. Starting

Press briefly the Reset button (fig.1 C) using a pin to turn on the Device.

⚠️ CAUTION! Be careful not to insert the pin into the round hole of the charging indicator (fig. 1 A). The reset button has an oblong shape (fig.1 C).

The LED indicator behind the motion sensor lens (fig.1 D) will start flashing in red, green and blue sequentially for a while and then turn steady blue. The Device is now in AP (access point mode).

IMPORTANT: If the motion sensor detects movement while the Device is in AP mode the LED indication will briefly change to cyan.

IMPORTANT: If the Device has not been added into your Wi-Fi network in 3 minutes, it will switch off. Press briefly the Reset button to start it again. Pressing the Reset button while the Device is in AP mode will turn off the Device.

3. Inclusion to Shelly Cloud

If you choose to use the Device with the Shelly Cloud mobile application and Shelly Cloud service, instructions how to connect the Device to the Cloud and control it through the Shelly App can be found in the App Guide. Shelly Mobile Application and Shelly Cloud service are not conditions for the Device's proper functioning. This Device can be used stand-alone or with various other home automation services and applications.

ENGLISH

⚠️ CAUTION! Do not allow children to play with the buttons/switches connected to the Device. Keep the Devices for remote control of Shelly (mobile phones, tablets, PCs) away from children.

4. Manual connecting to a local Wi-Fi network

The Device can be managed and controlled through its embedded web interface too. Make sure Shelly Motion 2 is in AP mode.

Open the Device Web interface at http://192.168.33.1 when connected directly to the Device access point.

Click the Internet & Security button and then select WIFI MODE - CLIENT.

Check the Connect the Shelly device to an existing WiFi Network, enter the Wi-Fi network name and password, and click SAVE. Find your Device IP address in the Wi-Fi network. You can use a simple tool to find Shelly devices in the local network:

https://shelly.cloud/documents/device_finders/ShellyFinderWindows.zip (Windows) and https://shelly.cloud/documents/device_finders/ShellyFinderOSX.zip (Mac OSX).

IMPORTANT: Enabling the Client mode will disable the AP mode. In case you need the AP mode again, press and hold the Reset button for 5 seconds. Press and hold the Reset button for 10 seconds to factory reset the Device.

ENGLISH

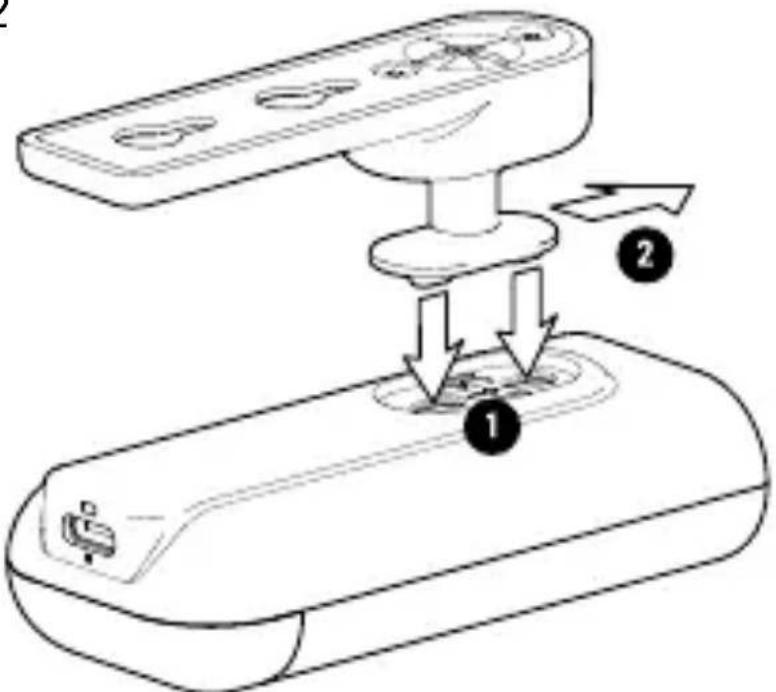

5. Attaching the stand

Insert the two L-shaped protrusions of the stand (fig.1 E) swiveling arm into the Device body oblong openings and then slide the stand in a direction opposite the charging port as shown in fig. 2.

6. Wall mounting

Use the stencil printed at the end of this booklet to mark the wall where you want to mount the Device.

Use screws with a head diameter between 5 and 8 mm.

⚠️ CAUTION! The product is intended for indoor use only.

CAUTION! Protect the product from dirt and moisture.

⚠️ CAUTION! Do not use the product in a damp environment and avoid water splashing.

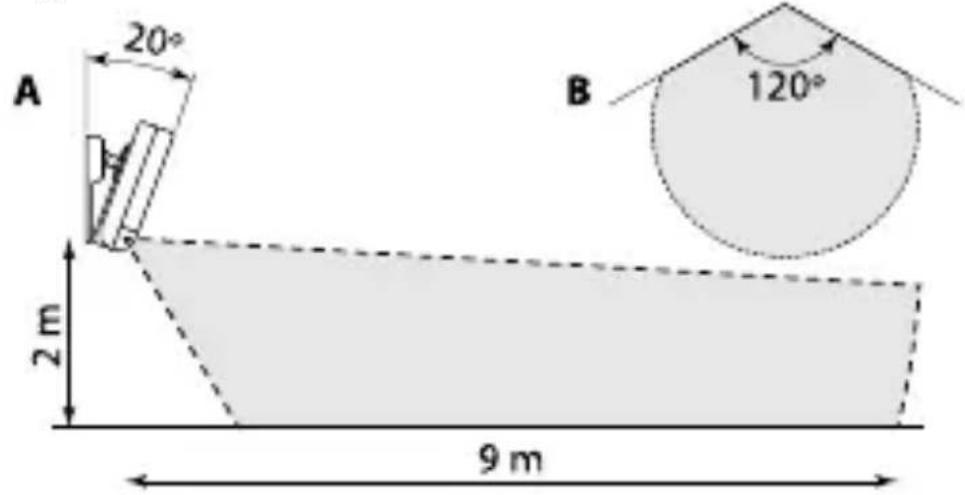

DETECTION DIAGRAM

The detection area is shown on fig.3 A: Side view and B: top view (not to scale).

IMPORTANT! Shelly Motion cannot detect movement through transparent objects.

IMPORTANT! Direct sun light or close heating sources can trigger false motion detection.

LED INDICATION SIGNALS

Blue: AP mode

Blue brief flash: Settings changed

Blue flashing: Firmware update

Red brief flash: Motion detected and reported

ENGLISH

Red long flash: Error while performing firmware update.

Green brief flash: Unreported motion detection (the Device is not connected, or motion detection is disabled)

Red, green and blue flashing sequentially:

Tamper detection or Device started

Cyan brief flash: Motion detection while in AP mode.

IMPORTANT! LED indication can be disabled.

RESET BUTTON ACTIONS

Press briefly:

While turned off, starts the Device.

While in AP mode, turns off the device.

While in Client mode, exits energy saving mode for 3 minutes and send mDNS info.

Press for 5 sec: Sets the Device in AP mode.

Press for 10 sec: Factory resets the Device.

SPECIFICATIONS

• Dimensions (HxWxD):
  89.3x41.4x22.9 mm (w/o stand) 89.3x41.4x47.9 mm (w/ stand)
  • Working temperature: -10^ - 50^
• Mounting: Wall (indoor use only)
  • Detection range: 9 m
• Battery: Li-ion 3.7 V / 6500 mAh
• Charging: USB Type-C charging adapter
• Battery life: estimated 12 – 18 months (motion detection) up to 3 years (stand by)
  • Radio protocol: Wi-Fi 802.11 b/g/n
  • Max. RF output power: 20dBm

ENGLISH

• Frequency: 2412 - 2472 MHz (Max. 2495 MHz)
- Operational range: up to 30 m (depends on building construction and materials)
- MQTT: YES
- CoAP: YES
- REST API: YES
- URL Actions: 13 with 5 URLs each
- Schedules: 20
- CPU: SiLabs
- Flash: 6MB

DECLARATION OF CONFORMITY

Hereby, Allterco Robotics EOOD declares that the radio equipment type Shelly Motion 2 is in compliance with Directive 2014/53/EU, 2014/35/EU, 2014/30/EU, 2011/65/EU. The full text of the EU declaration of conformity is available at the following internet address: https://shelly.cloud/knowledge-base/devices/shelly-motion-2/

Manufacturer: Allterco Robotics EOOD

Address: Bulgaria, Sofia 1407, 103 Cherni vrah Blvd.

Tel.: [phone]

E-mail: [e-mail]

Web: https://www.shelly.cloud

Changes in the contact data are published by the Manufacturer at the official website:

https://www.shelly.cloud

All rights to trademark Shelly® and other intellectual rights associated with this Device belong to Allterco Robotics EOOD.
