Product Type	Robot vacuum with self-emptying base
Brand	Dreame
Model	D10s Plus
Robot model number	RLSSAD
Navigation	LDS (Laser Distance Sensor) and AI visual sensor
Rated voltage	14.4 V
Rated power	45 W
Battery type	Rechargeable lithium-ion
Charging time	Approximately 6 hours
Self-emptying base	Model RCS2
Base power supply	220-240 V, 50-60 Hz
Base power	800 W
Wi-Fi frequency	2.4 GHz
Cleaning functions	Vacuuming and mopping (mop)
Maintenance	Regular cleaning of bin, filter, brushes, sensors
Spare parts	Main brush, side brush, filter, dust bag, mop
Safety	Child lock, drop detection, Class 1 laser sensor
Smart features	Quick mapping, scheduled cleaning, Do Not Disturb mode
App	Dreamehome (iOS and Android)
General information	Compliant with Directive 2014/53/EU, do not dispose of with household waste

Frequently Asked Questions - D10s Plus DREAME

The robot does not turn on, what to do?

Check the battery level. If low, recharge the robot on its base. Make sure the ambient temperature is between 0°C and 40°C.

The robot does not charge on the base, why?

Check that the base is plugged in and that the charging contacts on the base and robot are clean. Clean them if necessary.

The robot does not return to its base, how to solve?

Place the base in an open area, at least 0.5 m from walls and 1.5 m in front. Clean the signal area of the base.

The robot makes an abnormal noise, what to do?

Stop the robot and check if objects are stuck in the main brush, side brush, or wheels. Remove them.

The robot no longer vacuums properly, what to check?

Check that the dust bin is not full, the filter is not clogged, and the main brush is not blocked.

Unable to connect the robot to Wi-Fi, how to proceed?

Reset the Wi-Fi by holding down the buttons. Make sure you are using a 2.4 GHz network and that location services are enabled in the Dreamehome app.

Scheduled cleaning does not start, why?

Check that the robot's battery is at least 15%. The robot will not start scheduled cleaning if the charge is insufficient.

Little or no water comes out of the cleaning module, what to do?

Make sure the water tank is filled and the mop is correctly installed. Clean the air hole of the tank if necessary.

The robot does not resume cleaning after charging, why?

Check that the Do Not Disturb mode is not activated. This mode prevents automatic resumption of cleaning.

How to know if the dust collection bag is full?

The robot's status indicator flashes orange and the app prompts you to replace the collection bag. Replace it every 8 to 10 weeks approximately.

USER MANUAL D10s Plus DREAME

The word "creme" is the abbreviation of Dreme Technology Co., Ltd. and its subsidiaries in China. It is the transaction of the company's Chinese name "1682," which meets solving for excellence in every endeavor and reflects the company's vision of continuous pursuit, exploration and search in technology.

"道氏" von den dieb by coupon prvn inr. Dreame Technology Co., Ltd. and its subsidiaries morn manin by sponin rav on Dreame

Manufactured by: Besame Trading (Hanjin) Co., Ltd.
Made in China

111111

RL5SAD-EU-A01

12/2022

DreameBot D10s Plus

Auto-Empty Robot Vacuum and Mop User Manual

Line drawing of a robotic vacuum cleaner with a cylindrical top and circular base (no text or symbols)

dreame

Contents

EN User Manual
125 Benutzerhandbuch 26
Manuel d'utilisation 52
10 Manuale utente 77
05 Manual de usuario 102
III Инструкция по эксплуатации 127
FL Instruktja obsługi 153
178
الرwyع الامتحان 202

SafetyInformation

To avoid electric shock, fire or injury caused by improper use of the appliance, please read the user manual carefully before using the appliance and keep it for future reference.

Usage Restrictions

• This product should not be used by children younger than 8 years old nor persons with physical, sensory, intellectual deficiencies, or limited experience or knowledge without the supervision of a parent or guardian to ensure safe operation and to avoid any risks. Cleaning and maintenance shall not be performed by children without supervision.
  -Children shall not play with this product. Ensure children and pets are kept at a safe distance from the robot while it is operating.
• If the power cord becomes damaged or broken, stop using it immediately and contact after sales service.
  This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting.
  Do not use the robot in an area suspended above ground level without a protective barrier.
• Do not place the robot upside down. Do not use the LOS cover, robot cover, or bumper as a handle for the robot.
• Do not use the robot at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.
  -Pick up any cables from the floor before using the robot to prevent it from dragging them while cleaning.
• Remove fragile or small items from the floor to prevent the robot from bumping into and damaging them.

Safety Information

Usage Restrictions Batteries and

To prevent damage or harm from dragging, clear any loose objects from the floor and remove cables or power cords along the cleaning path before operating the appliance.

- Keep the brush cleaning tool out of reach of children.

Do not place children, pets, or any item on top of the robot regardless of whether it is stationary or moving.

· Do not use the robot to clean any burning objects. Do not use the robot to pick up

flammable or combustible liquids, corrosive gases, or undiluted acids or solvents.

· Do not vacuum hard or sharp objects. Do not use the appliance to pick up objects

such as stones, large pieces of paper or any item that may clog the appliance.

- Make sure the robot is turned off and the auto-empty base is unplugged before cleaning or performing maintenance.

- Do not use a wet cloth to wipe or any liquid to rinse the robot and auto-empty base.

Washable parts must be dried completely before installing and using them.

· Make sure the robot is turned off when being transported and kept in its original

packaging if possible.

Please use this product in accordance with the instructions in the User Manual. Users are responsible for any loss or damage that arise from improper use of this product.

Batteries and Charging

- Do not use any third-party battery or auto-empty base. Use only with RC52 supply unit. - Do not attempt to disassemble, repair, or modify the battery or auto-empty base on your own.

· Do not place the auto-empty base near a heat source.

Safety Information

Charging

Do not use a wet cloth or wet hands to wipe or clean the base's charging contacts. Do not improperly dispose of old batteries. Unneeded batteries should be discarded at an appropriate recycling facility.

If the robot will not be used for an extended period, fully charge it, then turn it off and store in a cool, dry place. Recharge the robot at least once every 3 months to avoid over-discharging the battery.

This product contains batteries that can only be replaced by qualified technicians or after-sales service.

Laser Safety Information

The laser sensor in this product meets the IEC 60825-1: 2014 Standard for Class 1 laser products. Please avoid direct eye contact with it during use.

Herby, Onsame Trading; Tianjin; Co., Ltd. declares that the radio equipment type RUS/AD is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following Internet address: https://global.com/matech.com

For detailed e-manual, please go to https://global.dreametech.com/pages/user-manuals-and-fags

Product Overview

Accessories

Side BrushCleaning Tool Power Cord

Water Tank

Mop Pad Dust Collection Bag

(replacement)

Auto Empty Base

Product Overview

Robot

Product Overview Product Overview
Robot

Auto-Empty Base

Open the upper cover

Robot Sensors

Back

Bottom

Product Overview

Note: Due to the factors trading, a new unit collection box has been installed inside circuit).

Preparing Your Home

Illustration of a toy car with a teddy bear, airplane, and mouse on a floor (no text or symbols)

I dy up items such as power cords, cloths, slippers, and toys to improve the efficiency of the robot.

Simple line drawing of a room layout with a desk, lamp, and door (no text or symbols)

Open the door of the room to be cleaned, and put the furniture in its proper place to leave more space.

Illustration showing a railing and a sofa with checkmarks indicating selection (no text or symbols present)

Before cleaning, place a physical barrier at the edge of the stairs and sofa to ensure smooth operation.

With the AI visual sensor, the robot can better recognize and avoid obstacles such as power cords, shoes, and socks. For best performance, make sure that all areas to be cleaned are well-fit.
Nelari
- When operating the robot for the first time, follow it around while cleaning to remove any potential obstacles in time. - To prevent the robot from not recognizing clear that need to be cleaned, do not stand in front of the labor threshold, hallway, or narrow places.

Before Use

1. Remove the protective strips

1. Install the side brush

note: install the side brush until it stands into place.

1. Connect to a power outlet and start charging

Place the base on level ground against the wall and connect it to a power outlet. Place the robot only the base to charge. The robot will turn on automatically and begin charging. It is recommended to fully charge your robot before first-time use.

Note: - Keep the immediate area 1.5 m in front of the base and 0.5 m to its both sides clear of objects. - Base sure that no objects might block the signaling area

About the Auto-Empty Base

It is recommended that the robot set out from the base before cleaning. Do not move the base while the robot is cleaning. This ensures that the robot returns to base smoothly:

after the total completes the cleaning loss and automatically return on the base, the base will start main-empty. Time settings can be created on the map.

Connecting with the Dreamehome App

This product works with the same time app, which can be used to control your app.

1. Download the Dreamehome App 3. Reset Wi-Fi

Scan the QR code on the robot, or search "Dreamhome" in the app store to download and install the app based on your needs

1. Add Device

Open the Dreamhome app, tap "Q" in the upper right, and then scan the QR code above again to add "Dream8pt Q10s Plus". Please follow the prompts to finish the Wi-Fi connection.

Nictur:

Only 2.4 GHz RT-7 channels are supported. Due to upgrades in the app software, the actual operations may be different from the statements in this manual. Please follow the instructions based on the current application.

Simultaneously press and hold the buttons (and until you hear a voice say, "Waiting for the network configuration." Once the WI-FI indicator is blinking slowly, the WI-FI has been successfully reset.

Note: If your deal game can connect to the apps successfully, want the 29. It will add the device again.

How to Use

1. Fast Mapping

After configuring the network for the first time, follow the instructions on the app to quickly create a map. The robot will start mapping without cleaning. When the robot returns to the base, the mapping process has been completed and the map will be saved automatically.

2. Turn On/Of

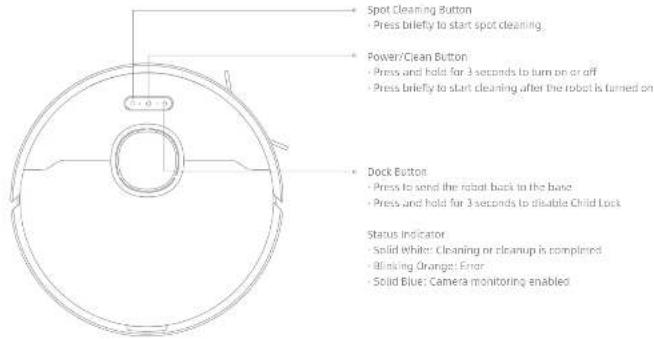

Press and hold the button for 3 seconds to turn on the robot. The power indicator should be illuminated. Place the robot onto the base. The robot should turn on automatically and begin charging. In turn off the robot, move the robot away from the base and press and hold the button for 3 seconds.

3. Start Cleaning

Press the button briefly to start cleaning after the robot is turned on. The robot will accurately map out a route, methodically clean along the edges and walls, then finish by cleaning each room in an 5-shaped pattern to ensure a thorough job.

4. Pause/Sleep

When the robot is running, press any button to pause it. If the robot is paused for more than 10 minutes, it automatically enters sleep mode. All indicators on the robot will turn off. Press any button on the robot, or use the app to wake up the robot.

Karla

The robot will turn off automatically if left in size is made for more than 12 hours. If the robot is turned and made one of them, the number of seats is set well

When the robot is set to the Do Not Disturb (DND) mode, the robot will be prevented from resuming cleaning and the power indicator goes out. The DND mode is disabled by default at the factory. You can use the app to enable the DND mode or modify the DND period. The DND period is 22:08-8:00 by default.

Liolo

The subordinated capacity systems will be performed on time during the DMI period.

The results will be same to change where it will off after the 1952 period expense.

6. Spot Cleaning

When the robot is on standby, press briefly the button to enable the spot cleaning mode. In this mode, the robot cleans a square-shaped area of 1.5 x 1.5 meters around it and returns to its starting point once the spot cleaning is completed.

How to Use

7. Scheduled Cleaning

You can schedule cleaning time in the Dreamhome app. The robot will automatically start cleaning at the designated time and then return to the base to recharge when the cleaning is done.

8. Additional App Functions

Follow the instructions on the app interface to use more functions. The version of the app might have been updated. Please follow the instructions based on the current app version.

9. Use the Mopping Function

It is recommended that all floors are vacuumed at least three times before the first mopping session to achieve a better cleaning effect.

1) Dampen the mop pad and wring out excess water install the mop pad as shown in the diagram.

2) Fill the tank with water.

Ficito:

It is just the water tank with high-water physics may come the water tank in camp.

3) Align the mopping module as indicated by the arrow, then slide it into the back of the robot until it clicks into place. Press the button (or use the Dreamhome app to start cleaning.

File:

It is not recommended to use the mooping function or compress. Use the app to adjust the water flow as required.

Routine Maintenance

Parts
In keep the robot in good condition, it is recommended to refer to the following table for routine maintenance.

Part	Maintenance Frequency	Replacement Period
Map part after each and every 5 to 6 months
Main brush	Once every 2 weeks	Every 6 to 12 months
Dust bin filter		Every 2 to 6 months
Side brush
Auto-empty base's signaling area	Once every month	/
Charging sensor
Auto-empty vent
Universal wheel
Laser distance sensor (Bus)
Air visual sensor
Cliff sensors
Water tank	Clean it as needed	/
Dust bin
Dust collection bag	/ in 10 weeks

Note: The replace meal frequency will depend on your usage of the robot, if an exception is necessary due to open air ventriculars, the parts should be replaced.

Clean the Dust Bin and Filter

1. Open the robot cover and press the bin clip to remove the dust bin.

1. Open the bin cover and empty the bin as shown in the diagram.

1. Clean the auto - empty vent.

Routine Maintenance

1. Remove the filter and tap its basket gently.

Note: so not enough to clean the fiber with a brush, finger, or any lamp objects so is to avoid damaging it.

1. Rinse the dust bin and filter with water and dry them completely before reinstalling.

例4：

- Rinse the dust bin and filter with clean water only. Do not use any detergent. - Use the dust bin and filter only when they are completely dry

Clean the Mopping Module

1. Slide the two release clips on the side of water tank to remove the mapping module, and then pull the map pad off the mapping module.

Line drawing of a robotic vacuum cleaner with attached blades and a circular component (no text or symbols)

1. Pour out the water in the tank. Clean with water only and leave to air dry before re-installing.

Note: Direct directly expose the water back to sunlight.

Routine Maintenance

1. Clean the mop pad with water only and leave it to air dry before re-installing.

- Remove the part from the mopping module before cleaning it. Make sure dirty water does not have back into the water outlet to avoid dragings.

1. If the water flows too slowly or the outflow is not well-distributed, please clean the air hole on the cover of the water tank.

Clean the Main Brush

1. Press the brush guard clips inwards to remove the brush guard and lift the brush out of the robot.

1. Pull out the brush covers as shown in the diagram. Use the included cleaning tool to remove any hairs tangled in the brush.

Note: Do not pull out the hair tangled in the main brush too vigorous. Doing so may damage the brush.

Routine Maintenance

Clean the Side Brush

Pull out the side brush and use the included cleaning tool to remove any hair tangled in the brush.

Clean the Main Wheel / Universal Wheel

Diagram of a circular device with labeled components and a hand holding a small object (no text or symbols present)

Note: Use a tool, such as a small, so much to separate the one and one of the universal wheel.

Routine Maintenance

Rains the cars can manage service elements with the mind and have. Please see the cars in a country.

Clean the LDS Laser Sensor

Clean the Cliff Sensor

Clean the AI Visual Sensor

Clean the Charging Contacts and Auto-empty Vents

Routine Maintenance

Replace the Dust Collection Bag

According to the status indicator (blinking orange) and app prompts, replace the dust collection bag with a new one when it is full.

1. Discard the dust collection bag. 2. Install a new dust collection bag.

Notes: when to no put the collection box, then the box handle is available for taking out.

1. Wipe the filter with a dry cloth.

1. Close the upper cover of auto-empty base.

Note: Do not close the basis for satisfy if the upper cover cannot be closed or if the dual connection bag is not installed

Routine Maintenance

Clean the Air Duct

If the air duct is blocked, please clean it according to the following steps.

1. Unscrew mounting screws on the air duct cover and remove the cover plate.

1. Check whether the air duct is blocked by foreign objects, if any clean them.

1. Reinstall the air duct cover as shown in the diagram.

Robot Restarting

If the robot stops responding or cannot be turned off, press and hold down the button (for 10 seconds to forcefully turn it off. Then press and hold the button (for 3 seconds to turn the robot on.

Battery

The robot contains a high-performance lithium-ion battery pack. Please ensure that it remains well-charged for daily use to maintain optimal battery performance. If the robot is not used for an extended period of time, turn it off and put it away. To prevent damage from oven discharging, the robot should be recharged at least once every three months.

Troubleshooting

Problem Type Solution
Robot does not turn on	The battery level is low. Recharge the robot on the base, then try it again.The temperature of the battery is too low or too high. It is recommended to operate the appliance at a temperature between 32°F (0°C) and 104°F (10°C).
Robot cannot recharge	The base is not receiving power. Please confirm that both ends of the power cord are plugged in correctly.the robot may be in poor contact with the charging contacts. Clean the charging contacts on both the base and the robot.
Robot cannot return to the base	There are too many obstructions around the base. Place the base in a more open area.Please clean the signaling area of the base.Moving the robot may cause it to re-position itself or re-map its surroundings. If the robot is too far from the base, it might not be able to automatically return on its own, in which case you need to manually place the robot onto the base.
Robot is malfunctioning Turn off the robot and then reactivate it.
Robot is making a strange noise	A foreign object may be caught in the main brush, side brush, or one of the main wheels. Stop the robot and remove any debris.
Robot no longer cleans efficiently or leaves dust behind	The dust bin is full. Please clean the dust bin and auto-empty vent.The filter is blocked. Please clean it.A foreign object is caught in the main brush. Please clean it.
Robot cannot connect to Wi-Fi	There is something wrong with the Wi-Fi connection. Reset the Wi-Fi and download the latest version of the Dreamehome app, then try reconnecting.Location permission may not have been granted. Please ensure the location permission on the Dreamehome app is enabled.Wi-Fi signal is weak. Make sure the robot is in an area with good Wi-Fi coverage.5GHz Wi-Fi is not supported. Please ensure your robot connects to 2.4GHz Wi-Fi.The username or password of Wi-Fi is incorrect. Please enter the correct username and password.
Robot does not perform scheduled cleaning	The robot has low battery. Scheduled cleaning will not start unless the robot has at least 15% battery left.
Does leaving the robot on the base consume power if it is already fully charged?	Leaving the robot on the base after it's fully charged consumes very little electricity and helps maintain optimal battery performance.
No water comes out of the water tank, or only a little bit comes out	Check whether there is water inside the water tank.Clean the mop if it becomes dirty.Make sure the mop pad is installed correctly according to the user manual.Clean the blowhole on the top of the water tank.
Robot doesn't resume cleaning after charging	Make sure the robot is not set to Do Not Disturb mode (DWD) as this will prevent it from resuming cleaning.The robot does not resume cleaning when it is manually recharged or placed onto the base.

TroubleshootingTroubleshooting

Problem Type Solution
Robot returns to the base without performing auto-empty tasks	DND mode prevents the robot from performing auto-empty tasks.
The dust collection bag is full.	Check whether the dust collection bag is full, if so, replace it with a new one. It is recommended to replace the bag every 8-10 weeks. If not, check whether the auto-empty vent or air duct at the bottom of the base is blocked. Remove any blockage before use.
the auto-empty duration can be unacceptably long sometimes	when the robot has been performing auto-empty tasks for a period of time, or when the air duct does not function smoothly, the auto-empty duration will be extended to prevent blockage.
The upper cover of base falls to be closed	Check whether a dust collection bag is installed. If not, install one.

For additional services, please contact us via [e-mail]: https://global.dreametech.com

Specifications

Robot

Model RLSGAD
Charging Time Approx. 5 hours
Rated Voltage 14 V =
Rated Power 46 W
Operation Frequency	2400-2483.5 VHz
Maximum Output Power	< 20 dBm

Auto-Empty Base

Model RCS2
Rated Input 220-240 V 50-60 Hz
Rated Output 19.8 V 1 A -
Rated Power	800 W

Under normal use of condition, this equipment should be kept a separation distance of at least 20 cm between the antenna and the body of the user.

Battery Disposal and Removal

The built-in lithium-ion battery contains substances that are hazardous to the environment. Before disclosing of the battery, make sure the battery is removed by qualified technicians and discarded at an appropriate recycling facility. - the battery must be removed from the appliance before it is scrapped; - the appliance must be disconnected from the supply mains when removing the battery; - the battery is to be disposed of safely.

CAUTION:

- Before removing the battery, disconnect the power and run out the battery as much as possible. - Unneeded batteries should be discarded at an appropriate recycling facility. - Do not expose to high temperature environment to avoid risks of explosion. - Under abusive conditions, liquid may be ejected from the battery if contact occurs, flush with water and seek medical help.

Removal Guide

1. Turn over the robot, use a proper tool to remove the screws on the back of the robot, and then remove the cover.
2. Unplug the terminals between the battery and PCB board to remove the battery.

WEEE Information

All products being this symbol are waste electrical and electronic equipment (W22E as in direction 2012/19/10) which should not be mixed with inserted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection print for the recycling of waste electricity and electronic equipment. Appropriate by the government or local authorities. Current disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installation or local authorities for more information about the location as well as terms and conditions of such collection poles.

Technical line drawing of a circular mechanical component with centerlines and mounting holes (no text or symbols)

Illustration of a cartoon character, airplane, and computer with a cross symbol (no text or labels)

Simple line drawing of a room layout with desk, lamp, and door (no text or symbols)

Illustration showing a railing with a vacuum cleaner and a sofa, both without any text or symbols.

Pure diagram of a coiled structure with no text, numbers, or symbols, showing directional arrows and a cross mark (no readable text or symbols)

Line drawing of a robotic vacuum cleaner with attached clamps and gear components (no text or symbols)

Technical line drawing of a mechanical component with exploded view and close-up detail (no text or symbols)

Diagram showing a hand inserting a component into a circular device (no text or symbols visible)

Technical line drawing of a circular mechanical component with centerlines and mounting holes (no text or symbols)

Illustration of a desk with a teddy bear, computer mouse, airplane, and a cross symbol (no text or labels)

Illustration showing a balcony railing and a sofa with checkmarks indicating selection (no text or symbols present)

Simple line drawing of a dining area with table, chairs, lamp, and door (no text or symbols)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Remarque 2. Cervique online information to random data is considered as a result, not available for the other information contained in

Mode d'utilisation

Technical line drawing of a robotic vacuum cleaner with mechanical components (no text or symbols)

Diagram of a device inside a circular housing with a hand pointing to a button (no text or symbols present)

Illustration of various electronic devices and symbols including a cat, fan, battery, mouse, and a cross (no text or labels)

Architectural line drawings showing a balcony railing and a sofa with checkmark indicators (no text or symbols)

Simple line drawing of a dining area with table, chairs, lamp, and door (no text or symbols)

Pure electrical circuit lines without any symbols

Note:

Technical line drawing of a robotic vacuum cleaner with mechanical components (no text or symbols)

Diagram of a device inside a circular housing with a hand pointing to a button (no text or symbols)

Scalola	Mamula	Mamula	Pelicola	Pelicola	Eloca	Manglia	Pelicola
PAP 20	PAP 21	PAP 22	FVC 3	FEC 1	CFC 7	FEA/FF 5	FF 5
CATA			Placenta
RACCOLTA DIFFERENZATA
Mantia at the end of the Cataria. Sepsis is presented in a particular manner.
