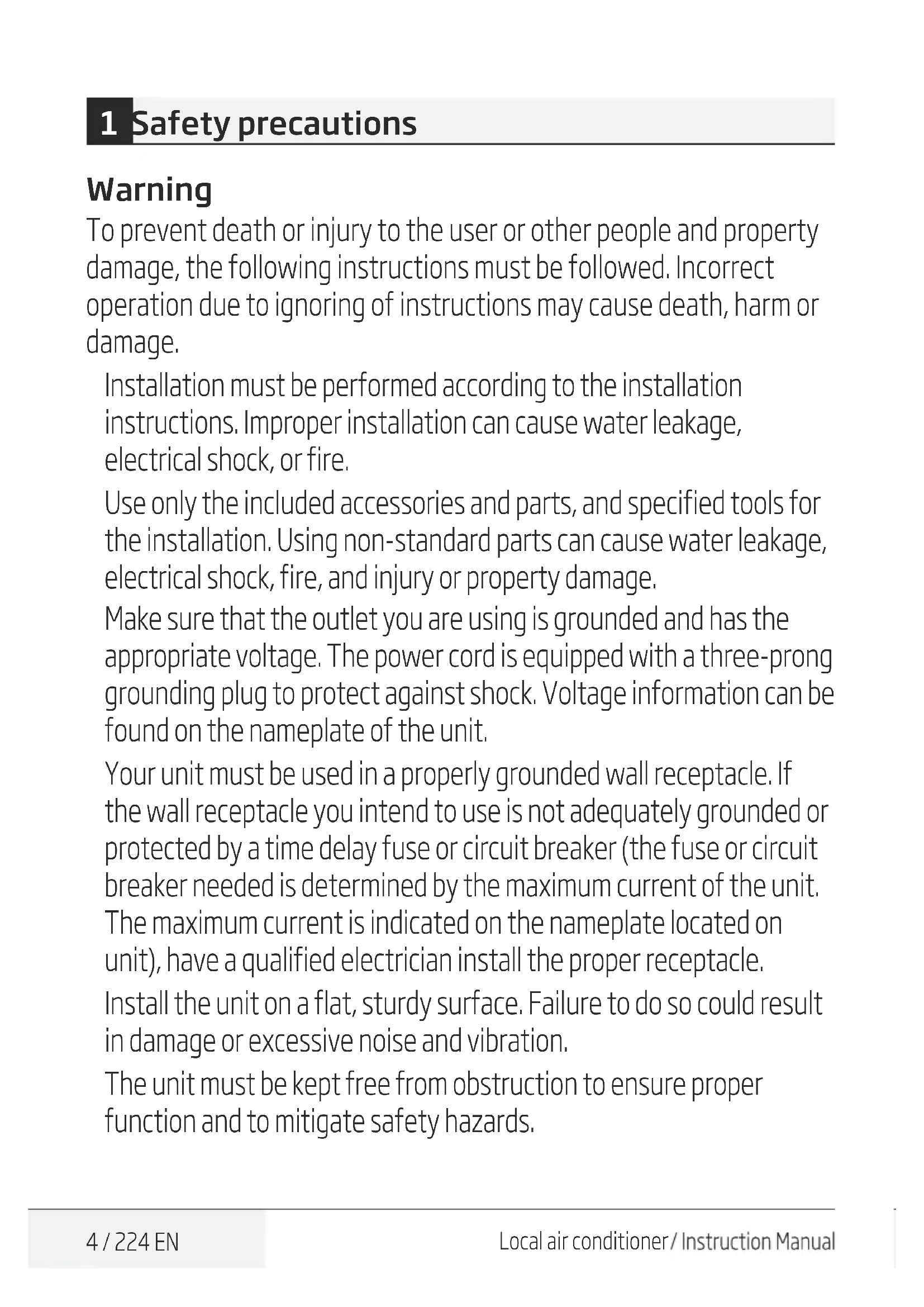

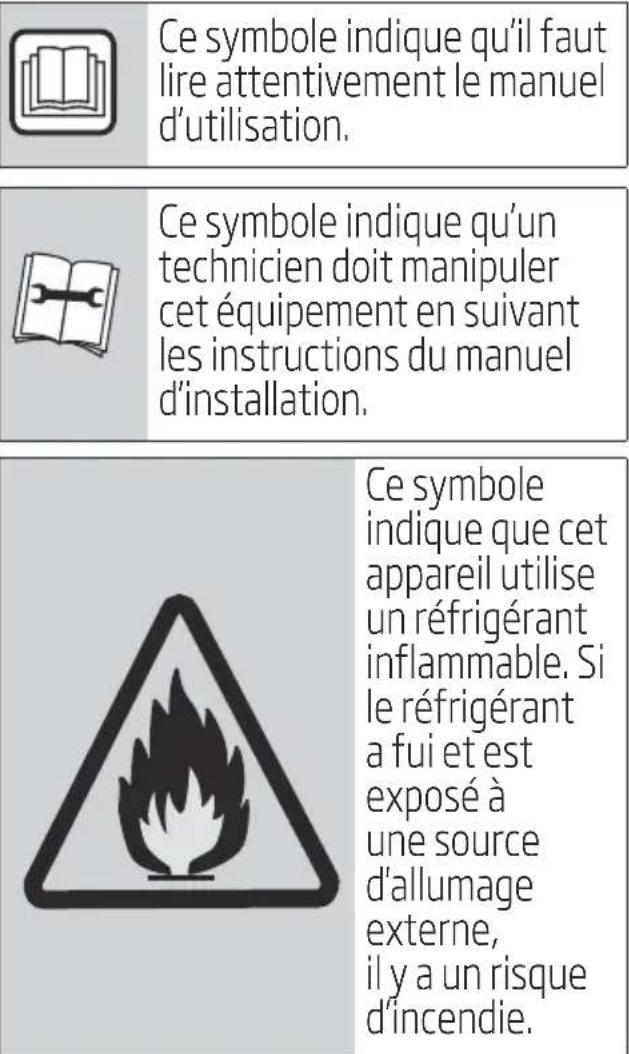

Local air conditioner4 / 224 EN 1 Safety precautons Warning To prevent death or injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring of instructions may cause death, harm or damage.

Installation must be performed according to the installation instructions. Improper installation can cause water leakage, electrical shock, or fire.

Use only the included accessories and parts, and specified tools for the installation. Using non-standard parts can cause water leakage, electrical shock, fire, and injury or property damage.

Make sure that the outlet you are using is grounded and has the appropriate voltage. The power cord is equipped with a three-prong grounding plug to protect against shock. Voltage information can be found on the nameplate of the unit.

Your unit must be used in a properly grounded wall receptacle. If the wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker (the fuse or circuit breaker needed is determined by the maximum current of the unit. The maximum current is indicated on the nameplate located on unit), have a qualified electrician install the proper receptacle.

Install the unit on a flat, sturdy surface. Failure to do so could result in damage or excessive noise and vibration.

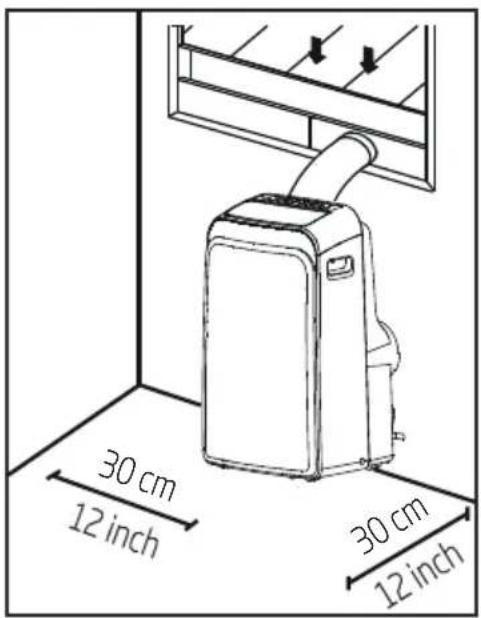

The unit must be kept free from obstruction to ensure proper function and to mitigate safety hazards. Local air conditioner5 / 224 EN

Do not modfy the length of the power cord or use an extenson cord to power the unt.

Do not share a sngle outlet wth other electrcal applances. Improper power supply can cause fre or electrcal shock.

Do not nstall your ar condtoner n a wet room such as a bathroom or laundry room. Too much exposure to water can cause electrcal components to short crcut.

Do not nstall the unt n a locaton that may be exposed to combustble gas, as ths could cause fre.

The unt has wheels to facltate movng. Make sure not to use the wheels on thck carpet or to roll over objects, as these could cause tppng.

Do not operate a unt that t has been dropped or damaged.

The applance wth electrc heater shall have at least 1 meter space to the combustble materals.

If the ar condtoner s knocked over durng use, turn off the unt and unplug t from the man power supply mmedately. Vsually nspect the unt to ensure there s no damage. If you suspect the unt has been damaged, contact a techncan or customer servce for assstance.

In a thunderstorm, the power must be cut off to avod damage to the machne due to lghtnng.

Your ar condtoner should be used n such a way that t s protected from mosture. e.g. condensaton, splashed water, etc. Do not place 1 Safety precautions Local air conditioner6 / 224 EN or store your air conditioner where it can fall or be pulled into water or any other liquid. Unplug immediately if it occurs.

All wiring must be performed strictly in accordance with the wiring diagram located inside of the unit.

The unit’s circuit board (PCB) is designed with a fuse to provide overcurrent protection. The specifications of the fuse are printed on the circuit board, such as: T 3.15A/250V, etc.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. (be applicable for the European Countries).

This appliance is not intended for use by persons (including childern) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (be applicable for other countries except the European Countries)

Children should be supervised to ensure that they do not play with the appliance. Children must be supervised around the unit at all times.

If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or similarly qualified persons in order to avoid a hazard. 1 Safety precautions Local air conditioner7 / 224 EN

Prior to cleaning or other maintenance, the appliance must be disconnected from the supply mains.

Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.

Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.

Do not operate unit with a damaged cord, plug, power fuse or circuit breaker. Discard unit or return to an authorized service facility for examination and/or repair.

To reduce the risk of fire or electric shock, do not use this appliance with any solid-state speed control device.

The appliance shall be installed in accordance with national wiring regulations.

Contact the authorised service technician for repair or maintenance of this unit.

Contact the authorised installer for installation of this unit.

Do not cover or obstruct the inlet or outlet grilles.

Do not use this product for functions other than those described in this instruction manual.

Before cleaning, turn off the power and unplug the unit.

Disconnect the power if strange sounds, smell, or smoke comes from it. 1 Safety precautions Local air conditioner8 / 224 EN

Do not press the buttons on the control panel with anything other than your fingers.

Do not remove any fixed covers. Never use this appliance if it is not working properly, or if it has been dropped or damaged.

Do not operate or stop the unit by inserting or pulling out the power cord plug.

Do not use hazardous chemicals to clean or come into contact with the unit. Do not use the unit in the presence of inflammable substances or vapour such as alcohol, insecticides, petrol,etc.

Always transport your air conditioner in a vertical position and stand on a stable, level surface during use.

Always contact a qualified person to carry out repairs. If the damaged power supply cord must be replaced with a new power supply cord obtained from the product manufacturer and not repaired.

Hold the plug by the head of the power plug when taking it out.

Turn off the product when not in use.

Warning Do not use manuals to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. The appliance shall be stored in a room without Continuously operation ignition sources (for example: open flames, an operation gas appliance or an operating electric heater.) Do not pierce or burn. Be aware that refrigerants may not contain an odour.

The appliance shall state the insulation of a residual current device (RCD) having rated residual operating current not exceeding 30mA. 1 Safety precautions Local air conditioner9 / 224 EN

This appliance is intended to be used in household and similar applications such as

Staff kitchen areas in shops, offices and other working environments;

by clients in hotels, motels and other residential type environments;

bed and breakfast type environments; 1 Safety precautions Local air conditioner10 / 224 EN

Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.

The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).

Be aware that the refrigerants may not contain an odour.

Appliance BA 3 09 C / BA 3 10 AC , should be installed, operated and stored in a room with a floor area larger than 10 m

Appliance BA 3 12 C / BA 3 12 H , should be installed, operated and stored in a room with a floor area larger than 12 m

Compliance with national gas regulations shall be observed.

Keep ventilation openings clear of obstruction.

The appliance shall be stored so as to prevent mechanical damage from occurring.

A warning that the appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation.

Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specification. 2 Warnings (for using R290 refrigerant only) Local air conditioner11 / 224 EN

Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.

1. Transport of equipment containing flammable refrigerants.

See transport regulations.

2. Marking of equipment using signs.

See local regulations.

3. Disposal of equipment using flammable refrigerants.

See national regulations.

4. Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer’s instructions.

5. Storage of packed (unsold) equipment

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

6. Information on servicing

1) Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the 2 Warnings (for using R290 refrigerant only) Local air conditioner12 / 224 EN following precautions shall be complied with prior to conducting work on the system.

Work shall be undertaken under a controlled procedure so as to minimise the risk of a flammable gas or vapour being present while the work is being performed.

3) General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

4) Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.

5) Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts, appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO

fire extinguisher adjacent to the charging area. 2 Warnings (for using R290 refrigerant only) Local air conditioner13 / 224 EN

No person carryng out work n relaton to a refrgeraton system whch nvolves exposng any ppe work that contans or has contaned flammable refrgerant shall use any sources of gnton n such a manner that t may lead to the rsk of fre or exploson. All possble gnton sources, ncludng cgarette smokng, should be kept suffcently far away from the ste of nstallaton, reparng, removng and dsposal, durng whch flammable refrgerant can possbly be released to the surroundng space. Pror to work takng place, the area around the equpment s to be surveyed to make sure that there are no flammable hazards or gnton rsks. No Smokng sgns shall be dsplayed.

Ensure that the area s n the open or that t s adequately ventlated before breakng nto the system or conductng any hot work. A degree of ventlaton shall contnue durng the perod that the work s carred out. The ventlaton should safely dsperse any released refrgerant and preferably expel t externally nto the atmosphere.

8) Checks to the refrgeraton equpment

Where electrcal components are beng changed, they shall be ft for the purpose and to the correct specfcaton. At all tmes the manufacturer’s mantenance and servce gudelnes shall be followed. If n doubt consult the manufacturer’s techncal department for assstance. The followng checks shall be appled to nstallatons usng flammable refrgerants: 2 Warnings (for using R290 refrigerant only) Local air conditioner14 / 224 EN

The charge size is in accordance with the room size within which the refrigerant containing parts are installed;

The ventilation machinery and outlets are operating adequately and are not obstructed;

If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;

Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

9) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include:

That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; 2 Warnings (for using R290 refrigerant only) Local air conditioner15 / 224 EN

That there no lve electrcal components and wrng are exposed whle chargng, recoverng or purgng the system;

That there s contnuty of earth bondng.

7. Repars to sealed components

1) Durng repars to sealed components, all electrcal supples shall be

dsconnected from the equpment beng worked upon pror to any removal of sealed covers, etc. If t sabsolutely necessary to have an electrcal supply to equpment durng servcng, then a permanently operatng form of leak detecton shall be located at the most crtcal pont to warn of a potentally hazardous stuaton.

2) Partcular attenton shall be pad to the followng to ensure that

by workng on electrcal components, the casng s not altered n such a way that the level of protecton s affected. Ths shall nclude damage to cables, excessve number of connectons, termnals not made to orgnal specfcaton, damage to seals, ncorrect fttng of glands, etc. Ensure that apparatus s mounted securely. Ensure that seals or sealng materals have not degraded such that they no longer serve the purpose of preventng the ngress of flammable atmospheres. Replacement parts shall be n accordance wth the manufacturer’s specfcatons.

Note: The use of slcon sealant may nhbt the effectveness of some types of leak detecton equpment. Intrnscally safe components do not have to be solated pror to workng on them. 2 Warnings (for using R290 refrigerant only) Local air conditioner16 / 224 EN

8. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

10. Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

11. Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition 2 Warnings (for using R290 refrigerant only) Local air conditioner17 / 224 EN 2 Warnings (for using R290 refrigerant only) and s sutable for the refrgerant used. Leak detecton equpment shall be set at a percentage of the LFL of the refrgerant and shall be calbrated to the refrgerant employed and the approprate percentage of gas (25 % maxmum) s confrmed. Leak detecton fluds are sutable for use wth most refrgerants but the use of detergents contanng chlorne shall be avoded as the chlorne may react wth the refrgerant and corrode the copper ppe-work. If a leak s suspected, all naked flames shall be removed/ extngushed. If a leakage of refrgerant s found whch requres brazng, all of the refrgerant shall be recovered from the system, or solated (by means of shut off valves) n a part of the system remote from the leak. Oxygen free ntrogen (OFN) shall then be purged through the system both before and durng the brazng process.

12. Removal and evacuaton

When breakng nto the refrgerant crcut to make repars or for any other purpose conventonal procedures shall be used. However, t s mportant that best practce s followed snce flammablty s a consderaton. The followng procedure shall be adhered to:

Open the crcut by cuttng or brazng. The refrgerant charge shall be recovered nto the correct recovery cylnders. The system shall be flushed wth OFN to render the Local air conditioner18 / 224 EN 2 Warnings (for using R290 refrigerant only) unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe- work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site. Local air conditioner19 / 224 EN 2 Warnings (for using R290 refrigerant only)

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a. Become familiar with the equipment and its operation. b. Isolate system electrically. c. Before attempting the procedure ensure that: Mechanical handling equipment is available, if required, for handling refrigerant cylinders; All personal protective equipment is available and being used correctly; The recovery process is supervised at all times by a competent person; Recovery equipment and cylinders conform to the appropriate standards. d. Pump down refrigerant system, if possible. e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f. Make sure that cylinder is situated on the scales before recovery takes place. g. Start the recovery machine and operate in accordance with manufacturer’s instructions. Local air conditioner20 / 224 EN 2 Warnings (for using R290 refrigerant only) h. Do not overfill cylinders. (No more than 80 % volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even

temporarily. j. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k. Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

Equipment shall be labelled stating that it has been de- commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete Local air conditioner21 / 224 EN 2 Warnings (for using R290 refrigerant only) wth pressure relef valve and assocated shut-off valves n good workng order. Empty recovery cylnders are evacuated and, f possble, cooled before recovery occurs. The recovery equpment shall be n good workng order wth a set of nstructons concernng the equpment that s at hand and shall be sutable for the recovery of flammable refrgerants. In addton, a set of calbrated weghng scales shall be avalable and n good workng order. Hoses shall be complete wth leak-free dsconnect couplngs and n good condton. Before usng the recovery machne, check that t s n satsfactory workng order, has been properly mantaned and that any assocated electrcal components are sealed to prevent gnton n the event of a refrgerant release. Consult manufacturer f n doubt. The recovered refrgerant shall be returned to the refrgerant suppler n the correct recovery cylnder, and the relevant Waste Transfer Note arranged. Do not mx refrgerants n recovery unts and especally not n cylnders. If compressors or compressor ols are to be removed, ensure that they have been evacuated to an acceptable level to make certan that flammable refrgerant does not reman wthn the lubrcant. The evacuaton process shall be carred out pror to returnng the compressor to the supplers. Only electrc heatng to the compressor body shall be employed to accelerate ths process. When ol s draned from a system, t shall be carred out safely. Local air conditioner22 / 224 EN

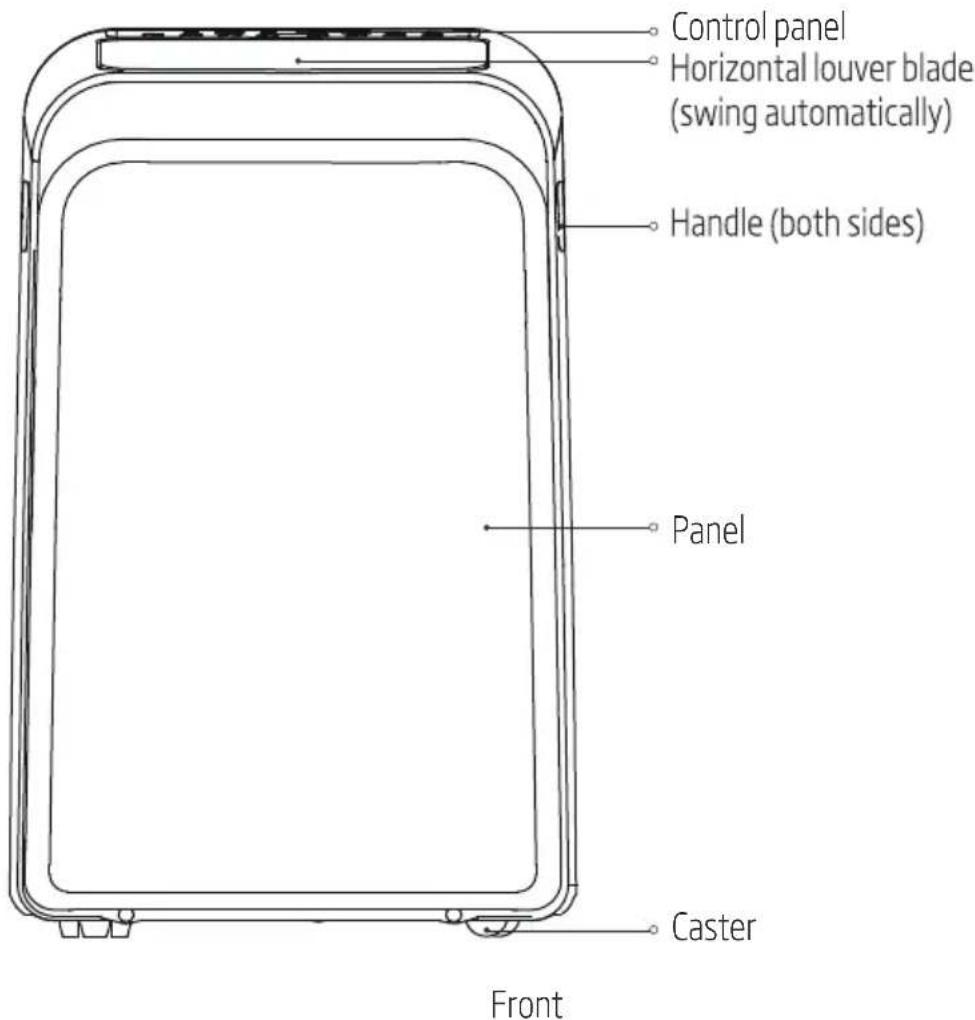

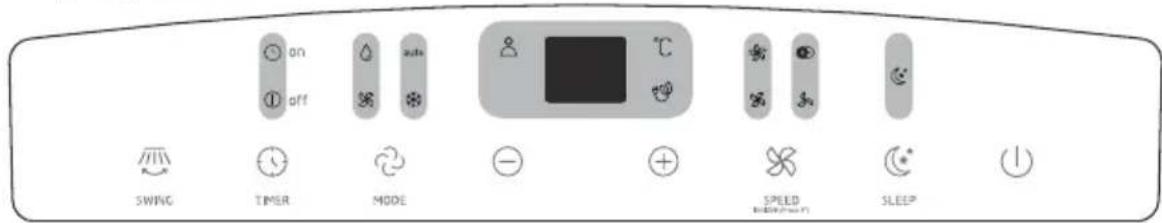

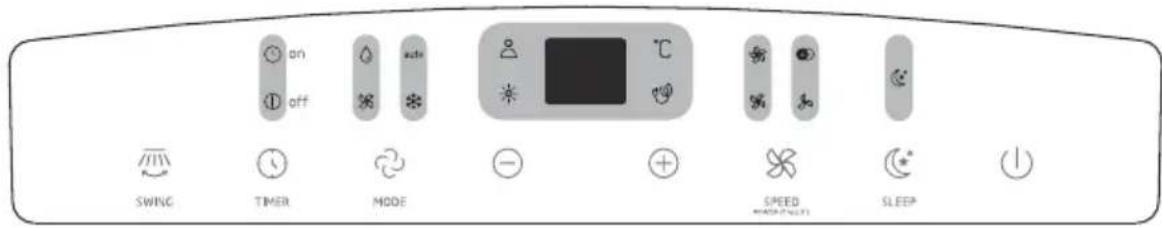

Control panel Panel Caster Front Local air conditioner23 / 224 EN

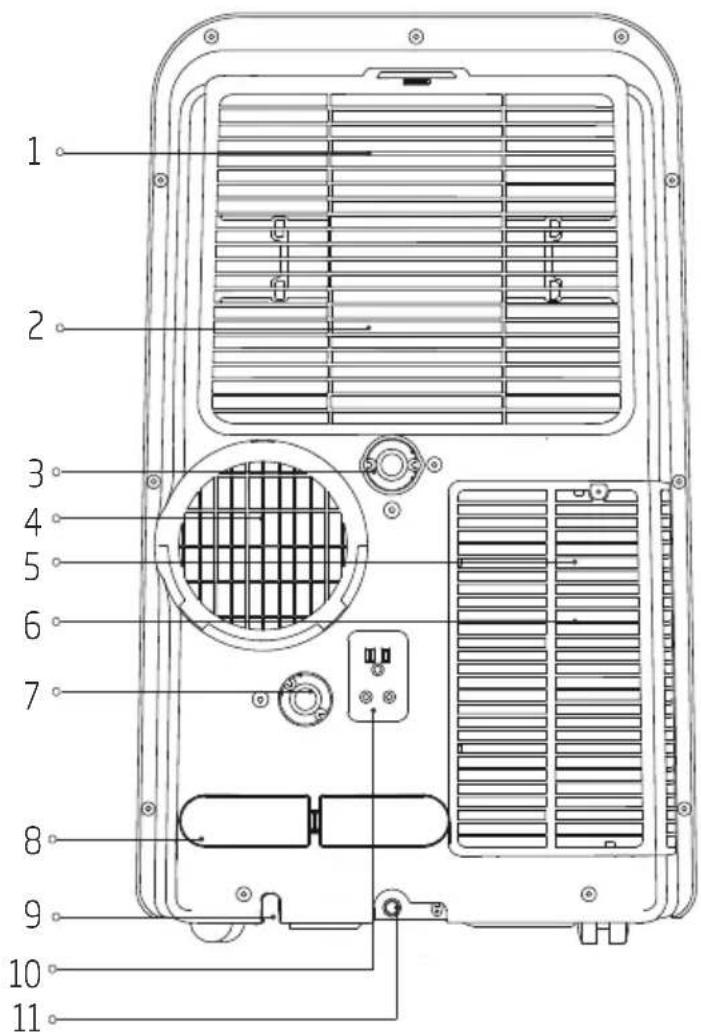

8. Power cord buckle

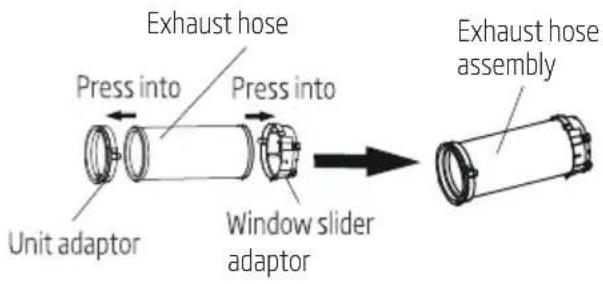

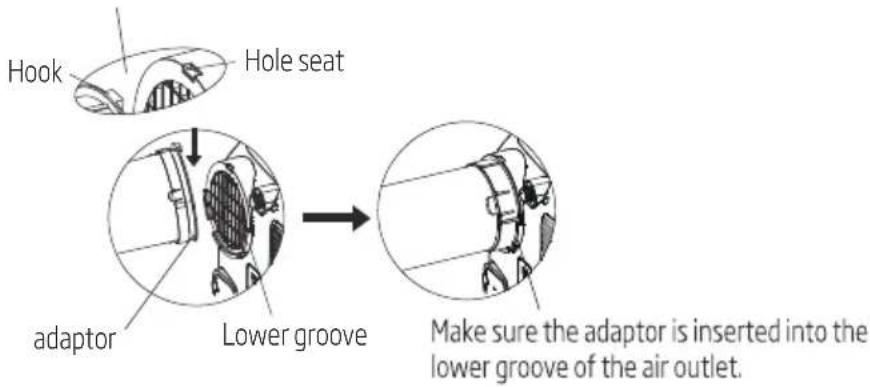

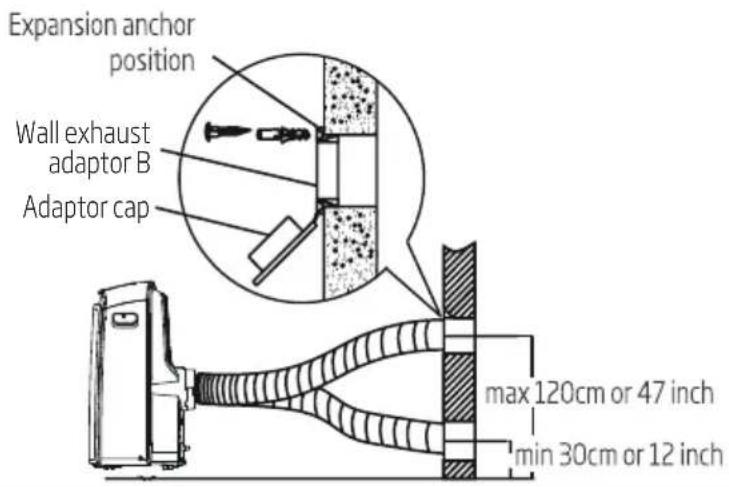

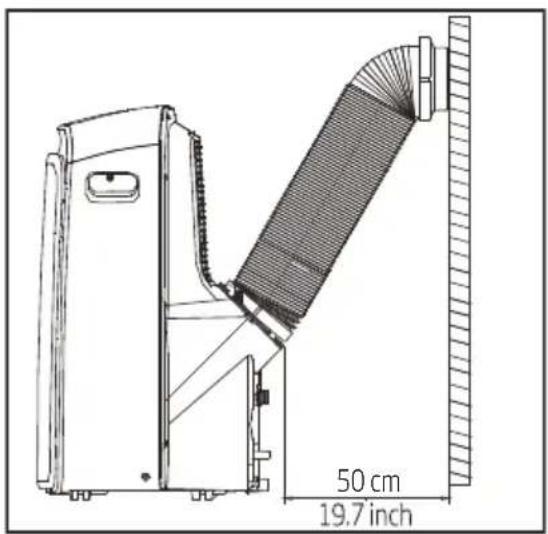

Exhaust hose adaptor Exhaust hose assembly

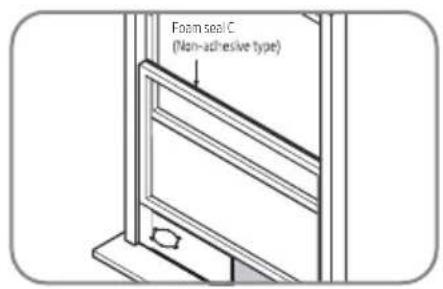

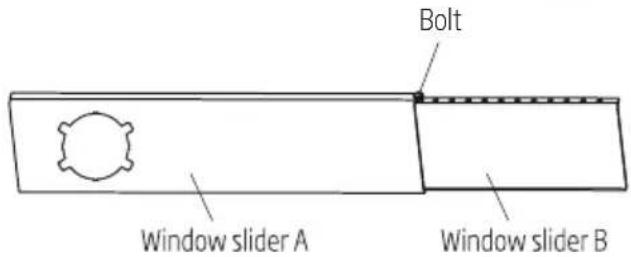

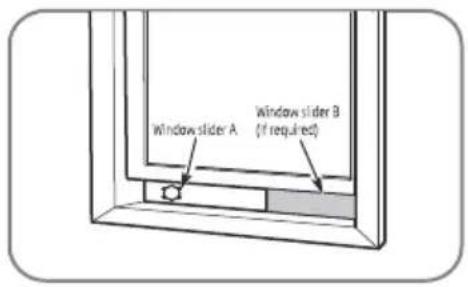

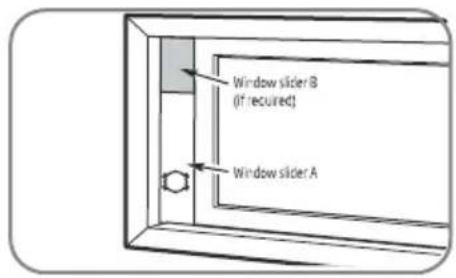

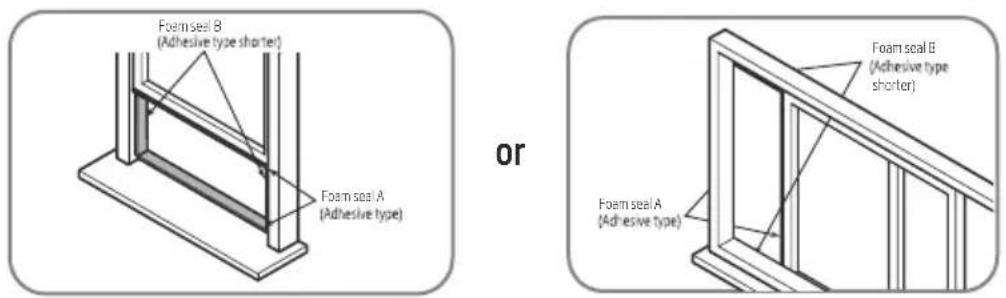

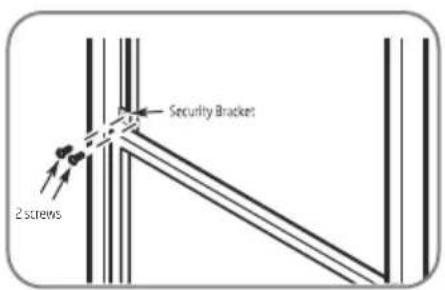

sash and frame as shown.

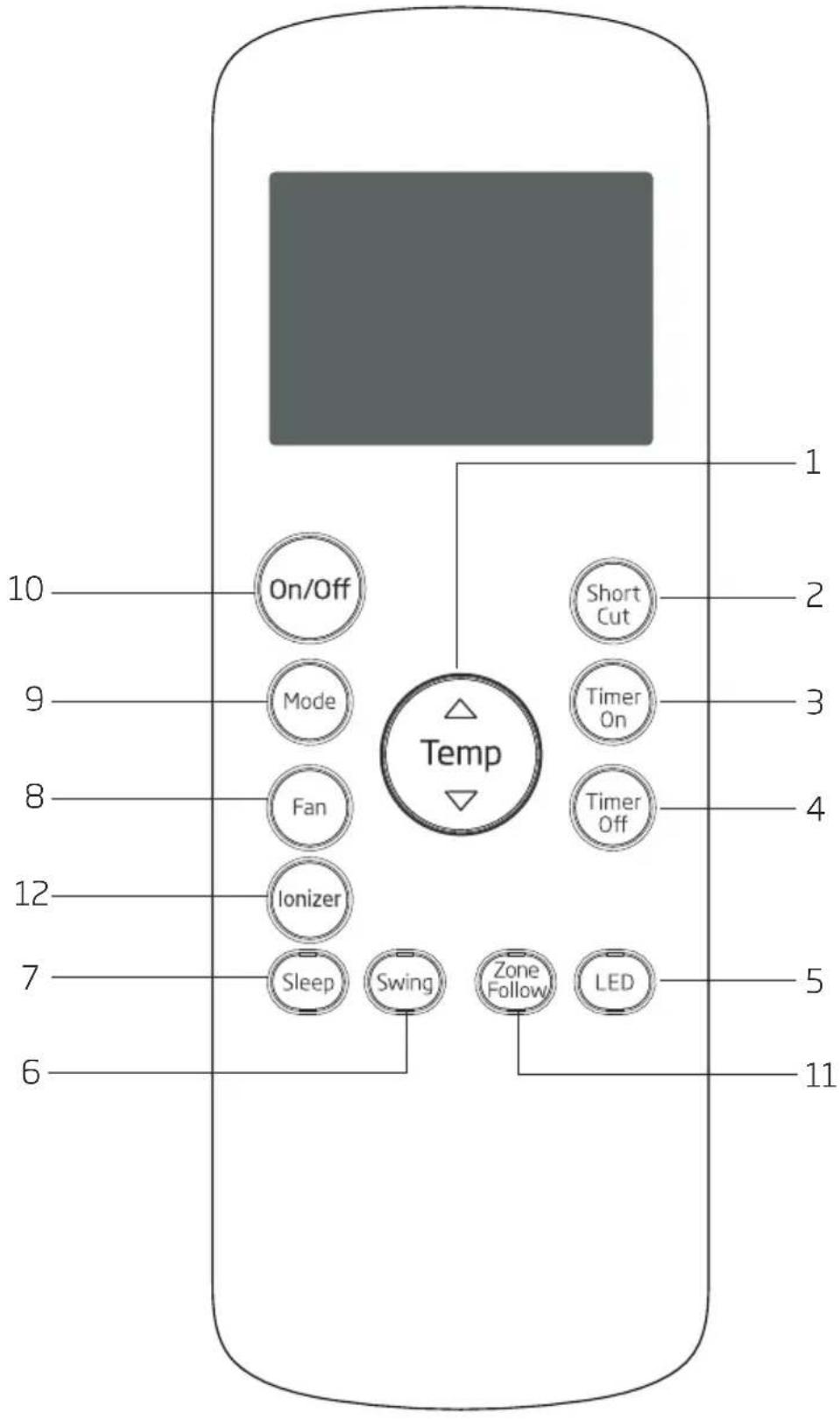

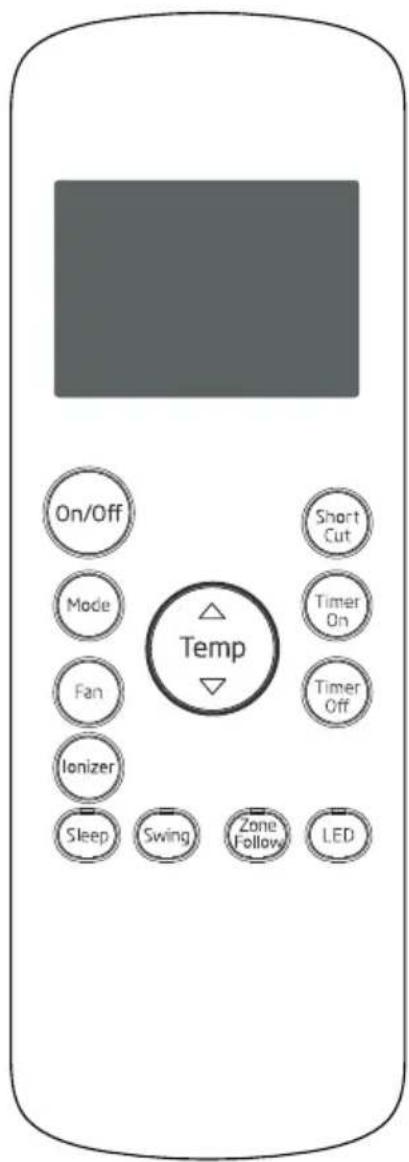

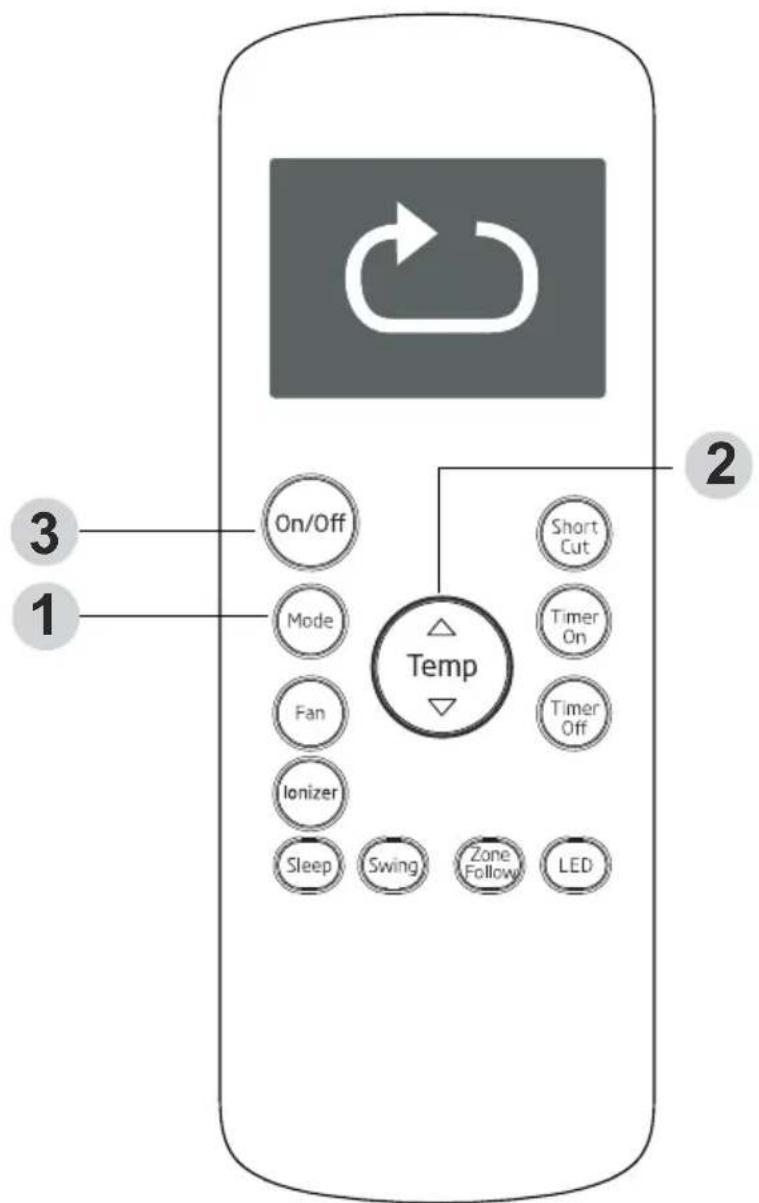

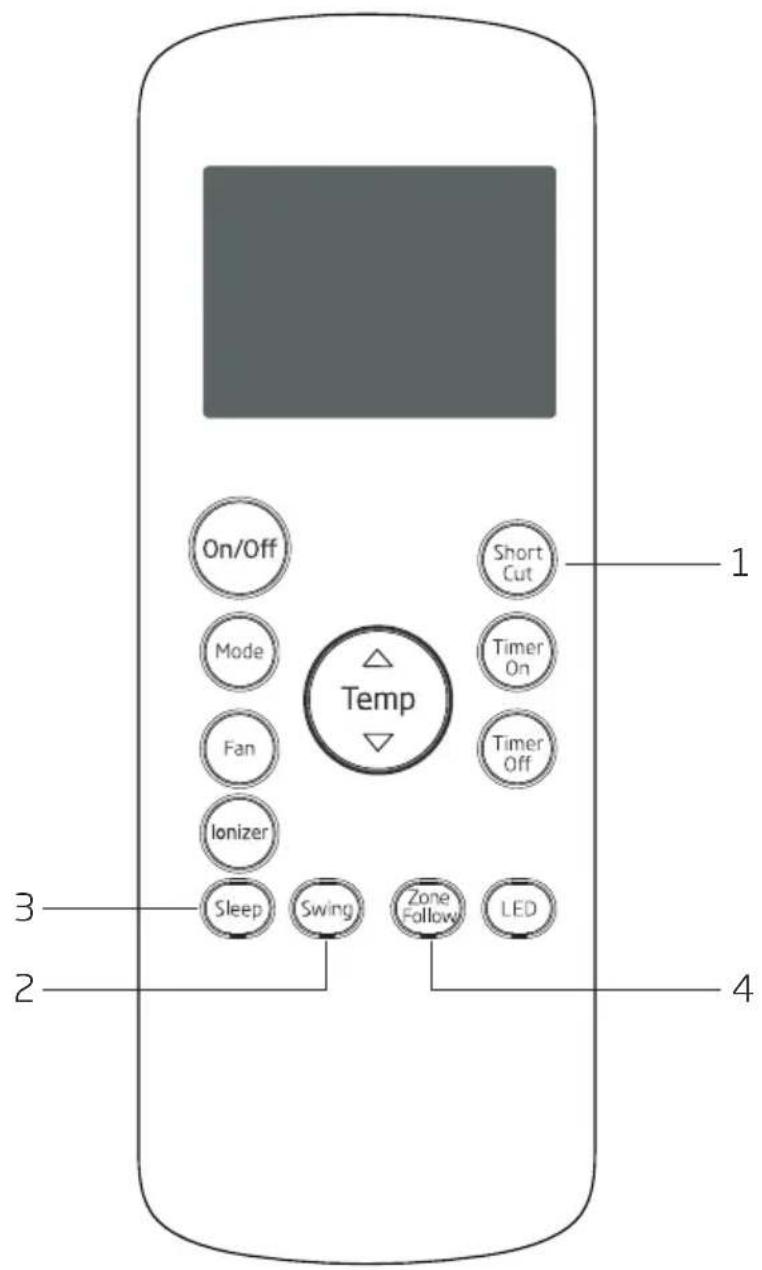

IONIZER feature Press SPEED button for 3 seconds to initiate IONIZER feature and the IONIZER light illuminates, the LED display shows 'ON' for 3 seconds. The ion generator is energized and will help to purify the air inside. Press SPEED button for 3 seconds again to stop the IONIZER feature and the IONIZER light turn dark, the LED display shows 'OF' for 3 seconds. Note: - When the function is turned on, it will continuous working until you turn off the function or product. Local air conditioner33 / 224 EN

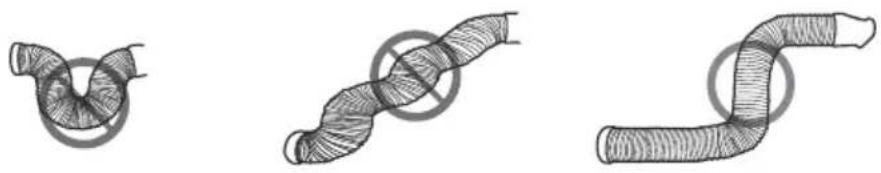

Note: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions. Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord. Contact the manufacturer or its service agents or a similar qualified person for service. Exhaust hose installation The exhaust hose and adaptor must be installed or removed in accordance with the usage mode. For Cool, Heat (heat pump type) or Auto mode must be installed exhaust hose. For fan, dehumidllfy or heat (electrical heat type) mode must be removed exhaust hose.

5.1 Operation instructions

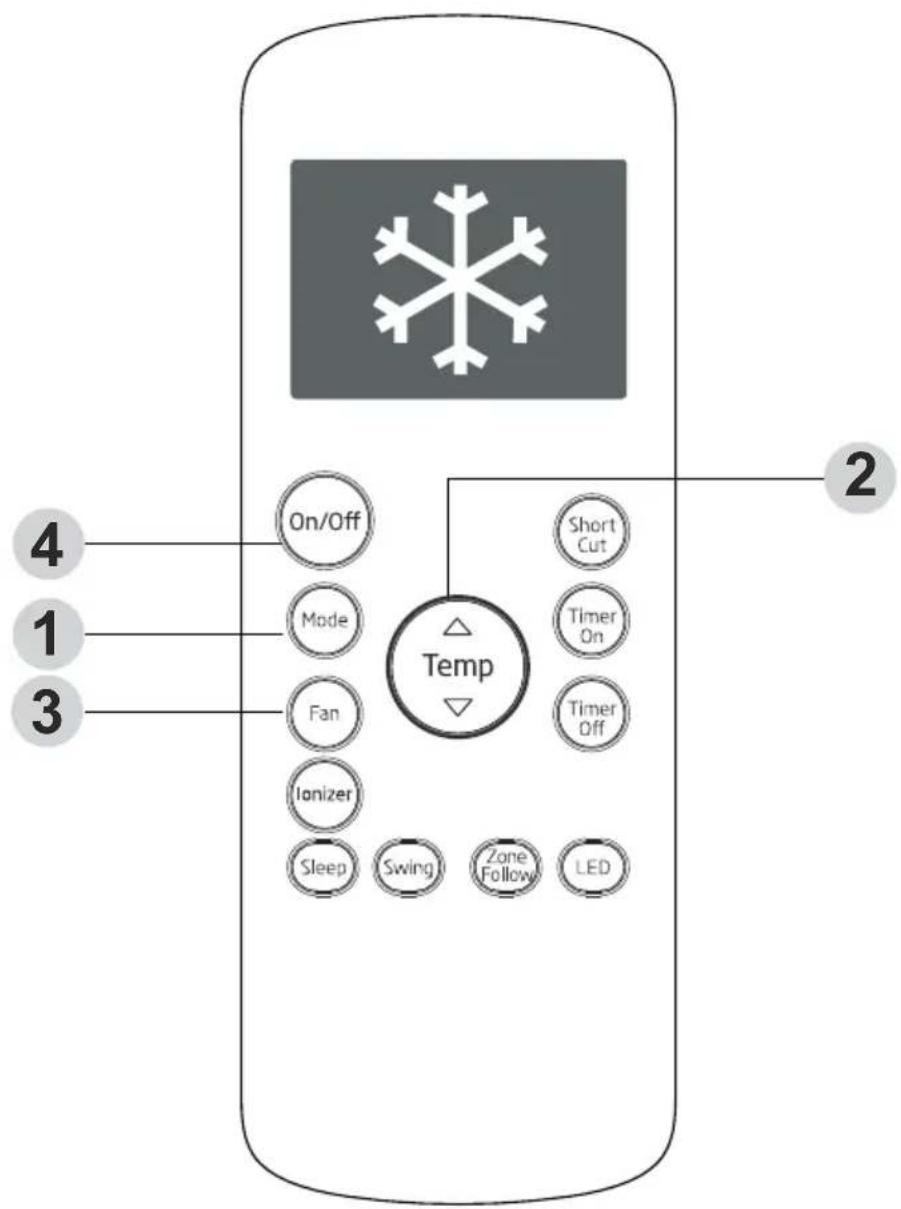

Press the “MODE” button until the “Cool” indicator light comes on.

Press the Adjust buttons “+” or "-" to select your desired room temperature. The temperature can be set within a range of 17°C-30°C.

Press the “FAN SPEED” button to choose the fan speed. Heat operation (cooling only models without this function)

Press the “MODE” button until the “Heat” indicator light comes on.

Press the Adjust buttons “+” or “ - “ to select your desired room temperature. The temperature can be set within a range of 17°C-30°C.

Press the “FAN SPEED” button to choose the fan speed. For some models, the fan speed can not be adjusted under Heat mode. Dry operation

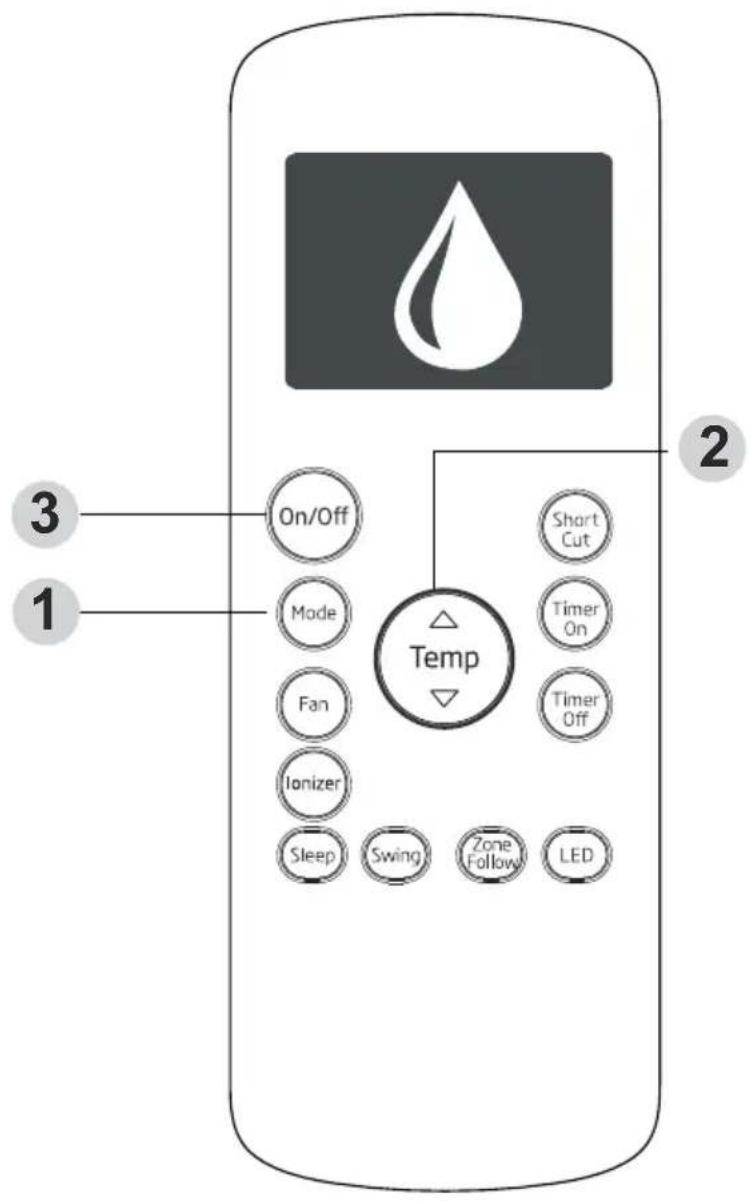

Press the “MODE” button until the “Dry” indicator light comes on.

Under this mode, you cannot select a fan speed or adjust the temperature. The fan motor operates at Low speed.

Keep windows and doors closed for the best dehumidifying effect.

Do not put the duct to window. Auto operation

When you set the air conditioner in Auto mode, it will automatically select cooling, heating (cooling only models without), or fan only operation depending on what temperature you have selected and the room temperature.

The air conditioner will control room temperature automatically round the temperature point set by you.

Under Auto mode, you can not select the fan speed. 5 Operation Local air conditioner34 / 224 EN

Note: Under Auto mode, both the Auto mode and the actual operation mode indicator lights illuminate for some models. Fan operation

Press the “MODE” button until the”Fan “ indicator light comes on.

Press the “FAN SPEED” button to choose the fan speed. The temperature can not be adjusted.

Do not put the duct to window. Timer operation

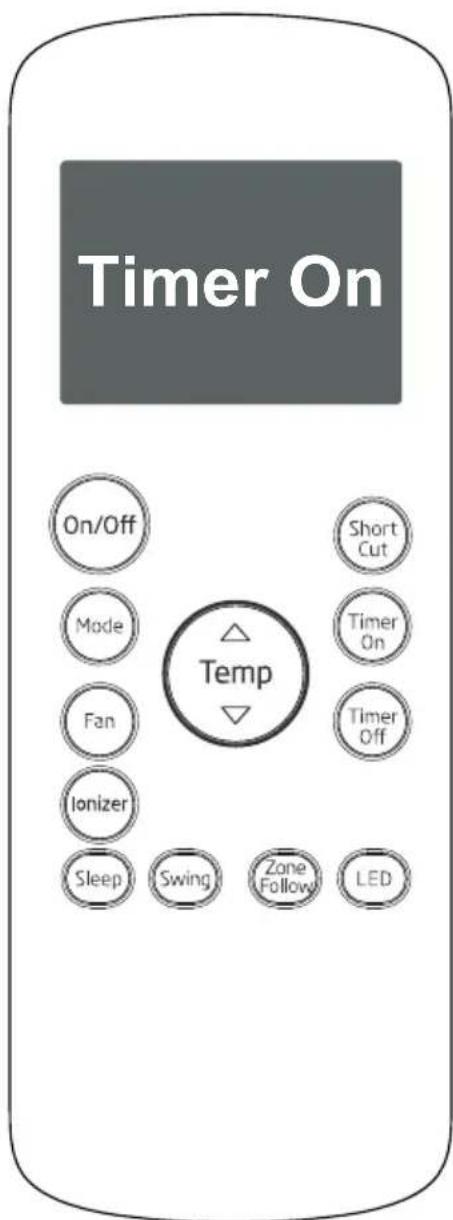

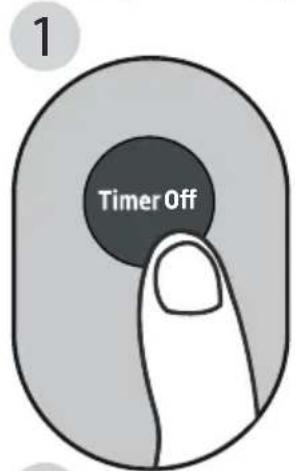

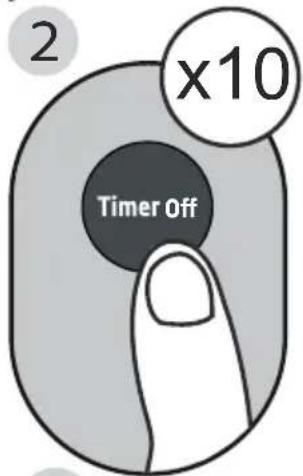

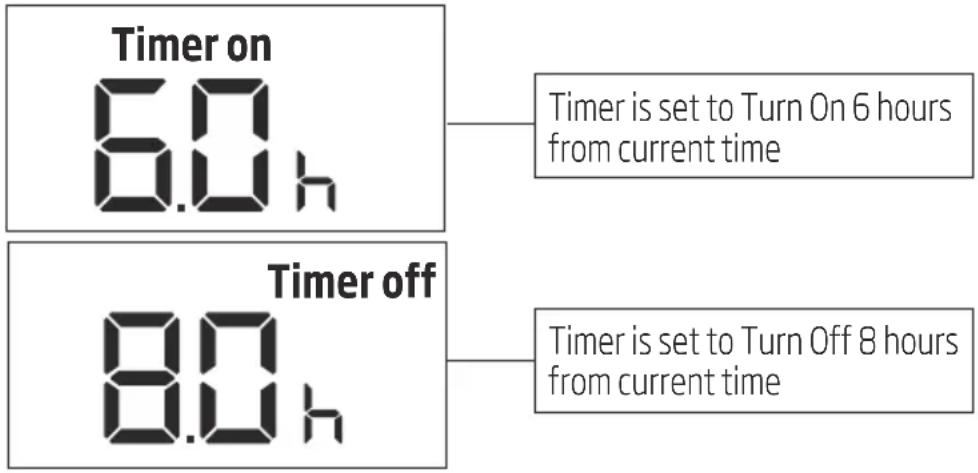

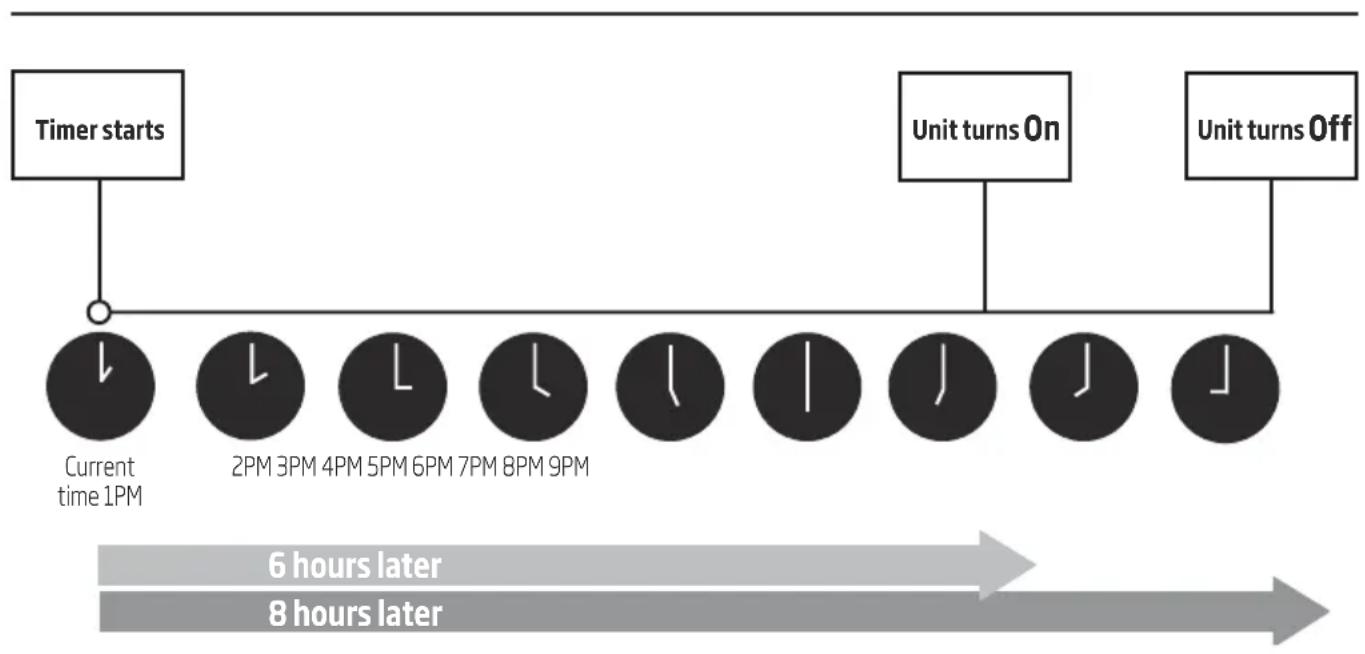

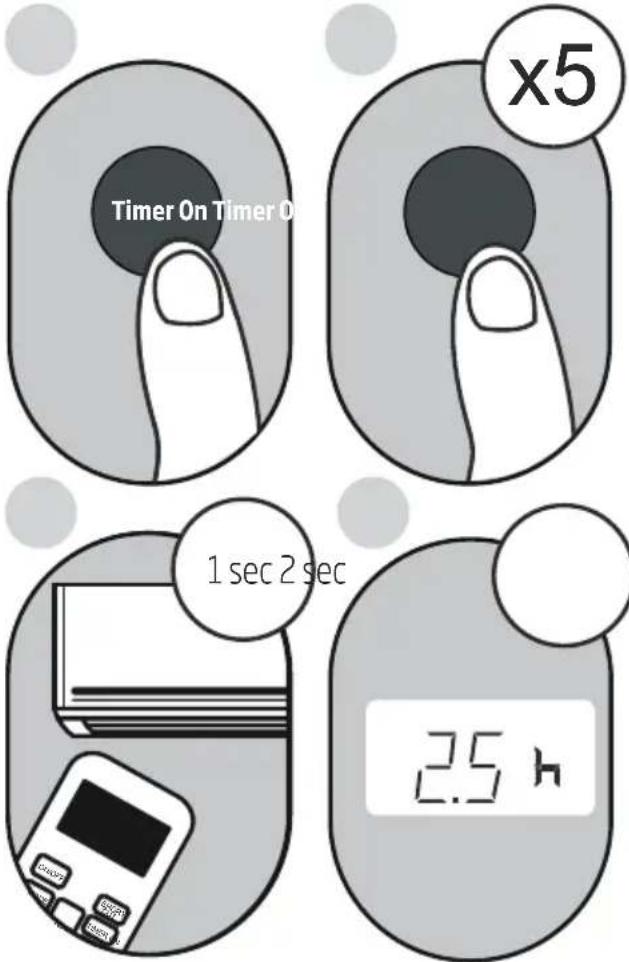

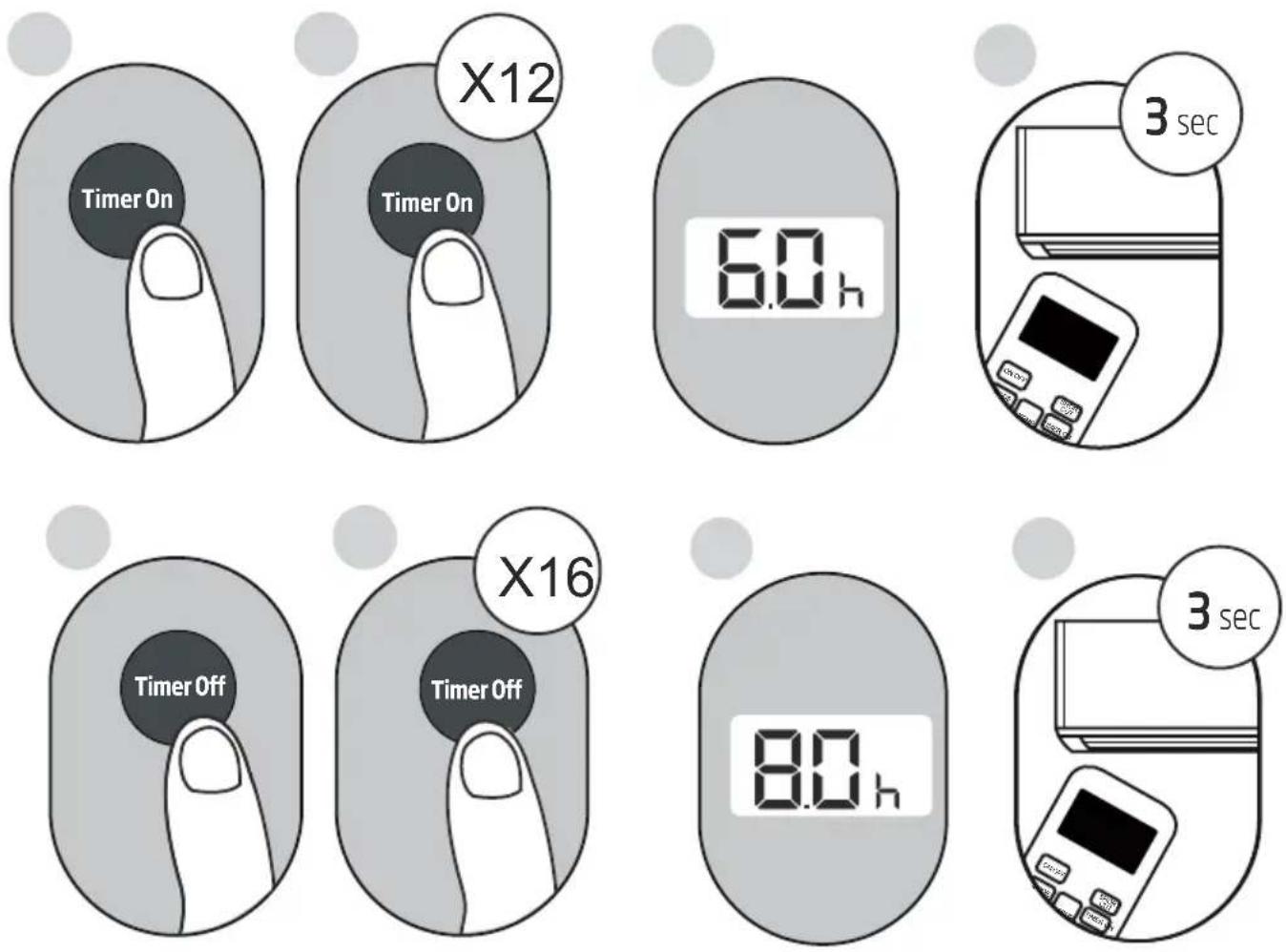

When the unit is on, press the TIMER button will initiate the Auto-off stop program, the Timer off indicator light illuminates. Press the up or down button to select the desired time. Press the Timer button again within 5 seconds, the Auto-on start program is initiated. And the Timer on indicator light illuminates. Press the up or down button to select the desired Auto-on start time.

When the unit is off, press the Timer button to initiate the Auto-on start program, press it again within 5 seconds will initiate the Auto-off stop program.

Press or hold the Up or Down button to change the Auto time by 0.5 hour increments, up to 10 hours, then at 1 hour increments up to 24 hours. The control will count down the time remaining until start.

The system will automatically revert back to display the previous temperature setting if there is no operation in a 5 seconds period.

Turning the unit On or Off at any time or adjusting the timer setting to 0.0 will cancel the Auto Start/Stop timer program. Sleep (Eco) operation -Press this button, the selected temperature will increase (cooling) or decrease(heating) by 1°C 30 minutes. The temperature will then increase (cooling) or decrease (heating) by another 1°C after an additional 30 minutes. This new temperature will be maintained for 7 hours before it returns to the originally selected temperature. This ends the Sleep mode and the unit will continue to operate as originally programmed.

Note: This feature is unavailabe under Fan or Dry mode. 5 Operation Local air conditioner35 / 224 EN

Note: This feature can be activated from the remote control only. The remote control serves as a remote thermostat allowing for the precise temperature control at its location. To activate the Zone Follow feature, point the remote control towards the unit and press the Zone Follow The remote control will send this signal to the air conditioner until press the Zone Follow again. If the unit does not receive the Zone Follow/Temp Sensing signal during any 7 minutes interval, the unit will exit the Zone Follow/Temp Sensing mode.

Note: This feature is unavailabe under Fan or Dry mode. Auto-Restart If the unit breaks off unexpectedly due to the power cut,it will restart with the previous function setting automatically when the power resumes. Air flow direction adjustment The louver can be adjusted automatically. Adjust the air flow direction automatically:

When the power is on, the louver opens fully.

Press the SWING button on the panel or remote controller to initiate the Auto swing feature. The louver will! swing up and down automatically.

Please do not adjust the louver manually. Wait 3 minutes before resuming operation After the unit has stopped, it can not be restarted operation in the first 3 minutes. This is to protect the unit. Operation will automatically start after 3 minutes. Power management feature (on some models) When the ambient temperature is lower than the setting temperature for a period of time, the unit will be automatically operate power management feature. The compressor and fan motor stop. When the ambient temperature is higher than the setting temperature, the unit will be automatically quit the power management feature. The compressor and (or) fan motor run.

Note: For unit with power management light, the light will illuminate under this feature. 5 Operation Local air conditioner36 / 224 EN Water drainage

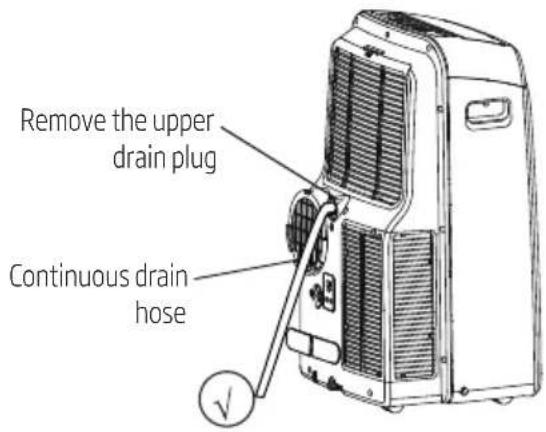

During dehumidifying modes, remove the upper drain plug from the back of the unit, install the drain connector (5/8” universal female mender) with 3/4” hose (locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the hose directly over the drain area in your basement floor. Remove the upper drain plugContinuous drain hose

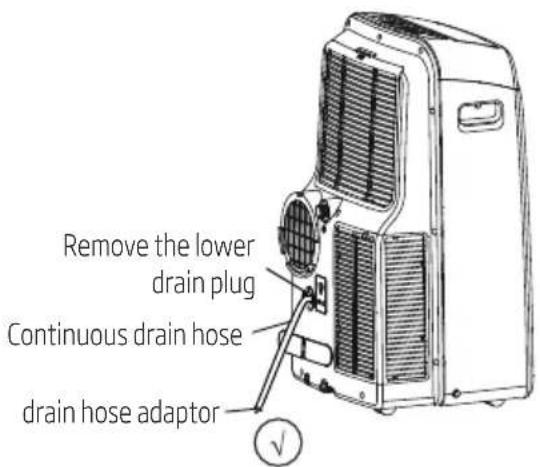

During heating pump mode, remove the lower drain plus from the back of the unit, install the drain connector (5/8" universal female mender) with 3/4” hose (locally purchased). For the models without drain connector, just attach the drain hose to the hole. Place the open end of the Hose adaptor directly over the drain area in your basement floor.

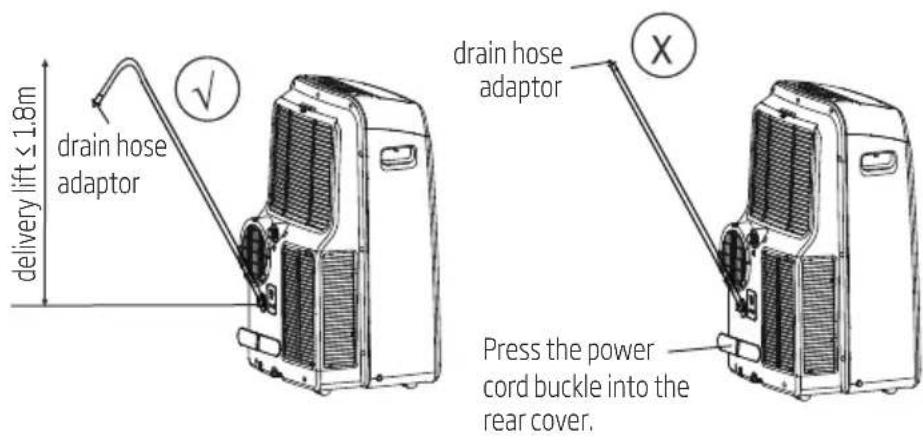

Note: Make sure the hose is secure so there are no leaks. Direct the hose toward the drain, making sure that there are no kinks that will stop the warter flowing. Place the end of the hose into the drain and make sure the end of the hose is down to let the water flow smoothly. (See figs with . Do never let it up. (See figs with ). When the continuous drain hose is not used, ensure that the corresponding drain plug and knob are installed firmly to prevent leakage. Remove the lower drain plugContinuous drain hosedrain hose adaptor 5 Operation Local air conditioner37 / 224 EN 5 Operation drain hose adaptorPress the power cord buckle into the rear cover.drain hose adaptordelivery lift ≤ 1.8m

When the water level of the bottom tray reaches a predetermined level, the unit beeps 8 times, the digital display area shows “P1” . At this time the air conditioning/dehumidification process will immediately stop. However, the fan motor will continue to operate(this is normal). Carefully move the unit to a drain location, remove the bottom drain plug and let the water drain away. Reinstall the bottom drain plug and restart the machine until the “P1” symbol disappears. If the error repeats, call for service.

Note: Be sure to reinstall the bottom drain plug firmly to prevent leakage before using the unit. Local air conditioner38 / 224 EN

Do not use flammable lquds or chemcals to clean the unt.

Do not wash the unt under runnng water. Dong so causes electrcal danger.

Do not operate the machne f the power supply was damaged durng cleanng. A damaged power cord must be replaced wth a new cord from the manufacturer.

6.1 Clean the air filter

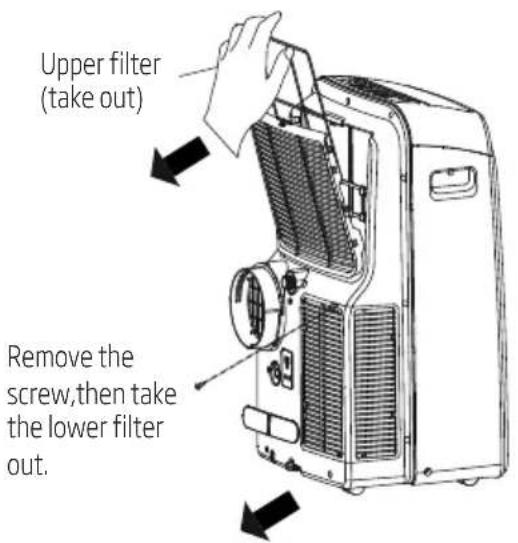

Upper flter (take out)Remove the screw,then take the lower flter out. Remove the ar flter

Do not operate the unt wthout flter because drt and lnt wll clog t and reduce performance. 6 Maintenance Local air conditioner39 / 224 EN Maintenance tips

Be sure to clean the air filter every 2 weeks for optimal performance.

The water collection tray should be drained immediately after P1 error occurs, and before storage to prevent mold.

In households with animals, you will have to periodically wipe down the grill to prevent blocked airflow due to animal hair. Clean the unit Clean the unit using a damp, lint-free cloth and mild detergent. Dry the unit with a dry, lint-free cloth. Store the unit when not in use

Drain the unit's water collection tray according to the instructions in the following section.

Run the appliance on Fan mode for 12 hours in a warm room to dry it and prevent mold.

Turn off the appliance and unplug it.

Clean the air filter according to the instructions in the previous section. Reinstall the clean, dry filter before storing.

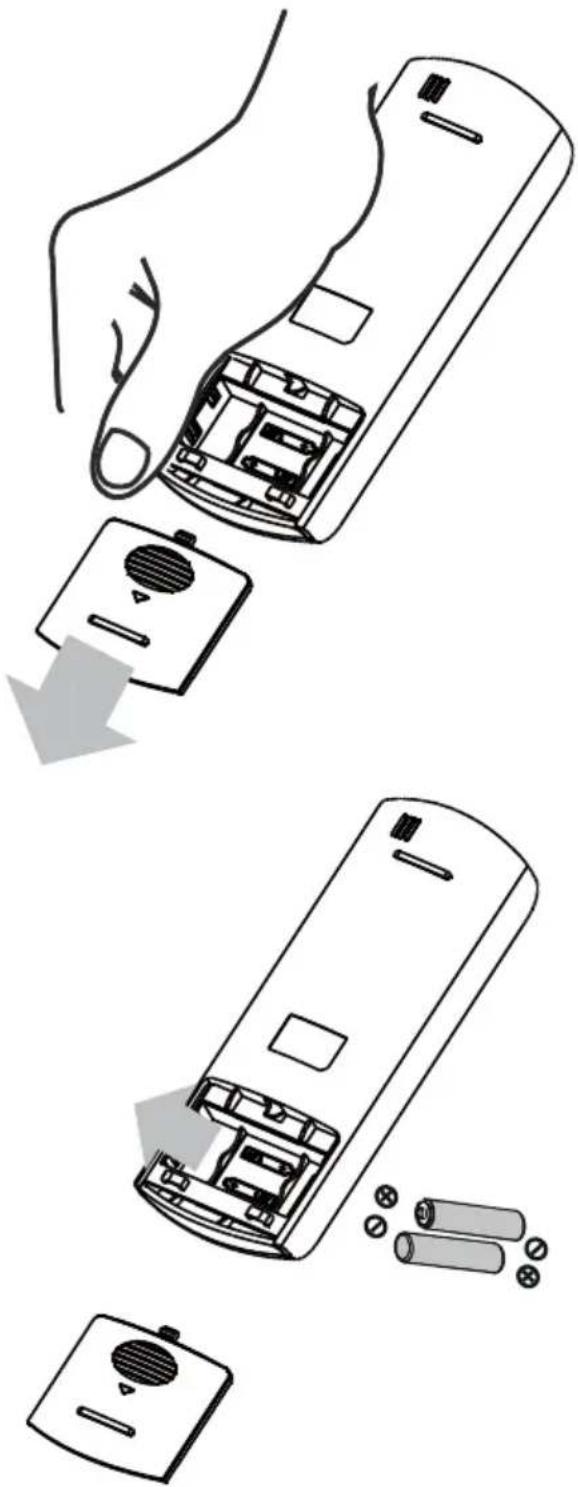

Remove the batteries from the remote control. Be sure to store the unit in a cool, dark place. Exposure to direct sunshine or extreme heat can shorten the lifespan of the unit.

Note: The cabinet and front may be dusted with an oil-free cloth or washed with a cloth dampened in a solution of warm water and mildliquid dishwashing detergent. Rinse thoroughly and wipe dry. Never use harsh cleansers, wax or polish on the cabinet front. Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the unit. 6 Maintenance Local air conditioner40 / 224 EN Please check the machine according to the following form before asking for maintenance: Problem Possible cause Troubleshooting Unit does not turn on when pressing On/Off button P1 Error code The water collection tray is full. Turn off the unit, drain the water from the water collection tray and restart the unit. In cool mode: room temperature is lower than the set temperature Reset the temperature Unit does not cool well The air filter is blocked with dust or animal hair Turn off the unit and clean the filter according to instructions Exhaust hose is not connected or is blocked Turn off the unit, disconnect the hose, check for blockage and reconnect the hose The unit is low on refrigerant Call a service technician to inspect the unit and top off refrigerant Temperature setting is too high Decrease the set temperature The windows and doors in the room are open Make sure all windows and doors are closed The room area is too large Double-check the cooling area There are heat sources inside the room Remove the heat sources if possible The unit is noisy and vibrates too much The ground is not level Place the unit on a flat, level surface The air filter is blocked with dust or animal hair Turn off the unit and clean the filter according to instructions The unit makes a gurgling sound This sound is caused by the flow of refrigerant in-side the unit This is normal 7 Faults diagnosis Local air conditioner41 / 224 EN Design notice The design and specifications are subject to change without prior notice for product improvement. Consult with the sales agency or manufacturer for details. Any updates to the manual will be uploaded to the service website, please check for the latest version. Energy rating information The Energy Rating for this unit is based on an installation using an un-extended exhaust duct without window slider adaptor or wall exhaust adaptor A (as shown in the Installation section of this manual). Unit temperature range Mode Temperature range Cool 17-35°C Dry 13-35°C Heat (pump heat mode) 5-30°C Heat (electrical heat mode) ≤ 30°C

Note: To be in compliance EN 61000-3-11, the product BA 312 H shall be connected only to a supply of the system impedance: I Zsys I =0.348 ohms or less, the product BA 312 C shall be connected only to a supply of the system impedance: I Zsys |=0.362 ohms or less. Before connect the product to public power network, please consult your local power supply authority to ensure the power network meet above requirement. 8 Design and compliance notes Local air conditioner42 / 224 EN

least free of charge to the user.

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health. Local air conditioner43 / 224 EN

10.1 F-Gas instruction

This product contains fluorinated greenhouse gases covered by the Kyoto protocol. The fluorinated greehouse gases are contained in hermetically sealed equipment. Installs, services, maintains, repairs, checks for leaks or decommissions equipment and product recycling should be carried out by natural persons that hold relevant certificates. If the system has a leakage detection system installed, leakage checks should be performed at least every 12 months, make sure system operate properly. If product must be performed leakage checks, it should specify Inspection cycle, establish and save records of leakage checks.

equivalent of fluorinated greenhouse gases is less than 10 tonnes, it should not perform leakage checks. 10 Installation instructions Local air conditioner44 / 224 EN

T1 T1 T1 - Heat pump - (Btu/h)

Local air conditioner

1. Specification are standard values calculate based on rated operation conditions. They will vary in

difference work condition.

2. Our company has quick technical improvements. There will be no prior notice for any change of

220V-240V 50Hz, 1Ph220V-240V 50Hz, 1Ph220V-240V 50Hz, 1Ph220V-240V 50Hz, 1Phwww.beko.comAir conditioner remote control User Manual EN FR DE IT RO 02M-8500063200-4920-01Please read this user manual first! Dear Customer, Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual. Meanings of the symbols Following symbols are used in the various section of this manual: This product has been produced in environmentally friendly, modern facilitiesComplies with the WEEE Regulation. Does not contain PCB.

Warning for hazardous situations with regard to life and property. Warning to actions that must never perform.

Starts and stops louver movement.

Auto Cool Dry Heat Fan

Press this button, the Ionizer is energized and will help to remove pollen and impurities from the air.7 / 21 EN Air conditioner remote control / User Manual 7 / 108 EN Not sure what a function does? Refer to the How to use the basic functions and How to use the advanced functions sections of this manual for a detailed description of how to use your air conditioner.

Special note tButton designs on your unit may differ slightly from the example shown. tIf the unit does not have a particular function, pressing that function s button on the remote control will have no effect. tWhen there are wide differences between Remote control Illustration and USER'S MANUAL on function description, the description of "USER'S MANUAL" shall prevail.

3.1 Insertng and replacng batteres

Your air conditioning unit comes with two AAA batteries. Put the batteries in the remote control before use.

1. Slide the back cover from the remote Control downward, exposing the battery compartment.

2. Insert the batteries, paying attention to match up the (+) and (-) ends of the batteries with the

symbols inside the battery compartment.

3. Slide the battery cover back into place.

Battery notes For optimum product performance: tDo not mix old and new batteries, or batteries of different types. tDo not leave batteries in the remote control if you don t plan on using the device for more than 2 months.

Battery disposal Do not dispose of batteries as unsorted municipal waste. Refer to local laws for proper disposal of batteries. Tips for using remote control tThe remote control must be used within 8 meters of the unit. tThe unit will beep when remote signal is received. tCurtains, other materials and direct sunlight can interfere with the infrared signal receiver. tRemove batteries if the remote will not be used more than 2 months. 3 Handlng the remote control8 / 108 EN Air conditioner remote control / User Manual 3 Handling the remote control9 / 21 EN Air conditioner remote control / User Manual 9 / 108 EN

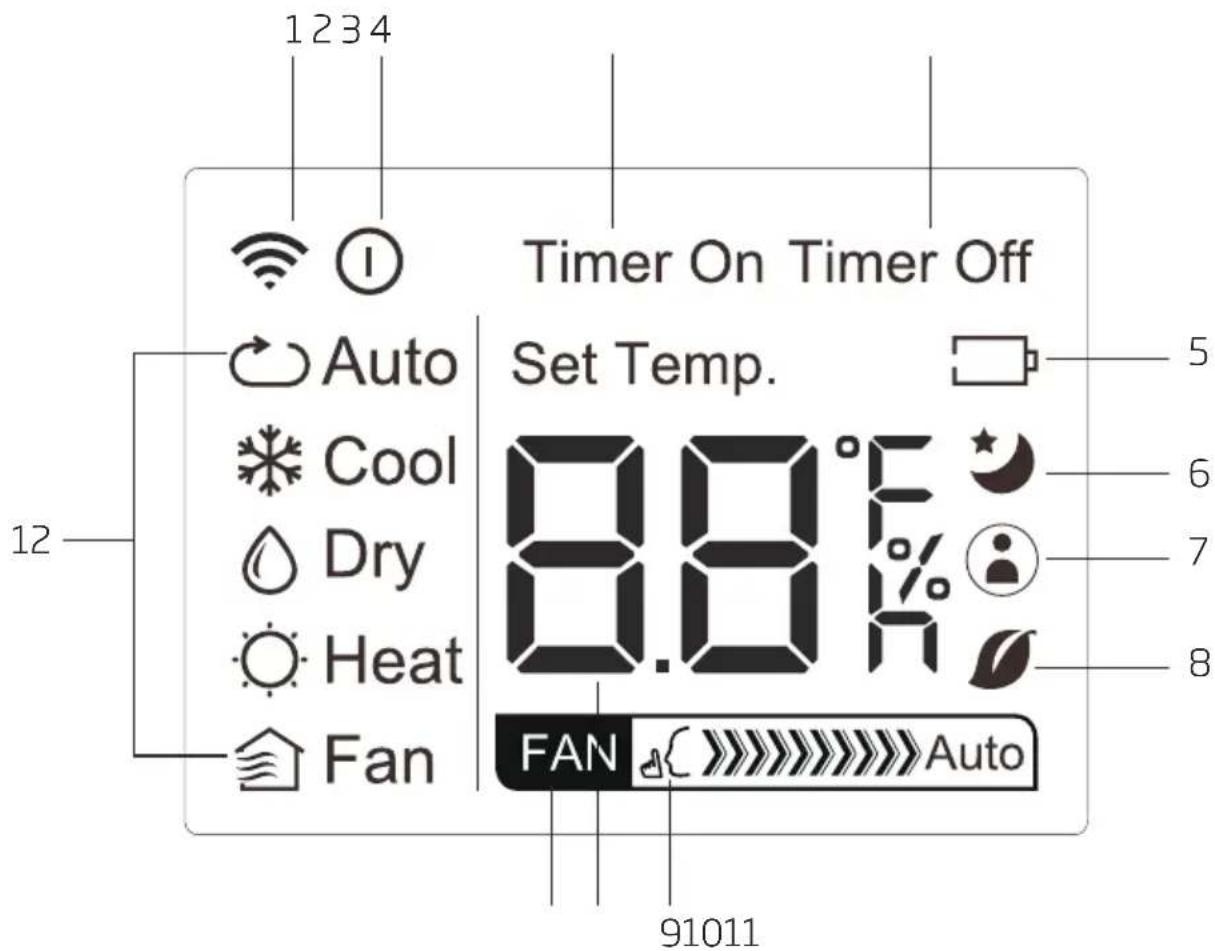

Lights up when remote sends signal to unit

Appears when the unit is turned on, and disappears when it is turned off

Displays when Timer On is set

4. Timer Off display

Displays when Timer Off is set

Low battery detection

Displays when Sleep function is activated

7. Zone Follow display

Indicates that the Zone Follow function is on

Not available for this unit

Displays selected Fan Speed: High, Med, or Low This display is blank when set to Auto speed.

In Auto temperature.

5.6 Setting the timer function

Your air conditioning unit has two timer-related functions:Timer On- sets the amount of timer after which the unit will automatically turn on.Timer Off- sets the amount of time after which the unit will automatically turn off.Timer On function The Timer On function allows you to set a period of time after which the unit will automatically turn on, such as when you come home from work.

1. Press the Timer On button. By default, the last time period that you set and an "h" (indicating

hours) will appear on the display. Note: This number indicates the amount of time after the current time that you want the unit to turn on.For example, if you set Timer On for 2 hours, "2.0 h" will appear on the screen, and the unit will turn on after 2 hours.2. Press the Timer On button repeatedly to set the time when you want the unit to turn on.3. Wait 2 seconds, then the Timer On function will be activated. The digital display on your remote control will then return to the temperature display.ON/OFF MODE FAN SHORT CUT TIMER ON TIMER OF

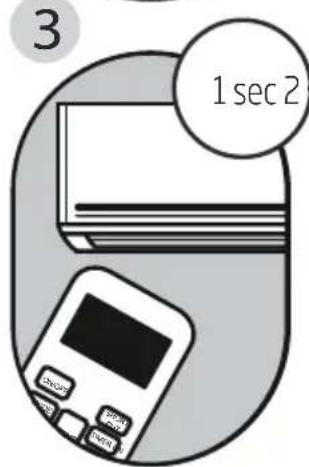

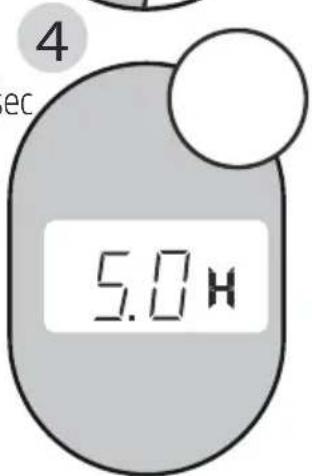

1 sec 2 secTimer On Timer OnExample: Setting unit to turn on after 2.5 hours. 5 How to use the basic functions16 / 108 EN The off, such as when you wake up.1. Press the Note: hours, "2.0 hours.2. Press the 3. x10 ON/OFF MODE FAN SHORT CUT TIMER ON TIMER OF

518 / 108 EN Air conditioner remote control / User ManualSetting both Timer On and Timer Off at the same timeKeep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically turn off at 9:00 PM.Do the following:ON/OFFON/OFF MODE MODE SHORTSHORT CUT CUT

3 sec 3 sec Timer OnTimer OffTimer OffTimer On 5 How to use the basic functions19 / 21 EN Air conditioner remote control / User Manual 19 / 108 EN Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see the figure below)

Your remote display 6 hours later8 hours later Timer on Timer startsUnit turns Current time 1PM2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PMUnit turns Off Timer off Timer is set to Turn On 6 hours from current time Timer is set to Turn Off 8 hours from current time 5 How to use the basic functions20 / 108 EN

The Sleep function is used to decrease energy use while you sleep (and don t need the same temperature settings to stay comfortable). This function can only be activated via remote control.

Note: The sleep function is not available in Fan or Dry mode.

4. Zone Follow function

The Zone Follow function enables the remote control to measure the temperature at its current location. When using Auto, Cool, or Heat functions, measuring ambient temperature from the remote control (instead of from the indoor unit itself) will enable the air conditioner to optimize the temperature around you and ensure maximum comfort.

1. Press Zone Follow button to activate function. The remote control will send temperature signal

to the indoor unit every three minutes.

2. Press Zone Follow button again to turn off this function.

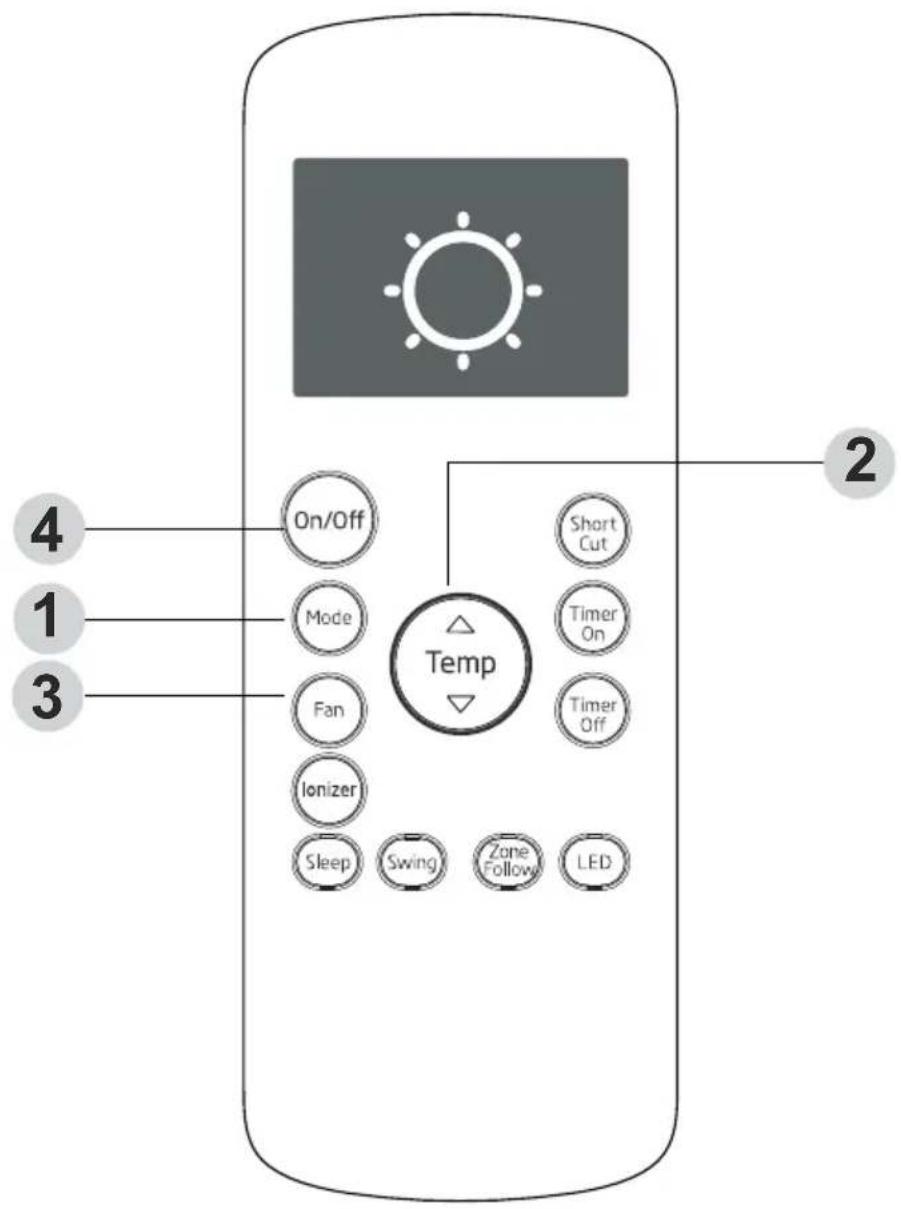

Auto Heat (Chauffage)

2. Mode Swing (oscillation)

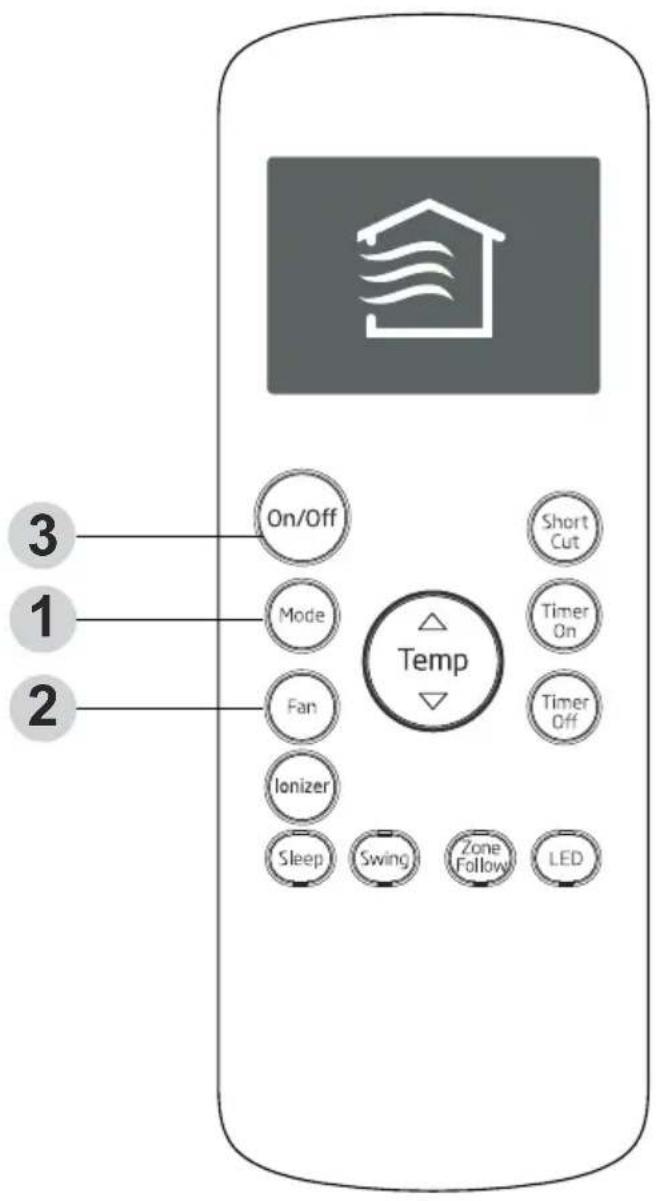

MODE MODE SHORTSHORT CUT CUT
