EN ESDE FR IT PLNL RUTrademarks: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,. Inc. The terms HDMI, HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.EN Important safety instructions CAUTION

RISK OF ELECTRIC SHOCKDO NOT OPEN

Please, read these safety instructions and respect the following warnings before the appliance is operated: The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of su cient magnitude as to constitute a risk of electric shock to persons.The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.Use only power supply listed in the user manual.This symbol means that the product should be disposed of in an environmentally friendly manner and not with general household waste.AC voltageDC voltageClass II equipment In order to prevent re always keep candles and other open ames away from this product.

• Always follow basic safety precautions when using this applience, espe-cially when children are present.• Children should be supervised to ensure that they do not play with the appliance.• Do not damage the power cord, neither do not place any heavy objects on it, do not strech it or bend it. Also do not attach extension cables. Damage to the power cord may occur re or electric shock.• If the supply cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualied persons in order to avoid a hazard.• Ensure that the unit is plugged into an AC 100-240V 50/60Hz power outlet. Using higher voltage may cause the unit to malfunction or even re catching.• If the power plug does not t into your outlet, do not force the plug into an electrical socket if it does not t.• Turn o the unit before unplugging it from power source to completely switch it o .• Do not disconnect or connect the power cord with wet hands. It may cause an electric shock.• Disconnect the power cord if it is not used for a long time.• Ensure that the mains plug is always easily accessible.• This product does not contain any parts that are serviceable by the user. In case of a fault, contact the manufacturer or authorised service department. Exposing the internal parts inside the device may endanger your life. The manufacturers guarantee does not extend to faults caused by repairs carried out by unauthorised third parties.• Do not use this product immediately after unpacking. Wait until it warms up to room temperature before using it.• Ensure this product is used in moderate climates only (not in tropical/subtropical climates).• Place product on a at, stable surface that is not subject to vibrations.• Ensure the product and its parts is not overhanging the edge of the supporting furniture.• To reduce the risk of fire, electric shock or damage to this product, do not expose it to direct sunlight, dust, rain and moisture. Never expose it to dripping or splashing and do not place objects filled with liquids on or near the product.• Do not place objects lled with liquids, such as vases, on the apparatus.• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli ers) that produce heat.• Do not place the product where the humidity is high and ventilation is poor.• Ensure a minimum distance of 5 cm around the apparatus for su cient ventilation. Do not block any ventilation openings of this product. Always ensure that the ventilation openings are not covered with items such as newspapers, table-cloths, curtains, etc.• NEVER let anyone, especially children, push anything into holes, slots or any other openings in the unit’s casing as this could result in a fatal electric shock.• Storms are dangerous for all electric appliances. If the mains or aerial wiring is struck by lightning, the appliance might get damaged, even if it is turned o . You should disconnect all the cables and connectors of the appliance before a storm.• Excessive sound pressure from earphones and headphones can cause hearing loss. Maintenance
• Unplug the power cable from the power source before cleaning the appliance.• Use a soft and clean rag to clean the outside of the unit. Never clean it with chemicals or detergent. Power Adapter
• To disconnect the unit from the mains supply, unplug the lead from the mains socket.• Only use the supplied mains adaptor as failure to do this may result in a safety risk and/or damage to the unit. Batteries
• Observe the correct polarity when inserting the batteries.• Do not expose batteries to high temperatures and do not place them on locations where the temperature might increase quickly, e.g. near the re or on the direct sunshine.• Do not expose batteries to excessive radiant heat, do not throw them into the re, do not disassemble them and do not try to recharge un-rechargeable batteries. They could leak or explode.• Disposal of a battery into re or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;• Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of ammable liquid or gas;• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of ammable liquid or gas.• CAUTION: Risk of explosion if the battery is replaced by an incorrect type.• Replacement of a battery with an incorrect type that can defeat a safeguard.

CAUTIONRISK OF ELECTRIC SHOCKDO NOT OPEN

Trademarks: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG,. Inc. The terms HDMI, HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.4

• Never use di erent batteries together or mix new and old ones.

• When the Remote Control is not to be used for a long time (more than a month), remove the battery from the Remote Control to prevent it from leaking.

• If the batteries leak, wipe away the leakage inside the battery compart- ment and replace the batteries with new ones.

• Do not use any batteries other than those specied. Do not ingest battery, chemical burn hazard

• If the battery is swallowed, it can cause severe internal burns in just 2 hours and lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. Disposal of this equipment and Batteries

• Do not dispose of this product or its batteries as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE in accordance with local law. By doing so, you will help to conserve resources and protect the environment.

• Most of the EU countries regulate the disposal of batteries by law. Contact your retailer or local authorities for more information.

• The shown above appears on electrical and electronivcal equipment and batteries (or the packaging) to remind users of this. If "Hg" or 'Pb' appears below the symbol, this mean that the battery cantains traces of mercury (Hg) or lead (Pb), respectively.

• Users are requested to use existing return facilities for used equipment and batteries. CE and UKCA statement:

• Hereby, Sharp Consumer Electronics Poland sp. z o.o. declares that this audio device is in compliance with the essential requirements and other relevant provisions of RED Directive 2014/53/EU and UK Radio Equipment Regulations 2017.

• The full text of the EU declaration of conformity is available by following the link www.sharpconsumer.com and then entering download section of your model and choosing “CE Statements”.EN What is included in the box:

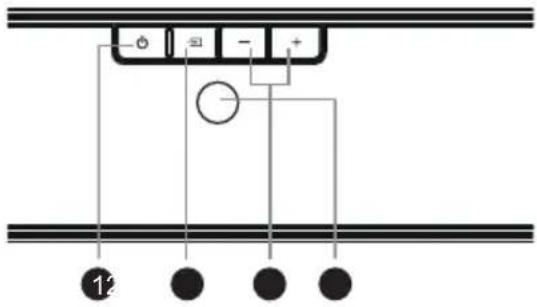

1. Standby button – Switch the unit between ON and STANDBY mode.

Source button – Select the play function.3. Volume +/- button – Increase/decrease the volume level.4. Indicator light• Red: In STANDBY mode.• Blue: In Bluetooth mode.• Green: In LINE IN mode.• Yellow: In Optical mode.• Purple: In HDMI ARC mode. Inputs/Outputs

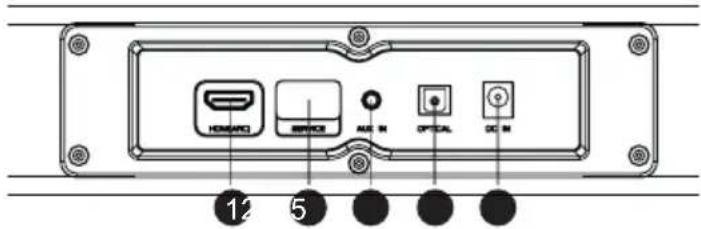

1. HDMI (ARC) IN Socket – Connect to a HDMI video source device (Blu-ray player, gaming console etc.).2. SERVICE ONLY Socket3. AUX IN – Connect to an external audio device.4. OPTICAL Socket – Opticial input jack.5. DC IN Socket – Socket for connecting power adapter (DC 12V/2.0 A). Remote control

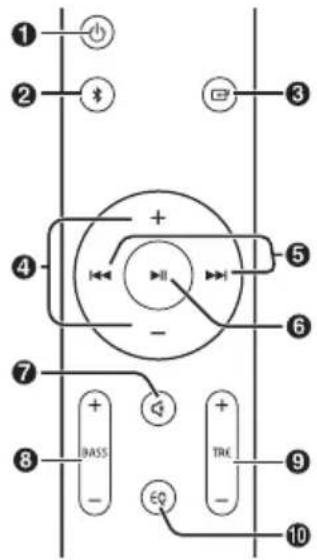

1. – Switch the unit between ON and STANDBY mode.

– Select the Bluetooth mode.Press and hold to activate the pairing function in Bluetooth mode or disconnect the existing paired Bluetooth device. – Select the play function.4. VOL +/- – Increase/decrease the volume level. / – Skip to previous/next track in Bluetooth mode. – Play/pause/resume playback in Bluetooth mode. – (MUTE) Mute or resume the sound.8. BASS +/- – Adjust bass level.9. TRE +/- – Adjust treble level.10. EQ – Select a preset sound mode. RC OPERATIONS The provided Remote Control allows the unit tobe operated from a distance.• Even if the Remote Control is operated within the e ective range of 6m, remote control operation may be impossible if there are any obstacles between the unit and the remote control.• If the Remote Control is operated near other products which generate infrared rays, or if other remote control devices using infra-red rays are used near the unit, it may operate incorrectly. Conversely, the other products may operate incorrectly. BATTERY INSTALLATION 1. Press and slide the back cover to open the battery compartment of the remote control.2. Insert two AAA size batteries (included). Make sure the (+) and (–) ends of the batteries match the (+) and (–) ends indicated in the battery compartment.3. Close the battery compartment cover.6 First time installation Placement and Mounting A B A: Normal Placement(Place Soundbar on leveled surface in front of TV.)B: Wall Mounting Wall Mounting NOTE: – Installation must be carried out by quali ed personnel only. Incorrect assembly can result in severe personal injury and property damage (if you intend to install this product yourself, you must check for installa-tions such as electrical wiring and plumbing that may be buried inside the wall). It is the installer’s responsibility to verify that the wall will safely support the total load of the unit and wall brackets. – Additional tools (not included) are required for the installation. – Do not overtighten screws. – Keep this instruction manual for future reference. – Use an electronic stud nder to check the wall type before drilling and mounting.560 mm 560 mm

ARC OPTICAL LINE IN UPGRADE

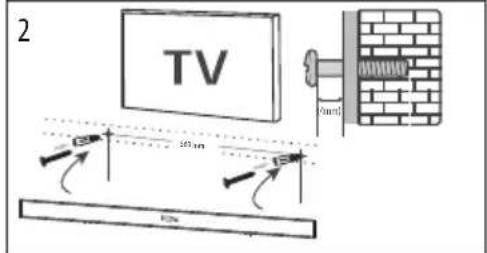

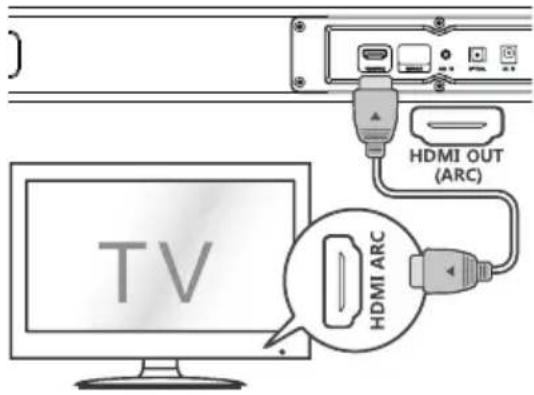

~AC IN 1. Drill 2 parallel holes (Ø 6 mm) in the wall. The distance between the holes should be 560 mm. – Firmly x one dowel into each hole in the wall and then insert screws into them.2. Leave a 4mm gap between the wall and the screw’s head. Lift the unit with the attached wall brackets over the heads of the screws and slot into place. Connections HDMI output (ARC) The ARC (Audio Return Channel) function allows you to send audio from your ARC- compliant TV to your sound bar through a single HDMI connection. To enjoy the ARC function, please ensure your TV is both HDMI-CEC and ARC compliant and set up accordingly. When correctly set up, you can use your TV remote control to adjust the volume output (VOL +/- and MUTE) of the sound bar. – Connect the HDMI cable (not included) from unit‘s HDMI OUT (ARC) socket to the HDMI (ARC) socket on your ARC compliant TV. Then press the remote control to select HDMI ARC.TIPS:• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and ARC must be set to On.• The setting method of HDMI-CEC and ARC may di er depending on the TV. For details about ARC function, please refer to your TV owner’s manual.• Only HDMI cables of version 1.4 or higher can support the ARC function.• While in HDMI/ARC/OPTICAL mode, if there’s no sound output from the unit, you may need to activate PCM signal output on your source device (eg. TV, DVD or Blu-ray player). OPTICAL input

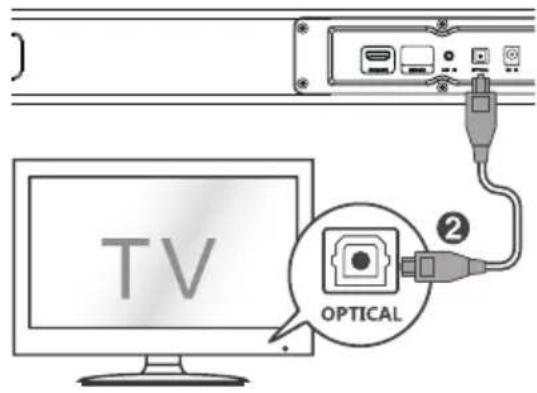

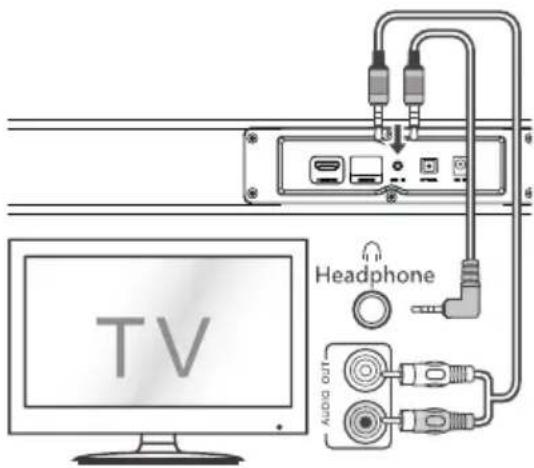

• Use the optical cable to connect the optical input of this soundbar to the optical output of VCD, CD, VCR, DVD player.TIPS:• While in HDMI/ARC/OPTICAL mode, if there’s no sound output from the unit, you may need to activate PCM signal output on your source device (eg. TV, DVD or Blu-ray player).EN AUX IN A. Use a RCA to 3.5mm audio cable (not included) to connect the TV’s audio output sockets to the AUX IN socket on the unit. B. Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV’s or external audio device headphone socket to the AUX IN socket on the unit. TIP: When you use the headphone output on the TV set, you will be able to adjust the volume level directly using the TV remote control. DC IN~AC IN

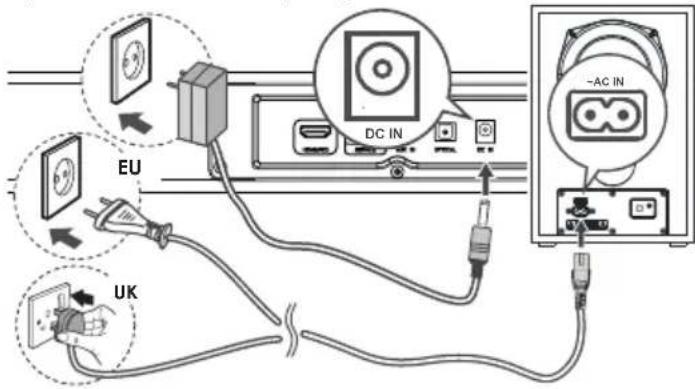

EU UK Connect to Power

• Before connecting this device to power, ensure you have completed all other connections.

• Risk of product damage! Only use the supplied mains adaptor as failure to do this may result in a safety risk and/or damage to the unit.

• Connect power adapter to the DC IN socket of the unit and then connect it into a mains socket.

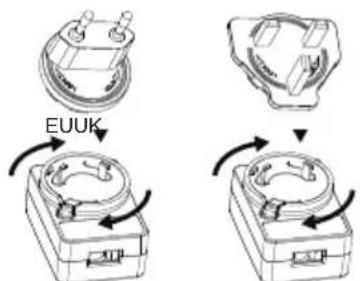

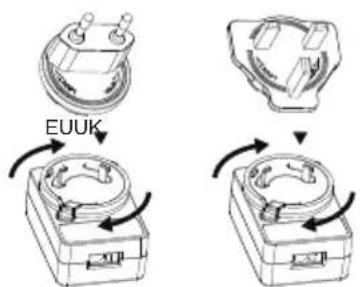

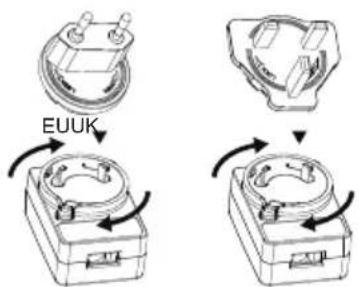

• Should you need to change the power adaptor plug type follow the instructions below:

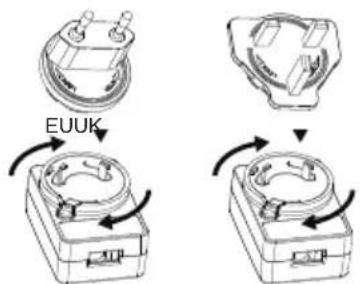

1. Remove the current AC plug adaptor by pressing plastic clip on the

left side and at the same time rotating the AC plug adaptor in an anti- clockwise direction until it pops out of position.

2. Now insert the correct AC plug adaptor by locating it into the AC power

adaptor socket and rotate clockwise until you hear a click con rming that it is locked in position.

• Use the power cord to connect the subwoofer to the mains socket. Pairing the Wireless Subwoofer with the Main Unit Automatic pairing The subwoofer and soundbar will automatically pair when both units are plugged into the supply and turned on. No cable is needed for connecting the two units. – When the subwoofer is pairing with the main unit, the Pairing Indicator will ash fast. – When the subwoofer is paired with the main unit, the Pairing Indicator will light up. NOTE: – Do not press the PAIR button on the rear of the subwoofer, except for manual pairing. – If the automatic pairing fails, pair the subwoofer with the main unit manually. Manual pairing

1. Press the PAIR button on the rear of the subwoofer, subwoofer's red

automatically. NOTE: – If the wireless connection fails again, check if there is con ict or strong interference (for example, interference from an electronic device) around your location. Remove these con icts or strong interferences and repeat the above procedures. – The subwoofer should be within 6m of the soundbar in an open area. – If a device is connected via HDMI (CEC active), the main unit and the subwoofer will switch on automatically when the external device is switched on. Basic Operation Standby/ON

• When you rst connect the unit to the main socket, the unit will be in STANDBY mode.

• Press the button on the remote control to switch the main unit ON or OFF.

• Disconnect the main plug from the main socket if you want to switch the unit o completely. – When the unit has no input signal for over 15 minutes, it will automati- cally switch to Standby mode. Select Modes Press the button on the unit repeatedly or press the / button on the remote control to select the desired mode. Adjust the Volume – Press the + / - buttons on the unit or on the remote control to adjust the volume. – If you wish to turn the sound o , press the button on the remote control. Press the button again or press the +/- buttons on the unit or on the remote control to resume normal listening.8 Select Equaliser (EQ) Eff ect While playing, press the EQ button on the remote control to select between preset equalisers. Each time the button is pressed it will move between the EQ functions as below: Music (recommended for listening to all types of music) - white light ashes 2 seconds Movie (recommended for use with movies) - green light ashes for 2 seconds News (recommended for listening to voices) - red light ashes for 2 seconds Custom (use to set personal bass/treble settings) - cyan light ashes 2 seconds NOTE: Bass/Treble setting is available only in custom preset.

LINE IN/OPTICAL/HDMI ARC

1. Ensure that the unit is connected to the TV or audio device.

2. While in ON mode, press the

button on the unit repeatedly to select the desired mode.

3. Operate your audio device directly for playback features.

4. Press the +/– button to adjust the volume to your desired level.

TIP: While in HDMI ARC/OPTICAL mode, if there’s no sound output from the unit, you may need to activate PCM signal output on your source device (eg. TV, DVD or Blu-ray player). Bluetooth Operation Pair Bluetooth-enabled Devices The rst time you connect your Bluetooth device to this player, you need to pair your device to this player. NOTE: The operational range between this player and a Bluetooth device is approximately 8 meters (without any object between the Bluetooth device and the unit). Before you connect a Bluetooth device to this unit, ensure you know the device’s capabilities. Compatibility with all Bluetooth devices is not guaranteed. Any obstacle between this unit and a Bluetooth device can reduce the operational range. If the signal strength is weak, your Bluetooth receiver may disconnect, but it will re-enter pairing mode automatically.

1. Turn on the soundbar by pressing the standby button.

button on the unit repeatedly or button on the remote control to select Bluetooth mode. Bluetooth mode is activated when the indicator light turns blue.

3. Enter the Bluetooth search mode on the device you wish to connect to

4. Select SHARP HT-SBW182 from the list.

5. Your device and the soundbar will now be connected; the blue

indicator will stop ashing. – To disconnect your device, switch o the Bluetooth connection or hold down button on the remote control for 3 seconds. TIPS:

• Enter „0000“ for the password if necessary.

• The player will also be disconnected when your device is moved beyond the operational range.

• If you want to reconnect your device to this player, place it within the operational range.

• If the device is moved beyond the operational range, when it is brought back, please check if the device is still connected to the player.

• If the connection is lost, follow the instructions above to pair your device to the player again. Listen to Music from Bluetooth Device If the connected Bluetooth device supports Advanced Audio Distri- bution Pro le (A2DP), you can listen to the music stored on the device through the soundbar‘. If the device also supports Audio Video Remote Control Pro le (AVRCP), you can use the soundbar‘s remote control to play music stored on the device.

1. Pair your device with the player.

2. Play music via your device (if it supports A2DP).

3. Use supplied remote control to control play (if it supports AVRCP).

To pause/resume play, press the button on the remote control. To skip to a track, press the / buttons on the remote control. Troubleshooting To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, review the following before requesting service. No power Ensure that the power adaptor is properly connected to the units DC IN socket and to the mains socket. Ensure that there is power at the AC outlet. Press standby button on the remote control or soundbar to turn the soundbar on. No sound Increase the volume. Press Volume Up on the remote control or on the right side of the soundbar. Press MUTE on the remote control to ensure the soundbar is not muted. Press source buttons to select a di erent input source. When using either of the Digital input, if there is no audio: Try setting the TV output to PCM or Connect directly to your Blu-ray/other source, some TVs do not pass through digital audio. Your TV may be set to variable audio output. Con rm that the audio output setting is set to FIXED or STANDARD, not VARIABLE. Consult your TV’s user manual for more detailed information. If using Bluetooth, ensure that the volume on your source device is turned up and that the device is not muted. Remote control does not work Before you press any playback control button, rst select the correct source. Reduce the distance between the remote control and the unit. Insert the battery with its polarities (+/-) aligned as indicated. Replace the battery. Aim the remote control directly at the sensor on the front of the unit. I hear buzzing or humming Ensure all cables and wires are securely connected. Connect a di erent source device (TV, Blu-ray player, etc) to see if the buzzing persists. If it does not, the problem may be with the original device. Connect your device to a di erent input on the soundbar. I can’t nd the Bluetooth name of this unit on my Bluetooth device Ensure the Bluetooth function is activated on your Bluetooth device. Re-pair the unit with your Bluetooth device. This is a 15 mins power off function, one of the ERPII standard requirement for saving power When the unit’s external input signal level is too low, the unit will be turned o automatically in 15 minutes. Please increase the volume level of your external device.EN Technical speci cation Model HT-SBW182 Sound Bar Power Supply DC 12.0 V ⎓ 2.0 A Power Consumption 15 W Power Consumption StandBy <0.5 W Output Power 2 x 10 W (RMS) Frequency Response 200 Hz - 16 kHz (±10 dB) Subwoofer Power Supply AC 100-240 V ~ 50/60 Hz Power Consumption 20 W Power Consumption StandBy <3.0 W Output Power 40 W (RMS) Frequency Response 60 Hz - 100 Hz (±6 dB) Bluetooth Version V 4.2 Maximum power transmitted <20 dbm Frequency bands 2402 MHz ~ 2480 MHz Remote Control Battery Type 2 x AAA/1.5 V Power Adapter Manufacturer: ShenZhen Perfect Gallant Tec Co.,Ltd. Model name: PG241-1202000I Input: AC 100-240 V ~ 50/60 Hz 0.8 A Max Output: DC 12.0 V ⎓ 2.0 A 740 mm 80 mm 150 mm 63 mm 202 mm 250 mm 1,3 kg
