Product type	Metal bandsaw
Brand	Güde
Model	MBS 115
Order number	40536
Power supply	230 V~ 50 Hz
Motor power	370 W (P1)
Cutting capacity (round 90°)	110 mm
Cutting capacity (round 45°)	70 mm
Saw blade	12,7 × 0,64 × 1638 mm
Cutting speeds	20 / 28 / 50 min⁻¹
Weight	57 kg
Protection rating	IP 20
Sound pressure level (LPA)	77 dB(A)
Guaranteed sound power level (LWA)	90 dB(A)
Mechanical vice	Yes
Depth stop	Yes
Adjustable blade guide	Yes
Safety	Residual current circuit breaker 30 mA required
Daily maintenance	Removal of slag, check of blade and protective devices
Weekly maintenance	Thorough cleaning of the machine, cleaning of rollers
Monthly maintenance	Check of tightening screws of rollers and gear
Warranty	12 months (professional use) / 24 months (private use)
After-sales service	www.guede.com, [e-mail]

Frequently Asked Questions - MBS 115 Güde

How to tension the saw blade?

Disconnect the machine from the power supply. Use the tension screw (fig. 15) to tension the blade. The tension is correct when you can press the blade in by 2 to 3 mm.

How to replace the saw blade?

Unplug the machine. Relax the blade, loosen the screw, and remove the cover. Place the new blade on the rollers and between the bearing pads and the guide. Retension the blade and securely close the cover.

How to adjust the cutting angle?

To adjust the angle, loosen the locking screw of the work block. You can precisely adjust the angles 0° and 45° using the stops. Tighten the screw after adjustment.

How to change the cutting speed?

The speed is changed by turning the rotary knob. The available speeds are 20, 28, and 50 min⁻¹. Choose the speed according to the material to be cut.

What are the important safety instructions?

Always wear hearing protection, safety goggles, and gloves. Do not wear loose clothing. Use a residual current device (RCD) of 30 mA. Never leave the machine unattended while operating.

How to maintain the bandsaw?

Perform daily maintenance: remove slag, check the blade and protective devices. Weekly: clean the machine and rollers. Monthly: check the tightening screws.

What is the warranty of the device?

The warranty is 12 months for professional use and 24 months for the end consumer. It covers material and manufacturing defects. Keep the proof of purchase.

Where to find after-sales service?

Go to www.guede.com Service section, or contact support by email at [e-mail] or by phone at +49 (0) 79 04 / 700-360.

What materials can I cut with this saw?

The saw is designed to cut metal, cast iron, and plastic. Do not use for wood. The workpiece must be able to be securely clamped in the vice.

What to do in case of an accident?

Perform first aid, call emergency services, and provide the location, type of accident, number of injured persons, and type of injury. The workplace must be equipped with a first aid cabinet according to DIN 13164.

USER MANUAL MBS 115 Güde

Blue industrial machine with articulated arm and wheels, no visible text or symbols

MBS 115

40536

ENGLISH Please read the instructions carefully before starting the machine.

10 x M8x16

8x ∅5

8x ∅5

6x M8x25

4 x M5

1 x M5

22 x

4 x M8

4x

4x M5x10

2x M5x10

2x M18

1x

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pabota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

DE	Montage - Tisch	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

GERÄTEBESCHREIBUNG | DELIVERED ITEMS | Description de la machine | Descrizione dell'elettroutensile | Beschrijving van het apparaat | Popis prístroje | Popis prístroja | A készülék leírása | Opis naprave | Oznaka uređaja | Описание на уреда | Descriere utilaj | Oznaka aparata

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

D E k

1

Diagram of a blue wheeled cart with two wheels and directional arrows indicating motion (no text or symbols)

Close-up of a black wheel with a blue knob and metal ring, held by a hand (no text or symbols visible)

Green checkmark symbol on white background (no text or symbols)

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

B

C

k

2

Blue metal panel with two arrows indicating downward and upward motion, no text or symbols present

Close-up of a blue metal panel with a circular highlight highlighting a small dark object (no text or symbols visible)

Industrial machine with blue frame and green checkmark indicating inspection (no text or symbols)

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

Four black-and-white icons: warning triangle, wrench, gear icon, and open box with upward arrow (no text or symbols)

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Four black-and-white icons: warning triangle, wrench, eye icon with power symbol, and open box with upward arrow (no text or symbols)

F

+

2

3

d

e

f

Blue industrial machine with a green checkmark indicating inspection or completion (no text or symbols on the machine itself)

DE	Montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

Exploded view of a blue industrial device with internal components and mounting holes (no text or symbols visible)

Blue industrial machine with mechanical components and a green checkmark (no text or symbols visible)

1	DE Montage	SI Montaža
	GB Assembly	HR Montaža
	FR Montage	BG Монтаж
	IT Montaggio	RO Montaj
	NL Montage	BA Montaža
	CZ Montáž
	SK Montáž
	HU Szerelés

Four black-and-white icons: warning triangle, diagonal line, circular icon with plug symbol, and open box with upward arrow (no text or labels)

Close-up of a blue industrial machine component with a blue handle and directional arrow indicating assembly or inspection (no text or symbols)

Close-up of a blue industrial machine with mechanical components and a rotating knob (no visible text or symbols)

GB Operation - Machine Vice

1

Close-up of a blue industrial machine with a tool and mechanical components, no visible text or symbols

2a

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Pábota
	IT	Esercizio	RO	Funcționare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

Blue industrial machine with mechanical components and a circular arrow indicating rotation (no text or symbols)

Close-up of a blue mechanical component with a coiled spring and bolted joint, showing rotational arrows (no text or symbols)

Close-up of a blue industrial machine with a yellow component and a black bolt, showing a downward arrow indicating motion (no text or symbols visible)

Blue industrial machine with a downward arrow and a labeled weight symbol (no text or symbols on the device itself)

Close-up of mechanical components including bolts, nuts, and a yellow clamp (no visible text or symbols)

DE	Betrieb	SI	Delovanje
GB	Operation	HR	Rad
FR	Fonctionnement	BG	Pábota
IT	Esercizio	RO	Functionare
NL	Gebruik	BA	Rad
CZ	Provoz
SK	Prevádzka
HU	Üzemeltetés

2

START

Close-up of a mechanical control panel with red and green buttons, no visible text or symbols

STOP

Close-up of a mechanical control panel with red and green buttons, featuring a white arrow pointing to the orange button (no text or symbols visible)

AUTO-STOP

Close-up of a mechanical device with a black box, yellow top, and metal chain attached to a blue frame (no visible text or symbols)

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Pabota
	IT	Esercizio	RO	Functionare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

Blue industrial machine with yellow clamping mechanism and directional arrows indicating movement (no text or symbols)

DE Betrieb

GB Operation

FR Fonctionnement

IT Esercizio

NL Gebruik

CZ Provoz

SK Prevádzka

HU Üzemeltetés

SI Delovanje

HR Rad

BG Работа

RO Functionare

BA Rad

Simple line drawing of a hand holding a horizontal bar connected to two circles, with a green checkmark indicating action (no text or symbols)

	DE	Betrieb	SI	Delovanje
	GB	Operation	HR	Rad
	FR	Fonctionnement	BG	Pabota
	IT	Esercizio	RO	Functionare
	NL	Gebruik	BA	Rad
	CZ	Provoz
	SK	Prevádzka
	HU	Üzemeltetés

Close-up of a blue industrial machine with metal clamps and bolts (no visible text or symbols)

Blue industrial machine with mechanical components and a circular inset detail (no visible text or symbols)

DE Montage - Tisch

GB Assembly - table

DE	Montage - Tisch	SI	Montaža tabela
GB	Assembly - table	HR	Montaža - stol
FR	Montage - tableau	BG	Монтаж - maca
IT	Montaggio - tavolo	RO	Montaj - masă
NL	Montage - tafel	BA	Montaža -tablica
CZ	Montáž - tabulka
SK	Montáž - tabulka
HU	Szerelés - táblázat

Blue industrial machine with yellow handle and green checkmark indicating inspection (no text or symbols on device)

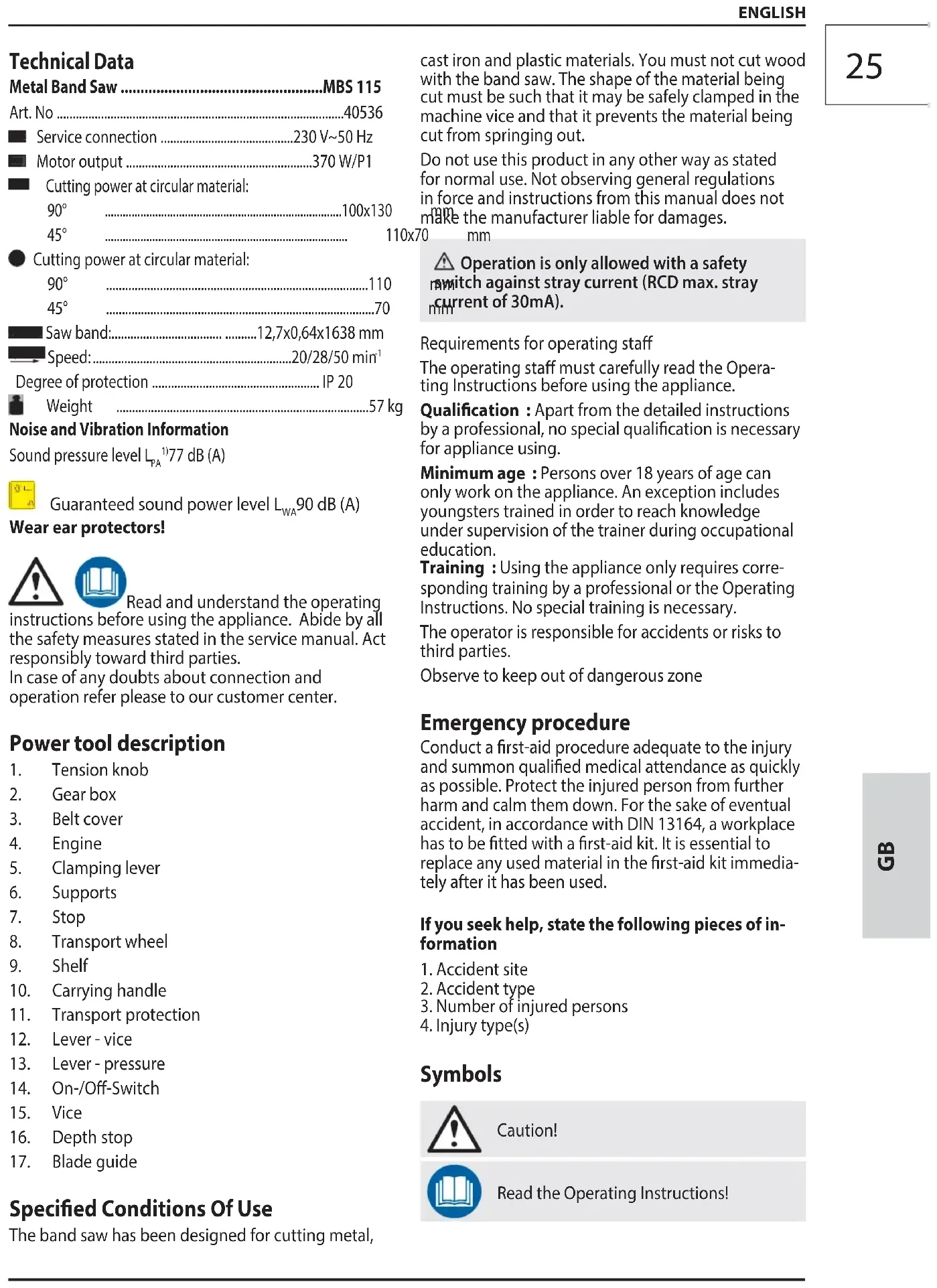

Technische Daten

Metallbandsäge......MBS115

Artikel-Nr. 40536

Cutting power at circular material: 90° ....100x130 45° .... 1

● Cutting power at circular material: 90° ....110 45° ....70

Saw band: 12,7x0,64x1638 mm

→ Speed:....20/28/50 min ^1 Degree of protection....IP 20

Weight 57 kg

Noise and Vibration Information

Sound pressure level L_PA 177 dB (A)

Guaranteed sound power level L_WA 90 dB (A)

Wear ear protectors!

Read and understand the operating

instructions before using the appliance. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. In case of any doubts about connection and operation refer please to our customer center.

Power tool description

1. Tension knob

2. Gear box

3. Belt cover

4. Engine

5. Clamping lever

6. Supports

7. Stop

8. Transport wheel

9. Shelf

10. Carrying handle

11. Transport protection

12. Lever - vice

13. Lever - pressure

14. On-/Off-Switch

15. Vice

16. Depth stop

17. Blade guide

Specified Conditions Of Use

The band saw has been designed for cutting metal,

cast iron and plastic materials. You must not cut wood with the band saw. The shape of the material being cut must be such that it may be safely clamped in the machine vice and that it prevents the material being cut from springing out.

Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

Qualification : Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age : Persons over 18 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Training : Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

The operator is responsible for accidents or risks to third parties.

Observe to keep out of dangerous zone

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a first-aid kit. It is essential to replace any used material in the first-aid kit immediately after it has been used.

If you seek help, state the following pieces of information

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbols

Caution!

Read the Operating Instructions!

Before carrying out any work on the machine, disconnect the plug from the socket.

Cable pulling / transport prohibited

Protect against moisture Never expose tool to rain.

Wear eye protection! Wear ear protectors!

Wear protective gloves!

Warning against dangerous voltage

Warning against hand injuries

Warning against cutting injuries

Warning against cutting injuries

Keep distance of persons

Any damaged or disposed electric or electronic devices must be delivered to appropriate collection centres.

Protect against humidity

This side up

General Power Tool Safety Warnings/Metal Band Saw

Warning

Operation is only allowed with a safety switch against stray current (RCD max. stray current of 30mA).

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Consider the environment influences!

Do not expose the machine to rain. Do not use the machine in a moist or wet environment. Provide adequate lighting. Do not use the machine near flammable liquids or gases.

Keep other persons in a safe distance!

Do not let other persons, especially children, touch the machine and the cable. Keep them in a sufficient distance from the place of your work.

Provide adequate clothing.

Do not wear any loose clothing and jewels. They could get caught by the moving parts of the machine. Further, we recommend wearing safety shoes, protective glasses and ear protectors when working with the machine. Long hair must be adequately protected.

Store the machine properly!

Machines not being used must be kept in a dry and locked place, inaccessible to children.

Do not overload the machine!

Work within the specified power range.

Use the right machine!

Do not use the machine for purposes for which it has not been Designed.

Take care of your machine!

Comply with the servicing regulations and instructions. At regular intervals, check the machine cable and have it replaced by an authorised professional if damaged. At regular intervals, check the extension cable and replace it if damaged. Keep the handles dry, with no oil and grease.

Be careful!

Pay attention to what you are doing. Work reasonably. Do not use the machine when you are tired.

WARNING

Using any other accessory equipment may represent a risk of a serious injury for you.

Watch out for the feeder cable.

Do not pull the cable. Do not use it to pull the plug out. Keep the cable out of reach of thermal sources, oil and sharp edges.

Have your machine repaired by an expert only!

This machine meets the applicable safety provisions.

Any repairs may only be executed by an expert, using original spare parts; otherwise, the user could face a risk of injury.

Children and persons not familiarised with the machine and persons with limited physical, sensory and mental skills must not use the machine.

Additional safety instructions Metal Band Saw

Use the right saw band at all times.

The device must be switched off before inserting material to be cut in the vice or before removing material to be cut from the vice.

Keep your hands and fingers in a safe distance from the running saw band at all times.

The saw band must not be braked by hand.

Safety equipment and guards, etc. must not be removed.

Never remove the cuts by hand. Use a brush at all times.

Never leave the device when in operation.

Putting into operation for your safety

Before carrying out any work on the machine, disconnect the plug from the socket.

Pull out the ratchet (pic. 1) for uncovering.

Length stop:

Screw the guide rail to the thread and fixate the length stop by the screw (pic.12)

Before putting the device into operation

The working surface and area must be sufficiently lit at all times.

Put the device on a flat, horizontal surface and check the device if stable. Do not place the device on wall.

There must be no person in the dangerous area.

The minimum safety distance of 10m must be respected.

Saw band

Unplug the device before any adjustment and servicing!

Saw band stretching:

Stretch the saw band using the stretching bolt (pic. 15). The saw band is stretched correctly when it can be pressed by 2-3 mm.

Guide adjustment:

The saw band guide must be adjusted as, otherwise, it could get flipped over, which would result in an unclean cut. Loosen the bolt (pic. 15/1) and adjust the guide depending on the width of the material to be processed.

Changing the saw band:

Loosen the saw band. Loosen the bolt and remove the cover. Now fit in a new saw band on the rollers and place it between the guide bearing and the band guide. Then, stretch the saw band again and close the covers safely and firmly.

Operating the device

Angle adjustment:

Adjust the angle to the material to be processed at all times. To shift the entire work block, loosen the bolt (pic. 13/1). Using both stops, precise adjustment of 0^ + 45 is possible (pic. 13/2a).

Cutting speed:

The cutting speed always depends on the material being cut. Speed can be changed by turning the knob (pic. 16).

Maintenance

⚠️ Before carrying out any work on the machine, disconnect the plug from the socket.

The machine must not be used under any circumstances if the machine or the safety devices are damaged.

If the device is defective, the repair has to be made exclusively by the customer service. Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Daily maintenance:

Removal of cuts

Saw band check

Check of all the protective equipment

Weekly maintenance:

Thorough device cleaning, removal of cuts

Cleaning of saw rolls and saw roll supporting surface

Monthly maintenance:

Check the fixing bolts of the saw rolls

Check the gear fixing bolts

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference

Serial No.:

Art. No:

Year of production:

Tel.: [phone] / 700-360

Fax: [phone]

E-Mail: [e-mail]

Important information for the customer

Please be sure to know that returning the product in or after the warranty period must be made in the original packaging.

Disposal

Note to the disposal arising from icons placed on the appliance or on the package. Description of the meanings can be found in section „Marking“.

Do not dispose of electrical appliances in the ehold waste.

According to European Directive 2002/96/EC on waste electrical and electronic equipment and transposition to the national law, worn electrical equipment must be collected separately and put to recycling.

Recycling alternative to the return requirement:

As an alternative to recycling, the owner of the electrical equipment is obliged to provide assistance in professional recycling. For this purpose, an old appliance can be put to a collection centre that will dispose of it in accordance with the national circulation management and the Waste Act.

This does not apply to accessories connected to old appliances and auxiliary equipment without electrical components.

Transport packaging disposal

The packaging protects the appliance against damage during transport. Packaging materials are usually chosen according to environmental-friendliness and waste treatment aspects and can therefore be recycled. Returning the packaging to material circulation saves raw materials and reduces waste. Parts of packaging (e.g. foils, styrofoam ^® ) can be dangerous to children. Risk of suffocation! Keep the packaging out of reach of children and dispose them as quickly as possible.

Risk of injury if the O Off button is pressed unintentionally.

Montage

Traka pile:....12,7x0,64x1638 mm

Brzine: 20/28/50 min ^-1 Stupanj zaštite IP 20

Masa....57 kg

Napetost trake pile:

Traka pile:....12,7x0,64x1638 mm

Brzine: 20/28/50 min ^-1 Stupanj zaštite IP 20

Masa....57 kg

Napetost trake pile:

Traku pile napregnite pomoću vijka za napinjanje. Traka za sječenje je pravilno napregnuta ukoliko se može pritiskanjem saviti za približno 2 - 3 mm.

Podešavanje vodilica:

Vodilica trake za sječenje mora biti pravilno podešena da ne bi došlo do preokretanja iste, što može uzrokovati loš rez. Odvrnite vijak i vodeću letvu podesite prema širini materijala, koji obrađujete.

Zamjena trake pile:

Zamijenite list pile. Odvrnite vijak i skinite poklopac. Poslije namjestite novu reznu traku na valjke i stavite je u prostor između ležajeva i vodilicu rezne trake. Poslije toga traku ponovo napregnite i dobro zatvorite poklopac.

Rukovanje

Podešavanje ugla:

Ugao sječenja uvijek prilagodite obliku materijala, koji želite da siječete. Za pomicanje cijelog radnog bloka okrenite kotač. Pomoću oba graničnika precizno podesite kut između 0° +45.

Brzina sječenja:

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

Notified Body Name: Adress:No:

Type Ex. Cert.-No.:

97/68/EC_Emission No.:

2000/14/EC_2005/88/EC
