Royal SP 410 - Surface pump EINHELL - Free user manual and instructions

Brand	Einhell
Model	Royal SP 410
Product type	Surface pump
Mains voltage	230 V ~ 50 Hz
Power consumption	400 W
Max flow rate	8,200 l/h
Max delivery head	5 m
Max immersion depth	5 m
Max water temperature	35 °C
Hose connection	5/4" IG
Foreign bodies up to	30 mm
Switch-on point height	approx. 50 cm
Switch-off point height	approx. 5 cm
Recommended fuse	6 A minimum
Differential protection	30 mA (according to VDE 0100)
Maintenance	Clean with clear water after each use; quarterly check of float and well
Warranty	24 months from purchase date
Article number	41.705.75

Frequently Asked Questions - Royal SP 410 EINHELL

What is the supply voltage of the Royal SP 410 pump?

The pump operates on a voltage of 230 V ~ 50 Hz with a minimum 6 amp fuse.

Can this pump be used in a swimming pool?

Yes, but it must be equipped with a residual current device of max. 30 mA, in accordance with VDE 0100. Do not use if people are in the water.

How to install the pump correctly?

Place the pump on the bottom of the well or hang it by the handle. Ensure the bottom is clean and the float switch can move freely. The well must be at least 40x40x50 cm.

What to do if the pump does not start?

Check the mains voltage and ensure the float switch is in the high (on) position. If the float is down, the pump will not start.

How to clean the pump after use?

After each use, rinse the pump with clean water. For fixed installation, clean the inlet filter and remove deposits on the float switch every three months.

What is the maximum allowed water temperature?

The water temperature must not exceed 35 °C. Above that, the motor protection device may stop the pump.

Can the pump handle dirty water?

Yes, it can handle water containing foreign bodies up to 30 mm in diameter. However, avoid aggressive or abrasive liquids.

How to adjust the float switch point?

The switch point is adjusted by adjusting the position of the float switch in the locking mechanism. Make sure the float does not touch the ground before stopping to avoid dry running.

What to do if the flow rate becomes insufficient?

Check that the inlet filter is not clogged. Clean it with clean water. If the problem persists, the pump may be dirty; disassemble the lower part and clean the impeller.

Where to find after-sales service?

After-sales service is provided by V.B.P. Distribution at 5, allée Joseph Cugnot, Z.I. du Phare, F-33700 Mérignac. Tel. [phone]. For spare parts, contact this service.

USER MANUAL Royal SP 410 EINHELL

Before start-up, note the following!

- The pump can be connected to any shock-proof plug which has been installed according to regulations. The plug must have a supply voltage of 230 V \~ 50 Hz. Fuse min. 6 Amp.

Caution!

When the pump is to be used near swimming pools or garden ponds and in their area of protection, it must be equipped with a ground-fault circuit interruptor with a nominal trip current of max. 30 mA (according to VDE 0100, part 702 and 738). The pump must not be operated while people are in the swimming pool or in the garden pond! Please contact your electrician!

Attention!

(Important for your own security) Before starting to run your new submersible pump, please have the following items checked by an expert:

• Ground connection
• Zero conductor
• Fault current breaker switch must correspond the safety regulations of the power plants and they must work faultessly.
• The electrical connections must be protected from moisture.
• If there is danger of looding, the electrical connections must be taken to higher ground.
• Circulation of aggressiv fluids, as well as the circulation of abrasive materials must be avoided at all costs.
• The submersible motor-driven pump must be protected from frost.
• The pump must be protected from running dry. Access on the part of children should also be prevented with appropriate measures.

Consistency

Your submersible pump is designated for the circulation of water with a maximum temperature of 35^ C. This pump may not be used for other fluids, especially motor fuels, cleaning fluids, and other chemical products!

Installation

The submersible motor pumps is installed as follows:

• In a stationary position with fixed pipeline or
• in a stationary position with a flexible hose pipe.

Please note!

You should never install the pump by suspending it unsupported from its delivery pipe or power cable. The submersible motor pump must be suspended from the specially provided handle or be placed on the bottom of the shaft. To guarantee that the pump works properly, the bottom of the shaft must be kept free of sludge and dirt of all kinds.

If the level of water sinks too far, any sludge in the shaft will dry out quickly and stop the pump from starting up. It is necessary, therefore, to check the submersible motor pump regularly (by carrying out start-up tests).

The floater is adjusted in a way that the pump can immediately be started

Note!

The pump shaft should have minimum dimensions of 40 x 40 x 50 cm, so that the floating switch can move freely.

Mains supply

Your new submersible pump is equipped with a shock-proof plug according to regulations. The pump is designed to be connected to a 220/230 V \~ 50 Hz safety socket. Make sure that the socket is sufficiently secured (min. 6 Amp.) and is in excellent condition. Introduce the plug into the socket and the pump is ready to go.

Important Note!

If the mains cable or plug suffers any damage from external action, repairs to the cable are prohibited.

Important!

This work may only be performed by a qualified electrician or your ISC GmbH Customer Service.

Areas of use

This pump is used primarily as cellar pump. When installed in a shaft, this pump provides protection from flooding.

They are also used wherever water has to be moved from one place to another, e.g. in the home, agriculture, horticulture, plumbing and many other applications.

Setting to work

After having read these instructions carefully, you can set your pump to work, reconsidering the following items:

• Check if the pump rests on the ground of the shaft.
• Check of pressure cord has been attached properly.
• Check if electrical connection is 230 V \~ 50 Hz.
• Check if socket is in good condition.
• Make sure that water and humidity can never come to the mains supply.
• Avoid pump running dry.

Maintenance guidelines

This submersible pump is an approuved, maintenance-free high quality product, which is subject to severe final controls.

We recommend, regular inspection and maintenance to ensure long equipment life and uninterrupted operation.

GB

Important! Note!

• Remove the mains plug before all maintenance work.
• In the event that the pump is often transported in the course of operation, it should be cleaned out with clear water after every use.

- In case of stationary installation, the function of the loating switch should be checked every 3 months.

- All fibrous particles which may have built-up inside the pump housing should be removed with a water jet.

- Every 3 months the shaft ground and as should be cleaned from mud.

- Remove deposits on the floater with clear water.

Cleaning the impeller

If excessive deposits collect in the pump case you must dismantle the bottom part of the pump as follows:

1. Remove the intake cage from the pump case.
2. Clean the impeller with clear water.

Important! Do not put down or rest the pump onthe impeller!

1. Assemble in reverse order

Setting the ON/OFF operating point

The ON and OFF operating point of the float switch can be set by adjusting the float switch in its latching holder.

Before you put the pump into operation, please check the following:

• The float switch must be installed so that the level of the ON operating point and the level of the OFF operating point can be reached easily and with little force. To check this, place the pump in a vessel filled with water, raise the float switch carefully by hand and then lower it again. As you do so, note whether the pump switches on and off.

- Make sure that the distance between the float switch head and the latching holder is not too small. Proper operation is not guaranteed if the gap is too small.

- When you set the float switch, make sure that it does not touch the base before the pump switches off. Caution! Risk of dry-running.

Incidents – Causes – Remedies

Incidents	Causes	Remedies
Pumpe does not start	– No mains supply– Floater does not switch	– Check mains supply– Bring floater in a higher position
No flow	– Inlet sieve is clogged– Pressure hose in bent	– Clean inlet sieve water jet– Reset hose
Pump does not switch off	– Floater cannot sink down	– Place pump properly on shaft ground
Insufficient flow	– Inlet sieve is clogged– Reduced pumping capacity by dirty and abrasive water	– Clean inlet sieve– Clean pump and replace worn-out parts
Pump switches of after short operating period	– Thermal cutout stops pumps due to dirty water– Water too hot. Thermal-cutout stops pump	– Remove mains plug. Clean pump and shaft– Make sure that a water temperature of max. 35°C is not exceed

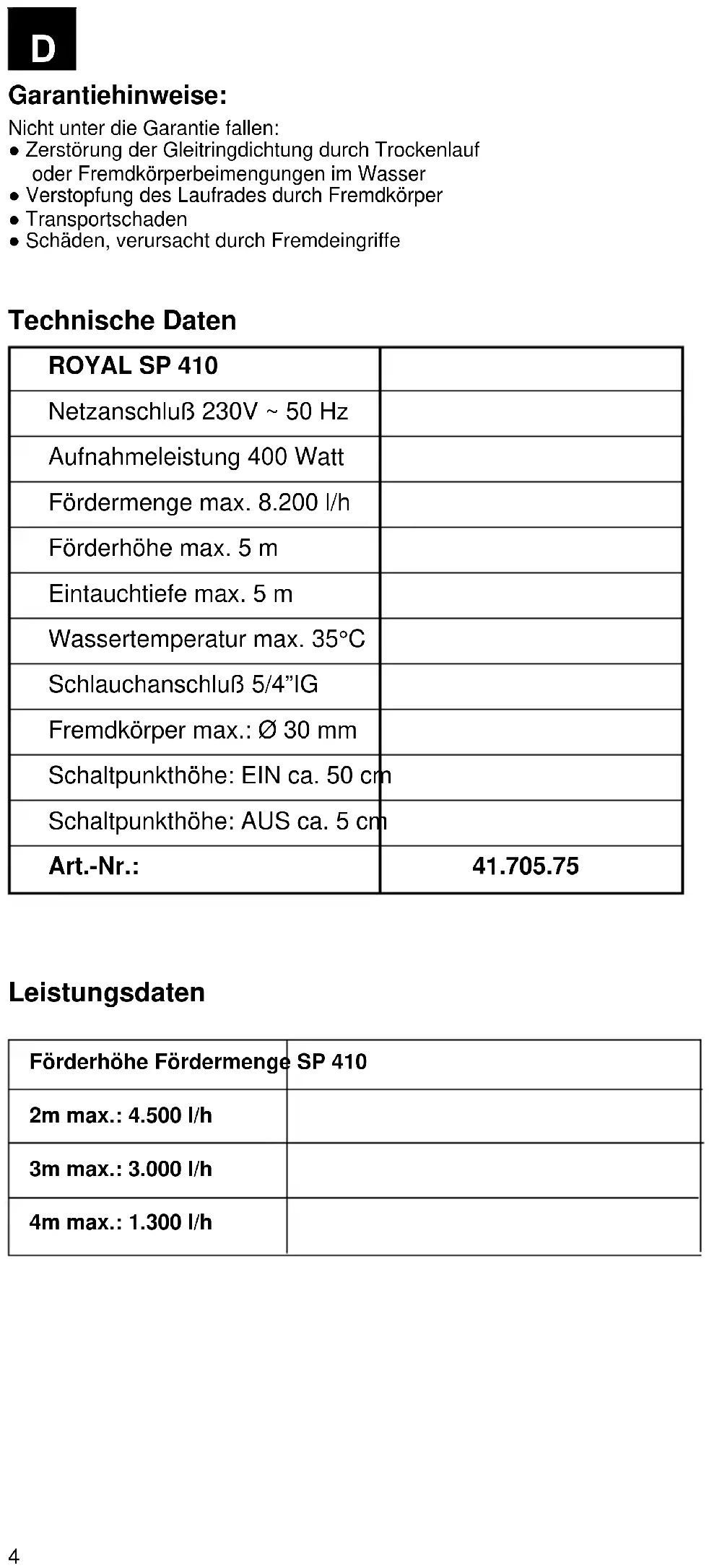

Guarantee note:

Not covered by guarantee:

• Destruction of rotating mechanical seal by dry running or addition of foreign bodies in water
• Blockage of running wheel through foreign bodies
• Transport damage
• Damage caused by unauthorised persons

Technical data

ROYAL SP 410
Power supply 230V ~ 50Hz
Power consumption 400 Watt
Delivery rate max.. 8.200 l/h
Delivery height max 5 m
Immersion depth max. 5 m
Water temperature max. 35°C
Hose connection 5/4“ IG
Foreign bodies up to dia. 30 mm
Switching point high: ON ca. 50 cm
Switching point high: OFF ca. 5 cm
Article No. 41.705.75

Performance data

Delivery head Delivery rate SP 410
2m max.: 4.500 l/h
3m max.: 3.000 l/h
4m max.: 1.300 l/h

F

Attention! Important!

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

F GARANTIE EINHELL

⑤ EINHELL GARANTIBEVIS

DK EINHELL GARANTIBEVIS

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Technical changes subject to change
