CADENZA75 - TV Stand SANUS - Free user manual and instructions

Brand	Sanus
Model	CADENZA75
Product type	TV cabinet with storage
TV compatibility	Flat screens up to 75 inches (estimate)
Material	Natural wood, tempered glass
Finish	Natural wood (color not specified)
Dimensions (W x D x H)	Approximately 180 x 45 x 60 cm (estimate)
Weight	Not specified (estimate 50-70 kg)
Maximum load capacity	See limits in the manual (page 2)
Main functions	Storage with doors and drawers, soft-close, adjustable shelves, removable back panels, cable management
Options	Optional soundbar, door grilles for speakers, anti-tip strap (sold separately)
Care and cleaning	Dust with a soft dry cloth; wipe with a clean damp cloth if needed, then dry
Safety	Do not exceed load limits, empty before moving, use anti-tip strap, do not let children climb
Spare parts and repairability	Contact customer service for replacement parts
General information	User manual available for free download; assembly required

Frequently Asked Questions - CADENZA75 SANUS

What types of TVs are compatible with the CADENZA75 cabinet?

This cabinet is designed for flat-screen TVs, including models up to 75 inches. It is not suitable for CRT TVs.

What is the maximum load capacity of the cabinet?

The manual indicates load limits that must not be exceeded. Heaviest items should be placed on the lowest shelves. See page 2 of the manual for exact values.

How to care for the natural wood of the cabinet?

Dust regularly with a soft dry cloth. If necessary, wipe with a clean damp cloth, then dry immediately.

Can I install a soundbar in this cabinet?

Yes, the cabinet allows removing dividers and support rods to make room for a soundbar or other equipment. See step 2 of the manual.

Are the doors and drawers equipped with a soft-close mechanism?

Yes, the doors and drawers have a soft-close mechanism. Simply close them until you feel the mechanism engage, then release.

How to install the anti-tip strap?

The anti-tip strap (model ELM701) is sold separately. Installation instructions are found in step 7 (page 11) of the manual.

Can I replace the solid door panels with grilles?

Yes, the door panels can be replaced with grilles (supplied) to allow sound from speakers placed inside. Follow step 5 of the manual.

How to remove the back panels of the cabinet?

The back panels are magnetic: simply pull to remove. To reattach, align them and the magnet will hold them in place.

Does the cabinet contain magnetic parts?

Yes, this product contains a magnet. If you wear an implanted medical device (pacemaker, ICD), keep at least 13 cm distance between the magnet and your device.

What to do if a part is missing or damaged?

Contact Sanus customer service, not the retailer. Do not use damaged parts. Before assembly, check that all parts are present and in good condition.

USER MANUAL CADENZA75 SANUS

Line drawing of a Cadenza 61 cabinet with open doors, drawers, and ventilation grilles (no text or symbols on the cabinet itself)

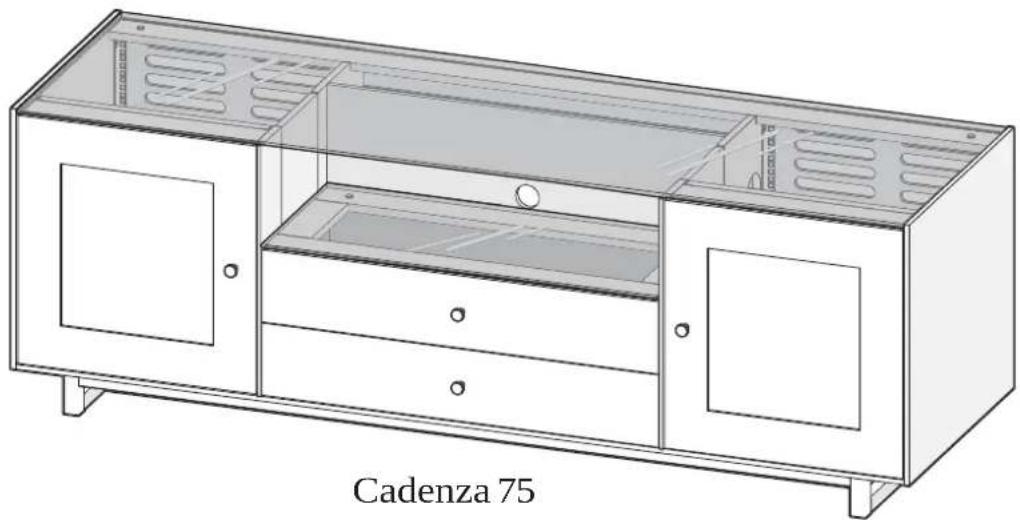

Line drawing of a Cadenza 75 cabinet with open doors, drawers, and ventilation grilles (no text or symbols on the cabinet itself)

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

1-800-359-5520. We're ready to help!

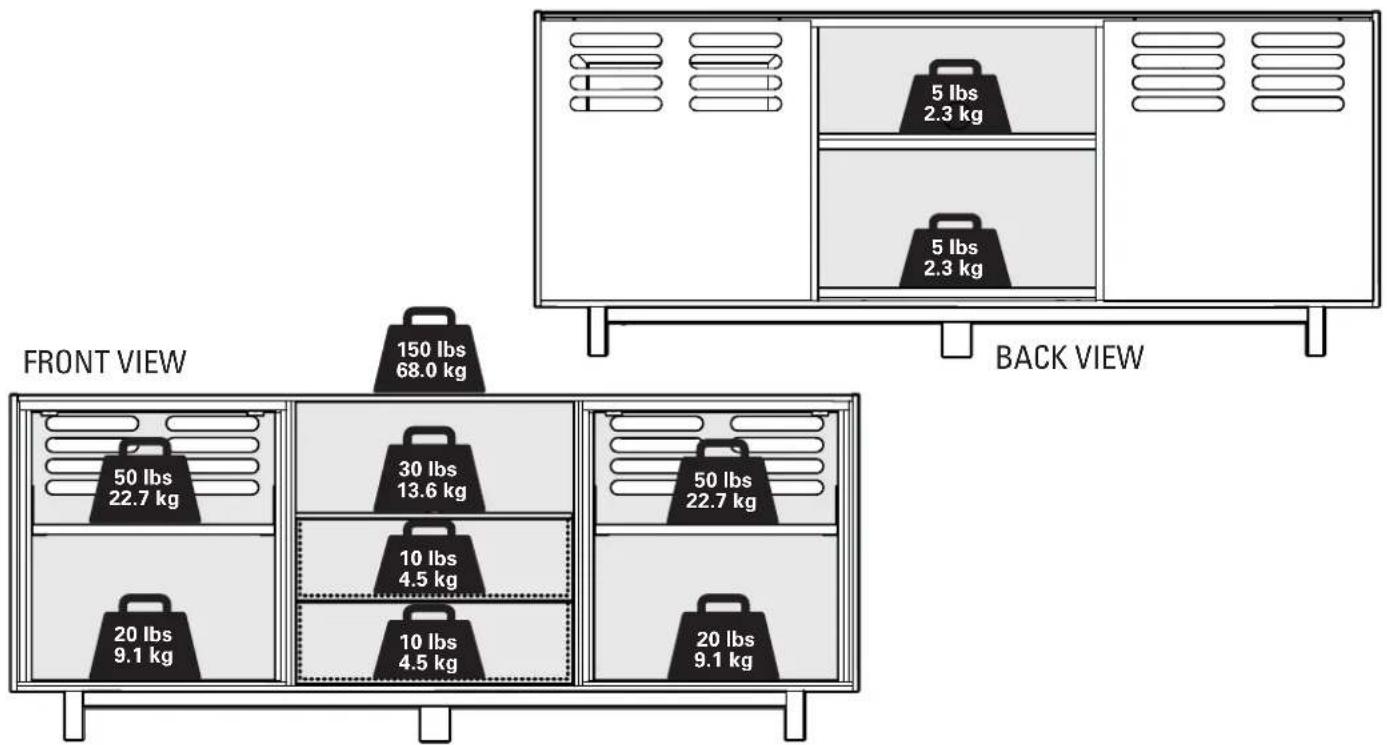

Weight Limits

Cautions and Care

CARE INSTRUCTIONS

For wood with a natural finish, dust regularly with a soft dry cloth. When needed, wipe with a clean, damp, cloth and wipe dry.

CAUTION: Avoid potential personal injuries and property damage!

Serious or fatal crushing injuries can occur from furniture failure. To prevent failure:

• This product is designed for use with fl at panel TVs ONLY.
• Do not exceed rated weight limits.
• Place heaviest items in the lowest shelves.
• Never allow children to climb or hang on shelves or doors.
  • Always unload furniture before moving.
• Use of anti-tip restraints may only reduce, but not eliminate, the risk of failure.
• Do not use this product for any purpose not explicitly specified by manufacturer.

- If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

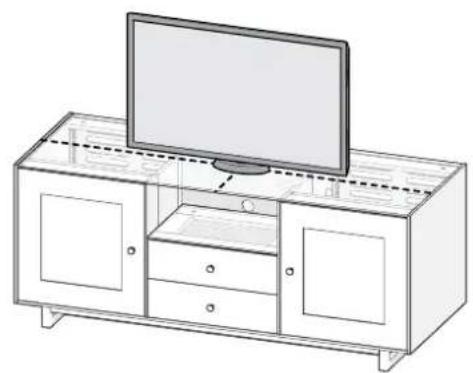

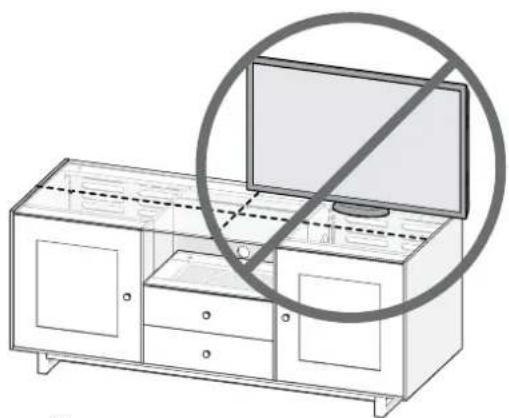

• To prevent tipping, be sure to center your fl at panel TV (NO CRTs) on the top of your furniture.

Line drawing of a modern TV set with a monitor on top, showing front and interior compartments (no text or symbols)

Line drawing of a TV cabinet with a monitor and a prohibition symbol overlay (no text or symbols present)

Illustration of a screwdriver with a plus symbol (no text or labels)

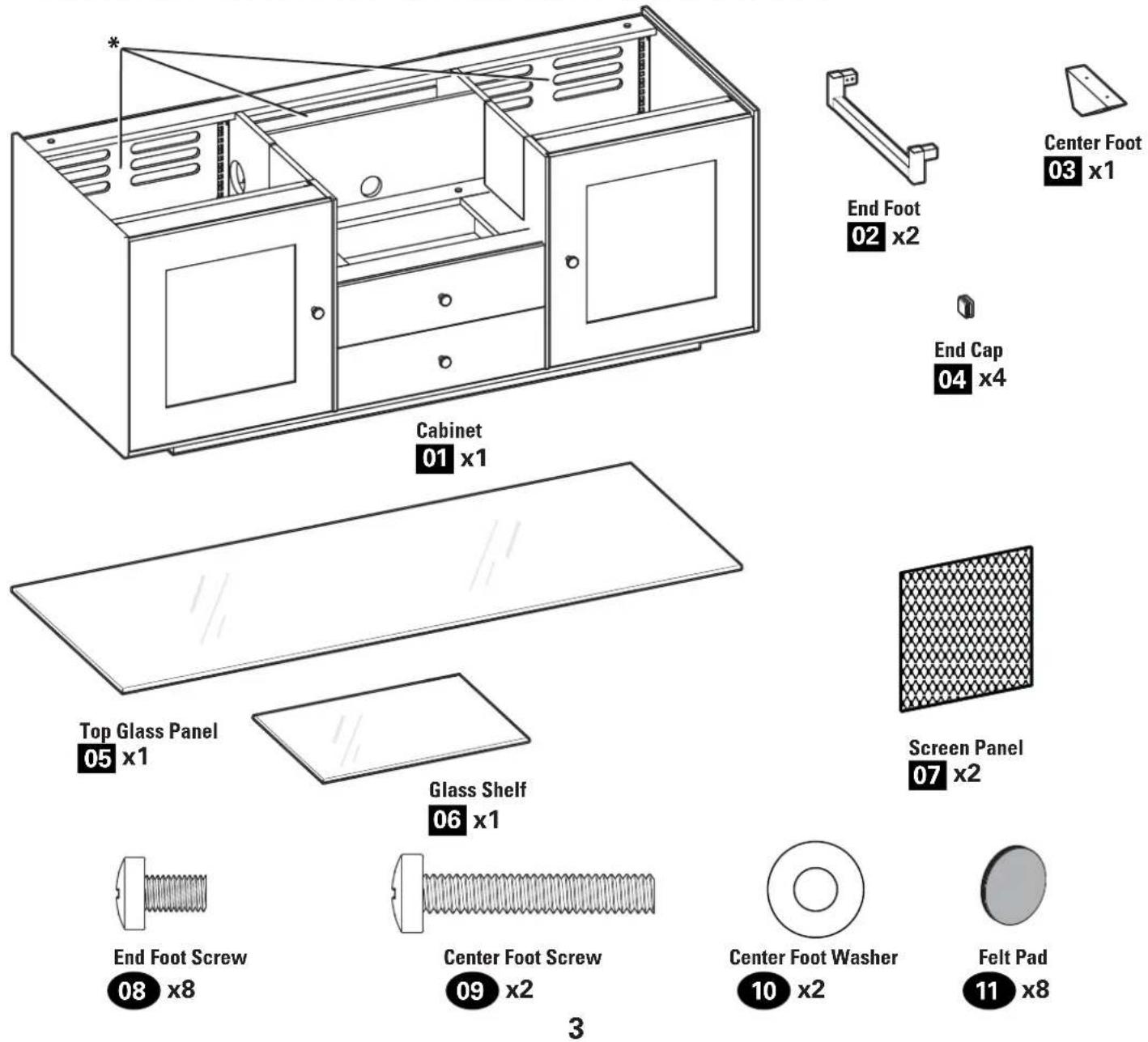

Supplied Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

* ▲ WARNING: This product contains a magnet. If an implanted medical device such as a pacemaker or implantable cardioverter defibrillator (ICD) is in use, magnetic fields may affect the operation of those devices, resulting in serious injury or death. If you have an implanted medical device, keep at least 13 cm (5 in.) between your device and the magnet. Please consult with your physician or medical professional prior to using this product.

CAUTION: Avoid potential personal injuries and property damage!

• Tempered glass has been chosen for this product because of its strength and safety characteristics. However, tempered glass should still be handled with care to avoid possible property damage or personal injury.
• Mishandling during shipping, assembly, or use may result in damage that can weaken the tempered glass.
  • Periodically check the glass to look for chips, cracks, or deep scratches.
• If chips, cracks, or deep scratches are found, discontinue use and contact customer service.

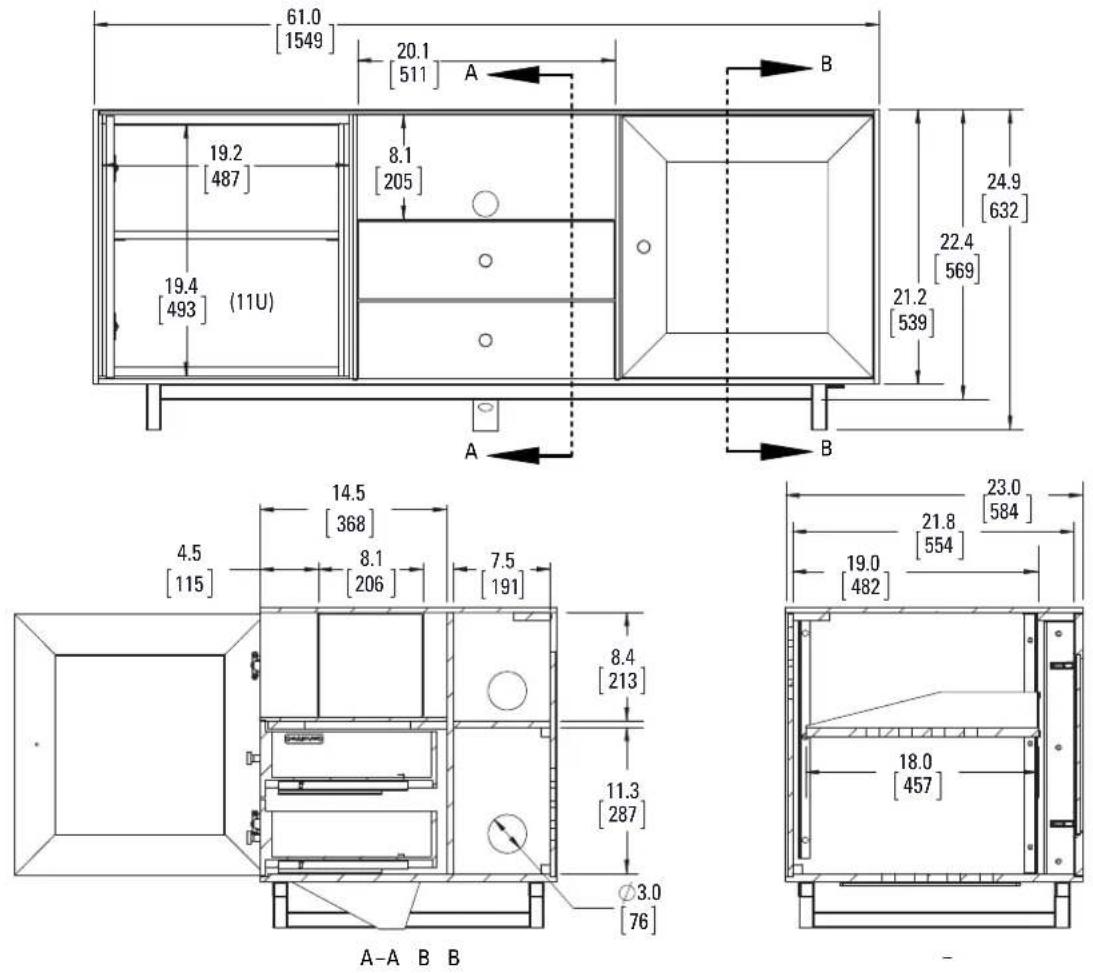

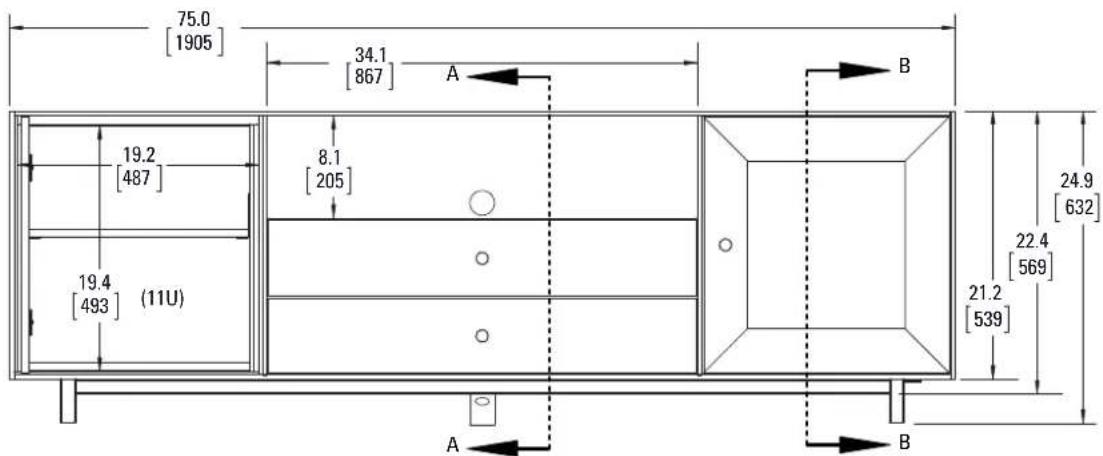

Cadenza 61

Cadenza 75

A-A B B

Parts and Hardware for STEP 1

Line drawing of a cabinet with two doors, one with ventilation grilles, and a double door (no text or symbols on the diagram itself)

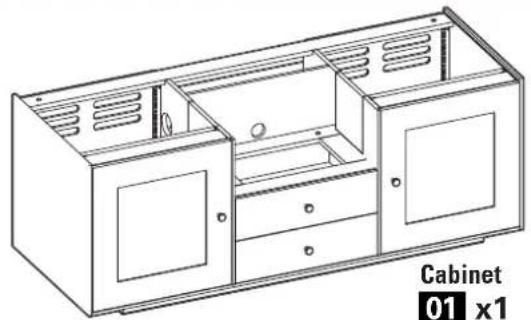

Cabinet 01 x1

End Foot 02 x2

End Foot Screw 08 x8

Center Foot 03 x1

Center Foot Screw 09 x2

End Cap 04 x4

Center Foot Washer 10 x2

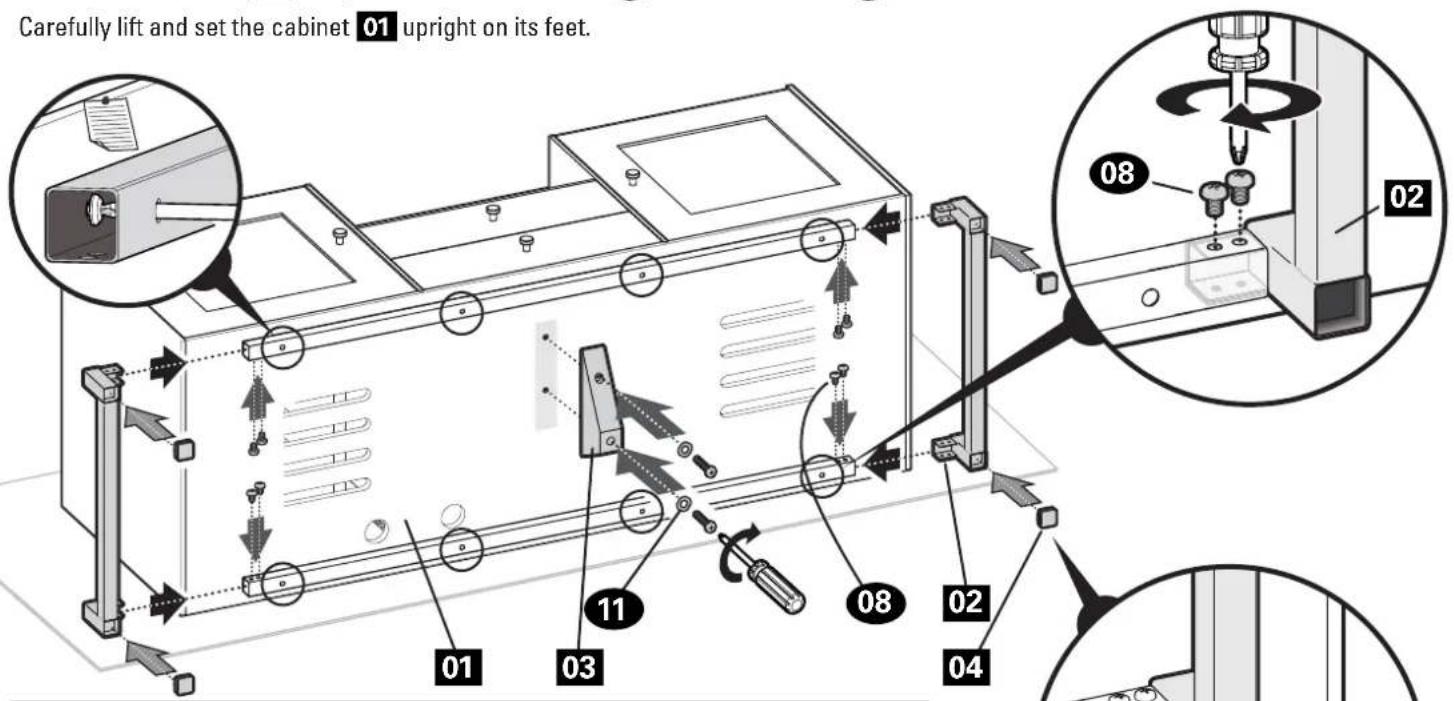

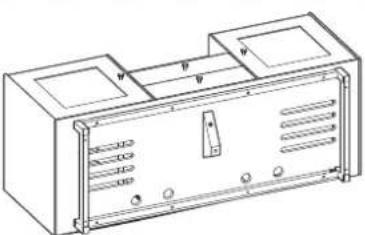

Carefully lift the cabinet 01 and lay it on its back onto a protective surface.

Slide the end feet 02 into the square tubing and secure using eight end foot screws 08.

NOTE: It may be necessary to loosen the screws holding the railing onto the bottom of the cabinet in order to install the feet 02. After feet 02 are installed, tighten all screws.

Press the end caps 04 into the end feet 02.

Install the center foot 03 using two center foot screws 09 and two washers 10.

Carefully lift and set the cabinet 01 upright on its feet.

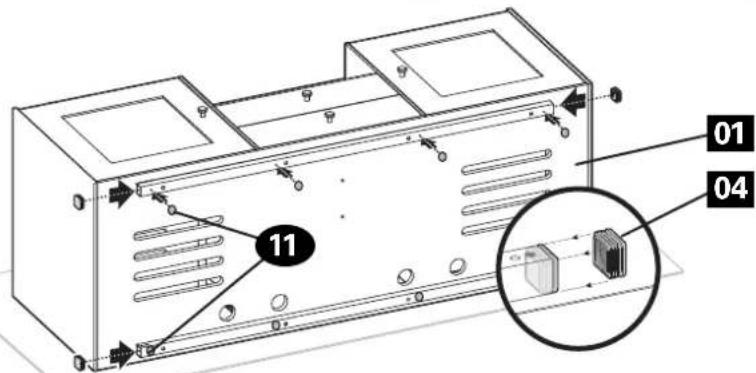

For cabinet install to sit closer to the floor:

Press the end caps 04 into the square tubing on the cabinet 01.

Place felt pads 11 along the square tubing.

Do not use the end feet 02, center foot 03 or screws 08 and 09.

Technical line drawing of a rectangular electronic device casing with internal components and mounting holes (no text or symbols)

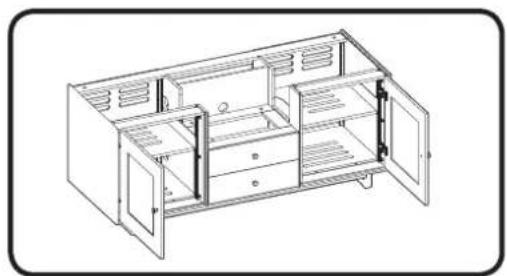

2 Soundbar Preparation (optional)

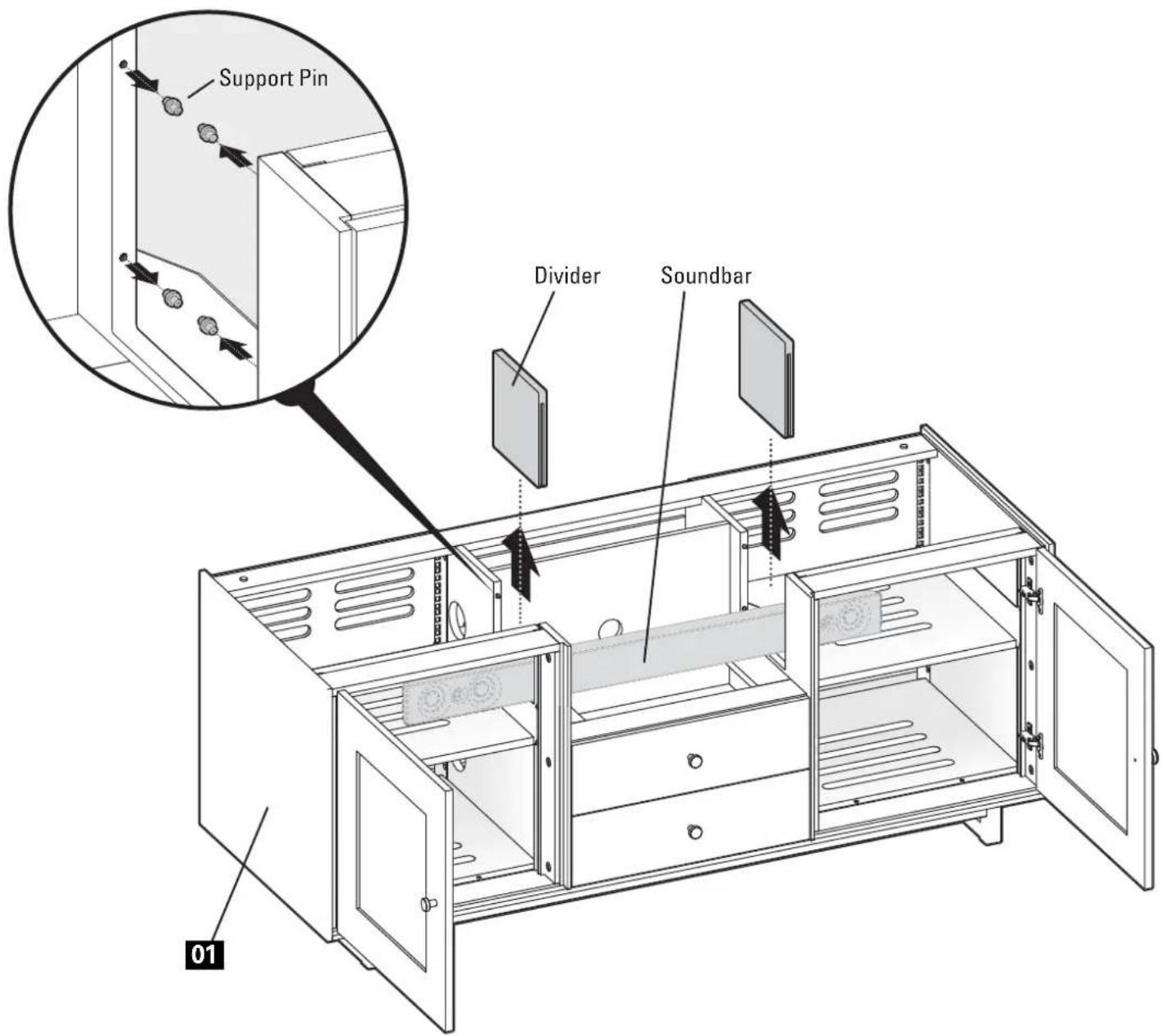

To make room for a soundbar or other long equipment:

Remove the dividers on one or both sides of cabinet 01.

Remove the support pins from cabinet 01

NOTE: See STEP 5 on PAGE 9 to switch the front door panels with mesh screens to accommodate the speakers.

Technical line drawing of a multi-level cabinet or enclosure with doors, drawers, and ventilation grilles (no text or symbols)

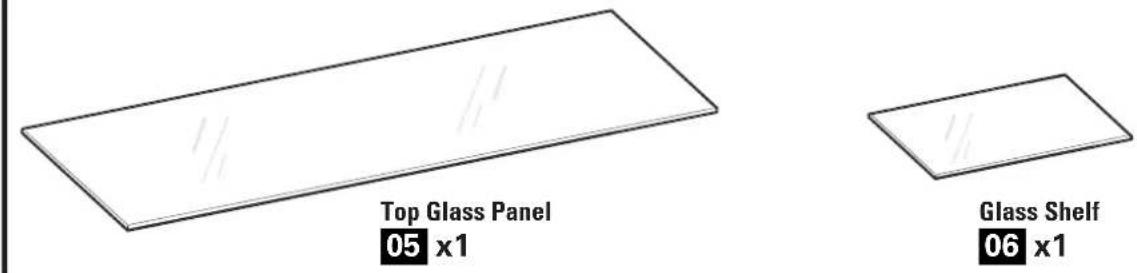

3 Glass Panels

Parts for STEP 3

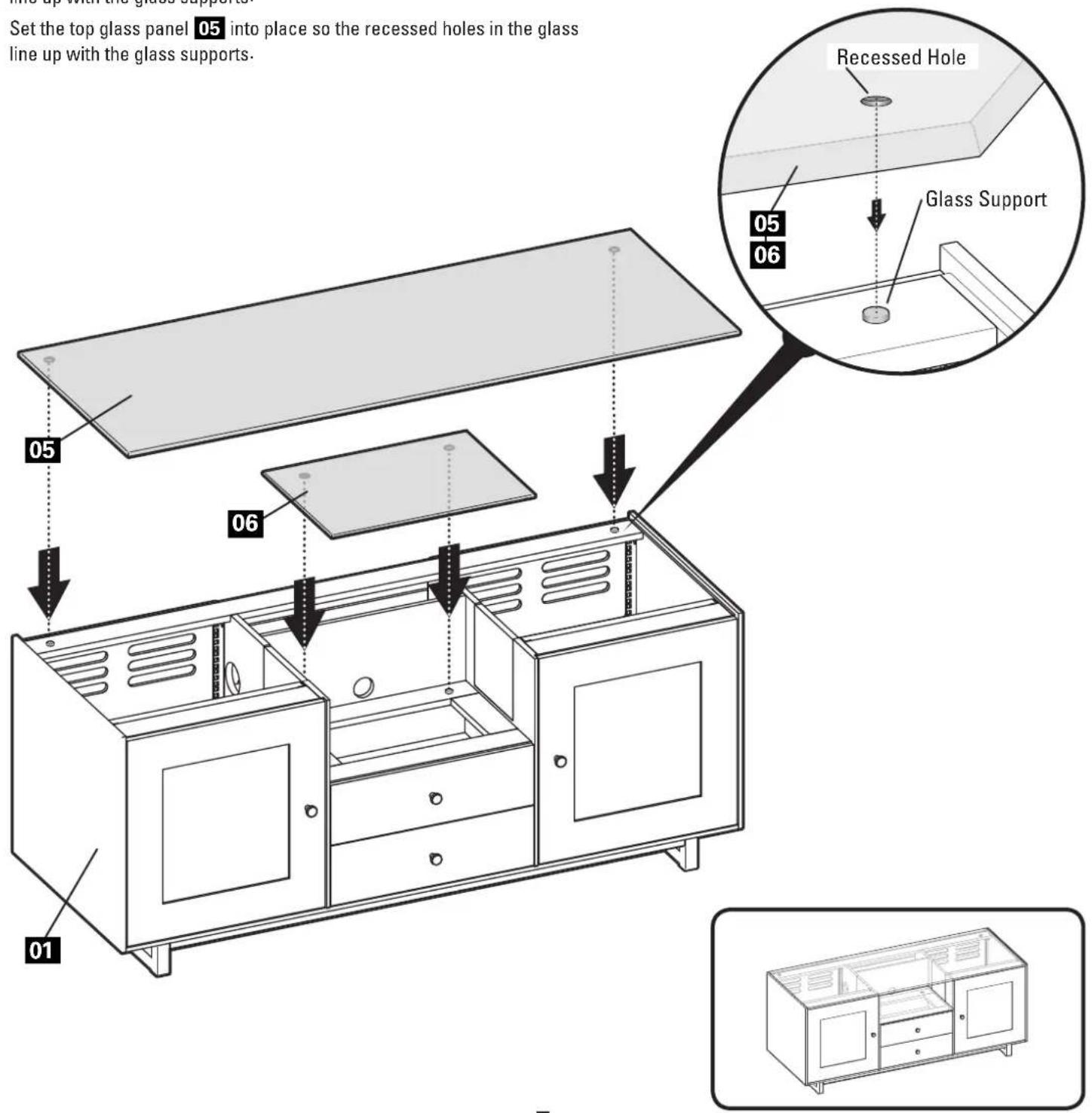

Set the glass shelf 06 into place so the recessed holes in the glass line up with the glass supports.

Set the top glass panel 05 into place so the recessed holes in the glass line up with the glass supports.

4 Shelf Adjustment

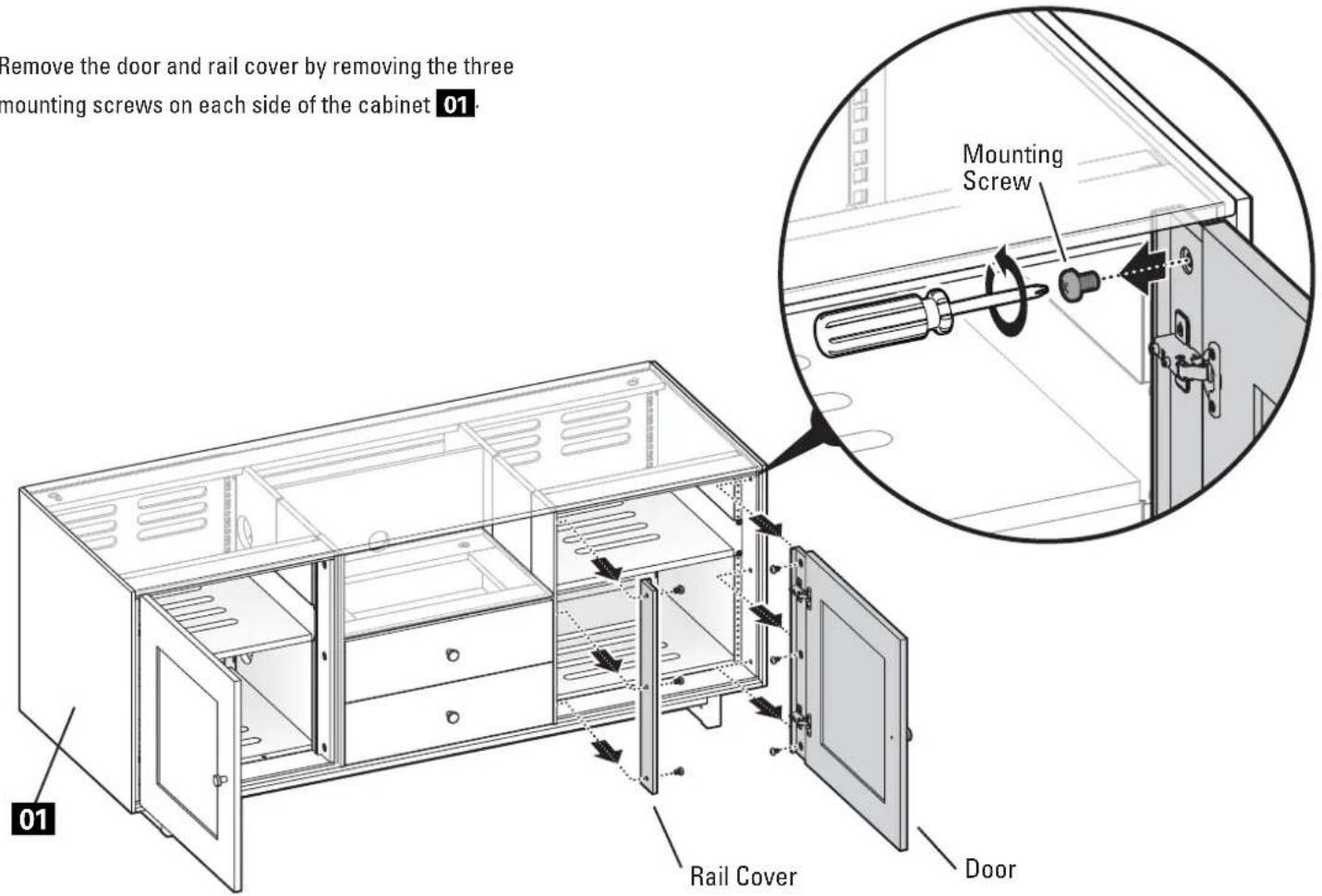

Remove the door and rail cover by removing the three mounting screws on each side of the cabinet 01.

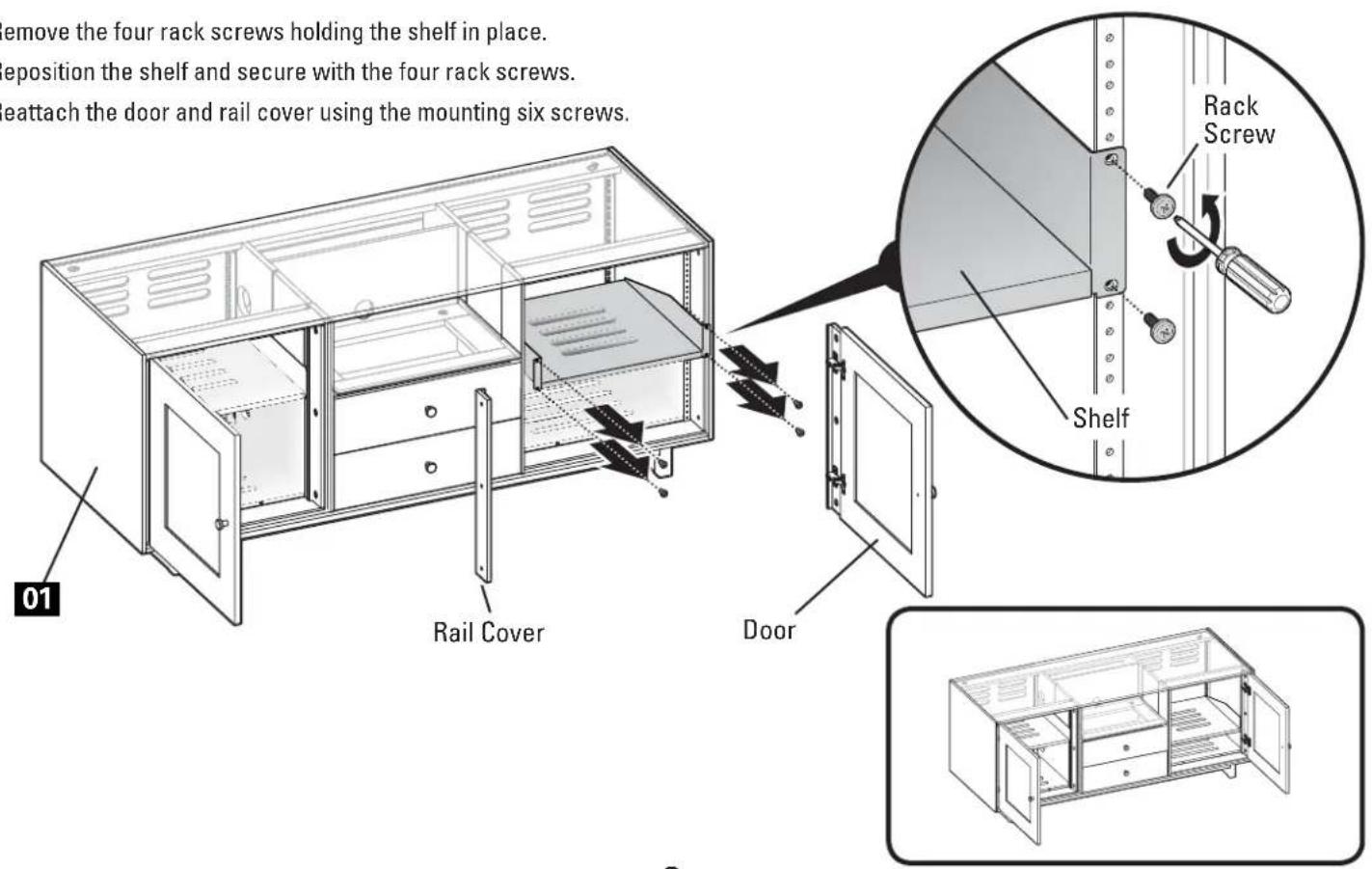

Remove the four rack screws holding the shelf in place.

Reposition the shelf and secure with the four rack screws.

Reattach the door and rail cover using the mounting six screws.

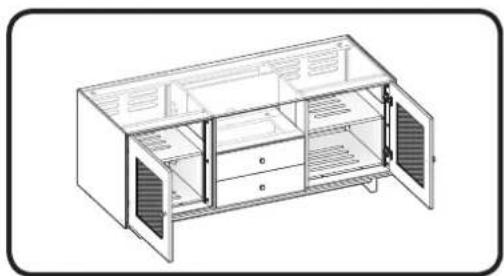

5 Door Screens (optional)

Parts for STEP 5

Pure geometric pattern of repeating diamond shapes without any text or symbols

Screen Panel
07 x2

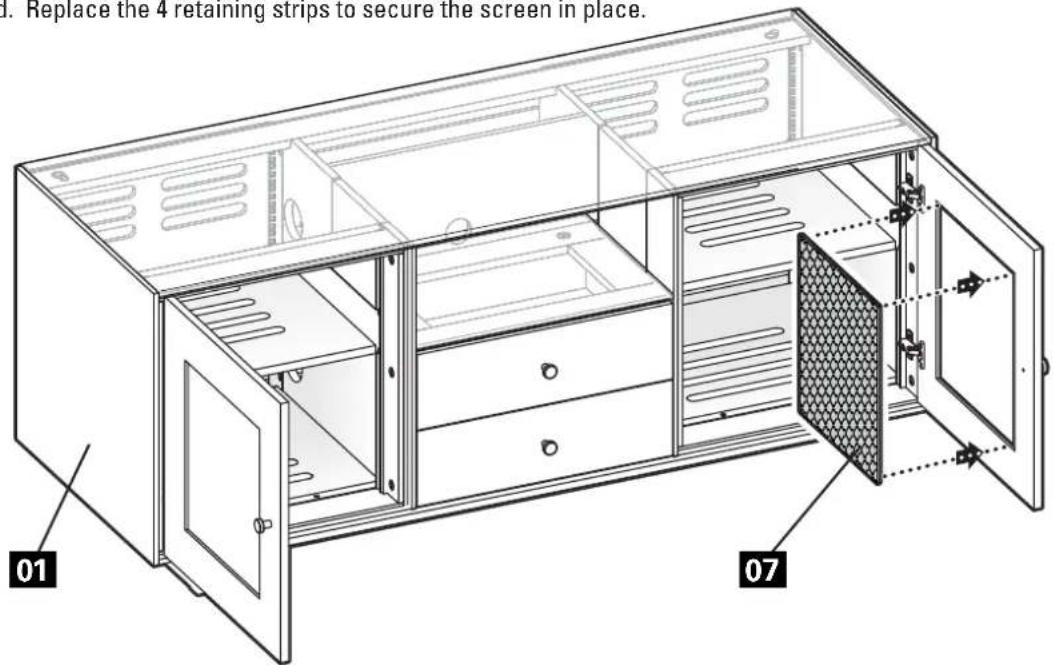

To utilize speakers behind the doors, inside the cabinet:

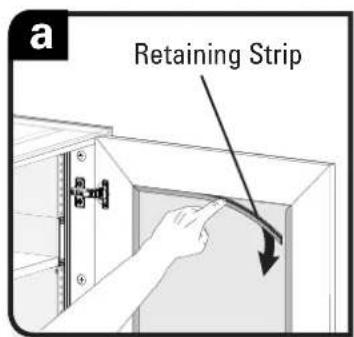

a. Pull the 4 retaining strips from the back of the door frame.

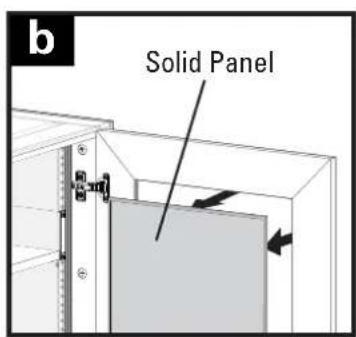

b. Remove the solid panel.

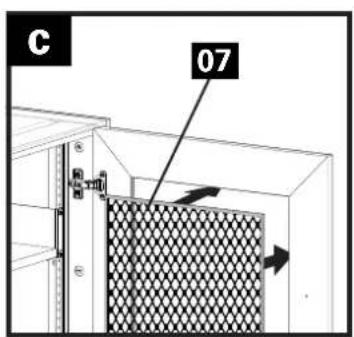

c. Install the screen panel 07 into the door.

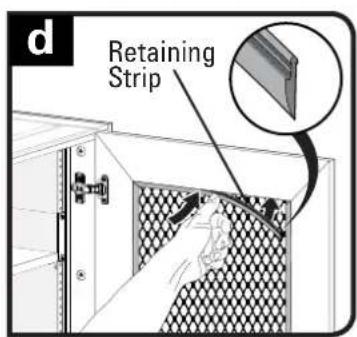

d. Replace the 4 retaining strips to secure the screen in place.

Technical line drawing of a cabinet with open doors and internal compartments (no text or symbols)

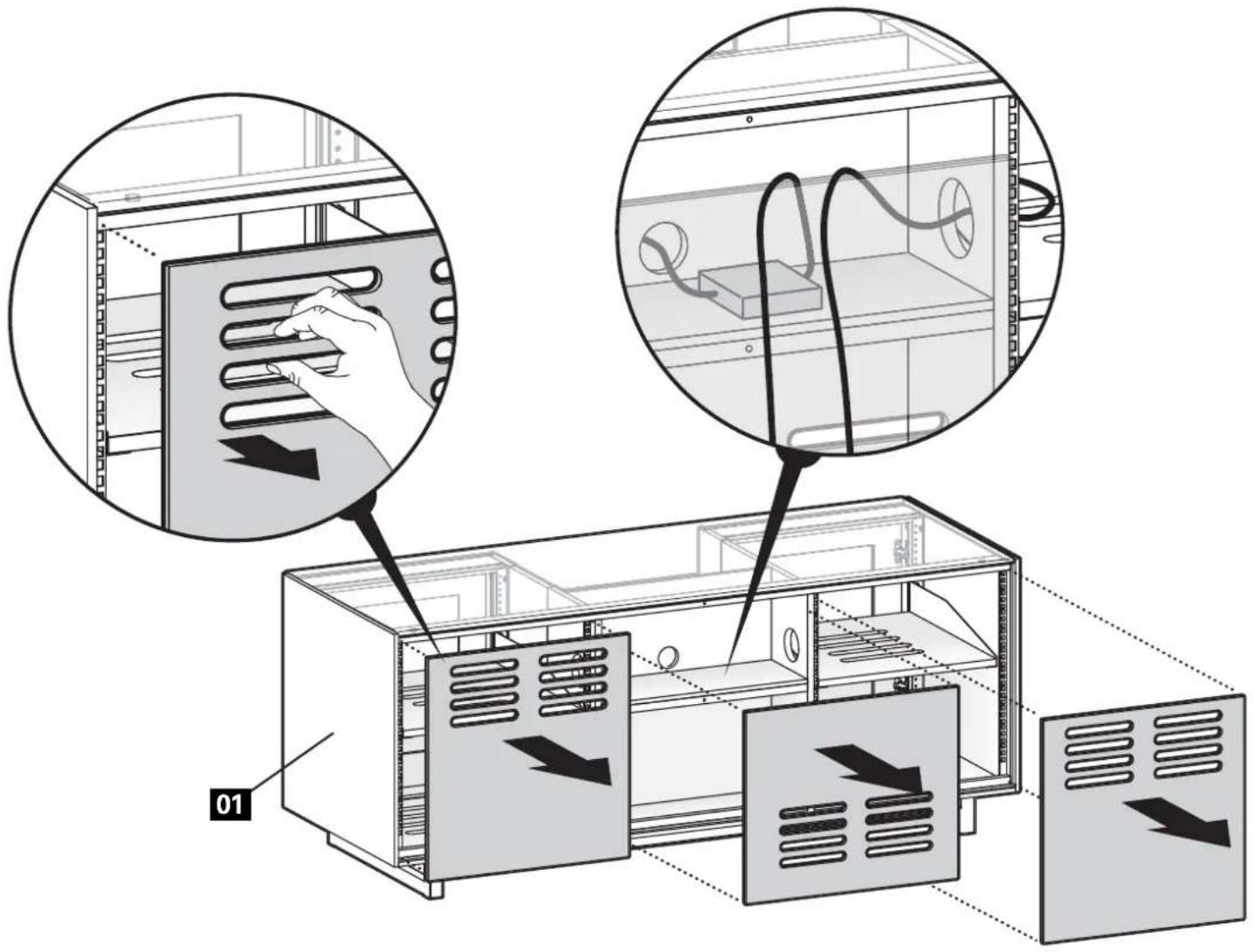

REMOVING THE BACK PANELS

Remove the magnetic back panels of cabinet 01 by pulling away from the cabinet.

Replace by lining up the panels and allowing the magnets to catch the cabinet 01.

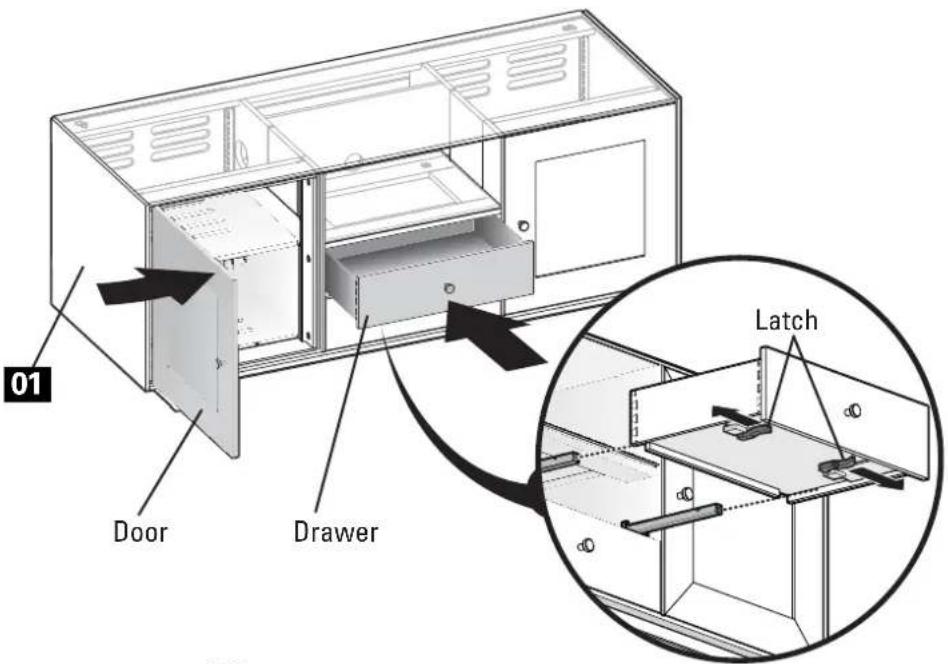

CABINET DOORS AND DRAWERS

The doors and drawers include an automatic closing mechanism.

Simply close the doors or drawers until you feel the auto close feature take affect, then release and allow the door or drawer to finish closing on its own.

Removal:

Doors - See STEP 4 on PAGE 8

Drawers - Pull outward on the latches on the underside of the drawer while pulling the drawer out and off the drawer rails.

NOTE: Hold the latches outward while installing the drawers.

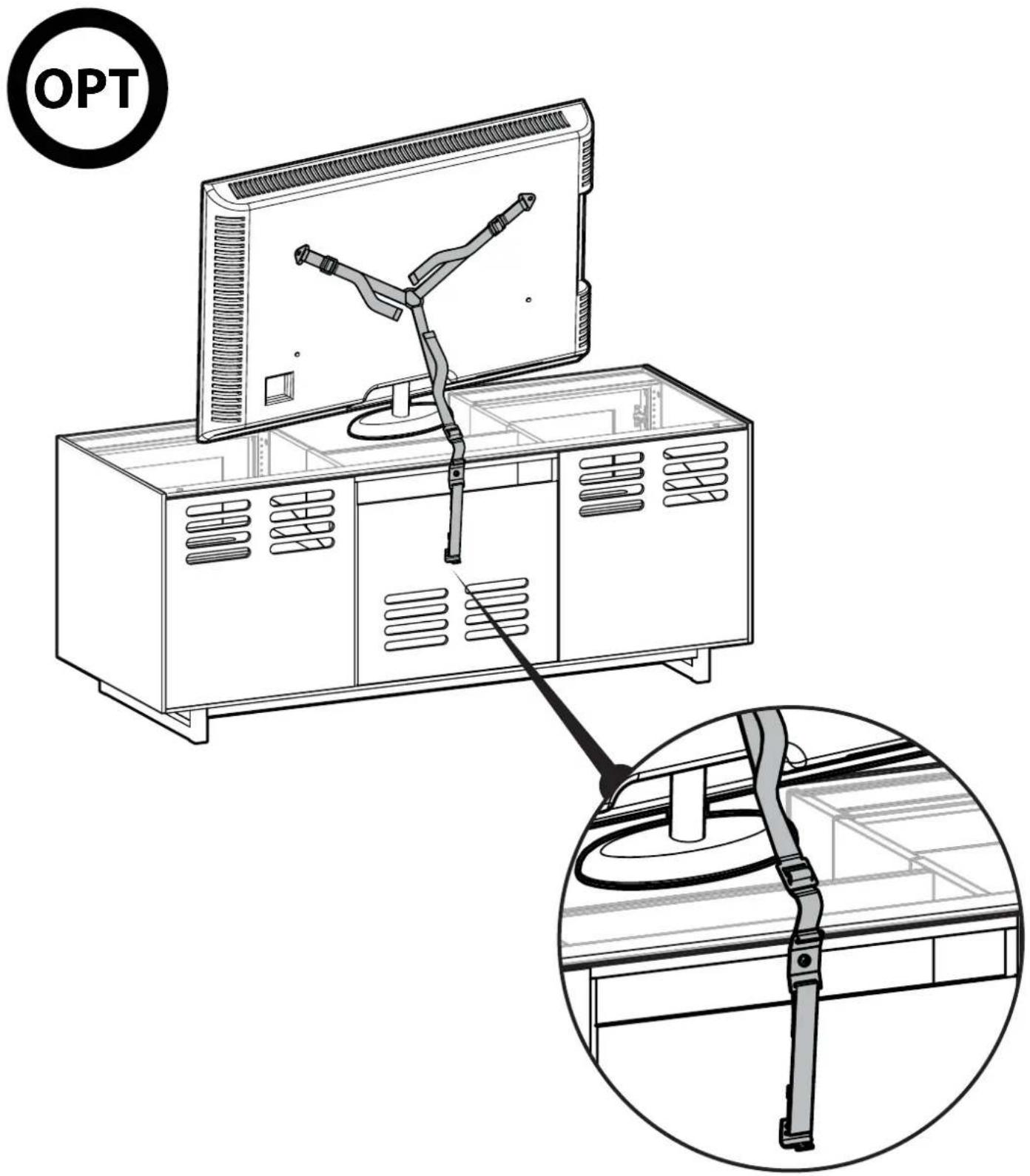

7 ELM701 Anti-tip Strap (Sold Separately)
