Product Type	TV Cabinet
Brand	SANUS
Model	BFV53
Category	TV Cabinet
Total Load Capacity	113 kg (250 lb)
Top Shelf Capacity	56.7 kg (125 lb)
Middle Shelf Capacity	23 kg (50 lb)
Bottom Shelf Capacity	34 kg (75 lb)
Shelf Material	Tempered Glass
Frame Material	Steel and Wood
Dimensions (approx.)	Width: 120 cm, Depth: 45 cm, Height: 60 cm
Weight (approx.)	25 kg
Number of Shelves	3 (top, middle, bottom)
Adjustable Feet	Yes, for leveling
Anti-tip Strap	Optional (sold separately)
Assembly Required	Yes, user assembly
Maintenance	Clean with a soft, dry cloth. Avoid abrasive products.
Safety Precautions	Do not exceed maximum load. Regularly check the condition of tempered glass. Use only with a flat-screen TV.
Warranty	Consult the manufacturer for warranty details

Frequently Asked Questions - BFV53 SANUS

What are the dimensions of the SANUS BFV53 TV cabinet?

The approximate dimensions are: width 120 cm, depth 45 cm, height 60 cm. Please refer to the manual for exact measurements.

What is the maximum weight supported by the cabinet?

The total weight must not exceed 113 kg, including the TV and accessories. Each shelf has its own limit: top 56.7 kg, middle 23 kg, bottom 34 kg.

Is the cabinet delivered with an anti-tip strap?

No, the anti-tip strap is optional and sold separately. It is highly recommended to install it for added safety.

What types of TVs can I place on this cabinet?

This cabinet is designed only for flat-screen TVs. Do not use with CRT TVs.

How to clean the tempered glass shelves?

Use a soft, dry or slightly damp cloth. Avoid abrasive products or harsh cleaners that could scratch or damage the glass.

What to do if a part is missing or damaged?

Do not return the product to the retailer. Contact SANUS customer service for replacement parts. Never use damaged parts.

Are the feet adjustable?

Yes, the feet are height-adjustable to allow leveling on uneven floors.

How long does it take to assemble the cabinet?

Assembly takes about 30 to 60 minutes. Follow the step-by-step instructions provided in the manual.

Can I attach the cabinet to the wall?

The cabinet is not designed to be attached directly to the wall. Use the optional anti-tip strap to secure it against tipping.

What is the warranty on the SANUS BFV53?

The warranty is generally covered by the manufacturer. Visit the SANUS website or contact customer service for specific details.

USER MANUAL BFV53 SANUS

3D rendering of a modern multi-level TV or audio workstation with two shelves and a central control unit (no text or symbols visible)

sanus.com

Customer Service

Americas: 800-359-5520 · 952-225-6013 · [e-mail]

Europe, Middle East, and Africa: [phone] • [e-mail]

Asia Pacifi c: 86 755 8996 9226 • [e-mail]

SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA

©2012 Milestone AV Technologies, a Duchossois Group Company. All rights reserved. Sanus is a division of Milestone. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.

We are here to help!

Please contact Customer

Service with any questions.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before You Begin

CAUTION: Avoid potential personal injuries and property damage!

Do not use this product for any purpose not explicitly specified by manufacturer
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service or call a qualified contractor
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

▲ WARNING: Tempered glass has been chosen for this product because of its strength and safety characteristics. However, tempered glass should still be handled with care to avoid possible property damage or personal injury.

• Mishandling during shipping, assembly, or use may result in damage that can weaken the tempered glass.
• Periodically check the glass to look for chips, cracks, or deep scratches.
  If chips, cracks, or deep scratches are found, discontinue use and contact customer service.

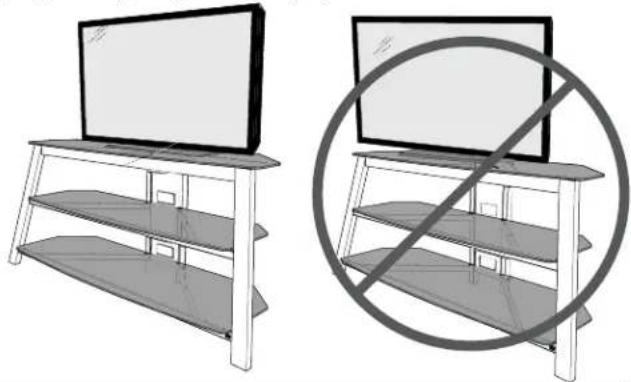

CAUTION: This product is designed for use with flat panel TVs ONLY.

To prevent tipping, be sure to center your fl at panel TV (NO CRTs) on top of your furniture.

Illustration of a TV set with a monitor and a prohibition symbol (no text or symbols present)

Specifications

Weight capacity-DO NOT EXCEED: 113 kg (250 lb.) includes TV and any accessories

■ Top Shelf: 57 kg (125 lb.)

Middle Shelf: 23 kg (50 lb.)

Bottom Shelf: 34 kg (75 lb.)

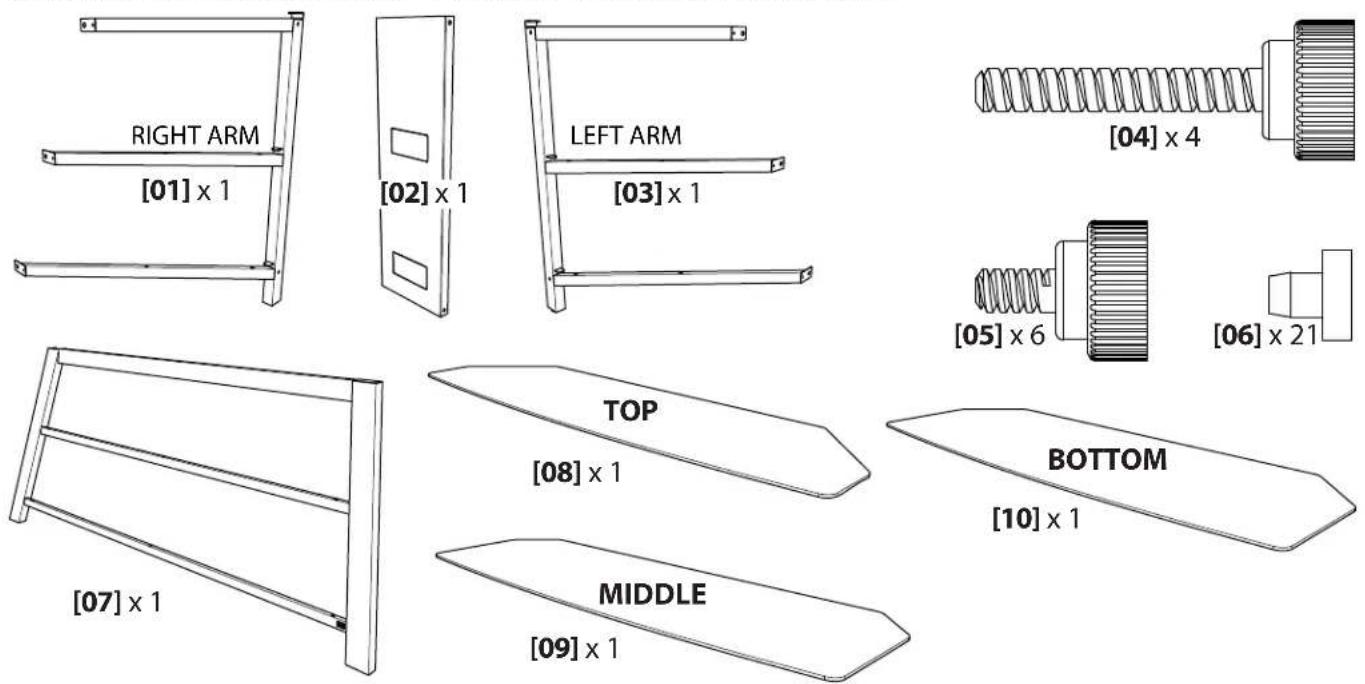

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

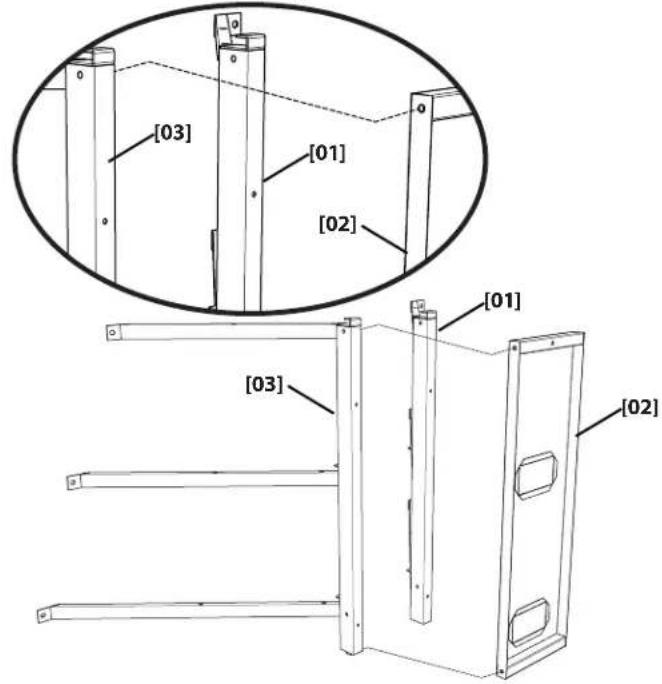

1 Attach Side Arms to the Back

Line up the holes in the side arms [01, 03] to the holes in the back [02] as shown. Secure arms [01, 03] to the back [02] using knob [04]. NOTE: Leave the knobs [04] loose until the front is attached.

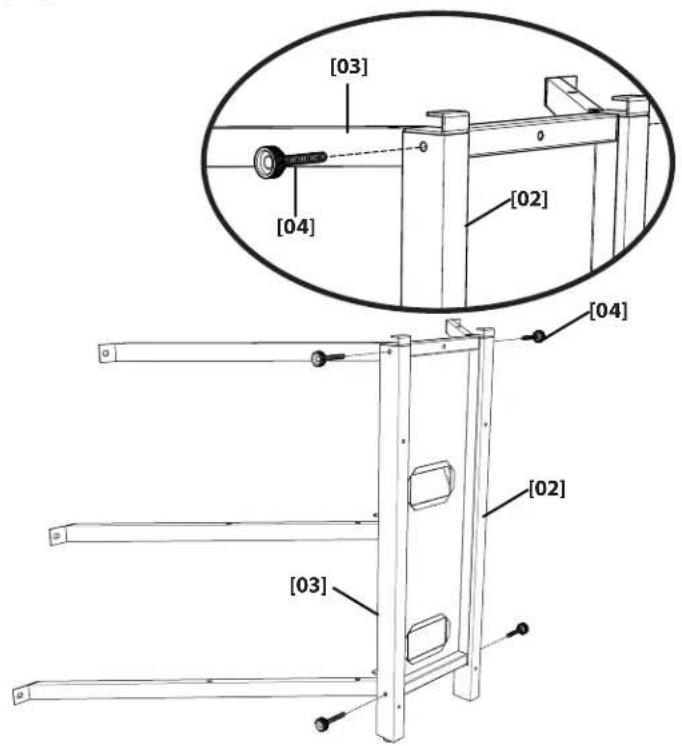

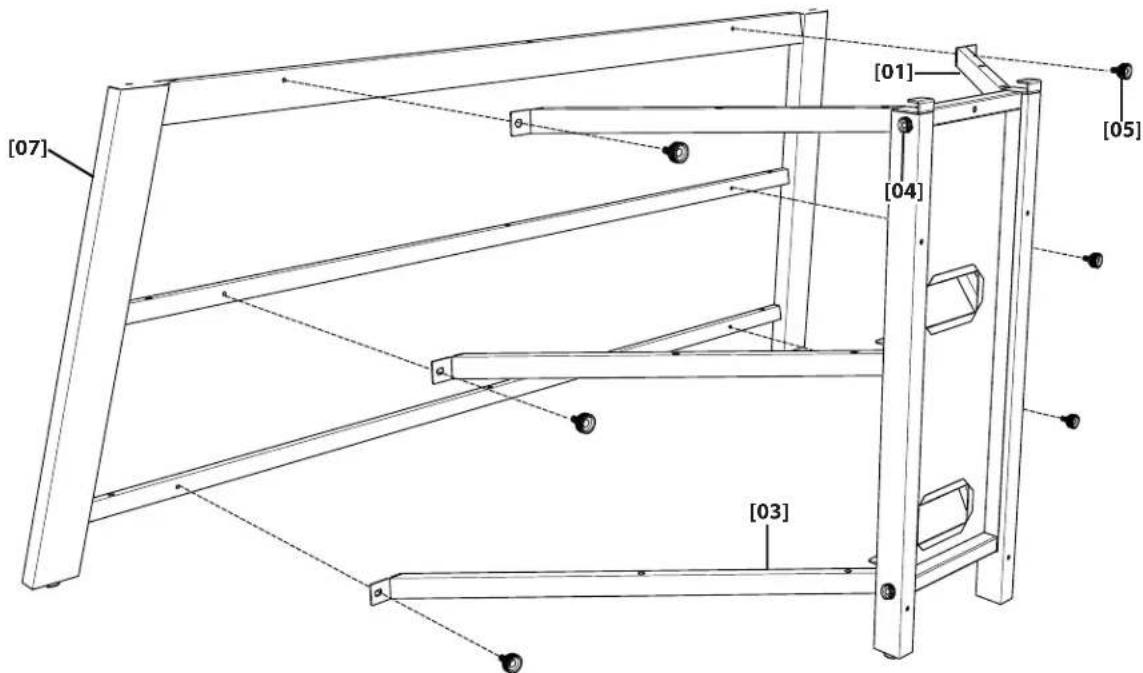

2 Attach Front to Side Arms

Secure the side arms [01, 03] to the front [07] using knob [05]. Tighten side knobs [04].

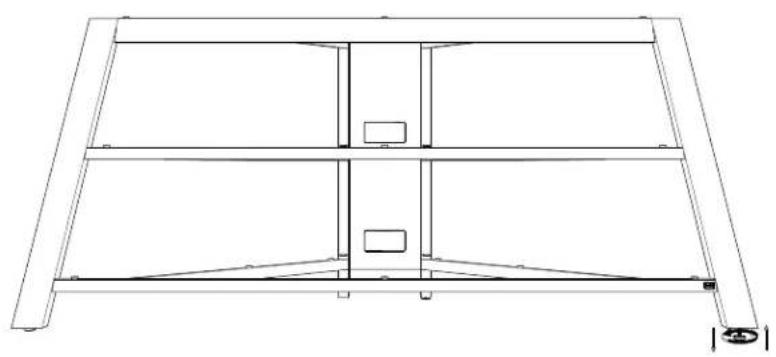

3 Level Feet

Feet are adjustable to ensure your furniture is level.

Technical line drawing of a structural frame with supports and internal compartments (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows, no text or symbols present

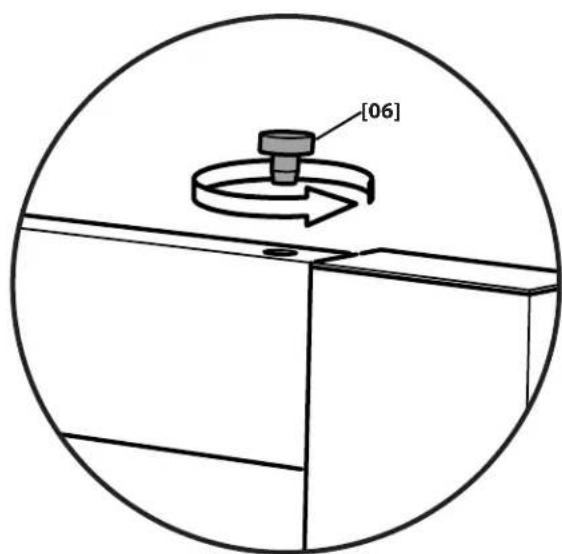

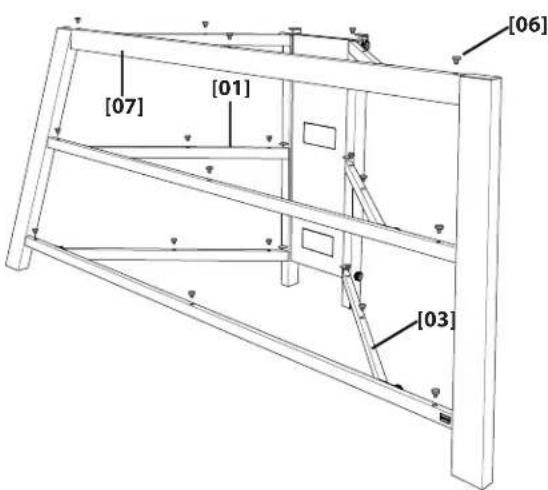

4 Attach Glass Pads

Attach glass pads [06] to the front [07] and side arms [01, 03]. Turn pads [06] until the bottom of the head is flush with the surface.

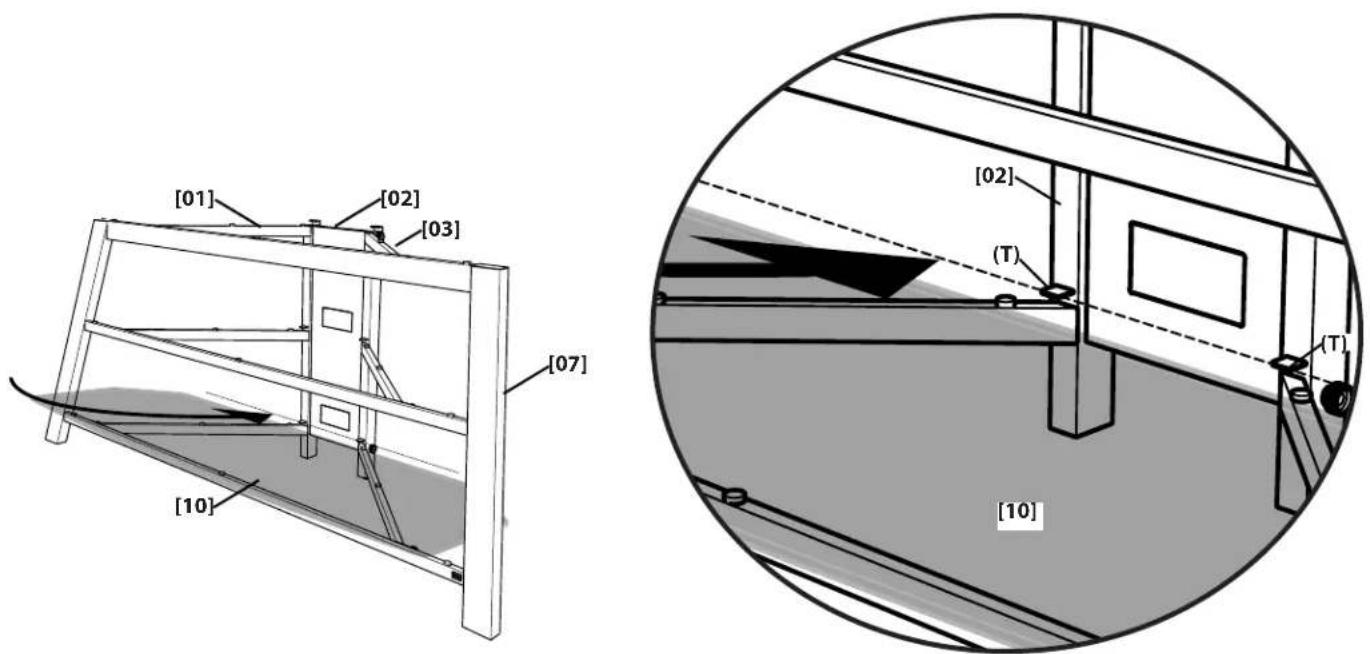

5 Insert Glass Shelves

Slide the bottom glass shelf [10] onto the bottom of the unit. Angle the shelf slightly so the glass meets the back [02] and fits under the tabs (T).

5-1

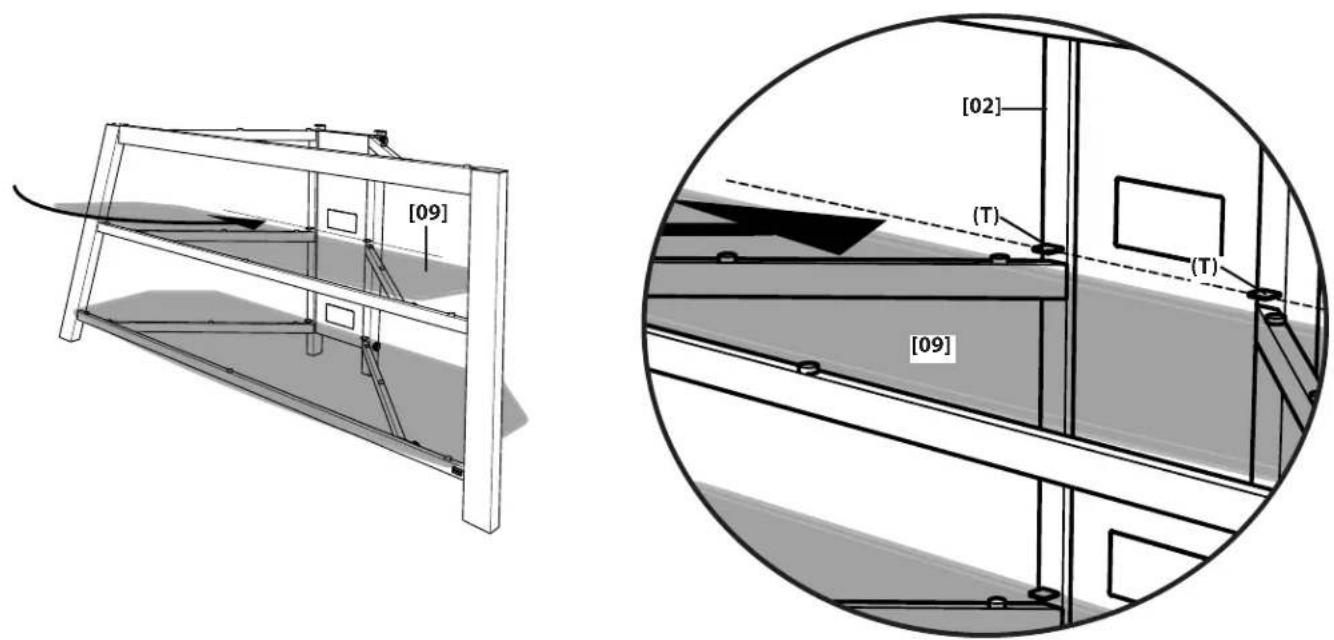

Slide the middle glass shelf [09] into the middle of the unit. Angle the shelf slightly so the glass meets the back [02] and fits under the tabs (T).

5-2

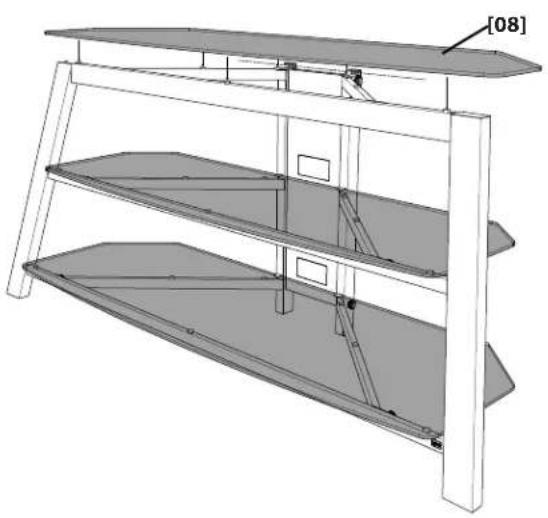

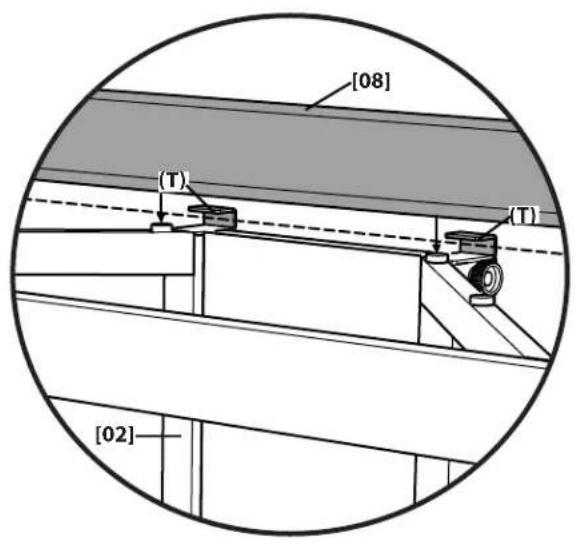

Set the top glass shelf [08] onto the top of the unit. Angle the shelf slightly so the glass meets the back [02] and fits under the tabs (T).

3D architectural rendering of a multi-level building structure with no visible text or symbols

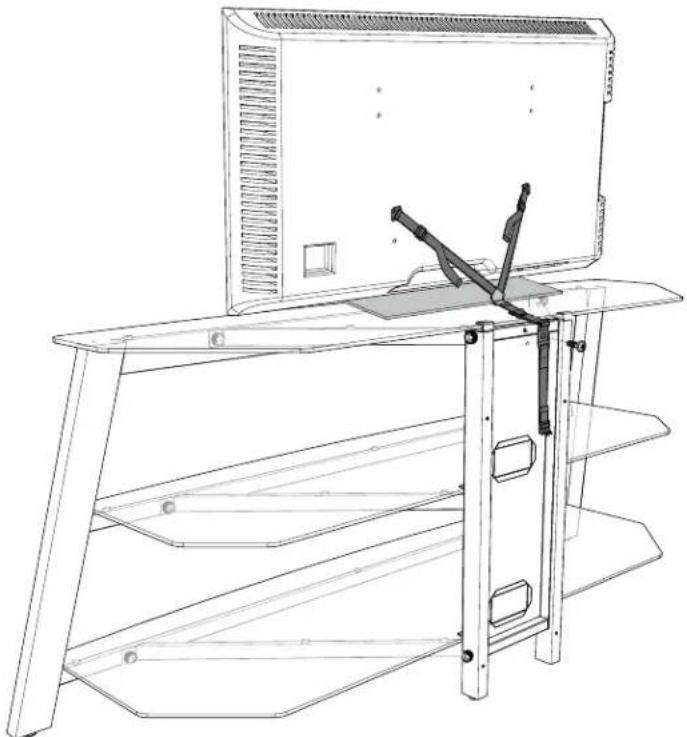

Attach Optional Anti-Tip Strap - Sold Separately

Line drawing of a computer monitor setup with support frame and stand (no text or symbols)

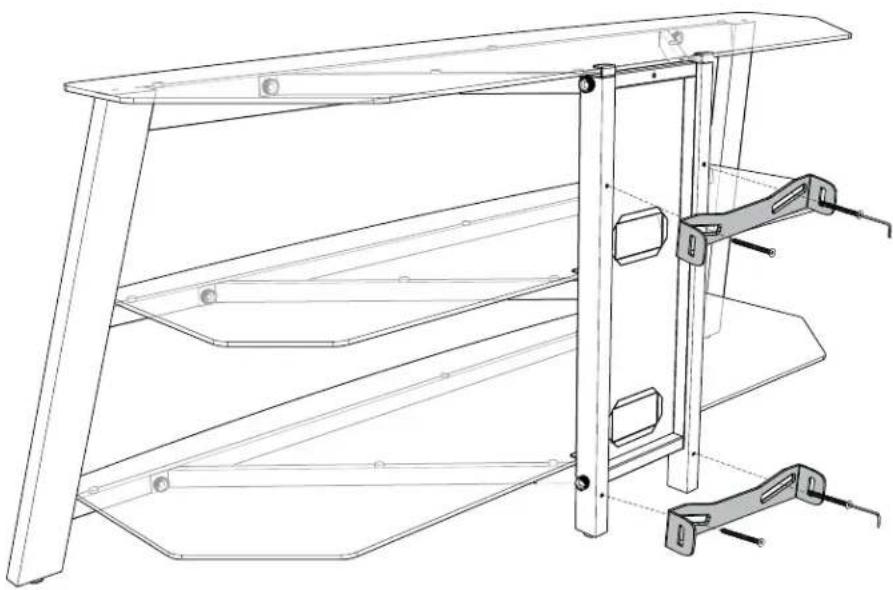

Attach Optional Pillar Mount - Sold Separately

Technical line drawing of a mechanical assembly with two vertical supports and mounting brackets (no text or symbols)
