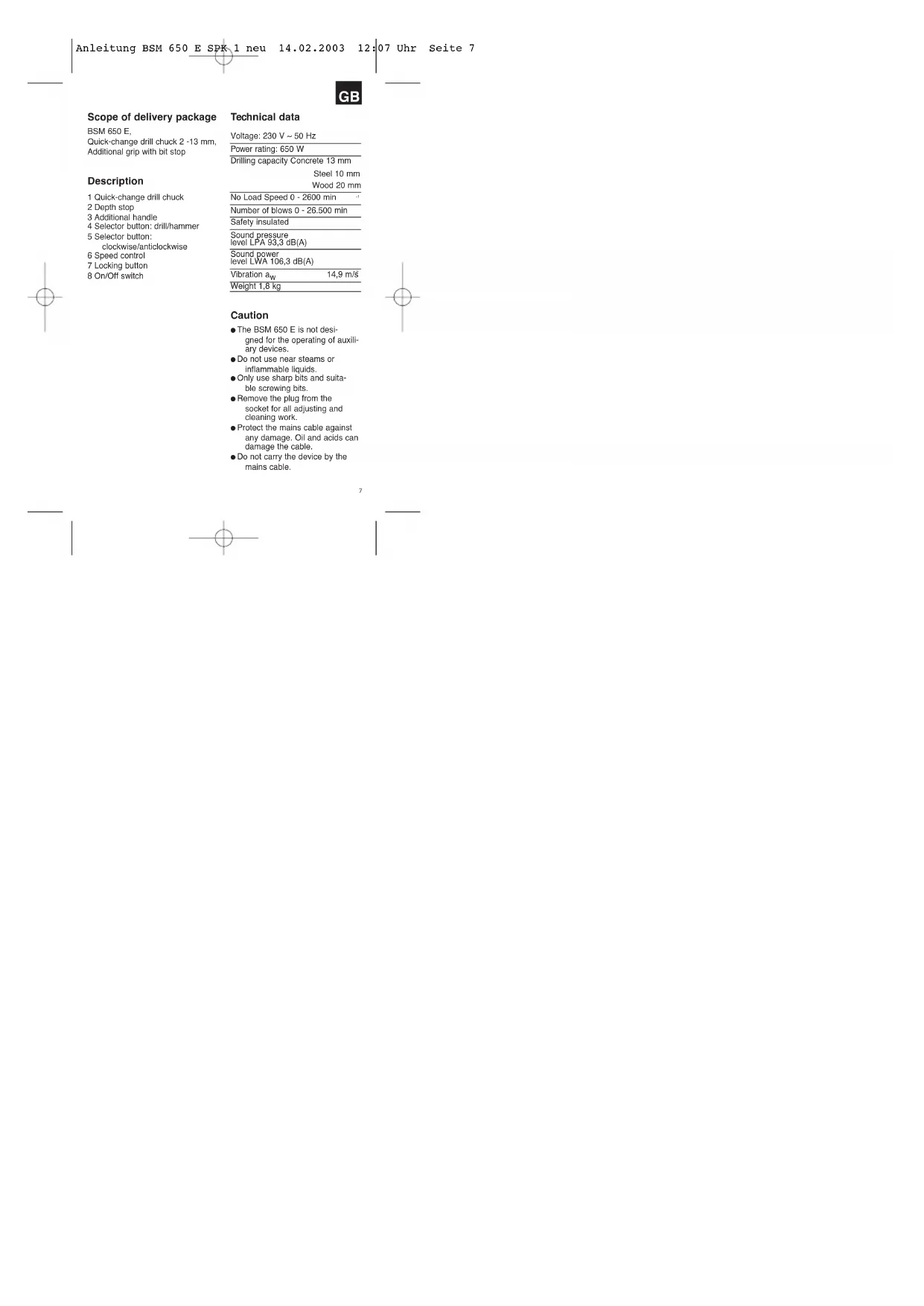

Scope of delivery package

BSM 650 E.

Quick-change drill chuck 2 -13 mm.

Additional grip with bit stop

Description

1 Quick-change drill chuck

2 Depth stop

3 Additional handle

4 Selector button: drill/hammer

5 Selector button:

clockwise/anticlockwise

6 Speed control

7 Locking button

8 On/Off switch

Technical data

Voltage: 230 V \~ 50 Hz

Power rating: 650 W

Drilling capacity Concrete 13 mm

Steel 10 mm

Wood 20 mm

No Load Speed 0 - 2600 min

Number of blows 0 - 26.500 min

Safety insulated

Sound pressure

level LPA 93,3 dB(A)

Sound power

level LWA 106,3 dB(A)

Vibration a_w 14,9 m/s

Weight 1,8 kg

Caution

● The BSM 650 E is not designed for the operating of auxiliary devices.
- Do not use near steams or
inflammable liquids.
● Only use sharp bits and suitable screwing bits.
- Remove the plug from the socket for all adjusting and cleaning work.
● Protect the mains cable against any damage. Oil and acids can damage the cable.
- Do not carry the device by the mains cable.

7

GB

• Do not remove the plug from the socket by pulling the mains cable.
  ● Make sure before inserting the plug that the operating switch is not locked.
• When using a cable drum uncoil the cable completely. Cross-section of wire at least 1.5 mm ^2 .
• Do not overload machine.
• Secure all workpieces to be processed sufficiently.
  ● Do not allow children to have access.
  ● Make sure you have a secure stance on ladders or scaffolding when using the drill free-hand.
• Localise lines with a line detector in walls where power, water or gas lines are laid invisibly.
  ● Wear protection goggles and use a dust mask for dust-producing work.
  ● Always arrange for a qualified electrician to carry out repair
  ● Use only original replacement parts

place may exceed 85 dB(A). In this case you will need to introduce noise protection measures for the user. The noise generated by this electric tool was measured in accordance with EN 50114-1.

● Vibration measured on the handle acc. to EN 50144-1.

Maintenance

● Always keep the drill clean.
- Do not use corroding agents for cleaning plastic.
- Check carbon brushes in the case of excessive sparking
- Keep ventilation channels free.

● The level of noise at the work-

8

GB

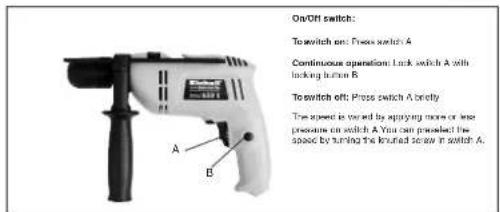

On/OFF switch: To switch and Press switch A Continuous operation: Lock switch A with locking button B To switch off: Press switch A briefly The speed is covered by enjoying more or less pressure on switch A. You can provide the speed by turning the knurled screw in switch A.

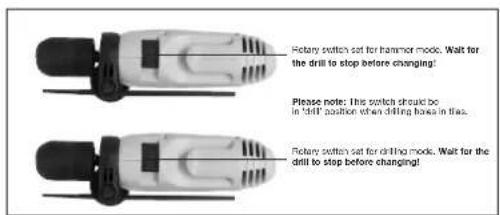

Rotary switch set for hammer mode. Wait for the drill to stop before changing! Please note: This switch should be in 'skill' position when drilling hocks in this. Rotary switch set for drill mode. Wait for the drill to stop before changing!

9

F

percussion 0 - 26.500 min

A double isolation

the information (a) is not a company, but the company is

The guarantee period begins on the sales date and is

valid for 2 years

Responsibility is assumed for faulty construction or

material or functional defects.

Any necessary replacement Paris an necessary repair

work are free of charge.

We do not assume responsibility for consequential

damage.

Your customer service partner
