H950AR - Humidifier PureGuardian - Free user manual and instructions

Product Type	Ultrasonic Cool Mist Humidifier
Brand	PureGuardian
Model	H950AR
Tank Capacity	0.80 gallon (3.03 L)
Maximum Run Time	Up to 30 hours (low setting)
Antimicrobial Technology	Silver Clean® built into the tank
Aromatherapy System	Essential oil tray and pad (oil not included)
Mist Control	On/off button with two speeds (low/high)
Water Level Indicator	Red LED indicator (low water)
Auto Shut-Off	Yes, when water level is low
Cleaning Brush	Included for the ultrasonic disc
Descaling	White vinegar/water solution (1 tsp each)
Power Supply	AC (power cord)
Warranty	1 year limited (parts and labor)
Customer Service	1.866.603.5900 (US/Canada)
Replacement Parts	Use only genuine Guardian Technologies parts
Recommended Maintenance	Regular cleaning and descaling based on water hardness
Safety Precautions	Do not immerse, do not use additives in the tank
Dimensions (approx.)	Not specified
Weight (approx.)	Not specified

Frequently Asked Questions - H950AR PureGuardian

How do I clean the ultrasonic disc?

Use only the cleaning brush provided to gently clean the disc. Do not scrub or scratch the disc. If hard water deposits persist, apply a solution of white vinegar and water (1 tsp each) for 5 minutes, then rinse thoroughly.

Why is there no mist output?

Check the power outlet and ensure the tank is properly installed. Make sure the ultrasonic disc is clean. If the problem persists, clean the disc and check for a power outage.

What type of water should I use?

Use soft or distilled water. Hard water may cause white dust buildup and clog the unit. Avoid hot or boiling water.

Can I use essential oils?

Yes, add a few drops to the essential oil pad in the tray. Never add oils directly to the water tank, as this will damage the unit and void the warranty.

How do I descale the humidifier?

Unplug the unit and empty the base. Prepare a solution of 1 teaspoon white vinegar to 1 teaspoon water, pour it into the base, let it sit for 5 minutes, then clean surfaces with a soft cloth or brush. Rinse thoroughly with clean water.

What does the red light on the button mean?

The red light indicates low water level. Unplug the unit and refill the tank. The unit will automatically shut off in this case.

Why is there white dust on my furniture?

This is due to hard water. White dust is mineral deposits. Use distilled water to reduce this. Clean the humidifier regularly.

How should I store the humidifier at the end of the season?

Clean and descale the unit, then dry it completely. Do not leave water in the tank or base. Return it to its original packaging and store in a cool, dry place.

What is the warranty for the PureGuardian H950AR?

The unit has a limited one-year warranty from the date of purchase. It covers defects in materials and workmanship. Keep your original receipt. For claims, contact customer service at 1.866.603.5900.

Why does the mist have a bad odor?

A bad odor is often due to insufficient maintenance or stagnant water. Clean the unit thoroughly, including the tank, and fill with fresh soft water. Use the cleaning feature regularly.

USER MANUAL H950AR PureGuardian

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

guardian technologies™

USE & CARE INSTRUCTIONS

Line drawing of a cylindrical water heater with lid and base, showing no text or symbols

30-Hour Easy Top Fill Ultrasonic Humidifier

Model No. H950AR

3-Year Limited Warranty

Customer Service

1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0720

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.
• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.
  Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: Cancer or Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Ultrasonic Cool Mist TANK CAPACITY: .80 gallons

SUCCESSIVE HUMIDITY HOURS: Up to approximately 30 hours between tank refills when on lowest mist setting.

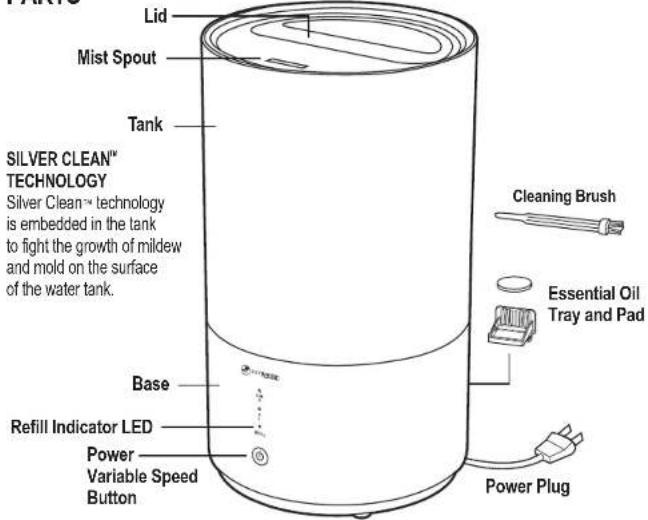

PARTS

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces. Guardian Technologies will not accept responsibility for damage caused by water spillage.

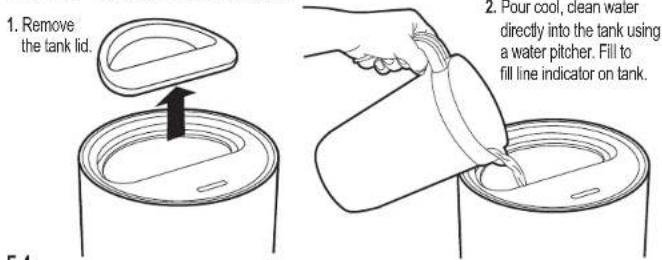

FILLING - Make sure unit is unplugged.

Line drawing of a faucet dispensing liquid into a container (no text or symbols)

1. OR Remove water tank and fill directly under faucet then return tank to base.

1. Add a few drops of your favorite essential oil to the pad in the tray. (Oil not included) WARNING: DO NOT add oils or other additives directly into the water tank. Add only to the pad in the tray. Oils added to the tank will damage the tank and the whole unit. Any use of such additives in the tank will void the manufacturers warranty.
   Pureguardian essential oils and replacement pads sold separately at www.guardiantechnologies.com

Line drawing of a cylindrical water heater with heat exchanger and outlet (no text or symbols)

1. Return tank lid. Return tank to base by lining up the two arrows on the back of the unit.
2. Plug in unit and press power button. Press once for minimum mist, press twice for maximum mist.

1. WATER REFILL INDICATOR When the unit is low on water the LED turns RED and the unit will shut off.

CLEANING

1. Always unplug the unit before servicing in any way.

GENERAL CLEANING

1. Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Use brush to clean underneath float (remove from water tank). Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
2. Water tank. Empty water tank. Clean the bottom and inside of the tank with fresh water and brush (bottle brush suggested). Clean mist nozzle area.
3. Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

CLEANING (cont.)

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit. Remove the tank and empty all water from unit base and tank.
2. Locate the ultrasonic disk on the inside of the base unit.
3. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

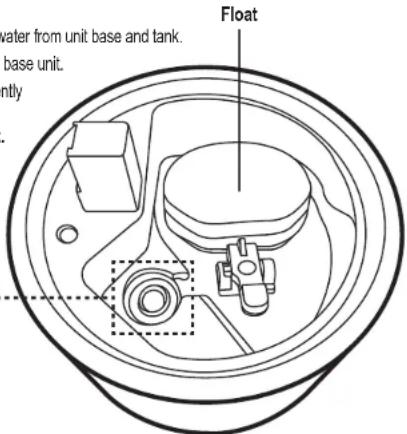

Looking down at the inside of empty tank.

Ultrasonic Disk

Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

If scale becomes difficult to remove with brush:

1. Fill the tank with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the tank, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and under float in water tank. Clean as needed.
5. Rinse the tank thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank.Detergent residue and/or oil ingredients from cosmetics, may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and refill tank.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting.Unit not level and water is accumulating. Unplug and place on level surface. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Increased noise level.	Unit must be placed on a flat, level, hard surface.Make sure it is NOT placed on a soft or absorbent surface.
Red light above power button.	Indicates low water. Unplug and refill tank.
Cannot smell aroma scent.	Add a few more drops of oil to the aroma pad or replace aroma pad with a new one.
