H955W - Humidifier PureGuardian - Free user manual and instructions

Brand	PureGuardian
Model	H955W
Humidification Type	Ultrasonic cool mist
Tank Capacity	1.97 L (0.52 gal)
Run Time (Low Setting)	Up to 30 hours
Mist Output	3 adjustable speeds
Power Supply	120V~, 60Hz
Humidity Control	40% to 75% RH, adjustable
Auto Mode	Yes, automatically adjusts output based on ambient humidity
Timer	1 to 12 hours
Night Light	7 colors + off
Silver Clean™ Technology	Integrated into the tank to limit mold growth
Essential oils compatibility	Yes, direct addition into the tank
Water Fill Indicator	Yes, flashing red light and E1 display
Misaligned Tank Detection	Yes, E2 display
Auto Shut-off	Yes, when tank is empty or misaligned
Cleaning	Regularly clean the tank, base, and ultrasonic disk with the provided brush
Descaling	Recommended based on water hardness, use white vinegar
Warranty	3 years limited
Included Accessories	Cleaning brush

Frequently Asked Questions - H955W PureGuardian

Why isn't my humidifier emitting mist even though air is circulating?

Several possible causes: too much water in the tank (remove some water), the mist tube is not properly closed, detergent or oil residue in the tank (wash it), or the ultrasonic disk is dirty (clean it with the provided brush). If you use hard water, switch to soft or distilled water.

How to clean the ultrasonic disk?

Unplug the device and empty all water from the base. Use only the provided cleaning brush to gently clean the disk. Do not scrub or scrape the disk. If scale persists, apply a solution of white vinegar and water (1:1) for 5 minutes, then rinse thoroughly.

What does the E1 code on the display mean?

The E1 code indicates that the water level is too low. Fill the tank with fresh water. The power indicator flashes red. The device will automatically restart after filling.

What does the E2 code on the display mean?

The E2 code indicates that the water tank is not properly positioned on the base. Remove the tank and realign it by matching the small lines on the side of the tank and base. The power indicator turns solid red.

Can I use essential oils in this humidifier?

Yes, you can add a few drops of essential oil directly into the water tank, as the tank material allows it. Do not pour oil elsewhere. If you do not smell the aroma, add a few more drops.

How to set the desired humidity?

Press and hold the humidity adjustment button to select a level between 40% and 75% RH. The recommended humidity is between 45 and 50%. When the ambient humidity reaches the set level, the device switches to low speed.

What to do if white dust settles on furniture?

White dust is due to minerals in hard water. Use distilled water to reduce this phenomenon. Regularly clean the device and the ultrasonic disk.

How to use the timer function?

Press the Timer button to set a programmed shut-off duration from 1 to 12 hours. The display shows 'CO'; press the button several times to select the desired time. The device will automatically stop at the end of the timer.

Can I leave the humidifier running all night?

Yes, you can use the timer to program a shut-off after a few hours. Make sure the tank contains enough water for the desired duration. The device has an automatic shut-off in case of water shortage.

How to store the humidifier at the end of the season?

Clean and descale the device. Let it dry completely in the air. Do not leave water in the base or tank. Put the device back in its original packaging and store it in a cool, dry place.

USER MANUAL H955W PureGuardian

Simple black-and-white circular diagram with three smaller circles inside, no text or symbols present.

guardian

technologies™

USE & CARE INSTRUCTIONS

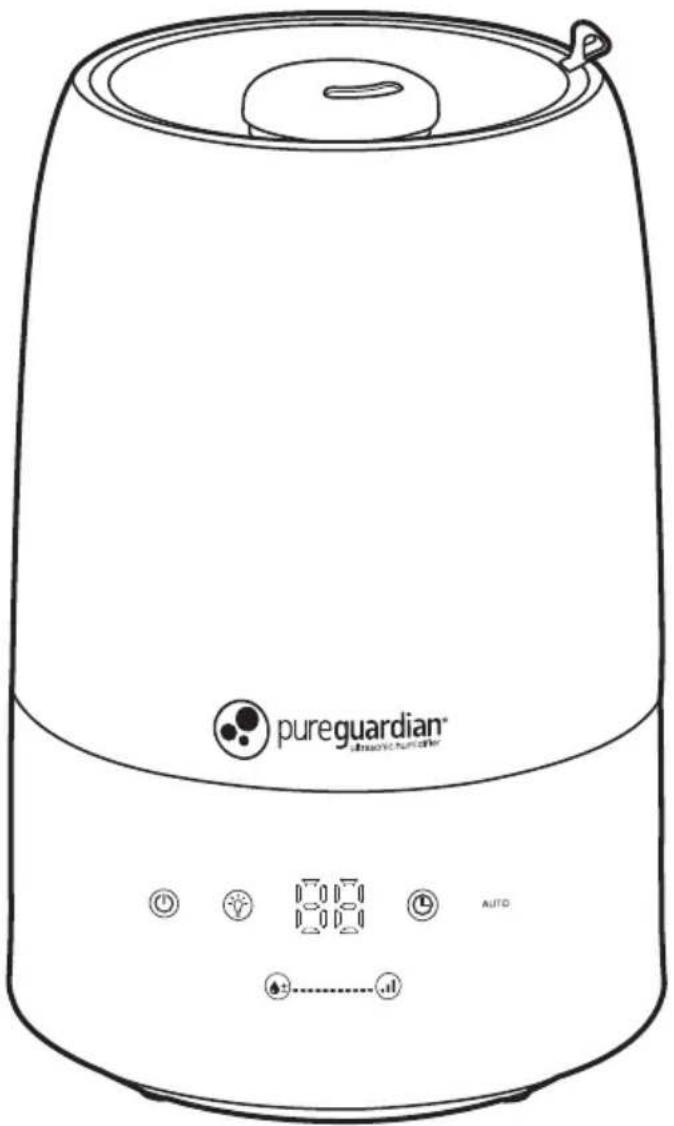

Line drawing of a pureguardian air purifier with control panel and indicator lights (no text or symbols on body)

Ultrasonic Humidifier & Diffuser

Model No. H955W

3-Year Limited Warranty

Customer Service 1.866.603.5900

www.guardiantechnologies.com

Date Purchased month ____ year ____ Keep Receipt

English E - 1 French F - 1 Spanish S - 1

Use GENUINE Guardian Technologies replacement parts only.

REV0422

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• Do not use this product near any other electronic device.
• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.
• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.
• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.

• Do not touch the water tank during operation.

• Do not submerse the unit in water or pour water on the unit or in the humidity spout.

• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: Cancer and Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Ultrasonic Cool Mist

TANK CAPACITY: 0.52 gallon

RUN TIME: Up to approximately 30 hours between tank refills when on lowest mist setting.

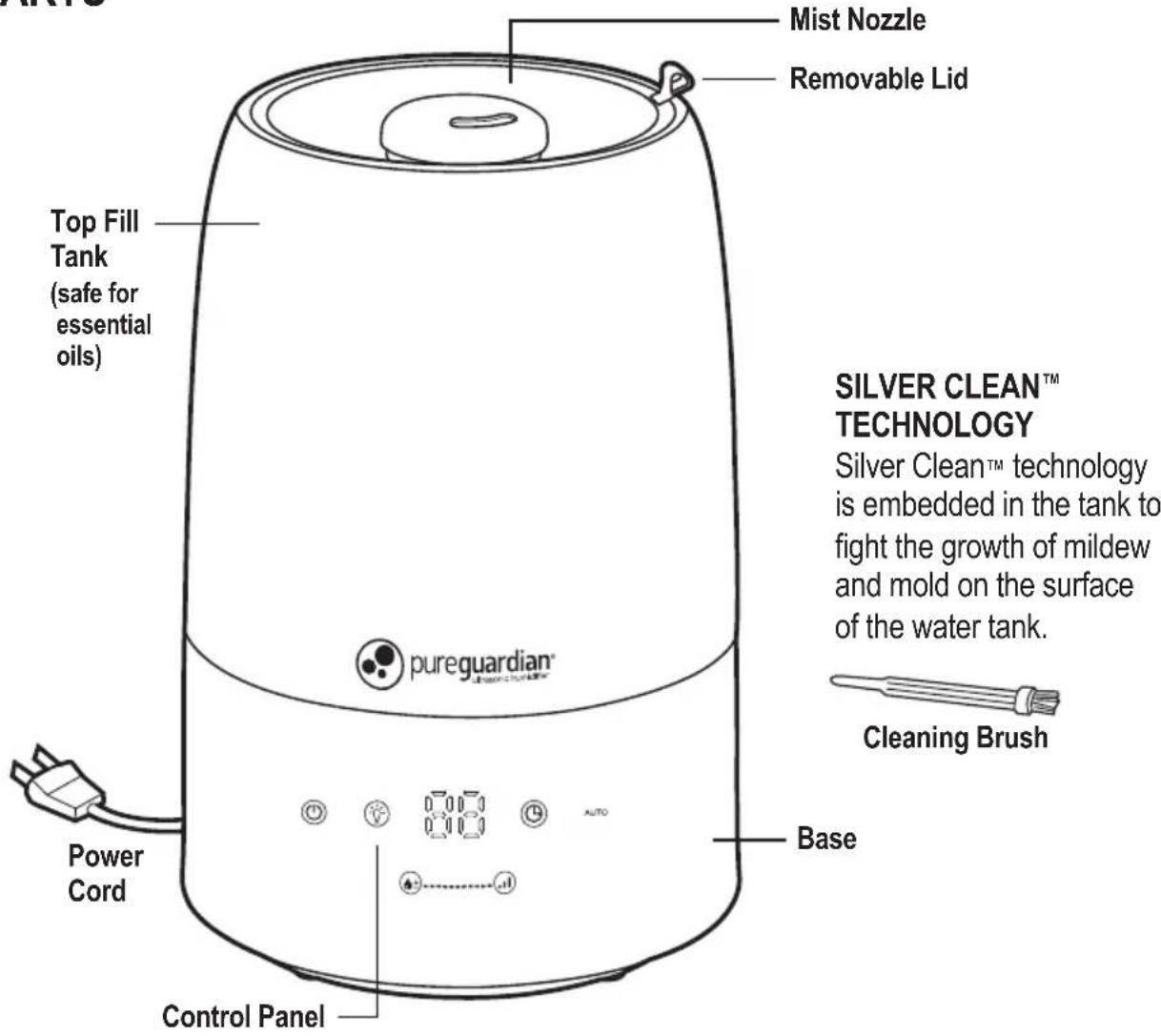

PARTS

CONTROL PANEL

HUMIDITY SETTING / MIST OUTPUT

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

DIRECTIONS FOR USE

FILLING - Make sure unit is unplugged.

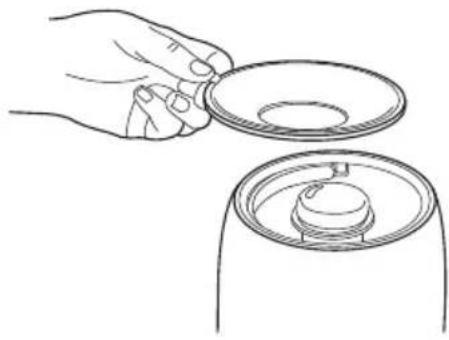

Line drawing of a hand holding a lid above a container with a lid (no text or symbols)

1. Remove the tank lid.

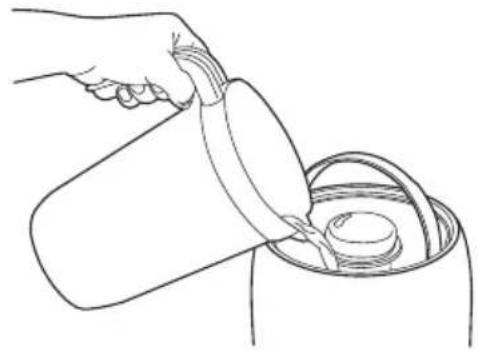

Line drawing of a hand pouring liquid from a bottle into a container (no text or symbols)

1. Pour cool, clean water directly into the tank, or lift handle in tank and carry to sink to fill. Fill to MAX line on Mist Tube.

Simple line drawing of a container with a lid and arrow indicating downward motion (no text or symbols)

1. Return the tank lid.

2. OPTIONAL: Add a few drops of your favorite essential oil to directly to the tank. (Oil not included) NOTE: Essential oils can be added directly to this water tank due to the material used in the design.

3. WATER REFILL INDICATOR - When the unit is low on water the power button will flash red and the display will show E1 until the unit is refilled or turned off. Add more water to continue use. Unit will automatically resume running when the tank has been refilled.

CONTROL OPERATION

Power Button - Press to turn the power on/off.

Timer - Set the scheduled shutdown time from 1 to 12 hours shown on the display, the product will shut down after the timer expires. The display will read "CO", press the timer button to set the timer for the hour time preferred.

Night light - Press once to turn on the 7 color night light. Continue to press up to 8 times to circulate through and select a color. The 9th press turns the light off.

Humidity Setting - Press to select the preferred humidity level. The humidity range can be set from 40% to 75%RH. Recommended humidity is between 45-50%. When ambient humidity reaches the select setting the unit will work in low speed. If it falls +/- 5% it will restore to the original speed.

AUTO AUTO Mode - Press to turn on/off Auto function. This function changes the mist output based on the following:

Default humidity upper limit is 50%RH

1. When 40%RH < current humidity < 50%RH, low mist output
2. When 30% RH < current humidity ≤ 40% RH , medium mist output
3. When the current humidity ≤ 30%RH, high mist output
4. When the current humidity is ≥ 50% RH, the transducer will automatically stop working but the fan will still work, the unit will resume work until the current humidity < 50% RH

Mist Output - Press to select speed: 1-3.

When the tank is removed or the tank is not properly aligned, the power button will light up (solid red), the display will show E2. Realign tank by matching the small lines on the side of the tank and base.

GENERAL CLEANING

1. Always unplug the unit before servicing in any way.
2. Water tank. Empty the tank to clean. Clean the inside of the tank with fresh water and a soft cloth or the cleaning brush. To clean the inside of the upper mist tube (inside the tank) first remove the mist spout by pulling it directly off. Then twist the mist tube in a counter clockwise direction and pull it out. To remove the lower mist tube (underside of the tank) twist it in a counter clockwise direction and pull it out. Clean the insides of both pieces with a brush and water. Return both pieces by rotating them in a clockwise direction until snug and then snapping the mist spout back onto the upper mist tube. When returning tank to base, position the tank by aligning the two lines on the side of the tank.
3. Outer surface of the unit. Wipe the lid and surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Empty the tank and any remaining water in the base of the tank by pouring out all of the water.
3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

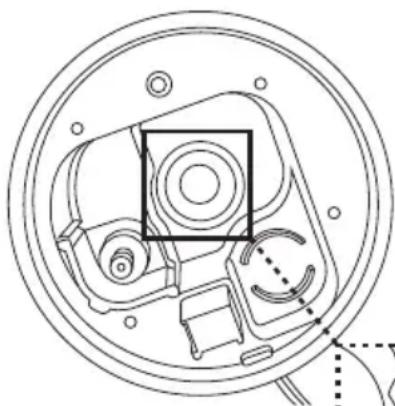

Ultrasonic Disk Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

Technical line drawing of a mechanical component with no visible text or symbols

Looking down at the inside of empty base.

Simple line drawing of a hand holding a tool over concentric circles (no text or symbols)

If scale becomes difficult to remove with brush:

1. Fill the tank with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the tank, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the tank thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank.Excessive Water in mist tube. Remove water from tank and mist chamber.Make sure that the mist tube in the tank is in the closed position.Detergent residue and/or oil ingredients from cosmetics, eta may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and refill tank.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Increased noise level.	Unit must be placed on a flat, level, hard surface.Make sure it is NOT placed on a soft or absorbent surface.
E1 on display.Power light flashing red.	Indicates that the water level is low. Refill tank.
E2 on display.Power light solid red.	Indicates the tank is not on the base or is not installed properly.
Humidity measurement does not match my home humidistat readings (hygrometer).	Due to humidistat tolerances between devices different relative humidity readings can be seen.
Cannot smell aroma scent.	Add a few more drops of oil to the tank.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty does not cover Guardian Technologies products that are used outside of the US and Canada as the appliance must be plugged directly into a 120V AC electrical outlet without the use of an adapter.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Repair Department, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada Guardian Technologies LLC 26251 Bluestone Blvd. Euclid, Ohio 44132 1.866.603.5900 www.guardiantechnologies.co

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

Simple black-and-white circular diagram with three smaller circles inside (no text or symbols)

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a pureguardian air purifier with control buttons and indicator lights (no text or symbols on the device itself)

Line drawing of a hand holding a lid above a container with a lid (no text or symbols)

Line drawing of a hand pouring liquid from a bottle into a container (no text or symbols)

Simple line drawing of a cylindrical container with a lid and arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a hand holding a tool near concentric circles (no text or symbols)

REMARQUE : SI VOUS RENCONTREZ UN PROBLÈME QUEL QU'IL SOIT, NE TENTEZ PAS D'OUVRIR VOUS-MÊME LE COMPARTIMENT DU MOTEUR. AGIR DE LA SORTE RISQUE D'ANNULER VOTRE GARANTIE, D'ENDOMMAGER L'HUMIDIFICATEUR OU DE CAUSER DES BLESSURES.

GUIDE DE DÉPANNAGE

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

Simple black-and-white circular diagram with three smaller circles inside (no text or symbols)

guardian

technologies™

Line drawing of a pureguardian air purifier with digital display and control buttons (no text or symbols on main body)

Line drawing of a hand holding a lid above a container with a small object inside (no text or symbols)

Line drawing of a hand pouring liquid into a container with a handle (no text or symbols)

Simple line drawing of a container with a lid and arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a hand holding a dart near concentric circles (no text or symbols)

Guardian Technologies LLC

26251 Bluestone Blvd.

Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com
