Product Type	Ultrasonic Cool Mist Humidifier
Brand	PureGuardian
Model	H980W
Tank Capacity	3.8 liters (1 gallon)
Maximum Runtime	Up to 70 hours (low setting)
Power Supply	120 V AC, 60 Hz
Mist Speeds	3 levels (1, 2, 3)
Night Light	7 colors + off option
Antibacterial Technology	Silver Clean™ integrated in tank
Essential Oil Compartment	Yes, tray with pad (oil not included)
Water Level Indicator	Power button flashes red
Auto Shut-Off	Yes, when water runs out
Fill Type	Top-fill, directly into tank
Recommended Room Size	Medium to large room (not specified)
Ultrasonic Disc Cleaning	With included cleaning brush only
Descaling	Recommended based on water hardness
Warranty	3-year limited
Included Accessories	Cleaning brush, essential oil tray
Customer Service	1.866.603.5900
Country of Use	United States and Canada

Frequently Asked Questions - H980W PureGuardian

How do I fill the water tank?

Make sure the unit is unplugged. Remove the tank from the base, take off the cap, and pour fresh water directly up to the max line on the vapor tube. Replace the cap and put the tank back on the base.

Can I use essential oils in the water?

No, never add oils or additives to the water tank. Use only the provided essential oil tray: put a few drops on the pad in the tray. Oils in the tank damage the unit and void the warranty.

What should I do if the humidifier doesn't produce mist?

First check the power: unplug and plug it back in. Make sure the tank is properly seated and there is water. Clean the ultrasonic disc with the included brush (do not scrub hard). If the problem persists, contact customer service.

How do I adjust the mist speeds?

Press the mist adjustment button to cycle through 3 levels: 1 (orange), 2 (green), and 3 (white). Speed 2 is the default.

What does the flashing power button mean?

If the button flashes red, it indicates low water level. Unplug the unit, refill the tank, and plug it back in. The unit restarts automatically.

How do I clean the ultrasonic disc?

Unplug the unit. Empty the water, remove the tank. Use only the provided cleaning brush to gently remove deposits. Do not scrub or scrape the disc. For stubborn deposits, apply a mixture of 1 teaspoon of white vinegar and water, let sit for 5 minutes, then rinse.

Why is there white dust on furniture?

This is due to hard water. Use distilled water to reduce mineral deposits. If the problem persists, clean the ultrasonic disc more frequently.

Can I use the unit with a travel adapter?

No, the unit must be plugged directly into a 120 V AC outlet without an adapter. Using an adapter or outside the US/Canada voids the warranty.

How to store the humidifier at the end of the season?

Clean and descale the unit according to instructions. Let it dry completely. Do not leave water in the base or tank. Store in its original box in a cool, dry place.

Can the night light work without the humidifier?

Yes, press the night light button to turn on the light with 7 colors. You can cycle through colors or turn it off. The night light is independent of the humidification mode.

USER MANUAL H980W PureGuardian

Abstract black-and-white circular diagram with three smaller circles inside (no text or symbols)

guardian

technologies™

USE & CARE INSTRUCTIONS

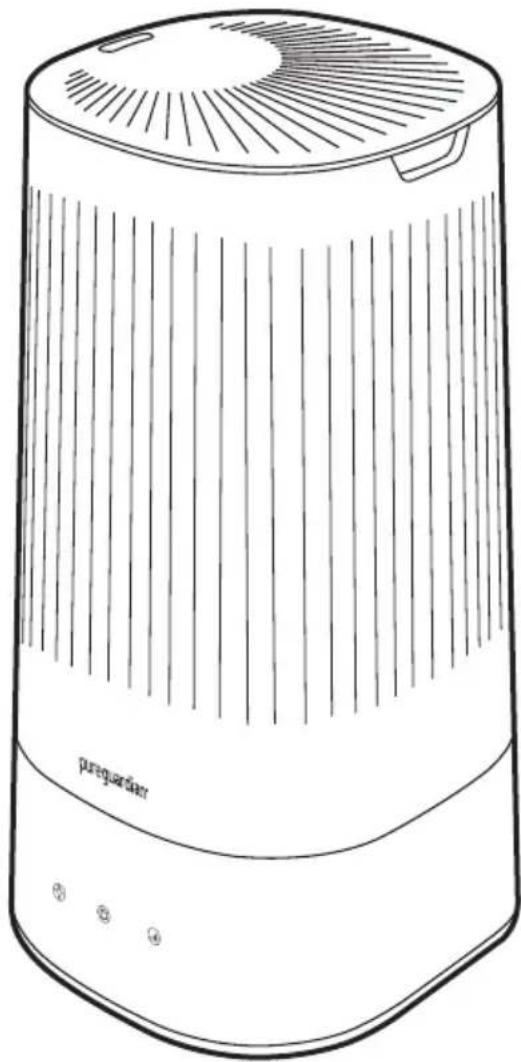

Line drawing of a portable air purifier with ventilation grille and control buttons (no text or symbols on body)

1 Gallon Top Fill Ultrasonic Humidifier

Model No. H980W 3-Year Limited Warranty

Customer Service 1.866.603.5900 www.guardiantechnologies.com

Date Purchased month ____ year ____ Keep Receipt

English E-1 French F-1 Spanish S-1 Use GENUINE Guardian Technologies replacement parts only.

REV0422

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.
• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives in the tank including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives in the tank will void the manufactures warranty.
• Do not use this product near any other electronic device.

• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.

• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.

• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

Stop using your humidifier and contact your physician if you have respiratory symptoms which you believe are associated with periods of use of your home humidifier, even if you are following maintenance directions.

WARNING: Cancer and Reproductive Harm.

For more information go to www.P65Warnings.ca.gov.

This equipment has been tested and found to comply with the limits for a Consumer ISM equipment, pursuant to Part 18 of the FCC Rules. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

SPECIFICATIONS

HUMIDIFYING MODE: Ultrasonic Cool Mist

TANK CAPACITY: 1.0 gallon

RUN TIME: Up to 70 hours on lowest mist setting.

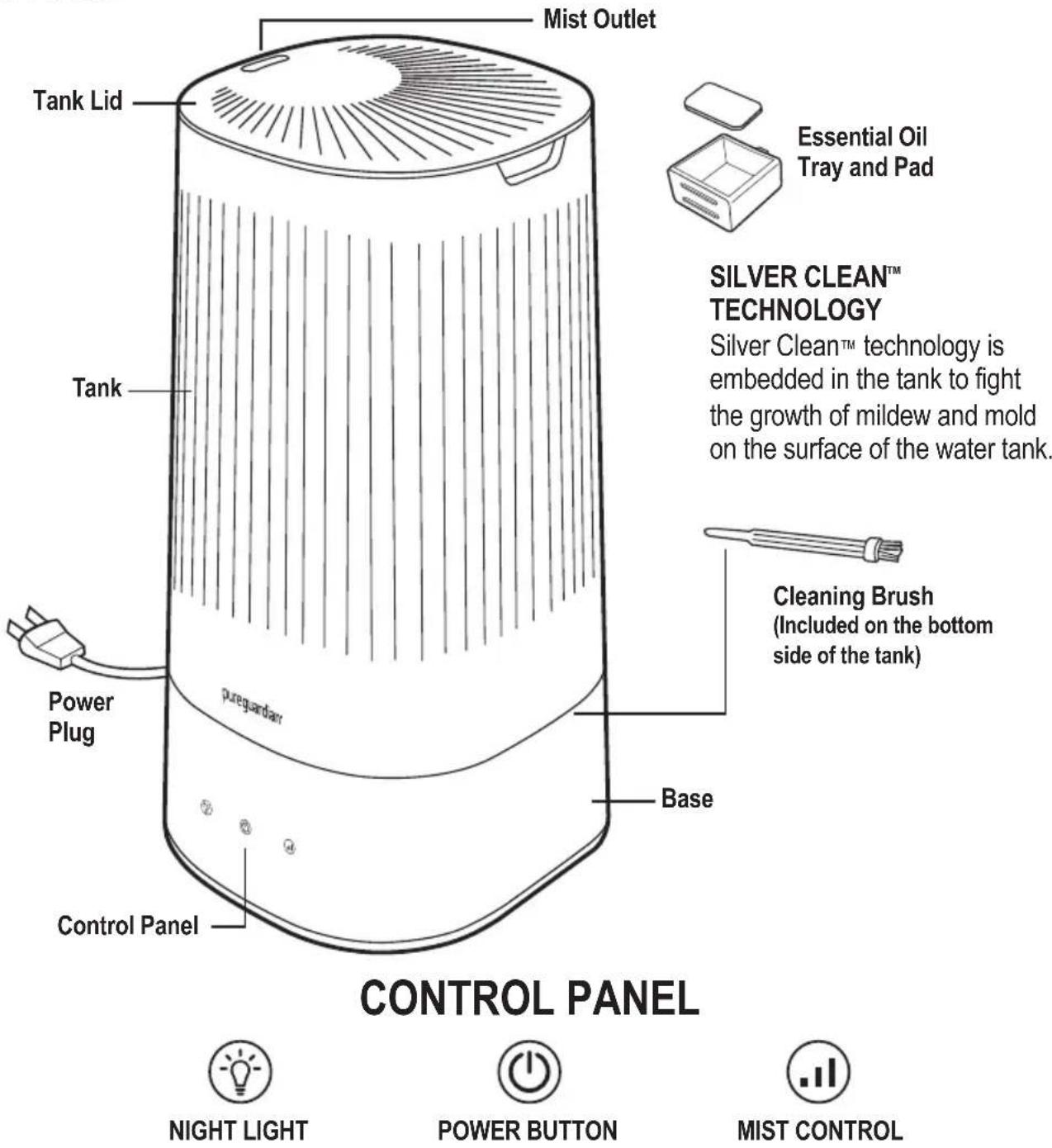

PARTS

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces. Guardian Technologies will not accept responsibility for damage caused by water spillage.

DIRECTIONS FOR USE

FILLING - Make sure unit is unplugged.

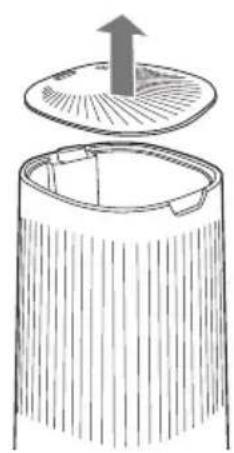

Diagram of a cylindrical container with a lid and an upward arrow indicating flow or movement (no text or symbols)

1. Before first use, lift tank off base and remove tape from float arm. Remove the tank lid.

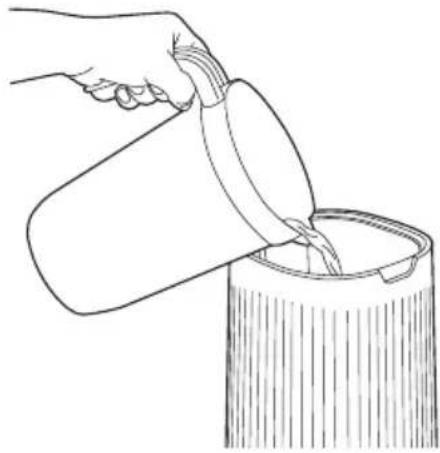

Line drawing of a hand pouring liquid from a container into a cylindrical container (no text or symbols)

1. Pour cool, clean water directly into the tank using a water pitcher. Fill to-max-line on Mist Tube.

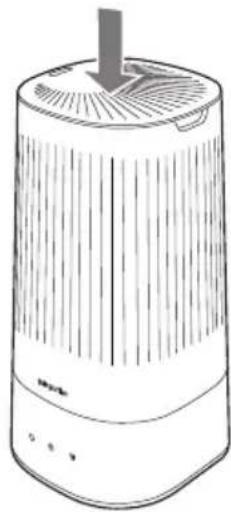

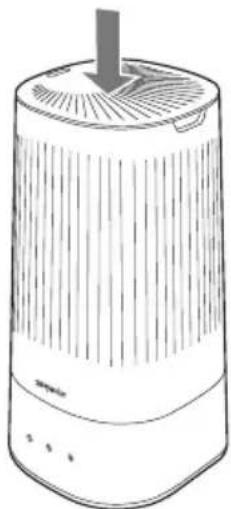

Line drawing of a portable electronic device with ventilation grille and speaker grille (no text or symbols)

1. Return the tank lid.

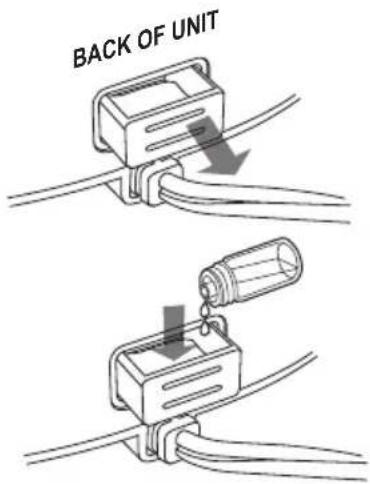

1. Add a few drops of your favorite essential oil to the pad in the tray. (Oil not included)

WARNING: DO NOT add oils or other additives directly into the water tank. Add only to the pad in the tray. Oils added to the tank will damage the tank and the whole unit. Any use of such additives in the tank will void the manufacturers warranty.

Pureguardian essential oils and replacement pads sold separately at www.guardiantechnologies.com

5. WATER REFILL INDICATOR

When the unit is low on water the power button will blink until the unit is refilled or turned off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled.

CONTROL OPERATION

Power Button

Before turning on make sure there is water in the unit. Press the Power Button.

Night light

Press once to turn on the 7 color night light. Continue to press up to 8 times to circulate through and select a color. The 9th press turns the light off. The nightlight can be used independently from the humidifier.

Mist Control Button

Speed 2 is the default speed when the unit is turned on. Press Mist Control button to cycle through the speeds 1, 2 and 3. Mist Levels: 1 = Orange 2 = Green 3 = White

GENERAL CLEANING

1. Always unplug the unit before servicing in any way.
2. Water tank. Remove the lid and empty the tank by pouring all the water out. Clean the inside of the tank with fresh water and a soft cloth or the cleaning brush.
3. Outer surface of the unit. Wipe the lid and surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.
2. Remove the lid and empty the tank by pouring all the water out. Remove the tank from base.

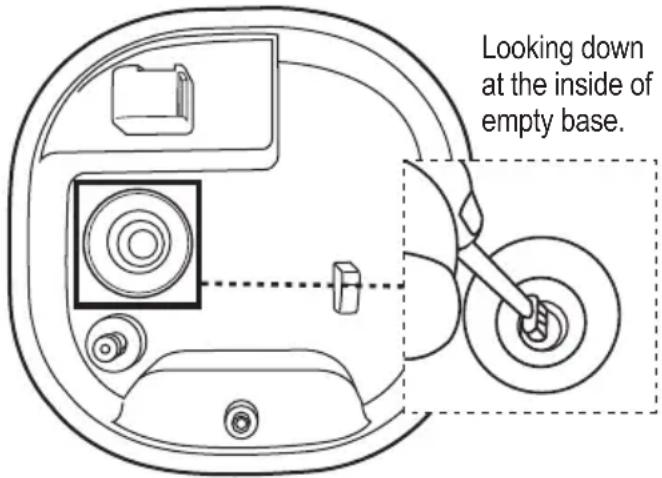

3. Locate the ultrasonic disk on the inside center of the base unit.
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits.

Do not scrub or scrape the ultrasonic disk.

Ultrasonic Disk

Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY.

If scale becomes difficult to remove with brush:

1. Fill the tank with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the tank, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the tank thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.
Air blows but water vapor is not produced.	Excessive Water: Empty the water in the base of the unit.Detergent residue and/or oil ingredients from cosmetics, eta may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk.The water in the unit is too cold: Replace with cool, but not cold water.Damage on the ultrasonic disk: Contact Customer Service
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and refill tank.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting.Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Increased noise level.	Unit must be placed on a flat, level, hard surface.Make sure it is NOT placed on a soft or absorbent surface.
Power button flashing red.	Indicates low water. Unplug and refill tank.
Cannot smell aroma scent.	Add a few more drops of oil to the aroma pad or replace aroma pad with a new one.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. In order to be eligible for this Limited Warranty, an original sales receipt or comparable substitute proof of purchase bearing the date of original purchase is required. Refer to the original product carton or specific product/model page on the Guardian Technologies website for warranty length for your particular model. This warranty applies only to the original purchaser of this product from the original date of purchase. This warranty covers product purchased from authorized distributors only. This warranty does not cover Guardian Technologies products that are used outside of the US and Canada as the appliance must be plugged directly into a 120V AC electrical outlet without the use of an adapter.

This warranty applies to repair or replacement of product found to be defective in materials or workmanship. This warranty does not apply to damage resulting from unusual wear, commercial, abusive, unreasonable use or supplemental damage. This warranty does not cover damage from unauthorized repairs or from any use not in accordance with the instruction manual. Defects that are the result of normal wear and tear will not be considered manufacturing defects under this warranty.

If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Repair Department, at the address below. Additional questions or comments can be made toll free to the number listed below.

USA and Canada Guardian Technologies LLC 26251 Bluestone Blvd. Euclid, Ohio 44132 1.866.603.5900 www.guardiantechnologies.co

Please go to www.guardiantechnologies.com to register your product. We consider the registration process important to ensuring superior service to our customers, however submitting the registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

Simple black-and-white diagram of three circles inside a larger circle (no text or symbols)

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

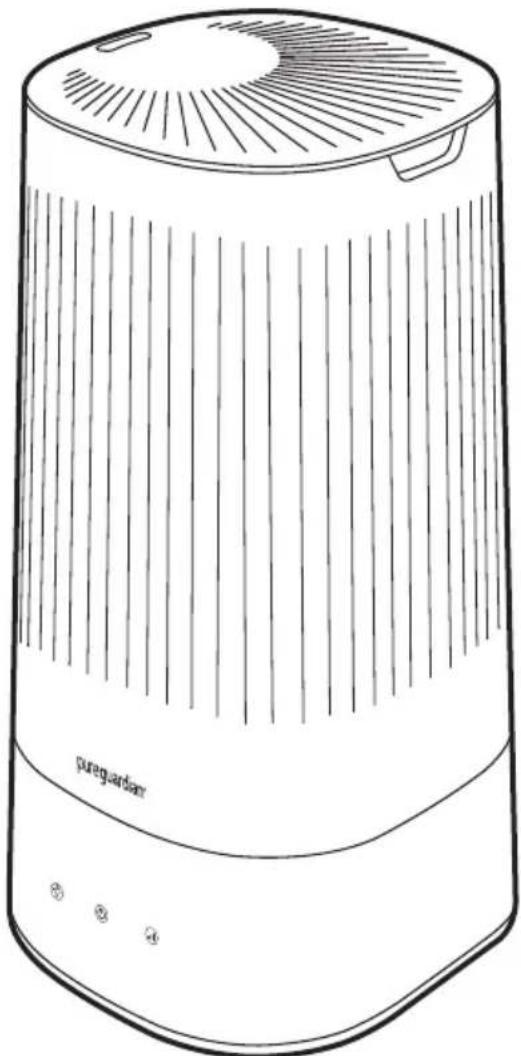

Line drawing of a pure guardian air purifier with ventilation slots and control buttons (no text or symbols on the device itself)

Diagram of a cylindrical container with an upward arrow indicating growth or movement (no text or symbols present)

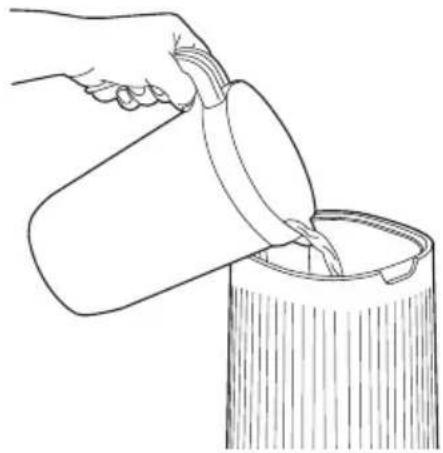

Line drawing of a hand pouring liquid into a cylindrical container (no text or symbols)
