JV28DT16 - Cooker Junker - Free user manual and instructions

Product type	Cooktop with integrated hood (centralized extraction)
Brand	Junker
Model	JV28DT16
Category	Cooktop (hob)
Net weight	Approx. 25 kg
Maximum worktop load	Approx. 60 kg
Electrical connection	Connection 1 N, 2 N, 3 N or 2 L/2 N depending on configuration
Protection class	Class 1 (with protective conductor)
Operating modes	External extraction or air recirculation (with filters)
Recommended duct diameter	150 mm (internal cross-section ~177 cm²)
Supplied filters	Grease filter, acoustic filter (extraction mode) or anti-odor filter (recirculation mode)
Filter maintenance	Grease filter washable, anti-odor and acoustic filters replaceable
Safety distance from rear wall	50 mm for optimal performance
Minimum distance from electronic implants	10 cm (presence of permanent magnets)
Heat resistance of cabinet	Up to 90 °C
Minimum air outlet cross-section in recirculation mode	Approx. 400 cm² in the plinth
Warranty	Warranty valid only if installation complies
After-sales service	Spare parts available (filters, ducts, power cords)

Frequently Asked Questions - JV28DT16 Junker

What are the operating modes of the integrated hood?

The hood can operate in external extraction mode (air discharged outside) or air recirculation mode (filtration and return to the room). Recirculation mode requires installation of anti-odor filters and a diffuser.

What safety distances must I respect during installation?

Maintain a distance of at least 50 mm between the cabinet rear wall and the wall for optimal performance. For persons with electronic implants, keep a minimum distance of 10 cm due to permanent magnets.

How to install the appliance in recirculation mode?

Use the anti-odor filter, diffuser and flues for recirculation use. Attach the gasket to the flat duct elbow, insert it into the outlet opening, then connect the piping elements. Create an air outlet in the cabinet plinth of at least 400 cm².

Can I use the appliance with a combustion fireplace (chimney, stove)?

Yes, but only if the air supply is sufficient to avoid a negative pressure greater than 4 Pa. In external extraction mode, simultaneous use with a combustion fireplace requires non-closable air openings or a wall box. Consult a competent chimney sweep.

How to clean or replace the filters?

The grease filter is washable (in dishwasher or by hand). The anti-odor filters (recirculation mode) and acoustic filters (extraction mode) are replaceable. Respect the air flow direction when installing.

What are the dimensions of the appliance?

Exact dimensions are provided in the installation diagrams (Fig. 3 of the manual). The appliance weight is approx. 25 kg. The worktop must support a load of approx. 60 kg.

How to perform the electrical connection?

The connection must be carried out by a qualified electrician. Follow the diagrams according to your configuration (1 N, 2 N, 3 N or 2 L/2 N). Use only the supplied cable and respect the color codes (BN: brown, BU: blue, GN/YE: green/yellow, BK: black, GY: gray).

What to do if the display shows an error (e.g., 0400 EBSBume)?

This message indicates an electrical connection fault. Disconnect the power and check the connection on the appliance side and building side according to the diagrams in the manual. If the problem persists, contact after-sales service.

Can I install the appliance above a drawer?

Yes, but respect the minimum distances for removal of the overflow reservoir (see Fig. 11 and 12 of the manual). Do not place any objects exceeding the maximum drawer height.

How to switch from extraction mode to recirculation mode?

You must change the basic settings of the electronic control (refer to the 'Basic Settings' chapter of the user manual). Also replace the acoustic filters with anti-odor filters and install the diffuser.

USER MANUAL JV28DT16 Junker

Technical line drawing of a mechanical assembly with components like rollers, housing, and clamps (no text or symbols)

1

QR code and smartphone icon with Chinese text overlay

2

728 227 538

3

≥700 612 490 122 513 99 331 281 99 ≥ 100

4

≥ 650 574 490 84 99 475 331 243 99 ≥ 100 M

5

≥ 600 547 57 490 448 99 331 216 99 ≥ 100

6

750 30 257 282 150 432

7

Technical illustration of battery pack components including a battery pack, battery housing, and a washer (no text or symbols)

8

Diagram showing exploded view of a mechanical assembly with labeled components and a shopping cart (no text or symbols present)

9

Diagram showing a refrigerator with a recycling symbol, battery pack, and shopping cart (no text or labels)

10

10 10 min. 560 min. 330

11

255 72

12

≥50 ≥600 490 167 82 10-80 min. 10 227 50 (≥25)

13

Diagram showing a device being inserted into a box, with an inset close-up highlighting the internal structure.

15

Diagram of an open electronic device showing internal components and a black arrow indicating a directional flow (no text or symbols present)

16

Diagram showing a mechanical device with labeled components and an inset image of a gear mechanism being processed.

m = 311

Diagram of a device internal structure with an arrow indicating direction, showing no text or symbols.

18

220-240V/380-415V 3N~ L1 L2 L3 GY BN BK 1 2 3 GN/YE BU N

m = 311

220-240V/380-415V 2N~ L1 GY BN BK L2 3 2 1 GNYE BU N

20

220-240V 1N~ L BN BK 1 N 3 4 5 6 BU GY GN/YE N

m = 311

220-240V/380-415V 2L/2N~ L1 L2 N1 N2

22

Technical diagram showing mechanical assembly with tool and checkmark annotations, including a blue X mark and directional arrow.

The image is too blurry to recognize any text content.

Ø6 x4 90° 90°C

24

750 167 82 144 213

25

A A A C B

26

Technical diagram showing a square frame installation with dimension annotations and an inset view of a window or panel.

The image is too blurry to recognize any text content.

max 5

28

Diagram showing a device inside a container with an arrow indicating flow or movement, no text or symbols present.

The image is too blurry to recognize any text content.

Diagram of a device with a blue frame and black arrow indicating rotation or movement (no text or symbols)

30

Diagram of a mechanical assembly with a blue box and internal components, no text or symbols present

The image is too blurry to recognize any text content.

Diagram showing a hand inserting a device into a device with directional arrows, likely illustrating a mechanical or electrical process.

32

Pure technical diagram showing a blue rectangular component with internal structure, no text or symbols present

(No text)

Technical diagram showing a ventilation duct inside a cabinet with an arrow indicating direction (no text or symbols present)

The image is too blurry to recognize any text content.

2x 3x 750 185 130 144 237

34

max 5

35

Diagram of a device with a blue box and internal air vent, showing airflow direction (no text or symbols)

36

Diagram illustrating a mechanical or structural process with labeled components and directional arrows indicating motion or force.

37

CLICK

The image is too blurry to recognize any text content.

Diagram illustrating a mechanical device with directional arrows and a 'CLICK' button, showing internal components and assembly steps.

39

CLICK

The image is too blurry to recognize any text content.

750 185 130 144 237

41

Diagram showing 3D structural components with arrows indicating movement or force, no text or symbols present

42

Illustration of a blue electronic device being inserted into a slot on a flat surface (no text or symbols)

44

Diagram of a 3D architectural structure with structural elements and directional arrows, no visible text or symbols

43

220-240V/380-415V 2N~ GY BN BK BU GN/YE L1 L2 220 - 240 V N

46

220-240V/380-415V 3N~ GY BN BK BU GN/YE L1 L2 L3 220 - 240 V N

The image is too blurry to recognize any text content.

220-240V 1N ~ BN BK BU GY GN/YE L 220 - 240 V N

The image is too blurry to recognize any text content.

220-240V/380-415V 2L/2N\~

L1 L2 220 - 240 V N1 N2

48

220-240V/380-415V 3N\~

GY BN BK BU GN/YE GY BN BK BU GN/YE L1 L2 L3 220 - 240 V N

49

220-240V/380-415V 2N\~

GY BN BK BU GN/YE GY BN BK LU 220 - 240 V N GN/YE

50

220-240V 1N\~

BN BK GY BU GN/YE BN BK GY BU GN/YE L 220 - 240 V N

51

es

Safety warning illustration showing a house with smoke, hazard symbol, and checkmark indicating inspection or clearance.

After unpacking all parts, check for any damage in transit and completeness of the delivery.

$$ \rightarrow \text { Fig. } \mathbf {1} $$

QR code for the installation video

This is were you will find the QR code for the installation video.

$$ \rightarrow \text { Fig. } ② $$

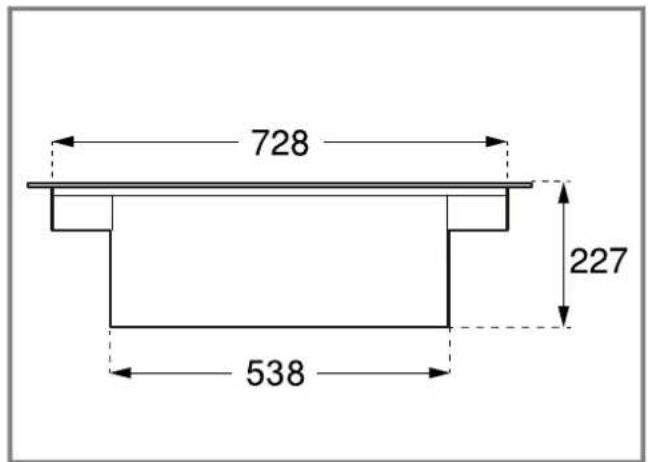

Appliance dimensions

You will find the dimensions of the appliance here

$$ \rightarrow \text {Fig.} ③ $$

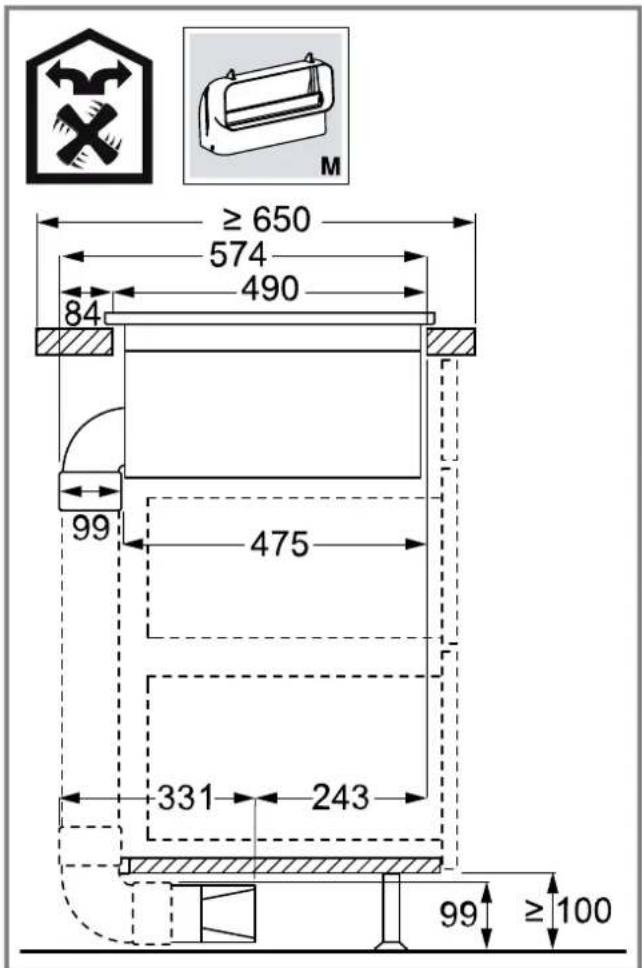

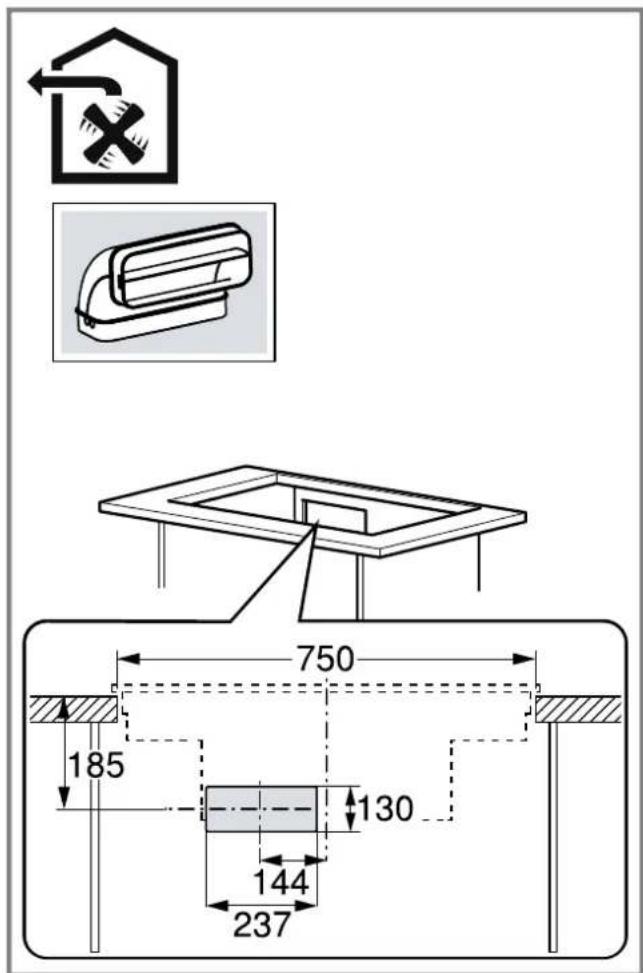

Installation dimensions for flat duct bends

This is where you can find an overview of the installation dimensions for the flat duct bends.

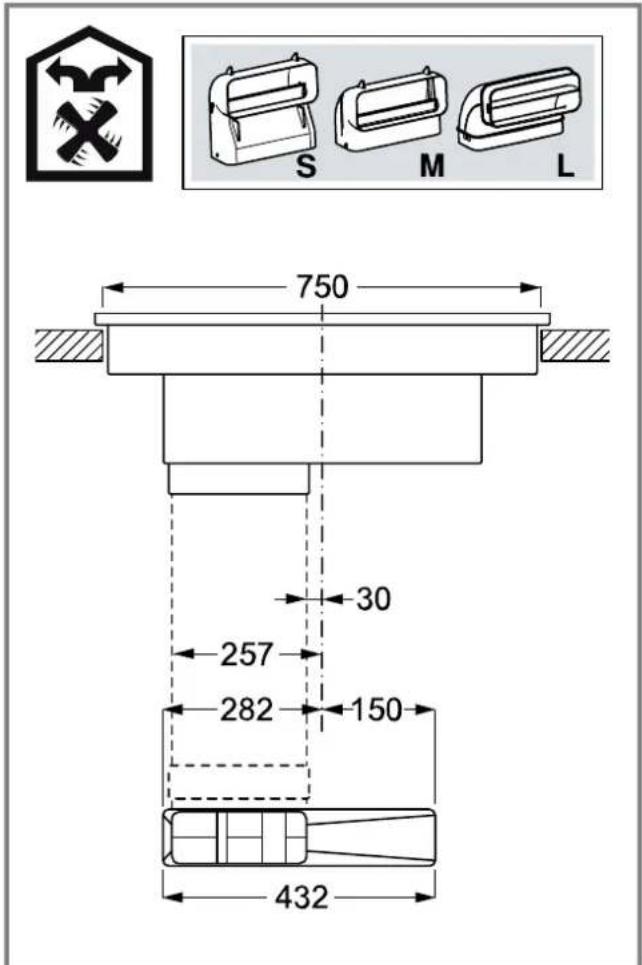

Side view:

$$ \rightarrow \text { Fig. } \mathbf {4}, \rightarrow \text { Fig. } \mathbf {5}, \rightarrow \text { Fig. } \mathbf {6} $$

Front view:

$$ \rightarrow \text {Fig.} 7 $$

Installation variants

This is where you can find an overview of the different installation variants.

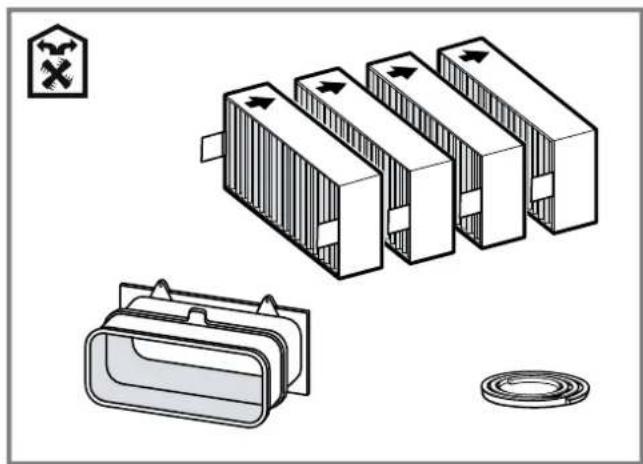

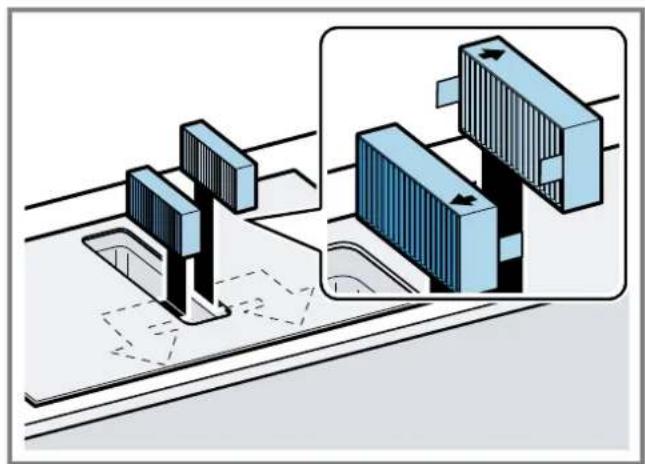

Odour filter and adapter for circulating-air mode:

$$ \rightarrow \text { Fig. } 8 $$

Odour filter, diffuser and seal for circulating-air mode:

$$ \rightarrow \text { Fig. } 9 $$

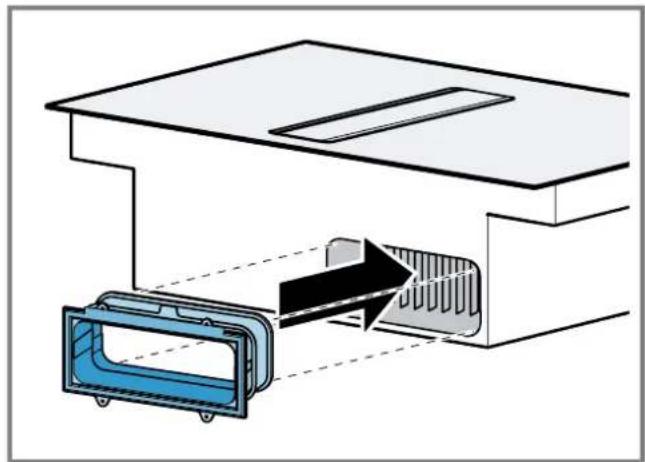

Acoustics filter and seal for air extraction mode:

$$ \rightarrow \text { Fig. } 1 0 $$

Note: Channels suitable for installation can be obtained from customer service, our website or from specialist retailers.

Safety clearances

Comply with the safety clearances for the appliance.

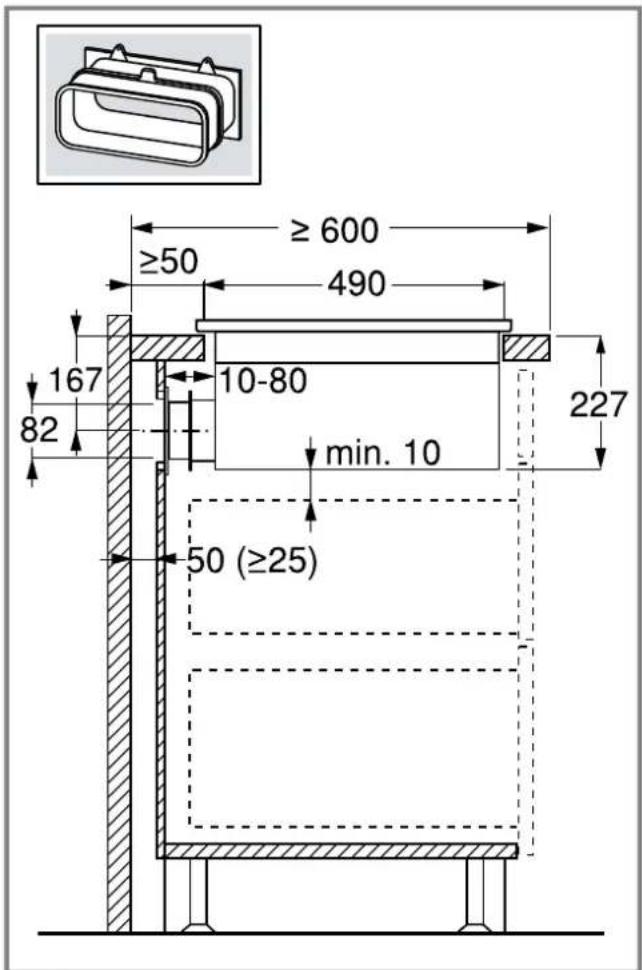

Clearances to the overflow container:

Fig. 11

Position of the overflow container:

→ Fig. 12

The performance is optimal at a clearance of 50 mm between the unit back panel and the wall. The performance is reduced at a smaller clearance.

→ Fig. 13

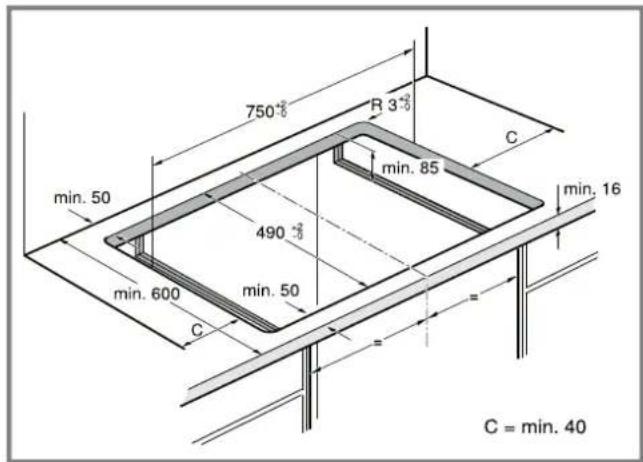

Observe the safety clearances for the worktop cut-out.

Do not place any objects in the drawer which exceed the maximum height of the drawer. The objects may come into contact with the base of the appliance and thus disrupt the functions.

→ Fig. 14

General information

• Read this instruction manual carefully.
  ■ Only a licensed expert may connect the appliance.
  ■ Switch off the power supply before carrying out any work.
  ■ Never use this appliance in boats or in vehicles.
  ■ Follow the worktop manufacturer's recommendations.

Safe installation

Follow these safety instructions when installing the appliance.

The appliance can only be used safely if it is correctly installed according to the safety instructions. The installer is responsible for ensuring that the appliance works perfectly at its installation location.

WARNING – Danger: Magnetism!

The appliance contains permanent magnets. They may affect electronic implants, e.g. pacemakers or insulin pumps.

▶ Persons with electronic implants must stand at least 10 cm away from the appliance.

WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in. Room-air-dependent heat-producing appliances (e.g. gas, oil, wood or coal-operated heaters, continuous flow heaters or water heaters) obtain combustion air from the room in which they are installed and discharge the exhaust gases into the open through an exhaust gas system (e.g. a chimney).

With the extractor hood switched on, air is extracted from the kitchen and the adjacent rooms. Without an adequate supply of air, the air pressure falls below atmospheric pressure. Toxic gases from the flue or the extraction shaft are sucked back into the living space.

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

▶ Always ensure adequate fresh air in the room if the appliance is being operated in exhaust air mode at the same time as a room-air-dependent heat-producing appliance is being operated.

• It is only possible to safely operate the appliance if the pressure in the room in which the heating appliance is installed does not drop more than 4 Pa (0.04 mbar) below atmospheric pressure.
  This can be achieved whenever the air needed for combustion is able to enter through openings that cannot be sealed, for example in doors, windows, incoming/exhaust air wall boxes or by other technical means. An incoming/exhaust air wall box alone does not ensure compliance with the limit.
• In any case, consult your responsible chimney sweep. They are able to assess the house's entire ventilation setup and will suggest the suitable ventilation measures to you.
• Unrestricted operation is possible if the appliance is operated exclusively in circulating-air mode.

WARNING – Risk of fire!

The grease deposits in the grease filter may catch fire.

• Never work with naked flames close to the appliance (e.g. flambéing).
• Do not install the appliance near a heat-producing appliance for solid fuel (e.g. wood or coal) unless a closed, non-removable cover is present. There must be no flying sparks.

⚠ WARNING – Risk of injury!

Changes to the electrical or mechanical assembly are dangerous and may lead to malfunctions.

- Do not make any changes to the electrical or mechanical assembly.

Parts that are accessible during installation may have sharp edges and may lead to cutting injuries.

▶ Wear protective gloves.

The appliance is heavy.

▶ To move the appliance, two people are required.

▶ Use only suitable tools and equipment.

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

- Keep packaging material away from children.

- Do not let children play with packaging material.

⚠ WARNING – Risk of poisoning!

Risk of poisoning from flue gases being drawn back in.

• Do not emit the exhaust air into a smoke or exhaust gas flue that is in operation.
• Do not emit the exhaust air into a shaft that is used to ventilate installation rooms for heat-producing appliances.
  If the exhaust air is to be conveyed into a smoke or exhaust gas flue, you must obtain the consent of the heating engineer responsible.

Risk of poisoning from flue gases being drawn back in.

▶ If an extractor hood with an open-flued heat production source is installed, the power supply for the extractor hood must be provided with a suitable safety switch.

Information about the electrical connection

In order to safely connect the appliance to the electrical system, follow these instructions.

WARNING – Risk of electric shock!

It must always be possible to disconnect the appliance from the electricity supply. The appliance must only be connected to a mains socket that has been installed correctly.

- An all-pole isolating switch must be integrated into the permanent electrical installation in accordance with the conditions of overvoltage category III and in accordance with the installation regulations.

The permanent electrical installation must only be wired by a professional electrician. We recommend installing a residual-current circuit breaker (RCCB) in the appliance's power supply circuit.
- Do not kink or trap the connection cable, and keep it away from sharp edges.
- Route the connection cable in such a way that it does not touch the hot casing.
■ Use only the connection cable that is supplied with the appliance or is provided by technical after-sales service.
■ This appliance complies with the EC interference suppression regulations.
■ The appliance corresponds to protection class 1. You should therefore only use the appliance with a protective earth connection.
■ The manufacturer shall assume no liability for malfunctions or damage resulting from incorrect electrical wiring.

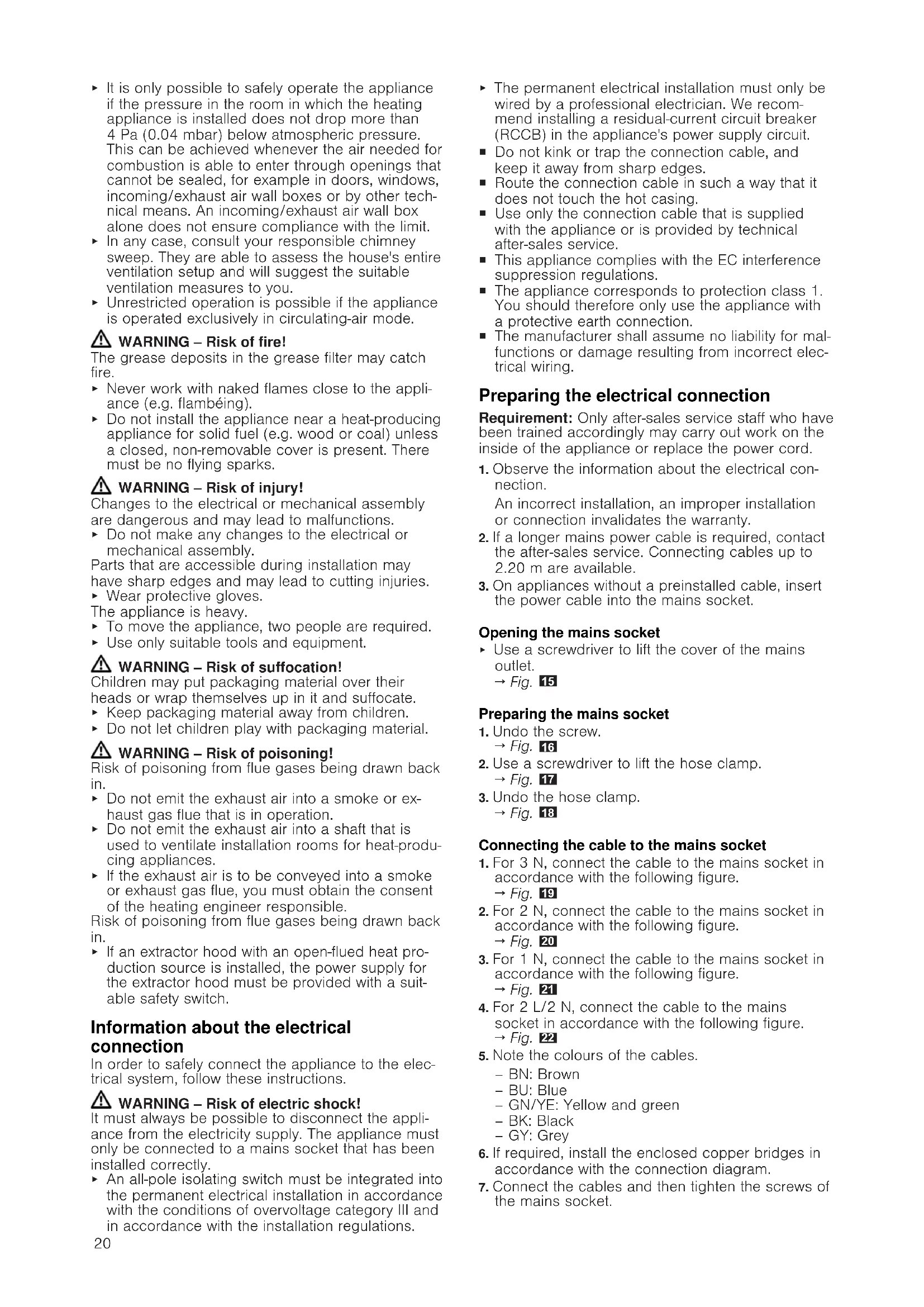

Preparing the electrical connection

Requirement: Only after-sales service staff who have been trained accordingly may carry out work on the inside of the appliance or replace the power cord.

1. Observe the information about the electrical connection.
   An incorrect installation, an improper installation or connection invalidates the warranty.
2. If a longer mains power cable is required, contact the after-sales service. Connecting cables up to 2.20 m are available.
3. On appliances without a preinstalled cable, insert the power cable into the mains socket.

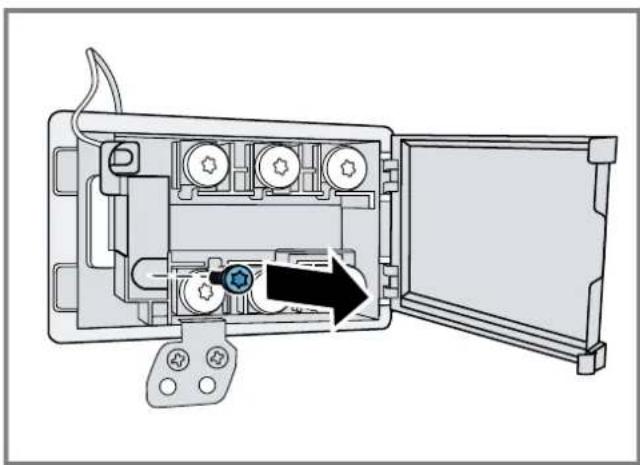

Opening the mains socket

• Use a screwdriver to lift the cover of the mains outlet.

$$ \rightarrow \text { Fig. } 1 5 $$

Preparing the mains socket

1. Undo the screw.

$$ \rightarrow \text { Fig. } \boxed {1 6} $$

1. Use a screwdriver to lift the hose clamp.

$$ \rightarrow \text { Fig. } 1 7 $$

1. Undo the hose clamp.

$$ \rightarrow \text { Fig. } 1 8 $$

Connecting the cable to the mains socket

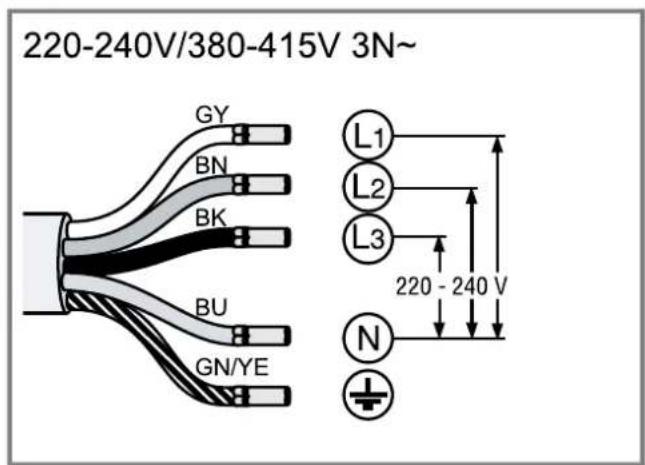

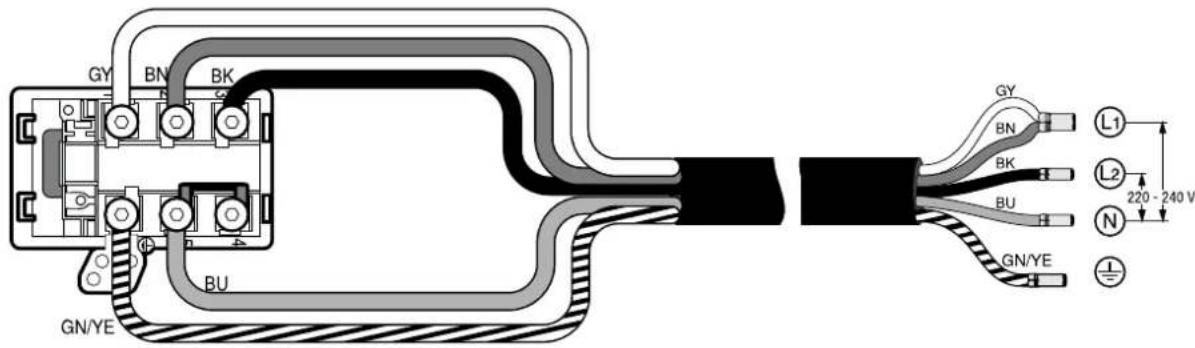

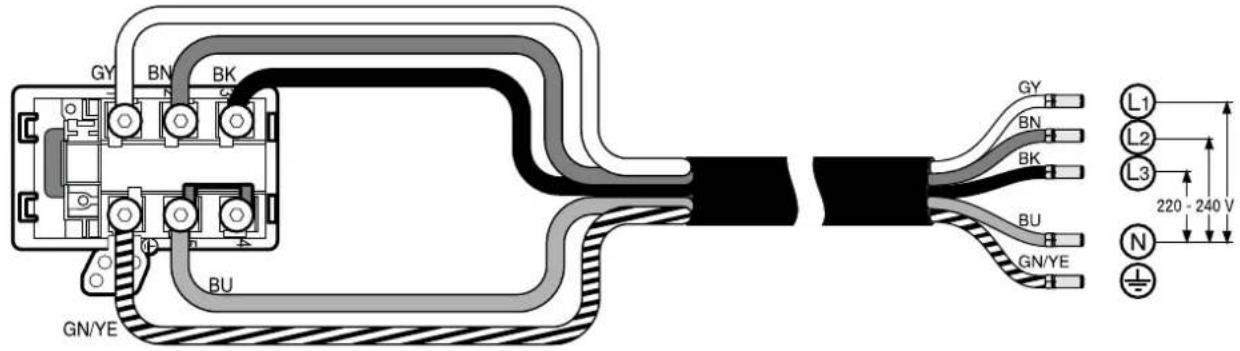

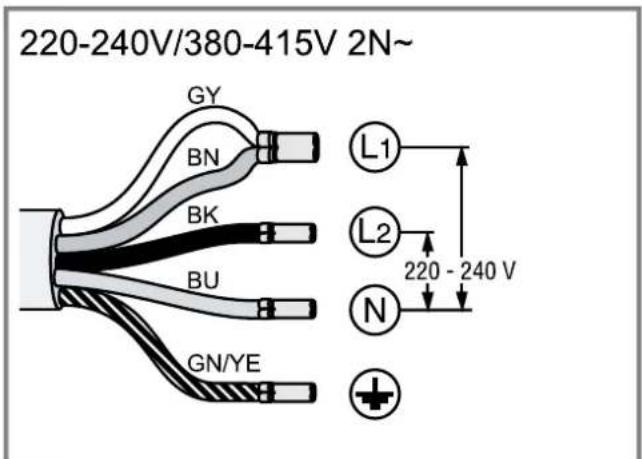

1. For 3 N, connect the cable to the mains socket in accordance with the following figure.

$$ \rightarrow \text { Fig. } \boxed {1 9} $$

1. For 2 N, connect the cable to the mains socket in accordance with the following figure.

$$ \rightarrow \text { Fig. } \boxed {2 0} $$

1. For 1 N, connect the cable to the mains socket in accordance with the following figure.

$$ \rightarrow \text { Fig. } \boxed {2 1} $$

1. For 2 L/2 N, connect the cable to the mains socket in accordance with the following figure.

$$ \rightarrow \text { Fig. } \boxed {2 2} $$

1. Note the colours of the cables.

2. BN: Brown

3. BU: Blue
4. GN/YE: Yellow and green
5. BK: Black

6. GY: Grey

7. If required, install the enclosed copper bridges in accordance with the connection diagram.

8. Connect the cables and then tighten the screws of the mains socket.

9. For a 1 N\~ or 2 L/2 N connection in accordance with the connection diagram, 1 corresponds to the fan motor.

10. For a 2 N\~/3 N\~ connection, phase L1 (grey) corresponds to the fan motor.

Secure the cable in the mains socket

1. Use the hose clamp to secure the power cord.
2. Tighten the screw at the correct position.

- Do not use a cordless screwdriver.

$$ \rightarrow \text { Fig. } \boxed {2 3} $$

1. To facilitate closing the mains socket, arrange the cables in the central area of the mains socket.
2. Close the cover of the mains socket.

Instructions for the exhaust air pipe

The appliance manufacturer does not provide any warranty for faults attributable to the pipeline.

■ Use a short, straight exhaust air pipe with as large a pipe diameter as possible.
- Long, rough exhaust air pipes, many pipe bends or small pipe diameters reduce the suction power and increase the fan noise.
■ Use an exhaust pipe that is made of non-combustible material.
■ To prevent condensate from returning, fit the exhaust pipe with a 1° gradient from the appliance.

Flat ducts

Use flat ducts with an inner cross-section that corresponds to the diameter of the round pipes:

■ Diameter of 150 mm corresponds to approx. 177 cm ^4 .
■ Use sealing strips for different pipe diameters.
■ Do not use any flat ducts with sharp bends.

Round pipes

Round pipes with an inner diameter of 150 mm.

Instructions for the air extraction mode

For air extraction mode, a one-way flap should be installed.

Notes

■ If a one-way flap is not included with the appliance, one can be ordered from a specialist retailer.
■ If the exhaust air is conveyed through the external wall, a telescopic duct should be used.

Checking the units

1. Check whether the fitted unit is level and has sufficient load-bearing capacity.

The maximum weight of the appliance is approx. 25 kg.

The worktop into which you are fitting the appliance must be able to withstand loads of approx. 60 kg.

1. Ensure that the stability of the fitted unit is also guaranteed following cut-out work.
2. Use suitable substructures to ensure the load-bearing capacity and the stability, particularly in the case of thin worktops.

- Take the appliance weight, including additional load, into consideration.

- Use heat-resistant and moisture-resistant reinforcement material.

1. Ensure that the fitted unit is heat-resistant up to 90^ C.
2. Do not support any other appliances, e.g. ovens, refrigerators, dishwashers or washing machines.
3. Only check that the appliance is level once it has been installed in the installation opening.

Preparing the units

Requirement: The fitted units are heat-resistant up to 90 °C.

1. Mark the unit cut-out in accordance with the installation diagram.
2. Drill four holes with a diameter of 6 mm.
3. Ensure that the angle of the cut surface to the worktop is 90^ .

$$ \rightarrow \text { Fig. } 1 4 $$

$$ \rightarrow \text { Fig. } \boxed {2 4} $$

$$ \rightarrow \text { Fig. } \boxed {2 4} $$

Observing the minimum clearances when installing above a drawer

1. When removing the overflow container on integrated appliances, take the minimum clearances into consideration.

$$ \rightarrow \text { Fig. } 1 1 $$

1. Observe the position of the overflow container.

$$ \rightarrow \text { Fig. } 1 2 $$

Preparing the unit for circulating-air mode with the adapter

Note: We do not recommend to install on a non-thermally insulated outer wall or above a cold floor ( ≥ 0.5 W/m ^2 °C).

1. Observe the relevant dimensions when combining with the adapter for the cut-out in the back wall. → Fig. 25

2. Measure the thickness of the worktop. Transfer the measurement to the template and draw a line that corresponds to it.

$$ \rightarrow \text { Fig. } \boxed {2 6} $$

1. Cut the template along the marked line for work-top thickness A, the cut centre line B and the reference line to the inner air outlet C.

2. Mark the centre of the cut-out in the worktop as the centre line on the back panel of the unit. → Fig. 27

3. Align the template to the centre line of the back panel of the unit and to the lower edge of the work surface.

4. Use the template to make the cut-out in the back panel.

5. After making the cut-outs, remove any shavings.

6. Seal the cut surfaces so that they are heat-resistant and waterproof.

$$ \rightarrow \text { Fig. } \boxed {2 4} $$

Ventilation

1. In circulating-air mode, establish an air outlet in the unit's plinth.
2. Provide a minimum air outlet cross-section of approx. 400~cm^2 .

3. To keep the draught and noise low, ensure that the outlet opening in the base panel is as large as possible.

4. To guarantee that the appliance works correctly, ventilate the hob appropriately via an air outlet with a minimum cross-section of 200 cm^2 in the base unit.

Installing an appliance featuring circulating-air mode with adapter

Attaching the seal to the adapter

- Attach the seal to the adapter with max. 5 mm to the edge.

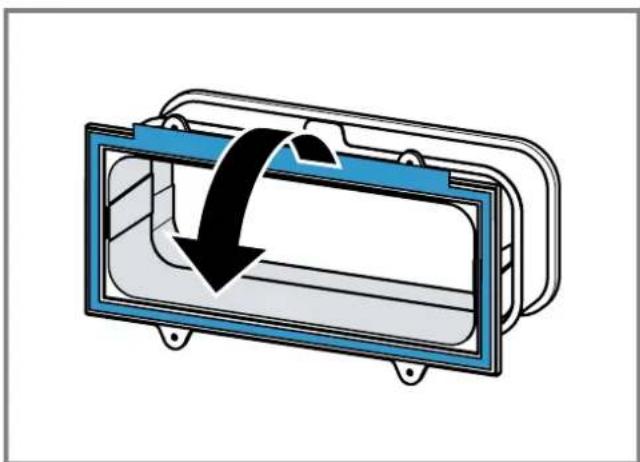

$$ \rightarrow \text { Fig. } \boxed {2 8} $$

Attaching the adapter

1. Clean and degrease the adhesive surface around the cut-out in the unit's back panel.

2. Insert the adapter into the outlet opening on the rear of the hob.

$$ \rightarrow \text { Fig. } \boxed {2 9} $$

1. Remove the adhesive tape's protective film from the adapter.

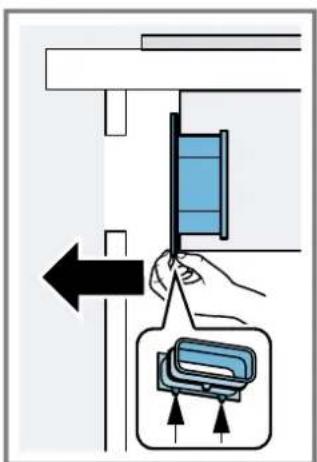

$$ \rightarrow \text { Fig. } 3 0 $$

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.

2. Carefully insert the appliance into the worktop cut-out.

$$ \rightarrow \text { Fig. } 3 1 $$

Securing the adapter

1. Hold the adapter at the central holder and use the side holders to slide it towards the unit's back panel in the base unit, then affix it.

$$ \rightarrow \text { Fig. } \boxed {3 2} $$

1. If required, also use screws to secure it.

$$ \rightarrow \text { Fig. } \boxed {3 3} $$

Preparing the unit for circulating-air mode with a circulating-air duct

1. If required, remove the unit's back wall.

2. Observe the relevant dimensions when combining with the flat duct elbow for the cut-out in the back wall.

$$ \rightarrow \text { Fig. } 3 4 $$

1. In circulating-air mode, establish an air outlet in the unit's plinth.

- Provide a minimum air outlet cross-section of approx. 400~cm^2 .

- To keep the draught and noise low, ensure that the outlet opening in the base panel is as large as possible.

1. To guarantee that the appliance works correctly, ventilate the hob appropriately via an air outlet with a minimum cross-section of 200 cm^2 in the base unit.

2. After making the cut-outs, remove any shavings.

3. Seal the cut surfaces so that they are heat-resistant and waterproof.

$$ \rightarrow \text { Fig. } 2 4 $$

Installing the appliance for air recirculation mode with circulating-air duct

1. For circulating-air mode, use the seal, the circulating-air duct, the diffuser and the odour filter.

2. Observe the dimensions for the different flat duct bends. → Page 19

Securing the seal

- Secure the enclosed seal on the flat duct elbow at a maximum of 5 mm from the edge.

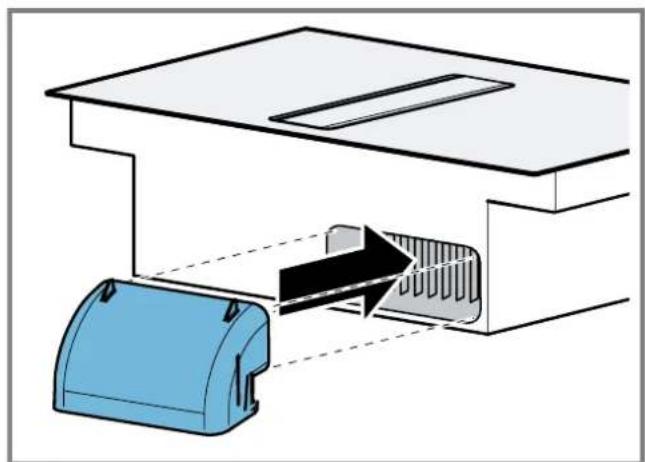

$$ \rightarrow \text { Fig. } \boxed {3 5} $$

Inserting the flat duct elbow

- Insert the flat duct elbow into the outlet opening on the rear of the appliance.

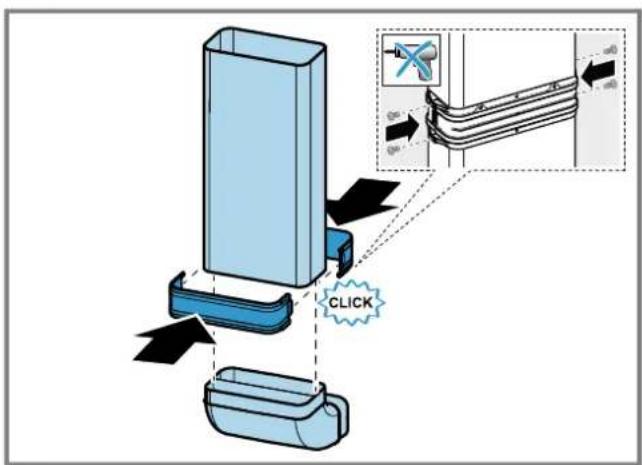

$$ \rightarrow \text { Fig. } \boxed {3 6} $$

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.

2. Carefully insert the appliance into the worktop cut-out.

$$ \rightarrow \text { Fig. } \boxed {3 7} $$

Establishing the pipework between the appliance and the diffuser

1. Connect the components of the circulating-air duct to each other.

- Secure the flat duct pipe connector by engaging it in place.

- For an additional fixing, screw the flat duct pipe connector together using 4 x PT 4x8 mm screws for plastic.

$$ \rightarrow \text { Fig. } \boxed {3 8} $$

1. Connect the circulating-air duct to the flat duct elbow on the rear of the hob.

$$ \rightarrow \text { Fig. } \boxed {3 9} $$

1. Connect the diffuser to the circulating-air duct.

$$ \rightarrow \text { Fig. } \boxed {4 0} $$

Preparing the unit for air extraction mode

1. If required, remove the unit's back wall.

2. Observe the relevant dimensions when combining with a flat duct elbow for the cut-out in the back wall.

$$ \rightarrow \text { Fig. } 4 1 $$

1. After making the cut-outs, remove any shavings.

2. Seal the cut surfaces so that they are heat-resistant and waterproof.

$$ \rightarrow \text {Fig.} \boxed {2 4} $$

Install the appliance for air extraction mode

1. For air extraction mode, use the seal and the acoustics filters.

2. Observe the instructions for the exhaust air pipe. → Page 21

Securing the seal

- Secure the enclosed seal on the flat duct elbow at a maximum of 5 mm from the edge.

$$ \rightarrow \text { Fig. } \boxed {3 5} $$

Establishing the piping

1. Insert the flat duct elbow into the outlet opening on the rear of the appliance.

$$ \rightarrow \text { Fig. } \boxed {3 6} $$

1. If required, install additional piping elements.

Inserting the appliance into the worktop cut-out

1. Ensure that the connection cable is connected to the appliance.

2. Carefully insert the appliance into the worktop cut-out.

$$ \rightarrow \text { Fig. } \boxed {3 7} $$

Connecting the exhaust air pipe

1. Secure the exhaust air pipe to the flat duct bend.

2. Establish the connection to the exhaust air opening.

3. Seal the joints appropriately.

Inserting filters

Note: For circulating-air mode, insert the odour filters.

For air extraction mode, insert the acoustics filters.

1. Observe the filters' air flow direction.

2. Insert two of the filters into the left and right of the appliance, and slide them forwards.

$$ \rightarrow \text { Fig. } \boxed {4 2} $$

1. Insert the other filters into the left and right of the appliance.

$$ \rightarrow \text {Fig.} 4 3 $$

Inserting grease filters

- Insert the grease filter.

$$ \rightarrow \text { Fig. } 4 4 $$

Establishing the connection to the power supply

1. Observe the connection data on the rating plate.

2. For 3 N, connect the cable to the mains socket in accordance with the figure. → Fig. 45

3. For 2 N, connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text { Fig. } 4 6 $$

1. For 1 N, connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text { Fig. } 4 7 $$

1. For 2 L/2 N, connect the cable to the mains socket in accordance with the figure.

$$ \rightarrow \text { Fig. } 4 8 $$

1. Note the colours of the cables.

- BN: Brown

- BU: Blue

- GN/YE: Yellow and green

- BK: Black

- GY: Grey

1. If required, arrange the supplied wire end ferrules differently depending on the type of connection.

2. To connect two cables, if required, use a wire end ferrule.

- Shorten the wires.

- Remove the insulation.

Checking the function

1. Switch on the appliance.
2. If 0400, E861 lights up, the appliance is not connected correctly. → "Checking and correcting the electrical connection", Page 23
3. If no faults appear in the appliance's display, use the operating instructions to check that the ventilation is working.

Checking and correcting the electrical connection

1. Disconnect the appliance from the power supply.

2. Check whether the connection to the appliance (fig. 4) and the building-side connection (fig. 8) correspond to the connection diagram in these installation instructions. → "Preparing the electrical connection", Page 20 → "Establishing the connection to the power supply", Page 23

3. For 3 N, observe the following figure.

4. For 2 N, observe the following figure.

5. For 1 N, observe the following figure.

$$ \begin{array}{l} \rightarrow \text { Fig. } 4 9 \ \rightarrow \text { Fig. } 5 0 \ \rightarrow \text { Fig. } 5 1 \ \end{array} $$

Switching the display for air extraction mode

1. If required for the air extraction mode and the air recirculation mode, change the display of the electronic control in the basic settings.
2. Observe the basic settings section in the instruction manual.

Removing the appliance

ATTENTION!

Tools may damage the appliance frame.

• Do not prise out the appliance from above.
• Disconnect the appliance from the power supply.
• Remove the exhaust air duct or undo the circulating-air connections.
• Push out the appliance from below.

fr

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

– Retirer l'isolation.

Safety warning illustration showing a hazard symbol (skeleton) and a checkmark for installation or hazard.

⚠ WAARSCHUWING – Kans op vergiftiging!

⚠ WAARSCHUWING – Kans op brand!

⚠ WAARSCHUWING – Kans op letsel!

⚠ WAARSCHUWING – Kans op verstikking!

⚠ WAARSCHUWING – Kans op vergiftiging!

ADVARSEL – Fare for forgiftning!

Safety warning illustration showing a house with water and smoke, a warning triangle with skull and crossbones, and a blue checkmark.

ADVARSEL – Brandfare!

ADVARSEL – Fare for forgiftning!

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

ADVARSEL – Fare for forgiftning!

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

⚠️ ADVARSEL – Fare for forgiftning!

Tilbakesugde forbrenningsgasser kan føre til forgiftning.

Sette inn flatt rørbend

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

Safety warning illustration showing two household setups with a skull and warning symbol, one checked by a blue checkmark.

$$ \rightarrow \mathfrak {S e k}. \textcircled {7} $$

Kurulum varyantları

Safety warning illustration showing two household setups with a skull and hazard symbol, one checked by a blue checkmark.

Safety warning illustration showing a hazard symbol (skeleton) and a checkmark indicating inspection or clearance.
