USER MANUAL BRD27603FWW SAMSUNG

English User servicing manual

1. You can check where to buy replacement parts at http://samsung.com

2. Visit the part purchase site and enter the model code of your product to check the parts

available for purchase. The model code is labelled on the outer side of your product. - You can check the model code and version on the barcode label at the bottom left of the product.

3. For replacement parts, make sure the part name matches that of the illustration in this

manual. - User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges. NOTE Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certied service provider will not be covered by the warranty. CAUTION

• The part name listed on the site may differ from that in this manual. Please make sure you choose the right part name.

• Replacing hinges requires extreme caution because it involves detaching the door.

• Be sure to wear safety gloves while making repairs. BRR6000B_User-servicing-manual_26langs.indb 1 2022-11-08 12:36:46English Refrigerator at a glance The actual image and provided parts of the refrigerator may differ, depending on the model and the country. Fridge (with Freezer box)

• applicable models only Larder (without Freezer box)

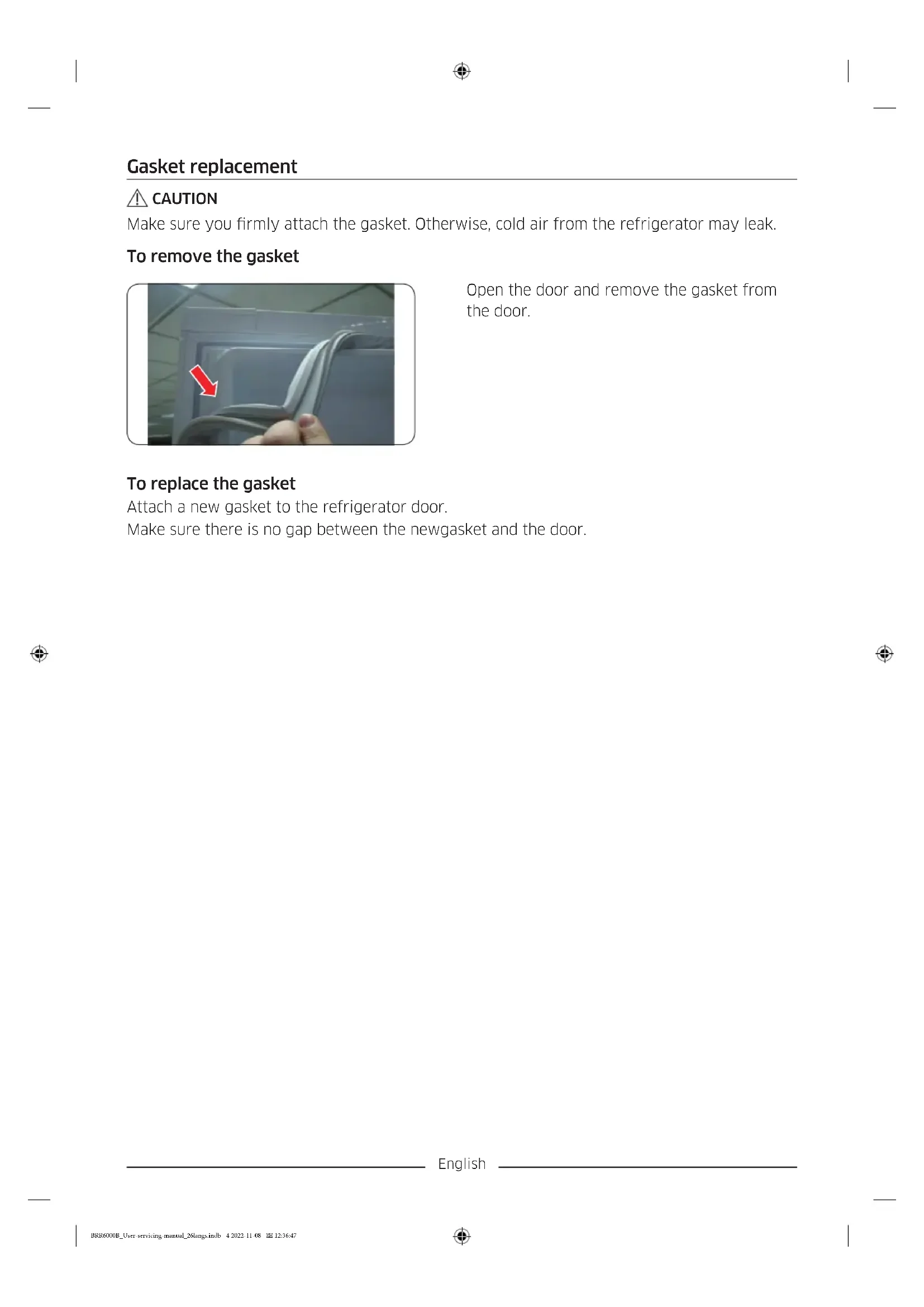

01 Main panel 02 Shelf 03 Drawer (Normal/Big) 04 Barcode label BRR6000B_User-servicing-manual_26langs.indb 3 2022-11-08 12:36:46English Gasket replacement CAUTION Make sure you rmly attach the gasket. Otherwise, cold air from the refrigerator may leak. To remove the gasket Open the door and remove the gasket from the door. To replace the gasket Attach a new gasket to the refrigerator door. Make sure there is no gap between the newgasket and the door. BRR6000B_User-servicing-manual_26langs.indb 4 2022-11-08 12:36:47English Drawer replacement CAUTION Check that the drawer is inserted properly into the rail during assembly. To remove the drawer Gently lift up the front of the drawer and slide out. To reattach the drawers Reattaching the drawers follows the reverse order of their respective removal steps. Hinge replacement To replace the hinges, you must remove the doors rst. WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.

• Disconnect the power cord before reversing the doors. CAUTION

• When removing the doors, take extreme caution because the doors are heavy.

• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.

• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.

• If you remove the hinge without holding the door, the door may fall and cause injury.

• Ensure that the shaft is rmly tightened on the hinge.

• Check that the hinge is rmly attached to the cabinet.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover. BRR6000B_User-servicing-manual_26langs.indb 5 2022-11-08 12:36:47English Tools required (not provided) Phillips screwdriver Flat-head screwdriver Fixed or Soft hinge type

2. Remove the screws. (4 in total)

CAUTION It is highly recommended to ask somebody to hold the door while removing the hinge.

3. Separate the door from the refrigerator.

• Be careful not to scratch.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

4. Reassemble in the opposite order of

2. Remove the screws and separate the

3. Separate the door from the refrigerator.

• It is highly recommended to ask somebody to hold the door while removing the hinge.

• Make sure the wire connectors are connected properly.

• Be careful not to damage the wires when fastening the top cover.

4. Reassemble in the opposite order of
