Product type	Fan heater (supplementary heating)
Brand	Bomann
Model	HL 6064 CB
Power supply	220-240 V~, 50-60 Hz
Maximum power	2000 W
Minimum power	1000 W
Estimated dimensions (W x D x H)	Approx. 25 x 15 x 30 cm
Net weight	Approx. 1.25 kg
Protection class	II
Main functions	2-level heating (1000/2000 W), ventilation only, oscillation, adjustable thermostat
Temperature control	Mechanical thermostat
Oscillation	Yes, on/off via switch
Overheat protection	Yes, automatic shut-off in case of overheating
Safety switch	Yes, cuts power in case of fall
Indicator light	Operation indicator
Maintenance and cleaning	Unplug and let cool; dust the grilles with a dry cloth or vacuum cleaner
Spare parts and repairability	Contact customer service or an authorized technician; do not repair yourself
General information	Use on a stable horizontal surface; keep 1 m safety distance from flammable materials

Frequently Asked Questions - HL 6064 CB BOMANN

How do I set the desired temperature?

Turn the temperature regulator (1) to the highest setting. Once the room temperature is reached, slowly turn the knob back until the heater turns off audibly. The thermostat then automatically maintains that temperature.

Can I use the appliance as a simple fan?

Yes, set the function control knob (3) to the fan icon (blowing symbol) and set the thermostat to maximum. The appliance will then operate in fan mode without heating.

What should I do if the appliance turns off by itself?

This may be due to overheating. Set the control knob to 0, unplug the device, and let it cool for 10 minutes before using it again. If the problem persists, have the device checked by a professional.

How do I activate the oscillation function?

Use the oscillation on/off switch (4) located at the back of the appliance. Set it to I to activate oscillation, to 0 to deactivate. Never manually force the oscillation mechanism.

Can the appliance be used in a bathroom?

No, never use the fan heater in the immediate vicinity of a bathtub, shower, or swimming pool. Observe safety distances and do not use it in damp rooms.

How do I clean the protective grilles?

Unplug the appliance and let it cool. Remove dust from the grilles with a soft brush or the upholstery nozzle of your vacuum cleaner. Do not use abrasive or caustic cleaners.

What is the power of the appliance?

The appliance has two power levels: 1000 W (position I) and 2000 W (position II). Make sure the socket and electrical circuit can handle this load.

What should I do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid any hazard.

Does the appliance have fall protection?

Yes, a safety switch (6) automatically cuts off power if the appliance tips over. Place it on a stable, level surface to ensure proper operation.

How should I store the appliance in summer?

Let the appliance cool down, coil the cable loosely, and store it in its original packaging in a dry, cool place out of reach of children.

USER MANUAL HL 6064 CB BOMANN

White portable electric heater with ventilation grille and two control switches (no visible text or symbols)

Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.
NL Dit product is alleen geschikt voor goed geïsoleerde ruimtes of voor incidenteel gebruik.
Ce produit est seulement adapté à une utilisation dans les pièces correctement isolées, ou pour les utilisations occasionnelles.
Este producto solo es adecuado para utilizarlo en habitaciones bien aisladas o para un uso ocasional.
① Questo prodotto è adatto solo per ambienti ben isolati o per l'uso occasionale.
GB This product is only suitable for well isolated rooms or for occasional use.
PL Ten produkt nadaje się tylko do dobrze izolowanych pomieszczeń lub do sporadycznego użytku.
H Ez a termék kizárólag jól szigetelt helyiségekben vagy alkalmanként használható.
RUS Этот прибор пригоден только для хорошо изолированных комнат или для нечастого применения.
AR هذا المنتج مناسب فقط للغرف المعزولة جيدأو للاستخدام العرضي.

Bedienungsanleitung

CE

Overview of the Components ...... Page 3

Instruction Manual......Page 11

Technical Data......Page 15

Product Data Sheet......Page 16

NEDERLANDS

Inhoud

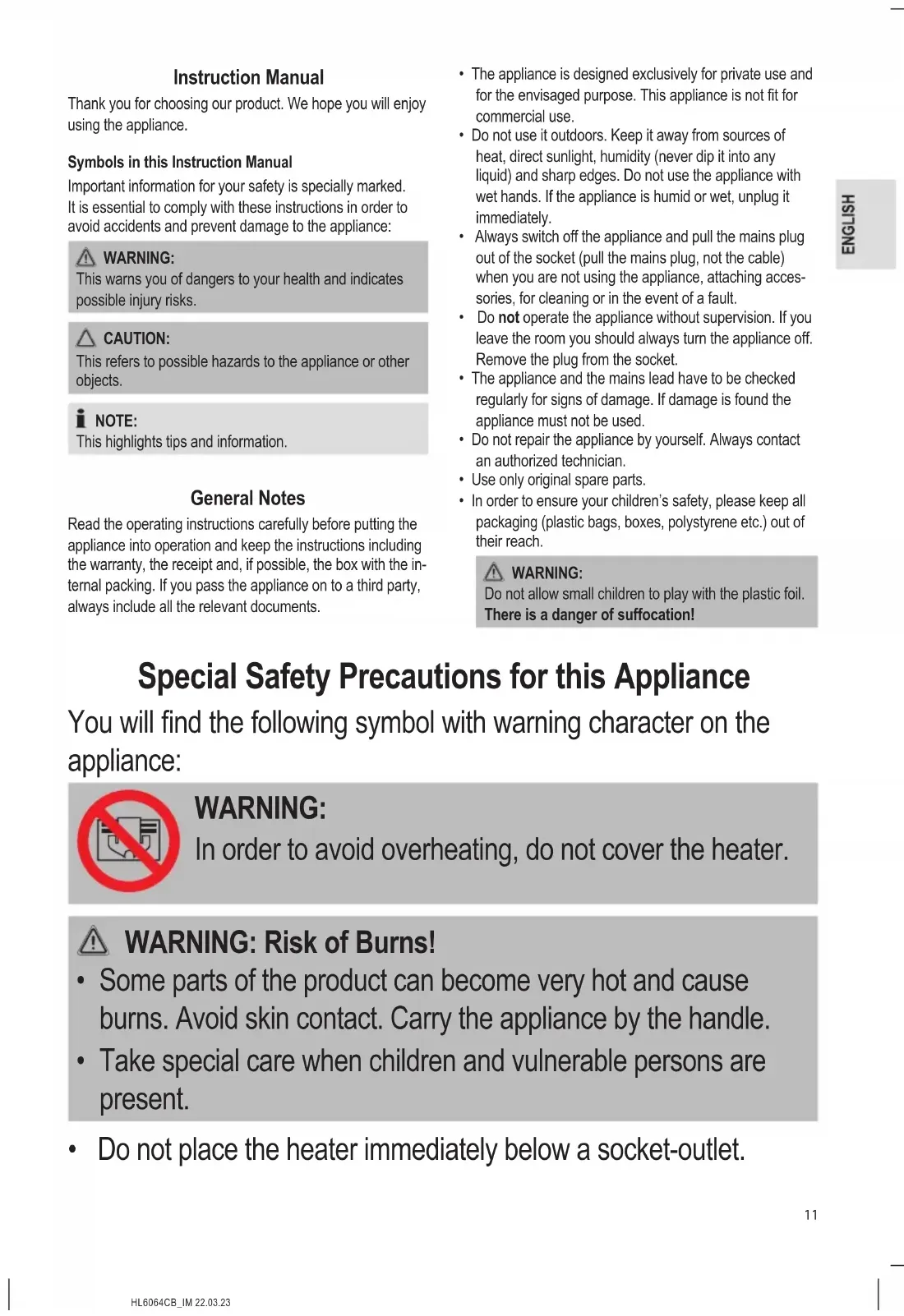

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you pass the appliance on to a third party, always include all the relevant documents.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always switch off the appliance and pull the mains plug out of the socket (pull the mains plug, not the cable) when you are not using the appliance, attaching accessories, for cleaning or in the event of a fault.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

You will find the following symbol with warning character on the appliance:

WARNING:

In order to avoid overheating, do not cover the heater.

WARNING: Risk of Burns!

• Some parts of the product can become very hot and cause burns. Avoid skin contact. Carry the appliance by the handle.
  • Take special care when children and vulnerable persons are present.

- Do not place the heater immediately below a socket-outlet.

• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
• To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.
• Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
• Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
• Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not regulate the appliance, may not clean the appliance and / or may not perform the maintenance by the user.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children without supervision.

• Under no circumstances may the fan heater be used in rooms with explosive gas (e. g. petrol) or while work is being carried out with inflammable adhesives or solvents (e. g. when gluing or painting parquet, PVC etc.).

• Do not insert any objects into the fan heater.
• Ensure that a safety distance is maintained between the power cord and the housing.
• Do not use the fan heater in the open air.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the appliance for possible transport damage to avoid hazards. Do not operate a damaged appliance. Return it to the dealer immediately.

NOTE:

There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Overview of the Components

1 Temperature control
2 Handle
3 Function control knob
4 On / Off switch for oscillation
5 Stand
6 Safety switch
7 Grille for heating elements
8 Indicator lamp

$$ \begin{array}{l} \mathbf {0} = \text { Off } \ I = 1 0 0 0 \text { Watt } \ I I = 2 0 0 0 \text { Watt } \ \end{array} $$

$$ = \text { Fan } $$

Notes for Use

Safety Switch

Your fan heater features a safety switch that disconnects the power supply in case the appliance falls over. The safety switch prevents hazards caused by overheating.

WARNING:

Place the appliance on a smooth, horizontal and stable surface. Avoid carpets in order to prevent failure of the safety switch.

NOTE:

The appliance turns on automatically once back in an upright position.

Connected Load

The appliance supports a power input of 2000 W.

CAUTION: Overload

• When using an extension cord, it must have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use a multiple socket as this appliance is too powerful.
• Do not connect any other powerful devices to the same electric circuit.

Operation

Electric Connection

1. Make sure the voltage of the appliance (see rating label) matches the mains voltage to be used.
2. Set the function control knob to 0.
3. Unwind the mains cable completely.
4. Only connect the mains plug with a properly installed earthed socket.

Setting the Temperature

The thermostat constantly switches the fan heater on and off, thereby keeping the temperature at the desired level. Set the desired temperature as followed:

1. Set the temperature control to its highest setting.
2. Once the desired temperature has been reached, slowly turn the temperature control back, until the fan heater switches off audibly. The indicator lamp turns off.

NOTE:

The audible position of the temperature control depends on the ambient temperature.

1. The fan heater will then keep the desired temperature level.

CAUTION:

When not using the appliance, disconnect the mains plug.

Oscillation

To achieve even heating or ventilation, the appliance is additionally equipped with an oscillation function.

There is a switch on the back of the appliance to switch the oscillation mode on or off.

0 = Oscillation switched off

I = Oscillation switched on

CAUTION:

Never adjust the swivel mechanism with your hand. The mechanism could be damaged.

\* Fan Operation

If you want to use the appliance as a fan, turn the function control knob to the fan icon and turn the temperature control to highest position.

End Operation

If you want to end the operation, set the function control knob to the position 0. The indicator lamp turns off. Then disconnect the mains plug from the socket.

Overheat Protection

The appliance features an overheat protection mechanism causing the appliance to switch off automatically in case of overheating.

1. Set the function control knob to position 0 and pull the mains plug out of the socket.

2. Let the appliance cool down for approx. 10 minutes before using it again.

NOTE:

If the overheat protection mechanism causes the appliance to switch off again after a short period, this might indicate a defect.

1. Switch off the appliance and disconnect it from the mains.
2. Have the appliance checked by your dealer or our customer service.

Cleaning

WARNING:

• Always unplug the appliance from the mains before cleaning and wait until the appliance has cooled down.
- Never immerse the appliance in water to clean it. This may lead to electrical shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive materials.
• Do not use caustic or scouring agents.
• Wipe away dust with a dry cloth.
• Flecks can be removed with a suitably damp cloth.

Dust on the Protective Grilles

Accumulation of dust on the protective grilles can lead to overheating.

- Remove the dust by careful brushing.

or

- Use the upholstery nozzle of your vacuum cleaner to remove the dust.

Storage

• Let the appliance cool down before putting it away!
  • Wind the mains cable loosely.
• We recommend storing the appliance in its original packaging if you do not intend to use it for a long period of time.
  • Always store the appliance out of the reach of children in a well-ventilated and dry place.

Technical Data

Model: HL 6064 CB

Power supply: 220–240 V\~, 50–60 Hz

Power consumption: 2000 W

Protection class:....II

Net weight: .... approx. 1.25 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

Notice of Directive Conformity

The appliance meets the European standards and directives in the current version at delivery:

• Low Voltage Directive (LVD) 2014/35/EC
• Electromagnetic Compatibility (EMC) Legislation Directive 2014/30/EC
• RoHS-directive 2011/65/EU & (EU) 2015/863
• Ecodesign-directive (ErP) 2009/125/EC
• Commission Regulation (EU) 2015 / 1188 (Product Data Sheet see page 16)

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

Product Data Sheet

Model identifier HL 6064 CB
Item Symbol	Value Unit	Item Unit
Heat output Type of heat input, for electric storage					local space heaters only
Nominal heat output P	nom	2.0 kW	W manual		heat charge control, with integrated thermostat N.A.
Minimum heat output (indicative)	Pmin	1.0 kW			manual heat charge control with room and / or outdoor temperature feedback	N.A.
Maximum continuous heat output	Pmax,c	2.0 kW			electronic heat charge control with room and / or outdoor temperature feedback	N.A.
Auxiliary electricity consumption					fan assisted heat output	N.A.
At nominal heat output	elmax	0.000	kW Type of heat output / room temperature control
At minimum heat output	elmin	0.000	kW
In standby mode	elSB	0.000	kW
				Other control options
				room temperature control, with presence detection		no
				room temperature control, with open window detection		no
				with distance control option		no
				with adaptive start control		no
				with working time limitation		no
				with black bulb sensor		no
Contact details	C. Bomann GmbH, Heinrich-Horten-Straße 17, 47906 Kempen, Germany
N. A. = not applicable
