Product Type	Ceiling/Wall Fan
Brand	Broan
Model	L700
Housing Dimensions	54.6 cm length, width varies with mounting
Duct Diameter	10 in (25.4 cm) round
Estimated Weight	Approximately 5 to 7 kg
Power Supply	120 V, 60 Hz (standard)
Motor	Permanently lubricated, do not disassemble
Airflow	Not specified in manual, residential use
Sound Level	Not specified
Installation	Ceiling or wall, 10 in round duct, horizontal or vertical discharge
Use	Continuous general ventilation, compatible with speed controller
Maintenance	Clean grille with vacuum or soft cloth and mild soap; removable blower for cleaning
Safety	Grounding required; use GFCI if above bathtub/shower; disconnect power before maintenance
Warranty	1 year parts and labor (except accessories)
Replacement Parts	Available by reference number (e.g., motor 9080488, grille 98009463)
Repairability	Removable blower, motor not dismantleable; standard screw parts

Frequently Asked Questions - L700 BROAN

Can the fan be installed in a bathroom?

Yes, provided it is installed above a bathtub or shower with a circuit protected by a GFCI (ground fault circuit interrupter). Never place the switch within reach of the bathtub or shower.

What type of duct should I use?

Use a metal duct round 10 in (25.4 cm). The fan accepts a transition 4½ x 18½ to 10 in. Discharge can be horizontal or vertical.

How to clean the fan?

For the grille: use a vacuum or remove it and clean with a soft cloth and mild soap. For the blower: disconnect power, remove grille, disconnect blower, clean the wheel without letting water enter the motor. Reassemble after complete drying.

Can I use a speed controller?

Yes, the fan is compatible with a solid-state speed controller. Follow the wiring instructions of the controller and comply with local electrical codes.

What to do if the fan is noisy?

Ensure the unit is free of construction dust and that the motor bearings are not damaged. If noise persists, check that the blower wheel is well balanced and that fasteners are tight.

How to install the fan in an existing ceiling?

Use the provided brackets by attaching them on either side of the housing, flipped if necessary so that the housing is flush with the finished ceiling. Refer to the mounting diagrams for already completed construction.

What is the procedure to replace the motor?

The motor is integrated into the blower. Replace the blower assembly (ref. 97014821 for L700) by unscrewing the mounting nuts and reconnecting the harness. The motor is not individually repairable.

Where can I find replacement parts?

Order parts by reference number from Broan-NuTone. The full list is on page 12 of the manual. Examples: grille (98009463), blower wheel (9911 10805), motor (9080488).

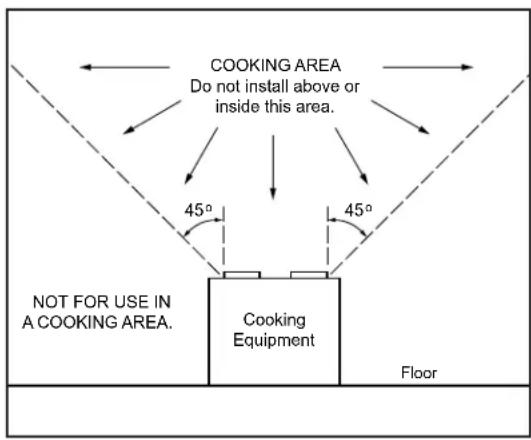

Can the fan be used in a kitchen?

No, this model is not designed for a cooking area. It must not be installed above or inside a cooking zone. It is intended for general ventilation.

What to do in case of failure during warranty?

Contact Broan-NuTone within 7 days of discovering the defect, with the model number and proof of purchase. The one-year warranty covers parts and labor for a defect in material or workmanship.

USER MANUAL L700 BROAN

LOSONE SELECT® VENTILATORS

Ceiling/Wall Mount

Isometric technical drawing of a ventilation duct with mesh grille and adjacent panel (no text or symbols)

READ AND SAVE THESE INSTRUCTIONS

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. To reduce the risk of fire, use only metal ductwork.
8. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Interrupter) - protected branch circuit.
9. Never place a switch where it can be reached from a tub or shower.
10. This unit must be grounded.

CAUTION

1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.
3. Please read specification label on product for further information and requirements.

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase.

The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period.

This warranty does not cover speed controls, fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God. This warranty covers only Products sold to original consumers in the United States by the Company or U.S. distributors authorized by the Company.

This warranty supersedes all prior warranties and is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. To the extent that applicable law prohibits the exclusion of implied warranties, the duration of any applicable implied warranty is limited to the period specified for the express warranty above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty. Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty. Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR OR REPLACE, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number slated below within seven (7) days of discovering the covered defect. (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.broan.com.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

Installer: Leave this manual with the homeowner.

Homeowner: Use and Care information on page 3.

TYPICAL INSTALLATION

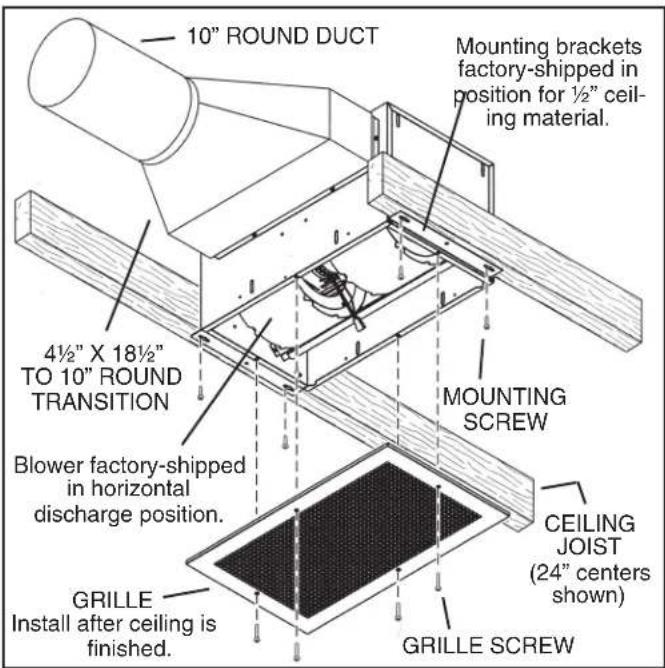

MOUNTING (New Frame Construction)

Factory-shipped unit installed in new construction.

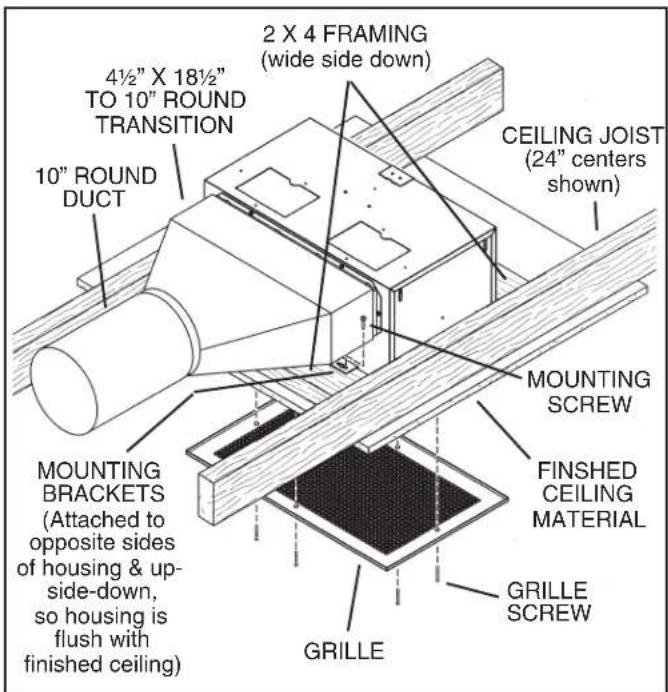

MOUNTING (Existing Frame Construction)

Factory-shipped unit installed in existing construction.

TYPICAL INSTALLATION

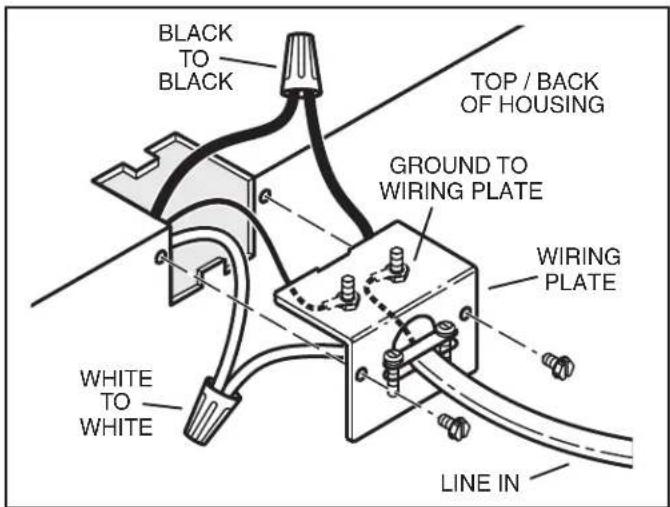

WIRING

Ventilator can be wired from outside of housing. Use UL approved connectors to wire per local codes.

DUCTING (Horizontal blower discharge)

Two ways to connect ductwork to a factory-shipped unit.

NOTE: Make sure the shipping tape is removed from the damper flap and that damper flap opens and closes freely inside the ductwork. Use duct tape to make ductwork connections secure and air-tight.

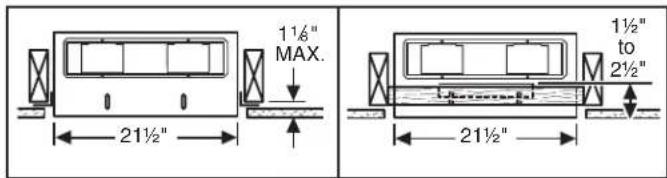

MOUNTING OPTIONS

14 -20 hex nuts secure mounting brackets to housing. Loosen and re-tighten or remove and replace nuts as necessary for desired mounting bracket position.

Mounting brackets in factory-shipped position. (Outlet parallel to joists.) (New construction)

Mounting brackets flipped over and mounted to outlet sides of housing. (Outlet parallel to joists.) (Existing construction)

Mounting brackets mounted to outlet sides of housing. (Outlet perpendicular to joists.) (New construction)

Mounting brackets flipped over to give approx. 1" more clearance. (Outlet parallel to joists.) (New construction)

Mounting brackets mounted to top of sides of housing. (Outlet parallel to joists.) (New or existing construction)

Mounting brackets flipped over and mounted to top of sides of housing. (Outlet parallel to joists.) (New or existing construction)

WIRING OPTIONS

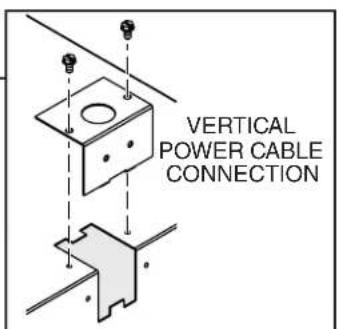

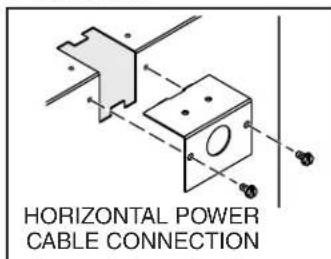

WIRING PLATE POSITION

Wiring plate mounts to side or top of housing.

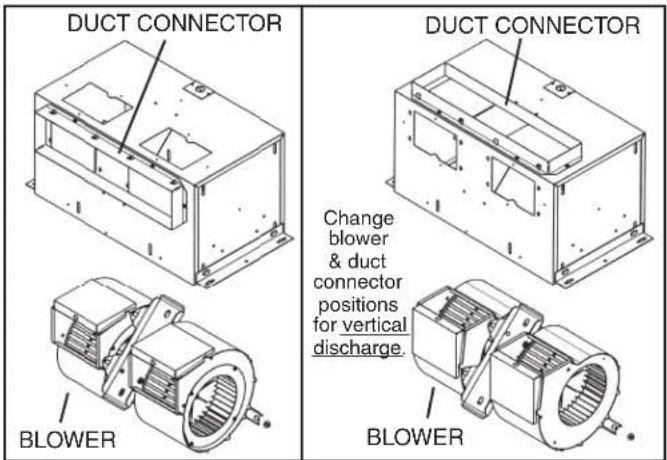

DUCTING OPTIONS

BLOWER DISCHARGE POSITIONS

Blower and duct connector in horizontal discharge position. (Factory shipped)

Blower and duct connector in vertical discharge position.

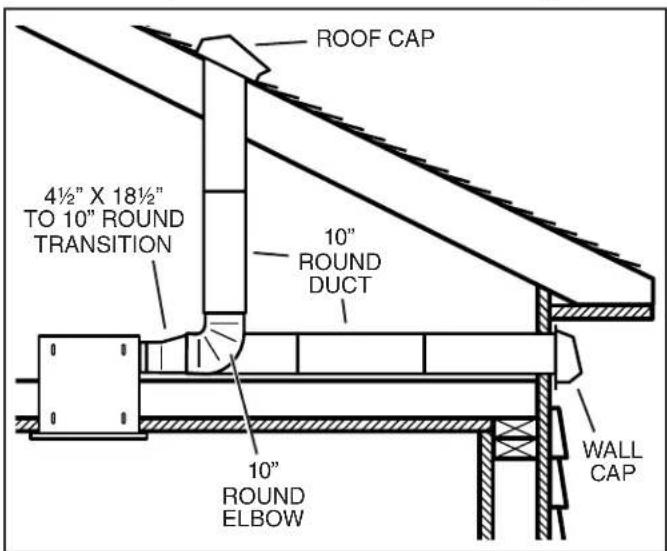

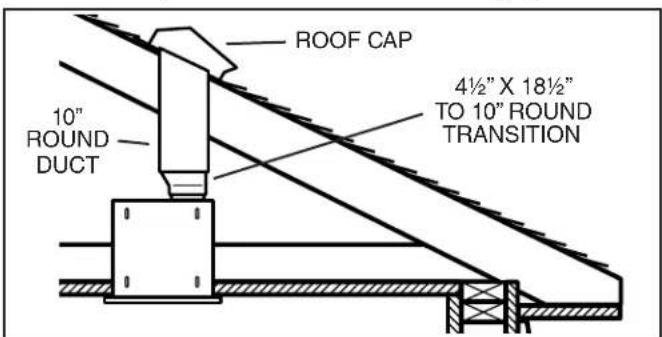

DUCTING (Vertical blower discharge)

Typical ductwork connection to a ventilator converted to vertical discharge.

USE AND CARE

Ventilator is designed for continuous operation. If desired, it may be controlled using an on/off switch or a solid-state, variable speed control. Follow wiring instructions packed with control, and adhere to all local and state codes, and the National Electrical Code.

WARNING: To reduce the risk of electric shock, disconnect from power supply before servicing.

To clean grille: Use appropriate vacuum attachment or remove grille and clean with a soft cloth and mild soap or detergent. Dry grille thoroughly before reinstalling.

To clean blower assembly: Remove grille, unplug blower from housing, remove blower mounting nuts, and carefully remove blower from housing. Use appropriate vacuum attachment or a soft cloth and mild soap or detergent to clean blower discharge area and wheel. DO NOT ALLOW WATER TO ENTER MOTOR. Make sure blower assembly is completely dry before reinstalling.

Motor is permanently lubricated. Do not oil or disassemble motor.

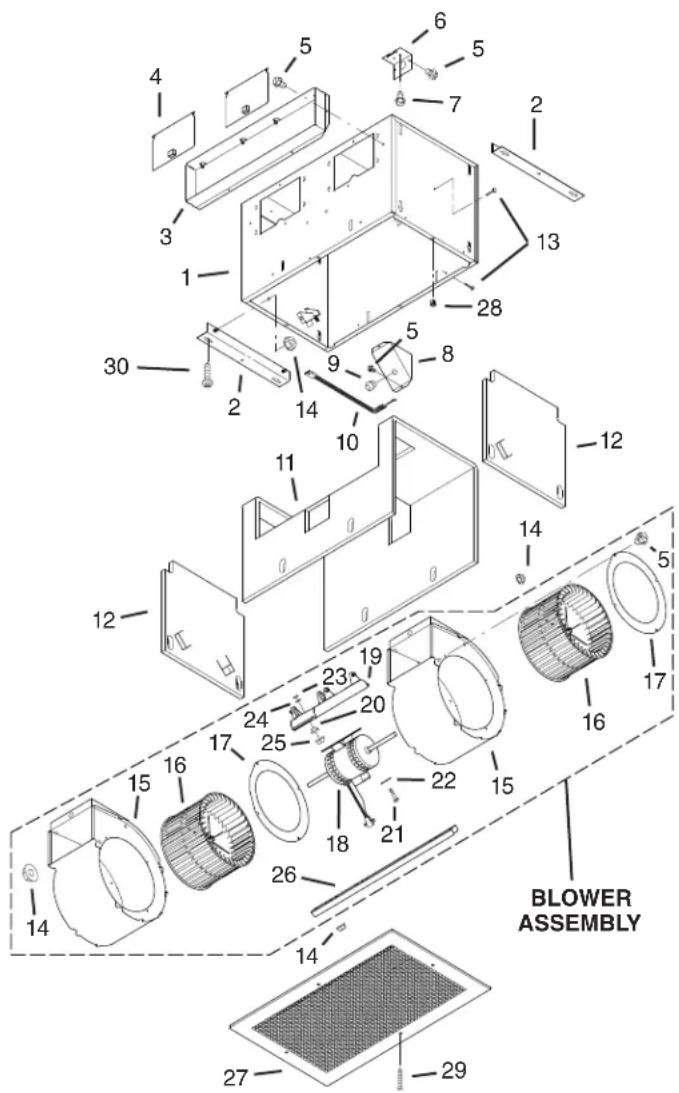

SERVICE PARTS SERVICE PARTS

KEY NO.	PART NO.	DESCRIPTION
1 97014744	Housing Assembly
2 97014728	Mounting Bracket (2 req.)
3 98009449	Duct Connector
4 97014822	Damper Flap Assembly (2 req.)
5 99150415	Screw, 8-18 × 14 (18 req.)*
6 98005512	Wiring Plate
7 99150471	Ground Screw, 10-32 × 12 (2 req.)
8 98005513	Wire Box Cover
9 99400085	Strain Relief Bushing
10 97006039	Wire Harness
11 99500392	Wrapper Insulation
12 99500391	Side Insulation (2 req.)
13 99420466	Insulation Mounting Clip (6 req.)
14 99260477	Nut, 14-20 (12 req.)*
15 97014745	Scroll Assembly (2 req.)
16 99110805	Blower Wheel (2 req.)
17 98009399	Inlet Ring (2 req.)
18 99080486	Motdr (L400)
99080487	Motdr (L500)
99080488	Motdr (L700)
99080498	Motdr (L400C)
99080499	Motdr (L500C)
99080500	Motdr (L700C)
99080508	Motdr (L400EX)
99080509	Motdr (L500EX)
99080510	Motdr (L700EX)
19 97014794	Motor Mounting Bracket
20 99100497	Rubber Isolator (4 req.)
21 99160380	Screw, 10-24 × 7/8 (4 req.)*
22 99250399	Washer (4 req.)*
23 99260306	Nut, Hex 10-24 (4 req.)*
24 99250254	Washer (4 req.)*
25 93260456	Nut, Hex Flange 3/8-16
26 98009461	Scroll Mounting Channel
5,14-26		Blower Assembly, Complete(Includes Key Nos. 5 & 14-26)
	97014817	(L400)
	97014819	(L500)
	97014821	(L700)
	97014883	(L400C)
	97014884	(L500C)
	97014885	(L700C)
	97014893	(L400EX)
	97014894	(L500EX)
	97014895	(L700EX)
27	98009463	Grille
28 99420470	Grille Nut (4 req.)
29 99150472	Grille Mounting Screw (4 req.)
30 99150591	Screw, 10-16 × 7/8 (4 req.)

Order replacement parts by PART NO. - not by KEY NO.
Standard hardware - may be purchased locally.

VENTILADORES LOSONE SELECT®

Para montaje en

cielo raso/pared

Isometric technical drawing of a structural panel with mesh and panel (no text or symbols)

Page 5

LEA Y CONSERVE ESTAS INSTRUCCIONES

ADVERTENCIA

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.broan.com 800-637-1453

Isometric technical drawing of a structural panel with mesh and panel lock (no text or symbols)

LIRE ET CONSERVER CES INSTRUCTIONS

AVERTISSEMENT

POUR RÉDUIRE LE RISQUE D'INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES PERSONNELLES, OBSERVEZ CE QUI SUIT:

OPTIONS D'INSTALLATION DES CONDUITS

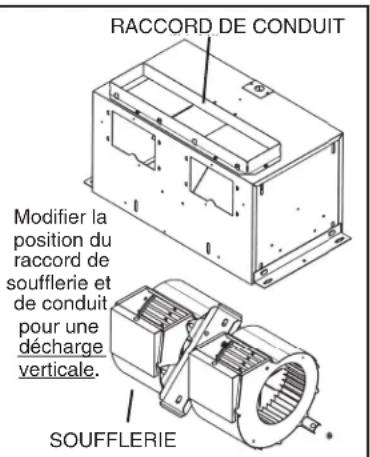

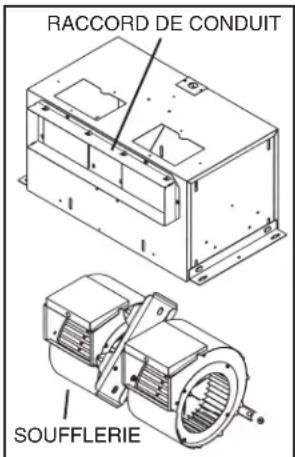

POSITIONS DE LA DÉCHARGE DE LA SOUFFLERIE
