Minipresso NS - Coffee machine Wacaco - Free user manual and instructions

Product Type	Manual Portable Espresso Machine
Brand	Wacaco
Model	Minipresso NS
Dimensions (L x W x H)	Approx. 175 x 70 x 60 mm
Weight	Approx. 360 g
Power Source	Manual (hand pumping)
Water Tank Capacity	Approx. 70 ml
Compatible Coffee Type	Compatible Nespresso® capsules
Operating Pressure	8 bar (manual)
Main Materials	Polypropylene, stainless steel, silicone
Intended Use	Home, on-the-go, office
Recommended Water Temperature	Boiling water (approx. 100 °C)
Main Functions	Espresso extraction via manual pump, piston unlocking, capsule piercing
Recommended Cleaning	Rinse the hatched areas under running water, wipe other parts with a damp cloth, do not put in dishwasher
Specific Maintenance	Clean sharp tips only with the provided brush, avoid getting water in the orange area
Safety	Do not use without water, do not heat water in the tank, handle hot water with care
Available Spare Parts	O-rings, cleaning brushes, water tank
Repairability	Do not disassemble yourself, contact Wacaco support
Warranty	12 months against manufacturing defects
Package Contents	Minipresso NS, espresso cup, cleaning brush, user manual
Optional Accessories	Not specified, use only those recommended by Wacaco
Certifications	Conforms to food safety standards

Frequently Asked Questions - Minipresso NS Wacaco

How to prepare an espresso with the Minipresso NS?

Unscrew the outlet head, insert a Nespresso® capsule, screw back on firmly, add boiling water to the tank, reassemble the body, unlock the piston and pump gently over the cup. The first 8 pumps build pressure, then coffee flows out.

What water should I use?

Use fresh filtered water for best taste. Water must be brought to a boil using an external source (kettle) before pouring into the tank.

Can I use capsules other than Nespresso®?

The Minipresso NS is designed for compatible Nespresso® capsules. Using other types may not work or could damage the device.

How to clean the Minipresso after use?

Rinse the hatched areas (indicated in the manual) under running water to remove coffee residue. For other parts, use a soft, damp cloth. Do not use a dishwasher and avoid getting water in the orange area.

What to do if the piston is stuck?

Do not apply excessive force. Check that the outlet head is properly screwed on and the water tank is correctly in place. If the problem persists, contact Wacaco support.

Can the Minipresso be used with cold water?

No, water must be heated to boiling for proper extraction. Using cold water will not produce espresso.

How to replace the O-rings?

Replacing O-rings is not covered by the warranty. Contact Wacaco support to obtain spare parts and instructions.

Can I put the Minipresso in the microwave?

No, never put the Minipresso in the microwave, oven, on a hot plate, or in the dishwasher. This could damage the device.

How many espressos can I make with one tank?

One tank of approximately 70 ml allows you to prepare a single standard espresso (about 30-40 ml). For a second, refill with hot water.

What should I do if my Minipresso leaks?

Check that the capsule is properly inserted and outlet head is well screwed. If the leak persists, clean the seals and check that they are not damaged. Contact support if necessary.

USER MANUAL Minipresso NS Wacaco

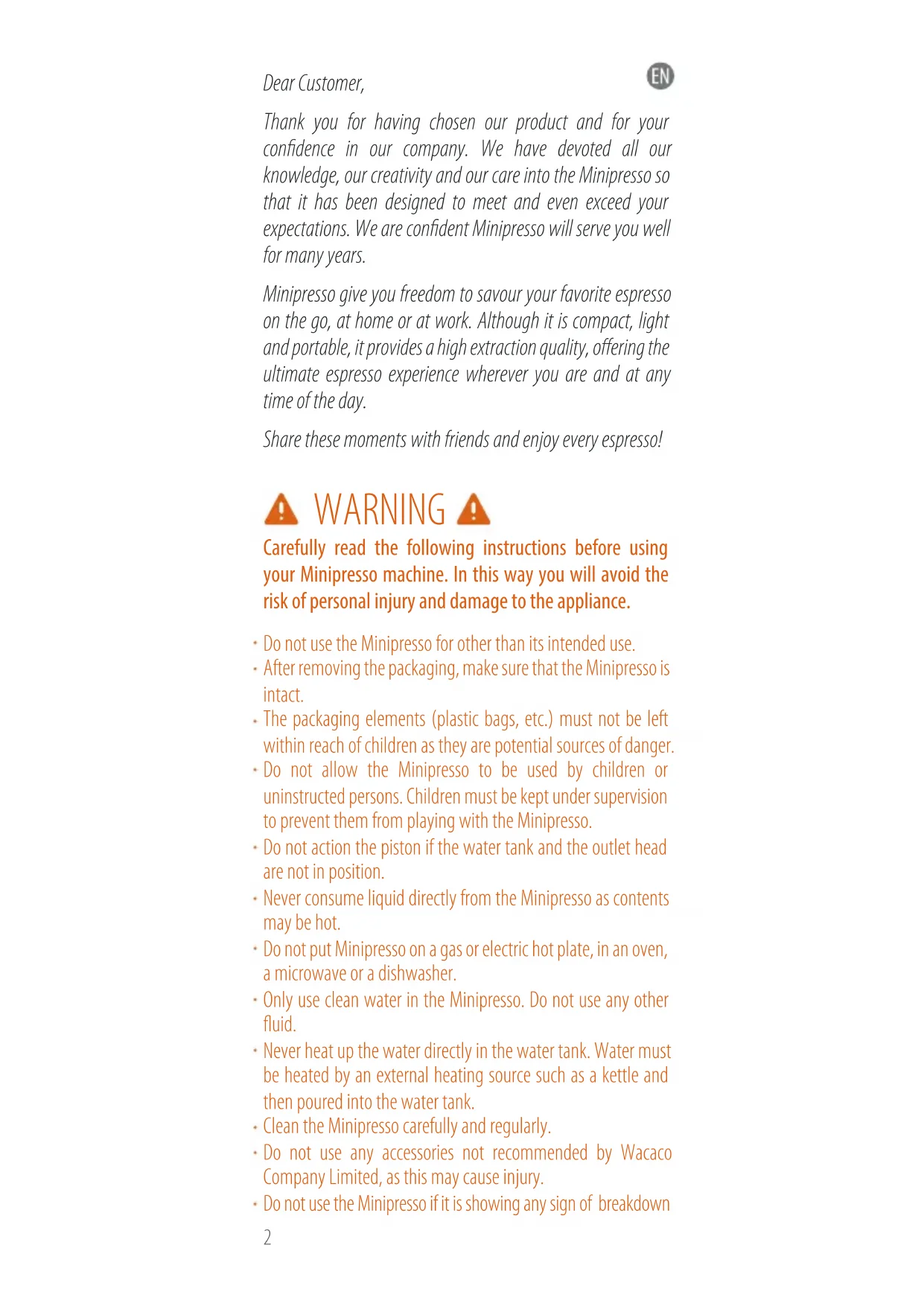

Thank you for having chosen our product and for your confidence in our company. We have devoted all our knowledge, our creativity and our care into the Minipresso so that it has been designed to meet and even exceed your expectations. We are confident Minipresso will serve you well for many years.

Minipresso give you freedom to savour your favorite espresso on the go, at home or at work. Although it is compact, light and portable, it provides a high extraction quality, offering the ultimate espresso experience wherever you are and at any time of the day.

Share these moments with friends and enjoy every espresso!

WARNING

Carefully read the following instructions before using your Minipresso machine. In this way you will avoid the risk of personal injury and damage to the appliance.

• Do not use the Minipresso for other than its intended use.
• After removing the packaging, make sure that the Minipresso is intact.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
• Do not allow the Minipresso to be used by children or uninstructed persons. Children must be kept under supervision to prevent them from playing with the Minipresso.
• Do not action the piston if the water tank and the outlet head are not in position.
• Never consume liquid directly from the Minipresso as contents may be hot.
• Do not put Minipresso on a gas or electric hot plate, in an oven, a microwave or a dishwasher.
• Only use clean water in the Minipresso. Do not use any other fluid.
• Never heat up the water directly in the water tank. Water must be heated by an external heating source such as a kettle and then poured into the water tank.
• Clean the Minipresso carefully and regularly.
• Do not use any accessories not recommended by Wacaco Company Limited, as this may cause injury.
• Do not use the Minipresso if it is showing any sign of breakdown

Thank you for having chosen our product and for your confidence in our company. We have devoted all our knowledge, our creativity and our care into the Minipresso so that it has been designed to meet and even exceed your expectations. We are confident Minipresso will serve you well for many years.

Minipresso give you freedom to savour your favorite espresso on the go, at home or at work. Although it is compact, light and portable, it provides a high extraction quality, offering the ultimate espresso experience wherever you are and at any time of the day.

Share these moments with friends and enjoy every espresso!

WARNING

Carefully read the following instructions before using your Minipresso machine. In this way you will avoid the risk of personal injury and damage to the appliance.

• Do not use the Minipresso for other than its intended use.
  • After removing the packaging, make sure that the Minipresso is intact.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
• Do not allow the Minipresso to be used by children or uninstructed persons. Children must be kept under supervision to prevent them from playing with the Minipresso.
• Do not action the piston if the water tank and the outlet head are not in position.
• Never consume liquid directly from the Minipresso as contents may be hot.
• Do not put Minipresso on a gas or electric hot plate, in an oven, a microwave or a dishwasher.
• Only use clean water in the Minipresso. Do not use any other fluid.
• Never heat up the water directly in the water tank. Water must be heated by an external heating source such as a kettle and then poured into the water tank.
• Clean the Minipresso carefully and regularly.
• Do not use any accessories not recommended by Wacaco Company Limited, as this may cause injury.
• Do not use the Minipresso if it is showing any sign of breakdown

INSTRUCTIONS

Illustration of a hand holding a small cylindrical object with an arrow indicating upward motion (no text or symbols)

①
Unclips the cup.

mujux

①
Unscrew the outlet head.

Illustration of a hand pouring liquid into a small container with a label (no text or symbols on the container itself)

Place compatible capsule.

Illustration of a hand holding a small cylindrical object with a circular base, no text or symbols present

Screw back tightly the outlet head in order to pierce the capsule.

Illustration showing a hand holding a cup with a small object above, labeled with Chinese characters and number 5.

Unscrew the water tank.

6

Add boiling water into the water tank.

Place water tank on level & stable surface.

Illustration of a hand holding a cylindrical object with a circular inset, showing motion arrows (no text or symbols)

Screw tightly the main body onto the water tank.

Avoid burning yourself.

Illustration of a hand holding a small cylindrical object with directional arrows indicating motion (no text or symbols)

8
Unlock the piston from its travel position by rotating it to the left.

Illustration of a hand holding a flashlight with a curved arrow indicating motion (no text or symbols)

9
Start pumping slowly above the cup.

Line drawing of a hand holding a cylindrical object (no text or symbols)

The first 8 strokes will fill the capsule of water.
Continue pumping slowly until no more coffee come out.

CLEANING

Clean the hatched areas under running water to remove all remain coffee. For all others areas, wehighly recommend to only use a humid soft cloth. Let the parts dry separately.

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

WARNING

Sharp cutter inside, only use the provided brush to clean the cutter and the surrounding area.

WARNING

Do not put any Minipresso parts into dishwasher. Do not put water into the orange area.

WARRANTY

Wacaco Company Limited warrants the Minipresso against defects that are due to faulty materials or workmanship for a period of 12 months from the date of purchase. Purchase receipt must be kept as a reference for warranty to be valid (you are suggested to take photocopy of your purchase receipt for long time storage). This warranty is not transferable and does not entitle to compensation in cash. Wacaco Company Limited disclaims all responsibility for incidental or consequential damages caused by use of this appliance. This warranty does not cover:

• Damage resulting from improper use, abuse, neglect, commercial use or any other use of this appliance not found in this printed manual.
• The replacement of the o-rings.
• Damage of an aesthetic nature, damage due to corrosion or gradual deterioration.

Any disassembly or repairs done by unauthorized persons will void the warranty.

For any repair or exchange, the cost of return is at your expense.

If your Minipresso fails within one year, please contact your Wacaco local distributor or [e-mail] directly for repair or exchange.

www.wacaco.com

WACACO

Share your experience on social medias by using #minipresso.

Illustration of a hand holding a small cylindrical object with an arrow indicating upward motion (no text or symbols)

Hand holding a cylindrical object with arrows indicating rotation (no text or symbols)

Line drawing of hands inserting a small object into a container (no text or symbols)

Hand holding a small cylindrical device with a circular base, no visible text or symbols

Illustration of hands performing a press or stamping operation on a cup (no text or symbols visible)

Illustration of a hand holding a cylindrical object with a circular inset, showing motion or rotation (no text or symbols)

Illustration of a hand holding a small object with motion arrows, no text or symbols present

Line drawing of a hand holding a flashlight, no text or symbols present

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

WARNING

Illustration of a hand holding a small electronic device with a circular button (no text or symbols visible)

①
Retirer la tasse.

Hand holding a cylindrical object with a circular base, showing motion lines (no text or symbols)

Line drawing of hands pouring liquid from a small container into a container (no text or symbols)

①
Placez la capsule compatible.

Hand holding a small cylindrical device with a circular button, no visible text or symbols

Illustration of hands performing a mechanical press or stamping operation (no text or symbols visible)

Line drawing of a person holding a cup with a circular object, no text or symbols present

Illustration of a hand holding a circular object with directional arrows, no text or symbols present

Illustration of a hand holding a flashlight with a curved arrow indicating motion (no text or symbols)

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

ATTENTION

www.wacaco.com WACACO

Illustration of hands holding a device with an upward arrow, no text or symbols present

Illustration of hands holding a mechanical component with motion arrows indicating movement (no text or symbols)

Hand pouring liquid into a small container labeled 'Thompson' (no text or symbols on the container itself)

Illustration of hands holding a small cylindrical object with a circular base, no text or symbols present

Diagram showing a hand pressing a button into a container with directional arrows indicating motion or force, labeled with number ⑤.

Illustration of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a pen or stylus, no text or symbols present

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and labeled 'minipral' (no other text or symbols)

ADVERTENCIA

Illustration of a hand holding a device with a circular button and an upward arrow, no text or symbols present.

light bulb ②

Illustration of hands inserting a small object into a container labeled 'magnes' (no text or symbols on the object itself)

Illustration of hands holding a small cylindrical object with a circular base and a curved arrow indicating rotation (no text or symbols)

Diagram showing a hand pressing a spring into a cup, with directional arrows indicating motion or force.

Illustration of a hand holding a flashlight with a magnified view of the tip (no text or symbols)

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

AVISO

Illustration of a hand holding a mechanical component with an arrow indicating motion (no text or symbols)

Отсоедините чашки.

Hand holding a bottle labeled 'Cappelle' with arrows indicating motion (no text or symbols beyond label)

Illustration of hands pouring liquid into a container with a label (no text or symbols on the container itself)

Illustration of hands holding a small container with a circular lid, no text or symbols present

Line drawing of a hand holding a circular object with an arrow indicating rotation (no text or symbols)

Illustration of a hand holding a flashlight with a circular base, no text or symbols present

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

ПРЕДУПРЕЖДЕНИЕ

Illustration of hands holding a small container with a circular lid, no text or symbols visible

Hand holding a cylindrical object with a label 'Ceramic' and number 2, no readable text or symbols beyond the label.

操作步骤 拧开出水端

Illustration of hands holding a small container with a lid, no text or symbols present

放置可兼容的咖啡胶囊

Illustration of hands holding a small cylindrical object with a circular base, no text or symbols present

尽力拧紧出水端以刺穿胶囊

Illustration of hands performing a mechanical press or stamping operation on a cylindrical object (no text or symbols present)

拧开水仓

Illustration of a hand holding a circular object with directional arrows indicating motion (no text or symbols)

⑧ 将活塞逆时针旋转，使其解锁

Illustration of a hand holding a flashlight with a circular base, no text or symbols present

Line drawing of a hand holding a flashlight (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side port (no text or symbols)

CN

注意事项

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

警告

Illustration of a hand holding a small cylindrical object with an arrow indicating upward motion (no text or symbols)

①

Hand holding a cylindrical object with a circular base, showing motion arrows (no text or symbols)

②

取下濃縮咖啡杯 旋開沖煮頭

Hand pouring liquid into a small container labeled 'Chipristia' (no other text or symbols visible)

③

裝入相容的 咖啡膠囊

Line drawing of hands holding a small container with a circular cap, no text or symbols present

④

Illustration of hands performing a mechanical press or stamping operation (no text or symbols visible)

5

旋開水箱

最高水位刻度

Illustration of a hand holding a circular object with motion arrows, no text or symbols present

⑧

將活塞向左 旋轉使活塞 解開彈出

Illustration of a hand holding a flashlight with a circular base, no text or symbols present

⑨

移至濃縮咖啡杯上方 並開始按壓活塞

Line drawing of a hand holding a pen or stylus (no text or symbols)

Illustration of a hand holding a mechanical component with an arrow indicating motion (no text or symbols)

컵 부분을 분리해주세요

Hand holding a cylindrical device with a circular button, no visible text or symbols

커피 추출 뚜껑을 돌려서 분리 후

Line drawing of hands inserting a small object into a cylindrical container (no text or symbols)

①
호환되는 캡슐을 넣고

Hand holding a small cylindrical device with a circular button, no visible text or symbols

Illustration of hands holding a container with a lid, showing motion arrows (no text or symbols)

⑤
물탱크를 돌려 분리해주세요

Illustration of a hand holding a container with a circular lid, showing motion arrows (no text or symbols)

Line drawing of a hand holding a circular object, possibly a device or tool, with no visible text or symbols.

Illustration of two hands holding a button, showing a finger movement and a close-up view (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a textured top and side flange (no text or symbols)

Hand holding a cylindrical object with a label, showing motion arrows (no readable text or symbols)

قم بфик رأس المنفذ

airpne ①

قم بфик الكويت

Illustration of hands performing a mechanical press or stamping operation on a cylindrical object (no text or symbols present)

Illustration of hands holding a small cylindrical object with a circular base, no text or symbols present

Illustration of hands holding a small container with a lid, no text or symbols present

Illustration of a hand holding a circular object with directional arrows, no text or symbols present

Diagram showing a hand holding a container with a circular object, labeled with the number 7 and an arrow indicating rotation.

Line drawing of a hand holding a flashlight (no text or symbols)

Illustration of a hand holding a flashlight with a circular base, no text or symbols present
