Nanopresso - Coffee machine Wacaco - Free user manual and instructions

Product type	Portable espresso machine
Brand	Wacaco
Model	Nanopresso
Extraction pressure	Up to 18 bars
Water tank capacity	50 to 80 ml
Coffee dose	8 g of finely ground coffee
Recommended grind	Fine
Usage	Domestic only
Materials	BPA-free for food contact parts
Pressure release valve	Yes, opens at 18 bars
Cleaning after each use	Clean the hatched areas with running water
Deep cleaning	Every 20 espressos (filter holder and nozzle)
Filter cleaning	Every 6 months (300 espressos)
Recommended preheating	Yes, with hot water
Safety	Do not put in dishwasher; do not heat water in the tank
Warranty	12 months against manufacturing defects
Included accessories	Filter holder, water tank, espresso cup, filter basket, piston, brush, dosing scoop
Coffee type	Ground coffee (no pods)
Extraction	Manual pumping
Recommended extraction time	About 30 seconds (1 pump per second)

Frequently Asked Questions - Nanopresso Wacaco

How to prepare an espresso with the Nanopresso?

Fill the dosing scoop with 8 g of finely ground coffee, tamp firmly, screw on the filter holder, add boiling water to the tank (50-80 ml), screw on the main body, then pump at a rate of one pump per second until the coffee stops coming out. Preheat the parts with hot water for best results.

How much coffee should I use?

Use exactly 8 g of finely ground coffee for one dose. Do not exceed this amount as it increases internal pressure and may activate the pressure release valve.

What grind fineness is recommended?

A fine grind is recommended. If the coffee does not come out or the flow is too slow, grind coarser or tamp less.

How to clean the Nanopresso?

After each use, clean the hatched areas under running water and let dry. Every 20 espressos, deep clean the filter holder and nozzle parts with hot water using the provided brush. Every 6 months (300 espressos), clean the filter. Do not put in the dishwasher.

What to do if the coffee does not come out?

Slow down your pumping speed. If the problem persists, grind the beans coarser or slightly reduce the coffee amount. If the pressure release valve has opened, wait a few minutes before trying again.

How does the pressure release valve work?

The pressure release valve opens automatically when the pressure inside the filter basket reaches 18 bars, diverting water back to the tank to prevent overpressure. For a perfect espresso, maintain pressure below this threshold.

Can I use pods or capsules?

No, the Nanopresso is designed only for ground coffee. Do not use pods or capsules as this may damage the device.

What is the warranty on the Nanopresso?

Wacaco offers a 12-month warranty against manufacturing defects from the date of purchase. It does not cover damage due to misuse, normal wear of seals and filter basket, or unauthorized repairs.

Can I heat water directly in the tank?

No, never heat water directly in the tank. Use an external heat source (kettle) and pour boiling water into the tank.

How to get a better espresso?

Use freshly roasted beans and filtered water. Preheat all parts and the cup with hot water. Grind just before extraction. Pump at one pump per second for about 30 seconds. Adjust grind and tamping if necessary.

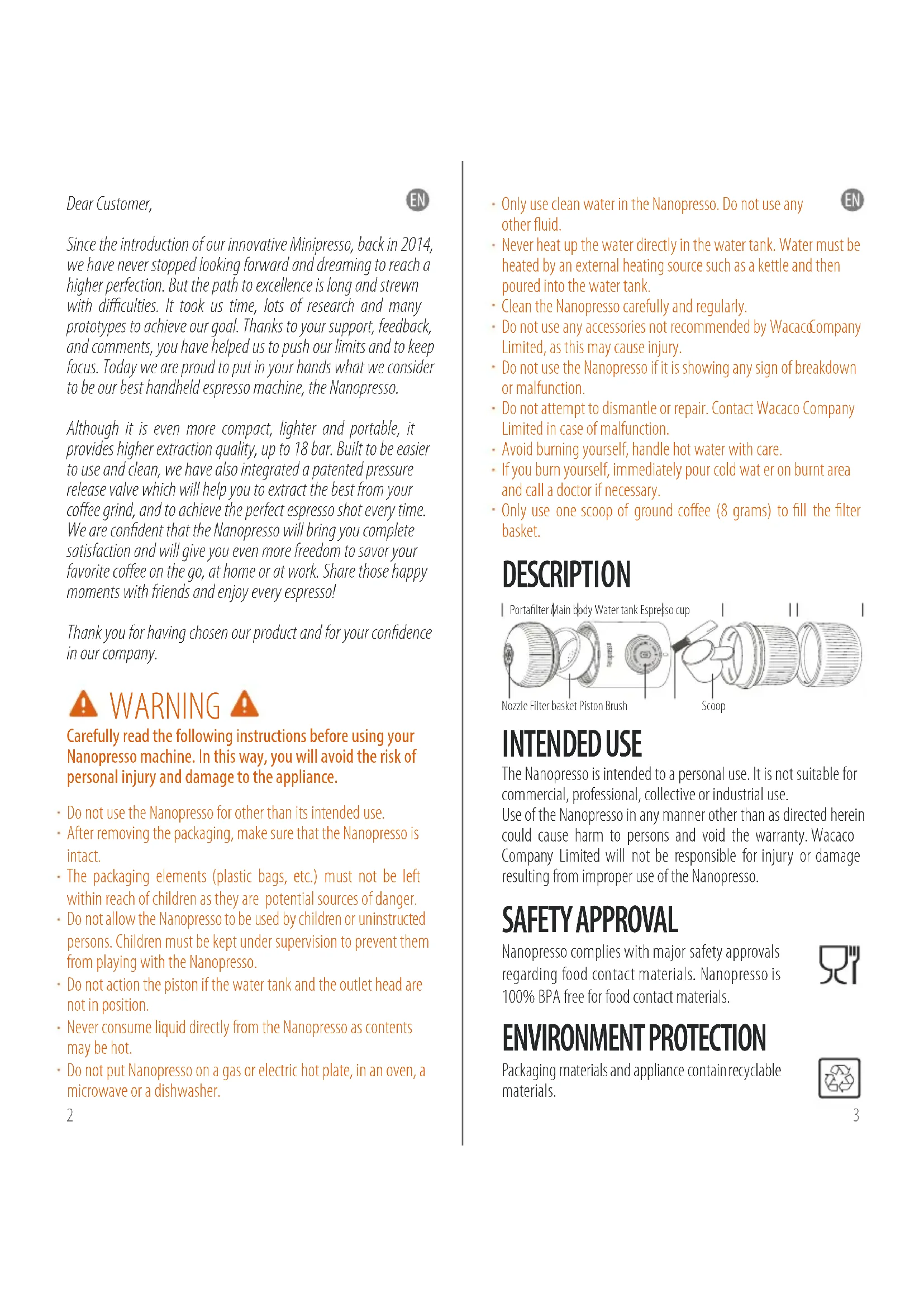

USER MANUAL Nanopresso Wacaco

Since the introduction of our innovative Minipresso, back in 2014, we have never stopped looking forward and dreaming to reach a higher perfection. But the path to excellence is long and strewn with difficulties. It took us time, lots of research and many prototypes to achieve our goal. Thanks to your support, feedback, and comments, you have helped us to push our limits and to keep focus. Today we are proud to put in your hands what we consider to be our best handheld espresso machine, the Nanopresso.

Although it is even more compact, lighter and portable, it provides higher extraction quality, up to 18 bar. Built to be easier to use and clean, we have also integrated a patented pressure release valve which will help you to extract the best from your coffee grind, and to achieve the perfect espresso shot every time. We are confident that the Nanopresso will bring you complete satisfaction and will give you even more freedom to savor your favorite coffee on the go, at home or at work. Share those happy moments with friends and enjoy every espresso!

Thank you for having chosen our product and for your confidence in our company.

WARNING

Carefully read the following instructions before using your Nanopresso machine. In this way, you will avoid the risk of personal injury and damage to the appliance.

• Do not use the Nanopresso for other than its intended use.
  • After removing the packaging, make sure that the Nanopresso is intact.
• The packaging elements (plastic bags, etc.) must not be left within reach of children as they are potential sources of danger.
• Do not allow the Nanopresso to be used by children or uninstructed persons. Children must be kept under supervision to prevent them from playing with the Nanopresso.
• Do not action the piston if the water tank and the outlet head are not in position.
• Never consume liquid directly from the Nanopresso as contents may be hot.

• Do not put Nanopresso on a gas or electric hot plate, in an oven, a microwave or a dishwasher.

• Only use clean water in the Nanopresso. Do not use any other fluid.

• Never heat up the water directly in the water tank. Water must be heated by an external heating source such as a kettle and then poured into the water tank.
• Clean the Nanopresso carefully and regularly.
• Do not use any accessories not recommended by WacacCompany Limited, as this may cause injury.
• Do not use the Nanopresso if it is showing any sign of breakdown or malfunction.
• Do not attempt to dismantle or repair. Contact Wacaco Company Limited in case of malfunction.
• Avoid burning yourself, handle hot water with care.
• If you burn yourself, immediately pour cold water on burnt area and call a doctor if necessary.
• Only use one scoop of ground coffee (8 grams) to fill the filter basket.

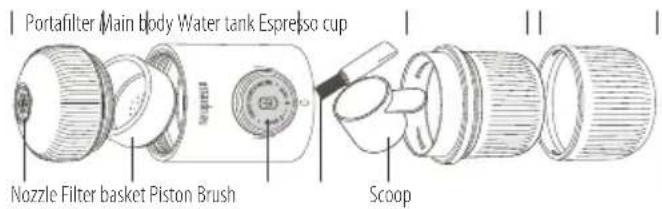

DESCRIPTION

Portafilter Main body Water tank Espreiso cup Nozzle Filter basket Piston Brush Scoop

INTENDED USE

The Nanopresso is intended to a personal use. It is not suitable for commercial, professional, collective or industrial use. Use of the Nanopresso in any manner other than as directed herein could cause harm to persons and void the warranty. Wacaco Company Limited will not be responsible for injury or damage resulting from improper use of the Nanopresso.

SAFETY APPROVAL

Nanopresso complies with major safety approvals regarding food contact materials. Nanopresso is 100% BPA free for food contact materials.

ENVIRONMENT PROTECTION

Packaging materials and appliance contain recyclable materials.

INSTRUCTIONS

Illustration of hands holding a bottle with a cap and a label, no text or symbols present

①
Unscrew the outlet head.

1
Remove the filter basket.

Illustration of hands assembling a coffee maker into a cup (no text or symbols)

Unclips the cup if needed. Do not unclips the cup if the water tank is filled with hot water.

4
Unscrew the water tank.

⑤
Remove the scoop and brush from the water tank.

X
Fill the scoop with fine coffee grounds (8gr).

7
Position the filter basket on the top of the scoop.

[NO TEXT]
Reverse to transfer all the powder into the filter basket. Tamp hard with the back of the scoop and clean up the edge.

⑨
Put back the filter basket on the top of the main body.

Screw tightly the outlet head into the main body.

MAX LEVEL 80ml MIN LEVEL 50ml

Add boiling water into the water tank.
Place water tank on level and stable surface to fill it.

12
Screw tightly the main body onto the water tank.
Avoid burning yourself.

13
Unlock the piston from its travel position.

Illustration of a hand pouring liquid into a container with a pointer (no text or symbols)

Hold the Nanopresso with two hands, as showed above. Start pumping above a cup.

Hand holding a small cylindrical object with a textured tip, partially submerged in a circular base (no text or symbols visible)

The first 8 strokes the pressure is built. Pump slowly until all coffee come out.

CLEANING

It's important to respect your machine and clean it regularly. A good maintenance will allow you to use your Nanopresso for many years.

After each use clean the hatched areas under running water. Let the parts dry separately.

- From time to time (20 shots), deep clean the portafilter and the nozzle parts.

Clean up all those parts with hot water and the help of the provided brush.

Diagram showing a hand pressing down on a circular component before being added to a larger cylindrical component (no text or symbols present)

① Unclip the nozzle part.

Hand operating a mechanical component with a circular base and handle (no text or symbols visible)

② Unscrew the nozzle.

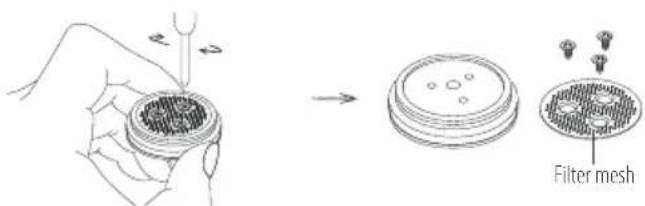

- Once every 6 month (300 shots) you will have to clean the filter mesh and underneath surface.

Diagram illustrating a process of filtering a filter mesh from a sample being inserted into a container.

WARNING

Do not put any Nanopresso parts into dishwasher.

DISPOSAL

Nanopresso has been manufactured using very high quality materials that can be reused or recycled.

Dispose of the appliance in a suitable waste collection center.

FOR BEST RESULTS

• Use fresh roasted coffee beans and filtered water.
• Preheat all Nanopresso parts as well as your cup by running a cycle with only hot water.
• Grind coffee beans just prior to prepare your espresso shot.
• Use a scales to measure the coffee grind quantity and make sure the weight is equal to 8 grams.
• Pump at the right tempo: one squeeze per second. Most types of espresso shot (ristretto, single, double...) extraction takes 30 around seconds. Don't hurry, take your time.

TROUBLESHOOT

Nanopresso integrates a new pumping system engineered around the addition of a pressure release valve. When the pressure inside the filter basket reaches 18 bar, the valve will open, allowing the water back into the water tank. For a perfect espresso shot, it's important to keep the pressure under 18 bar and avoid any opening of this valve.

To do so, there are 3 parameters to control :

• Coffee grind quantity. Too much coffee grind inside the filter basket increases the inner pressure.
• Coffee grind finesse. Too fine coffee grind increases the inner pressure.
• Pumping speed. A fast pumping action increases the inner pressure.

If coffee does not come out or the flow is negligible at each pumping :

- Slow down your pumping speed.

- Grind the bean a bit more coarsely. If you are using pre-ground coffee, try to lower your tamping force or decrease slightly the coffee grind quantity.

If the valve opened, wait few minutes before attempting to prepare a new espresso shot..

WARRANTY

Wacaco Company Limited warrants the Nanopresso against defects that are due to faulty materials or workmanship for a period of 12 months from the date of purchase. This warranty is not transferable and does not entitle to compensation in cash. Wacaco Company Limited disclaims all responsibility for incidental or consequential damages caused by use of this appliance.

This warranty does not cover :

• Damage resulting from improper use, abuse, neglect, commercial use or any other use of this appliance not found in this printed manual.
  • The replacement of the O-rings, filter basket, scoop and brush.
• Damage of an aesthetic nature, damage due to corrosion or gradual deterioration.

Any disassembly or repairs done by unauthorized persons will void the warranty.

For any repair or exchange, the cost of return is at your expense. If your Nanopresso fails within one year, please contact your Wacaco local distributor or [e-mail] directly for repair or exchange.

www.wacaco.com

Share your experience on social medias by using #nanopresso.

Illustration of a hand holding a coffee cup with an arrow indicating upward and downward motion (no text or symbols)

Illustration of hands holding a mug and a small cup with a pointer (no text or symbols)

Hand holding a small cylindrical object with a handle, possibly a device or tool, against a plain background (no text or symbols visible)

Illustration of six different cylindrical containers with different internal patterns and shading, shown from different angles (no text or symbols)

Diagram showing a hand pressing down on a cylindrical component, then to form a separate circular component (no text or symbols present)

Technical diagram showing a mechanical assembly process with labeled parts and a transformation arrow

Diagram illustrating a process of filtering a petri dish into a filternet, with labeled components and directional arrows.

www.wacaco.com WACACO

Illustration showing two-step instructions for using a cap, labeled with step numbers and directional arrows.

Illustration of a hand holding a cylindrical object with a lid, partially open to show the interior (no text or symbols)

Illustration of a hand holding a cylindrical object with a small inset showing a circular component (no text or symbols)

Hand holding a small object with a circular base, no visible text or symbols

Illustration of six different cylindrical containers with internal patterns, no text or symbols present

Illustration of a mechanical component being processed into two views: top view (no text or symbols)

Diagram showing a hand turning a circular component into a housing, then to form a separate cylindrical component (no text or symbols present)

Dévissez la buse.

Exploded view diagram of a cylindrical device showing internal components and parts (no text or labels)

Boquilla Filtro canastilla Pistón Cepillo

Cuchara

FINALIDAD DE USO

Illustration of a hand holding a cylindrical object with a lid, partially open to show internal structure (no text or symbols)

LIMPIEZA

Illustration of six different cylindrical mechanical components with internal cross-sections (no text or symbols)

Illustration of a hand holding a small cylindrical object, then to form a separate circular component (no text or symbols present)

Diagram showing a mechanical assembly process: adding a nut to a circular component, then adding a separate cylindrical component (no text or symbols present)

www.wacaco.com WACACO

Illustration of a hand holding a cylindrical object with an arrow indicating upward and downward motion, no text or symbols present.

Hand holding a small object with a cylindrical container (no text or symbols visible)

Illustration showing a hand pressing a button into a circular component, then to form a separate knob (no text or symbols present)

Diagram showing a hand turning a circular component with a separate view of its internal structure (no text or symbols present)

Illustration of a hand holding a small mechanical component with arrows indicating motion (no text or symbols)

Diagram showing a hand holding a coffee cup with an arrow indicating upward and downward motion, labeled with number ③.

Illustration of a hand holding a telescope and a circular object with a pointer (no text or symbols)

Hand holding a small object with a cylindrical base, no visible text or symbols

Illustration of six different cylindrical containers with internal patterns, no text or symbols present

Illustration of a hand holding a small object with an arrow indicating transformation (no text or symbols present)

Diagram showing a mechanical assembly process: adding a nut to a circular component, then adding a separate cylindrical component (no text or symbols present)
