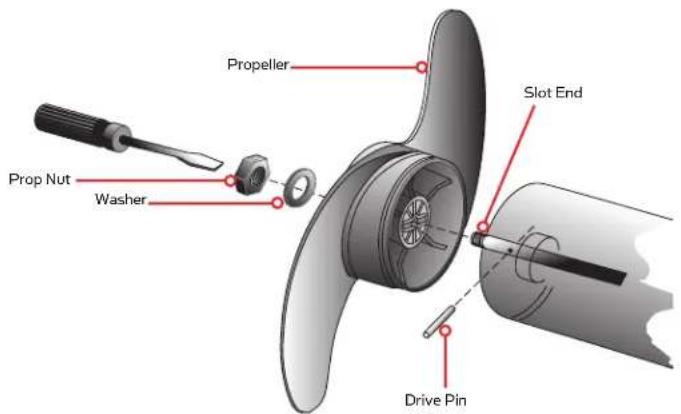

First disconnect the motor from the battery. Hold the propeller and loosen the nut with a wrench (1/2 in for 70 lb and under, 9/16 in for 80 lb and above). Remove the nut and washer, then remove the propeller. Align the new propeller with the drive pin, replace washer and nut, tighten to 25-35 lb·in (2.8-4 N·m) without over-tightening.

What battery should I use?

Use a 12 V deep cycle marine battery with at least 105 Ah for best runtime. For 12 V system, one battery suffices; for 24 V, two in series; for 36 V, three in series. Recharge the battery within 12 to 24 hours after use.

How to maintain the motor after a trip?

Rinse the entire motor with fresh water. Clean and lubricate the composite shaft with aqueous silicone spray. Inspect the propeller every 20 hours to remove weeds or fishing line. Tighten propeller nut if necessary. For storage, disconnect the battery and coat metal parts with silicone protectant.

Is the motor warranted in salt water?

No, the limited two-year warranty applies only to freshwater use. Use in salt or brackish water voids the warranty. This motor series cannot be exposed to salt water.

Where to find the motor serial number?

The 11-character serial number is located near the momentary switch, under the side of the pedal. Note it in the manual for after-sales service.

USER MANUAL Maxxum Minn Kota

Technical line drawing of a Minn Kota Maxxum electric shaver with cable and motor components (no text or symbols)

MAXXUM®

BOW-MOUNT TROLLING MOTOR

USER MANUAL

CE MASTER USER MANUAL (FOR CE/C-TICK CERTIFIED MODELS)

Conforms to 89/336/EEC (EMC) under standards EN 55022A, EN 50082-2 since 1996 LN V9677264

THANK YOU

Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That's why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it's good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can truly take you "Anywhere. Anytime." We don't believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fi sh.

REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR.

A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.

NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.

Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.

ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not be covered by warranty.

CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for floating objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2.5m/sec2.

LOCATING YOUR SERIAL NUMBER

Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting Consumer Service or registering your product, you will need to know your product's serial number. We recommend that you write the serial number down in the space provided below so that you have it available for future reference.

The serial number on your Maxxum is located near the momentary switch underneath the side of the foot pedal.

mable for future reference. Mode by Max. Rota solurusductrons Maxine Electronics, Inc. 12J Power Drive Maxima, MT 54991 USA Tendering Reelow Anodeo is 2012 Maxxum 80/52 MODEL 1368581 SER NO M365 MK12345 EXAMPLE

Model:

Serial Number:

Purchase Date:

Store Where Purchased:

TABLE OF CONTENTS

Two-Year Limited Warranty 4

Features 5

Mount Installation 6-9

Battery & Wiring Installation 10-11

Boat Rigging & Product Installation 10

Conductor Gauge and Circuit Breaker Sizing Table 10

Selecting the Correct Batteries 11

How to Connect Batteries 11

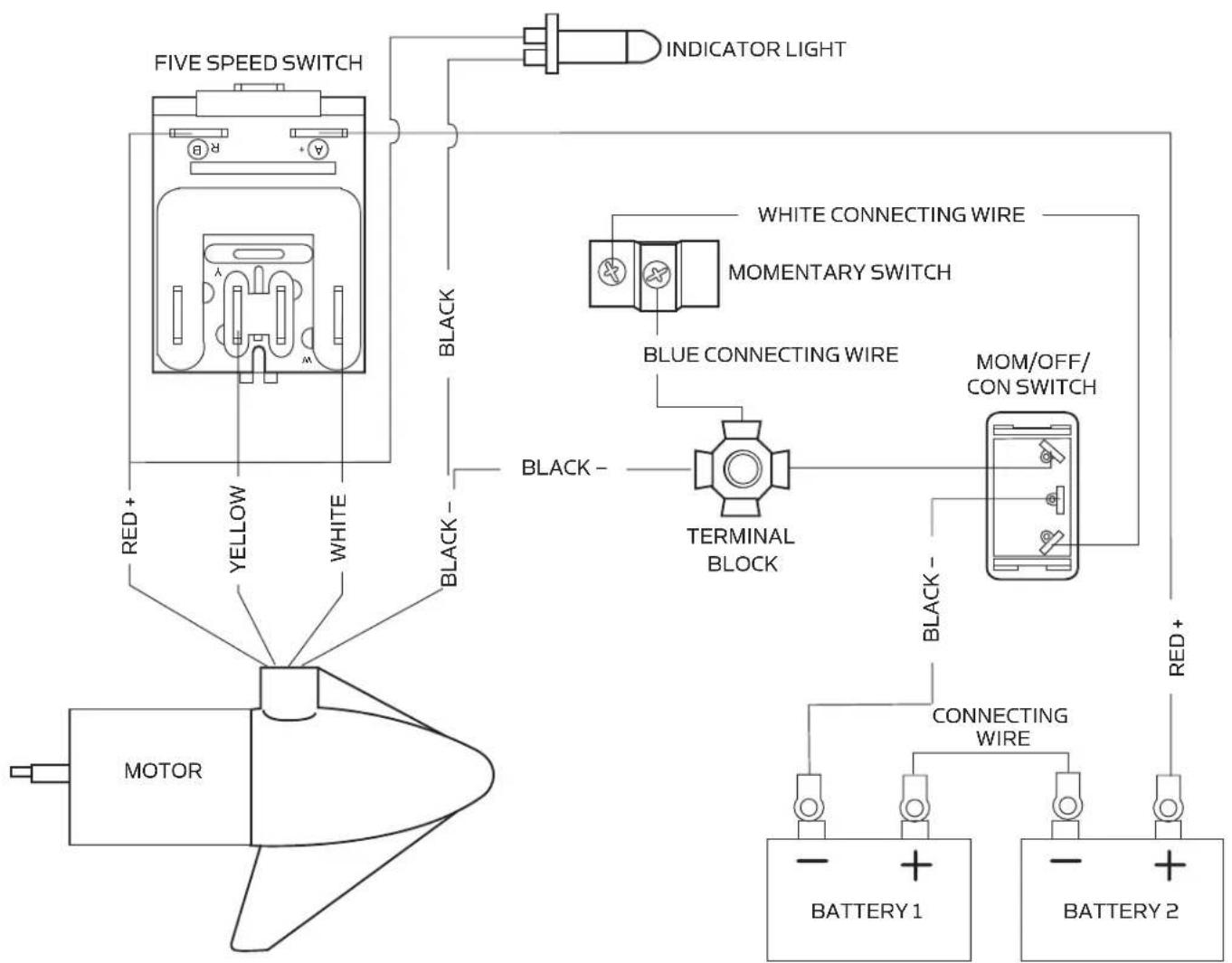

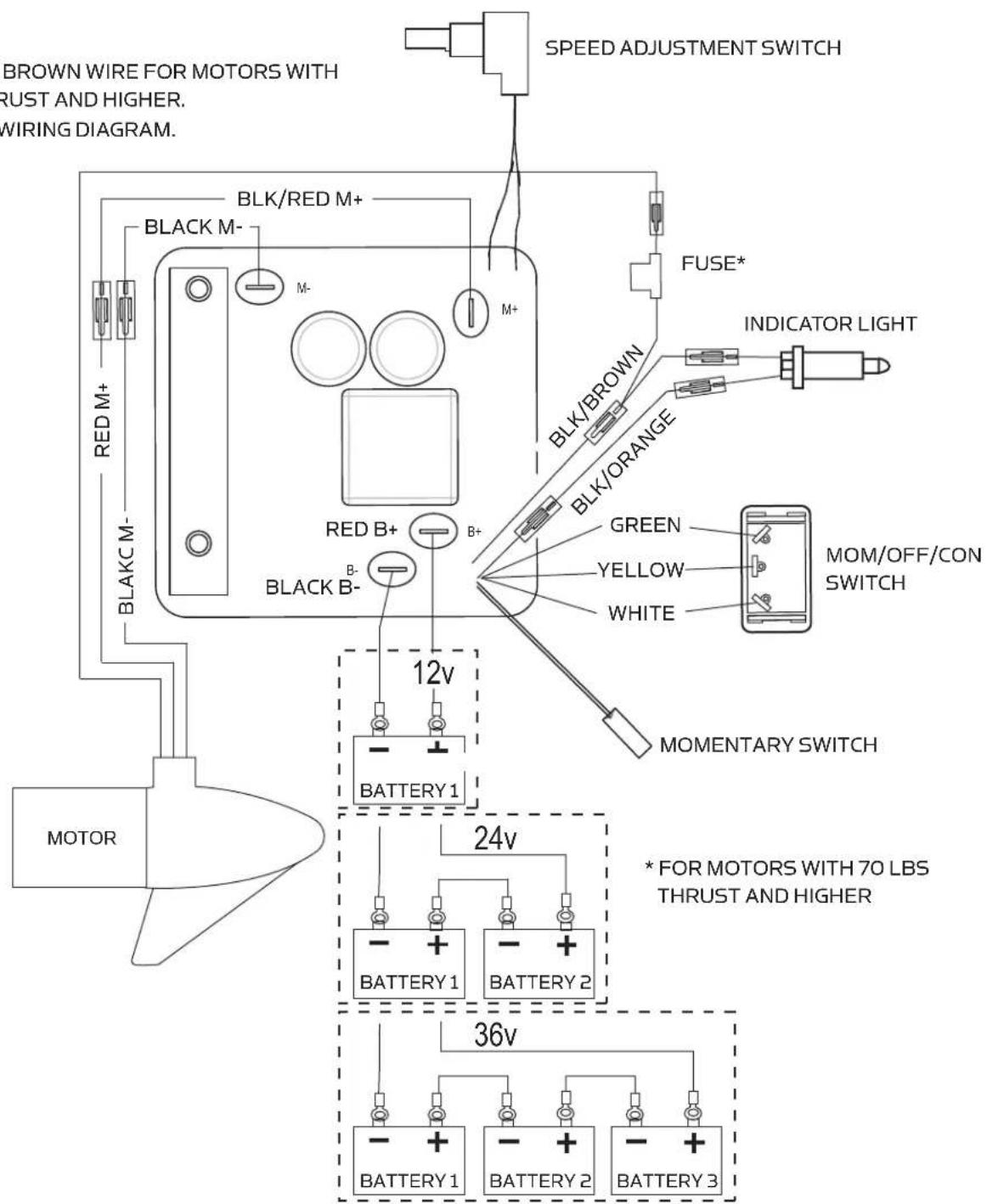

Motor Wiring Diagram 12-13

Using & Adjusting The Motor 14-16

Stowing & Deploying the Motor 14

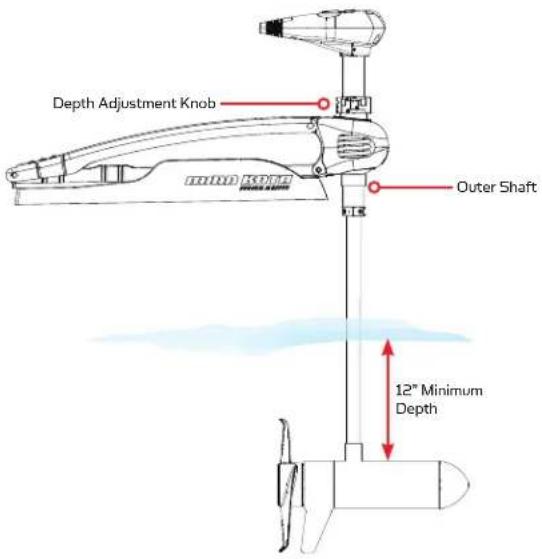

Adjusting the Depth of the Motor 15

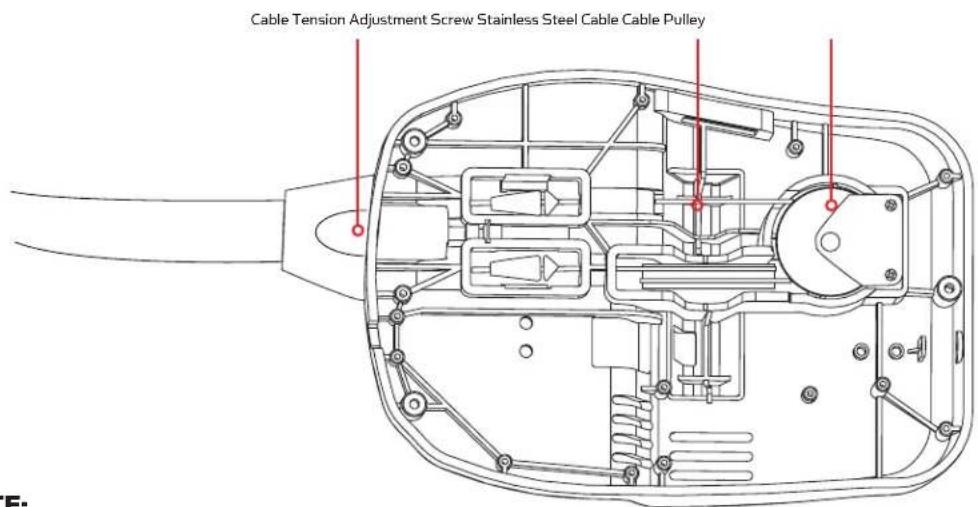

Adjusting the Steering Cable 15

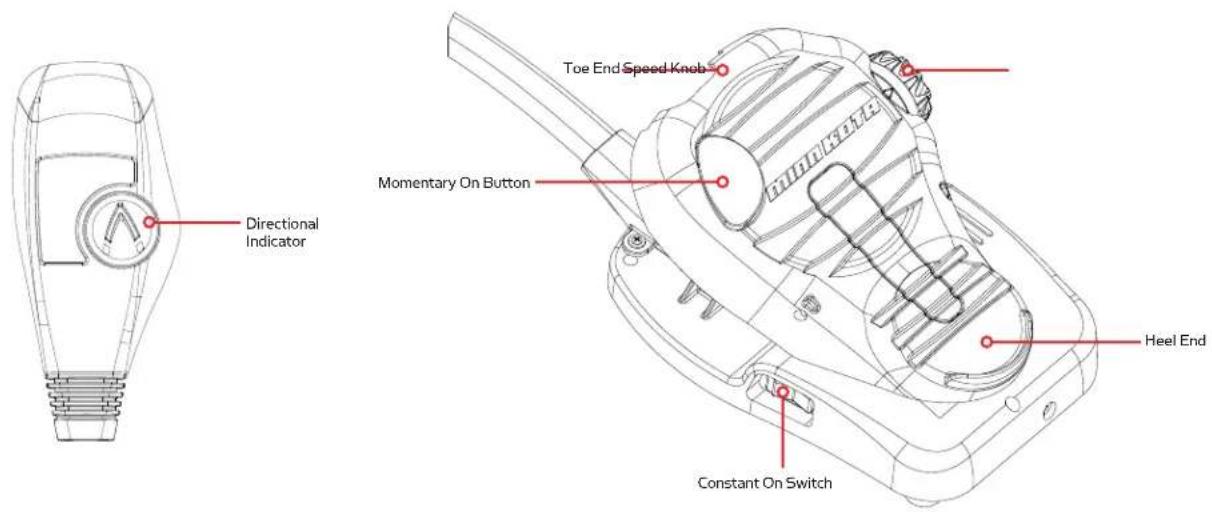

Controlling Speed and Steering with the Foot Pedal 16

Service & Maintenance 17

Propeller Replacement 17

General Maintenance 17

Troubleshooting & Repair 18

Parts Diagram 19

Parts List 20-21

Environmental Compliance Statements 22

Notes 23

TWO-YEAR LIMITED WARRANTY

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS

Johnson Outdoors Marine Electronics, Inc. ("JOME") extends the following limited warranty to the original retail purchaser only. Warranty coverage is not transferable.

MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT

JOME warrants to the original retail purchaser only that the purchaser's new Minn Kota freshwater trolling motor will be materially free from defects in materials and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty.

MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT

JOME warrants to the original retail purchaser only that the composite shaft of the purchaser's Minn Kota trolling motor will be materially free from defects in materials and workmanship appearing within the original purchaser's lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to install, any new composite shaft provided by JOME.

EXCLUSIONS & LIMITATIONS

This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty does not cover normal wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, acts of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME's prior written permission. JOME'S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER'S ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.

MINN KOTA SERVICE INFORMATION

To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented to a Minn Kota Authorized Service Center or to Minn Kota's factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].

Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour.

NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for loss of use of product, loss of time, inconvenience or other damage.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

FEATURES

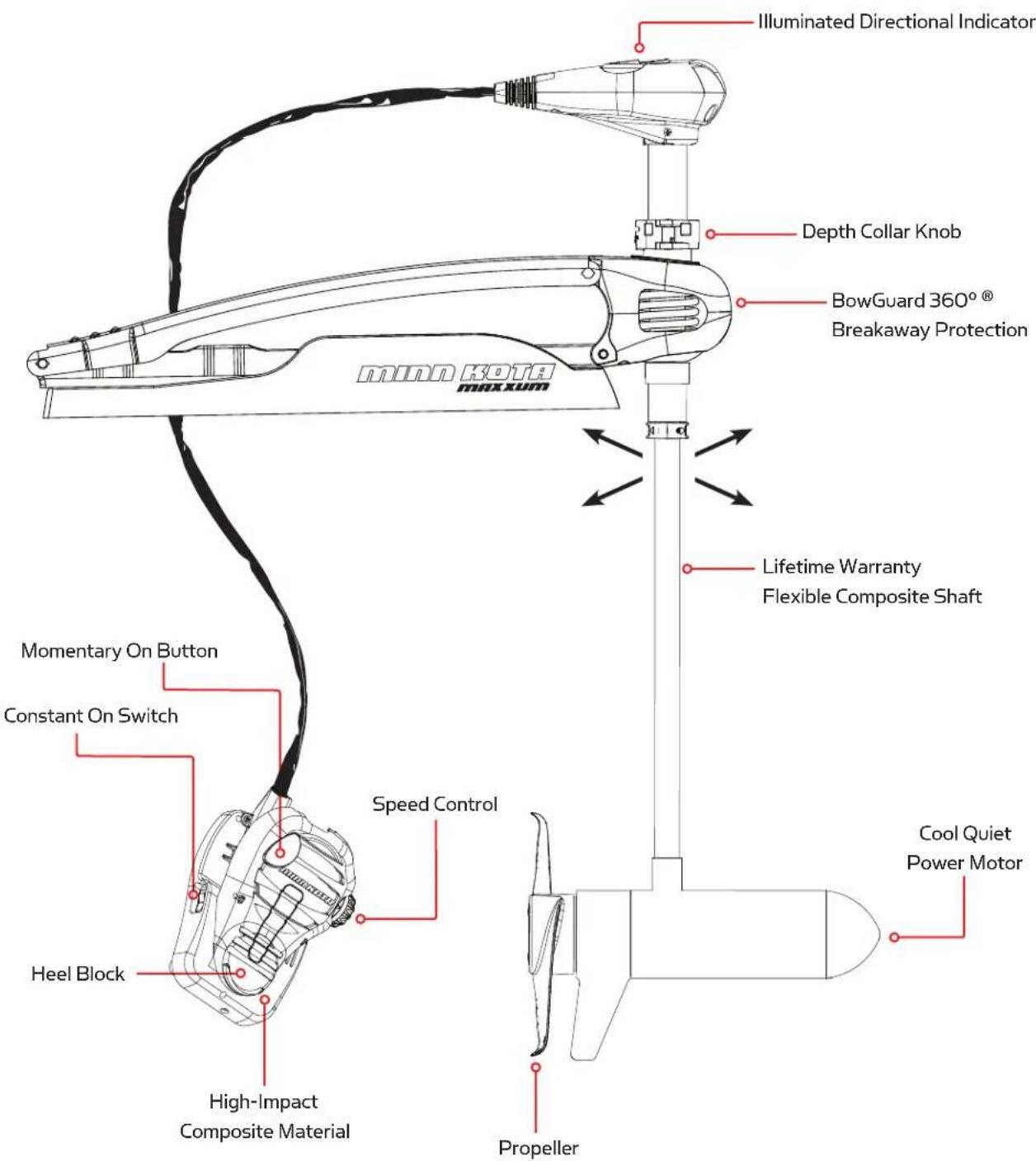

Illuminated Directional Indicator Depth Collar Knob BowGuard 360°® Breakaway Protection Lifetime Warranty Flexible Composite Shaft Momentary On Button Constant On Switch Speed Control Heel Block High-Impact Composite Material Propeller Cool Quiet Power Motor

Specifications subject to change without notice.
This diagram is for reference only and may differ from your actual motor.

MOUNT INSTALLATION

TOOLS AND RESOURCES REQUIRED:

• (2) 1/2" Wrenches
• Standard or Needle Nose Pliers
• A second person to help with the installation

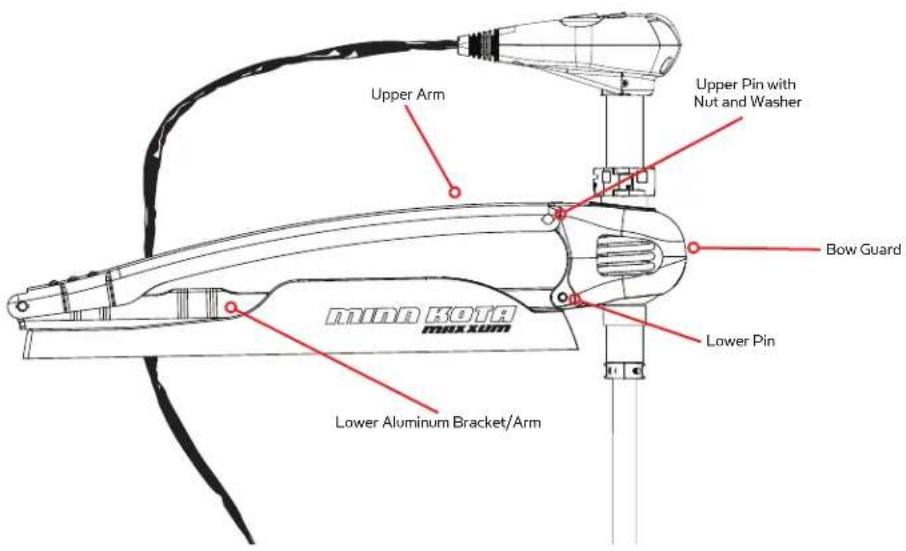

Upper Arm Upper Pin with Nut and Washer Bow Guard Lower Pin Lower Aluminum Bracket/Arm

INSTALLATION OF MOTOR TO MOUNT

1. With mount closed as shown below, use two 1/2" wrenches to remove one of the two nylock nuts and washers from the upper pin and remove pin from mount.
   NOTE: The two bushings in the upper arm may come out. If so, keep them for re-assembly.
2. Using a pair of pliers, remove the spring clip on freshwater models (or the E-clip on saltwater models) from the lower pin and remove lower pin from mount.

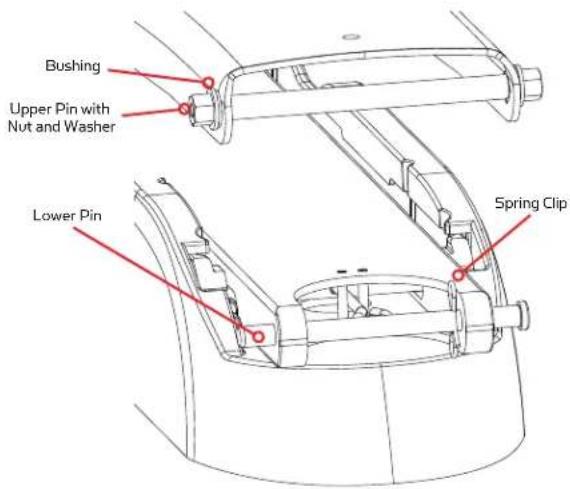

Bushing Upper Pin with Nut and Washer Lower Pin Spring Clip

1. Open upper arm, rotate and lay over out of the way for lower arm assembly.

2. Align the lower arm and the lower bow guard ears and insert lower pin.

3. Re-install spring clip into lower pin for freshwater models or (E-clip for saltwater motors).

4. Route rope underneath lower pin and through eyelet in bowguard.

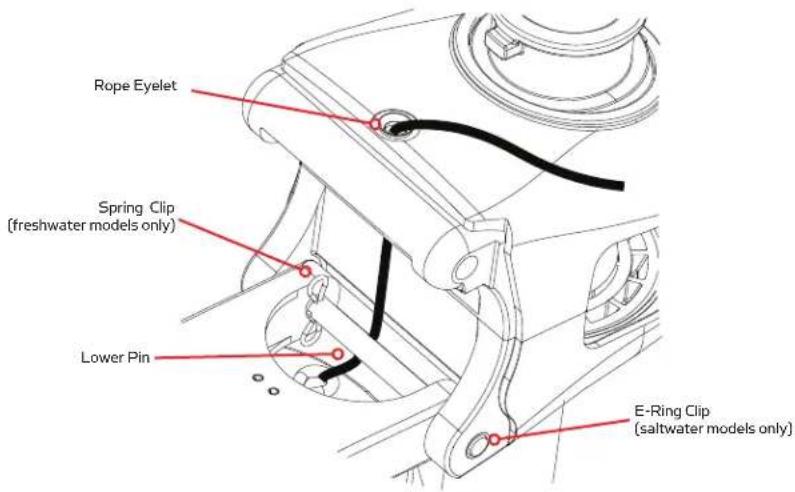

Rope Eyelet Spring Clip (freshwater models only) Lower Pin E-Ring Clip (saltwater models only)

1. Rotate upper arm back over to bowguard.
2. Align the upper arm holes with upper bow guard ears and install upper pin.

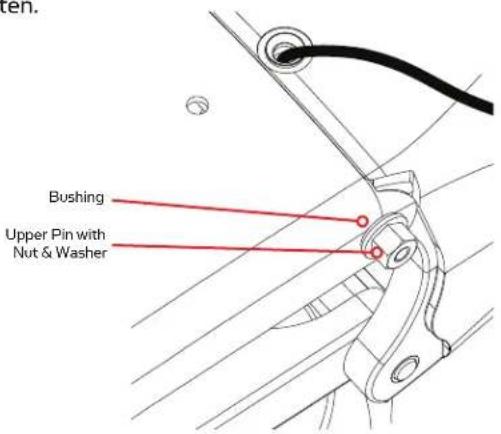

NOTE: The two bushings in the upper arm may come out. Re-assemble them into the upper arm making sure the "keys" of the inserts are aligned with the "key" punchouts in upper arm.

1. Re-install washer and locknut and tighten.

Bushing Upper Pin with Nut & Washer

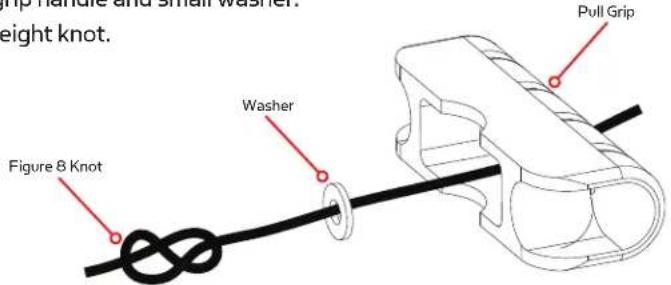

1. Route rope through pull grip handle and small washer.

Secure by tying a figure eight knot.

Washer Figure 8 Knot Pull Grip Brip Handle and Small Washer. Weight knot.

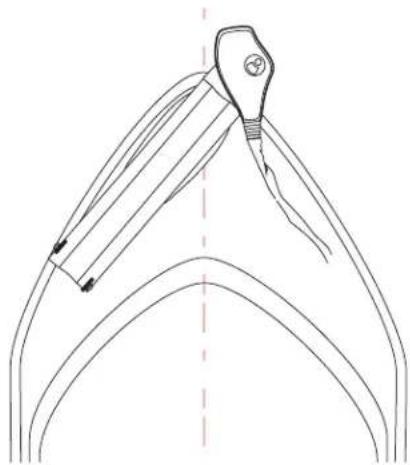

INSTALLATION OF THE BOW-MOUNT

We recommend that you have another person help with this procedure.

1. For installation, DO NOT REMOVE THE SHAFT/MOTOR FROM THE BOWGUARD. The Bowguard spring is under tension and must always remain secured.

2. Place the mount, with the motor in the fully stowed (flat) position, on the deck of the boat:

3. The motor should be mounted as close to the centerline of the boat as possible when it is deployed (see illustration).

4. Make sure bow area under the chosen location is clear and unobstructed for drilling.

5. Make sure the motor rest is positioned far enough beyond the edge of the boat. The motor, as it is lowered into the water or raised into the boat, must not encounter any obstructions

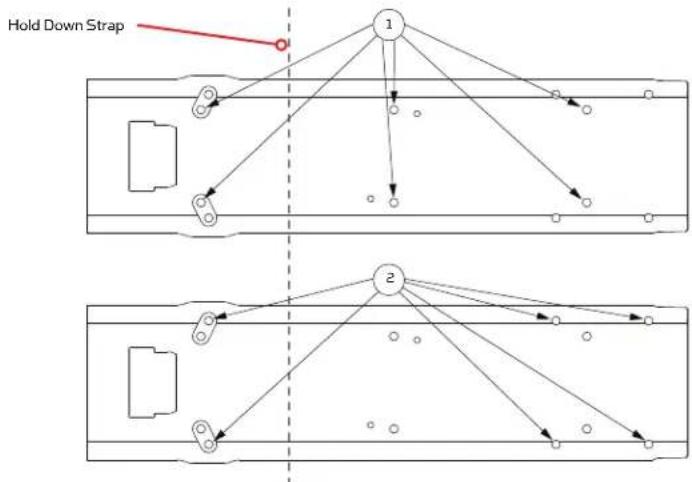

6. Once in position, determine which bolt pattern to use (see below), mark at least 4 of the holes (2 on each side) in the bow plate and drill through with a 9/32" drill bit. Either pattern may be used when installing the motor.

7. Pattern 1: Minnkota 3" bolt pattern standard motors.

8. Pattern 2: Alternate 4" bolt pattern commonly used.

Technical line drawing of a mechanical component with curved surfaces and a central hub (no text or symbols)

1. Install hold down strap between the motor and deck of boat between second and third set of mounting holes.
2. Mount the plate to the bow through the drilled holes using the provided (1/4-20 x 3-1/2") bolts, nuts and washers. NOTE: If possible, secure all sets of mounting bolts, nuts and washers.
3. Install the bow mount stabilizer (if included). See next section for installation instructions.

INSTALLING THE BOWMOUNT STABILIZER KIT

Tools Needed:

• Hand Saw
• 3/8" Nut Driver

• File or Sandpaper

• Place the motor in the stowed position.

• Measure from the screw hole in the upper arm to the boat deck or gunwale. Add 3/4" to the total to get the correct support shaft length (image 1).
• Trim the bottom of the support shaft with a hand saw to the correct length. Round the cut edge with a file or sandpaper. Attach the rubber bumper.
• Secure the support shaft to the bowmount with the 1/4" hex head screw with a lock washer on top and one on bottom of the bowmount arm (image 2).

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clamp or bracket with a vertical dimension arrow and label 'Image 1' (no text or symbols on the diagram itself)

1. Verify that the motor locks into the stowed position when retracted. The stabilizer should support the bowmount to prevent bouncing yet not interfere with the locking system (image 3). Adjust the stabilizer length as needed.

Technical line drawing of a mechanical component or bracket assembly (no text or symbols)

Image 3

INSTALLATION OF THE HOLD DOWN STRAP

(Not included on all models)

1. Before mounting the trolling motor place the Hold Down Strap under the bowmount between the mounting holes near the back of the motor rest with the hook and loop side of the strap facing down (image 4).
2. Secure the bowmount with the mounting bolts to capture the strap.

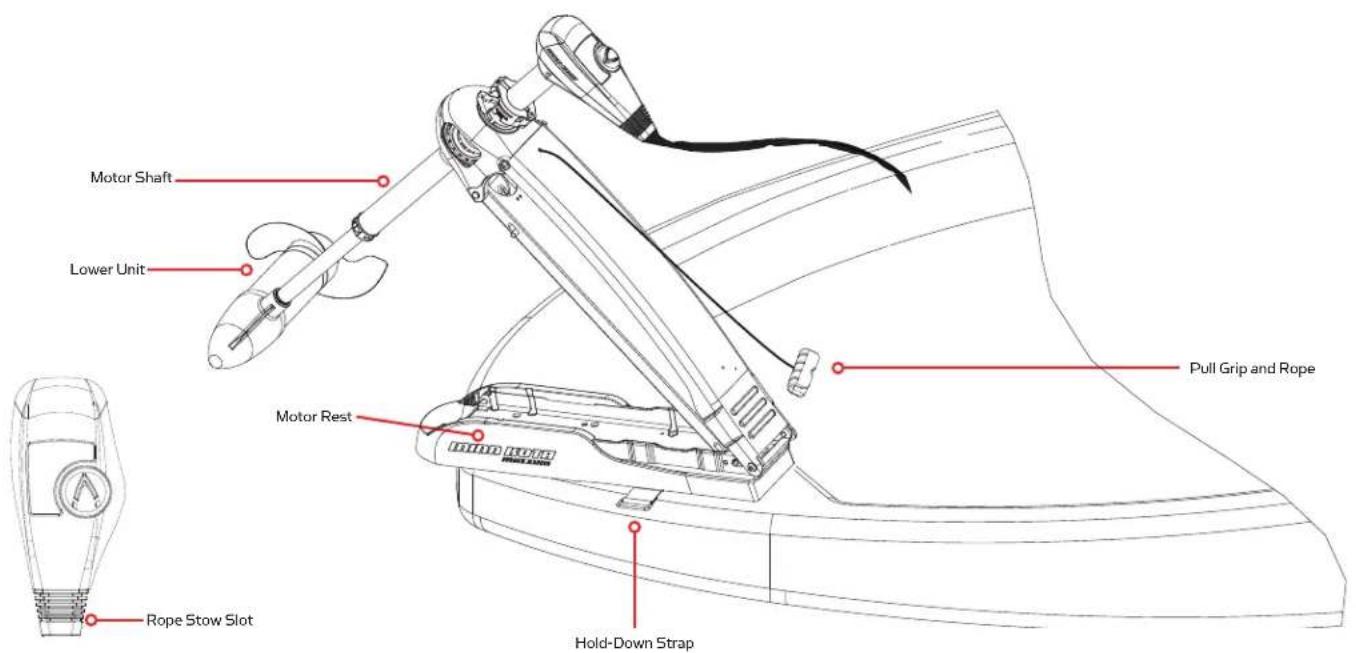

3. To stow the motor, pull the strap through the rectangular ring until snug. Press the hook pad of the strap, into the loop pad and secure (image 5). This should be used whenever the motor is stowed.

Diagram of a mechanical device with a rotating lever and clamping mechanism (no text or symbols)

Line drawing of a mechanical device with a handle and lever (no text or symbols)

BATTERY WIRING & INSTALLATION

BOAT RIGGING & PRODUCT INSTALLATION

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet, we recommend that you contact a qualified marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats

CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE

Motor Thrust / Model	Max Amp Draw	Circuit Breaker	Wire Extension Length *
			5 feet 10	feet 15	feet 20	feet 25	feet
30 lb. 30		50 Amp @ 12 VDCWG 4 AWG 4 AWG	10 AWG 1	10 AWG 8	WG 6 AWG	4 AWG
40 lb., 45 lb. 42 10	AWG 8 AWG 6 AW
50 lb., 55 lb.	50	60 Amp @ 12 VDC	8 AWG	6 AWG	4 AWG	4 AWG	2 AWG
70 lb.	42	50 Amp @ 24 VDC	10 AWG	10 AWG	8 AWG	8 AWG	6 AWG
80 lb.	56	60 Amp @ 24 VDC	8 AWG	8 AWG	8 AWG	6 AWG	6 AWG
101 lb.	46	50 Amp @ 36 VDC	8 AWG	8 AWG	8 AWG	8 AWG	8 AWG
Engine Mount 101	50	60 Amp @ 36 VDC	8 AWG	6 AWG	4 AWG	4 AWG	2 AWG
112 lb.	52	60 Amp @ 36 VDC	8 AWG	8 AWG	8 AWG	8 AWG	8 AWG
Engine Mount 160	116	(2) x 60 Amp @ 24 VDC	2 AWG	2 AWG	2 AWG	2 AWG	2 AWG
E-Drive	40	50 Amp @ 48 VDC	10 AWG	10 AWG	10 AWG	10 AWG	10 AWG

This conductor and circuit breaker sizing table is only valid for the following assumptions:

1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105^ C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.

SELECTING THE CORRECT BATTERIES

The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/batteries for your Minn Kota trolling motor.

Advice Regarding Batteries:

• Never connect the (+) and the (−) terminals of the same battery together. Take care that no metal object can fall onto the battery and short the terminals. This would immediately lead to a short and extreme fire danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.

CONNECTING THE BATTERIES

12 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on "OFF" or "O").
2. Connect positive (+) red lead to positive (+) battery terminal.
3. Connect negative (−) black lead to negative (−) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.

CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)

24 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on "O").
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring diagram, to provide 24 volts.

a. Connect a connector cable to the positive (+) terminal of battery 1 and to the negative (−) terminal of battery 2.
b. Connect positive (+) red motor lead to positive (+) terminal on battery 2.
c. Connect negative (−) black motor lead to negative (−) terminal of battery 1.

To trolling motor negative +24 Volts to trolling motor positive (or circuit breaker) 24 Volt Series Connection Pos + Pos + Neg - Neg - Battery #1 (Low Side) Battery #2 (High Side) Two 12-volt batteries connected in series for 24 volts

1. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner's manual. See wiring diagram on following pages.

CAUTION

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current Protection Devices not shown in this illustration.

VARIABLE SPEED CONTROL BOARD

BROWN WIRE FOR MOTORS WITH RUST AND HIGHER. WIRING DIAGRAM. SPEED ADJUSTMENT SWITCH BLK/RED M+ BLACK M- M- M+ FUSE* INDICATOR LIGHT RED M+ BLAKC M- RED B+ BLACK B- B+ 12v BATTERY 1 GREEN YELLOW WHITE MOM/OFF/CON SWITCH MOMENTARY SWITCH * FOR MOTORS WITH 70 LBS THRUST AND HIGHER 24v BATTERY 1 BATTERY 2 36v BATTERY 1 BATTERY 2 BATTERY 3

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double-check your motor's voltage for proper connections. Over-Current Protection Devices not shown in this illustration.

FIVE-SPEED SWITCH

FIVE SPEED SWITCH INDICATOR LIGHT WHITE CONNECTING WIRE MOMENTARY SWITCH BLUE CONNECTING WIRE MOM/OFF/CON SWITCH TERMINAL BLOCK BLACK - BLACK - RED+ YELLOW WHITE BLACK- MOTOR BLACK - CONNECTING WIRE BATTERY 1 BATTERY 2 RED+

USING AND ADJUSTING THE MOTOR

STOWING AND DEPLOYING THE MOTOR

WARNING:

When raising or lowering the motor, keep fingers clear of all hinge and pivot points and all moving parts.

MOUNT FEATURES

• The motor mount is designed to fold back and lock the motor flat on the deck when not in use and to provide secure stowage for transport.
• The pull grip and rope releases the lock bar, which automatically engages when the unit is lowered or raised into position. The pull grip and rope should be used to both lower and raise the unit.
• The motor rest positions the lower unit as it comes in contact with the nose of the mount and guides it onto the motor rest.
• The yoke captures the motor shaft and keeps the lower unit centered on the motor rest.
• The hold-down strap must be used to place pressure on the motor shaft to hold the lower unit tightly against the motor rest when stowed.
• The pull grip and rope can be stored by placing the pull grip into the rope stow slot on the control box of the motor.

TO DEPLOY THE MOTOR

Simply pull back and lift the motor off of the mount with the pull grip and rope. Lower the motor into the water using the pull grip and rope. The motor will lock into the deployed position automatically.

TO STOW THE MOTOR

Pull back and lift the motor out of the water with the pull grip and rope. Lower the motor lower unit onto the motor rest using the pull grip and rope. The motor will lock into the stowed position automatically. Wrap the hold-down strap over top of the motor shaft to secure the motor.

Motor Shaft Lower Unit Pull Grip and Rope Motor Rest Rope Stow Slot Hold-Down Strap

ADJUSTING THE DEPTH OF THE MOTOR

The propeller tip must be submerged at least 12" to avoid churning or agitation of surface water.

1. With the motor deployed, firmly grasp the outer shaft or control head and hold it steady.
2. Loosen the depth adjustment knob until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten depth adjustment knob to secure the motor in place.

Depth Adjustment Knob Outer Shaft 12" Minimum Depth

ADJUSTING THE STEERING CABLE

The steering cable tension is pre-set at the factory but will, through normal use, need occasional adjustment.

Adjust the tension of the cables by turning the cable tension adjustment screw (Phillips pan-head screw) located near the bottom of the foot pedal, just under the steering cable cover.

Turn the screw clockwise to increase tension and counter-clockwise to decrease tension.

Cable Tension Adjustment Screw Stainless Steel Cable Cable Pulley

NOTE:
If the cable becomes too loose, it may disengage the wrap drum in the control box or the pulley in the foot pedal.

CONTROLLING SPEED & STEERING WITH THE FOOT PEDAL

Most controls on the foot pedal are easy to operate by either foot or hand:

Directional Indicator Toe End Speed Knob Momentary On Button Heel End Constant On Switch

TO ADJUST MOTOR SPEED

Turn the speed knob clockwise to increase speed and counter-clockwise to decrease speed.

TO OPERATE THE MOTOR IN MOMENTARY MODE

The default mode of operation for the foot pedal is Momentary. In this mode, the motor will only run while downward force is applied to the Momentary On button on the top of the foot pedal. A toe touch to the Momentary button on the top of the foot pedal will turn the propeller on in this mode. Removing downward force on the Momentary button will turn the propeller off.

TO OPERATE THE MOTOR IN CONSTANT MODE

To switch to Constant Mode, flip the side-mounted Constant On switch until the propeller starts. In Constant Mode, the propeller will continually run, regardless of whether force is being applied to the Momentary On button on the top of the foot pedal.

TO TURN LEFT OR RIGHT

Push the toe end of the foot pedal down to turn right and push the heel end of the foot pedal down to turn left. The indicator on the motor head shows the direction of the motor. The motor will not maintain its own heading. You must keep your foot on the pedal to control steering during operation.

TO REVERSE THE MOTOR

The motor always travels in the direction of the indicator. You can reverse the direction of the motor by turning the motor 180° from straight ahead.

CAUTION:

• Make sure the Constant On switch is in the off position when not in use. If the motor control is left on and the propeller rotation is blocked, severe motor damage can result.
• Be sure to turn the motor off after each use.
• For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged.

SERVICE & MAINTENANCE

PROPELLER REPLACEMENT

TOOLS AND RESOURCES REQUIRED:

- Box End Wrench

- 1/2" for motors with 70 lbs thrust or lower.

- 9/16" for motors with 80 lbs thrust or higher.

- Screwdriver (optional)

CAUTION:

Disconnect the motor from the battery before beginning any prop work or maintenance.

NOTE: The propeller on your motor may differ from the one pictured.

Propeller Slot End Prop Nut Washer Drive Pin

1. Disconnect the motor from all sources of power prior to changing the propeller.
2. Hold the propeller and loosen the prop nut with pliers or a wrench.
3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade screwdriver pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off. If drive pin falls out, push it back in.
5. Align the new propeller with the drive pin.
6. Install the prop washer and prop nut.
7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.

GENERAL MAINTENANCE

• After use, the entire motor should be rinsed with freshwater. This series of motors is not equipped for saltwater exposure.
- The composite shaft requires periodic cleaning and lubrication for proper retraction and deployment. A coating of an aqueous based silicone spray will improve operation.
- The propeller must be inspected and cleaned from weeds and fi shing line after every use.

Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.

• Verify the prop nut is secure each time the motor is used.
• To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water. For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
• For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore battery to full charge prior to use.
• Keep battery terminals clean with fi ne sandpaper or emery cloth.
• The propeller is designed to provide weed free operation with very high efficiency. To maintain this top performance, the leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine sandpaper.

TROUBLESHOOTING & REPAIR

1. Motor fails to run or lacks power:

2. Check battery connections for proper polarity.

3. Make sure terminals are clean and corrosion free. Use fine sandpaper or emery cloth to clean terminals.

4. Check battery water level. Add water if needed.

5. Motor loses power after a short running time:

- Check battery charge. If low, restore to full charge.

1. Motor is difficult to steer:

- Check steering cables for proper tension. Adjust as necessary.

1. You experience prop vibration during normal operation:

- Remove and rotate the prop 180^ . See removal instructions in the Propeller Replacement Section.

1. Experiencing interference with your fi shfi nder:

- You may, in some applications, experience interference in your depth finder display. We recommend that you use a separate deep cycle marine battery for your trolling motor and that you power the depth finder from the starting/cranking battery. If problems still persist, call our service department at 1-800-227-6433.

NOTE: For all other malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your area by visiting our Authorized Service page, found online at minnkotamotors.com, or by calling our customer service number at 800-227-6433.

FOR FURTHER TROUBLESHOOTING AND REPAIR

We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.

SEQUENTLY ASKED QUESTIONS

We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on "Frequently Asked Questions" to find an answer to your question.

LL US (FOR U.S. AND CANADA)

Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433. If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit card information available. This will help expedite your call and allow us to provide you with the best consumer service possible. You can reference the parts list located in your manual to identify the specific part numbers.

AIL US

You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit minnkotamotors.com and click on "Support".

THORIZED SERVICE CENTERS

Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.

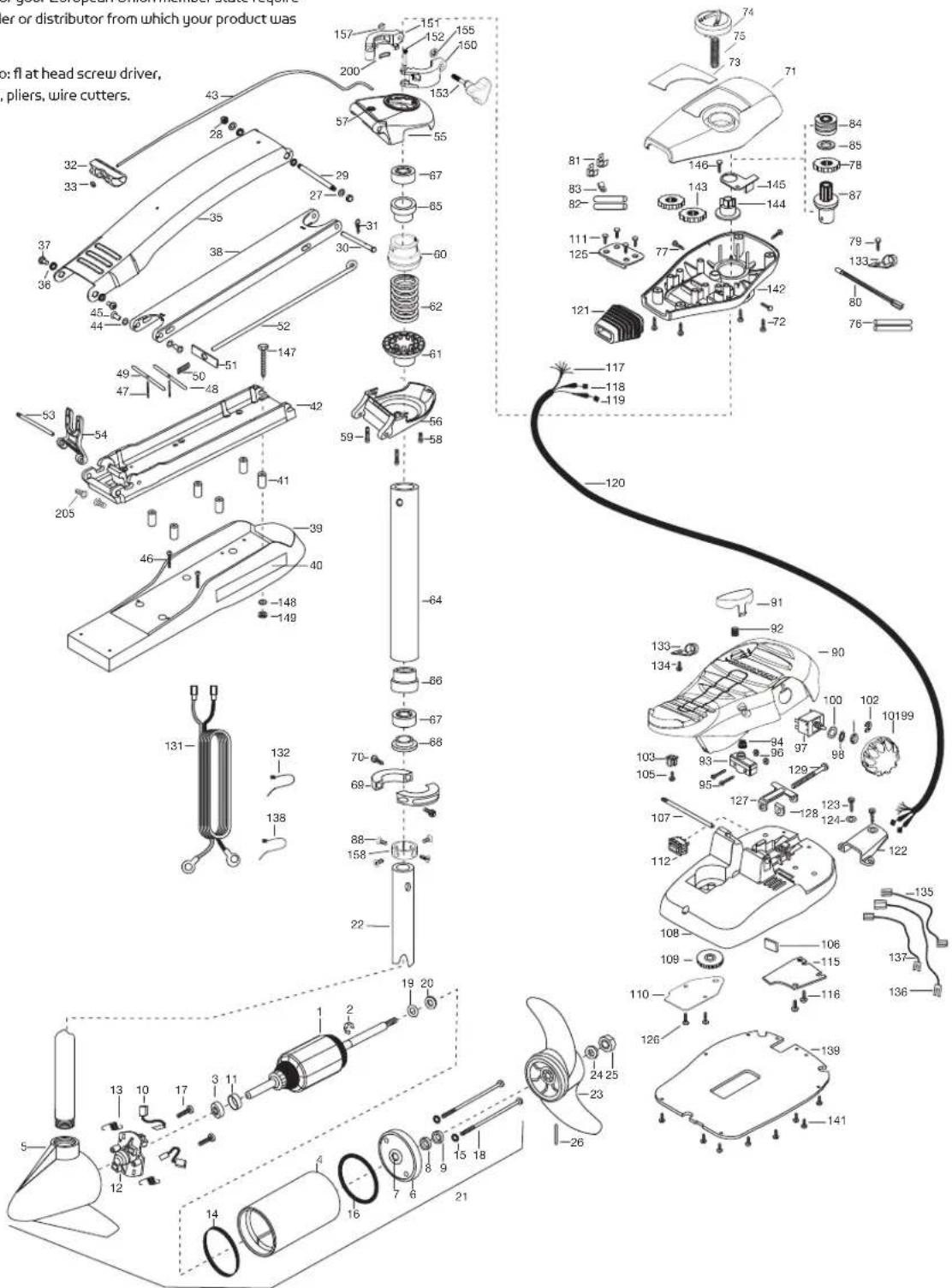

PARTS DIAGRAM

MAXXUM 70

70 LBS THRUST - 24 VOLT - 42"/52" SHAFT

This page provides Minn Kota® WEEE compliance disassembly instructions.

For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

Tools required, but not limited to: fl at head screw driver, Phillips screw driver, socket set, pliers, wire cutters.

or distributor from which your product was flat at head screw driver, pliers, wire cutters. 157 151 155 200 153 43 28 57 67 85 60 32 29 31 33 35 38 45 52 37 30 44 51 54 49 47 48 59 53 42 56 54 40 64 -41 -148 -149 -131 132 138 22 19 20 1 2 13 10 17 3 11 5 12 14 16 21 81 74 83 73 82 146 143 145 144 87 79 133 80 76 -72 -71 -84 -85 -78 -67 -65 -62 -61 -58 -66 -67 -68 -69 -70 -88 -158 103 93 95 96 97 98 100 102 10199 105 129 127 128 123 124 122 107 112 108 109 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 106 105 126 24 25 23 -26 -139 -141

Part #2274958 Rev M 9/15ECN 36431

PARTS LIST

MAXXUM 70

70 LBS THRUST - 24 VOLT - 42"/52" SHAFT

ITEM QTY		PART NUMBER	DESCRIPTION
112-10	O-119 A	RMATURE ASSE	MBLY 24V 3.625 5SPC 65#
21788-015 RETAINING RING
31140-010 BALL BEARING
41431-005 CENTER HOUSING ASSEMBLY 42"
512-300-039 BRUSH END HOUSING ASSEMBLY 3.62 SPCO
612-400-101 PLAIN END HOUSING ASSEMBLY
71144-049 BEARING - FLANGE (SERVICE ONLY)
81880-003	SEAL
91880-006	SEAL WITH SHIELD
10	1	188-037	BRUSH ASSEMBLY
11	1	725-050	BRUSH RETENTION- PAPER TUBE
12	1738-036 BRUSH PLATE W/HOLDER
13	2	975-040	SPRING - TORSION
14	1	337-036	GASKET
15	2701-008 O-RING, THRU-BOLT
16	1	701-081	O-RING
■	12888460 SEAL & ORING KIT
17	2	830-007	SCREW-8-32
18	2	830-008	THRU-BOLT 10-32X8.83"
19	1	990-067	WASHER- STEEL THRUST
20	2	990-070	WASHER - NYLATRON
21	1	2096035	MOTOR ASSEMBLY 24V 3.625 5SPC FW 52"
22	1	2032003	TUBE (COMP) 4 HOLE-42"
■	1	1378131	PROP KIT
23	1	2091160	PROPELLER (WWEDGE 2)
24	1	2151726	WASHER-5/16 STD SS
25	1	2053101	NUT-PROP,NYLOC (MED) 5/16 SS
26	12092600 PIN-DRIVE (95-4HP'S) SS
27	4	9008236	WASHER 1/4 FLAT ZINC
28	2	2223100	NUT- TENSION 5/16-18 SS
29	1	2262605	PIN- BWGRD UPPER THREADED
30	1	2262607	CLEVIS PIN ZP MAXXUM BWGRD
31	1	2260805	SPRING CLIP
32	1	2150400	PULL-GRIP
33	1	2151700	WASHER-EYE SHAFT(.562 OD)
■	1	2991840	MOUNT- BOW ASSEMBLY, W/O BGRD FW STD
35	1	2264241	ARM-UPPER FW, STD
36	4	2293501	BUSHING, STAINLESS STEEL
37	2	2263500	BOLT- SHOULDER (MAXXUM)
38	1	2994307	ARM-LOWER ASSEMBLY,STD,FW,EXT 42"
39	1	2263912	MOTOR REST STD MAXXUM
40	2	2265514	DECAL-MAXXUM,MOTOR REST
41	6	2261505	SPACER, MOTOR REST
42	1	2773987	BOWPLATE/INST ASSEMBLY STD FW

ITEM QTY		PART NUMBER	DESCRIPTION
43	1	2251601	ROPE (40"), MAXXUM MOUNT
44	2	2261708	WASHER-3/8X1/2X.010" SS
45	2	2267318	BEARING NYLINER-
46	2	2263434	SCREW, 8-18 X 1" PPH SS
47	2	2152610	SPRING-PIN LOCKBAR
48	1	2233600	LOCK BAR- BOW MOUNT
49	1	2233602	LOCK BAR, REAR - ZINC
50	1	2152700	SPRING-LOCKBAR CAD.PLTD
51	1	2262703	SPRING STOP
52	1	2153602	EYE SHAFT-2LOCKBAR STD-PL
53	1	2260506	HINGE-PIN HEADLESS ZINC
54	1	2293811	YOKE,MAX MNT-POLYPROPYLENE
■	1	2991762	BOWGUARD ASSEMBLY- FT CTRL FW
55	1	2772319	BRACKET BASE TOP/EYELET ASSEMBLY
56	1	2991771	BRKT BTTM/BEARING FW ASSEMBLY
57	1	2772352	EYELET KIT
58	1	2263423	SCREW 5/16-18 X 1" SHCS ZINC
59	2	2263425	SCREW 5/16-18 X 2 1/2" SHCS
60	1 2071541 SPRING-S	LEEVE UPPER
61	1 2071535 SPRING S	LEEVE, LOWER
62	1	2262706	SPRING, BOWGUARD, NIK PL
■	1	2772012	TUBE W/BEARING RACE ASSEMBLY 42"
■	1	2772016	TUBE W/BEARING RACE ASSEMBLY 52"
64	1	2272069	TUBE OUTER-21" 4 HOLES
	1 2272067 TUBE	OUTER-24" 4 HOLES
65	1	2266260	BEARING RACE
66	1	2266220	BEARING RACE-STEEL
67	2	2266000	BEARING BALL-STEEL
68	1 2256115 BEARING	CONE
69	1	2771617	COLLAR HALF-ZINC- 2 PER KIT
70	2	2263452	SCREW-1/4-20 X 3/4" SHCS
71	1	2280201	CONTROL BOX COVER
72	4	2372100	SCREW-8-18 X 5/8" THD SS
73	1	2275603	DECAL-COVER
74	1	2990140	DIRECTIONAL INDICATOR
75	1	2282730	SPRING, INDICATOR
76	2	2375400	SHRINK TUBE-1/4OD X 1-3/4"
77	3	2053414	SCREW-#8-32 X 1/2" TRI-LOBE
78	1	2267800	GEAR-INDICATOR
79	1	2372100	SCREW-8-18 X 5/8" SS
80	1	2264019	LIGHT/INDICATOR
81	2	2020713	TERMINAL-ADAPTOR, MAX
82	2	2335400	SHRINK TUBE-1/2 OD X 2"
83	1	2052511	CABLE CLAMP, 1/4" VANTAGE

PARTS LIST

MAXXUM 70

70 LBS THRUST - 24 VOLT - 42"/52" SHAFT

ITEM QTY		PART NUMBER	DESCRIPTION
84 1 223	2360 P	JLLEY-CABLE DRUM
85 1 226	1730 W	ASHER-NYLON A/T CON B
87	1	2996247	TOP BEARING RACE/ PINION DR
88 4 222	23468 9	CREW-8-32 X 7	16" ZN PL
90	1	2994496	FOOT PEDAL/PLUG ASSEMBLY (AT)
91	1 228	3700 PUSH-BU	TTON FOOT PEDAL
92 1 230	2732 S	PRING-LOWER PEDAL SS
93	1	2264020	SWITCH MOMENTARY
94 1	2265	140 BOOT-MICROSWITCH
95	2	2262114 SCREW-MOUNTING/SWITCH
96 2 223	3100 N	UT-SWITCH MOUNT
97	1	2264026	SWITCH-5 SPEED (ALL TERRAIN)
98 1	2261	701 LOCKWASHER-STAR
99 1	2263	105 NUT-HEX
100	1	2261715	SPACER-SWITCH 5 SP MODELS
101	1	2280110	KNOB-SPEED CONTROL (5 SPD)
102	1	2263000	E-RING TRU-ARC#5133-43
103	1	2260730	CONNECTOR 1/4 MALE TAB OD
105	1	2332103	SCREW-6-20 X 3/8" THD SS
106	1	2266413	TENSION SCREW PLATE FTPED
107	1	2260511	PIN-PIVOT A/T FT PDL
108	1	2774550	FT PED BASE/PIN ASSEMBLY
109	1	2262301	PULLEY- FOOT PEDAL
110 1 226	6401 C	OVER-PULLEY STAMPING
111 4 222	23430 5	CREW- #8 X3/4 SS PPH TYPE 25
112 1	2254	031 SWITCH-MOM/OFF/CON
115 1	2266	412 SWITCH PLATE, FT PEDAL
116	2	2332103	SCREW-6-20 X 3/8 THD SS
117	1	2261208	WIRE HARNESS, A/T FT. PHD
118 1 226	7505 C	ABLE ASSY-RIGHT (5')
119 1 226	7515	CABLE ASSY-LEFT (5')
120	1 226	5430 CABLE JACKET (5')
121 1 226	5110 BOOT-CONTROL BOX
122	1	2265115	BOOT-FOOT PEDAL BASE
123	2 237	2100 SCREW-8-18 X 5/8 THD SS
124	2	2261714	WASHER-MAXXUM FT PDL
125	1 226	1901 BRACKET-CONDUIT
126	2 230	1310 SCREW-8-18 X 1/2 SS
127	1	2263210	BRACKET-CONDUIT ADJUSTMENT
128	1	2263104	NYLOCK KEEPER
129	1 226	3463 SCREW-1/4-20 X 2" STL PPH
131	1	2261225	LEADWIRE 24V 10GA RING
132	1 225	6300 TIE WRAP-5.5" BLACK
133	2	2263201	CLAMP WIRE HARNESS MICRO

ITEM QTY		PART NUMBER	DESCRIPTION
134	1	2332103	SCREW-6-20 X 3/8 THDT SS
135	1	2260301	CONNECTING WIRE (SWITCH)
136	1	2260312	WIRE,BLK W/WHT STRP 191/2
137	1	2260322	WIRE,BLK W/BLUE STRP-12"
138	1 225	6301 TIE WRAP	-5.5" WHITE
139	1	2266414	BOTTOM PLATE MAX FOOT PED
141	8	9953104	SCREW-8 X 1/2" SS
142	1	2282500	CONTROL BOX
143	2	2267800	GEAR-INDICATOR
144	1 226	22221 INDICATOR	R-DRIVE
1451	2261	905 BRACKET/	NDICATOR
146	1	2301310	SCREW-8-18 X 1/2" SS
■	1 29	94830 BAG	ASSEMBLY-MAXXUM
*147	6	2263431	SCREW 1/4-20 X 3.5" PPH
*148	6	2261713	WASHER-1/4 FLAT SS
*149	6	2263103	NUT-1/4-20 NYLOCK-JAM SS
■	1	2991550	CLAMP COLLAR ASSEMBLY
150	1	2071550	CLAMP COLLAR "A"
151	1	2071555	CLAMP COLLAR "B"
152	1 207	2621 PIN-KNU	LED
153	1	2281505	KNOB-CLAMP COLLAR
155	1	2071718	WASHER #10 NYLON RETAINING
157	1	2073102	NUT - HEX 1/4 - 28 SS
158	1	2071560	SPLIT COLLAR
200	1	2075120	URETHANE PAD
205	2 226	1540 INSERT-T	THREADED BOWPLATE

■ THIS ITEM IS PART OF AN ASSEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LISTED FOR VIEWING PURPOSES.

COMPLIANCE STATEMENTS

ENVIRONMENTAL COMPLIANCE STATEMENT:

It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE DIRECTIVE:

EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required

for EEE designed and intended as fixed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement.

This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply

in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do vary within European Union member states. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

DISPOSAL:

Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.

Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and dispose of them at the proper place of collection of your local town council.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

NOTES

RECOMMENDED ACCESSORIES

ON-BOARD & PORTABLE BATTERY CHARGERS

Stop buying new batteries and start taking care of the ones you've got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.

Exterior view of a black precision electronic device (no visible text or symbols on body)

Black digital audio amplifier device with visible leads and ventilation grille (no text or symbols on body)

Black industrial electrical lamp with coiled cable and clamp (no visible text or symbols)

MK210DMK345PC MK110P

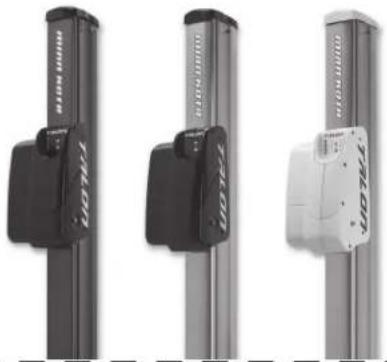

TALON SHALLOW WATER ANCHOR

Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12' and bold color options including camo, it boasts an arsenal of features and innovations that no other anchor can touch:

Three vertical metal bars with black and white labels, no visible text or symbols on the bars themselves.

• Vertical, Multi-Stage Deployment
- User-Selectable Anchoring Modes
- 2x Anchoring Force
- Fast Deploy
- Auto Up/Down

• Triple Debris Shields
  • Built-In Wave Absorption
• Noise Dissipation
• Versatile Adjustments

MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

Three electronic components: a black plastic panel, a hand holding a small device, and a black electronic device with visible ports and wiring (no text or symbols)

• 60-Amp Circuit Breaker
• Mounting Brackets
• Stabilizer Kits

• Extension Handles

• Battery Connectors

• Battery Boxes
• Quick Connect Plugs

For a complete listing of Minn Kota accessories, visit minnkotamotors.com

Follow us:

minnkotamotors.com

Minn Kota Consumer & Technical Service

Johnson Outdoors Marine Electronics, Inc.

PO Box 8129

Mankato, MN 56001

121 Power Drive

Mankato, MN 56001

Phone [phone]

Fax [phone]

©2015 Johnson Outdoors Marine Electronics, Inc. All rights reserved.

minn.kota

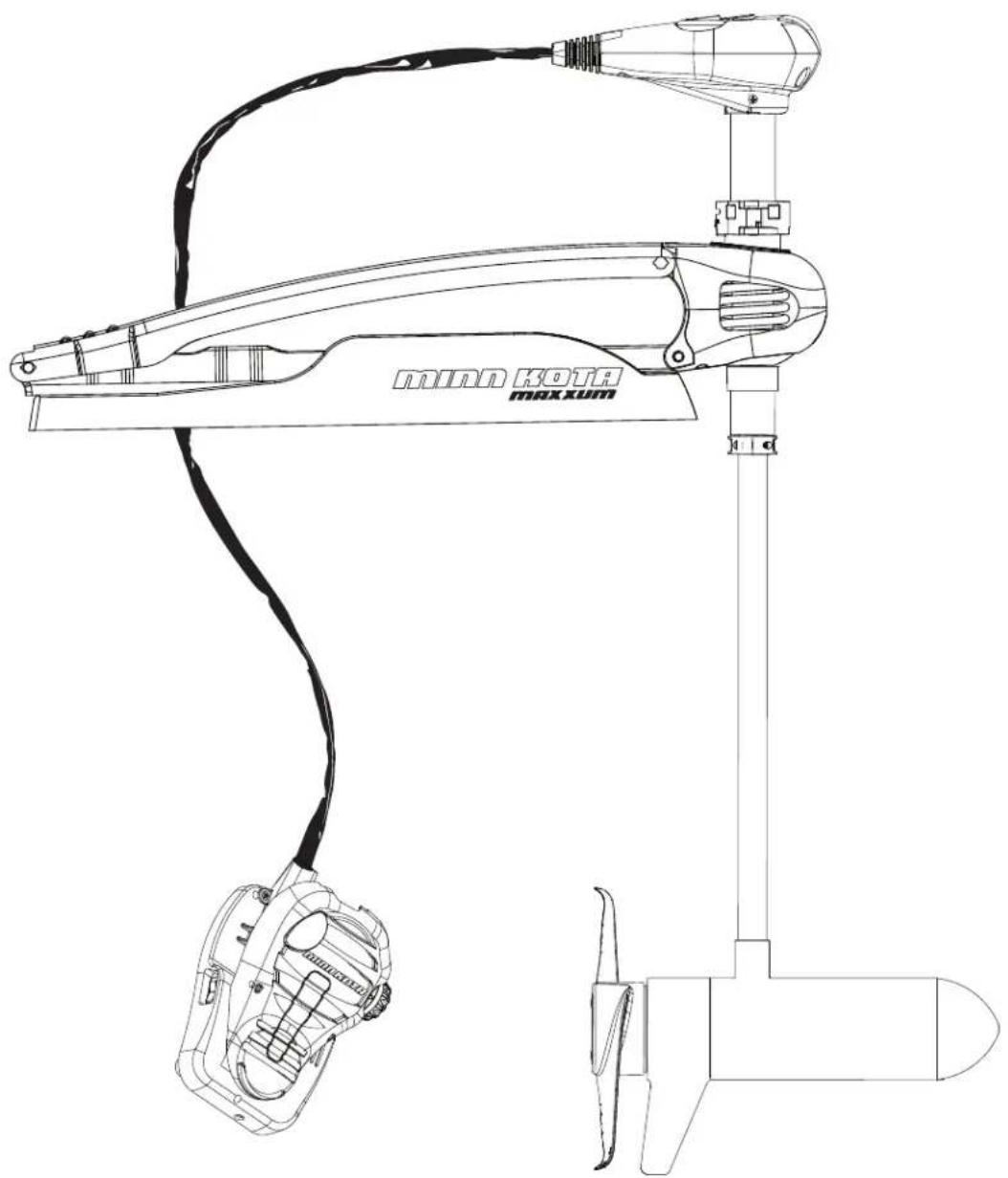

Technical line drawing of a Minn Kota Maxxum electric shaver with attached components (no text or symbols)

MAXXUM®

MOTEUR DE PÊCHE À LA TRAÎNE MONTÉ SUR L'ÉTRAVE

MANUEL DE L'UTILISATEUR

MANUEL CE D'UN MASTER (CE/C-TICK CERTIFIED MODELS)

Technical line drawing of a mechanical device with no visible text or symbols

Modèle :

Numéro de série :

Date de l'achat :

EXCLUSIONS & LIMITATIONS

INFORMATION SUR LE SERVICE MINN KOTA

Technical line drawing of a mechanical component with curved surfaces and a central hub (no text or symbols)

Technical line drawing of a mechanical tool or bracket with a dimension arrow, labeled 'Image 1' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a train track with a mounted vehicle, no text or symbols present

INSTALLATION DE LA COURROIE DE RETENUE

Diagram of a mechanical device with a rotating lever and clamping mechanism (no text or symbols)

Line drawing of a mechanical component with a handle and mounting bracket (no text or symbols)

INSTALLATION DES BATTERIES ET DU CÂBLAGE

GRÉEMENT DE L'EMBARCATION ET INSTALLATION DU PRODUIT

Part #2274958 Rev M 9/15ECN 36431

LISTES DES PIÈCES

MAXXUM 70

POUSSÉE DE 70 LBS - 24 VOLT - ARBRE 42/52 PO

ARTICLE	OTÈ	NUMÉRO DE PIÈCE	DESCRIPTION
112-10	0-119	ENSEMBLE ARMA	TURE 12 V 3,62 EAU DOUCE
21788	-015	ANNEAU DE RETENUE
31140	-010	ROULEMENT À BILLES
41431	-005	ENSEMBLE BOÎTIER	R CENTRAL
512-30	00-039	EXTRÉMITÉ BISE	EAUTÉE DU BOÎTIER
612-40	00-101	ENSEMBLE EXTRÉMITÉ PLATE DU BOÎTIER
71144	-049	ROULEMENT - BRDE (SERVICE SEULEMENT)
81880	-003	JOINT
91880	-006	JOINT AVEC PROTECTEUR
10	1188	-037 ENSEMBLE BROSSE
11	1	725-050	RÉTENTION DE LA BROSSE - DOUILLE EN PAPIER
12	1738	-036	ENSEMBLE PLAQUE DE BROSSE AVEC PORTE-BROSSE
13	2	975-040	RESSORT DE TORSION
14	1	337-036	JOINT D'ÉTANCHÉITÉ
15	2	701-008	JOINT TORIQUE, BOULON TRAVERSANT
16	1	701-081	JOINT TORIQUE
■	128	88460 ENSEMBLE JOINT TORIQUE ET JOINT
17	2	830-007	VIS-8-32
18	2	830-008	BOULON TRAVERSANT 10-32 X 8,83 PO (22,5 CM)
19	1	990-067	RONDELLE - BUTÉE D'ACIER
20	2	990-070	RONDELLE - NYLATRON
21	1	2096035	ENSEMBLE MOTEUR 12 V VARS 55# - 42 PO
22	1	2032003	TUBE - COMPOSITE 4 TROUS 42 PO
■	1	1378131	ENSEMBLE HÉLICE
23	1	2091160	2 HÉLICES ANTI-HERBES
24	1	2151726	RONDELLE - 5/16 AI
25	120	63101 ÉCROU - HÉLICE NYLOC
26	120	92600 ERGOT - ENTRAÎNEMENT
27	4	9008236	RONDELLE 1/4 FLAT ZINC
28	2	2223100	ÉCROU - TENSION 5/16-18 AI
29	1	2262605	ERGOT - BWGRD FILETAGE SUPÉRIEUR ZINGUÉ
30	1	2262607	GOUPILLE - MANILLE GALV. MAXXUM BWGRD
31	1	2260805	PINCE - RESSORT GALV. MAX BG
32	1	2150400	POIGNÉE DE TRACTION
33	1	2151700	RONDELLE - ARBRE CEIL (0,562 D.E.)
■	1	2991840	MONTAGE - ENSEMBLE DE PROUE, STD
35	1	2264241	BRAS - SUPÉRIEUR STD EAU DOUCE
36	4	2293501	DOUILLE - ACIER INOXYDABLE
37	2	2263500	BOULON - ÉPAULEMENT MAXXUM
38	129	94307	BRAS - ENSEMBLE INFÉRIEUR, STD, EAU DOUCE, SUPPL. [COMPREND 39, 43-47, 86,87]
39	1	2263912	SUPPORT DU MOTEUR (STD)
40	2	2265514	DÉCALQUE - SUPPORT DU MOTEUR MAXXUM

ARTICLE	PTÈ	NUMÉRO DE PIÈCE	DESCRIPTION
41	6	2261505	ESPACEUR - SUPPORT DU MOTEUR
42	1	2773987	PLAQUE AVANT - AVEC INSERTION
43	1	2251601	CORDE [40 PO [101,6 CM]), MONTAGE MAXXUM
44	2	2261708	RONDELLE - 3/8 X 1/2 X 0,010 AI
45	2	2267318	ROULEMENT NYLINER
46	2	2263434	VIS, 8-18 X 1 PO (2,5 CM) PPH
47	2	2152610	RESSORT - BARRE DE VERROUILLAGE À GOUPILLE
48	1	2233600	BARRE DE VERROUILLAGE - MONTAGE SUR PROUE
49	1	2233602	BARRE DE VERROUILLAGE ARRIÈRE - ZINC
50	1	2152700	RESSORT - BARRE DE VERROUILLAGE PLAQUÉ CAD.
51	1	2262703	CRANTAGE À RESSORT - MAXXUM
52	1	2153602	ARBRE CEIL - 2 BARRES DE VERROUILLAGE STD
53	1	2260506	CHARNIÈRE - GOUPILLE SANS TÊTE EN ZINC
54	1	2293811	FOURCHE - MONTAGE MAXXUM, POLYPROPYLÈNE
■	1	2991762	ENSEMBLE BOWGUARD - COMMANDE À PÉDALE
55	1	2772319	ENS. DU SOMMET DE LA BASE DU SUPPORT
56	1	2991771	ENS. DU SUPPORT INFÉRIEUR ROULEMENT
57	1	2772352	CEILLET - TROUSSE
58	1	2263423	VIS 5/16-18 X 1 PO (2,5 CM) SCHS ZINC
59	2	2263425	VIS 5/16-18 X 2 1/2 PO (6,4 CM) SCHS
60	1	2071541	MANCHON À RESSORT - SUPÉRIEUR
61	1	2071535	MANCHON À RESSORT - INFÉRIEUR
62	1	2262706	RESSORT - BOWGUARD, PLAQUÉ NICKEL
■	1	2772012	TUBE AVEC ENSEMBLE DE CHEMIN DE ROULEMENT - 42 PO
■	1	2772016	TUBE AVEC ENSEMBLE DE CHEMIN DE ROULEMENT - 52 PO
64	1	2272069	TUBE EXTÉRIEUR - 21 PO 4 TROUS
	1	2272067	TUBE EXTÉRIEUR - 24 PO 4 TROUS
65	1	2266260	CHEMIN DE ROULEMENT
66	1	2266220	CHEMIN DE ROULEMENT - ACIER
67	2	2266000	ROULEMENT À BILLES - ACIER
68	1 2266115 CÔNE DE ROULEMENT
69	1	2771617	DEMI-COLLIER - ZINC
70	2	2263452	VIS, 1/4-20 X 3/4
71	1	2280201	COUVERCLE DE BOÎTE DE COMMANDE
72	4	2372100	VIS - 8-18 X 5/8 FILETÉ
73	1	2275603	DÉCALQUE - COUVERTURE MAX 55/FC
74	1	2990140	INDICATEUR DIRECTIONNEL
75	1	2282730	RESSORT - INDICATEUR
76	2	2375400	GAINE RÉTRACTABLE - 1/4 D.E. X 1 3/4 PO
77	3	2053414	VIS - 8-32 X 1/2 TRILOBE
78	1	2267800	ENGRENAGE - INDICATEUR
79	1	2372100	VIS - 8 À 18 X 5/8 PO (1,6 CM)

LISTES DES PIÈCES

MAXXUM 70

POUSSÉE DE 70 LBS - 24 VOLT - ARBRE 42/52 PO

ARTICLE	QTÈ	NUMÉRO DE PIÈCE	DESCRIPTION
80 1 2264019 TÉMOIN/INDICATEUR
81 2 2020713 TERMINAL-ADAPTOR, MAX
82 2 2385400 GAINERÉTRACTABLE - 1/20 D.E. X 2 PO
83	1	2052511	SERRE-CÂBLE 1/4 PO VANTAGE
84 1 2232360 POULIE - TAMBOUR À CÂBLE
85 1 2261730 RONDELLE - NYLON A/T CON
87 1 2996247			CHEMIN DE ROULEMENT SUPÉRIEUR/PIGNON D'ENTRAÎNEMENT
88	4 2223468 VIS - 8-32 X 7/16
90 1	2994496 ENSEMBLE PÉDALE/BOUCHON
91	1	2283700	ENSEMBLE BOUTON POUSSOIR AVEC AIMANT
92	1	2302732	RESSORT - PÉDALE INFÉRIEURE
93	1	2264020	COMMUTATEUR, MOM.
94 1 2265140 MANCHON MICRO-INTERRUPTEUR
95 2 2262114 VIS INTERRUPTEUR MONTAGE
96	2 2233100 ÉCROU INTERRUPTEUR MONTAGE
97	1	2264026	INTERRUPTEUR VITESSE
98 1 2261701 LOCKWASHER-STAR
99 1 2263105 ÉCROU HEXAGONAL
100	1	2261715	ENTRETOISE CINQ VITESSE
101	1	2280110	BOUTON DE RÉGLAGE DE CINQ VITESSE
102	1	2263000	RONDELLE EN E TRU-ARC
103	1	2260730	CONNECTEUR MÂLE
105	1	2332103	VIS - 6-20 X 3/8 (0,95 CM) FILETÉE (AI)
106	1	2266413	VIS DE TENSION POUR PLAQUE DE PÉDALE
107	1	2260511	GOUPILLE - PIVOT PÉDALE A/T
108	1	2774550	ENSEMBLE BASE DE PÉDALE/GOUPILLE
109	1 2262301 POULIE - PÉDALE
110	1 2266401 COUVEROLE - POULIE
111	4	2223430	VIS - No 8 X 3/4 (1,9 CM) PPH TYPE 25 AI
112	1	2254031	COMMUTATEUR - MOM/ARRÊT/CON
115	1	2266412	PLAQUE DE COMMUTATEUR - PÉDALE
116	2	2332103	VIS-6-20 X 3/8 THD SS
117	1	2261208	FAISCEAU DE CÂBLE AT ET MAX
118	1	2267505	ENSEMBLE DE CÂBLE - DROIT 5 PI (1,5 M)
119	1	2267515	ENSEMBLE DE CÂBLE - GAUCHE 5 PI (1,5 M)
120	1	2265430	GAINE DE CÂBLE 5 PI (1,5 M)
121	1	2265110	MANCHON - BOÎTE DE COMMANDE
122	1	2265115	MANCHON - BASE DE PÉDALE
123	2	2372100	VIS - 8-18 X 5/8 (1,59 CM) FILETÉE
124	2	2261714	RONDELLE - PÉDALE MAXXUM
125	1	2261901	SUPPORT - CONDUIT
126	2 2301310 VIS - 8-18 X 1/2 (1,3 CM)
127	1	2263210	SUPPORT - AJUSTEMENT DE CONDUIT

ARTICLE	QTÈ	NUMÉRO DE PIÈCE	DESCRIPTION
128	1 22	63104 GARDE NYLOCK
129	1	2263463	VIS - 1/4-20 X 2 PO (5,1 CM) ACIER PPH
131 1 226	1225	BATTERIE DE FIL DE SORTIE
132	1	2256300	ATTACHE - 5,5 PO (14 CM) NOIRE
133	2	2263201	PINCE POUR FAISCEAU ÉLECTRIQUE DE MICRO
134	1	2332103	VIS - 6-20 X 3/8 (0,95 CM) FILETÉE, AI
135	1 22	60301 CONNECTING WIRE (SWITCH)
136	1	2260312	FIL NOIR AVEC BLANC - 19 1/2 PO
137	1	2260322	FIL NOIR AVEC BLEU - 12 PO
138	1	2256301	ATTACHE - 5,5 PO (14 CM) BLANCHE
139	1	2266414	PLAQUE DE FOND - PÉDALE MAX
141	8	9953104	VIS - 8 X 1/2 PO (1,3 CM) (AI)
142	1	2282500	BOÎTE DE COMMANDE
143	2	2267800	ENGRENAGE - INDICATEUR
144	1	2262221	INDICATEUR - ENTRAÎNEMENT
145	1	2261905	SUPPORT / INDICATEUR
146	1	2301310	VIS - 8-18 X 1/2 PO (1,3 CM)
■	1	2994830 ENSEMBLE SAC - MAXXUM
*147	6	2263431	VIS - 1/4-20 X 3,5 PPH
*148	6	2261713	RONDELLE, 1/4, PLATE, A/I
*149	6	2263103	ÉCROU - 1/4-20 AUTOFREINANT NYLOCK AI
■	1	2991550	ENSEMBLE DE PINCES DE COLLIER
150	1 20	71550 PINCE DE COLLIER « A »
151	1	2071555	PINE DE COLLIER « B »
152	1 20	72621 GOUPILLE - MOLETÉE
153	1	2281505	BOUTON - PINCE DE COLLIER
155	1	2071718	RONDELLE DE RETENUE No 10 NYLON
157	1 20	73102 ÉCROU - HEX. 1/4 - 28 AI
158	1 20	71560 COLLIER FENDU
200	1 20	75120 COUSSINET EN URÉTHANE
205	2	2261540	PLAQUE AVANT À INSERTION FILETÉE

■ CET ARTICLE NE FAIT PARTIE D'AUCUN ENSEMBLE.

*CET ARTICLE FAIT PARTIE D'UN ENSEMBLE ET EST SEULEMENT ÉNUMÉRÉ À DES FINS D'ILLUSTRATION.

DÉCLARATION DE CONFORMITÉ

DÉCLARATION DE CONFORMITÉ ENVIRONNEMENTALE

Exterior view of a black precision electronic device with visible ports and wiring (no readable text or symbols)

Black digital audio device with no visible text or symbols on body

Black industrial electrical lamp with clamps and a handle (no visible text or symbols)

MK210DMK345PC MK110P

Three vertical metal bars with black and white connectors, arranged side by side (no visible text or symbols)

ACCESSOIRES MINN KOTA

Three electronic devices: a battery pack, a hand holding a switch, and a motor case with a sensor (no visible text or symbols)

Johnson Outdoors Marine Electronics, Inc.

PO Box 8129

Mankato, MN 56001

121 Power Drive

Mankato, MN 56001

Phone [phone]

Fax [phone]

©2015 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
