TERROVA

BOW-MOUNT TROLLING MOTOR

USER MANUAL

THANK YOU

Thank you for choosing Minn Kota. We believe that you should spend more time fishing and less time positioning your boat. That's why we build the smartest, toughest, most intuitive trolling motors on the water. Every aspect of a Minn Kota trolling motor is thought out and rethought until it's good enough to bear our name. Countless hours of research and testing provide you the Minn Kota advantage that can truly take you "Anywhere. Anytime." We don't believe in shortcuts. We are Minn Kota. And we are never done helping you catch more fi sh.

REMEMBER TO KEEP YOUR RECEIPT AND IMMEDIATELY REGISTER YOUR TROLLING MOTOR.

A registration card is enclosed or you can complete registration on our website at minnkotamotors.com.

NOTE: Do not return your Minn Kota motor to your retailer. Your retailer is not authorized to repair or replace this unit. You may obtain service by: calling Minn Kota at [phone]; returning your motor to the Minn Kota Factory Service Center; sending or taking your motor to any Minn Kota authorized service center. A list of authorized service centers is available on our website, at minnkotamotors.com. Please include proof of purchase, serial number and purchase date for warranty service with any of the above options.

Please thoroughly read this user manual. Follow all instructions and heed all safety and cautionary notices below. Use of this motor is only permitted for persons that have read and understood these user instructions. Minors may use this motor only under adult supervision.

ATTENTION: Never run the motor out of the water, as this may result in injuries from the rotating propeller. The motor should be disconnected from the power source when it is not in use or is off the water. When connecting the power-supply cables of the motor to the battery, ensure that they are not kinked or subject to chafe and route them in such a way that persons cannot trip over them. Before using the motor make sure that the insulation of the power cables is not damaged. Disregarding these safety precautions may result in electric shorts of battery(s) and/or motor. Always disconnect motor from battery(s) before cleaning or checking the propeller. Avoid submerging the complete motor as water may enter the lower unit through control head and shaft. If the motor is used while water is present in the lower unit considerable damage to the motor can occur. This damage will not be covered by warranty.

CAUTION: Take care that neither you nor other persons approach the turning propeller too closely, neither with body parts nor with objects. The motor is powerful and may endanger or injure you or others. While the motor is running watch out for persons swimming and for floating objects. Persons whose ability to run the motor or whose reactions are impaired by alcohol, drugs, medication, or other substances are not permitted to use this motor. This motor is not suitable for use in strong currents. The constant noise pressure level of the motor during use is less than 70dB(A). The overall vibration level does not exceed 2.5m/sec2.

LOCATING YOUR SERIAL NUMBER

Your Minn Kota 11-character serial number is very important. It helps to determine the specific model and year of manufacture. When contacting Consumer Service or registering your product, you will need to know your product's serial number. We recommend that you write the serial number down in the space provided below so that you have it available for future reference.

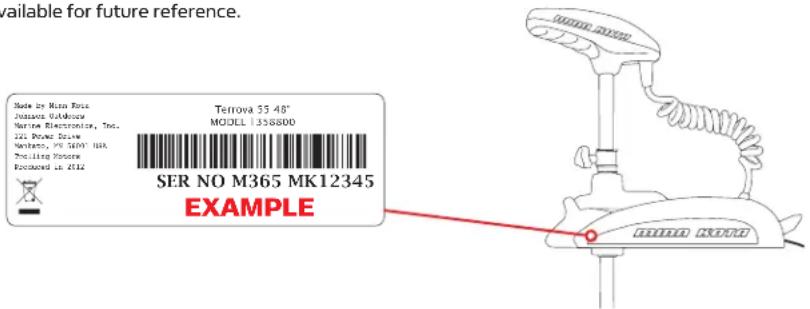

The serial number on your Terrova is located inside the mount, below the motor rests.

Available for future reference. Made by Miss Foss Jassava Vodafone Marine Electronics, Inc. 121 Power Tube Mantara, PA 76001 USA Thelling Pattern Focused in 2016 Tefova 55 48° MODEL 1358800 SER NO M365 MK12345 EXAMPLE

Model:

Serial Number:

Purchase Date:

Store Where Purchased:

TABLE OF CONTENTS

Two-Year Limited Warranty 4

Features 5

Mount Installation 6

Battery & Wiring Installation 7-9

Boat Rigging & Product Installation 7

Conductor Gauge and Circuit Breaker Sizing Table 7

Selecting the Correct Batteries 8

Connecting the Batteries 8-9

Push-to-test Battery Meter 9

Motor Wiring Diagram 10

Using The Motor 11-13

Stowing & Deploying 11

AutoPilot Controls 12

Adjusting the Depth of the Motor 12

Installing the External Transducer 13

Using the Foot Pedal 14

Service & Maintenance 15

Troubleshooting 16

Parts Diagram 17

Parts List 18-19

Environmental Compliance Statement 20

Notes 21

TWO-YEAR LIMITED WARRANTY

WARRANTY ON MINN KOTA FRESHWATER TROLLING MOTORS

Johnson Outdoors Marine Electronics, Inc. ("JOME") extends the following limited warranty to the original retail purchaser only. Warranty coverage is not transferable.

MINN KOTA LIMITED TWO-YEAR WARRANTY ON THE ENTIRE PRODUCT

JOME warrants to the original retail purchaser only that the purchaser's new Minn Kota freshwater trolling motor will be materially free from defects in materials and workmanship appearing within two (2) years after the date of purchase. JOME will (at its option) either repair or replace, free of charge, any parts found by JOME to be defective during the term of this warranty. Such repair, or replacement shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty.

MINN KOTA LIMITED LIFETIME WARRANTY ON COMPOSITE SHAFT

JOME warrants to the original retail purchaser only that the composite shaft of the purchaser's Minn Kota trolling motor will be materially free from defects in materials and workmanship appearing within the original purchaser's lifetime. JOME will provide a new composite shaft, free of charge, to replace any composite shaft found by JOME to be defective during the term of this warranty. Providing a new composite shaft shall be the sole and exclusive liability of JOME and the sole and exclusive remedy of the purchaser for breach of this warranty; and purchaser shall be responsible for installing, or for the cost of labor to install, any new composite shaft provided by JOME.

EXCLUSIONS & LIMITATIONS

This limited warranty does not apply to products that have been used in saltwater or brackish water, commercially or for rental purposes. This limited warranty does not cover normal wear and tear, blemishes that do not affect the operation of the product, or damage caused by accidents, abuse, alteration, modification, shipping damages, acts of God, negligence of the user or misuse, improper or insufficient care or maintenance. DAMAGE CAUSED BY THE USE OF OTHER REPLACEMENT PARTS NOT MEETING THE DESIGN SPECIFICATIONS OF THE ORIGINAL PARTS WILL NOT BE COVERED BY THIS LIMITED WARRANTY. The cost of normal maintenance or replacement parts which are not in breach of the limited warranty are the responsibility of the purchaser. Prior to using products, the purchaser shall determine the suitability of the products for the intended use and assumes all related risk and liability. Any assistance JOME provides to or procures for the purchaser outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of the terms, limitations or exclusions, nor will such assistance extend or revive the warranty. JOME will not reimburse the purchaser for any expenses incurred by the purchaser in repairing, correcting or replacing any defective products or parts, except those incurred with JOME's prior written permission. JOME'S AGGREGATE LIABILITY WITH RESPECT TO COVERED PRODUCTS IS LIMITED TO AN AMOUNT EQUAL TO THE PURCHASER'S ORIGINAL PURCHASE PRICE PAID FOR SUCH PRODUCT.

MINN KOTA SERVICE INFORMATION

To obtain warranty service in the U.S., the product believed to be defective, and proof of original purchase (including the date of purchase), must be presented to a Minn Kota Authorized Service Center or to Minn Kota's factory service center in Mankato, MN. Any charges incurred for service calls, transportation or shipping/freight to/from the Minn Kota Authorized Service Center or factory, labor to haul out, remove, re-install or re-rig products removed for warranty service, or any other similar items are the sole and exclusive responsibility of the purchaser. Products purchased outside of the U.S. must be returned prepaid with proof of purchase (including the date of purchase and serial number) to any Authorized Minn Kota Service Center in the country of purchase. Warranty service can be arranged by contacting a Minn Kota Authorized Service Center or by contacting the factory at 1-800-227-6433 or email [e-mail].

Products repaired or replaced will be warranted for the remainder of the original warranty period [or for 90 days from the date of repair or replacement, whichever is longer]. For any product that is returned for warranty service that JOME finds to be not covered by or not in breach of this limited warranty, there will be a billing for services rendered at the prevailing posted labor rate and for a minimum of at least one hour.

NOTE: Do not return your Minn Kota product to your retailer. Your retailer is not authorized to repair or replace products.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THESE LIMITED WARRANTIES. IN NO EVENT SHALL ANY IMPLIED WARRANTIES INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, EXTEND BEYOND THE DURATION OF THE RELEVANT EXPRESS LIMITED WARRANTY. IN NO EVENT SHALL JOME BE LIABLE FOR PUNITIVE, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. Without limiting the foregoing, JOME assumes no responsibility for loss of use of product, loss of time, inconvenience or other damage.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations and/or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.

FEATURES

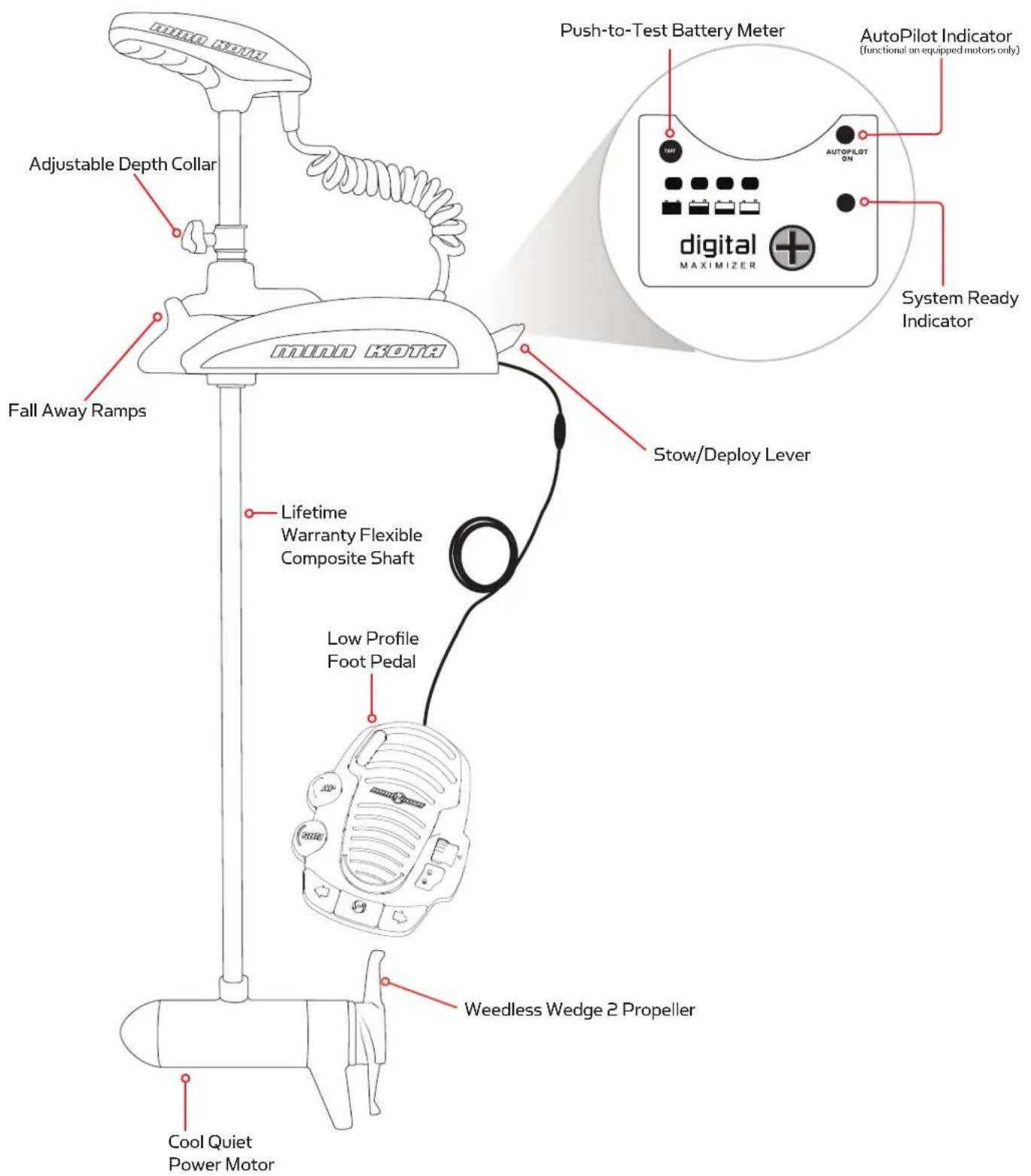

Adjustable Depth Collar Fall Away Ramps Lifetime Warranty Flexible Composite Shaft Low Profile Foot Pedal Cool Quiet Power Motor Push-to-Test Battery Meter AutoPilot Indicator (functional on equipped motors only) AUTOPILOT ON digital MAXIMIZER System Ready Indicator Stow/Deploy Lever Weedless Wedge 2 Propeller

Specifications subject to change without notice.
*This diagram is for reference only and may differ from your actual motor.

MOUNT INSTALLATION

TOOLS AND RESOURCES REQUIRED:

• #3 Phillips Screw Driver

- Drill

- 9/32" Drill Bit

- 7/16" Box End Wrench

• A second person to help with the installation

1. Remove the four sideplate screws. Remove the right sideplate and swing the left sideplate out and away from the base extrusion.
2. Place the motor on the bow of the boat in the deployed position.

a. We recommend that the motor be mounted as close to the centerline of the boat as possible.
b. Make sure that the area under the mounting location is clear and unobstructed for drilling and accessible for you to attach nuts and washers.
c. Make sure the mount is positioned so that the shaft is out beyond the rub rail of the boat by 1-1/2". The lower unit, as it is lowered into the water or raised into the boat, must not encounter any obstructions.

CAUTION: Make sure the motor is mounted on a level surface and is not connected to a power source. Use the rubber washers to create a leve surface if necessary.

1. Once in position, mark four of the six holes (two on each side) provided in the bow mount base for drilling. If possible, use the four holes that are farthest apart. Drill through the marked holes using the 9/32" drill bit.
2. Mount the plate to the bow using the provided bolts, nuts, and washers.
3. Replace the sideplates and sideplate screws.

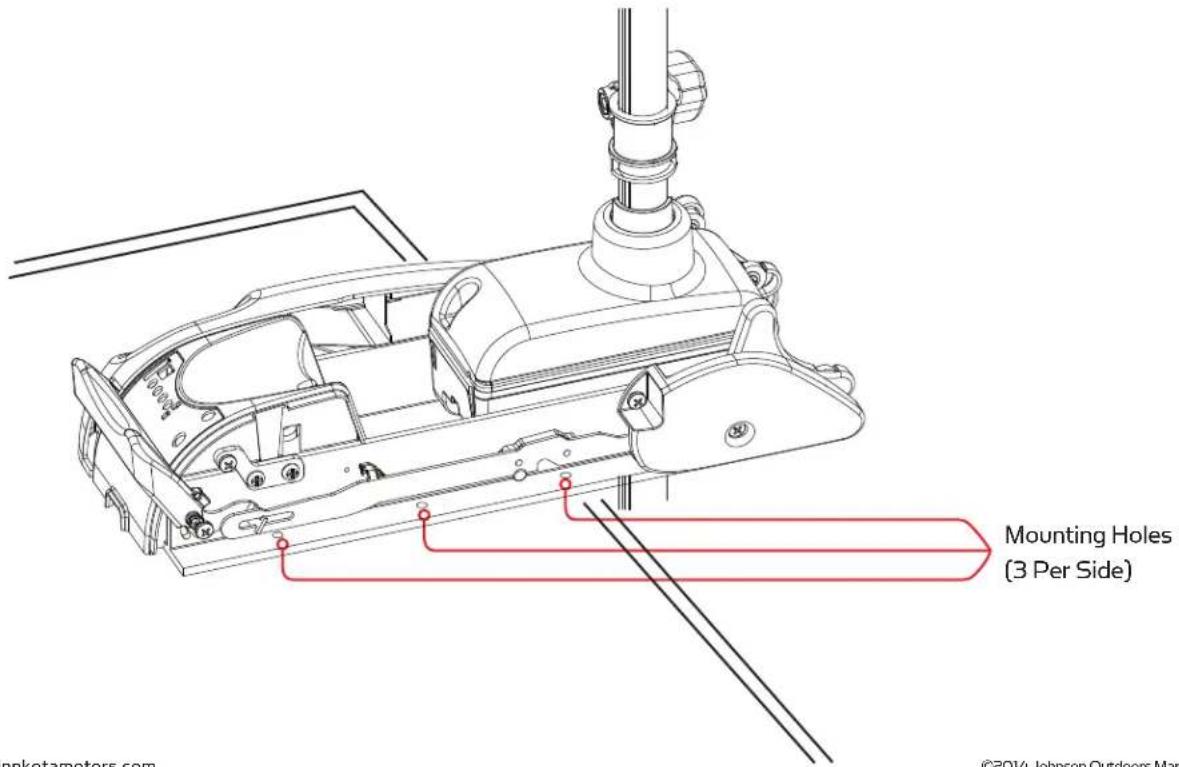

Mounting Holes (3 Per Side) ngkotamotors.com ©2014 Johnson Outdoors Mar

BATTERY WIRING & INSTALLATION

BOAT RIGGING & PRODUCT INSTALLATION

For safety and compliance reasons, we recommend that you follow American Boat and Yacht Council (ABYC) standards when rigging your boat. Altering boat wiring should be completed by a qualified marine technician. The following specifications are for general guidelines only:

CAUTION: These guidelines apply to general rigging to support your Minn Kota motor. Powering multiple motors or additional electrical devices from the same power circuit may impact the recommended conductor gauge and circuit breaker size. If you are using wire longer than that provided with your unit, follow the conductor gauge and circuit breaker sizing table below. If your wire extension length is more than 25 feet, we recommend that you contact a qualified marine technician.

An over-current protection device (circuit breaker or fuse) must be used. Coast Guard requirements dictate that each ungrounded current-carrying conductor must be protected by a manually reset, trip-free circuit breaker or fuse. The type (voltage and current rating) of the fuse or circuit breaker must be sized accordingly to the trolling motor used. The table below gives recommended guidelines for circuit breaker sizing.

Reference:

United States Code of Federal Regulations: 33 CFR 183 – Boats and Associated Equipment

ABYC E-11: AC and DC Electrical Systems on Boats

CONDUCTOR GAUGE AND CIRCUIT BREAKER SIZING TABLE

Motor Thrust / Model	Max Amp Draw	Circuit Breaker	Wire Extension Length *
			5 feet 10	feet 15	feet 20	feet 25	feet
30 lb. 30		50 Amp @ 12 VDCWG 4 AWG 4 AWG	10 AWG 1	0 AWG 8	WG 6 AWG	4 AWG
40 lb., 45 lb. 42 10	AWG 8 AWG 6 AW
50 lb., 55 lb.	50	60 Amp @ 12 VDC	8 AWG	6 AWG	4 AWG	4 AWG	2 AWG
70 lb.	42	50 Amp @ 24 VDC	10 AWG	10 AWG	8 AWG	8 AWG	6 AWG
80 lb.	56	60 Amp @ 24 VDC	8 AWG	8 AWG	8 AWG	6 AWG	6 AWG
101 lb.	46	50 Amp @ 36 VDC	8 AWG	8 AWG	8 AWG	8 AWG	8 AWG
Engine Mount 101	50	60 Amp @ 36 VDC	8 AWG	6 AWG	4 AWG	4 AWG	2 AWG
112 lb.	52	60 Amp @ 36 VDC	8 AWG	8 AWG	8 AWG	8 AWG	8 AWG
Engine Mount 160	116	(2) x 60 Amp @ 24 VDC	2 AWG	2 AWG	2 AWG	2 AWG	2 AWG
E-Drive	40	50 Amp @ 48 VDC	10 AWG	10 AWG	10 AWG	10 AWG	10 AWG

This conductor and circuit breaker sizing table is only valid for the following assumptions:

1. No more than 3 conductors are bundled together inside of a sheath or conduit outside of engine spaces.
2. Each conductor has 105^ C temp rated insulation.
3. No more than 5% voltage drop allowed at full motor power based on published product power requirements.

*Wire Extension Length refers to the distance from the batteries to the trolling motor leads.

SELECTING THE CORRECT BATTERIES

The motor will operate with any lead acid, deep cycle marine 12 volt battery/batteries. For best results, use a deep cycle, marine battery with at least a 105 ampere hour rating. Maintain battery at full charge. Proper care will ensure having battery power when you need it, and will significantly improve the battery life. Failure to recharge lead-acid batteries (within 12-24 hours) is the leading cause of premature battery failure. Use a multi-stage charger to avoid overcharging. We offer a wide selection of chargers to fit your charging needs. If you are using a crank battery to start a gasoline outboard, we recommend that you use a separate deep cycle marine battery/batteries for your Minn Kota trolling motor.

Advice Regarding Batteries:

• Never connect the (+) and the (−) terminals of the same battery together. Take care that no metal object can fall onto the battery and short the terminals. This would immediately lead to a short and extreme fire danger.
• It is highly recommended that a circuit breaker or fuse be used with this trolling motor. Refer to “Conductor Gauge and Circuit Breaker Sizing Table” in the previous section to find the appropriate circuit breaker or fuse for your motor. For motors requiring a 60-amp breaker, the Minn Kota MKR-19 60-amp circuit breaker is recommended.

CONNECTING THE BATTERIES

12 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on "OFF" or "O").
2. Connect positive (+) red lead to positive (+) battery terminal.
3. Connect negative (−) black lead to negative (−) battery terminal.
4. For safety reasons do not switch the motor on until the propeller is in the water.

CAUTION:

For safety reasons, disconnect the motor from the battery/batteries when the motor is not in use or while the battery/batteries are being charged.

CONNECTING THE BATTERIES IN SERIES (IF REQUIRED FOR YOUR MOTOR)

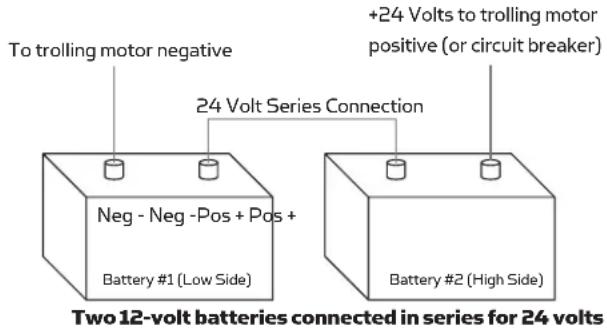

24 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on "O").
2. Two 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring diagram, to provide 24 volts.
   a. Connect a connector cable to the positive (+) terminal of battery 1 and to the negative (−) terminal of battery 2.
   b. Connect positive (+) red motor lead to positive (+) terminal on battery 2.
   c. Connect negative (−) black motor lead to negative (−) terminal of battery 1.

To trolling motor negative +24 Volts to trolling motor positive (or circuit breaker) 24 Volt Series Connection Neg - Neg -Pos + Pos + Battery #1 (Low Side) Battery #2 (High Side) Two 12-volt batteries connected in series for 24 volts

1. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner's manual. See wiring diagram on following pages.

CAUTION

• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.
• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.

36 VOLT SYSTEMS:

1. Make sure that the motor is switched off (speed selector on "O").
2. Three 12 volt batteries are required.
3. The batteries must be wired in series, only as directed in wiring diagram, to provide 36 volts.

a. Connect a connector cable to the positive (+) terminal of battery 1 and to the negative (-) terminal of battery 2 and another connector cable from the positive (+) terminal of battery 2 to the negative (-) terminal of battery 3.

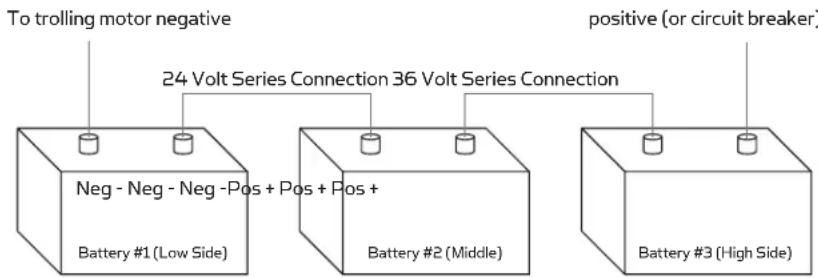

To trolling motor negative 24 Volt Series Connection 36 Volt Series Connection positive (or circuit breaker) Neg - Neg - Neg -Pos + Pos + Pos + Battery #1 (Low Side) Battery #2 (Middle) Battery #3 (High Side)

Three 12-volt batteries connected in series for 36 volts

b. Connect positive (+) red motor lead to positive (+) terminal on battery 3.
c. Connect negative (−) black motor lead to negative (−) terminal of battery 1.

1. For safety reasons do not switch the motor on until the propeller is in the water. If installing a leadwire plug, observe proper polarity and follow instructions in your boat owner's manual. See wiring diagram on following pages.

CAUTION

• Improper wiring of 24/36 volt systems could cause battery explosion!
• Keep leadwire wing nut connections tight and solid to battery terminals.
• Locate battery in a ventilated compartment.
• For safety reasons, disconnect the motor from the battery or batteries when the motor is not in use or while the battery/batteries are being charged.

PUSH-TO-TEST BATTERY METER

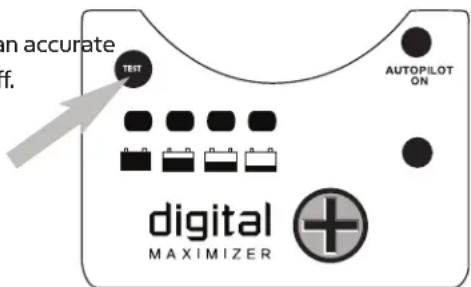

This motor is equipped with a "push-to-test" battery meter. The LED light provides an accurate display of the remaining charge in the battery. It is only accurate when the motor is off.

The meter reads as:

• One light indicates recharge.
- Two lights indicate low charge.
- Three lights indicate good charge.
- Four lights indicate full charge.

on accurate f. TEST AUTOPILOT ON digital MAXIMIZER

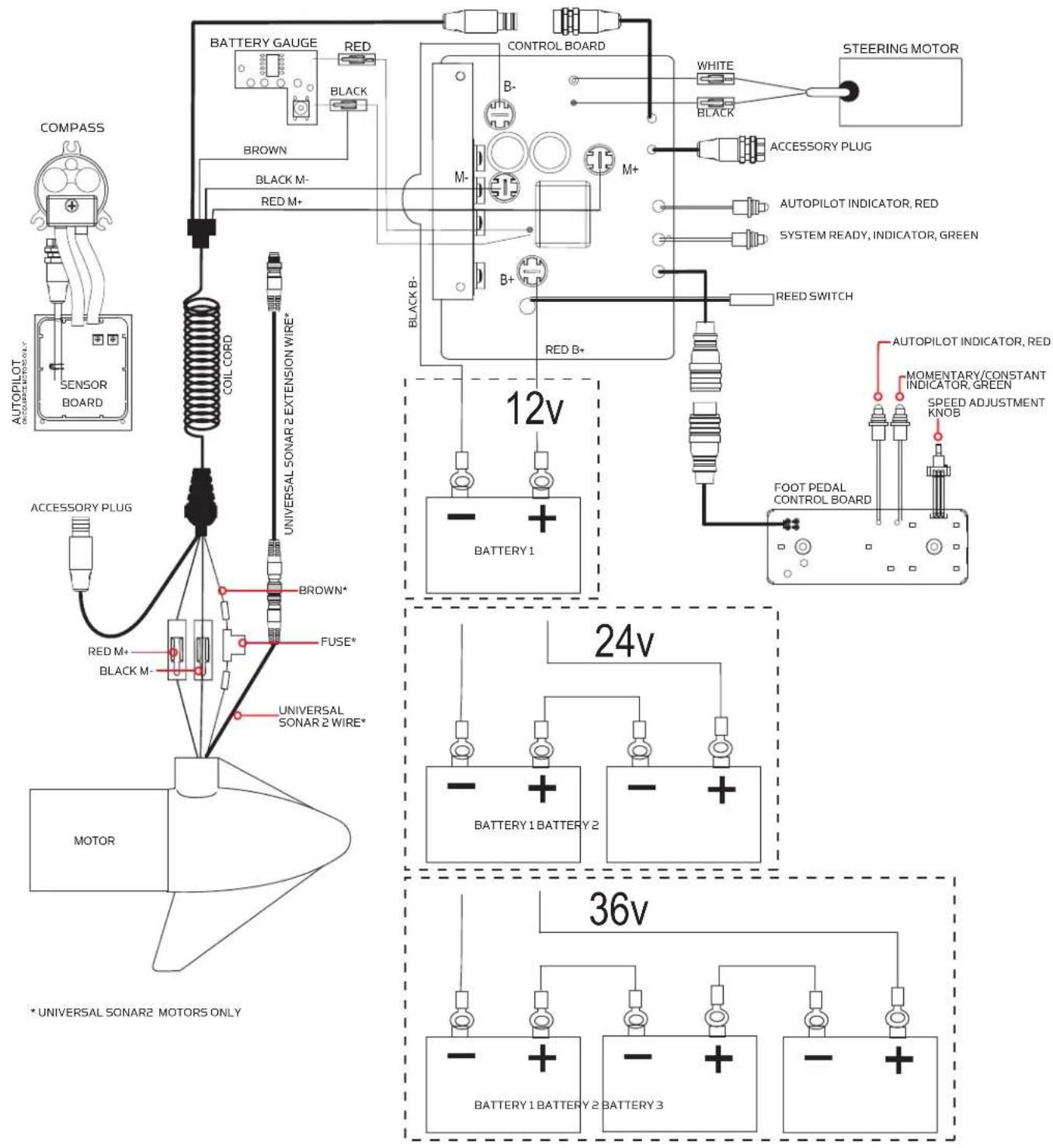

MOTOR WIRING DIAGRAM

NOTE: This is a universal, multi-voltage diagram. Double check your motor's voltage for proper connections. Over-Current Protection Devices not shown in this illustration.

COMPASS SENSOR BOARD AUTOPilot AUTOPILOT COIL CORD BATTERY GAUGE RED BLACK BROWN BLACK M- RED M+ CONTROL BOARD WHITE BLACK M+ M- B+ REED SWITCH 12v BATTERY 1 FOOT PEDAL CONTROL BOARD STEERING MOTOR ACCESSORY PLUG AUTOPilot INDICATOR, RED SYSTEM READY, INDICATOR, GREEN AUTOPilot INDICATOR, RED MOMENTARY/CONSTANT INDICATOR, GREEN SPEED ADJUSTMENT KNOB ACCESSORY PLUG BROWN* FUSE* UNIVERSAL SONAR 2 EXTENSION WIRE* RED M+ BLACK M- UNIVERSAL SONAR 2 WIRE* 24v BATTERY 1 BATTERY 2 36v BATTERY 1 BATTERY 2 BATTERY 3 * UNIVERSAL SONAR2 MOTORS ONLY

USING & ADJUSTING THE MOTOR

STOWING AND DEPLOYING THE MOTOR

WARNING:

When raising or lowering the motor, keep fingers clear of all hinge and pivot points and all moving parts.

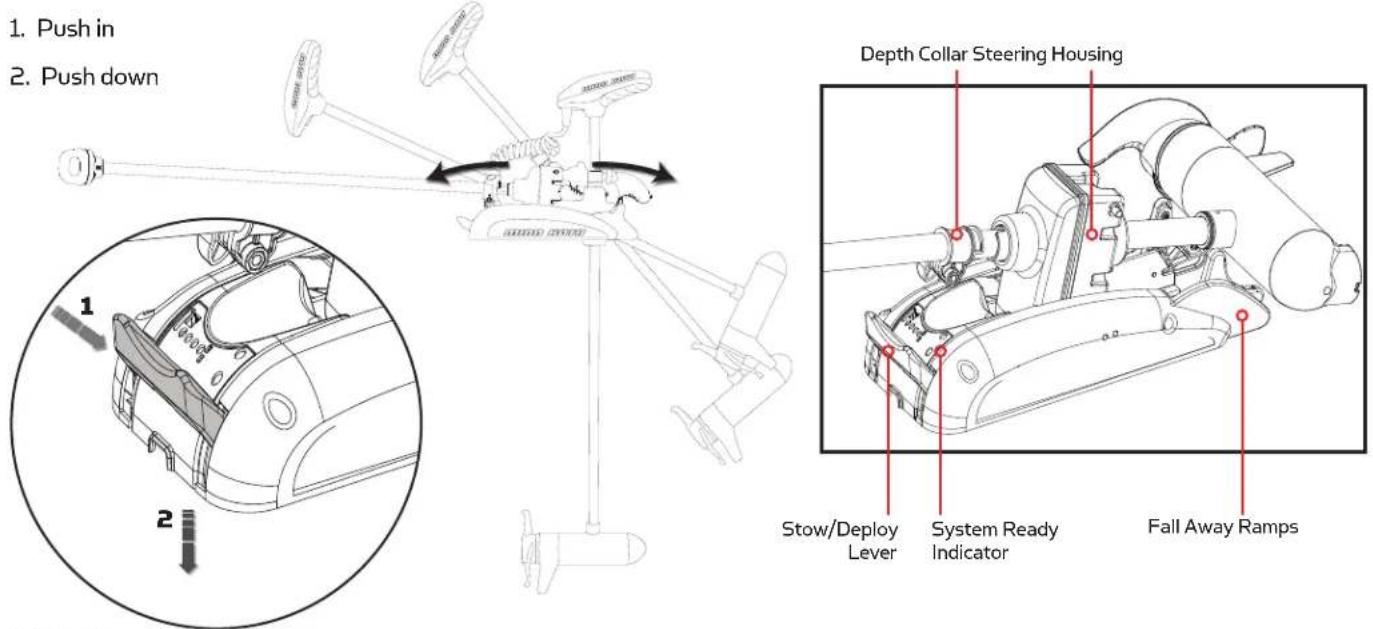

STOW/DEPLOY LEVER OPERATION:

1. Push in 2. Push down Depth Collar Steering Housing Stow/Deploy Lever System Ready Indicator Fall Away Ramps

GENERAL

System Ready (green LED): The motor is equipped with a system ready indicator. Indicator light will be on when motor is deployed and power is applied to the motor. When the motor is properly stowed the indicator light will go off indicating all power has been turned off to the motor. If this indicator light does not come on when deployed, check that motor is connected to battery properly and motor is completely deployed. If indicator light does not go off when stowed, be sure that stow/deploy lever is fully latched and locked into the stowed position.

TO DEPLOY THE MOTOR

Push in and rotate the stow/deploy lever down. Gently slide the motor out from the ramps. Lower the motor to the desired depth, making sure that it clicks into a secure, vertical position. The System Ready indicator light (green) will be lit, indicating motor is ready for operation.

TO STOW THE MOTOR

Push and hold the stow/deploy lever down. Gently tilt and pull the composite shaft or control head until the motor engages the motor ramps. Motor should rest on the motor ramps and lock into place. The stow/deploy lever should latch automatically into the stowed position. The system ready indicator light (green) MUST go off for the motor to be stowed properly.

TRANSPORTATION

In conditions where the stowed motor is subject to high levels of shock or vibration, ensure the motor is securely stowed. Move the depth collar snug against the steering motor and tighten.

AUTOPILOT™ CONTROLS

(ON AUTOPILOT EQUIPPED MOTORS ONLY)

The Minn Kota AutoPilot™ uses a magnetic compass and a microprocessor chip to keep the trolling motor pointed in the direction you want to go. Each time the wind or water current moves the boat off course, the AutoPilot senses the change and steers itself back to the original heading. The AutoPilot direction is set every time a steering change is made. To change direction, steer until the control head points to the desired course. The AutoPilot will pull the bow of the boat around and correct automatically until the boat is moving in the direction you chose.

1. This unit has an automatic steering shutdown for safety. In conditions where an obstruction prevents the trolling motor from turning, or in extremely windy conditions, the automatic steering may stop. Any steering input will reset the system to normal.
2. When the AutoPilot is on and the trolling motor is pulled out of the water to the stow position, the steering motor will continue to run until the motor is stowed properly. Once the motor is stowed properly, AutoPilot will turn off and the System Ready indicator will go off.
3. This unit uses a magnetic compass to detect direction of travel. The compass can be adversely affected by magnets or large, ferrous metal objects near (within 12" of) the trolling motor control head.
4. After steering to a new direction, there is a short delay before the direction is locked in to allow the compass to stabilize.
5. Obstructions on the propeller may cause excessive vibration of the motor head. This vibration can cause the compass to wander and erratic steering to occur. Clear the obstruction to return the motor to normal operation.
6. When broad speed changes are made, the motor heading may change slightly. This is normal.

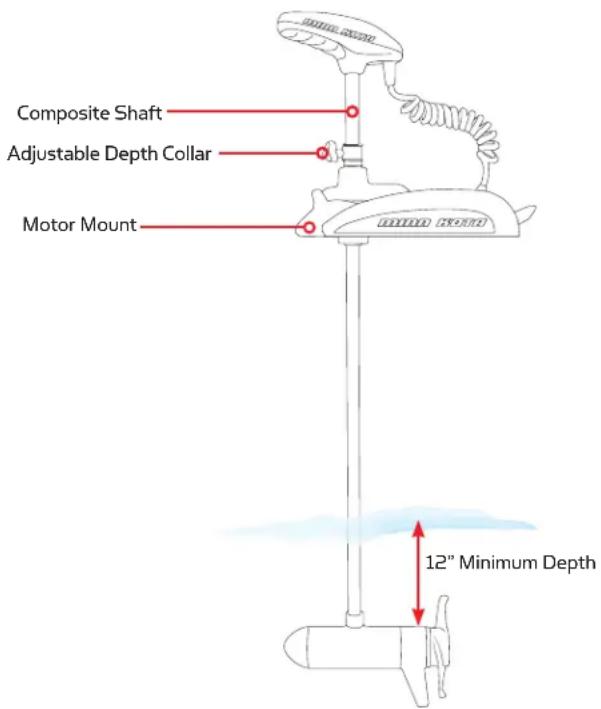

ADJUSTING THE DEPTH OF THE MOTOR

When setting the depth be sure the top of the motor is submerged at least 12" to avoid churning or agitation of surface water. The propeller must be completely submerged.

1. With the motor deployed, firmly grasp the composite shaft above the mount.
2. Loosen the adjustable depth collar until the shaft slides freely.
3. Raise or lower the motor to the desired depth.
4. Turn the motor control head to the desired position.
5. Tighten adjustable depth collar to secure the motor in place.

Composite Shaft Adjustable Depth Collar Motor Mount 12" Minimum Depth

INSTALLING AN EXTERNAL TRANSDUCER

An external sonar transducer can be installed onto the motor as shown.

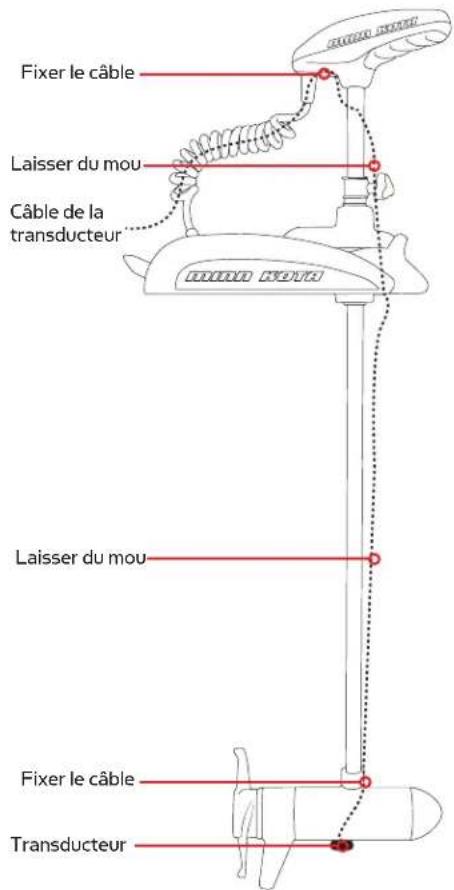

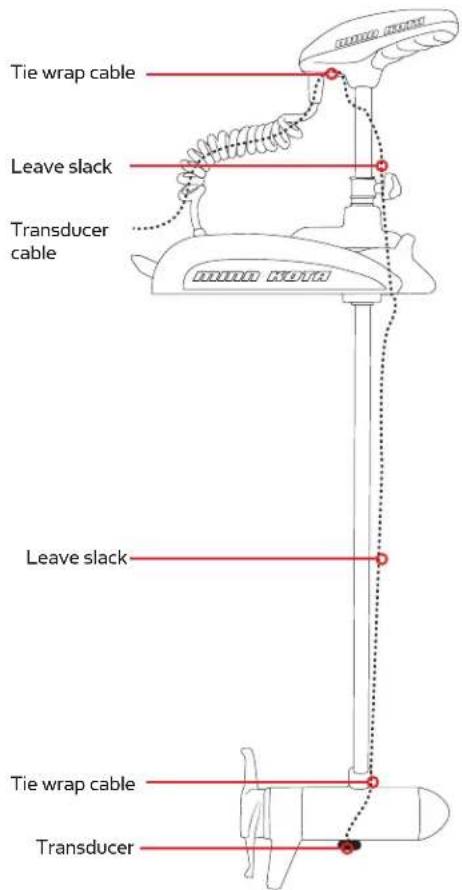

1. Transducer cables should be routed through the coil cable as depicted in the illustration to the right.
2. Leave enough slack for proper stow and deploy.
3. Mount transducer according to transducer instructions.

Note: An external transducer is not included with your trolling motor. Your trolling motor may be pre-installed with a Universal Sonar 2 transducer system. In this case, the transducer is integrated into the motor unit.

For compatibility and more information on Universal Sonar 2, please visit minnkotamotors.com/us2.

ACCESSORY RECOMMENDATIONS:

• Minn Kota Transducer Mounting Kit (MKR-15)

Tie wrap cable Leave slack Transducer cable Leave slack Tie wrap cable Transducer

USING THE FOOT PEDAL

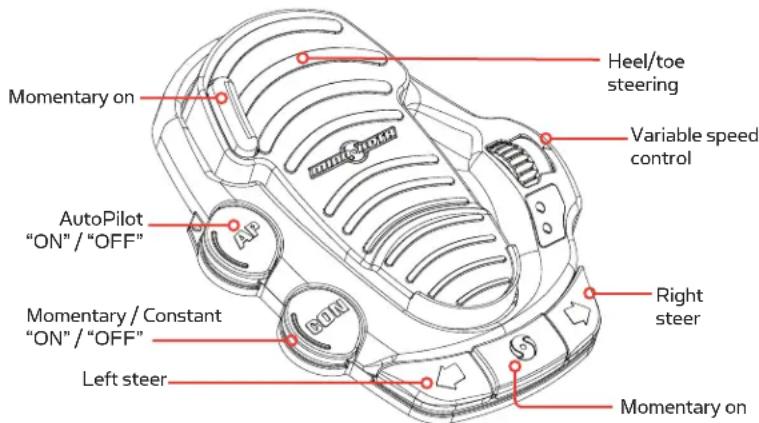

All the controls in the foot pedal are easy to operate by either foot or hand. A light touch is all that is necessary.

MOMENTARY

A toe touch on either of the two momentary buttons turns the propeller on. Let up and the propeller stops.

MOM/CON SWITCH

A toe touch to the Mom/Con button toggles the motor between momentary and constant. When the motor is in constant the propeller will run continuously with out keeping your foot on the pedal. When the motor is in momentary, a toe touch is required to one of the momentary on buttons to turn the propeller on. The Constant On indicator light will be lit when the motor is in constant state.

Momentary on AutoPilot "ON" / "OFF" Momentary / Constant "ON" / "OFF" Left steer Heel/toe steering Variable speed control Right steer Momentary on

RIGHT/LEFT

Place your foot in the center of the heel/toe pedal, rocking forward steers right. Rocking back steers left. Left and right steering control can also be done with the Left/Right steering buttons. Holding the left or right steering button down steers left or right. Small steering changes of less than one degree can be made by quickly and lightly tapping the left or right steering controls.

NOTE: The steering system is designed to turn your motor 360°. Be careful to avoid over-wrapping the coil cord around the composite shaft.

FORWARD/REVERSE

The propeller always turns in the forward direction. You can reverse the direction of thrust by turning the motor 180^ .

SPEED CONTROL

The speed selector is the rotating knob on the right side of the foot pedal. The speed control knob provides variable speed control. Use your hand or foot to rotate the knob to adjust speed.

AUTOPILOT (AUTOPILOT MODELS ONLY)

A toe touch to the AP button toggles the AutoPilot On and Off. The AutoPilot On indicator light will be lit on the foot pedal and the center console of the motor when AutoPilot is on.

NON-CARPETED BOAT USE

Enclosed with your motor are four (4) rubber bumpers. If the foot pedal is to be used primarily on non-carpeted surfaces, insert the rubber bumpers into the keyhole slots on the underside of the pedal. Slide the bumpers into the slot until they are locked into position.

SERVICE & MAINTENANCE

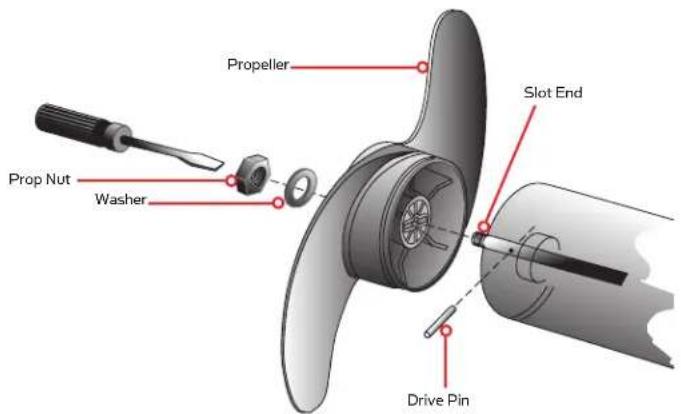

PROPELLER REPLACEMENT

TOOLS AND RESOURCES REQUIRED:

- Box End Wrench

- 1/2" for motors with 70 lbs thrust or lower.

- 9/16" for motors with 80 lbs thrust or higher.

- Screwdriver (optional)

CAUTION:

Disconnect the motor from the battery before beginning any prop work or maintenance.

NOTE: The propeller on your motor may differ from the one pictured.

Propeller Slot End Prop Nut Washer Drive Pin

1. Disconnect the motor from all sources of power prior to changing the propeller.
2. Hold the propeller and loosen the prop nut with pliers or a wrench.
3. Remove the prop nut and washer. If the drive pin is sheared or broken, you will need to hold the shaft stationary with a blade screwdriver pressed into the slot on the end of the shaft.
4. Turn the old prop to horizontal (as illustrated) and pull it straight off. If drive pin falls out, push it back in.
5. Align the new propeller with the drive pin.
6. Install the prop washer and prop nut.
7. Tighten the prop nut 1/4 turn past snug [25-35 inch lbs.] Do not over tighten as this can damage the prop.

GENERAL MAINTENANCE

• After use, the entire motor should be rinsed with freshwater. This series of motors is not equipped for saltwater exposure.
- The composite shaft requires periodic cleaning and lubrication for proper retraction and deployment. A coating of an aqueous based silicone spray will improve operation.
- The propeller must be inspected and cleaned from weeds and fi shing line after every use.

Fishing line and weeds can get behind the prop, damage the seals and allow water to enter the motor.

• Verify the prop nut is secure each time the motor is used.
• To prevent accidental damage during transportation or storage, disconnect the battery whenever the motor is off of the water. For prolonged storage, lightly coat all metal parts with an aqueous based silicone spray.
• For maximum battery life recharge the battery(s) as soon as possible after use. For maximum motor performance restore battery to full charge prior to use.
• Keep battery terminals clean with fine sandpaper or emery cloth.
• The propeller is designed to provide weed free operation with very high efficiency. To maintain this top performance, the leading edge of the blades must be kept smooth. If they are rough or nicked from use, restore to smooth by sanding with fine sandpaper.

TROUBLESHOOTING & REPAIR

1. Motor fails to run or lacks power:

2. Check battery connections for proper polarity.

3. Make sure terminals are clean and corrosion free. Use fine sandpaper or emery cloth to clean terminals.

4. Check battery water level. Add water if needed.

5. Motor loses power after a short running time:

- Check battery charge. If low, restore to full charge.

1. You experience prop vibration during normal operation:

- Remove and rotate the prop 180^ . See removal instructions in the Propeller Replacement Section.

1. Experiencing interference with your fi shfi nder:

- You may, in some applications, experience interference in your depth finder display. We recommend that you use a separate deep cycle marine battery for your trolling motor and that you power the depth finder from the starting/cranking battery. If problems still persist, call our service department at 1-800-227-6433.

NOTE: For any other malfunctions, visit an Authorized Service Center. You can search for an Authorized Service Center in your area by visiting our Authorized Service page, found online at minnkotamotors.com, or by calling our customer service number at 800-227-6433.

FOR FURTHER TROUBLESHOOTING AND REPAIR

We offer several options to help you troubleshoot and/or repair your product. Please read through the options listed below.

QUENTLY ASKED QUESTIONS

We have FAQs available on our website to help answer all of your Minn Kota questions. Visit minnkotamotors.com and click on "Frequently Asked Questions" to find an answer to your question.

L US (FOR U.S. AND CANADA)

Our consumer service representatives are available Monday – Friday between 7:00 a.m. – 4:30 p.m. CST at 800-227-6433. If you are calling to order parts, please have the 11-character serial number from your product, specific part numbers, and credit card information available. This will help expedite your call and allow us to provide you with the best consumer service possible. You can reference the parts list located in your manual to identify the specific part numbers.

AIL US

You can email our consumer service department with questions regarding your Minn Kota products. To email your question, visit minnkotamotors.com and click on "Support".

THORIZED SERVICE CENTERS

Minn Kota has over 300 authorized service centers in the United States and Canada where you can purchase parts or get your products repaired. Please visit our Authorized Service Center page on our website to locate a service center in your area.

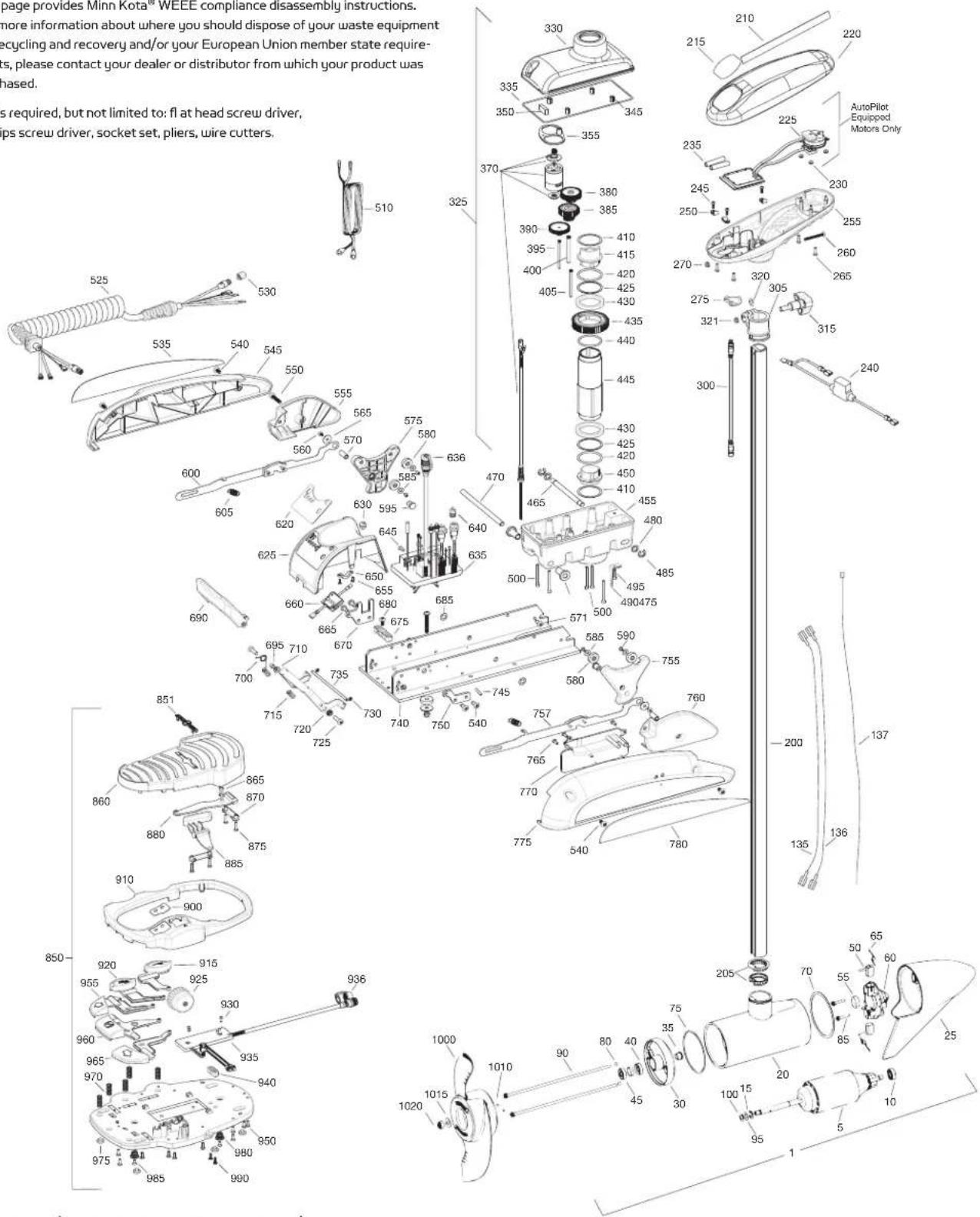

PARTS DIAGRAM

TERROVA 55

55 LBS THRUST - 12 VOLT - 45"/48"/54" SHAFT

This page provides Minn Kota ^® WEEE compliance disassembly instructions.

For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

Tools required, but not limited to: flat head screw driver, Phillips screw driver, socket set, pliers, wire cutters.

page provides Minn Kota® WEEE compliance disassembly instructions. more information about where you should dispose of your waste equipment recycling and recovery and/or your European Union member state require- s, please contact your dealer or distributor from which your product was based. is required, but not limited to: fl at head screw driver, ips screw driver, socket set, pliers, wire cutters.

Part #2324950 Rev E 11/15ECN 36894

PARTS LIST

TERROVA 55
55 LBS THRUST - 12 VOLT - 45"/48"/54" SHAFT

ITEM QTY		PART NUMBER	DESCRIPTION
11 2779021 12V MOTOR 54" FW
	1 2779020 12V MOTOR 48" FW
	1 2779023 12V MOTOR US2 54"
	1 2779022 12V MOTOR US2 48"
	1 2779029 12V MOTOR US2 45"
5 12-100-146 ARMATURE AS SEMBLY
10	1	140-010 BEARING
15	1	788-015	RETAINING RING
20			INCLUDED IN #200 ASSY
25	1	421-050	BRUSH END HOUSING ASSEMBLY STD
	1 9421-146 BRUSH END HOUSING US2 54"
	1 9421-145 BRUSH END HOUSING US2 48"
30	1	2-400-101	PLAIN END HOUSING ASSY
35	1	144-049	FLANGE BEARING
40	1 880-003 SEAL
45	1 880-006 SEAL W/SHIELD
50	2 183-036 BRUSH
55	1 725-050 PAPER TUBE
60	1	738-036	BRUSH PLATE ASSEMBLY
65	2 975-040 BRUSH SPRING
70	1	337-036	GASKET
75	1	701-081	O-RING - MOTOR
80	2 701-008 O-RING - THRU-BOLT
85	2 830-007 SCREW, 8-32
90	2	830-008 THRU-BOLT
95	2	990-067	WASHER - STEEL
100	2	990-070	WASHER - NYLATRON
135	1	640-031	LEADWIRE - BLACK
136	1	640-135	LEADWIRE - RED
137	1	640-316	GROUNDWIRE - BROWN, US2 ONLY
200	1 2779105 TUBE - COMPOSITE 54" FW
205			INCLUDED IN #200 ASSY
210	2	2325665	DECAL, COVER
215	1	2325670	DECAL, CTRL BOX 55
	1	2325671	DECAL, CTRL BOX 55 US2
	1	2325672	DECAL, CTRL BOX 55 AUTOPILOT
	1	2325673	DECAL, CTRL BOX 55 AUTOPILOT & US2
220	1	2320200	COVER, CTRL BOX
225	1	2324032	CTRL BOARD, COMPASS, AUTOPILOT ONLY
230	3	2302960	GROMMET, COMPASS, AUTOPILOT ONLY
235	2	2065400	WIRE INSULATOR
240	1 2218200 FUSE HOLDER - US2 ONLY
245	3 2372100 SCREW, 8-18 X .625
250	3	2052510	CABLE CLAMP
255	1	2322500	CTRL BOX
260	1 23382102 SCREW, 10-24
265	4	2372100	SCREW, 8-18 X .625
270	1	2333101	NUT, 10-24
275	1	2224700	PLUG, CTRL BOX, US2 - SMALL HOLE
	1 2224702 PLUG, CT RL BOX - NO HOLE

ITEM QTY		PART NUMBER	DESCRIPTION
	1	2224704	PLUG, CTRL BOX - LARGE HOLE
300	1	2211415	UNIVERSAL SONAR 2 EXTENSION CABLE
305	1	2771500	DEPTH COLLAR ASSY
315	1	2260906	KNOB (INCLUDED IN #305)
320	1	2321706	WASHER (INCLUDED IN #305)
321	1 2323102 NUT (INCLUDED IN #305)
325	1	2997050	STEERING HOUSING
330	1	2326501	STEERING HOUSING TOP
335	1	2324604	O-RING, CASE SEAL
345	4 2305605 ROLL PIN 5/16
350	1 2308601 BREATHER, FILTER
355	1 2328610 CRADLE, MOTOR
370	1	2777055	MOTOR, STEERING, ASSY
380	1	2302255	GEAR, CLUSTER 3RD STAGE
385	1	2302250	GEAR, CLUSTER 2ND STAGE
390	1	2302245	GEAR, CLUSTER 1ST STAGE
395	1	2302610	SHAFT, GEAR 1ST STAGE
400	1	2302620	SHAFT, GEAR 3RD STAGE
405	1	2302615	SHAFT, GEAR 2ND STAGE
410	2	2321704	WASHER - THRUST
415	1	2321515	LINER - OUTPUT TUBE
420	2	2324608	O-RING - 224
425	2 2321720 SHIM - O-RING
430	2	2327308	BEARING, BALL SEALED
435	1	2322200	GEAR - OUTPUT
440	1 2324601 O-RING - OUTPUT GEAR
445	1 2322030 TUBE - OUTPUT MACHINED
450	1	2321510	COLLAR DRIVE, BOTTOM
455	1	2326506	STEERING HOUSING - BOTTOM
465	1	2322600	PIN, LATCH, ZP
470	1	2322602	PIN, PIVOT, ZP
475	2	2327310	BUSHING - PIVOT PIN
480	2	2321702	WASHER - FLAT .375
485	2 2263011 E-RING .375
490	2	2322702	SPRING - LATCH PIN
495	1	2323410	SCREW, 8-32 X .75
500	7	2323408	SCREW, 8-32 X 2
510	1 2090651 LEADWIRE - 10 GA
525	1 2991273 COIL CORD, 45" / 48"
	1	2991271 COIL CORD, 54"
	1 2991274 COIL CORD, US2, 45" / 48"
	1 2991272 COIL CORD, US2, 54"
530	1	2320202	CAP, DUST, COIL CORD, NON-AP ONLY
535	1	2325641	DECAL, SIDEPLATE, LEFT
540	4 2323404 SCREW, 1/4-20
545	1	2321915	SIDEPLATE, LEFT
550	2	2323403	SCREW, 1/4-20 X .375 SS CRPH
555	1	2321925	SKID, LEFT
560	2 2323422 SCREW, 10-24 X .375

PARTS LIST

TERROVA 55
55 LBS THRUST - 12 VOLT - 45"/48"/54" SHAFT

ITEM QTY		PART NUMBER	DESCRIPTION
565 2 23	21700	WAS HER, #10 SS
570 2 23	22920	ST AND-OFF, AL	UM PLA IN
571 2 23	23405	SCREW 1/4-20 X	1/2" MCH SS
575 1 23	23915	RAMP - 3 5/8" LEFT
580	4	2325115	PAD - RUBBER REST
585 4 23	21706	WASHER, #8
590	4	2323412	SCREW, 8-18 X .25
595	2	2324705	INSERT - RAMP
600 1 29	94202	ARM - RELEASE	LEFT
605	2	2322710	SPRING - EXTENSION
■	1	2770250	COVER, SPEED CONTROL WITH DECAL
620	1	2325650	DECAL, SPEED CONTROL
625 1	232	20210 COVER - S	PEED CONTROL
630 1	232	2901 ST RAIN RELIEF
635	1	2324018	CONTROL BOARD, 12V STANDARD (1 PORT)
	1	2324022	CONTROL BOARD, 12V IPILOT/LINK (2 PORT)
■		2884050	SWITCH - REED REPAIR KIT
636	1	2320208	DUST PLUG
640	1	2320203	CAP, DUST, CONTROL BRD
645	2	2323406	SCREW, 10-24 X
650	1	2321315	HOLDER - CONNECTOR
655 2 23	32103	SCREW, 6-20 X .375
660 1	207	4070 BATTERY	MET ER, 12V
665	4 23	3402 SCREW, 1/4-20 X .375
670	1	2321940	BRACKET, STRAIN RELIEF
675	1	2321310	STRAIN RELIEF, WIRE
680 1 23	23405	SCREW, 1/4-20 X .5
685 2	201	100 SPEED NUT. .375
690	1	2320215	HANDLE, RELEASE COVER
695	1	2301700	BUSHING,
700	1	2322701	SPRING, RELEASE HANDLE
710 1 23	20400	HANDLE, RELEAS E FW
715 2	232	2712 SPRING, RELEAS E HANDLE
720	2	2322604	BUSHING, HANDLE
725	2	2332104	SCREW, 1/4-20 X .625
730	2	2323000	E-CLIP, 3/16, SS
735 1	232	606 PIN, FOLLOWER, HANDLE
740 1 23	21905	BAS E EXTR	USION, MACHINED
745 2 23	22912	SPRING PIN,
750	1	2321950	BRACKET, SIDEPLATE
755 1	232	910 RAMP, 3 5/8" RIGHT
757	1	2994204	ARM, RELEASE, RIGHT
760	1	2321920	SKID, RIGHT
765	3	2301310	SCREW, 8-18 X .5
770	1	2320220	COVER, ACCESS, FW
775	1	2321910	SIDEPLATE, RIGHT
780	1	2325640	DECAL, SIDEPLATE, RIGHT
850	1	2994720	FOOT PEDAL
851	1	2326710	PLUG, FOOT PEDAL

ITEM QTY		PART NUMBER	DESCRIPTION
860	1	2324400	PEDAL, HEEL-TOE
865 1 23	22714 SPRING, MOMENTARY
870	2	2321300	CLAMP
875 4 22	23430 SCREW, 8 X .75
880 1 23	28600	FLEX FINGER
885 1 23	23710 BUTTON, MOMENTARY, LEFT
900	1	2325660	DECAL, FOOT PEDAL
910	1	2320205	COVER, HEEL-TOE
915	1	2323725	BUTTON, AP
920 1	238	3715 BUTTON, MOM/CON
925 1 23	20100	KNOB, SPEED, FOOT PEDAL
930	2	2332103	SCREW, 6-20 X .375
935	1	2324021	CONTROL BOARD, FOOT PEDAL
936	1	2320207	DUST CAP
940	1	2322900	STRAIN RELIEF, FOOT PEDAL
945	1	2324500	BASE PLATE, FOOT PEDAL
950	10	2301310 SCREW, #8 X .5
955 1 23	23730 BUTTON, STEER, LEFT
960 1	238	3735 BUTTON, MOMENTARY
965 1	238	3731 BUTTON, ST EER, RIGHT
970	5	2322704	SPRING, FOOT PEDAL
975	1	2994859	BUMPER, BAG ASSY
980	2	2322706	SPRING, BARREL
985 2	2328	420 SCREW, 8 18 X .375
990	2	2372100	SCREW, 8-18 X .625
■		1378131	PROPELLER KIT WW2
■		2994875	PROPELLER BAG ASSY
1000	1	2091160	PROPELLER WW2
1010	1	2092600	DRIVE PIN, SMALL
1015	1	2151726	WASHER, PROP, SMALL
1020	1 20	3101 NUT, NYLOCK, PROP, SMALL
■		2994864	MOUNTING HARDWARE BAG ASSY
■		2888460	SEAL & O-RING KIT

THIS ITEM IS PART OF AN ASSEMBLY.
*THIS ITEM IS PART OF A KIT AND ONLY LISTED FOR VIEWING PURPOSES.

COMPLIANCE STATEMENTS

ENVIRONMENTAL COMPLIANCE STATEMENT:

It is the intention of JOME to be a responsible corporate citizen, operating in compliance with known and applicable environmental regulations, and a good neighbor in the communities where we make or sell our products.

WEEE DIRECTIVE:

EU Directive 2002/96/EC “Waste of Electrical and Electronic Equipment Directive (WEEE)” impacts most distributors, sellers, and manufacturers of consumer electronics in the European Union. The WEEE Directive requires the producer of consumer electronics to take responsibility for the management of waste from their products to achieve environmentally responsible disposal during the product life cycle.

WEEE compliance may not be required in your location for electrical & electronic equipment (EEE), nor may it be required

for EEE designed and intended as fixed or temporary installation in transportation vehicles such as automobiles, aircraft, and boats. In some European Union member states, these vehicles are considered outside of the scope of the Directive, and EEE for those applications can be considered excluded from the WEEE Directive requirement.

Symbol of a trash bin crossed with two crossed lines and a solid rectangle below (no text or labels)

This symbol (WEEE wheelie bin) on product indicates the product must not be disposed of with other household refuse. It must be disposed of and collected for recycling and recovery of waste EEE. Johnson Outdoors Inc. will mark all EEE products in accordance with the WEEE Directive. It is our goal to comply

in the collection, treatment, recovery, and environmentally sound disposal of those products; however, these requirement do vary within European Union member states. For more information about where you should dispose of your waste equipment for recycling and recovery and/or your European Union member state requirements, please contact your dealer or distributor from which your product was purchased.

DISPOSAL:

Minn Kota motors are not subject to the disposal regulations EAG-VO (electric devices directive) that implements the WEEE directive. Nevertheless never dispose of your Minn Kota motor in a garbage bin but at the proper place of collection of your local town council.

Never dispose of battery in a garbage bin. Comply with the disposal directions of the manufacturer or his representative and dispose of them at the proper place of collection of your local town council.

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

NOTES

RECOMMENDED ACCESSORIES

ON-BOARD & PORTABLE BATTERY CHARGERS

Stop buying new batteries and start taking care of the ones you've got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.

Black precision electronic device with control panel and wiring (no visible text or symbols)

Black digital audio device with visible label (no readable text beyond branding)

Black industrial electrical lamp with attached clamp and power cord (no visible text or symbols)

MK210DMK345PC MKI10P

TALON SHALLOW WATER ANCHOR

Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12' and bold color options including camo, it boasts an arsenal of features and innovations that no other anchor can touch:

Three vertical metal storage bins with black and white panels, no visible text or symbols on the bins themselves.

• Vertical, Multi-Stage Deployment

- Triple Debris Shields

- User-Selectable Anchoring Modes

• Built-In Wave Absorption

- 2x Anchoring Force

- Noise Dissipation

- Fast Deploy

- Versatile Adjustments

- Auto Up/Down

MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

Three electronic components: a battery pack, a hand holding a switch, and a control box with a sensor (no visible text or symbols)

- 60-Amp Circuit Breaker

- Battery Connectors

- Mounting Brackets

- Battery Boxes

- Stabilizer Kits

- Quick Connect Plugs

- Extension Handles

For a complete listing of Minn Kota accessories, visit minnkotamotors.com

Follow us:

minnkotamotors.com

Minn Kota Consumer & Technical Service

Johnson Outdoors Marine Electronics, Inc.

PO Box 8129

Mankato, MN 56001

121 Power Drive

Mankato, MN 56001

Phone [phone]

Fax [phone]

©2015 Johnson Outdoors Marine Electronics, Inc. All rights reserved.

minn.kota

Line drawing of a Minn KOTA water heater with attached cable and control panel (no text or symbols)

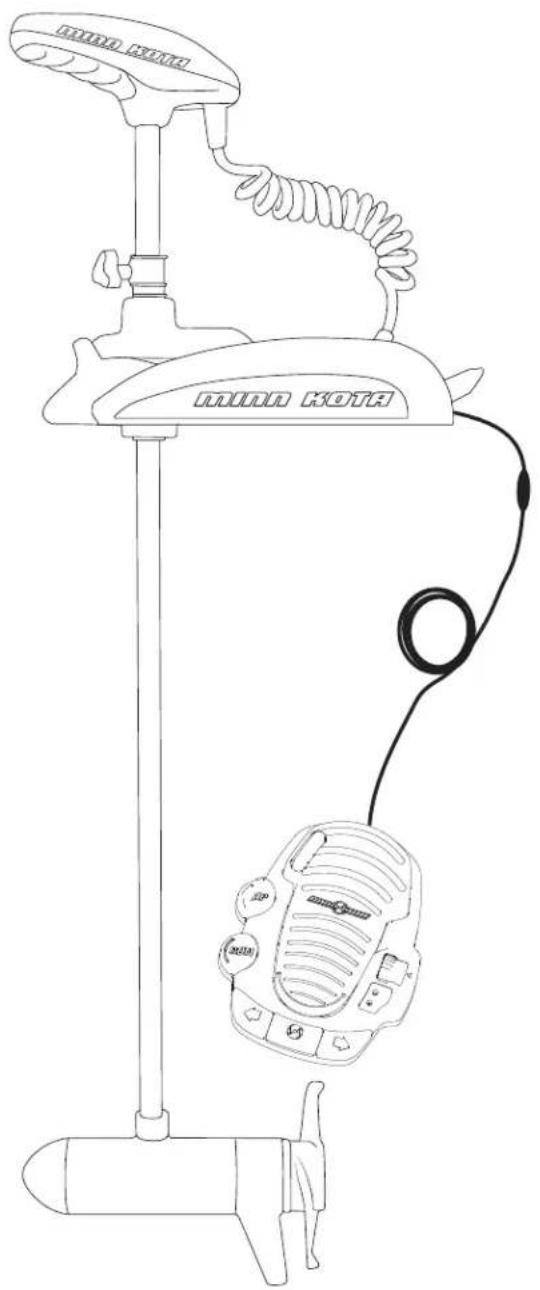

TERROVA

MOTEUR DE PÊCHE À LA TRAÎNE MONTÉ SUR L'ÉTRAVE

MANUEL DE L'UTILISATEUR

MERCI

Line drawing of a vintage telephone receiver with coiled cable (no text or symbols)

Modèle :

Numéro de série :

Date de l'achat :

EXCLUSIONS & LIMITATIONS

INFORMATION SUR LE SERVICE MINN KOTA

• Minn Kota Transducer Mounting Kit (MKR-15)

DÉCLARATION DE CONFORMITÉ

DÉCLARATION DE CONFORMITÉ ENVIRONNEMENTALE

Stop buying new batteries and start taking care of the ones you've got. Many chargers can actually damage your battery over time – creating shorter run times and shorter overall life. Digitally controlled Minn Kota chargers are designed to provide the fastest charge that protect and extend battery life.

Exterior view of a black precision electronic device with visible ports and wiring (no readable text or symbols)

Black digital audio device with no visible text or symbols on body

Black industrial electrical lamp with clamps and a side panel (no visible text or symbols)

MK210DMK345PC MKI10P

TALON SHALLOW WATER ANCHOR

Talon deploys faster, holds stronger and runs quieter than any other shallow water anchor. Available in depths up to 12' and bold color options including camo, it boasts an arsenal of features and innovations that no other anchor can touch:

Three vertical metal storage bins with black and white clamps, no visible text or symbols

• Vertical, Multi-Stage Deployment

- Triple Debris Shields

- User-Selectable Anchoring Modes

• Built-In Wave Absorption

- 2x Anchoring Force

- Noise Dissipation

- Fast Deploy

- Versatile Adjustments

- Auto Up/Down

MINN KOTA ACCESSORIES

We offer a wide variety of trolling motor accessories, including:

Three electronic devices: a battery pack, a hand holding a switch, and a portable device with a sensor (no visible text or symbols)

- 60-Amp Circuit Breaker

- Battery Connectors

- Mounting Brackets

- Battery Boxes

- Stabilizer Kits

- Quick Connect Plugs

- Extension Handles

For a complete listing of Minn Kota accessories, visit minnkotamotors.com

Follow us:

minnkotamotors.com

Minn Kota Consumer & Technical Service

Johnson Outdoors Marine Electronics, Inc.

PO Box 8129

Mankato, MN 56001

121 Power Drive

Mankato, MN 56001

Phone [phone]

Fax [phone]

©2015 Johnson Outdoors Marine Electronics, Inc. All rights reserved.
