GJ464 - Mixer BUFFALO - Free user manual and instructions

Brand	Buffalo
Model	GJ464
Product type	Planetary mixer
Bowl capacity	7 liters
Dimensions (H x W x D)	405 x 235 x 380 mm
Weight	14.5 kg
Voltage	230 V, 50 Hz
Power	500 W
Current	1.6 A
Variable speed	3 speeds (0-3) with progressive adjustment
Included accessories	Spiral dough hook, beater, whisk, bowl, protective cover
Maximum flour capacity	1000 g
Maximum dough capacity	1500 g
Functions	Mixing light and heavy doughs, creams, egg whites, etc.
Care and cleaning	Bowl and accessories washable in warm soapy water; exterior cleaned with a damp cloth
Safety	Automatic shut-off in case of overload; safety head lock; splash protection
Power supply	Earthing required; cable with appropriate mains plug
Repairability	Spare parts available from Buffalo; servicing by a qualified technician
Warranty	Manufacturer's warranty (refer to retailer)

Frequently Asked Questions - GJ464 BUFFALO

How to install the mixer bowl?

Before any operation, turn off the appliance. Unlock and raise the mixer head using the lever, position the bowl and rotate it to lock. Follow the reverse instructions to remove.

What accessories are provided and what are they used for?

Three accessories are included: the beater for firm mixtures (cake batter, glazes, purees), the spiral dough hook for heavy mixtures (bread dough, pie dough) and the whisk for light mixtures (whipped cream, egg whites, mayonnaise).

How to change the accessory?

Turn off the appliance. Raise the mixer head. Push the accessory upward and turn it to the right to remove. Insert the new accessory by pushing upward and turning to the left to lock. Then lower the head until the lever is locked.

What speed to use for each accessory?

For the beater: speed 1-2. For the dough hook: speed 0-1. For the whisk: speed 2-3. Always start at low speed.

What to do if the appliance does not start?

Check that the appliance is plugged in and turned on. Check the socket and cord: if damaged, contact a technician. The internal or socket fuse may have blown; replace it. Ensure the power supply is working.

Why is my mixer noisy?

This may be due to a poorly fitted bowl or accessory. Remove them and refit properly. If the noise persists, bearings or gears may be worn; contact a qualified Buffalo technician.

How to clean the mixer?

Always turn off and unplug the appliance before cleaning. Wash the bowl and accessories in warm soapy water without using abrasives. Clean the exterior with a damp cloth. Dry all parts thoroughly. Never immerse the appliance or use a pressure washer.

What is the maximum dough capacity?

The 7-liter bowl can hold up to 1500 g of dough and 1000 g of flour. Do not exceed these quantities to avoid overload.

What to do if the appliance overheats?

If the mixer overheats, turn it off immediately. This may be due to excessive load or prolonged use. Remove some contents or let the appliance cool for 30 minutes before reuse.

The accessory is not turning correctly, what to do?

First check that the accessory is properly locked. If the problem persists, the internal belt may be detached. In this case, contact a qualified Buffalo technician for repair.

USER MANUAL GJ464 BUFFALO

White multifaceted mixing bowl with side panel and side control knob (no visible text or symbols)

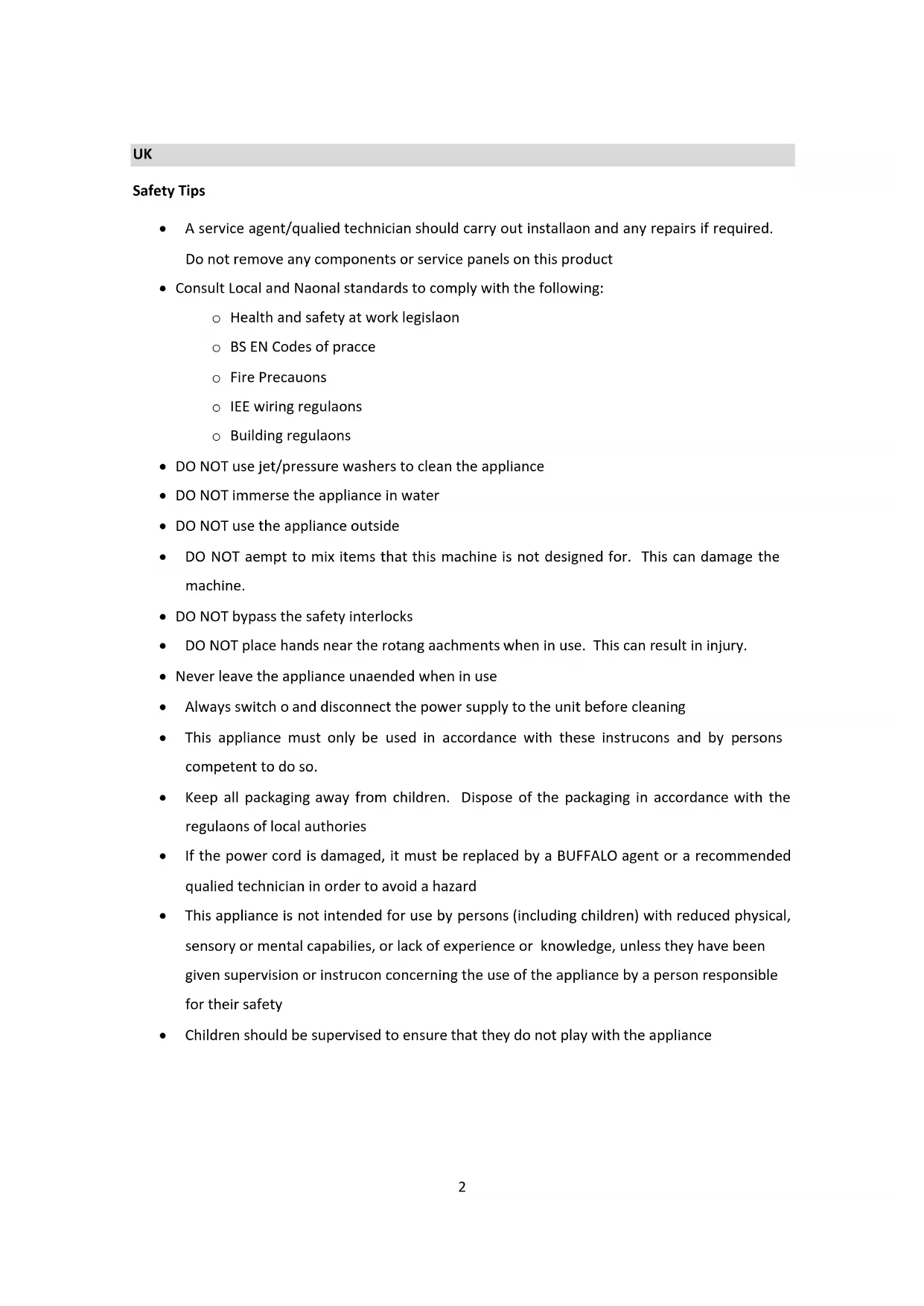

• A service agent/qualified technician should carry out installaon and any repairs if required. Do not remove any components or service panels on this product
• Consult Local and Naonal standards to comply with the following:

o Health and safety at work legislaon
- BS EN Codes of pracce
- Fire Precauons
○ IEE wiring regulaons
○ Building regulaons

• DO NOT use jet/pressure washers to clean the appliance
  • DO NOT immerse the appliance in water
  • DO NOT use the appliance outside
• DO NOT aempt to mix items that this machine is not designed for. This can damage the machine.
  • DO NOT bypass the safety interlocks
  • DO NOT place hands near the rotang aachments when in use. This can result in injury.
• Never leave the appliance unaended when in use
  • Always switch o and disconnect the power supply to the unit before cleaning
• This appliance must only be used in accordance with these instrucons and by persons competent to do so.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulaons of local authorities
• If the power cord is damaged, it must be replaced by a BUFFALO agent or a recommended qualified technician in order to avoid a hazard
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instrucon concerning the use of the appliance by a person responsible for their safety
  • Children should be supervised to ensure that they do not play with the appliance

Product Descripon

GJ464 – BUFFALO Planetary Mixer 7L

Pack Contents

BUFFALO Planetary Mixer Spiral Dough Hook

Beater Whisk

Mixing Bowl Splash Guard

Instrucon manual

BUFFALO prides itself on quality and service, ensuring that at the me of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your BUFFALO dealer immediately.

Installaon

Ensure the locaon of the Planetary Mixer is capable of supporting its weight

WARNING: The Planetary Mixer is heavy; care must be taken when moving it.

Assembly

WARNING: The bowl must be aached prior to starng the mixer

Bualo accept no responsibility for any injury caused by incorrect assembly of this appliance.

NOTE: Ensure the mixer is level to reduce vibraon during operaon

Remove the mixer from all packaging

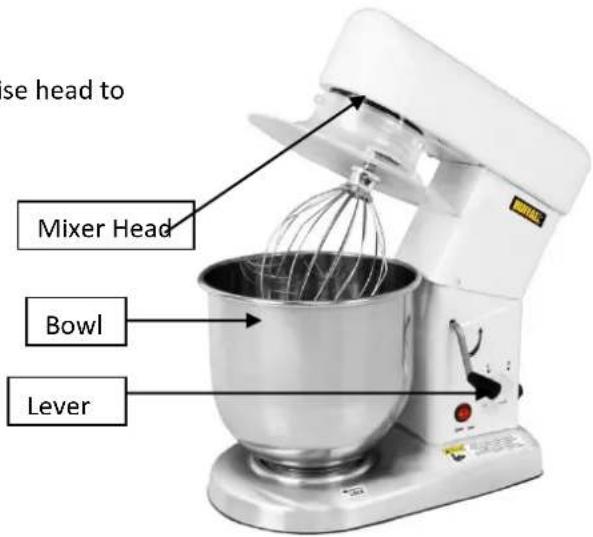

Fing / Removing the Bowl

1. Turn o the appliance
2. Unlock the mixer head using the lever and raise head to upright posion
3. Place bowl into posion and twist to lock
4. Reverse process to unlock and remove bowl

se head to Mixer Head Bowl Lever

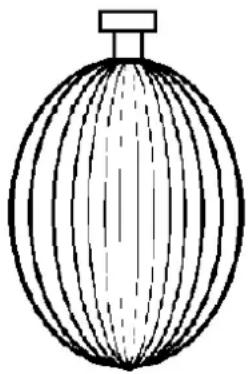

Changing the Mixer Aachment

1. Turn o the appliance
2. Unlock the mixer head using the lever and raise head to upright posion
3. Push the mixer aachment up and to the right to release it
4. Insert the desired aachment. Push up and to the le to lock into place.
5. Lower the mixer head unl lever locks.

BUFFALO recommend the following uses for each aachment:

	Beater	Firm mixesLight Pastry, cake/biscuit mix, icings, llings and mashed vegetables	Recommended speed between 1-2
	Spiral Dough Hook	Heavy mixesDough, pie pastry etc	Recommended speed between 0-1
	Whisk	Light Mixes Whipped cream, mayonnaise, egg whites, pancakes and soués	Recommended speed between 2-3

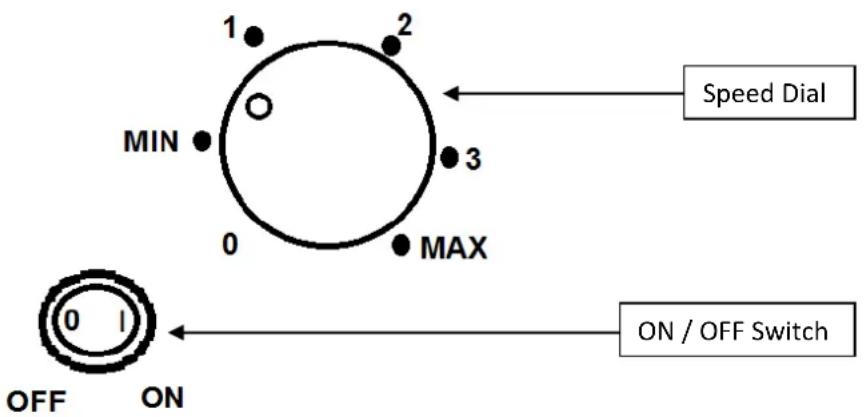

Layout of Controls

ON/OFF switch – Press to turn the mixer ON / OFF

Speed Dial – Use to adjust the speed of the mixer

Operaon

NOTE: Ensure that these instrucons have been read thoroughly and the operaon of the appliance is fully understood before use.

All personnel using the appliance should be fully trained on the operaon and safety precautions of the mixer

UK

Mixing

WARNING: Always ensure the appliance is turned o before placing hands in the mixing bowl

1. Unlock the mixer head using the lever and raise head to upright posion
2. Fill the bowl with ingredients to be mixed

NOTE: Ensure Speed Dial is turned to the 0 posion

1. Switch ON/OFF switch to ON posion.
2. Start mixing ingredients by rotang speed dial to the desired seng

NOTE: If the appliance is straining to mix then turn the appliance OFF and remove some of the contents of the bowl before restarng

Mixing Capacity

Model	Bowl Volume	MAX Flour	MAX Dough
GJ464	7L	1000g	1500g

Cleaning, Care & Maintenance

• Always turn o the mixer and disconnect from the power supply before cleaning.
- Use warm soapy water to clean the bowl and mixing aachments. Do not use abrasive cleaning chemicals as these can leave harmful residues.
- Clean the exterior of the appliance with a damp cloth.
- Dry all parts thoroughly aer cleaning.
- Do not use jet/pressure washers to clean the appliance.
- Clean the appliance regularly.

Trouble Shoong

Fault	Probable Cause	Acon
The appliance is not working	The unit is not switched on	Check the unit is plugged in correctly and switched on
	Plug and lead are damaged	Call BUFFALO agent or qualified Technician
	Fuse in the plug has blown	Replace the fuse
	Appliance protecon fuse (located on rear of appliance) has blown	Replace the fuse
	Power supply	Check power supply
Bowl will not t back in to place	Bowl pins or surrounding area clogged with mix	Clean the appliance
The appliance is overheang	The mixing bowl is overloaded	Turn o the appliance and empty some of the contents
	The appliance has been operang for too long	Turn o the appliance and allow to cool down for 30 minutes
The appliance is noisy	Bowl or mixing aachment not correctly ed	Remove and ret bowl/mixing aachment
	Worn bearings/damaged gears	Call BUFFALO agent or qualified Technician
The mixing aachment fails to rotate properly	The belt has become loose	Call BUFFALO agent or qualified Technician

Technical Specicaons

Model	Voltage	Power	Current	Capacity (Litres)	Dimensions h x w x d mm	Weight (kg)
GJ464	230v 50hz	500w	1.6A	7.0	405 x 235 x 380	14.5

UK

Electrical Wiring

This appliance is supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

This appliance is wired as follows:

• Live wire (coloured brown) to terminal marked L
- Neutral wire (coloured blue) to terminal marked N
- Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed, using a dedicated earthing circuit.

If in doubt consult a qualified electrician.

Electrical isolaon points must be kept clear of any obstrucons. In the event of any emergency disconnecon being required they must be readily accessible.

Compliance

The WEEE logo on this product or its documentaon indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further informaon on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

BUFFALO parts have undergone strict product tesng in order to comply with regulatory standards and speciaons set by internaonal, independent, and federal authorities.

BUFFALO products have been approved to carry the following symbol:

All rights reserved. No part of these instrucons may be produced or transmied in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of BUFFALO.

Every eort is made to ensure all details are correct at the me of going to press, however, BUFFALO reserve the right to change specicaons without noce.

Veiligheidspss

GJ464 – BUFFALO Planetary Mixer 7L

Colocar/Remover a taça

DECLARATION OF CONFORMITY

- Conformiteitsverklaring • Déclaration de conformité • Konformitätserklärung • Dichiarazione di conformità •

- Declaración de conformidad • Declaração de conformidade

Equipment Type • Uitrustingstype • Type d'équipement • Gerätetyp • Tipo di apparecchiatura • Tipo de equipo • Tipo de equipamento

Application of Council Directives(s)

Toepassing van Europese Richtlijn(en) • Application de la/des directive(s) du Conseil • Anwendbare EU-Richtlinie(n) • Applicazione delle Direttive • Aplicación de la(s) directiva(s) del consejo • Aplicação de directiva(s) do Conselho

Standards

Standaarden • Normes • Normen • Standard • Estándares • Normas

EMC Directive 2004/108 EC

LVD Directive 2006/95 EC

Materials & Articles in

Contact with Food

1935/2004 EC

RoHS 2011/65/EU

MD 2006/42/EC

EN 62233:2008

EN 60335-1:2012

EN 60335-2-64:2000+A1

EN 55014-1 & 2

EN 61000-3-2 & 3

IEC 62321:2008

LFGB 30 & 31

Buffalo

Fourth Way,

Avonmouth,

Bristol,

BS11 8TB

United Kingdom

I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
