USER MANUAL ScopiX IV OX9104 METRIX

Sonde Adapt. BNC Adapt. Banane Pince Pince Amp FLEX MiniAmp

Active/désactive le mode Pass/Fail

IEC 61010-1 (2010 + amendement 1) IEC 61000-2-030 (2017)

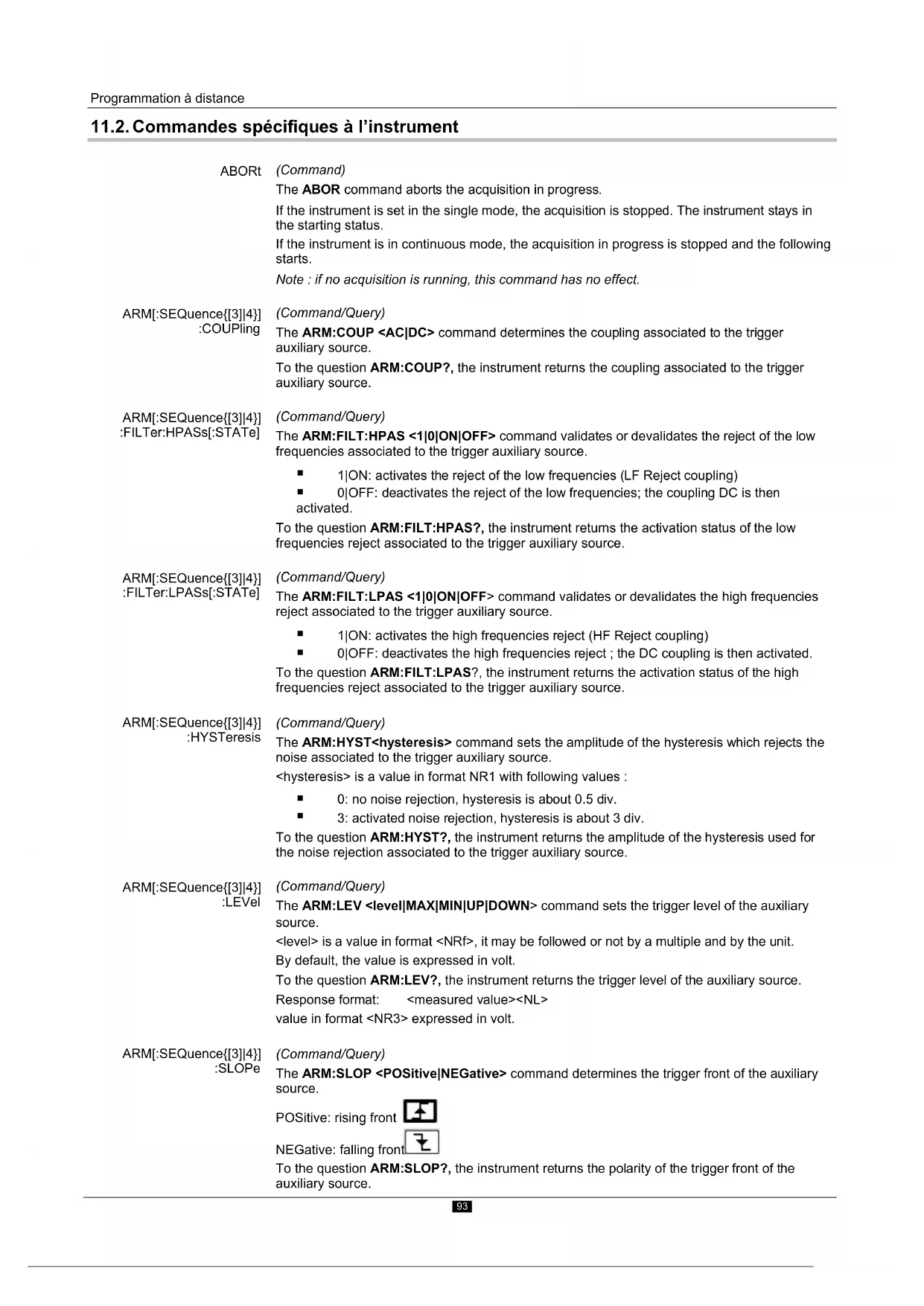

(Command) The ABOR command aborts the acquisition in progress. If the instrument is set in the single mode, the acquisition is stopped. The instrument stays in the starting status. If the instrument is in continuous mode, the acquisition in progress is stopped and the following starts. Note : if no acquisition is running, this command has no effect.

ARM[:SEQuence{[3]|4}] :COUPling (Command/Query) The ARM:COUP <AC|DC> command determines the coupling associated to the trigger auxiliary source. To the question ARM:COUP?, the instrument returns the coupling associated to the trigger auxiliary source.

ARM[:SEQuence{[3]|4}] :FILTer:HPASs[:STATe] (Command/Query) The ARM:FILT:HPAS <1|0|ON|OFF> command validates or devalidates the reject of the low frequencies associated to the trigger auxiliary source.

1|ON: activates the reject of the low frequencies (LF Reject coupling)

0|OFF: deactivates the reject of the low frequencies; the coupling DC is then activated. To the question ARM:FILT:HPAS?, the instrument returns the activation status of the low frequencies reject associated to the trigger auxiliary source.

ARM[:SEQuence{[3]|4}] :FILTer:LPASs[:STATe] (Command/Query) The ARM:FILT:LPAS <1|0|ON|OFF> command validates or devalidates the high frequencies reject associated to the trigger auxiliary source.

1|ON: activates the high frequencies reject (HF Reject coupling)

0|OFF: deactivates the high frequencies reject ; the DC coupling is then activated. To the question ARM:FILT:LPAS?, the instrument returns the activation status of the high frequencies reject associated to the trigger auxiliary source.

ARM[:SEQuence{[3]|4}] :HYSTeresis (Command/Query) The ARM:HYST<hysteresis> command sets the amplitude of the hysteresis which rejects the noise associated to the trigger auxiliary source. <hysteresis> is a value in format NR1 with following values :

0: no noise rejection, hysteresis is about 0.5 div.

3: activated noise rejection, hysteresis is about 3 div. To the question ARM:HYST?, the instrument returns the amplitude of the hysteresis used for the noise rejection associated to the trigger auxiliary source.

ARM[:SEQuence{[3]|4}] :LEVel (Command/Query) The ARM:LEV <level|MAX|MIN|UP|DOWN> command sets the trigger level of the auxiliary source. <level> is a value in format <NRf>, it may be followed or not by a multiple and by the unit. By default, the value is expressed in volt. To the question ARM:LEV?, the instrument returns the trigger level of the auxiliary source. Response format: <measured value><NL> value in format <NR3> expressed in volt.

ARM[:SEQuence{[3]|4}] :SLOPe (Command/Query) The ARM:SLOP <POSitive|NEGative> command determines the trigger front of the auxiliary source. POSitive: rising front NEGative: falling front To the question ARM:SLOP?, the instrument returns the polarity of the trigger front of the auxiliary source.Programmation à distance

ARM[:SEQuence{[3]|4}] :SOURce (Command/Query) The ARM:SOUR <INTernal{1|2|3|4}> command determines the auxiliary trigger source of the instrument. INTernal{1|2|3|4} corresponds to the trigger source (1, 2, 3, 4 channels) of the instrument on SCOPIX and SCOPIX BUS. To the question ARM:SOUR?, the instrument returns the used trigger auxiliary source.

(Command/Query) The CALC:MATH{[1]|2|3|4} <(function)> command defines and activates the mathematical function of the selected signal. <function> is the definition of the mathematical function. (ch1-ch2) subtracts the channel 1 from channel 2. To the question CALC:MATH{[1]|2|3|4}?, the instrument returns the mathematical function of the selected signal.

CALCulate:MATH {[1] |2|3|4}[:EXPRession] :DELete (Command) The CALC:MATH{[1]|2|3|4}:DEL command deletes the mathematical function of the selected signal.

CALCulate:TRANsform :FREQuency[:STATe] (Command/Query) The CALC:TRAN:FREQ <1|0|ON|OFF> command activates the FFT calculation. To the question CALC:TRAN:FREQ?, the instrument returns the activation status of the FFT calculation.

CALCulate:TRANsform :FREQuency:WINDow (Command/Query) CALC:TRAN:FREQ:WIND <RECTangular|HAMMing|HANNing|BLACkman|FLATtop> window used for the FFT calculation. To the question CALC:TRAN:FREQ:WIND?, the instrument returns the type of window used for the FFT calculation.

DEVice:MODe (Command/Query) The DEV:MOD <SCOPe|ANALYSer|LOGger|MULTimeter> command selects the principal mode of the instrument. To the question DEV:MOD?, the instrument returns the mode in which it has been configured.

DISPlay: BRIGhtness (Command/Query) The DISP:BRIG <brightness> command sets the backlight intensity of the screen. <backlight> is a value in format <NRf> without unit, in the range [0.0 1.0] To the question DISP:BRIG?, the instrument returns the backlight level of the screen.

DISPlay[:WINDow]:CURSor :REFerence (Command/Query) The DISP:CURS:REF <INT{1|2|3|4}> command selects the reference for the automatic and manual measurements. To the question DISP:CURS:REF?, the instrument returns the signal used as reference.Programmation à distance

DISPlay[:WINDow]:CURSor :STATe (Command/Query) The DISP:CURS:STAT <1|0|ON|OFF> command activates or inhibits the manual measurements.

1|ON: activates the manual measurements

0|OFF: inhibits the manual measurements To the question DISP:CURS:STAT?, the instrument returns the activation status of the manual measurements.

DISPlay[:WINDow]:CURSor :TIME{[1]|2|3}:POSition (Command/Query) The DISP:CURS:TIME{[1]|2|3}:POS <position|MAX|MIN> command sets the position of the selected TIMEx manual cursor. <position> is a value in format NRf, it may be followed or not by a multiple and the unit. By default the value is expressed in second. This command acts on the manual cursors represented on the screen by the X-symbol accompanied by an index (1, 2 or ϕ). To the question DISP:CURS:TIME{[1]|2|3}:POS?, the instrument returns the horizontal position of the selected manual cursor. Response format: <measured value><NL> value in format <NR3> expressed in second.

DISPlay[:WINDow]:CURSor :TIME{[1]|2|3}:YPOSition? (Command/Query) To the question DISP:CURS:TIME{[1]|2|3}:YPOS?, the instrument returns the value of the sample of the reference channel, at the position defined by the TIMEx manual cursor. Response format : <measured value><NL> value in format <NR3> expressed in second.

DISPlay[:WINDow]:CURSor :VOLT{[1]|2}:POSition (Query) To the question DISP:CURS:VOLT{[1]|2}:POS?, the instrument returns the position of the selected VOLTx manual cursor. This command acts on the manual cursors represented on the screen by the X-symbol accompanied by an index (1, 2). Response format : <measured value><NL> value in format <NR3> expressed in volt.

DISPlay[:WINDow]:TRACe :MODE (Command/Query) The DISP:TRAC:MODE <NORMal|ENVelope> command selects the display mode.

DISPlay[:WINDow] :TRACe:X[:SCALe] :PDIVision (Command/Query) The DISP:TRAC:X:PDIV <scale|MAX|MIN|UP|DOWN> command sets the value of the time base. <scale> is a value in format <NRf> , it may be followed or not by a multiple and by the unit. By default, the value is expressed in second. Example: to get a time base of 1 µs, following values can be entered: 1E-3ms or 1E-6 or 0.000001s or 0.000001 or else 1us. To the question DISP:TRAC:X:PDIV?, the instrument returns the value of the time base. Response format : <measured value><NL> value in format <NR3> expressed in second.

DISPlay[:WINDow]:TRACe :XY:YDEFine (Command/Query) The DISP:TRAC:XY:YDEF <INT{1|2|3|4}> command selects the signal positioned on the Y-basis. To the question DISP:TRAC:XY:YDEF?, the instrument returns the signal used on the Y-basis.

DISPlay[:WINDow] :TRACe:Y:LABel{[1]|2|3|4} (Command/Query) The DISP:TRAC:Y:LAB{[1]|2|3|4} <"label"> command determines the unit of the selected signal. The unit is selected among the upper-case letters of the alphabet (A to Z), and is composed of a name up to 3 letters. To the question DISP:TRAC:Y:LAB{[1]|2|3|4}?, the instrument returns the unit of the selected signal.

DISPlay[:WINDow] :TRACe:Y[:SCALe] :PDIVision{[1]|2|3|4} (Command/Query) The command DISP:TRAC:Y:PDIV{[1]|2|3|4}<scale|MAX|MIN> command sets the value of the probe coefficient for the selected signal. <scale> is a value at NRf format. To the question DISP:TRAC:Y:PDIV{[1]|2|3|4}?, the instrument returns the value of the probe coefficient for the selected signal.

DISPlay[:WINDow] :TRACe :Y:SPACing (Command/Query) The DISP:TRAC:Y:SPAC <LOGarithmic|LINear> command specifies the type of scale applied to the Y-axis. To the question DISP:TRAC:Y:SPAC?, the instrument returns the type of scale applied to the Y-axis.

FORMat[:DATA] (Command/Query) The FORM <INTeger|ASCii|HEXadecimal|BINary> command selects the data format of the trace transfer. INTeger: The data transmitted consists in whole numbers, unsigned with a length of 32 bits, preceded by the heading #an. n represents the number of data items to transmit. a gives the number of figures making up n. # The transmission for 4 data items (74, 70, 71, 76) is #14JFGL ASCii: The data is transferred using ASCII characters according to <NR1> numbering from 0 to 255. Each number is separated by a comma. # The transmission for 4 data items (74, 70, 71, 76) is 74,70,71,76 HEXadecimal: The data is transferred using ASCII characters according to a numbering in base 16 on 8 bits. Each number is preceded by #H and separated by a comma. # The transmission for 4 data items (74, 70, 71, 76) is #H4A,#H46,#H47,#H4C BINary: The data is transferred using ASCII characters according to a numbering in base 2 on 8 bits. Each number is preceded by #B and separated by a comma. # The transmission for 4 data items (74, 70, 71, 76) is # B1001010,#B1000110,#B1000111, # B1001100 To the question FORM?, the device returns the format selected for the trace transfer.Programmation à distance

FORMat:DINTerchange (Command/Query) The FORM:DINT <1|0|ON|OFF> command activates or inhibits the trace transfer in DIF format.

OFF|0 the trace transfer data is raw. To the question FORM:DINT?, the device returns the activation status of the DIF format. Response format: DIF format: (DIF (VERsion <year.version>) DIMension=X (TYPE IMPLicit SCALe <sample interval> SIZE <sample no> U N ITs "S") DIMension=Y (TYPE EXPLicit SCALe <ADC step> SIZE 262144 OFFSet 393216 U N ITs "V") DATA(CURVe (<data block>)))<NL> <year.version> is a number in <NR2> format giving the year of the SCPI standard used and the software version. # : 1999.1 means that SCPI version 1999 is used. This is the first software version of the remote control management programme. <sample interval > is a number in <NR3> format. It represents the time difference between two samples. <sample no> is a number in <NR1> format. It represents the number of samples to be transferred. It can vary from 1 to 100 000. <ADC step> is a number in <NR3> format. It represents the difference in volt between two consecutive values of the analogue digital converter. <data block> is a block containing the samples. This data comprises only the values resulting from the analogue digital converter. This block is in the format specified by the FORMat[:DATA] command.

HCOPy:SDUMp[:IMMediate] (Command) The HCOP:SDUM [file.png] command starts a hard copy.The parameter file.png is optional. If this parameter is not present, a default filename is created from current date and time. The file is created in the “screenshots” directory of the active device (SDCARD or internal memory).

HELP[?] (Query) To the question HELP? [« directory entry »] the instrument answers helping in the SCPI commands available. « directory entry » is a key word (short or long form) of first level in the tree of the command. No distinction is made between small and capital letters. In absence of parameter, the list of the key words accepted by the function is given. When a key word is introduced, the list and the syntax of all the commands starting with this word is returned by the function.

INITiate:CONTinuous:NAME (Command) INIT:CONT:NAME <EDGE|PULse|DELay|EVENt>,<1|0|ON|OFF> starts or stops the acquisition in repetitive mode in the indicated trigger mode. In the CAPTure mode, the capture of faults in (Recorder) files is used.

INITiate[:IMMediate]:NAME (Command) INIT:NAME <EDGE|PULse|DELay|EVENt> runs an acquisition in single mode.

INPUT:DMM :BANDwidth:RESolution (Commande/Query) The INP{[1]|2|3|4}:DMM:BAND:RES <bandwidth> command limits the channel bandwidth to a value among : 625 Hz, 5 kHz, 0 (no limit), directly higher or equal to the required value. To the question INP{[1]|2|3|4}:DMM:BAND:RES? the instrument shows the cutoff frequency of the low-pass filter in use (625 Hz, 5 kHz or 0).

MEASure:CURSor:DTIME? (Query) To the question MEAS:CURS:DTIME?, the instrument returns the time delay between cursors 1 and 2. Response format: <measured value><NL> value in format <NR3> expressed in second.

MEASure:CURSor:DVOLT? (Query) To the question MEAS:CURS:DVOLT?, the instrument returns the difference between cursors 1 and 2. Response format: <measured value><NL> value in format <NR3> expressed in volt.

MEASure:DMM? (Query) To the question MEAS:DMM? <INT1|2|3|4> the instrument returns the value of the main measurement for the selected channel. INT1 to INT4 index are associated with channels 1 to 4. Use the index to find INT5 power measurement. Before using the command MEAS: DMM? INT5, the instrument must be configured to measure the power measurement (see [SENSe]: Function). Response format : <mesure> <NL> value format <nrf>

MEASure:FALL:OVERshoot?

(Query) To the question MEAS:FALL:OVER? <INT{1|2|3|4}> the instrument returns the negative overshoot of the selected signal. Response format: <measured value><NL> value in format <NR2> expressed in percent.

MEASure:FREQuency? (Query) To the question MEAS:FREQ? <INT{1|2|3|4}> the instrument returns the frequency of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in hertz.

MEASure:HIGH? (Query) To the question MEAS:HIGH? <INT{1|2|3|4}> the instrument returns the value of the high level level of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in volt.

MEASure:MINimum? (Query) To the question MEAS:MIN? <INT{1|2|3|4}> the instrument returns the value minimum of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in volt.

MEASure:NWIDth? (Query) To the question MEAS:NWID? <INT{1|2|3|4}> the instrument returns the negatitive pulse width of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in second.

MEASure:PDUTycycle? (Query) To the question MEAS:PDUT? <INT{1|2|3|4}> the instrument returns the duty cycle of the selected signal. Response format: <measured value><NL> value in format <NR2> expressed in percent.

MEASure:PERiod? (Query) To the question MEAS:PERiod? <INT{1|2|3|4}> the instrument returns the period of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in second.

MEASure:PHASe? (Query) To the question MEASPHAS?, the instrument returns the phase of

-cursor in relation to cursors 1 and 2. The difference between the cursor 1 and 2 represents 360°. The cursor 1 equal to 0° and the cursor 2, 360°. Response format: <measured value><NL> value in format <NR2> expressed in degree.Programmation à distance

MEASure:PWIDth? (Query) To the question MEAS:PWID? <INT{1|2|3|4}> the instrument returns the positive pulse width of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in second.

MEASure:RISE:OVERshoot

(Query) To the question MEAS:RISE:OVER? <INT{1|2|3|4}> the instrument returns the positive overshoot of the selected signal. Response format: <measured value><NL> value in format <NR2> expressed in percent.

MEASure:RTIME? (Query) To the question MEAS:RISE:TIME? <INT{1|2|3|4}> the instrument returns the rise time of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in second.

MEASure:SUM? (Query) To the question MEAS:SUM? <INT{1|2|3|4}> the instrument returns the integral measurement of the selected signal. Response format: <measured value><NL> value in format <NR3>.

MMEMory:CATalog? (Query) To the question MMEM:CAT? [<LOCAL|SDCARD>] the device returns the list of files present in the local memory. If the file system is not specified, the default file system is used (see command MMEM:MSIS). Response format: <file number>, 0[,<file list>] <file number> is in NR1 format. <file list> = <"file">,<type>,0 <"file"> consists in a name of 20 letters maximum, followed by a period and the 3-letter extension. <type> is

TRAC for the extension files .trc and .rec

ASC for the extension files .txt and .fct

MAC for the extension files .mac

MMEMory:CDIR? (Command/Query) The MMEM:CDIR <”directory”> command determines the working directory on the default device. To the question MMEM:CDIR? the instrument returns the working directory.

(Command/Query) The MMEM:DATA <"file">,<block> command transfers a file from the PC to the device. <"file"> consists in a name of 20 letters maximum, followed by a period and the 3-letter extension. If the file already exists, it will be overwritten by the new file. <block> is all of the data in the file preceded by the heading #an, n being the data number and a, a figure indicating the number of figures making up n. To the question MMEM:DATA? <"file">, the device transfers the file named to the PC. Response format: <block> <NL>

MMEMory:DELete (Command) The MMEM:DEL <"file">[,<LOCAL|SDCARD>] command deletes a file. If the file system is not specified, the default file system is used (see command MMEM:MSIS and MMEM:CDIR).

MMEMory:LOAD:MACRo (Command) The MMEM:STOR:MACR,<"file">,<LOCAL|SDCARD|> command reads a mathematical function from a ".fct" file and assigns it to the indicated signal. If the file system is not specified, the default file system is used (see MMEM:MSIS and MMEM:CDIR). <"file"> consists in a name of 20 letters maximum, followed by a period and the FCT extension.

MMEMory:LOAD:STATe (Command) The MMEM:LOAD:STAT <"file">[,<LOCAL|SDCARD|FTP>] command reads an instrument configuration from a ".cfg" file. If the file system is not specified, the default file system is used (see command MMEM:MSIS and MMEM:CDIR). <"file"> consists in a name of 20 letters max., followed by a period and the CFG extension.

(Command) MMEM:LOAD:TRAC<TRACE>,<"file.trc">[,<LOCAL|SDCARD>] command reads traces defined in a “.trc” file. If the file system is not specified, the default file system is used (see command MMEM:MSIS and MMEM:CDIR). <"file"> consists in a name of 20 letters maximum, followed by a period and the TRC extension.

MMEMory:MSIS (Command/Query) The MMEM:MSIS<LOCAL|SDCARD>] is used to select the default mass storage support. To the question MMEM:MSIS? The instrument returns the default mass storage support.

(Command) The MMEM:STOR:MACR ,<"file">,<LOCAL|SDCARD> command generates a file ".fct" from the specified mathematical function in the chosen file system. If the file system is not specified, the default file system is used (see MMEM:MSIS and MMEM:CDIR command). <"file"> consists in a name of 20 letters maximum, followed by a period and the fct extension.

MMEMory:STORe:STATe (Command) The MMEM:STOR:STAT <"file">[,<LOCAL|SDCARD|FTP>] command generates a ".cfg" file from the instrument configuration, in the selected file system. If the file system is not specified, the default file system is used (see command MMEM:MSIS and MMEM:CDIR). <"file"> consists in a name of 20 letters maximum, followed by a period and the CFG extension.Programmation à distance

MMEMory:STORe:TRACe (Command) The MMEM:STOR:TRAC <"file.trc">[,<LOCAL|SDCARD>] command generates a “.trc” file from displayed signals, in the selected file system. If the file system is not specified, the default file system is used (see commands MMEM:MSIS and MMEM:CDIR). <"file"> consists in a name of 20 letters maximum, followed by a period and the TRC extension.

PASSFAIL:BEEP (Command/Query) The PASSFAIL:BEEP <1|0|ON|OFF> command controls the instrument beeper when the condition defined with the PASSFAIL:DISPLAY command is effective. To the question PASSFAIL:BEEP?, the instrument returns the state of the beeper.

PASSFAIL:CONTrol (Command/Query) The PASSFAIL:CONT <1|0|ON|OFF> command is used to start/stop the passfail functionality in respect with the different tunings defined with the other PASSFAIL commands. To the question PASSFAIL:CONT?, the instrument returns “1” ou “0”

PASSFAIL:COUNT:ALL? (Query) To the question PASSFAIL:COUNT:ALL?, the instrument returns the total number of acquisitions obtained since last passfail start operation.

PASSFAIL:COUNT:FAIL? (Query) To the question PASSFAIL:COUNT:FAIL?, the instrument returns the number of acquisitions outside the limits defined by the mask, obtained since last passfail start operation.

PASSFAIL:COUNT:PASS? (Query)

To the question PASSFAIL:COUNT:PASS?, the instrument returns the number of acquisitions inside the limits defined by the mask, obtained since last passfail start operation.

PASSFAIL:DISPlay[?] (Command/Query) The PASSFAIL:DISP <ALL|PASS|FAIL> command is used to select which filtered events should be displayed. To the question PASSFAIL:DISP?, the instrument returns ALL, PASS or FAIL.

PASSFAIL:LOAD (Command)

The PASSFAIL:LOAD <”file.msk”>[,<LOCAL|SDCARD>] command is used to defined a mask used in the passfail fonctionnality, from a .msk file. This file can be located anywhere on the local file-system or on the SDCARD. (ex: PASSFAIL:LOAD “masks/mask.msk”,sdcard to read file mask.msk located in the repertory /masks on the SDCARD).

PASSFAIL:SAVE (Command) The PASSFAIL:SAVE <”file.msk”>[,<LOCAL|SDCARD>] command is used to record the mask used in the passfail fonctionnality, in a .msk file. This file can be located anywhere on the local file-system or on the SDCARD. (ex: PASSFAIL:SAVE “masks/mask.msk”,sdcard to write file mask.msk in the repertory /masks on the SDCARD).

PASSFAIL:SOURCE (Command/Query) The PASSFAIL:SOURCE <INT1|INT2|INT3|INT4> command determines the channel that passfail utility controls. In a first step, this source can be used to compute a mask. In a second step, this source is compared to the mask. To the question PASSFAIL:SOURCE?, the instruments returns the string INTx where x represent the channel concerned.

PASSFAIL:STATE (Command/Query) The PASSFAIL:STATE <1|0|ON|OFF> control the state of the PASSFAIL utility. To the question PASSFAIL:STATE? The instrument replies “1” or “0”.Programmation à distance

PASSFAIL:XMASK (Command/Query) The PASSFAIL:XMASK <xmask> command compute a mask used in the passfail functionality, from the source channel with an offset of +/-xmask on the horizontal axis. xmask represents a number of divisions ans is a floating point value in the range 0.0 to 2.0 To the question PASSFAIL:XMASK? The instruments returns the value in the format 1.23

PASSFAIL:YMASK (Command/Query) The PASSFAIL:YMASK <ymask> command compute a mask used in the passfail functionality, from the source channel with an offset of +/-ymask on the vertical axis. ymask represents a number of divisions and is a floating point value in the range 0.0 to 2.0 To the question PASSFAIL:XMASK? The instruments returns the value in the format 1.23

[SENSe:]AVERage :COUNt[?] (Command/Query) Use AVER:COUN <value|MAX|MIN|UP|DOWN> command to set a coefficient needed by average filter to compute averaged trace (see [SENSe]:AVERage[:STATe]). <value> is a value at NR1 format taking following values : 0, 2, 4, 16, 64 To the question AVER:COUN?, the instrument returns the value of the coefficient used to compute an averaged trace.

[SENSe:]AVERage [:STATe][?] (Command/Query) Use AVER:STATE <1|0|ON|OFF> command to set the REPETITIVE SIGNAL option. If this option is set:

  • Signals are build using several acquisitions
  • Average filter is activated To the question AVER:STATE?, the instrument returns the state of the REPETITIVE SIGNAL option.

[SENSe:]AVERage: BANDwidth{[1]|2|3|4} [:RESolution][?] (Command/Query) Use AVER:BAND{[1]|2|3|4} <value> command to set the low pass filter cut frequency. <value> is a value at NR1 format taking following values : 5kHz, 1.5MHz, 20MHz ou 0 (no filter). To the question AVER:BAND?, the instrument returns the value of the low pass filter cut frequency.

[SENSe:]FUNCtion[1][?] (Command/Query) In the Multimeter and Logger mode, the FUNC <VOLTage | RESistance | CONTinuity | CAPAcitor | DIODe | PT100 | POWer | POW3a | POW3b | POW3c> is used to set the channel 1 measurement type. To the question AVER:BAND?, the instrument returns the channel 1 measurement type.

[SENSe:]RANGe[1] :CAPA[?] (Command/Query) In the Multimeter mode, the RANGe[1]:CAPA <range|MAX|MIN|UP|DOWN> is used to set the measurement range of the capacimeter. <range> is a value coded with the NRf format, and can be followed (or not) of the measurement unit (F). To the question RANGe[1]:CAPA?, The instrument returns the capacimeter measurement range (NR3 format).Programmation à distance

[SENSe:]RANGe[1] :OHM[?] (Command/Query) In the Multimeter mode, the RANGe[1]:OHM <range|MAX|MIN|UP|DOWN> is used to set the measurement range of the capacimeter. <range> is a value coded with the NRf format, and can be followed (or not) of the measurement unit. To the question RANGe[1]: OHM?, The instrument returns the ohmmeter measurement range (NR3 format).

[SENSe:]:RANGe{[1]|2|3|4} :VOLT[?] (Command/Query) In the Multimeter mode, the RANGe{[1]|2|3|4}:VOLT <range|MAX|MIN|UP|DOWN>> is used to set the measurement range of the voltmeter on the selected channel. <range> is a value coded with the NRf format, and can be followed (or not) of the measurement unit. To the question RANGe{[1]|2|3|4}: VOLT?, the instrument returns the voltmeter measurement range (NR3 format).

[SENSe:]SWEep:OFFSet :TIME[?] (Command/Query) Use SWE:OFFS:TIME <time|MAX|MIN|UP|DOWN> command to control horizontal position of a trace (run-after-delay or postrig). <time> is a signed value coded with the NRf format, and can be followed (or not) of the measurement unit (s). To te question SWE:OFFS:TIME?, the instrument return the value of the horizontal position (NR3 format).

[SENSe]:VOLTage {[1]|2|3|4}[:DC] :RANGe:OFFSet (Command/Query) The VOLT{[1]|2|3|4}:RANG:OFFS <offset|MAX|MIN|UP|DOWN> command sets the vertical offset of the time representation of the selected signal. <offset> is a value in NRf format, it may be followed or not by a multiple and the unit. By default the value is expressed in volt. To the question V{[1]|2|3|4}:RANG:OFFS?, the instrument returns the vertical offset of the selected signal. Response format: <measured value><NL> value in format <NR3> expressed in volt.

SYSTem:COMMunicate :SOCKet:{[1]|2]}:ADDRess (Command/Query) The SYST:COMM:SOCK:{[1]|2]}:ADDR "<IPaddress>" command defines the IP address of the instrument. Use index 1 to set ETHERNET and index 2 to set WIFI. <IPaddress> is a chain of characters as: ip1.ip2.ip3.ip4, each of the ipX values must be included between 0 & 255. To the question SYST:COMM:SOCK:ADDR? the instrument returns the value of the current IP address. Response format: <ip1.ip2.ip3.ip4><NL>

SYSTem:DATE (Command/Query) The SYST:DATE <NR1>,<NR1>,<NR1> command sets the date of the instrument. The possible values are: 0 to 9999 for the year range (1st range). 1 to 12 for the month range (2nd range). 1 to 31 for the day range (3rd range). To the question SYST:DATE?, the instrument returns the date. Response format: < YYYY,MM,DD ><NL> with Y = year, M = month, D = day.

SYSTem:ERRor[:NEXT]? (Query) To the question SYST:ERR?, the instrument returns the number of error positioned at the top of the queue. The queue has a stack of 20 numbers and is managed as follows : first in, first out. As the SYST:ERR? questions arrive, the instrument returns the number of errors in order of arrival, until the queue is empty. Every more SYST:ERR? question involves a negative answer: character "0" (ASCII 48code). If the queue is full, the case at the top of the queue takes the value -350 (saturated queue). The queue is empty: - when the instrument is getting started. - at the receipt of a *CLS. - at the reading of the last error. Response format: <error><NL> with error = negative or 0, no error.

  • Execution errors: (-299 to -200) They indicate that an error has been detected at the moment of command execution and causes event register bit 4, called EXE, Execution Error, to be set to 1.

They indicate that an abnormal error has been detected during execution of a task, and causes event register bit 3, called DDE, Device Dependent Error to be set to 1.

  • Query errors: (-499 to -400) They indicate that an abnormal error has been detected during execution of a task, and cause event register bit 2, called QYE, QuerY Error, to be set to 1. -400 : Query error

SYSTem:KLOCK (Command/Query) The SYST:KLOCK <0|1|ON|OFF> command locks the front face. To the question SYST:KLOCK?, the instrument returns the lock status of the front face.

SYSTem:SET (Command/Query) The SYST:SET <block> command transfers the configuration from the computer to the device. <block> is a finite data number preceded by the heading #an with n, the data number and a, a figure indicating the number of figures making up n. To the question SYST:SET?, the device transfers the current configuration to the computer. Response format: <block> <NL>

SYSTem:TIME (Command/Query) The SYST:TIME <NR1>,<NR1>,<NR1> command sets the time of the instrument. The possible values are: 0 to 23 for the hour range (1st range). 0 to 59 for the minute range (2nd range). 0 to 59 for the second range (3rd range). To the question SYST:TIME?, the instrument returns the hour. Response format: < HH,MM,SS ><NL> avec H = hour, M = minute, S = second.

(Query) To the question TRAC:CAT?, the device returns the list of active signals. # TRAC:CAT? reply <NL> when no signal is active. reply INT1 <NL> when only signal 1 is active. reply INT1,INT3<NL> when signals 1 and 3 are active.

(Query) To the question TRAC? <INT{1|2|3|4}>, the device transfers the selected trace to the computer. Response format: <block><NL> <block> is a data block, the format of which is set by the FORMat:DINTerchange and FORMat[:DATA] commands. It contains the value of the 2500 samples encoded on 4 bytes, as follows (bit 31 = MSB):

samples coded on 20 bits The validity byte contains 3 data bits:

with : I : Invalidity, the sample is invalid if equal to 1 A : Age, used in slow mode, this sample is validated E : Extrapolated, the sample is the result of an extrapolation if equal to 1.Programmation à distance

TRACe:LIMit (Command/Query) The TRAC:LIM <abscissa1>,<abscissa2>,<step> command sets the left and right limits and the step of the data to be transferred. <abscissa1>,<abscissa2>,<step> are parameters using format NR1. Their default value is 0, 2499 and 1. To the question TRAC:LIM?, the device returns the left and right limits and the step of the data to be transferred.

TRIGger[:SEQuence {[1]|2|3|4}]:COUPling (Command/Query) The TRIG:COUP <AC|DC> command determines the coupling associated to the main trigger source. To the question TRIG:COUP?, the instrument returns the coupling associated to the main trigger source.

in sequence 3 (trig-after-delay): sets the trigger delay on main source <time> is a value in format <NRf>, it may be followed or not by a multiple and by the unit. By default the value is expressed in second. To the question TRIG:SEQ{2|3}:DEL?, the instrument returns the trigger delay of the main source or the T1 pulse time according to the selected sequence. Response format: <measured value><NL> value in format <NR3> expressed in second.

TRIGger[:SEQuence[4]] :ECOunt (Command/Query) The TRIG:ECO <count|MAX|MIN|UP|DOWN> command sets the number of events used in the trigger mode delayed by count. <count> is a value in format NR1 from 3 to 16384. To the question TRIG:ECO?, the instrument returns the number of events to be counted before the trigger.Programmation à distance

TRIGger[:SEQuence {[1]|2|3|4}] :FILTer:HPASs[:STATe] (Command/Query) The TRIG:FILT:HPAS <1|0|ON|OFF> command validates or devalidates the reject of the low frequencies associated to the main trigger source.

1|ON: activates the reject of the low frequencies (LF Reject coupling)

0|OFF: deactivates the reject of the low frequencies; the DC coupling is then activated. To the question TRIG:FILT:HPAS?, the instrument returns the activation status of the low frequencies reject associated to the trigger source.

TRIGger[:SEQuence {[1]|2|3|4}] :FILTer:LPASs[:STATe] (Command/Query) To the question TRIG:FILT:LPAS?, the instrument returns the activation status the reject of the high frequencies associated to the trigger source.

1|ON: activates the high frequencies reject (HF Reject coupling)

0|OFF: deactivates the high frequencies reject; the DC coupling is then activated. To the question TRIG:FILT:LPAS?, the instrument returns the activation status the reject of the high frequencies associated to the trigger source.

TRIGger[:SEQuence {[1]|2|3|4}]:HYSTeresis [:STATe] (Command/Query) The TRIG:HYST <hysteresis> command sets the amplitude of the hysteresis which rejects the noise associated to the trigger main source. <hysteresis> is a value at NR1 format taking following values :

0: no noise reject, hysteresis is about 0.5 div.

3: activated noise reject, hysteresis is about 3 div. To the question TRIG:HYST?, the instrument returns the amplitude of the hysteresis which rejects the noise associated to the trigger main source.

TRIGger[:SEQuence[1]|3|4] : HOLDoff (Command/Query) The TRIG:HOLD <time|MAX|MIN|UP|DOWN> command sets the inhibition time of the trigger (Holdoff). <time> is a value in format <NRf>, it may be followed or not by a multiple and by the unit. By default the value is expressed in second. To the question TRIG:HOLD?, the instrument returns the trigger Holdoff time. Response format: <measured value><NL> value in format <NR3> expressed in second.

TRIGger[:SEQuence {[1]|2|3|4|}]:LEVel (Command/Query) Used in the Seq. 1 to 4, the TRIG:LEV <level|MAX|MIN|UP|DOWN> command sets the trigger level of the main source. <level> is a value in format NRf, it may be followed or not by a multiple and by the unit. By default, the value is expressed in volt. To the question TRIG:LEV?, the instrument returns the trigger level of the main source in SEQuence1. Response format: <measured value><NL> value in format <NR3> expressed in volt.

ON|1 acquisition starts.

OFF|0 acquisition is stopped. To the question TRIG:RUN:STAT?, the instrument returns the trigger status.Programmation à distance

TRIGger[:SEQuence {[1]|2|3|4}]:SLOPe (Command/Query) TRIG:SEQ{[1]|2|3|4}:SLOP <POSitive|NEGative> determines : in SEQuence2 : determines the polarity of the pulse POSitive: positive pulse NEGative: negative pulse To the question TRIG:SEQ{[1]|2|3|4<}:SLOP?, the instrument returns the polarity trigger front or pulse according to the selected SEQuence. In the other sequences: used to measure the triggering edge of the main source: POSitive: rising front NEGative: falling front

TRIGger[:SEQuence[2]] :TYPe (Command/Query) The TRIG:TYP <INFerior|SUPerior|INT|OUT> command determines the trigger type on pulse width : trigger on pulses of durations which are inferior (INF) or superior (SUP) to the specified duration, or which are situated inside (INT) or outside (OUT) of the specified temporal range, with :

INF : triggers on a pulse if its duration is less than t1

SUP : triggers on a pulse if its duration is more than t1

INT : triggers on a pulse if its duration is between t1 and t1 + d

OUT : triggers on a pulse if its duration is situated over t1 and t1 + d To the question TRIG:TYP?, the instrument returns the trigger type on pulse width. Response format: <INF|SUP|INT|OUT ><NL>Programmation à distance

The common commands are defined by the IEEE 488.2 standard. They are operational on all instruments which are specified IEEE 488.2. They command basic functions such as: identification, reset, configuration reading, reading of event and status register, reset of event and status register. If a command containing one or several directories has been received, and if a common command has been stacked up, then the instrument stays in this directory and execute normally the commands. Events and status mana gement Registers

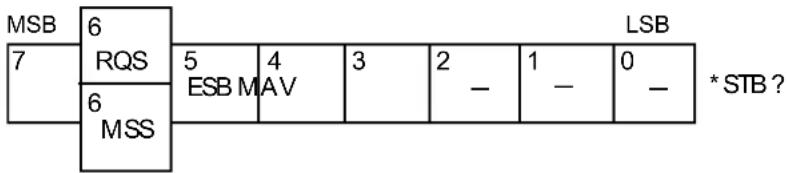

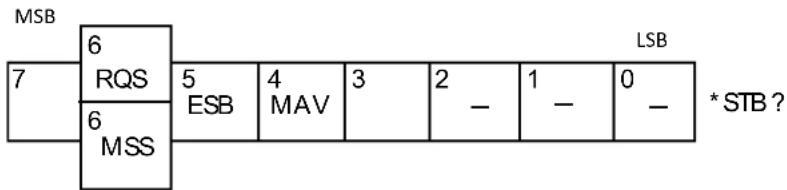

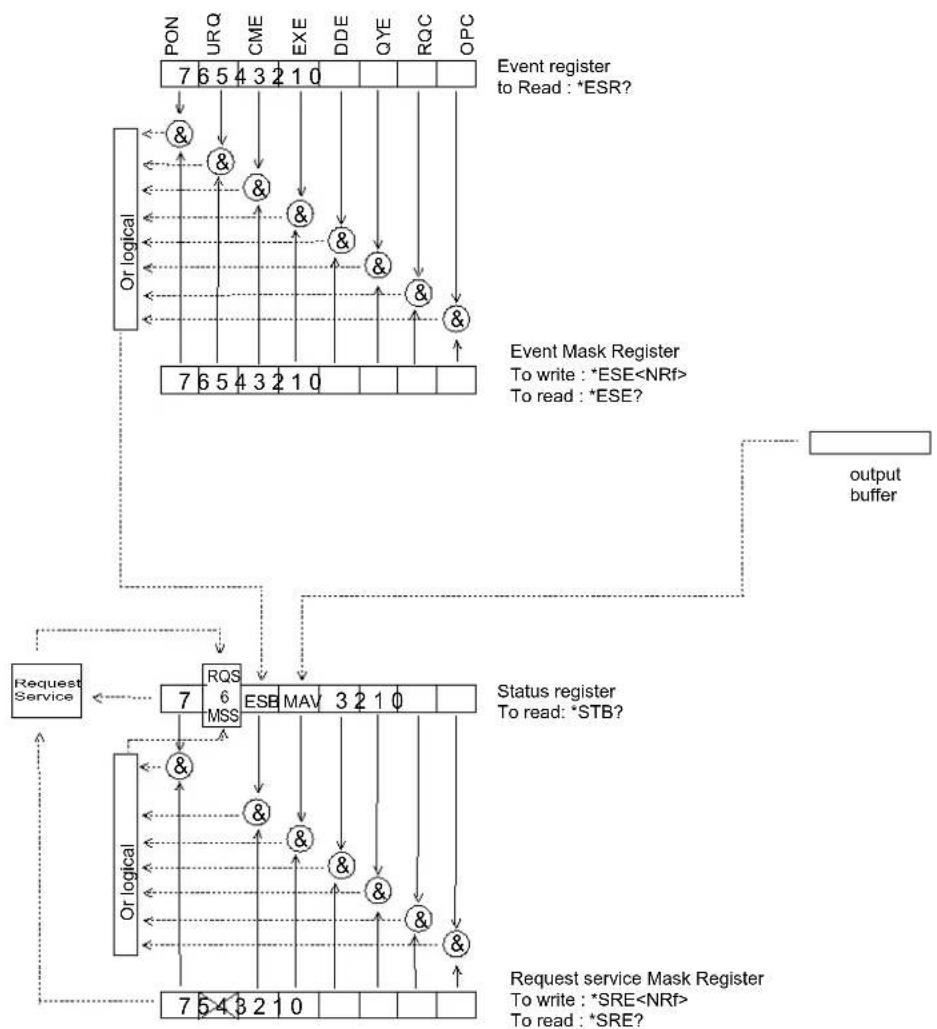

Status registers Reading only *STB? common command. In this case, the (MSS) 6 Bit is returned and remain in the status it was before reading [see §. *STB (Status Byte)] The *CLS common command is reset to zero.

Detailed description RQS M SS ESB MAV

RQS Request Service (6 bit) Indicates if the instrument requests a service. The type of COMM used on the instrument does not generate a request, but the byte is accessible in reading. It is reset to 0 after reading and can switch to zero only if the event register is reset to zero (by reading or *CLS). MSS Master Summary Status (6 bit) Indicates if the instrument has a reason to request a service. This information is accessible only in reading the status register. (*STB? command) and stays as it is after the reading. ESB Event Satus Bit (5 bit) Indicates if at least one of the conditions of the event register is satisfied and not masked. MAV Message Available (4 bit) Indicates if at least one response is in the output spooler. Service request mask register

Reading and writing *SRE command.

Event register Reading *ESR command. Its reading resets to zero. Detailed description

PON Power On (7 bit) Not used URQ User request (6 bit) Not used CME Command Error (5 bit) A command error has been detected. EXE Execution Error (4 bit) An error execution has been detected.

DDE Device Dependant Error (3 bit) An error specific to the instrument has been detected. QYE Query Error (2 bit) A query error has been detected. RQC Request Control (1 bit) Always at zero. OPC Operation Complete (0 bit) All operations running are ended.

Event mask register Reading and writing *ESE command.

*CLS (Clear Status) (Command) The common command *CLS reset the status and event register. *ESE

(Command/Query) The *ESE <mask> common command positions the status of the event mask. <mask> is a value in format <NR1>, from 0 to 255. A 1 authorises the corresponding bit of the event register to generate an event, while a 0 masks it. To the question *ESE?, the instrument returns the current content of the event mask register. Response format: <value><NL> value in format <NR1> from 0 to 255. Event mask register :

(Query) To the question *ESR?, the instrument returns the content of the event register. Once the register has been read, the content value is reset to zero. Response format: <value><NL> value in format <NR1> from 0 to 255. Event register

(Operation Complete) (Command/Query) The command *OPC authorises the setting to 1 of the OPC bit in the event register as soon as the current operation is completed. To the question *OPC?, the instrument returns the character ASCII "1" as soon as the current operation is terminated. *RST (Reset) (Command) The command *RST reconfigures the instrument with the factory settings.

*SRE (Service Request Enable)

(Command/Query) The command *SRE <mask> positions the service request mask register. <mask> is a value in format <NR1>, from 0 to 255. A value of bit at 1 enables the same-rank bit of the status register to request a service (bit of the status register contains 1). A bit value at 0 neutralizes it. To the question *SRE?, the instrument returns the value of the service demand mask register. Response format: <value><NL> value in format <NR1> from 0 to 255. Service demand mask register :

(Query) To the question *STB? the instrument returns the content of its status register (Status Byte Register). The bit 6 returned indicates the MSS value (Master Summary Status) (at 1 if the instrument has a reason for requesting a service). Contrary to RQS, it is not reset to zero after reading the status register (RQS is accessible only by series recognition, and falls to 0 at its end). Status register

*TRG (Command) The command *TRG starts an acquisition in the current mode "single" or "continuous". *TST?

responds 0 when the autoset is successful.

responds 1 when a problem has been detected. *WAI (Wait) (Command) The command *WAI prevents the instrument from performing further commands as long as the current command has not been terminated. This enables to synchronize the instrument with the application program in progress on the controller.

IEEE 488.2 Common commands

Commands Functions *CLS Resets the status and event registers *ESE Writes event mask *ESE? Reads event mask *ESR? Reads event register *IDN? Reads identifier *OPC Validates bit OPC *OPC? Waits till end of execution *RST Resets *SRE Writes service request mask *SRE? Reads service request mask *STB? Reads status register *TRG Starts an acquisition in the current mode *TST? Returns the status of the autoset procedure *WAI Commands synchronizationAnnexes
