SoloJam Western - Musical instrument MAX - Free user manual and instructions

Product Type	Clip-on chromatic tuner for guitar and bass
Brand	MAX
Model	SoloJam Western
Power Supply	1 CR2032 battery (included)
Battery Life	Approximately 3 minutes before automatic shut-off
Tuning Modes	Chromatic, Guitar, Bass
Display	LED screen with backlight (green, blue, red)
Tuning Indicator	Centered meter + green backlight for correct tuning; blue for too low or too high
Measurement Range	Notes from 0 to 8 (chromatic), or specific strings (guitar/bass)
Attachment	Clip for attachment to the instrument
Dimensions	Approximately 5 x 3 x 2 cm (estimated)
Weight	Approximately 30 g (estimated)
Housing Material	Plastic
Care and Cleaning	Clean with a dry cloth; do not use chemicals
Operating Temperature	5°C to 35°C
Safety	Do not open the housing; avoid moisture and shocks; do not look directly at the LEDs
Warranty	Warranty valid if used in accordance with the instructions; unauthorized modifications or repairs void the warranty
Spare Parts and Repairability	Use only original parts; repairs by a specialized technician
General Information	Designed for indoor use; do not expose to rain or excessive humidity

Frequently Asked Questions - SoloJam Western MAX

How to turn on the SoloJam Western MAX tuner?

Press the button for 2 seconds to turn on the device. It turns off automatically after 3 minutes of inactivity.

How to change the tuner battery?

Press the battery compartment cover on the back of the device, open it and insert a new CR2032 battery, respecting polarity.

What tuning modes are available?

The tuner offers three modes: Chromatic, Guitar, and Bass. Press the button repeatedly to switch between them.

How to interpret the backlight colors?

The green backlight indicates correct tuning. If blue and the meter points left, the note is too low; to the right, too high. If it is red (not mentioned but possible), the note is very out of tune.

Does the tuner work for all instruments?

It is designed for guitar and bass, but the Chromatic mode allows tuning other instruments as long as they produce an audible note.

How to attach the tuner to the instrument?

Use the provided clip to attach it to the instrument headstock or a stable surface.

What to do if the tuner does not turn on?

Check the battery: remove and reinsert it respecting polarity. If the problem persists, try a new battery. Contact a technician if necessary.

Can I use the tuner outdoors?

It is designed for indoor use. Avoid exposure to rain, humidity, or extreme temperatures.

How to clean the tuner?

Use a dry, soft cloth. Never use chemicals or aerosols, as they could damage the housing.

What to do if the tuner seems to malfunction?

Turn the device off and on. If the problem persists, remove and reinsert the battery. If the malfunction persists, have it checked by a specialized technician.

USER MANUAL SoloJam Western MAX

SoloJam Western Guitar Pack

Ref. nr.: 173.214, 173.215, 173.216, 173.217 & 173.218

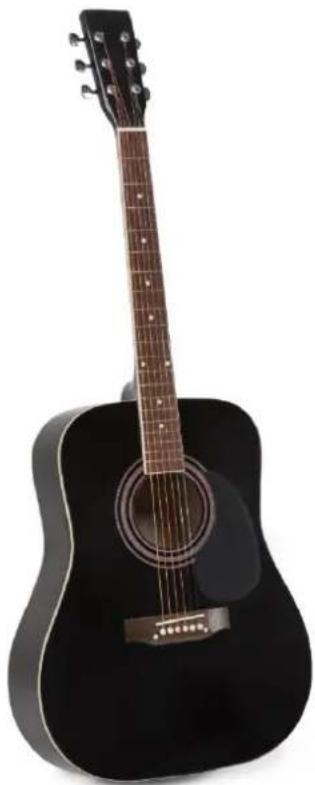

Black acoustic guitar with visible fret and grille, isolated on white background (no text or symbols)

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

BEDIENUNGSANLEITUNG

MANUEL D'INSTRUCTIONS

Congratulations to the purchase of this Max product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• When using a shoulder strap, make sure the shoulder strap is securely attached to the guitar.
• Do not place your face close to the instrument when changing or adjusting the strings.
• After changing the strings, cut off the leftover string ends.
• The guitar has been properly adjusted before being shipped from the factory. In For those adjustments that can be performed by the owner, please closely follow the instructions given in the Owner's Manual for the procedure.
• When playing the instrument, pay attention to the volume level. Especially late at night, take neighbors and those who are close by into consideration.
• Broken guitar necks are mostly the result of accidents such as dropping the guitar, the guitar falling over, or from shocks occurred during transport. When the guitar is not being used, make sure it is kept on a sturdy stand where it won't fall over, or place it in its case.
• Do not treat the instrument in a rough manner like swinging it around, throwing objects at the instrument, dropping the instrument, etc. And do not put excessive force on the switches or control knobs, etc.
• When cleaning the instrument, use a soft, dry cloth. Also, do not spray insecticides close to the instrument. And when cleaning the headstock, be careful not to injure yourself on the sharp string ends.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/ 41^ F and 35^ C/ 95^ F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

STORE THE GUITAR

• Do not keep the instrument close to a fire or flame, and keep it on a low, stable surface.
• Do not leave the instrument leaning against the wall, etc., in the vicinity of children.
• Long-term storage in the hard case may have an adverse effect on the guitar. Open the case occasionally to let air circulate in the case.

• If the instrument is not going to be used for an extended period of time, keep the instrument in a place other than those listed below.

• Locations subject to direct sunlight.

• Locations subject to extremely high or low temperatures.
• Locations subject to high humidity, dust, or vibration.
• During the summer season, temperatures inside of a car can become extremely hot. Do not leave the instrument inside of a car.

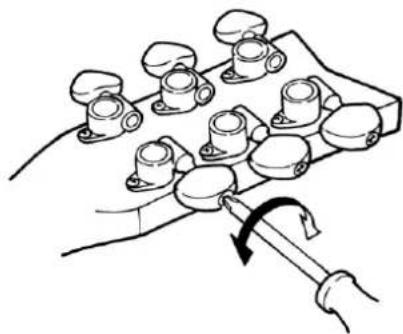

TUNING MACHINE TENSION ADJUSTMENT

The tuning machines have spring-loaded mechanisms which automatically take up wear, preventing backlash. However, it is possible to adjust the amount of pressure required to turn the machines. Each machine has a tension adjustment screw, as illustrated.

Clockwise screw rotation tightens the machine. The tuning machines should be adjusted to the extent that they are firm, but can turn smoothly. This adjustment is normally unnecessary, and excessive tightening can lead to premature tuning machine wear.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols present)

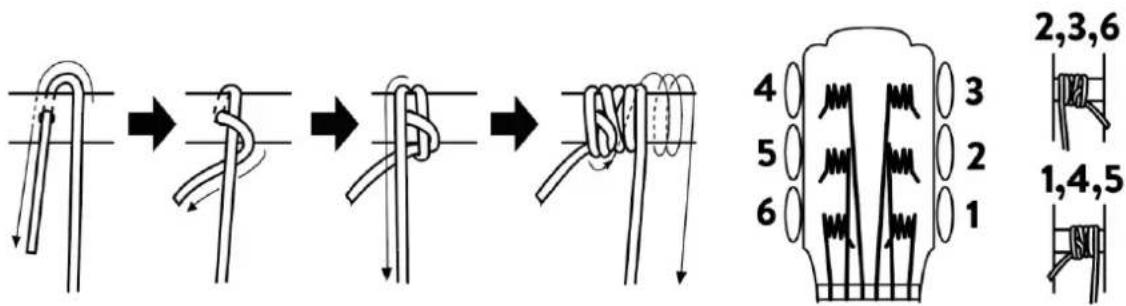

CHANGE THE STRINGS

1. Unwind the old string at the tuning machine at the top of the neck (it is recommended to change 1 string at a time)
2. Push the old string through the body of the guitar through the hole in the bridge.
3. Insert a new string through the corresponding hole (compare the thickness of the new string to the old string to make sure it is the correct string).
4. Run the string over the nut in the bridge and along the neck.
5. Feed the string through the hole in the tuning machine post.
6. Bend the string around the post and wind the string using a tuning peg.

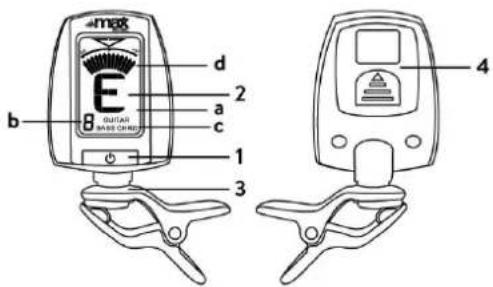

1. Power / Mode button

2. Display

a. Note name
b. String number
c. Chromatic / Guitar / Bass
d. Measuring range

1. Clip

2. Battery compartment

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

Operating

1. Attach the device to your instrument via the clip.
2. Press and hold the button for 2 seconds to turn the unit on.
3. Select the tuning. Press the button repeatedly to select 'Chromatic', 'Guitar' or 'Bass' as the tuning.

- If you select 'Chromatic', the display will show the note name.

If you select 'Guitar' or 'Bass', the display will show the string number and the note name.

1. Play a single note on your instrument, the note name or string number is displayed. The backlight changes and the measuring range is displayed.

2. If the backlight turns green and the gauge is centered, the note is in tune correctly.
   ■ If the backlight turns blue and the indicator is pointing to the left, the tuning is too low.
   ■ If the backlight turns blue and the display is pointing to the right, the tuning is too high.

3. If the unit does not detect any signal for 3 minutes after switching it on, it will switch off automatically.

Diagram showing hands operating a mechanical device with multiple components and a curved arrow indicating rotation (no text or symbols)

SNAREN VERWISSELEN

Illustration of a hand holding small mechanical parts with a curved arrow indicating rotation (no text or symbols)

AUSWECHSELN VON SAITEN

Illustration of a hand holding a coiled spring with a hook, showing mechanical components (no text or symbols)

CAMBIAR LAS CUERDAS

Illustration of a hand holding a coiled spring with a hook attached (no text or symbols)

REPLACEMENT DES CORDES

1. Bouton "Power / Mode

2. Afficher

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

Specifications and design are subject to change without prior notice.
