ShowKit Electric - Musical instrument MAX - Free user manual and instructions

Product type	Electric guitar with amplifier and clip-on tuner
Brand	MAX
Model	ShowKit Electric
Amplifier power supply	Mains 220-240 V~50 Hz, grounded plug, fuse 10-16 A
Tuner power supply	CR2032 battery (included)
Amplifier connections	Guitar input (Jack), headphone output (Phones), auxiliary input (Aux)
Amplifier controls	Gain, Boost, Volume, Treble, Middle, Bass
Tuner type	Clip-on, chromatic / guitar / bass, LED display with backlight (green/blue)
Tuner functions	Chromatic tuning, per string (guitar/bass), auto-off after 3 minutes
Body material	Wood (unspecified)
Neck type	Wood with spring mechanisms for tuning pegs
Number of strings	6 (standard electric guitar)
Care and cleaning	Soft dry cloth; do not spray insecticide; be careful with string ends
Safety	Do not open the device; repairs by qualified technician; unplug during storm or prolonged non-use; indoor use only
Operating temperature	5 °C – 35 °C (41 °F – 95 °F)
Environment	Do not expose to moisture, dust, vibrations, direct sunlight
Storage	In a case or on a stable stand; avoid shocks and extreme temperatures
Warranty	Void if modified, unauthorized repair, or non-compliance with instructions
Spare parts and repairability	Repair by qualified technician only; strings available separately
General information	Manual available in multiple languages; CE certified; do not dispose of with household waste

Frequently Asked Questions - ShowKit Electric MAX

How to change the guitar strings?

Unwind the old string at the top of the neck, push it through the body via the bridge hole. Insert a new string into the corresponding hole, pass it over the nut and along the neck, thread it through the tuning peg hole, bend it and wind it using the tuning peg. It is recommended to change one string at a time.

How to tune the guitar with the clip-on tuner?

Attach the tuner to the guitar headstock using the clip. Press the button for 2 seconds to turn on. Select the tuning mode (chromatic, guitar or bass) by pressing the button multiple times. Play a single note; the backlight turns green if the note is in tune, blue on the left if too low, blue on the right if too high.

What to do if the tuner does not work?

Turn off and then on again. If the problem persists, remove the CR2032 battery and reinsert it observing polarity. Check that the battery is not depleted.

How to adjust the volume and tone of the amplifier?

Use the Volume knob for overall volume. For tone, adjust Treble (highs), Middle (mids) and Bass (lows). The Gain knob controls distortion, and Boost enables or disables it.

Can I plug headphones or an MP3 player into the amplifier?

Yes, the amplifier has a Phones jack for headphones and an Aux jack for connecting an external audio source (MP3 player, phone).

What are the important safety precautions?

Do not open the device; only repairs by a qualified technician are allowed. Unplug the device during a storm or if unused for a long time. Use a grounded outlet. Avoid moisture and extreme temperatures.

How to maintain the guitar?

Clean it with a soft dry cloth. Do not spray insecticide nearby. When cleaning the headstock, be careful with string ends. Store it in a case or on a stable stand.

Which battery to use for the tuner and how to replace it?

Use a CR2032 battery. Press the battery compartment cover on the back of the device to open it. Insert the new battery observing polarity. Battery life depends on usage.

What to do if the amplifier does not turn on?

Check that the power cord is plugged into a functioning mains outlet (220-240 V~50 Hz) with grounding. Make sure the Power switch is in the ON position. If the problem persists, consult a technician.

Where can I find the complete manual and in other languages?

The manual is available free of charge in PDF format at notice-facile.com. You can also request a translation into another language by providing your email address.

USER MANUAL ShowKit Electric MAX

ShowKit Electric Acoustic Guitar Pack

Ref. nr.: 173.170, 173.172 & 173.174

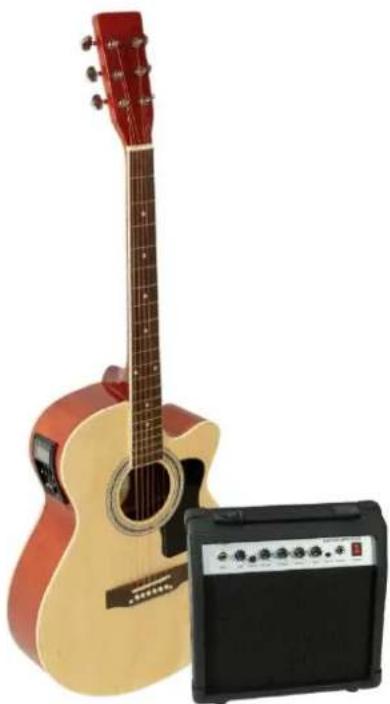

A acoustic guitar with red head and white body next to an acoustic guitar amplifier (no text or symbols visible)

INSTRUCTION MANUAL GEBRUIKSAANWIJZING BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUEL D'INSTRUCTIONS INSTRUKCJA OBSŁUGI NÁVOD K POUŽITÍ

Congratulations to the purchase of this Max product. Please read this manual thoroughly prior to using the product in order to benefit fully from all features.

Read the manual prior to using the product. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• When using a shoulder strap, make sure the shoulder strap is securely attached to the guitar.
• Do not place your face close to the instrument when changing or adjusting the strings.
• After changing the strings, cut off the leftover string ends.
• The guitar has been properly adjusted before being shipped from the factory. In For those adjustments that can be performed by the owner, please closely follow the instructions given in the Owner's Manual for the procedure.
• Broken guitar necks are mostly the result of accidents such as dropping the guitar, the guitar falling over, or from shocks occurred during transport. When the guitar is not being used, make sure it is kept on a sturdy stand where it won't fall over, or place it in its case.
• Do not treat the instrument in a rough manner like swinging it around, throwing objects at the instrument, dropping the instrument, etc. And do not put excessive force on the switches or control knobs, etc.
• When cleaning the instrument, use a soft, dry cloth. Also, do not spray insecticides close to the instrument. And when cleaning the headstock, be careful not to injure yourself on the sharp string ends.
• Connect the product to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The product has been certified CE. It is prohibited to make any changes to the product. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

POWERSUPPLY

On the label on the backside of the product is indicated on this type of power supply must be connected. Check that the mains voltage corresponds to this, all other voltages than specified, the light effect can be irreparably damaged. The product must also be directly connected to the mains and may be used. No dimmer or adjustable power supply.

Always connect the device to a protected circuit (circuit breaker or fuse). Make sure the device has an appropriate electrical ground to avoid the risk of electrocution or fire.

STORE THE GUITAR

• Do not keep the instrument close to a fire or flame, and keep it on a low, stable surface.
• Do not leave the instrument leaning against the wall, etc., in the vicinity of children.
• Long-term storage in the hard case may have an adverse effect on the guitar. Open the case occasionally to let air circulate in the case.
• If the instrument is not going to be used for an extended period of time, keep the instrument in a place other than those listed below.
• Locations subject to direct sunlight.
• Locations subject to extremely high or low temperatures.
• Locations subject to high humidity, dust, or vibration.
  During the summer season, temperatures inside of a car can become extremely hot. Do not leave the instrument inside of a car.

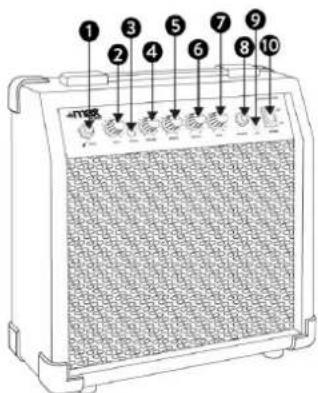

AMPLIFIER

1. Guitar input – Plug your guitar in here.
2. Gain - Adjust the amount of pre-amp gain. High gain setting will supply more distortion and sustain.
3. Boost – Turn on/off the gain control
4. Volume – Adjust amplifier loudness
5. Treble – Adjust the treble tone.
6. Middle - Adjust the middle tone.
7. Bass - Adjust the bass tone.
8. Phones – For connecting stereo headphones.
9. Aux - Connect an audio source (e.g. MP3 player, mobile phone) to play along.
10. Power – Switch the amplifier On or OFF.

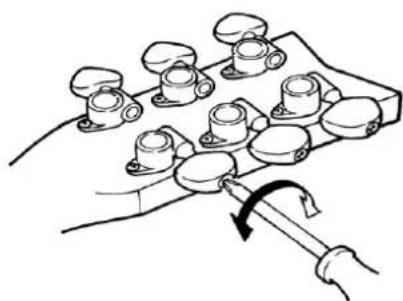

TUNING MACHINE TENSION ADJUSTMENT

The adjustment knobs feature spring-loaded mechanisms that automatically absorb wear, preventing backlash. However, it is possible to adjust the amount of pressure required to turn the machines. Each mechanism is equipped with a tension adjustment screw, as shown.

Turning the screw clockwise tightens the mechanism. The adjusting knobs should be adjusted so that they are firm but turn smoothly. This adjustment is not normally necessary, and over-tightening may cause premature wear of the adjustment knobs.

Illustration of hands holding various small mechanical parts with a curved arrow indicating rotation (no text or symbols)

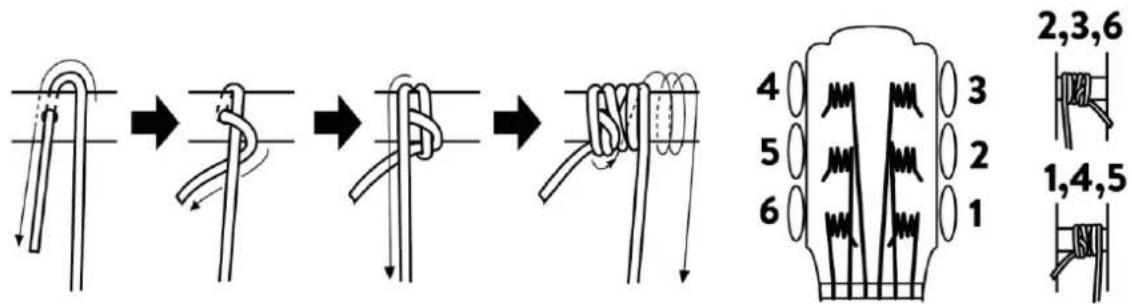

CHANGE THE STRINGS

1. Unwind the old string at the tuning machine at the top of the neck (it is recommended to change 1 string at a time)
2. Push the old string through the body of the guitar through the hole in the bridge.
3. Insert a new string through the corresponding hole (compare the thickness of the new string to the old string to make sure it is the correct string).
4. Run the string over the nut in the bridge and along the neck.
5. Feed the string through the hole in the tuning machine post.
6. Bend the string around the post and wind the string using a tuning peg.

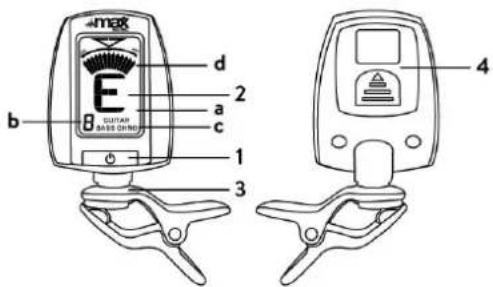

CLIP-ON DIGITAL TUNER

1. Power / Mode button

2. Display
   a. Note name
   b. String number
   c. Chromatic / Guitar / Bass
   d. Measuring range

3. Clip

4. Battery compartment

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

Operating

1. Attach the device to your instrument via the clip.
2. Press and hold the button for 2 seconds to turn the unit on.
3. Select the tuning. Press the button repeatedly to select 'Chromatic', 'Guitar' or 'Bass' as the tuning.
4. If you select 'Chromatic', the display will show the note name.
   If you select 'Guitar' or 'Bass', the display will show the string number and the note name.
5. Play a single note on your instrument, the note name or string number is displayed. The backlight changes and the measuring range is displayed.

6. If the backlight turns green and the gauge is centered, the note is in tune correctly.
   ■ If the backlight turns blue and the indicator is pointing to the left, the tuning is too low.
   If the backlight turns blue and the display is pointing to the right, the tuning is too high.

7. If the unit does not detect any signal for 3 minutes after switching it on, it will switch off automatically.

Illustration of hands using a tool to adjust or install a tray with multiple small objects (no text or symbols present)

SNAREN VERWISSELEN

CLIP-ON DIGITALE TUNER

Illustration of hands using a tool to adjust or install a tray with multiple small objects (no text or symbols present)

AUSWECHSELN VON SAITEN

CLIP-ON DIGITALER STIMMGERÄT

Diagram showing a hand holding a tool interacting with multiple mechanical components (no text or symbols present)

Illustration of hands holding small mechanical parts with a curved arrow indicating rotation (no text or symbols)

TUNER DIGITAL CLIPSABLE

1. Bouton "Power / Mode
2. Afficher

Inserting the battery

Press on the battery compartment cover as marked on the back of the device. Open the compartment and insert a fresh CR2032 battery, paying close attention to the polarity. The life of the battery depends on the conditions of use.

Note: If the device does not work as described in this manual, and you do not solve the problem by switching it off and on again, remove the battery and reinstall it to possibly solve the problem.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols present)

DIGITÁLNÍ TUNER S KLIPEM

Wkładanie baterii

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ C/41°F and 35^ C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the product. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Max cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

POKYNY K VYBALOVÁNÍ

Diagram of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols present)

DIGITÁLNÍ TUNER S KLIPEM

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

United Kingdom

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.I. 2016:1101

S.I. 2016:1091

S.I. 2012:3032

Specifications and design are subject to change without prior notice.

www.tronios.com

Copyright © 2024 by Tronios The Netherlands
