USER MANUAL Halime BabyGO

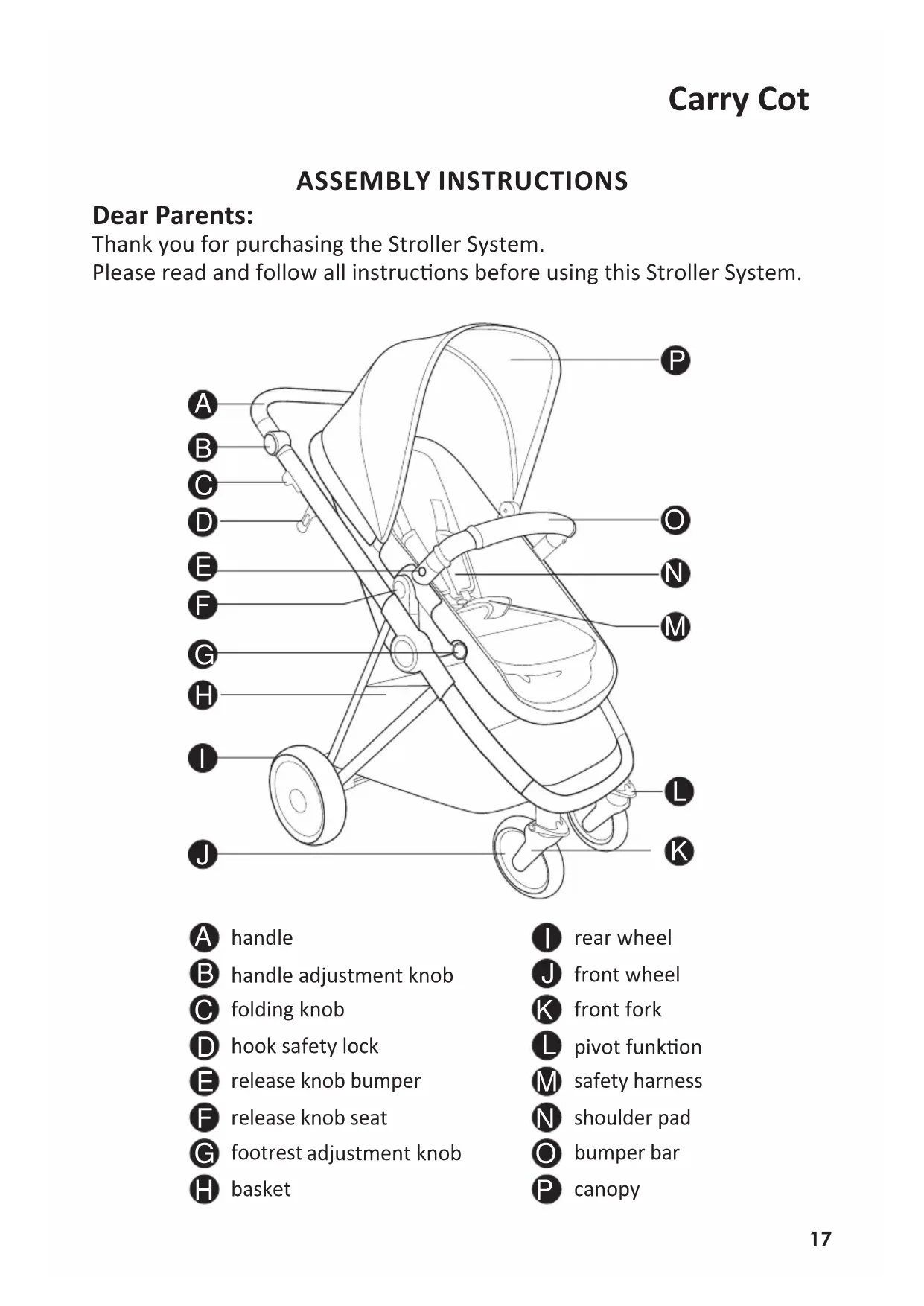

Carry CotASSEMBLy INSTRucTIONS Dear Parents: Thank you for purchasing the Stroller System. Please read and follow all instrucons before using this Stroller System.

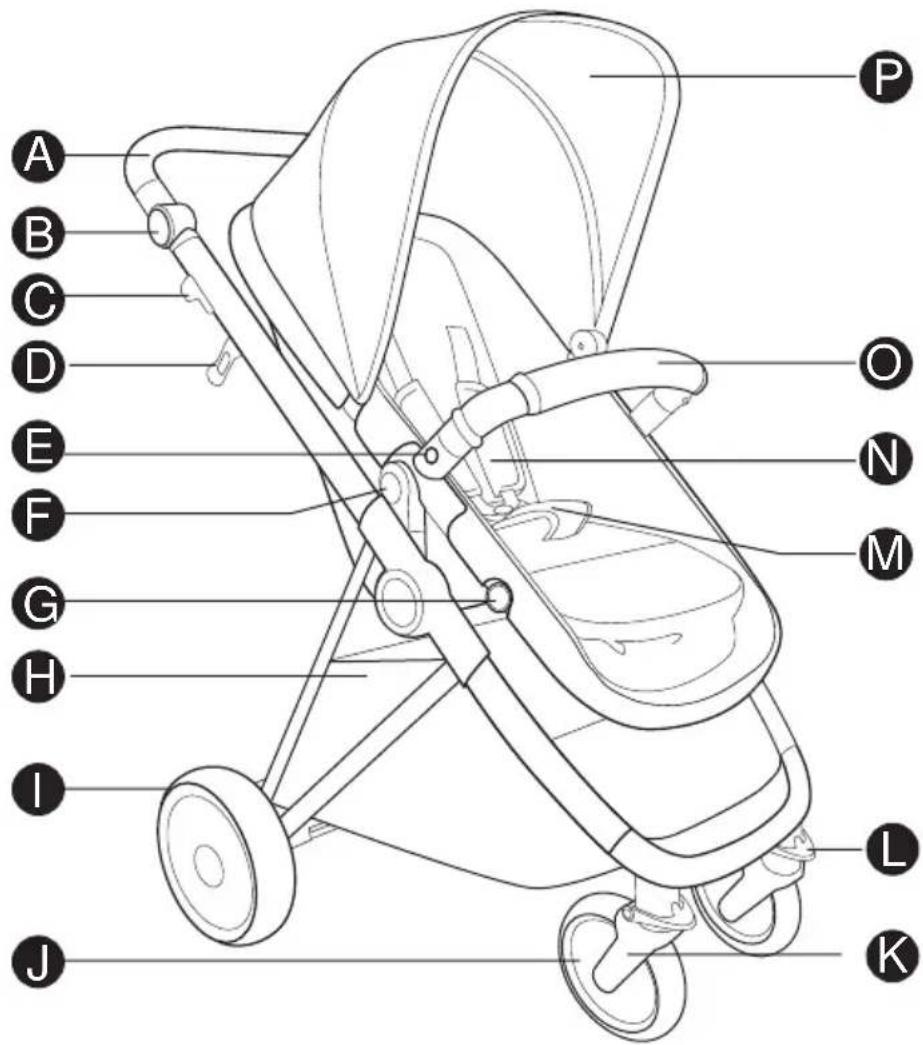

handle handle adjustment knob folding knob hook safety lock release knob bumper release knob seat footrest adjustment knob basket rear wheel front wheel front fork pivot funkon safety harness shoulder pad bumper bar canopy

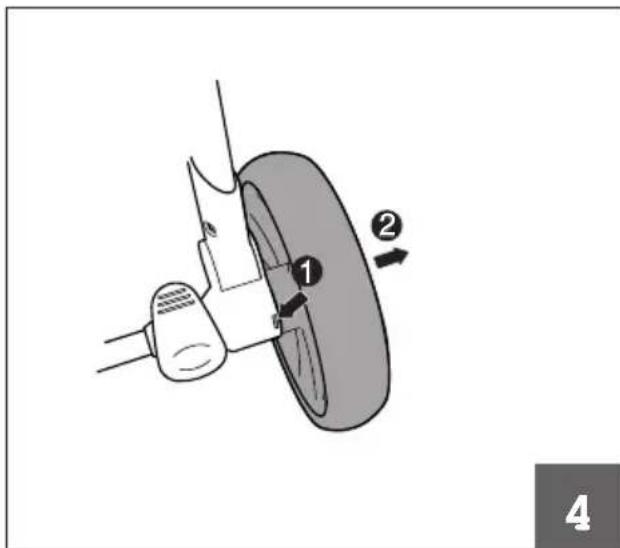

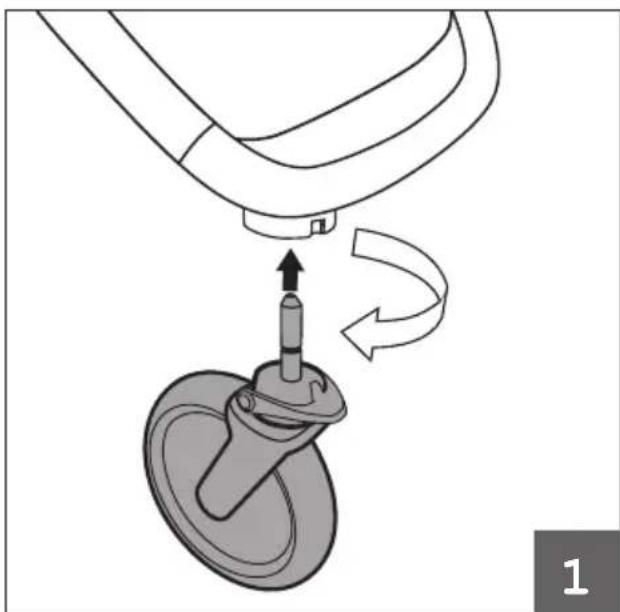

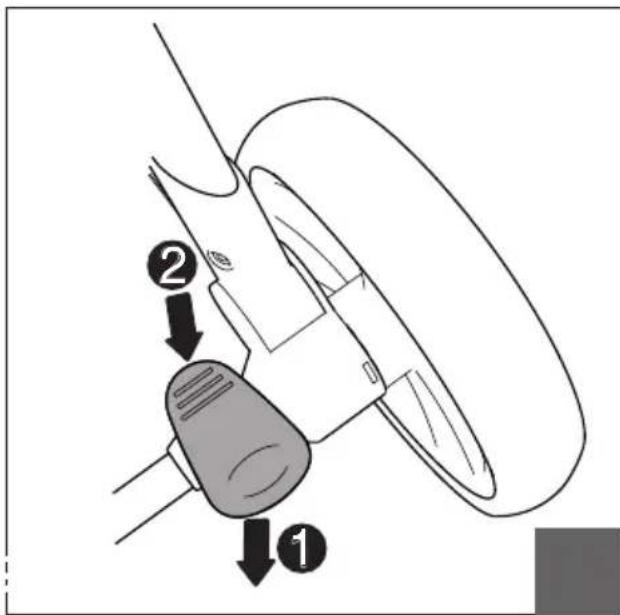

PAssembly: insert the wheel with the pin into the holder. Push down the plasc pin to lock the pivot funkon. Push up the plasc pin to unlock the rotaon. Rear wheel assembly: insert the wheel like the arrow shows to assemble it. Disassembling the front wheel: push in the metal pin on the side of the holder and pull out the wheel. Disassembling the rear wheel: press the metal pin like the arrow 1 shows. Pull out the wheel like arrow 2 shows. Funcon operaon:

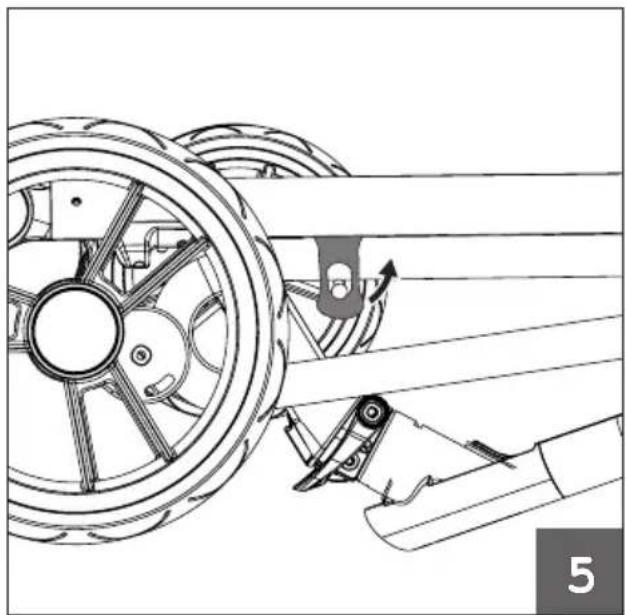

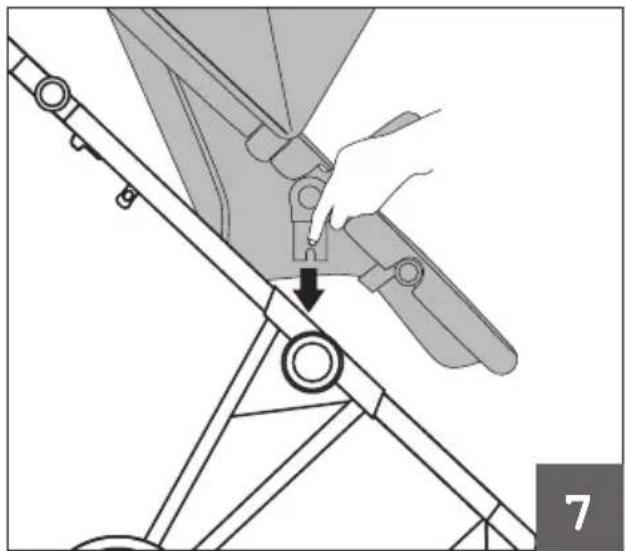

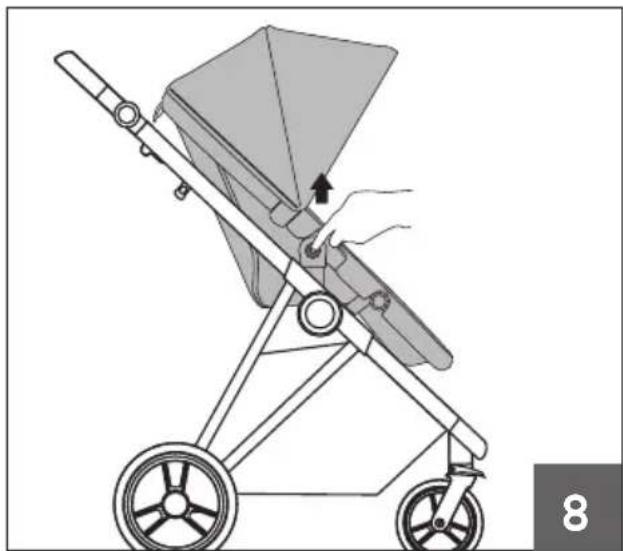

43Unfold frame: rst pull the hook like the arrow shows. Seat assembly: insert the seat like the arrow shows. Unfold frame: pull the handle like the arrow shows. When you hear a „click“, the frame is opened. Disassembling the seat: press the release buons like the arrow shows and li the seat out.

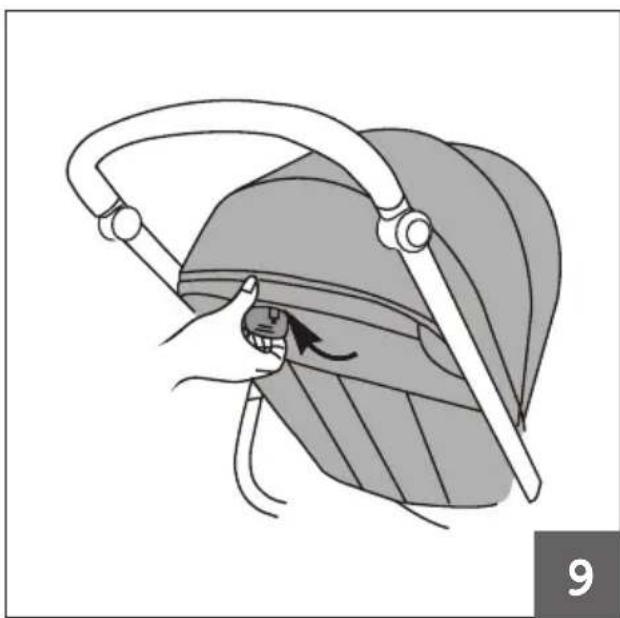

5 6Seat adjustment: pull the plasc lever like the arrow shows in gers 10, 11, 12 and 13, to adjust angle.

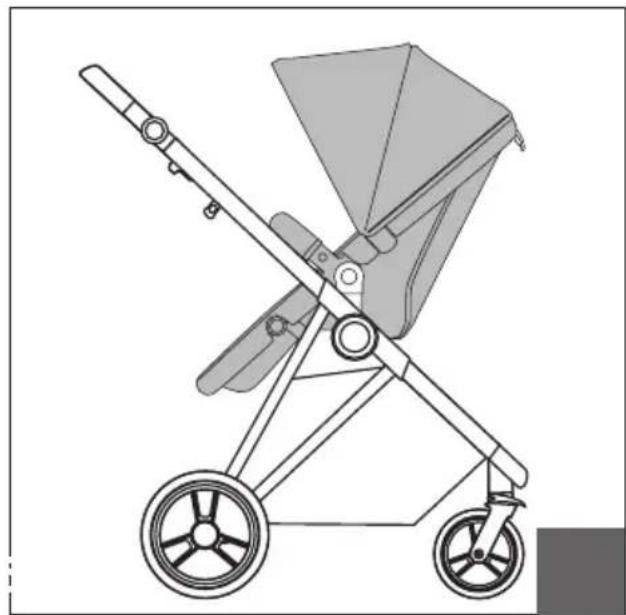

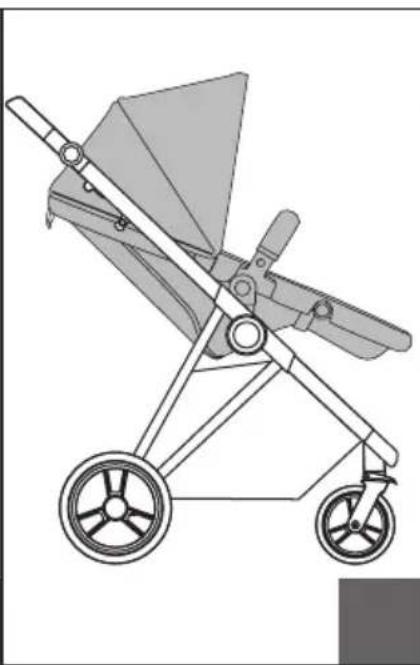

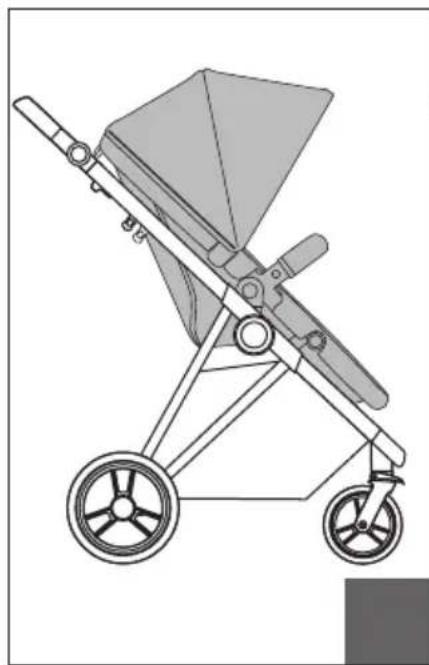

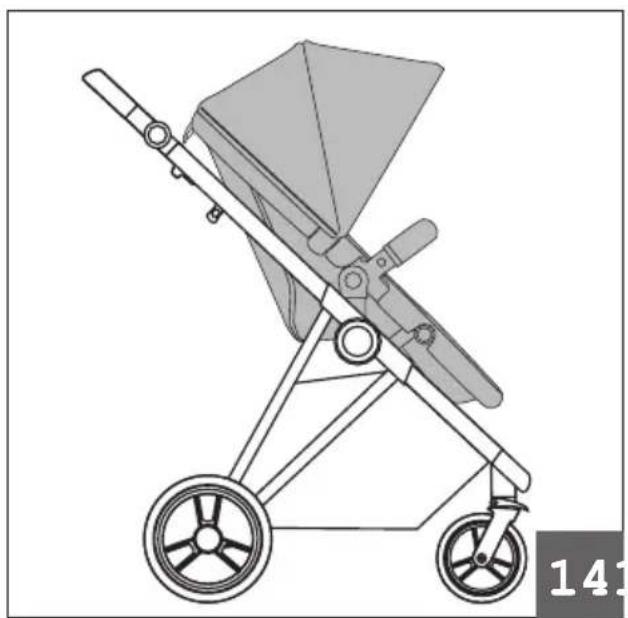

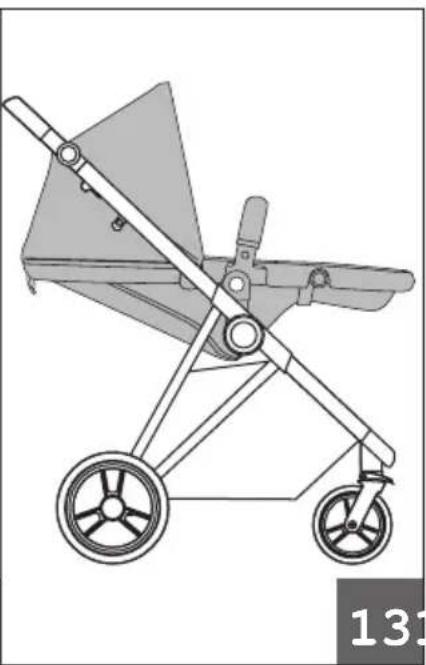

9 10The seat is reversible as gures 14 and 15 show. Bumper assembly: insert the bumperends into the holder simultaneously. Bumper disassembly: press the buons like the arrow shows to pull o the bumper. Footrest adjustment: press the buons like the gure shows to adjust the footrest angle.

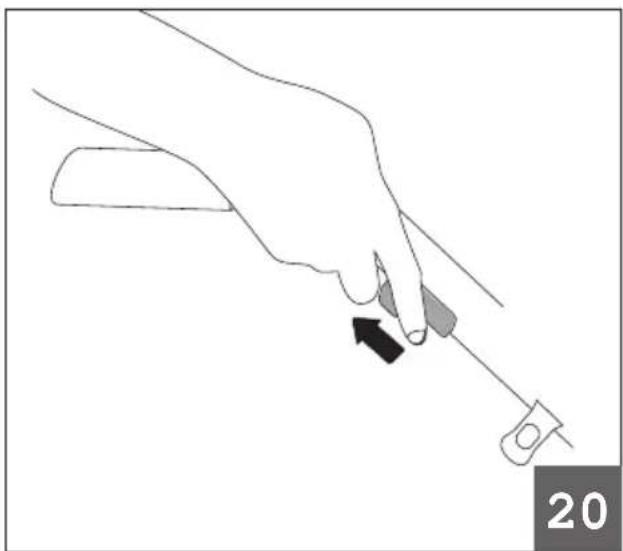

14 15Handle adjustment: press the buons to adjust angle. To fold the frame: press and pull the buons as shown in gure 20 hold it and push the same me the handle to fold frame as shown in gure 21. Step on the pedal like arrow 1 shows, to acvate the brake. Step on the pedal like arrow 2 shows, to release the brake. Aenon: always acvate the brake if you do not use the stroller.

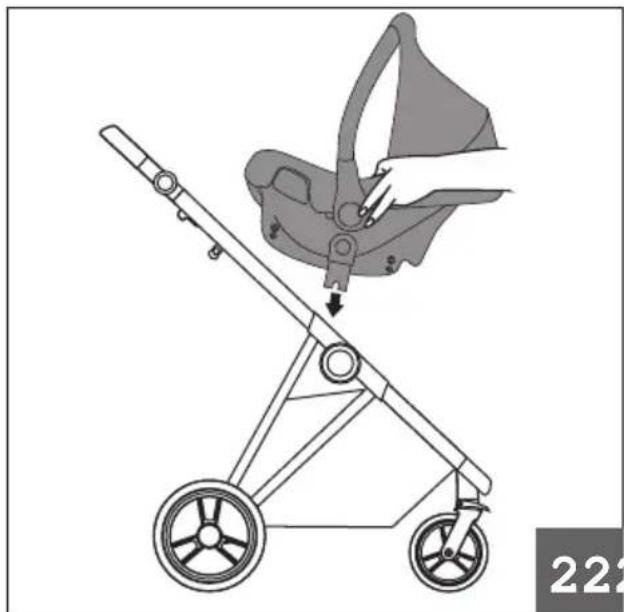

18 19Car Seat assembly: insert the car seat like the arrow shows. To close safety harness buckle:

1. combine the two plugs.

2. insert the combined plugs into

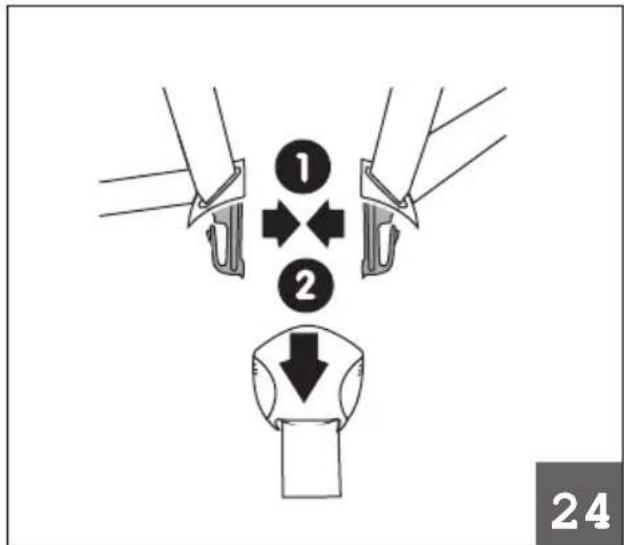

the buckle and push unl you hear a „click“. Car Seat take o: press the buons like the arrow shows and li up the car seat. Unlock the safety harness buckle: press the knobs on both sides of the buckle and pull the buckle plugs out like arrow 2 shows, to release the buckle.

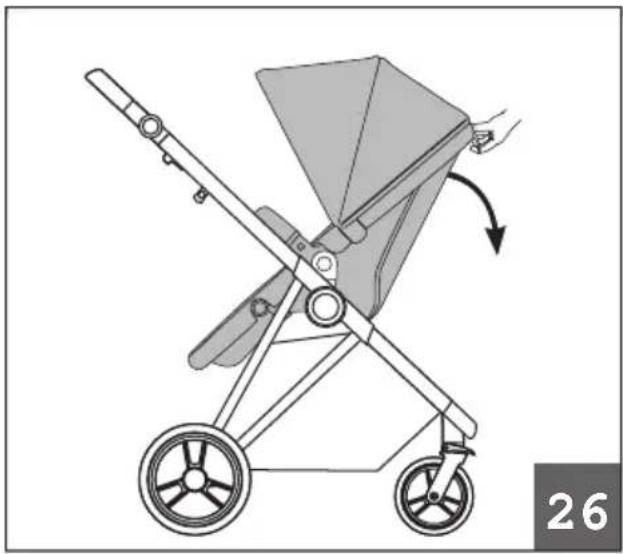

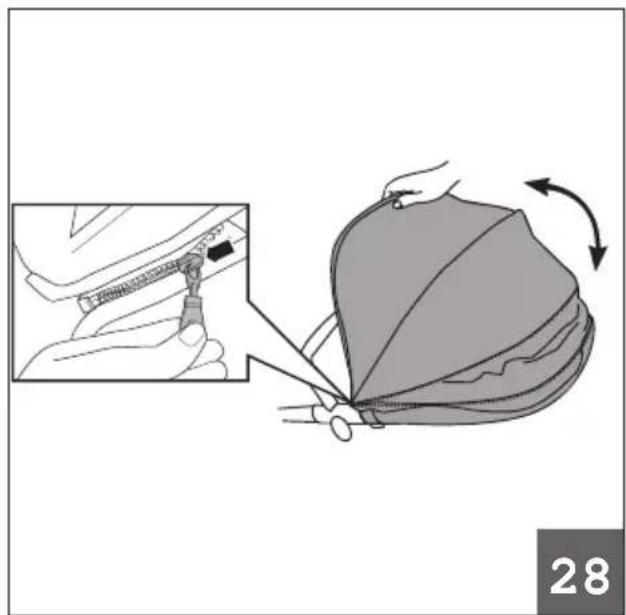

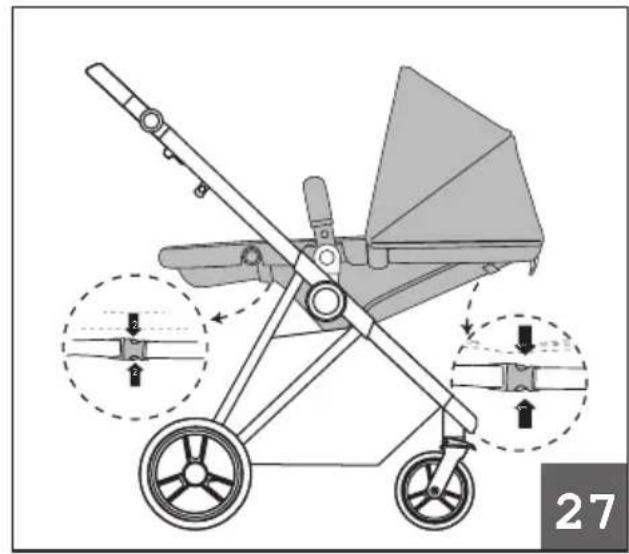

Carry Cot Pull the plasc handle to adjust the angle as shown in gure 26 accor- ding to the arrow mark. Open the zipper to fully unfold the canopy as shown in Figure 28. Open the belts under the seat as shown in gure 27. When the stroller is in carrycot mode, the carrycot must not be lif- ted by the handle when the baby is in it Fig. 29.

29Adjust or shorten the length of the harness belt: pull out the loop, slide the belt in the desired direcon and push up the buckle to ghten. Infant car seat with ISO-FIX base assemble: place the infant car seat vercally on the base. The red buon on the front of the base will pop out and the seat will be automacally locked (g2). To dissassemble: press the red buon on the front to release the carseat. canopy assembly: g a, push the canopy plug into the seat slot, close the back zipper canopy take o: g b, open the back zipper, pull canopy plug out.

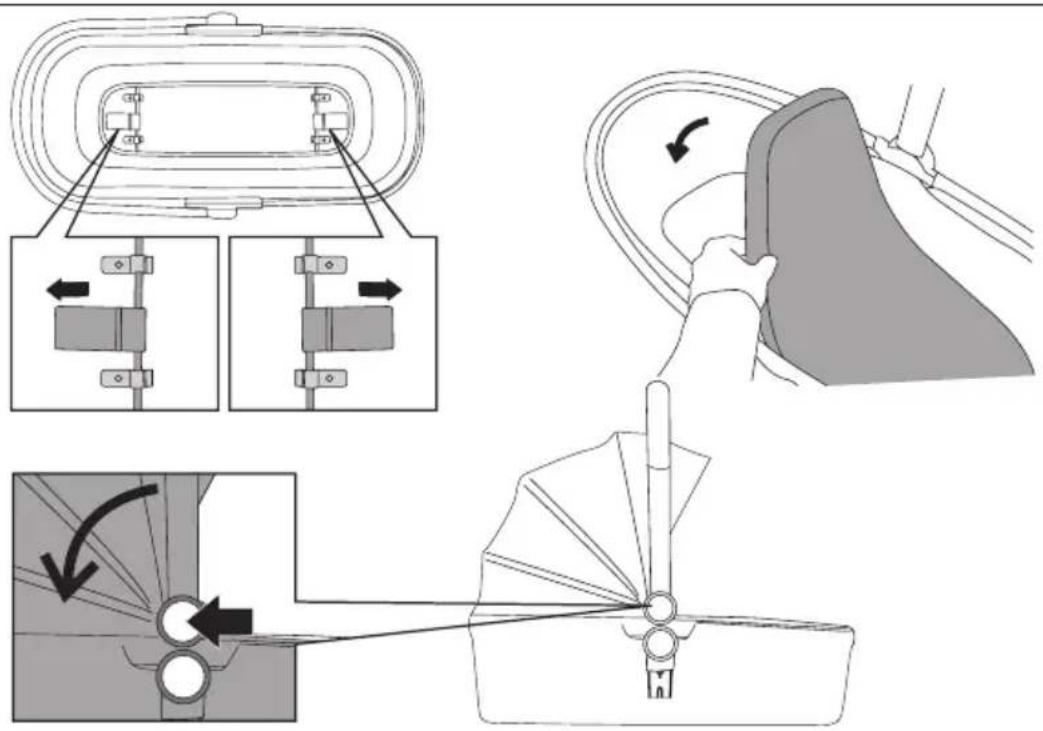

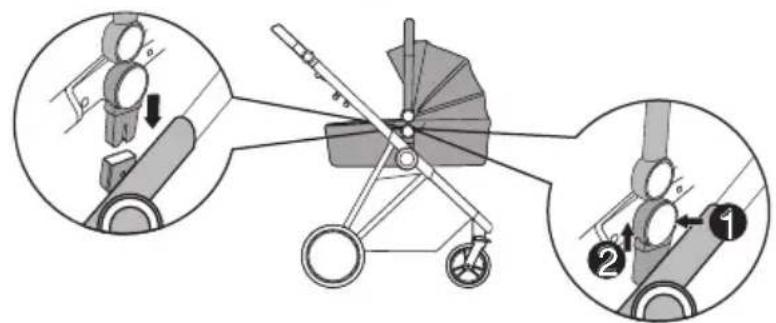

loop buckleUse the carrycot: pull the two xing bars towards both sides to open the carrycot and then put the mat inside onto the boom. Press the handle release buons to adjust handle. Hold the carrycot and in- sert the connectors into the slots situated on the both sides of the chassis. Push the release buons to remove the carrycot. Note:

1. This product is only suitable for a child who cannot sit up unaided.

2. Only use on a rm, horizontal level, dry surface.

3. The head of the child in the carrycot should never be lower than the body

4. Before carrying or liing, make sure that the handle is in the correct

posion of use. Informaon concerning the weight, age and/or ability of the child for which the vehicle is suitable (weighing up to 15 kg, used to 0-36 months). Important – Keep these instrucons for future reference

33WARNING Never leave your child unaended. WARNING Ensure that all the locking devices are engaged before use. WARNING To avoid injury ensure that your child is kept away when unfol- ding and folding this product. WARNING Do not let your child play with this product. WARNING Always use the restraint system. WARNING Check that pram body or seat unit or car seat aachment devices are correctly engaged before use. WARNING This product is not suitable for running or skang. WARNING Maress thickness is no more than 15mm. WARNING Parking device shall be engaged when placing and removing the children. WARNING The maximum load of basket is 5kg. WARNING Do not aached load to handle or on the back of the backrest or on the sides of the vehicle, it will aect the ability of the vehicle. WARNING Please check regularly if rivets are loose, if parts are broken or sewing is loose, if necessary, please change into new parts. When you assemble and disassemble, please reference to ins- trucon. Fabric cover can not be rinsed, when you clean fabric cover, please use brush or other clean ware to outwash splod- ge. The rest parts can be washed, please use soap or neutral cleaning mixture. Warranty is one year. WARNING This stroller is for one child only.
