TM 0915 - Fan Orbegozo - Free user manual and instructions

Product type	Pedestal fan
Brand	Orbegozo
Model	TM 0915
Power supply	220-240 V ~ 50 Hz
Power	30 W
Dimensions (L x W x H)	120 x 130 x 360 mm
Number of speeds	2 (Low / High)
Oscillation function	Yes, with dedicated button
Housing material	Plastic
Design	Elegant and compact
Noise level	Not specified
Weight	Not specified
Maintenance	Clean the body with a dry cloth, do not immerse
Safety	Do not insert objects into the grille, do not use near water, stable surface
Use	Household use only
Warranty	Refer to the provided warranty card
Spare parts	Contact authorized technical service
Certifications	Low Voltage Directive 2006/95/EC, EMC 2004/108/EC

Frequently Asked Questions - TM 0915 Orbegozo

How to clean the Orbegozo TM 0915 fan?

Unplug the appliance. Clean the body with a soft, dry cloth. Never use water, solvents, or abrasive products. Do not immerse the appliance in water.

Can I use the fan near a window or outdoors?

No, never use the fan near a window or outdoors. Rain can create an electrical hazard. Use it only in a dry, indoor location.

Does the fan have an oscillation function?

Yes, press the oscillation button (D) to activate or deactivate the lateral movement. The fan will oscillate until you press again.

How to turn the fan on and off?

Plug in the appliance. Use the speed selector (C): press 'I' for low speed, 'II' for high speed. To turn off, press the Stop (0) button (B).

What is the noise level of the fan?

The noise level is not specified in the manual. For household use, it is generally quiet, especially at low speed.

What to do if the power cord is damaged?

Do not use the appliance. Contact an authorized technical service for replacement. Do not attempt to repair it yourself.

Is this fan suitable for children?

Children aged 8 years and older can use it under supervision. Children should not play with the appliance. Keep it out of reach of children under 8 years.

How to adjust the fan speed?

Use the speed selector (C) located on the control panel. Two positions: 'I' (low) and 'II' (high).

Can I remove the grille to clean the blades?

Yes, but first unplug the appliance. Remove the protective system (front grille) to access the fan blade. Clean with a dry cloth. Do not immerse any parts in water.

Where can I find the complete manual or spare parts?

The manual is available free online. For spare parts, contact an authorized technical service or write to [e-mail] to obtain a copy of the manual.

USER MANUAL TM 0915 Orbegozo

MINI TOWER FAN - INSTRUCTION MANUAL

MINI TOUR VENTILATEUR - MANUEL D'INSTRUCTIONS

MINI TORRE VENTOINHA - MANUAL DE INSTRUÇÕES

Exterior view of a modern office building (no signage)

TM 0915

Sonifer, S.A.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

Funcionamiento:

Symbol of a trash bin crossed with no text or labels

Dear Customer, If you follow the recommendations contained in this Instruction Manual, our appliance will

give you constant high performance and will remain efficient for many years to come. Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

General Safety Instructions

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.

2. Children should be supervised to ensure that they do not play with the appliance.

3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.

4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.
9. Never immerse the appliance in water or any other liquid.
10. Make sure the appliance has been unplugged before cleaning.
11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can ask for it writing an email to [e-mail].
14. WARNING: In case of misuse, there is a risk of possible injury.

Other specific safeguards

- Never insert fingers, pencils or any other object through the grille when fan is running.

- Disconnect the plug when moving from one location to another.

- Disconnect plug when removing guards for cleaning.

- Be sure fan is on a stable, even surface when operating to avoid overturning.

- DO NOT use fan in window. Rain may create an electrical hazard. Do not leave the fan operating adjacent to an area where water has been collected to avoid the potential of electrical hazard.

Products Feature

1. Luxury and compact design.

2. With plastic shell, don't rust forever.

3. Designed by excellent engineer, the products structure is reasonable and fast.

4. With High/Low speed for your selection.

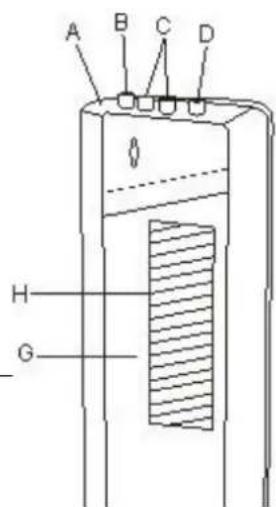

Parts of product.

No.	Name
A	Cotrol Panel
B	OFF Button
C	Speed Control Buttons

D	Oscillation Control Button
E	Power Cord (not Shown)
F	Base
G	Front Grill
H	Fan Blade (not Shown)

Operation:

1. Please put the fan on the dryness desk.
2. Plug the power plug at correct status.
3. To Turn the fan on, press the appropriate speed button next to your desired speed. Press "I" for Low Speed and "II" for High Speed.
4. To oscillate the fan, press the Oscillation Control Button ( ) (D). Press the button again to stop oscillation.
5. To turn the Fan Off, press the off (0) (B) button located the Control Panel (A).

V. Technical data:

Power voltage	220-240V AC	Frequency	50Hz
Power	30 W	Body size	120X130X360mm

VI. Maintenance:

1. Please make sure that the power plug was be unsheathed before you do the maintenance.
2. Keep the body cleanliness. Don't put the products into water to clearing. Don't using oil or impregnate clean body.

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Disposal of old electrical appliances.

The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2006/95/EC and the requirements of the EMC directive 2004/108/EC.
