SE3000HRWS00BNO4 - Battery SolarEdge - Free user manual and instructions

Brand	SolarEdge
Model	SE3000HRWS00BNO4
Product Type	StorEdge single-phase inverter with HD-Wave technology (battery compatible)
Technology	HD-Wave, SetApp
Nominal AC Power	3000 W
DC Input Voltage	380 V (nominal)
MPPT Voltage Range	125 – 480 V
Max Input Current	10 A
Dimensions (W × H × D)	540 × 315 × 180 mm
Weight	17 kg
Protection	IP65, surge protection, grid monitoring
Communication	RS485, Modbus, Ethernet (via SetApp)
Compatible Batteries	LG Chem RESU7H / RESU10H
Installation	Indoor/outdoor wall mounting, AC/DC wiring
Warranty	5 years (standard)
Main Functions	Maximum self-consumption, battery self-test, export/import management
Maintenance and cleaning	External cleaning with a soft cloth; periodic check of connections
Safety	AC circuit breaker, ON/OFF/P switch, mandatory grounding
Spare parts and repairability	Parts available via SolarEdge; repair by qualified personnel

Frequently Asked Questions - SE3000HRWS00BNO4 SolarEdge

How to connect the LG Chem battery to the StorEdge inverter?

Make sure the battery is powered off (switch OFF and circuit breaker open). Connect the DC cables between the battery and the StorEdge interface, as well as the RS485 cable for communication. Refer to the provided wiring diagram.

How to perform a battery self-test?

In the SetApp application, go to Commissioning > Maintenance > Diagnostics > Self-Test and select Battery Self-Test. Make sure the battery circuit breaker is in the ON position and the inverter ON/OFF/P switch is set to ON.

What to do if the battery self-test fails?

Check the power and communication cables between the battery and the inverter. If the charge or discharge test fails, or if communication is faulty, reconnect the cables correctly. Make sure the inverter switch is in the ON position.

How to configure maximum self-consumption (MSC)?

In SetApp, select Commissioning > Power Control > Energy Manager > Energy Control then choose Maximum Self-Consumption.

How to power off the LG Chem battery?

First turn off the circuit breaker, then the disconnect switch or the battery's auxiliary power switch. This sequence is mandatory to avoid any risk.

What is the role of the DIP switch on the StorEdge interface?

The DIP switches terminate the RS485 bus. If no energy meter is connected, set the left DIP switch to ON to terminate the bus.

How to check the connection to the SolarEdge monitoring server?

In SetApp, go to Commissioning > Status. Check that the message S_OK - Server Connected is displayed in the main inverter section.

What cables to use for the RS485 connection between the battery and the inverter?

Use a shielded twisted pair cable (Cat5e type or similar) with proper termination. Follow the wiring diagram provided by SolarEdge.

How to configure the energy meter in SetApp?

In SetApp, go to Commissioning > Communication > RS485-1. Select Add Modbus device then Meter. The meter is automatically identified. Then configure the CT Ratio according to the CT sensor specifications.

Where to find the serial number of the StorEdge inverter?

The serial number is on the label on the side or bottom of the inverter. Note it down before contacting SolarEdge support.

USER MANUAL SE3000HRWS00BNO4 SolarEdge

StorEdge Single Phase Inverter with HD-Wave Technology and SetApp Configuration – Wiring and On Site Check Quick Guide for Europe, APAC and South Africa

DE-Section 5

FR - Page 9

IT - Page 13

NL - Bladzijde 17

SP-Pagina21

Revision History

Revision 1.2 (December 2019) - Spanish translation added.

Overview

This document provides instructions for wiring and post-installation verification of a StorEdge system with the following components:

StorEdge Single Phase Inverter with HD-Wave Technology and SetApp Configuration
LG Chem RESU7H/RESU10H Battery
Energy Meter

For more details and additional system configurations, refer to the StorEdge Inverter Installation Guide supplied with the StorEdge Inverter.

CAUTION!

For proper battery performance, the LG Chem battery must remain connected to the StorEdge Interface and in charging mode. Extended battery disconnection may result in deep discharge and damage the battery.

Wiring the System

Powering off the Battery

WARNING!

The LG Chem battery must be powered off before wiring.

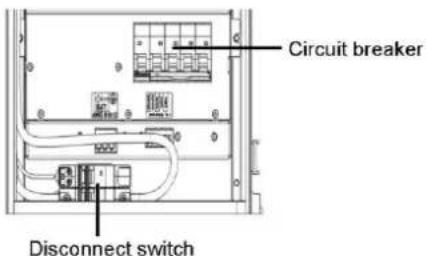

LG Chem batteries are available with one of the following powering mechanism types: With the disconnect switch With the auxiliary power swit

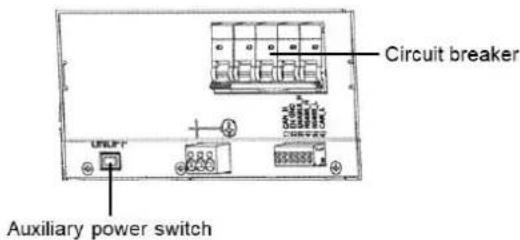

With the auxiliary power switch

To power off the battery:

1. Turn off the circuit breaker.
2. Turn off the disconnect/auxiliary power switch.

To power on the battery:

1. Turn on the disconnect/auxiliary power switch.
2. Turn on the circuit breaker.

Connecting System Components

Connect the system components as shown in the diagram below.

Pay attention to:

Cable types
DIP switch setup

If no Energy Meter is connected, terminate the inverter's RS485 bus by switching the left DIP switch ON.

MAN-01-00642-1.2 StorEdge Single Phase Inverter Wiring and On Site Check Quick Guide

Post Installation Verification and Configuration

Use the checklist below to verify that the system is properly connected and configured.

Installation and Wiring

1. Make sure the distances between the system components are as specified in the installation guide.
2. Take a picture of each of the system components after wiring them and send the pictures to SolarEdge support.

Inverter
StorEdge Interface
Battery
Energy Meter

1. Make sure the battery splash cover is closed.
2. Make sure the DIP switches of all components are set as shown in the connection diagram.
3. Make sure all DC, communication and AC cabling connections are completed as follows:

Check the AC wiring and the AC circuit breaker on the AC distribution panel.
Check the string DC input voltage. Expect 1V per optimizer in a string.
Make sure all components are properly grounded.
Check the DC connections on the battery and StorEdge Interface.
Check the RS485 connection between the battery and inverter.
Check the CT, AC and RS485 connections to the Energy Meter.

1. Check connection to Monitoring Platform:

In SetApp, select Commissioning > Status.
Check that S_OK - Server Connected appears in the main inverter section.

Configuring the Battery and Meter

1. Switch the inverter ON/OFF/P switch to OFF.
2. Access SetApp and select Commissioning > Communication.
3. From the Communication screen, select RS485-1 > Protocol > Modbus (Multi-Device).
4. Return to the previous screen and select Add Modbus Device > Battery.
5. Verify the battery information by selecting Battery 1 > Battery Information.
6. In the RS485-1 screen, select Add Modbus Device > Meter.
7. Set the meter's CT Rating according to the CT specifications. If the CT rating value returns to 0, check communication with the CT.

8. Select Meter 1 > Meter Function > Export + Import (E+I).

9. Run a battery self-test:

Make sure the battery's circuit breaker switch is ON.
Switch the inverter ON/OFF/P switch to ON.
In SetApp, select Commissioning > Maintenance > Diagnostics > Self-Test > Battery Self-Test > Run Test.
Wait for all tests to complete and check the results in the summary table.

If any of the tests have failed, see the table below for possible solutions:

Test Results	Solution
Charge failed	Check that the power and communication cables between the battery and inverter are properly connected.
Discharge failed	Check that the power and communication cables between the battery and inverter are properly connected.
Communication	Check that the communication cables between the battery and inverter are properly connected.
Inverter switch is off	Switch the inverter ON/OFF/P switch to ON.

To show the last test results:

Select Commissioning > Maintenance > Diagnostics > Self-Test > Battery Self-Test > Show Last Results.

Setting up the Maximize Self-consumption (MSC)

1. Access SetApp and select Commissioning > Power Control.
2. Select Energy Manager > Energy Control > Maximum Self Consumption.

Support Contact Information

If you have technical queries concerning our products, please contact us:

http://https://www.solaredge.com/service/support

Before contact, make sure to have the following information at hand:

Model and serial number of the product in question.
The error indicated on the product mobile application LCD screen or on the monitoring platform or by the LEDs, if there is such an indication.
System configuration information, including the type and number of modules connected and the number and length of strings.
The communication method to the server, if the site is connected.
The product's software version as it appears in the ID status screen.
