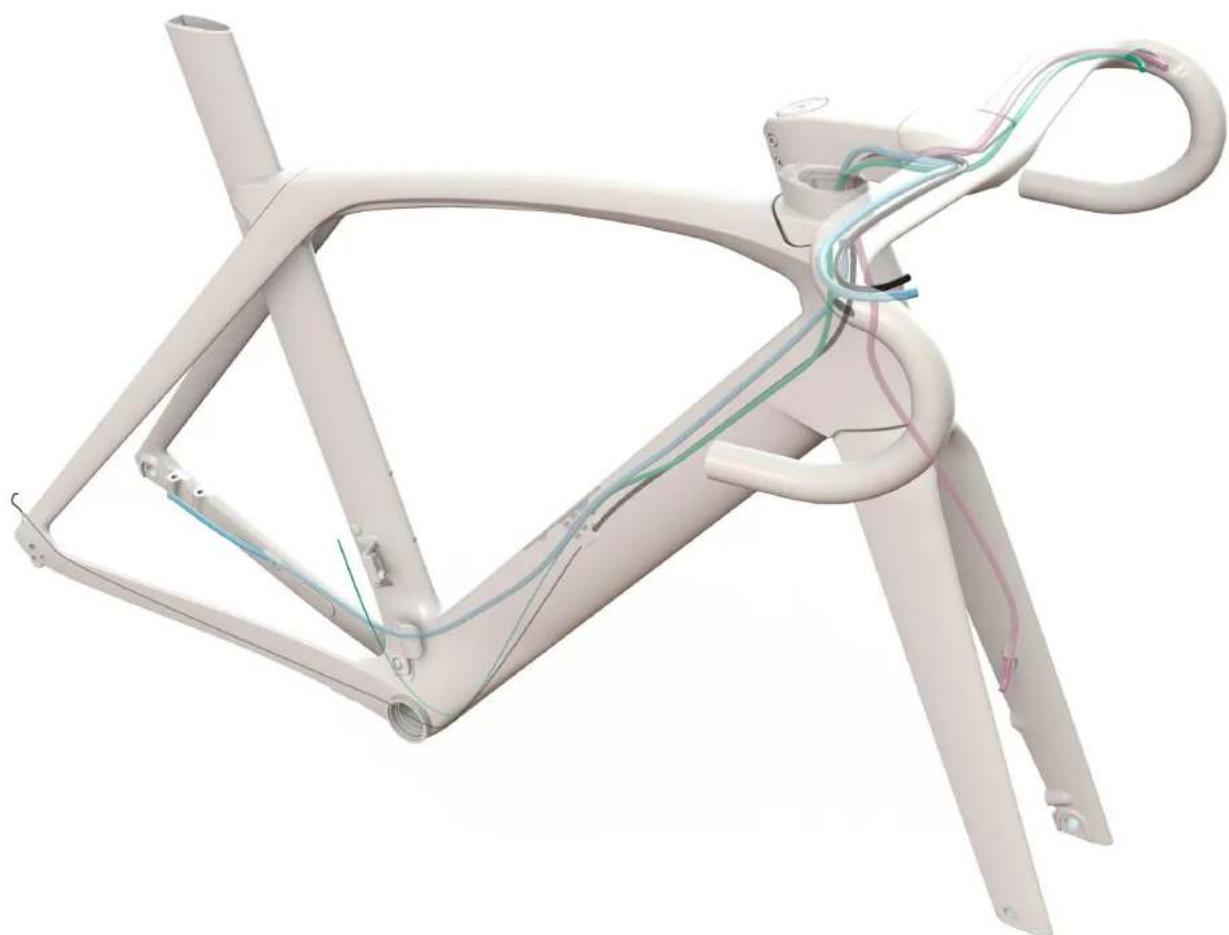

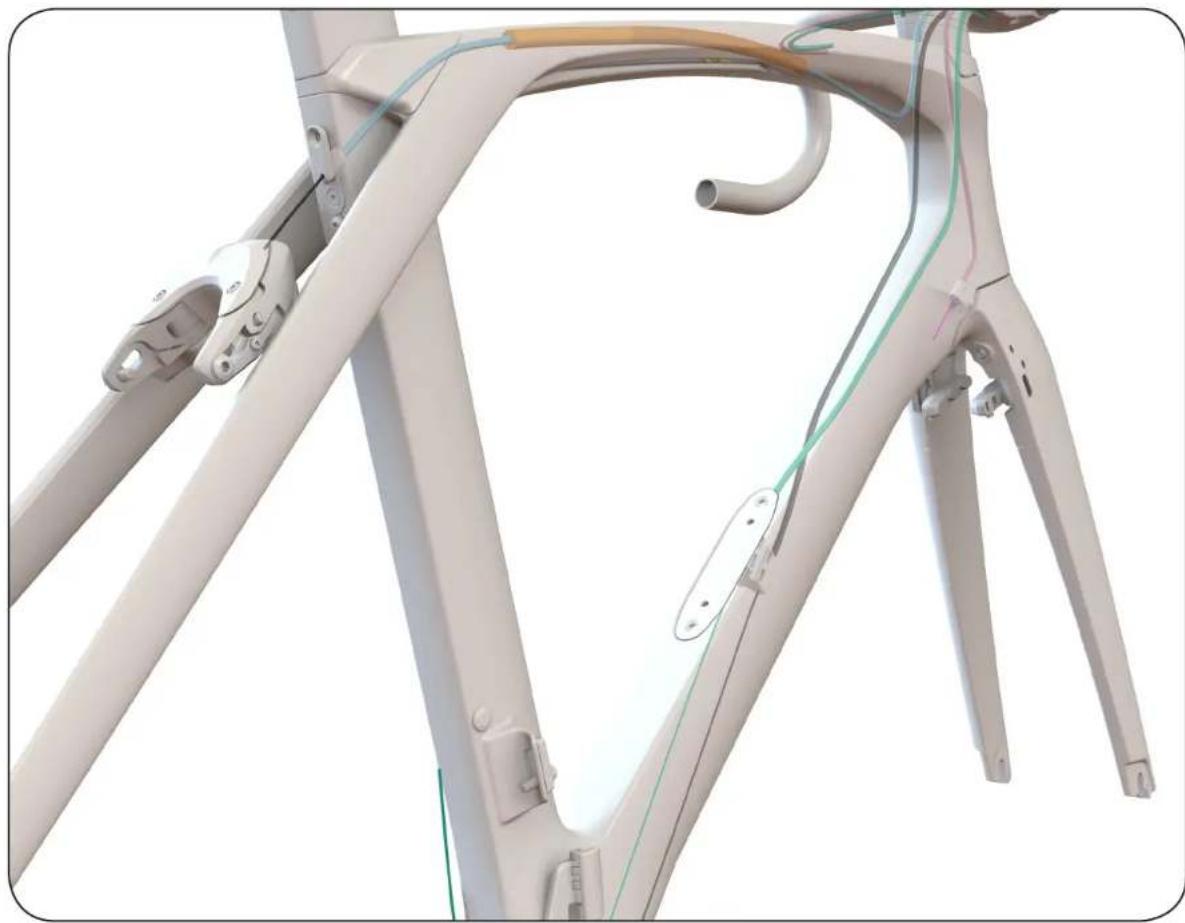

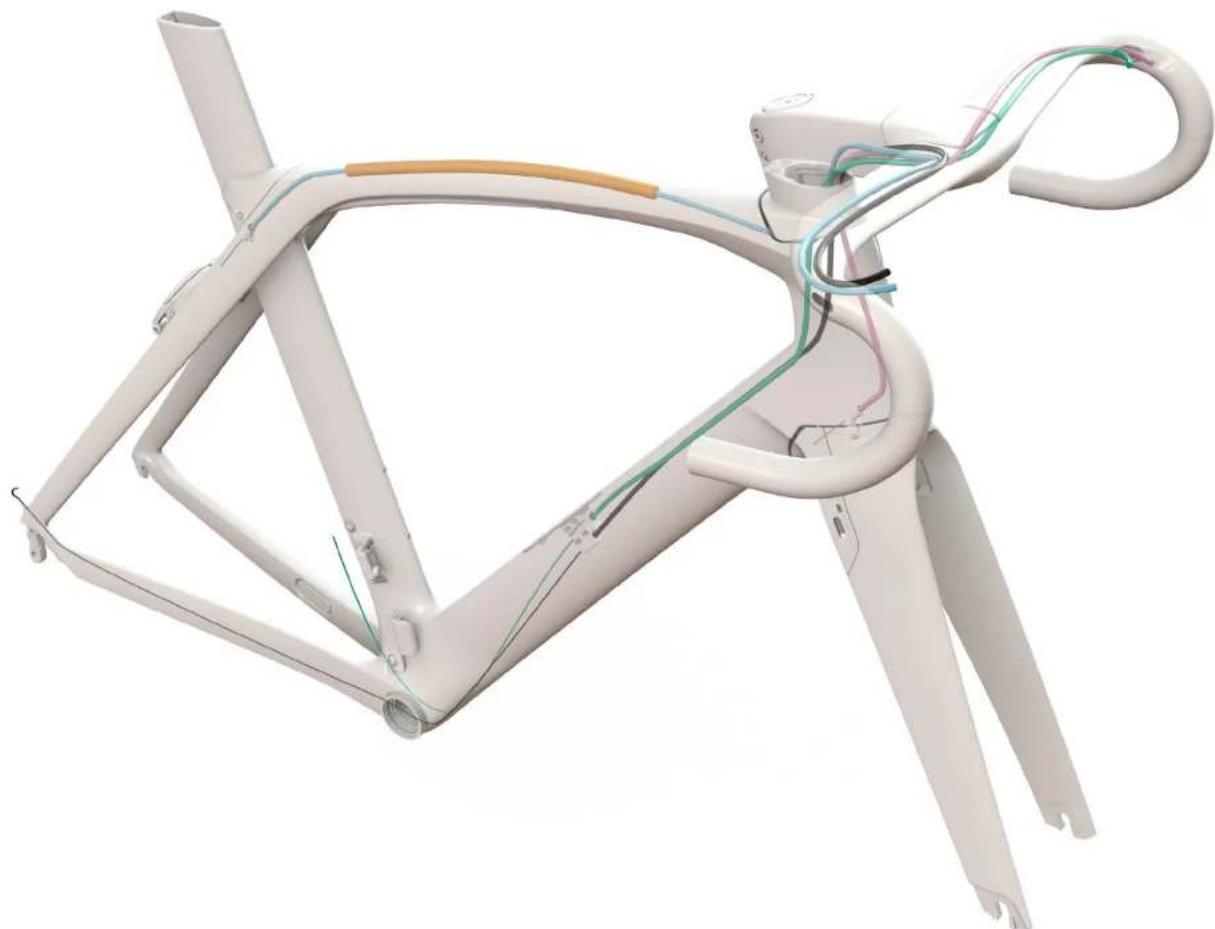

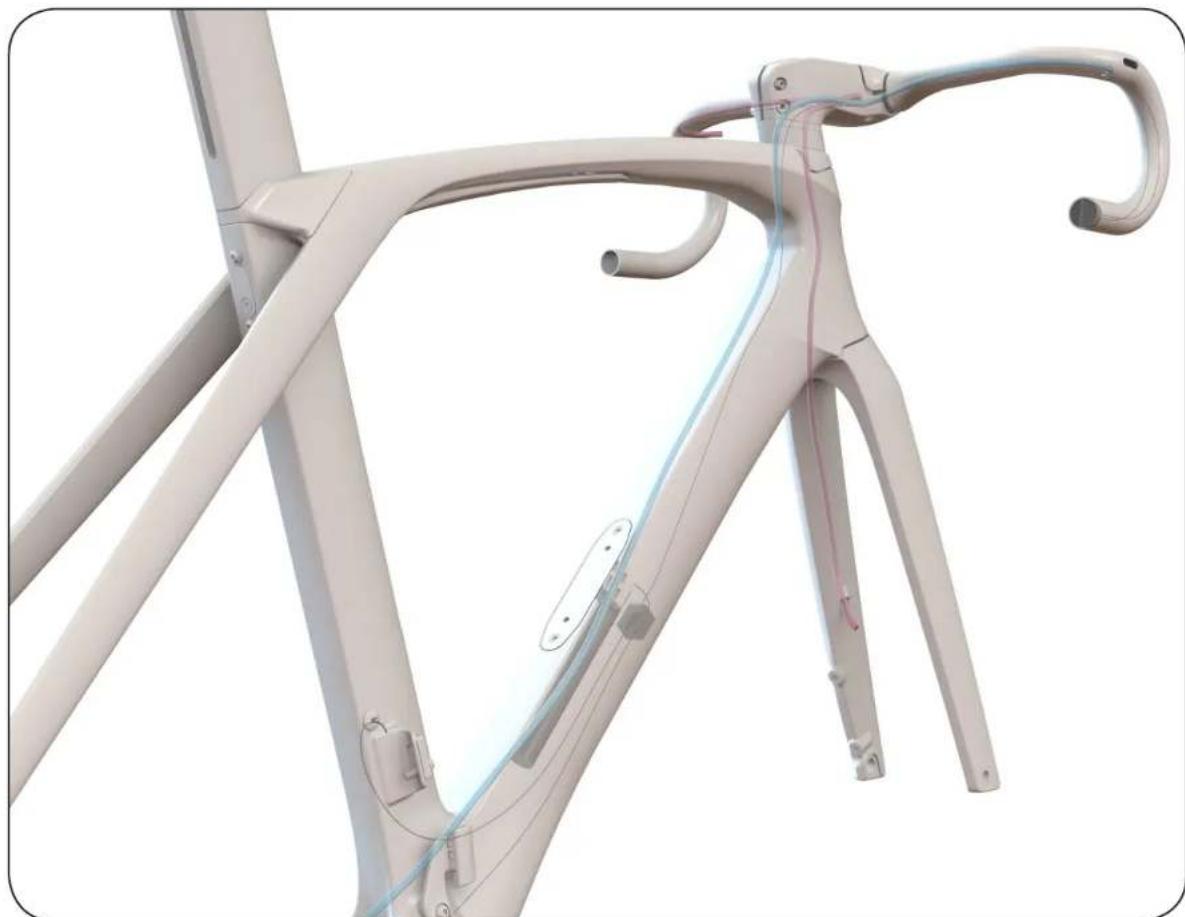

Madone SLR Parts Quick Reference
TREK

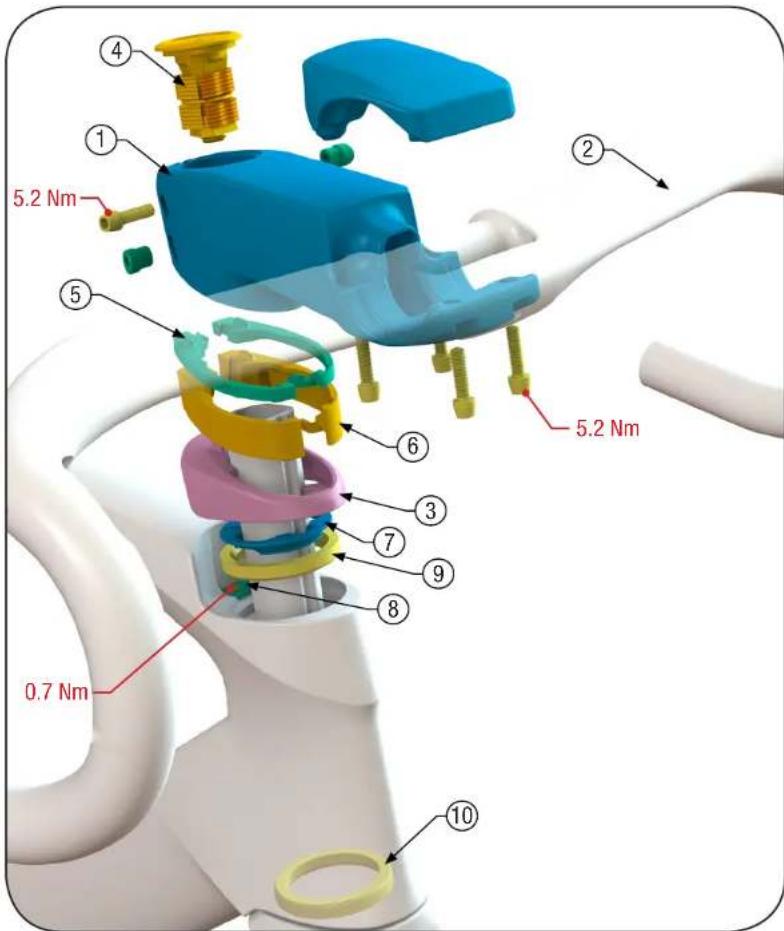

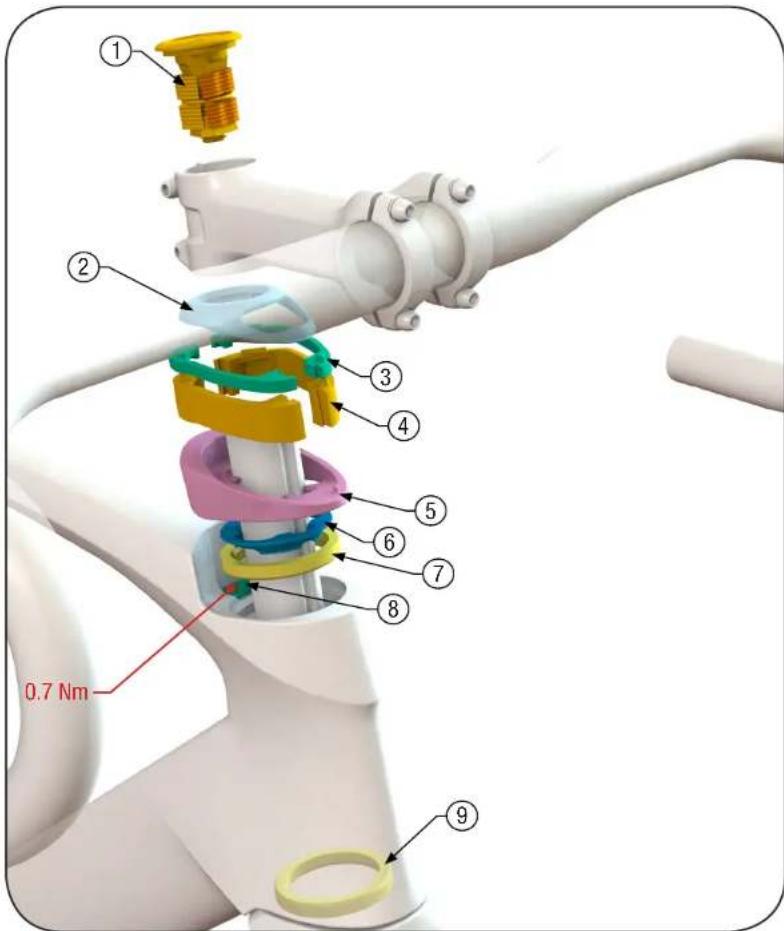

| Item | Part | Description | Part Number |
| 1 | Stem+Hardware | Low -15° 100mm | W569172 |
| Low -15° 110mm | W569173 | ||
| Low -15° 120mm | W569174 | ||
| Low -15° 130mm | W569175 | ||
| High -7° 90mm | W569177 | ||
| High -7° 100mm W569178 | |||
| High -7° 110mm W569179 | |||
| High -7° 120mm W569180 | |||
| High -7° 130mm W569181 | |||
| 2 Handlebar | VR-CF, 38cm | W561896 | |
| VR-CF, 40cm | W561897 | ||
| VR-CF, 42cm | W561898 | ||
| VR-CF, 44cm | W561899 | ||
| 3 | Headset Cover | Gloss Quicksilver W577654 | |
| Gloss Miami Green | W577655 | ||
| Gloss Black | W577656 | ||
| Matte Black | W577657 | ||
| Sunburst | W577658 | ||
| Gloss Viper Red | W577659 | ||
| Item | Description Part Number Qty | ||
| 4 Expander Wedge W577200 1 | |||
| 5 2 | Piece Headset Spacer, 5mm 577362 1 | ||
| 6 2 | Piece Headset Spacer, 15mm 577363 1 | ||
| 7 Custom Split Ring W563834 1 | |||
| 8 | Steerer Stop | W5265664 | 1 |
| M3x12mm Bolt W318529 1 | |||
| 9 | Upper Headset Bearing | W513538 1 | |
| 10 | Lower Headset Bearing | W540243 1 | |
Product Support
Madone SLR Parts Quick Reference
| Item | Description Part Number Qty | |||
| 1 | Expander Wedge W577200 | |||
| 2 | Cable Routing Spacer | W5264867 | 1 | |
| 3 | 2 | Piece Headset Spacer, 5mm 2 | 5253093 | |
| 4 | 2 | Piece Headset Spacer, 15mm 2 | 5253094 | |
| 5 | Headset Cover | Alpine Blue W592074 1 | ||
| Volt Green W592075 1 | ||||
| Trek Black W592076 1 | ||||
| 6 | Custom Split Ring W563834 1 | |||
| 7 | Upper Headset Bearing W513538 1 | |||
| 8 | Steerer Stop | W565905 1 | ||
| M3x12mm Bolt | W318529 1 | |||
| 9 | Lower Headset Bearing | W540243 1 | ||

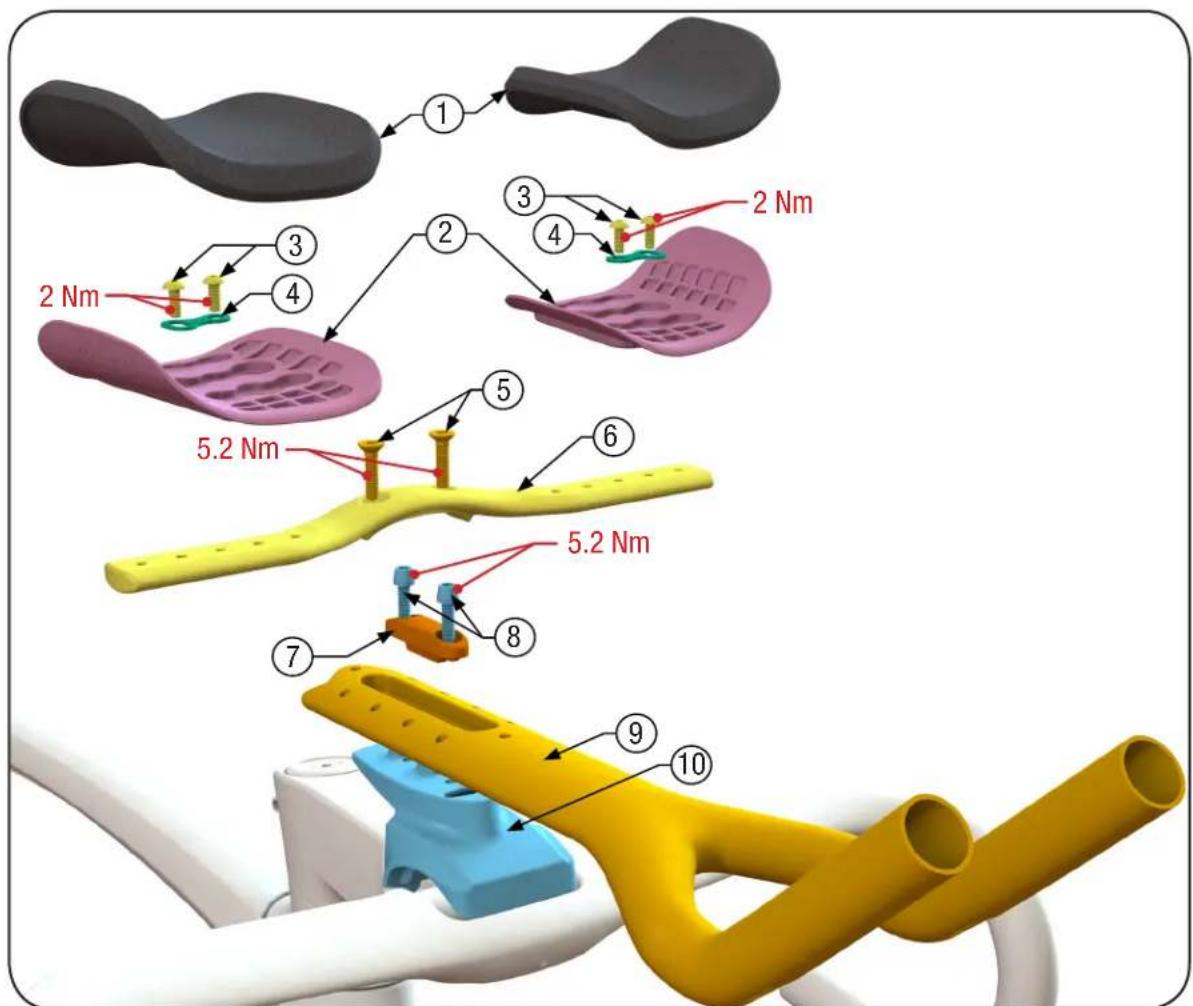

| Item | Description Part Number Note | Qty | ||
| 1 Arm Pads 541423 | Kit 541422 | 2 | ||
| 2 Arm Pad Cradle - 2 | ||||
| 3 Arm Pad Bolts | 517271 | 2 | ||
| 4 Dogbone Washers 2 | ||||
| 5 Pad Wing Bolts W333619 M5x2mm 2 | ||||
| 6 | Pad Holder Wing | W326497 | 1 | |
| 7 | Mono Extension Slider | W582448 | 1 | |
| 8 | Mono Extension Slider Bolts | W437687 | M5x20mm | 2 |
| 9 | Ergo TT Mono Extension | W582444 | 1 | |
| 10 | Madone Speed Faceplate | W581351 | “High” -7° Stems | 1 |
| W581350 | “Low” -15° Stems | |||
Product Support
Madone SLR Parts Quick Reference

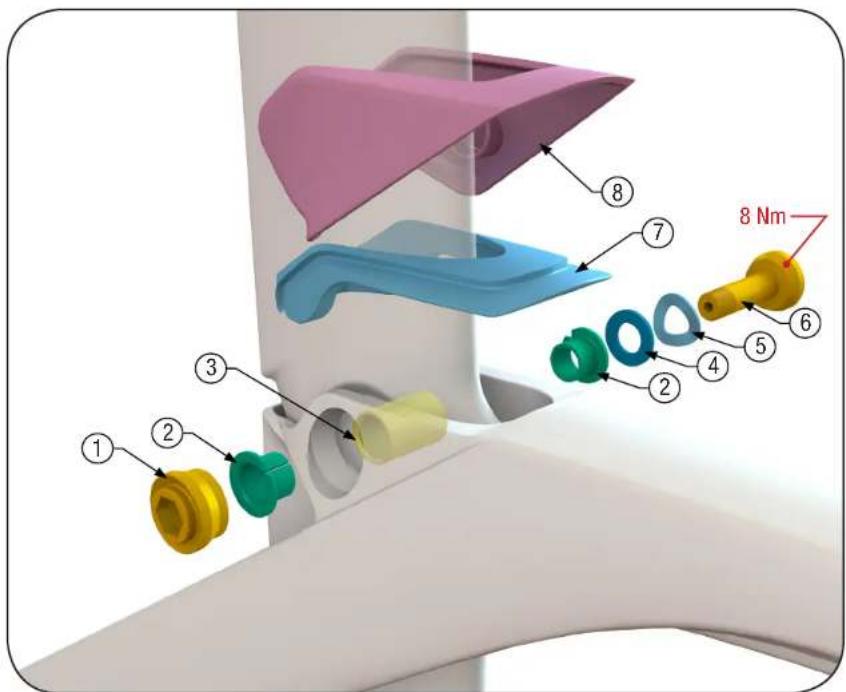

| Item | Description Part Number Kit Qty | |||
| 1 IsoSpeed Nut n/a W569265 1 | ||||
| 2 Flanged IsoSpeed Bushing W561683 n/a 2 | ||||
| 3 Cylindrical IsoSpeed Bushing n/a | 1W569265 | 1 | ||
| 4 Washer, 15x8.4x0.8mm | n/a | |||
| 5 | Wave Washer | n/a | 1 | |
| 6 | IsoSpeed Bolt | n/a | 1 | |
| 7 Internal IsoSpeed Cover W56904 n/a 1 | ||||
| Item | Part | Description | Part Number |
| 8 | External IsoSpeed Cover | Matte Dnister Black | W573717 |
| Gloss Dnister Black | W573720 | ||
| Gloss Trek White | W573721 | ||
| Gloss Rage Red | W573718 | ||
| Matte Gravel Grey | W573719 |
Product Support
Madone SLR Parts Quick Reference

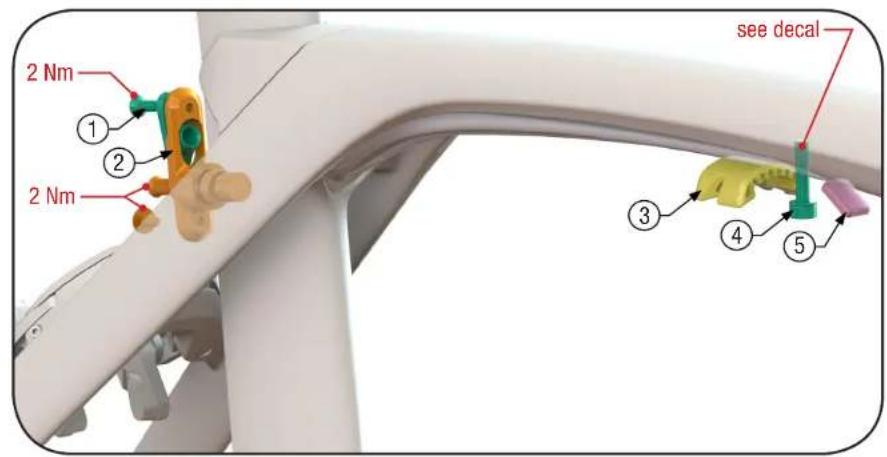

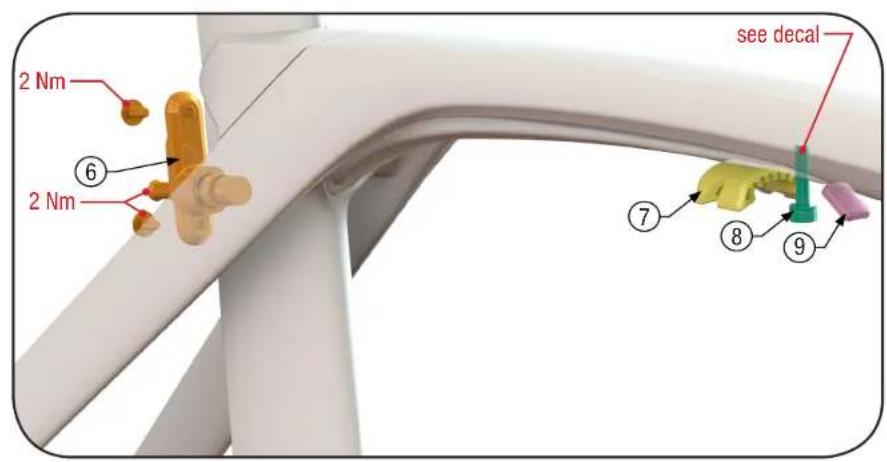

| Item | Description Part Number Qty | ||
| 1 | Cable Stop + M4x12mm Bolt W5 | 16820 1 | |
| 2 | Rim Brake IsoSpeed Damper W5 | 64020 1 | |
| 3 | IsoSpeed Slider W564294 1 | ||
| 4 | Slider Bolt W579510 1 | ||
| 5 | IsoSpeed Bumper W564444 1 |
| Item | Description Part Number Qty | ||
| 6 Disc Brake IsoSpeed Damper W5 | 64027 1 | ||
| 7 IsoSpeed Slider W564294 1 | |||
| 8 Slider Bolt W579510 1 | |||
| 9 IsoSpeed Bumper W564444 1 |
Product Support

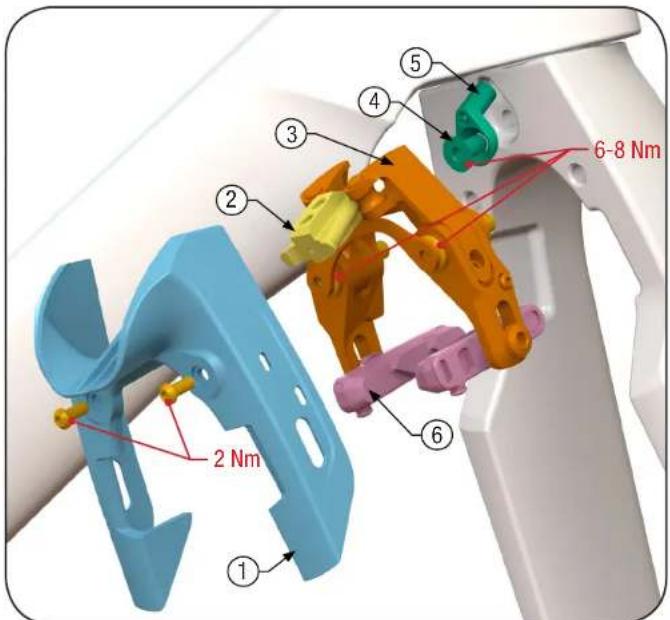

Madone SLR Parts Quick Reference

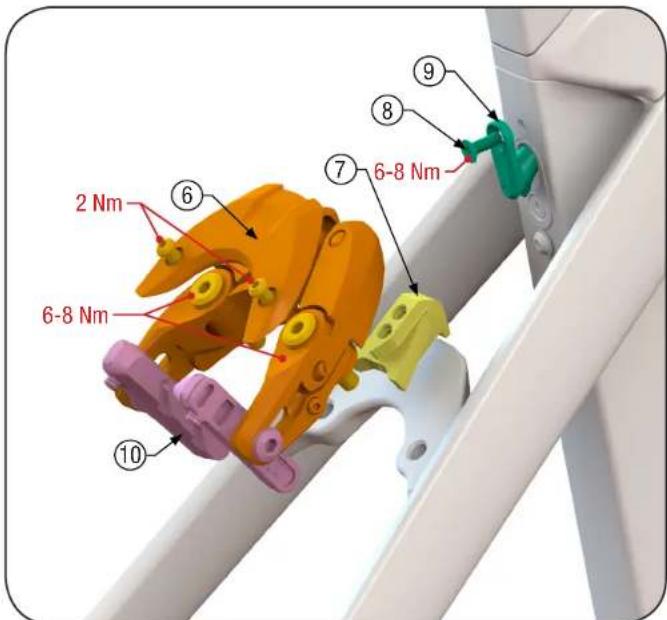

| Item | Description Part Number | Qty | |
| 1 Front Cover W577408 1 | |||
| 2 Front Wedge W570150 1 | |||
| 3 Front Brake W559499 1 | |||
| 4 M6x12mm Bolt | W562098 1 | ||
| 5 Front Brake Stop | |||
| 6 Brake Pads + Carrier 527894 1 | |||
| Item | Description Part Number | Qty | |
| 6 Rear Brake W559758 1 | |||
| 7 Rear Wedge W570151 1 | |||
| 8 M4x12mm Bolt | W516820 1 | ||
| 9 Rear Brake Stop | |||
| 10 | Brake Pads + Carrier 5 | 27894 1 | |
Product Support

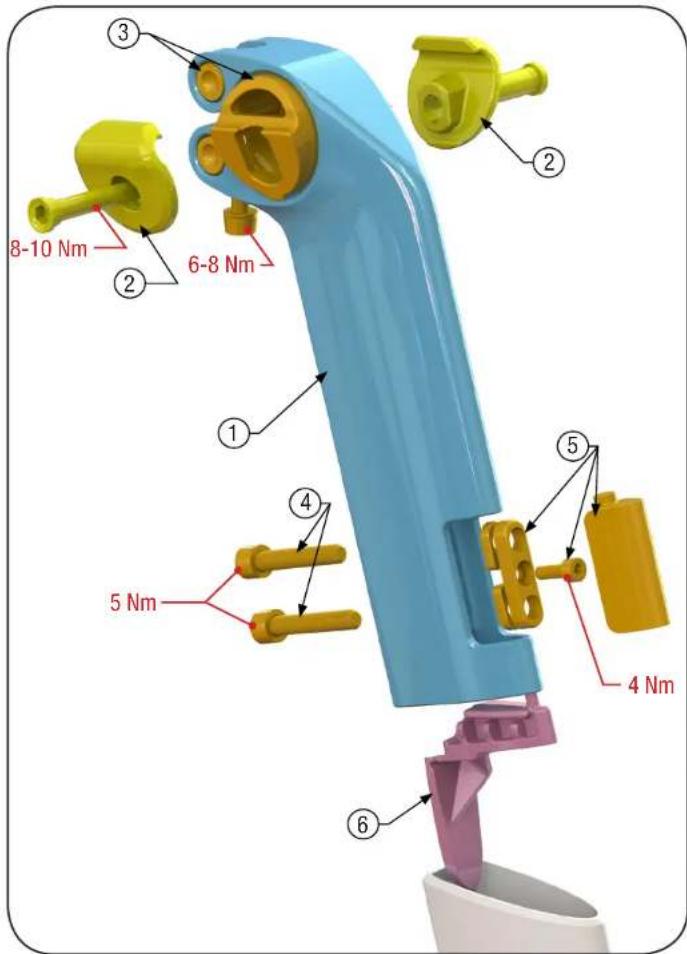

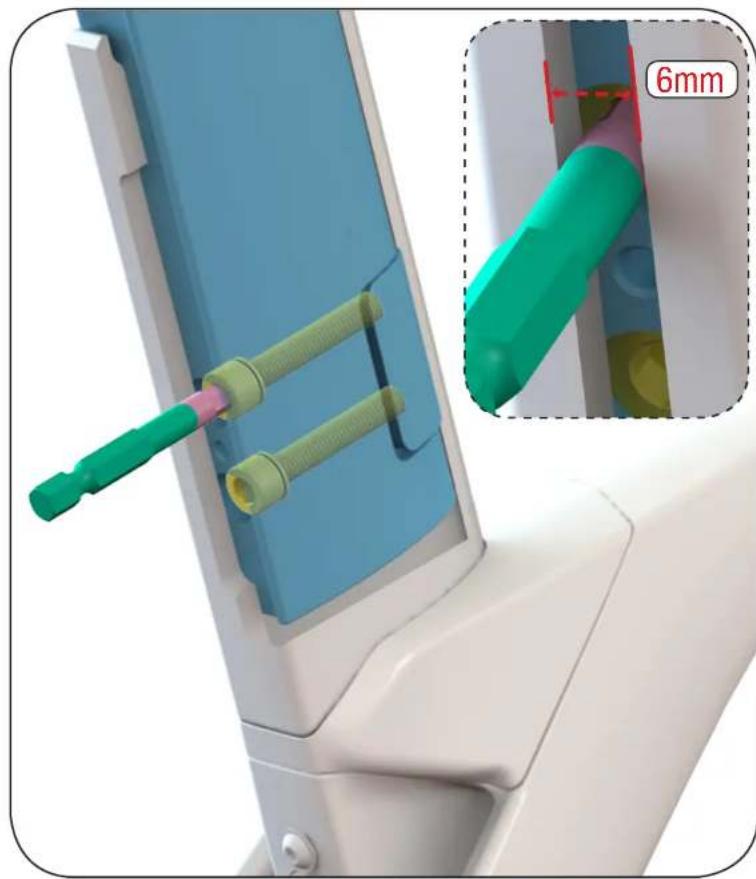

Madone SLR Parts Quick Reference
| Item | Part Color Size Part Number | |||
| 1 Seatpost | Gloss Viper Red | 160x5mm | W569838 | |
| 160x25mm | W569839 | |||
| 205x5mm | W569840 | |||
| 205x25mm | W569841 | |||
| Gloss Dnister Black | 160x5mm | W569842 | ||
| 160x25mm | W569843 | |||
| 205x5mm | W569845 | |||
| 205x25mm | W569846 | |||
| Gloss Miami Green | 160x5mm | W569847 | ||
| 160x25mm | W569848 | |||
| 205x5mm | W569849 | |||
| 205x25mm | W569850 | |||
| Gloss Quicksilver | 160x5mm | W569851 | ||
| 160x25mm | W569852 | |||
| 205x5mm | W569853 | |||
| 205x25mm | W569854 | |||
| Matte White | 160x5mm | W569855 | ||
| 160x25mm | W569856 | |||
| 205x5mm | W569857 | |||
| 205x25mm | W569858 | |||
| Item | Part Note Part Number Kit | |||
| 2 Saddle Clamp Ears | 7mm Rails W524900 | |||
| 10mm Rails W524901 | ||||
| 3 Saddle Tilt Clamp + Barrel 525034 | W574676 | |||
| 4 | Seatpost Wedge Bolts | M6x35mm | n/a | |
| 5 | Wedge + Plate + Bolt | M4x12mm | n/a | |
| 6 | Seatpost Tail | W557630 | ||

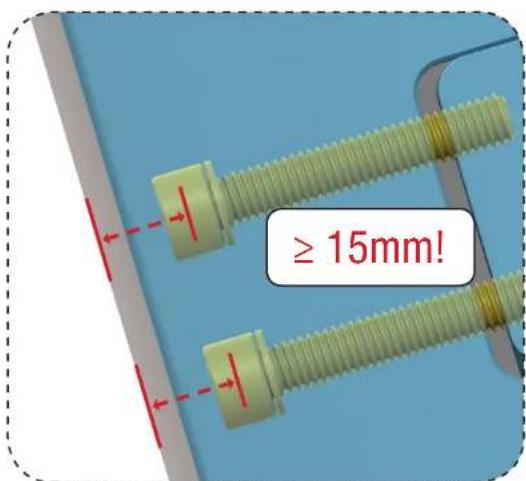

15mm
580682, 5mm Hex Bit 3-pack

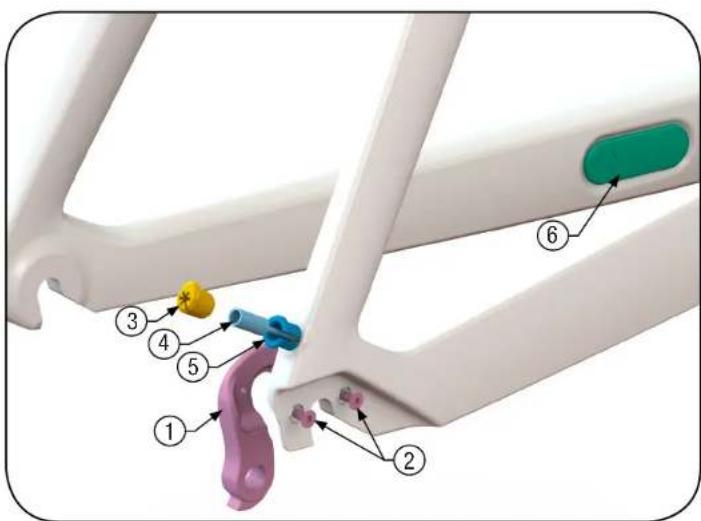

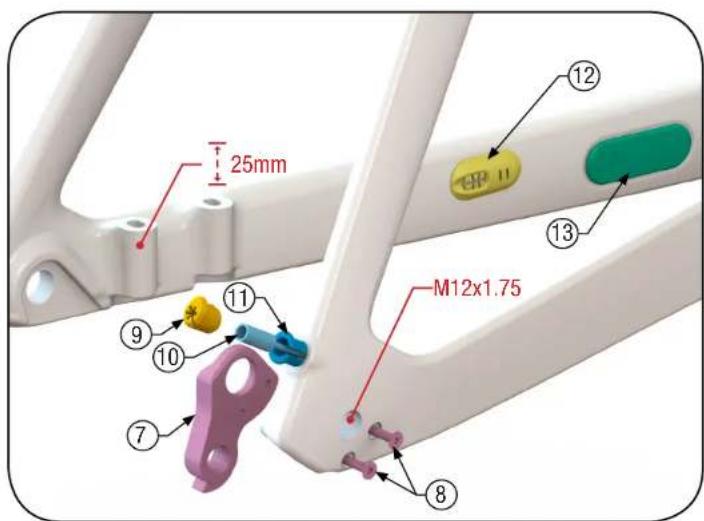

| Item Description Part Number Qty | ||
| 1 Derailleur Hanger W315464 1 | ||
| 2 Derailleur Hanger Bolts W318604 2 | ||
| 3 DI2 RD Grommet W317292 1 | ||
| 4 Long-Nosed Ferrule W517272 1 | ||
| 5 RD Housing Stop W320469 1 | ||
| 6 DuoTrap Cover W521455 1 | ||
| Item | Description | Part Number Qty | |
| 7 | Derailleur Hanger W524188 | 1 | |
| 8 | Derailleur Hanger Bolts W31 | 8604 2 | |
| 9 | RD Grommet W317292 | 1 | |
| 10 | Long-Nosed Ferrule W5172 | 72 1 | |
| 11 | RD Housing Stop W32 | 0469 1 | |
| 12 | Brake Housing Grommet | W330578 1 | |
| 13 | DuoTrap Cover W521 | 455 1 |
Product Support
Madone SLR Parts Quick Reference

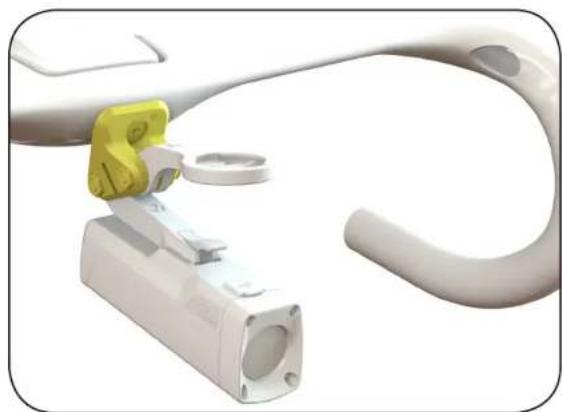

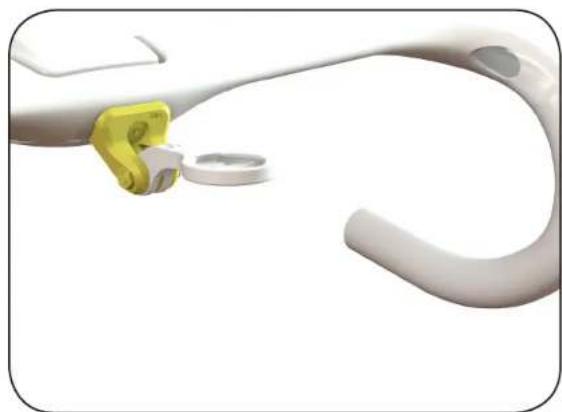

Mono Front, W571136

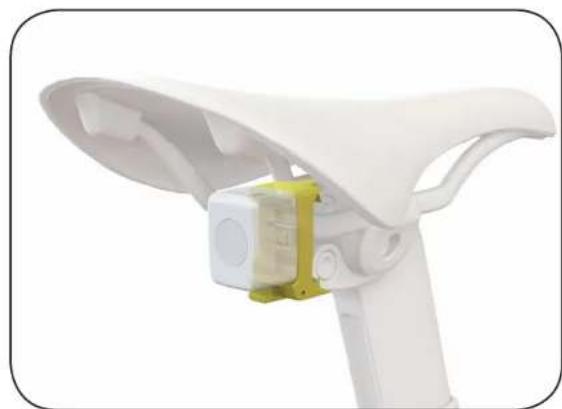

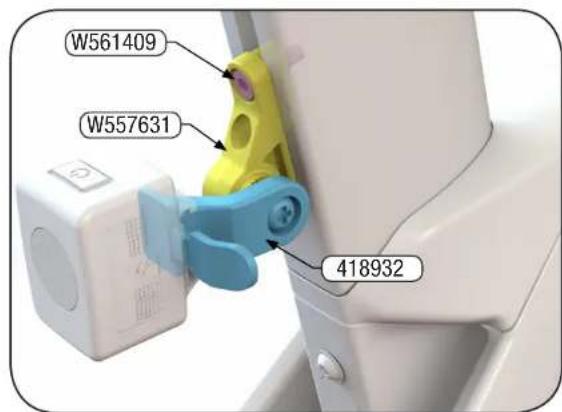

Seatpost Rear, W561410
Modified Reflector Bracket Duo Front, W571137
