Otello G10172 - Microwave Oven G3 Ferrari - Free user manual and instructions

Product type	Microwave oven
Brand	G3 Ferrari
Model	Otello G10172
Microwave output power	700 W
Capacity	20 liters
Power supply	230 V ~ 50 Hz
Input power	1100 W
Microwave frequency	2.45 GHz
Timer	0 to 35 minutes with audible alarm
Functions	Defrosting, cooking, reheating
Power levels	5 levels (119 W to 700 W)
Included accessories	Turntable ring, glass plate
Safety	Door lock, automatic stop when opened
Cleaning	Damp sponge, do not immerse, do not use abrasive detergents
Intended use	Domestic and indoor
Repairability	Authorized service center only

Frequently Asked Questions - Otello G10172 G3 Ferrari

Which containers are suitable for microwave?

Use only microwave-safe containers: glass, ceramic without metal, suitable plastic. Avoid metal, crystal, porcelain decorated with gold or silver, and objects with sharp edges.

How to use the defrost function?

Place the food on a plate on the turntable. Set the power knob to Defrost (approx. 231 W) and the timer to the desired time (max 35 min). Check the defrosting state frequently.

Why won't my oven turn on?

Make sure the door is properly closed: the oven does not work with the door open. Also check that the timer is set and the plug is connected.

Can I heat liquids in a sealed container?

No, never heat liquids or food in sealed containers. They may explode. Use open containers or with a lid slightly open.

How to clean the microwave oven?

Unplug it and let it cool. Clean the inside and outside with a damp sponge (not too wet) without harsh detergents. Avoid water entering the ventilation openings. Wash the glass plate by hand.

Which foods should not be cooked in the microwave?

Whole eggs (they burst), alcohol, fruits with thick skin not pierced (apples, chestnuts, sausages) may explode. Puncture their skin before cooking.

Can I use the microwave oven empty?

No, never operate the oven empty. This may damage it. Always place a container with water or food.

How to set the cooking power?

Turn the cooking selection knob to the desired level: HI (700 W) for fast cooking, MED (385 W) for slow cooking, LOW (119 W) for reheating. Then set the timer.

What to do if smoke comes out of the oven?

Immediately stop cooking, unplug the oven and keep the door closed to smother the flames. Do not open the door until the smoke has dissipated.

How to install the microwave oven?

Place it on a stable, flat surface away from heat sources. Leave sufficient space on the sides for ventilation. Do not remove the protective cover at the back.

USER MANUAL Otello G10172 G3 Ferrari

Technical model: MM720C2GX

Forno a Microonde

Microwave oven

OTELLO

ITA: INDICE

Simbologia. p. 2

Safety instructions. p. 10

General information. p. 12

G10172. p. 14

Some advice. p. 14

Operating. p. 14

Functions. p. 14

Defrost. p. 14

Heating and Cooking. p. 14

Cleaning p. 14

Technical features. p. 15

Waste of electric and electrical equipment (WEEE

Directive) p. 15

PORTUGUES: p. 15

ESPANOL p.21

DEUTSCH p. 26

FRANCAIS p. 32

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

AVVERTENZE DISICUREZZA

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the

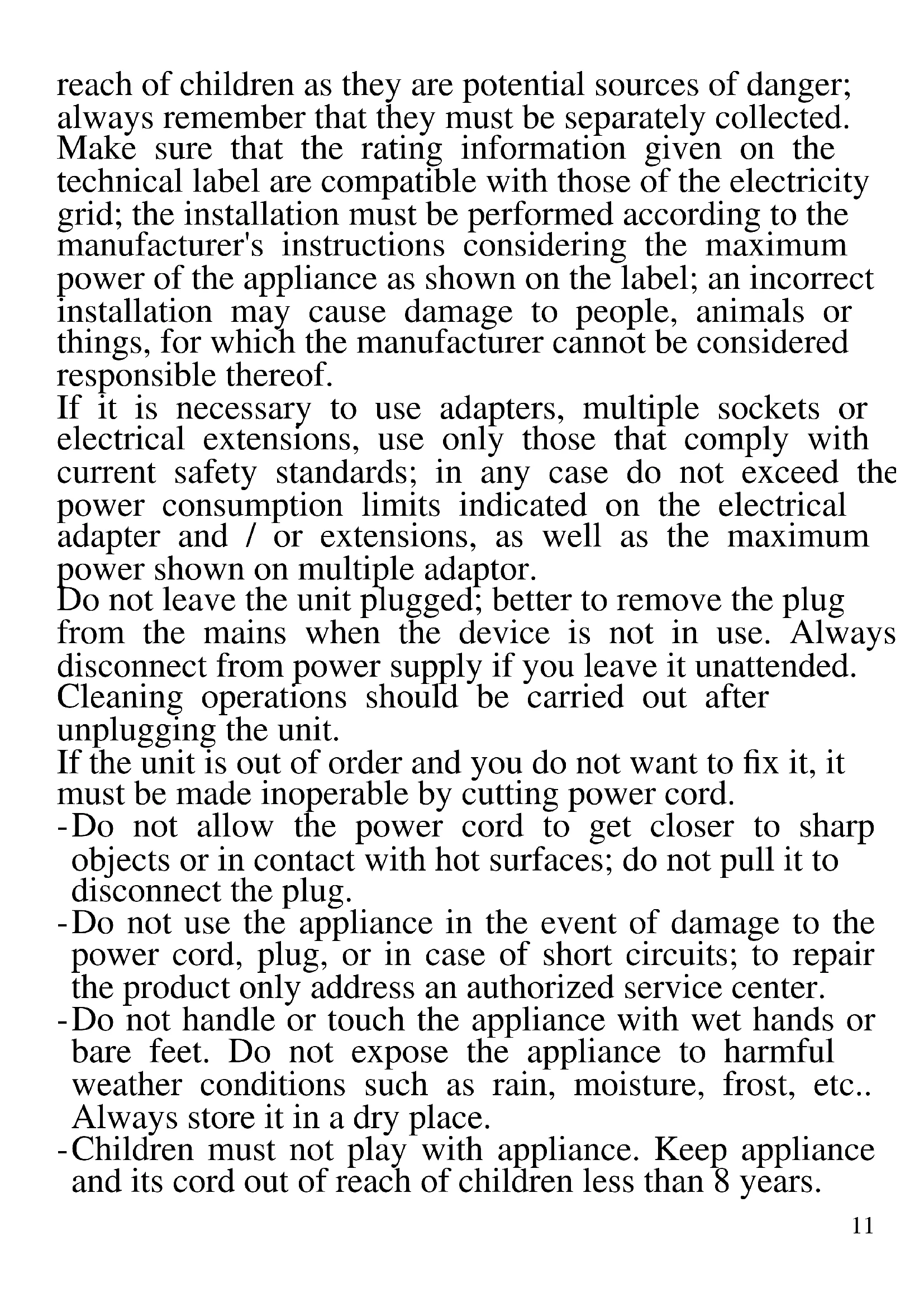

reach of children as they are potential sources of danger; always remember that they must be separately collected. Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.

• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.

• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

• Children must not play with appliance. Keep appliance and its cord out of reach of children less than 8 years.

• This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

If the power cord is damaged, or in case of failure and / or malfunction do not tamper with the unit. The reparation must be done by manufacturer or by service center authorized by the manufacturer in order to prevent any risk. Failure to comply with the above may compromise the unit safety and invalidate the warranty.

WARNING: This appliance includes heating function. Surfaces, other than functional surfaces may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively to grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; by clients in hotels, motels and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts, serious damages may result. Don't use near or under flammable materials (like curtains), heat, cold spots and steam.

GENERAL INFORMATION

The rear surface of the oven shall be placed against a wall

Do not use the oven when it's empty or without

the glass; it may be damaged. When cooking microwave, use only compatible containers and food.

Do not use oven if there is damage to the door or its seals. If smoke or some burning smell comes out of the oven, immediately stop any operation, unplug the oven and leave the door closed to stifle any flames.

Be careful when handling freshly-cooked food as they may be very hot. After having cooked baby food, mix it to uniform the temperature.

Do not eat food heated or cooked in microwave until at least 3 minutes from finishing the operation.

To avoid any danger due to the exposure to microwaves, do not tamper with the oven and/or remove any part of it. Only qualified personnel can fix the unit.

Never leave the appliance unattended while it is running.

Do not place the oven in water or other liquids, avoiding splashing of liquids.

A safety device stops the emission of waves when the door is opened. Anyway, it is preferable to stop cooking before opening. The safety device does not allow the ignition when the door is open.

INSTALLATION

Remove all packaging materials from the cooking compartment.

The oven is very heavy, put it on a solid and stable surface.

When the oven is in use, leave enough space at both sides of it.

Do not use the oven as a shelf support for objects or as a place to store food, pots, containers, etc. ...

Place oven at distance from radios or TV, as microwaves can interfere with electronic equipment.

CAUTION: do not remove protection layer (see beside figure) placed on the microwaves exit hole (8).

NON-SUITABLE CONTAINERS

Items made of the following materials cannot be placed inside the oven when it is used as a microwave. In fact, microwaves can be rejected by some surfaces, causing the dangerous overheating of the oven.

- Metals

Crystal glass and glass containing lead
- Aluminum containers and/or layers
- Plastic containing melamine
- Porcelain and pottery containing metals or with metal finishing (such as gold, silver etc...).
- Sharp-edge objects.

INSTRUCTIONS FOR MICROWAVE COOKING

Following foods may not be introduced into the oven operating microwave cooking.

• Eggs, they may burst.

• Alcohol

• Fruit or foods with natural shell or casing (i.e. apples, potatoes, chestnuts, sausages, etc...): if you need to cook them, pierce the case in several places before starting the cooking process.

• Sealed containers: do not boil water, liquids or food in sealed containers or bottles.

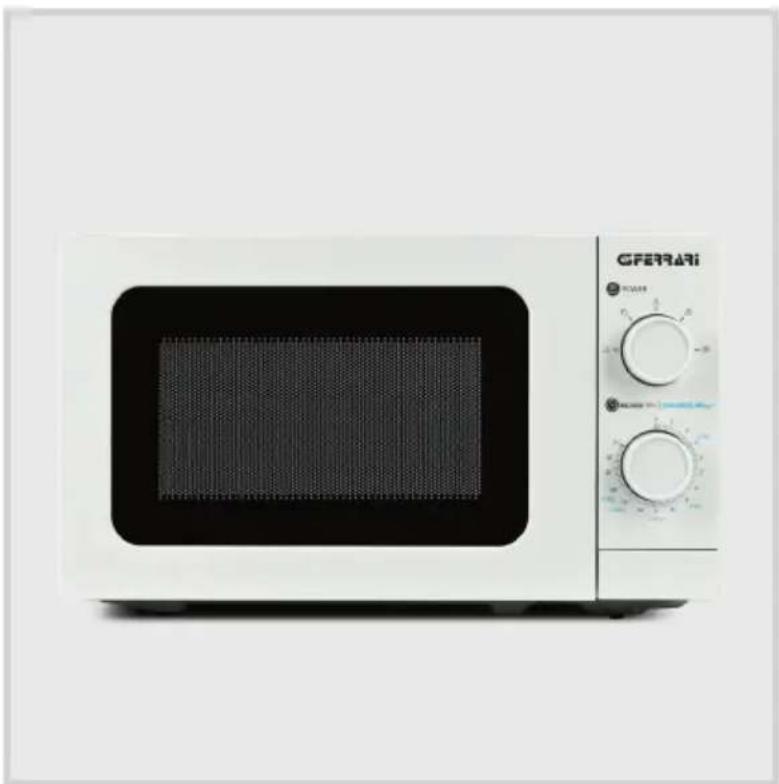

DESCRIPTION G10172

1) Door lock system 2) Door 3) Airflow openings

4) Plate ring 5) Supporting glass plate 6) Control panel

Timer

The timer control knob allows to set time (0-35 minutes)

Cooking mode

Allows to select the power from a minimum value up to the maximum (700W). For defrosting, select "Defrost" mode; other powers are suitable to heat or cook.

SOME ADVICE

CAUTION: only food should be placed inside oven, don't insert anything else.

DEFROST Use dishes or containers on top of rotating glass plate in order to collect the fluids lost from foods during the process. Defrosting time changes, depending on the amount and type of food. Check frequently to avoid exceeding the correct defrosting time.

When you decide to freeze food, always consider the defrosting operations: for example, it's better to freeze slices of meat separately, as they will defrost faster and more homogeneous.

MICROWAVE HEATING AND COOKING For more accurate times, before start cooking or heating, always defrost the food. Coated with a transparent film to keep clean the oven. Cooking depends on the type and quantity of food, beyond the selected power. Select the right function according to these elements.

OPERATING

Select the desired function by turning the control knob - Cooking mode.

Set the time by turning the control knob - Timer.

Before connecting the plug, insert the rotating ring (4) into the notch and fit the glass plate (5) over the ring.

Always install these accessories before turning on the oven.

Connect the power plug and the microwave oven is ready for use.

Place food to defrost or cook and set the microwave power and cooking time using the knobs on the control panel. Once the door is closed, the cooking starts and the light will turn on. Inner light goes off only if door is closed and oven not working. Wait the end of the process, leaving the door closed. If you open the door, the safety device blocks the microwaves. If you want to continue cooking operations, close the door first.

FUNCTIONS

A) Defrost

Turning the knob to select "Defrost"; the oven delivers microwave power suitable for defrosting. Set the

cooking time (up to 35min as indicated on the knob)

Be careful during defrosting, check frequently the status of food.

B) Heating and cooking mode

Select from the following powers:

• HICB: 100% , 700W (Fast cooking)
• M. HGH: 77%, 539W
• MED, 55%, 385W (Slow cooking)
• DEEROST: 33% , 231W
• LOW: 17% , 119W (Heating)

Set the cooking time by turning the knob up to a maximum of 35 minutes. Frequently check the status of food while cooking.

CLEANING - Unplug the unit and allowing the complete cooling down of every part of the oven before starting any cleaning procedure.

Do not place the oven in water, do not spray water or other liquids. Do not use wet sponge to clean the outer surface or the cooking compartment. Be careful not to spill any water inside the ventilation openings or inside the cooking chamber.

Clean the cooking compartment and the outer surface with a damp sponge (or cloth), pay attention not to spray any cleaner directly on the oven, applying it on the sponge.

Glass plate can be washed as every-day crockery with non-abrasive sponge and mild detergent. Dry them thoroughly before putting them back in the oven. If some steam appears inside the cooking compartments, open the door to get it out and wipe the walls with a soft dry cloth.

Cleaning is very important, since it preserves the efficiency and life of the unit.

It is recommended to clean the oven often, taking much care of the inside cooking compartment.

TECHNICAL FEATURES

Power supply: AC 230V~50Hz. Max input power 1100W.
Max output power 700W - Microwave frequencies 2,45GHz - Capacity: 20 L
35 minutes timer with Alarm, Automatic internal light
- Accessories: rotanting ring, glass plate

WASTE OF ELECTRIC AND ELECTRONIC EQUIPMENT

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It's our duty to contribute to the ecological health of the environment following the correct procedures for disposal. The crossed out wheelie bin symbol indicates the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Who does not dispose of the product as specified in this section shall be liable according to the law.

PORTUGUES: ADVERTÉNCIAS

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430 or contact us at [e-mail] asking for the service centers supervisor.

Appliance is conform to the pertinent European regulation and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.
