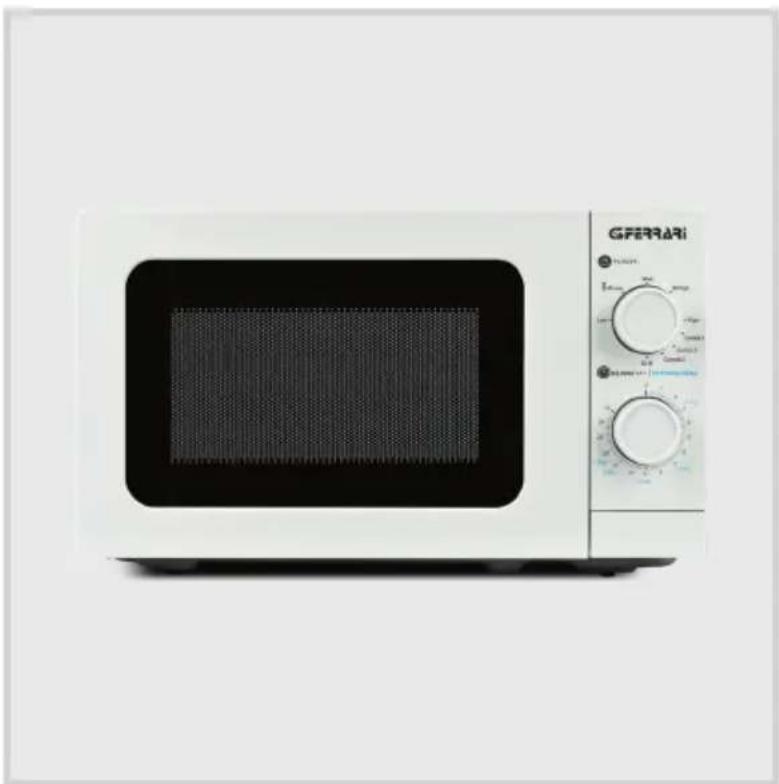

Otello Grill G10174 - Microwave Oven G3 Ferrari - Free user manual and instructions

Product type	Microwave oven with grill
Brand	G3 Ferrari
Model	Otello Grill G10174
Compartment capacity	20 L
Microwave power	700 W (max output)
Grill power	1000 W
Power supply	AC 230 V ~ 50 Hz
Maximum input power	1050 W
Microwave frequency	2.45 GHz
Timer	0 to 35 minutes with sound alarm
Interior light	Automatic during operation
Door	Tempered transparent glass
Included accessories	Turntable ring, glass plate, raised rack
Functions	Microwave, grill, combination cooking (3 modes: Combi.1, Combi.2, Combi.3)
Microwave power levels	5 levels: High (100%), M.High (77%), Med (55%), M.Low (33%), Low (17%)
Defrost	Yes, via the M.Low setting
Safety	Door lock, automatic stop of emission when opened
Cleaning	Damp sponge (do not immerse), glass plate and rack hand washable (not dishwasher safe)
Installation	Free standing, back against the wall, sufficient space on sides
Manual	48 pages, available in FR, DE, EN, ES, IT, PT

Frequently Asked Questions - Otello Grill G10174 G3 Ferrari

How to defrost food with the Otello Grill G10174 oven?

Set the cooking selection knob to the M.Low position (defrost). Set the cooking time using the timer (up to 35 minutes). Use a plate or container under the food to collect liquids. Check the food frequently to avoid overcooking.

Can metal containers be used in this oven?

No, metal, aluminum or crystal containers are prohibited in microwave mode as they may cause sparks and damage the appliance. However, they can be used only with the grill or combination cooking function, provided they are not subsequently used in microwave mode.

What to do if smoke comes out of the oven?

Stop cooking immediately, unplug the power cord and keep the door closed to suppress any flames. Do not open the door until the smoke has cleared. If the problem persists, contact an authorized service center.

How to clean the interior of the oven?

Unplug the appliance and let it cool. Use a damp sponge (not too wet) to clean the cooking compartment and the exterior surface. Do not apply detergent directly to the oven, but onto the sponge. The glass plate and rack should be washed by hand with a non-abrasive sponge, but not in the dishwasher. Dry thoroughly before putting them back.

What is the power of the grill?

The grill power is 1000 W. It activates by turning the cooking selection knob to the Grill position. The cooking time is set from 0 to 35 minutes. Since the heat comes from the top, it is advisable to turn or stir the food during cooking.

How long can the timer be set?

The timer can be set from 0 to 35 minutes. It is graduated in minutes on the knob. A sound alarm rings at the end of the programmed time.

Can I use plastic containers for the grill function?

No, plastic containers (even microwave-safe ones) are not suitable for the grill or combination cooking function as they can deform or melt under heat. Use exclusively Pyrex® glass for these modes.

How to use the combination function?

Turn the cooking selection knob to one of the three combination modes: Combi.1 (20% microwave + 80% grill), Combi.2 (30% microwave + 70% grill), or Combi.3 (40% microwave + 60% grill). Then set the time using the timer. Use only Pyrex® glass containers.

Is the appliance suitable for children?

Children under 8 years of age must not use the appliance. Children over 8 years old may use it under adult supervision, provided they have received instructions on safe use. Cleaning and maintenance must not be performed by children without supervision.

What to do if the power cord is damaged?

Do not use the appliance if the cord or plug is damaged. Take the appliance to an authorized service center approved by the manufacturer for repair. Do not attempt to repair it yourself.

USER MANUAL Otello Grill G10174 G3 Ferrari

Technical model: MG720C2GX

Combi Microwave Oven

Microwave oven with Grill

OTELLO GRILL

ENG: INDEX

Symbols.... p. 2

Safety instructions.... p. 11

General information.... p. 13

G10174....p. 15

Some advice.... p. 15

Operating.... p. 15

Functions.... p. 16

Defrost.... p. 16

Heating and Cooking.... p. 16

Grill.... p. 16

Combi mode.... p. 16

Cleaning.... p. 16

Technical features.... p. 17

Microwave recipes handbook.... p. 17

Waste of electric and electrical equipment (WEEE

Directive).... p. 45

PORTUGUESE:....p. 19

SPANISH......p. 25

GERMAN p. 32

FRENCH p. 38

PROTECTION CLASSES

WARNING RISK OF ELECTRIC SHOCK DO NOT EXPOSE TO RAIN AND MOISTURE

WARNING: ELECTRIC SHOCK RISK. DO NOT EXPOSE TO RAIN OR MOISTURE.

WARNING: DO NOT OPEN THE APPLIANCE. THERE ARE NO USER-SERVICEABLE PARTS INSIDE. FOR ALL SERVICE OPERATIONS, CONTACT AN AUTHORIZED SERVICE CENTER.

This symbol warns the user that un-insulated dangerous voltage inside the system may cause an electrical shock. Do not open the case.

Class I Appliance symbol. This means the appliance must have the chassis connected to electrical earth/ground by an earth conductor.

Caution: this symbol reminds the user to read carefully the important operations and maintenance instructions in this owner's guide.

SAFETY WARNINGS

TIPS FOR USE

ENGLISH: SAFETY INSTRUCTIONS

The following are important notes on the installation, use and maintenance; save this instruction manual for future reference; use the equipment only as specified in this guide; any other use is considered improper and dangerous; therefore, the manufacturer cannot be held responsible in the event of damages caused by improper, incorrect or unreasonable use.

Before use, ensure the equipment is undamaged; if in doubt, do not attempt to use it and contact the authorized service center; do not leave packing materials (i.e. plastic bags, polystyrene foam, nails, staples, etc.) within the reach of children as they are potential sources of danger; always remember that they must be separately collected.

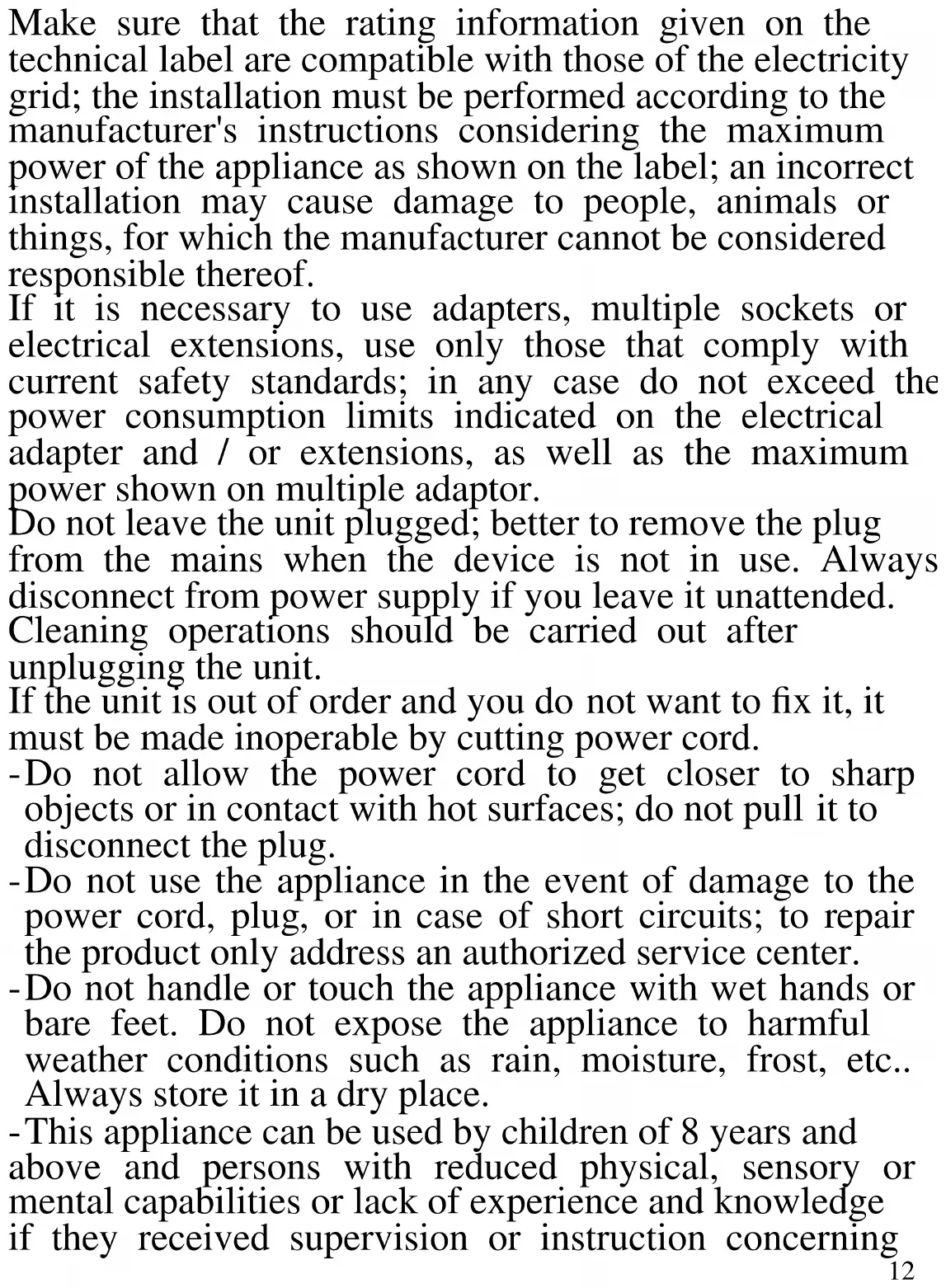

Make sure that the rating information given on the technical label are compatible with those of the electricity grid; the installation must be performed according to the manufacturer's instructions considering the maximum power of the appliance as shown on the label; an incorrect installation may cause damage to people, animals or things, for which the manufacturer cannot be considered responsible thereof.

If it is necessary to use adapters, multiple sockets or electrical extensions, use only those that comply with current safety standards; in any case do not exceed the power consumption limits indicated on the electrical adapter and / or extensions, as well as the maximum power shown on multiple adaptor.

Do not leave the unit plugged; better to remove the plug from the mains when the device is not in use. Always disconnect from power supply if you leave it unattended. Cleaning operations should be carried out after unplugging the unit.

If the unit is out of order and you do not want to fix it, it must be made inoperable by cutting power cord.

• Do not allow the power cord to get closer to sharp objects or in contact with hot surfaces; do not pull it to disconnect the plug.
• Do not use the appliance in the event of damage to the power cord, plug, or in case of short circuits; to repair the product only address an authorized service center.
• Do not handle or touch the appliance with wet hands or bare feet. Do not expose the appliance to harmful weather conditions such as rain, moisture, frost, etc.. Always store it in a dry place.

- This appliance can be used by children of 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they received supervision or instruction concerning

Use of the appliance in a safe way and understand hazards involved; children shall not play with the appliance; cleaning and user maintenance shall not be made by children without supervision.

• Children must not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years.

If the power cord is damaged, or in case of failure and/or malfunction, do not tamper with the unit. The repair must be done by the manufacturer or by a service center authorized by the manufacturer to prevent any risk. Failure to comply with the above may compromise the unit's safety and invalidate the warranty.

WARNING: This appliance includes a heating function. Surfaces, other than functional surfaces, may develop high temperatures. Since temperatures are perceived differently by different people, this device should be used with CAUTION. Hold the appliance exclusively by grip surfaces intended to be touched.

• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; by clients in hotels, motels, and other residential type environments; farm houses, bed and breakfast type environments.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Before every use, unroll the power cord.
• Use original spare parts and accessories only.
• Do not subject the product to strong impacts; serious damages may result. Do not use near or under flammable materials (like curtains), heat, cold spots, and steam.

GENERAL INFORMATION

The rear surface of the oven shall be placed against a wall. Do not use the oven when it is empty or without the

glass; it may be damaged. When cooking with microwave, use only compatible containers and food.

Do not use the oven if there is any damage to the door or its seals.

If smoke or a burning smell comes out of the oven, immediately stop any operation, unplug the oven, and leave the door closed to stifle any flames.

Be careful when handling freshly-cooked food as it may be very hot. After cooking baby food, mix it to even out the temperature.

Do not eat food heated or cooked in the microwave until at least 3 minutes have passed after the operation finishes.

To avoid any danger due to exposure to microwaves, do not tamper with the oven or remove any part of it. Only qualified personnel may repair the unit.

Never leave the appliance unattended while it is running. Do not place the oven in water or other liquids, and avoid splashing liquids on it.

A safety device stops the emission of waves when the door is opened. However, it is preferable to stop cooking before opening the door. The safety device does not allow the oven to ignite when the door is open.

INSTALLATION

The appliance is free-standing. Do not use it as a built-in oven and do not place it in a cabinet.

Remove all packaging materials from the cooking compartment.

The oven is very heavy; place it on a solid and stable surface.

When the oven is in use, leave enough space on both sides of it.

Do not use the oven as a shelf support for objects or as a place to store food, pots, containers, etc.

Place the oven at a distance from radios or TVs, as microwaves can interfere with electronic equipment.

CAUTION: do not remove the protective layer (see figure beside) placed on the microwave exit hole (8).

NON-SUITABLE CONTAINERS

Items made of the following materials cannot be placed inside the oven when it is used as a microwave. In fact, microwaves can be reflected by some surfaces, causing dangerous overheating of the oven.

- Metals

- Crystal glass and glass containing lead

- Aluminum containers and/or layers

- Plastic containing melamine

- Porcelain and pottery containing metals or with metal finishing (such as gold, silver, etc.).

- Sharp-edged objects.

CAUTION: some plastic containers suitable for microwave cooking cannot be used with "grill" or "combined" function, as they may be subject to deformation or even liquefaction.

Never use plastic containers for traditional oven cooking. Only Pyrex containers can be used with both microwave and convection cooking.

Example: pasta, potatoes, meat, and fish, which require browning, can only be cooked in a single Pyrex container, passing from initial microwave cooking to final grill browning stage.

CAUTION: metal or aluminum materials, which are prohibited in microwave cooking, can only be used with "Grill". Be careful not to use them for microwave or combined cooking. INSTRUCTIONS FOR MICROWAVE COOKING

The following foods may not be introduced into the oven when operating in microwave cooking mode.

• Eggs, they may burst.
• Alcohol
• Fruit or foods with natural shell or casing (i.e., apples, potatoes, chestnuts, sausages, etc.): if you need to cook them, pierce the case in several places before starting the cooking process.
• Sealed containers: do not boil water, liquids, or food in sealed containers or bottles.

DESCRIPTION G10174

1) Door lock system 2) Door 3) Airflow openings 4) Plate ring 5) Supporting glass plate 6) Control panel 7) Higher grill

Timer

The timer control knob allows to set time (0-35 minutes) or food weight (0 - 1.0 Kg)

Cooking mode

Allows to select the power from a minimum value up to the maximum (700W). For defrosting, select "Defrost" mode; other powers are suitable to heat or cook. For more information about Grill, COMB1, COMB2 and COMB3 options, cooking combinations between microwave and grill) refer to the appropriate sections in this guide.

SOME ADVICE

CAUTION: only food should be placed inside the oven, do not insert anything else.

DEFROST

Use dishes or containers on top of rotating glass plate in order to collect the fluids lost from foods during the process. Defrosting time changes, depending on the amount and type of food. Check frequently to avoid exceeding the correct defrosting time.

When you decide to freeze food, always consider the defrosting operations: for example, it's better to freeze slices of meat separately, as they will defrost faster and more homogeneous.

MICROWAVE HEATING AND COOKING

For more accurate times, before start cooking or heating, always defrost the food. Coated with a transparent film to keep clean the oven.

Cooking depends on the type and quantity of food, beyond the selected power. Select the right function according to these elements.

GRILL HEATING AND COOKING

For more accurate times, always defrost the food before starting to cook or heat.

This oven features the "Grill" cooking and heating function (heat is provided by the resistance placed on the upper wall of the cooking chamber). Since the heat comes from only one direction, it is recommended to mix or stir the food during the heating and/or cooking process.

Cooking depends on the type and quantity of food, beyond the selected power. Select the right cooking function according to these elements.

OPERATING

The oven model features: microwave, grill, and combined cooking.

Select the desired function by turning the control knob - Cooking mode.

Set the time by turning the control knob - Timer.

Before connecting the plug, insert the rotating ring (4) into the notch and fit the glass plate (5) over the ring.

Always install these accessories before turning on the oven.

Connect the power plug and the microwave oven is ready for use.

Place food to defrost or cook and set the microwave power and cooking time using the knobs on the control panel. Once the door is closed, the cooking starts and the light will turn on. The inner light goes off only if the door is closed and the oven is not working.

Wait for the end of the process, leaving the door closed. If you open the door, the safety device blocks the microwaves. If you want to continue cooking operations, close the door first.

FUNCTIONS

A) Defrost

Turn the knob to select "M.Low"; the oven delivers microwave power suitable for defrosting. Set the cooking time (up to 35 min, as indicated on the knob).

Be careful during defrosting, check frequently the status of food.

B) Heating and cooking mode

Select from the following powers:

• HIGH: 100%, 700W (Fast cooking)
• M. HIGH: 77%, 540W
• MED: 55%, 385W (Slow cooking)
• M. LOW: 33%, 231W
• LOW: 17%, 119W (Heating)

Set the cooking time by turning the knob up to a maximum of 35 minutes. Frequently check the status of food while cooking.

C) Grill mode

CAUTION: various materials which are suitable for microwave cooking, they are not suitable for grill mode. It is recommended using original Pyrex® only.

Grill function activates the resistance located on the upper part of the cooking compartment for a period of time set as desired (up to 35 minutes). Since the heat comes from only one direction, it is recommended to turn the food at least once, during the cooking time. The grill has a power output of 1000W.

• Set grill by turning the control knob to "Grill" mode.
• Set time control knob by using the timer (max 35 minutes).

D) Combi mode

CAUTION: Use only Pyrex® glass for this cooking mode.

This function allows you to combine microwave cooking and grilling.

• Combi.1: 20% microwave + 80% grill. As with conventional ovens, cooking is performed mainly through the heating of the upper resistance.
• Combi.2: 30% microwave + 70% grill. Half grill and half microwave.
• Combi.3: 40% microwave + 60% grill. Cooking is performed mainly by microwave.

Select the time by turning the control knob–timer.

CLEANING

Unplug the unit and allow every part of the oven to cool down completely before starting any cleaning procedure.

Do not place the oven in water, do not spray water or other liquids. Do not use a wet sponge to clean the outer surface or the cooking compartment. Be careful not to spill any water inside the ventilation openings or inside the cooking chamber. The appliance shall not be cleaned with a steam cleaner.

Clean the cooking compartment and the outer surface with a damp sponge (or cloth). Pay attention not to spray any cleaner directly on the oven; apply it on the sponge.

The glass plate and the higher grill can be washed like everyday crockery with a non-abrasive sponge and mild detergent. They are not dishwasher safe. Dry them thoroughly before putting them back in the oven.

If some steam appears inside the cooking compartment, open the door to let it out and wipe the walls with a soft dry cloth. Cleaning is very important, as it preserves the efficiency and life of the unit.

It is recommended to clean the oven often, taking much care of the inside cooking compartment.

TECHNICAL FEATURES

• Power supply: AC 230V~50Hz • Microwave frequency: 2.45GHz - Capacity: 20 L • 35-minute timer - Alarm • Automatic internal light - Tempered glass door - Microwave, grill, and combined cooking • Accessories: rotating ring, glass plate, higher grill

• Max input power 1050W - Max output power 700W - 1000W grill power

MICROWAVE RECIPES HANDBOOK

PASTA & RICE

Conchiglie Porcini Mushrooms

Ingredients: 400g Conchiglie pasta, 400g Fresh Porcini mushrooms, 1 small onion, 100g Stracchino cheese, 2 cloves garlic, 1 tbsp minced parsley, olive oil, salt and pepper.

Preparation: Grease a microwave-safe pan and arrange crushed garlic and chopped onion inside. Brown for 3 minutes at maximum power. Meanwhile, clean, wash, dry, and slice the mushrooms. After removing the garlic, add the mushrooms to the pan. Season with minced parsley and cook for 3 minutes at maximum power. Once cooked, season with salt and pepper and let stand for a few minutes. Boil water, add salt, and cook pasta "al dente". Drain and pour pasta into the pan, mixing well with a wooden spoon. Add stracchino cheese and some olive oil.

Ingredients for 4 People - Difficulty: Easy

Risotto with Mozzarella cheese and Ham

Ingredients: 300g rice, 70g ham, 1 mozzarella cheese, tomato sauce, oregano, butter, olive oil.

Preparation: Slice mozzarella into thin slices. Cut ham into thin strips. Butter a round, low-sided container. Place half of the rice in the bowl. Roll out and cover with strips of ham. On this layer, pour the rest of the risotto and arrange mozzarella over it. Sprinkle with tomato sauce, plenty of oregano, and olive oil. Cook at maximum power for 2 minutes, then lower the power to half for another 2 minutes. Wait for 2 minutes before serving.

Ingredients for 4 People - Difficulty: Easy

Ingredients: 160g Farfalle pasta, 3 tbsp tomato sauce, 6 olives, 2 anchovies in oil, 60g tuna in oil, 60g Taleggio cheese, olive oil, basil, salt and pepper.

Preparation: Put tomato sauce with chopped anchovies in a bowl. Slice the olives. Flake the tuna. Chop 4 basil leaves. Add the whole mixture to the tomato and anchovies. Season with salt and pepper. Slice Taleggio cheese. Boil Farfalle until "al dente". Drain. Add them to the ingredients in the bowl. Prepare two sheets of baking paper. Separate Farfalle into 2 parts. Place seasoned Farfalle over the sheets. Wrap the paper to form two cones. Place them in the oven. Cook for 2 minutes at maximum power.

Ingredients for 2 People - Difficulty: Easy

Zucchini Risotto

Ingredients: 10g butter, 1 tbsp olive oil, 180g rice, salt, 40g Parmesan cheese (grated), 3 zucchini, 1 onion, broth, minced parsley.

Preparation: In a microwave-safe container, put chopped onion, olive oil, and julienned zucchini. Cover and cook at 750 watts for 3 minutes. Add rice, broth, and salt; cook for about 12 minutes, turning at least twice during cooking. Stir in the Parmesan cheese and butter, sprinkle with minced parsley, and serve.

Ingredients for 2 People. Difficulty: Easy

MAIN COURSE (MEAT and FISH)

Filet with Mushrooms

Ingredients: Pork filet 500g, champignon mushrooms 100g, 1 shallot, butter, 1 tsp mustard powder, thyme, cream, parsley, 1/2 glass of white wine, 1 tsp corn flour, salt and pepper.

Preparation: Put the pork on a chopping board, wipe with mustard powder, then with finely chopped parsley and thyme. Place it in a well-buttered container and cook uncovered for 12 minutes at 600 W. During cooking, stir the meat a couple of times and select the grill combined with maximum power. Place the meat on a plate and cover with aluminum foil. Peel and slice the mushrooms. Chop the shallot and dissolve the corn flour in half a glass of wine. Pour the wine-flour mixture into the container used for cooking the meat; with a spoon, scrape up the gravy left, add a tablespoon of cream, mushrooms, shallots, and a little thyme and parsley. Add salt and pepper, stir, and cook for 6 minutes at 600 W. Put the meat in the bowl, mixing it with the sauce so that it is completely covered, and cook for another 4 minutes at 600 W. During cooking, stir a couple of times. Let the meat rest for at least 5 minutes before serving.

Ingredients for 4 People. Difficulty: Medium

Red snapper with vegetables

Ingredients: 1 red snapper, 400g tomatoes, 2 sweet peppers, 1 onion, 10 basil leaves, oregano, olive oil, pepper, salt.

Preparation: Clean and wash the fish. Wash the tomatoes and remove the seeds; cut peppers into strips. Slice the onion and put it with five tablespoons of oil in a microwave-safe container that can hold the fish with the vegetables. Cook on full power for 2 minutes and stir. Make two parallel not-too-deep cuts on both sides of the fish. Put a pinch of salt and pepper and place it in the bowl with the onion, turning it well. Put peppers and tomatoes around and sprinkle with oregano and basil leaves. Cover with a lid and bake for 8 minutes at full power. Stir the vegetables and the fish and cook for 15 minutes. Let stand for 10 minutes out of the oven and then serve.

Ingredients for 4 People. Difficulty: Easy

Sole fish with Paprika

Ingredients: 4 soles, 100g butter, 1 lemon, paprika, sweet mustard, salt.

Preparation: Clean the soles, removing the heads, wash and dry them well. Grate the lemon peel and mix with lemon juice, a tablespoon of mustard and a pinch of paprika in a large plate. Place the soles in the sauce to flavor them. Grease a microwave-safe container with butter and put the soles already drained with a pinch of paprika, salt and butter. Cover and bake for 8 minutes. Halfway through cooking, turn the soles. Turn off the oven and let stand for 5 minutes before serving.

Ingredients for 4 People. Difficulty: Medium

Zucchini omelette

Ingredients: 2 Zucchini, 4 Eggs, 1/2 Glass of Milk, 2 tbsp Flour, 1 tbsp Parmesan cheese, Salt and Pepper.

Preparation: Take two raw zucchini and chop them fine. Beat four eggs in a bowl and add some milk (half a small glass, no more) and two tablespoons of flour. Add Pecorino or Parmesan cheese (to give flavor) and the previously chopped zucchini. The mixture should be fluffy. Put in the microwave at full power for 5 minutes. Let rest for a few minutes and then cook again for 5 minutes.

Ingredients for 2 People. Difficulty: Medium

DESSERTS

Chocolate Cake

Ingredients: 2 Eggs, 50g Butter, 130g of Flour, 170g Sugar, 1L of Water, 20g Unsweetened Cocoa Powder, Almonds without shells, 2 tbsp of Marmalade, Icing Sugar, 1 tsp Yeast, Vanillin.

Preparation: Whip the eggs with the sugar. Add butter and pour water. Mix with cocoa, flour, and vanillin. Mix the ingredients well. Line a pan, suitable for the microwave oven, with baking paper. Put inside the mixture. Cook for 6 minutes approximately at maximum power. Sprinkle with icing sugar. Garnish with drops of jam and chopped almonds.

Ingredients for 4 People. Difficulty: Easy

Apple Muffins

Ingredients: 2 Apples, 215g of Flour, 1/2 Glass of Milk, Yeast powder, 50g Sugar, 1 Lemon, 1 tbsp Icing Sugar, 1 Egg, 50g of Butter, 50g Raisins, Fresh Lard, Salt.

Preparation: Wash and soften the raisins in warm water, drain and dry them. Wash and peel the apples and remove the cores, grate and collect the mixture into a bowl, add raisins, grated lemon peel, sugar, salt and butter into small pieces. Stir and add the egg and flour, to which you have mixed slowly the half of the yeast through a sieve. Grease a bowl suitable for the microwave with melted lard and put 8 tablespoons of the mixture trying to form 8 mounds. Bake the muffins at full power for 5 minutes. Turn off the oven and let them rest inside for 2 minutes.

Place the muffins on a plate covering them with icing sugar. You can replace the lard with butter.

Ingredients for 4 People. Difficulty: Easy.

WARNINGS

The product is made of non-biodegradable and potentially polluting substances if not properly disposed of; other parts can be recycled. It’s our duty to contribute to the ecological health of the environment by following the correct disposal procedures. The crossed-out wheelie bin symbol indicates that the product complies with the requirements of the new directives introduced to protect the environment (2002/96/EC, 2003/108/EC, 2002/95/EC, 2012/19/EC) and must be properly disposed of at the end of its lifetime. If you need further information, ask for the dedicated waste disposal areas at your place of residence. Anyone who does not dispose of the product as specified in this section shall be liable according to the law.

To find the nearest service center, please call the telephone number 0541 694246, fax number 0541 756430, or contact us at [e-mail], asking for the service centers supervisor.

The appliance conforms to the pertinent European regulations and is therefore marked with the CE mark.

www.g3ferrari.it TREVIDEA S.r.l.

TREVIDEA S.R.L. – Strada Consolare Rimini – San Marino n. 62 – 47924 – RIMINI (RN) - ITALY

MADE IN CHINA
