Brand	Samsung
Model	POWERbot SR20K9000UB
Product type	Robot vacuum
Dimensions (L x W x H)	362 x 378 x 135 mm
Weight	4.3 kg
Power supply	100-240 V ~, 50/60 Hz
Power consumption	80 W
Battery type	Lithium-ion 21.6 V / 39 Wh
Charging time	Approximately 240 minutes
Cleaning time	Approximately 30 minutes (Normal mode, hard floor)
Cleaning modes	Automatic, Spot, Manual
Suction modes	Silent, Normal
Sensors	Obstacle, Cliff, Camera (Visionary mapping plus)
Remote control included	Yes (AAA batteries included)
Charging type	Automatic and manual
Dust bin capacity	Not specified in the manual
Filter	Washable filter, replacement available
Included accessories	Charging base, charger, power cord, remote control, batteries, replacement filter, cleaning brush
Maximum threshold height	Approximately 1.5 cm
Noise level	Not specified, but silent mode available
Battery warranty	6 months from date of purchase

Frequently Asked Questions - POWERbot SR20K9000UB SAMSUNG

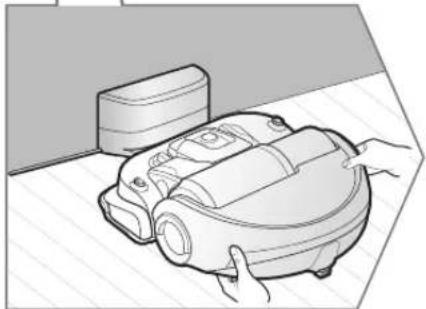

How to charge the POWERbot SR20K9000UB?

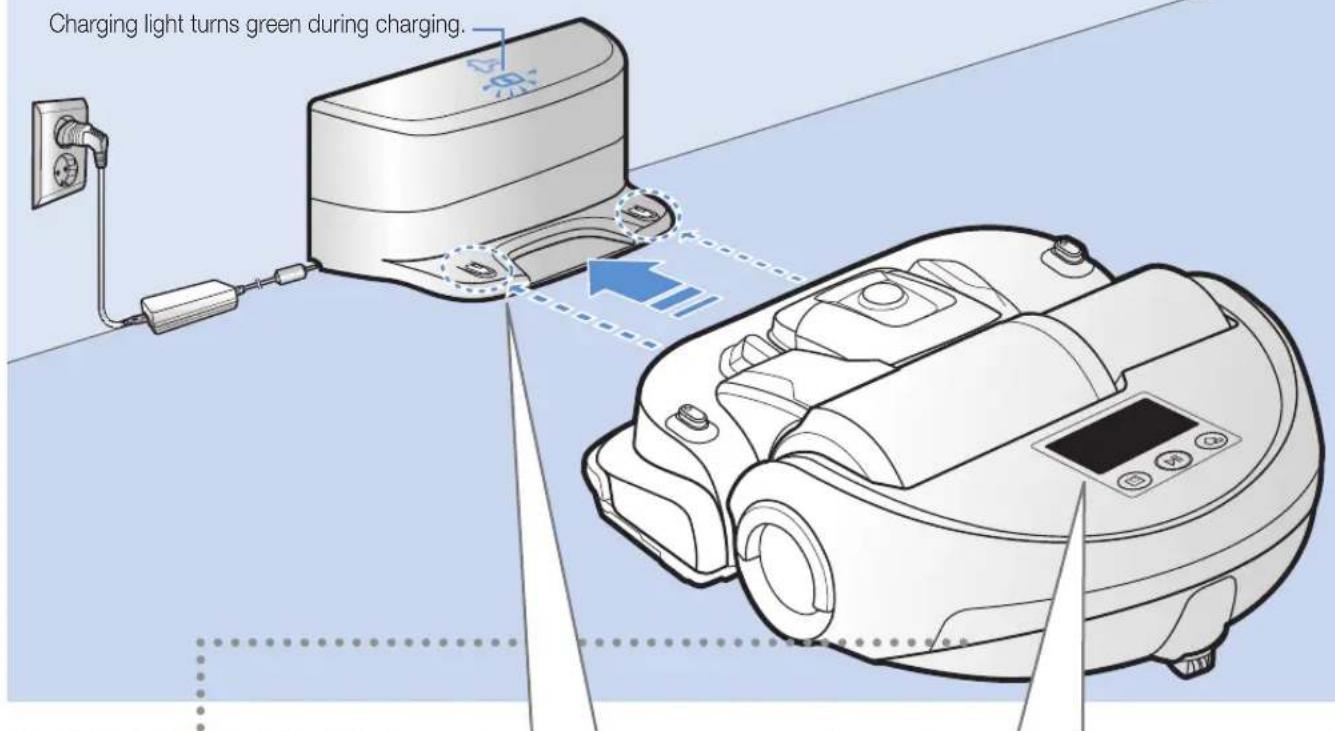

Place the robot on the charging dock aligning the charging pins. Full charging takes approximately 240 minutes. The robot can also return to the dock automatically when the battery is low.

What to do if the robot cannot find its dock?

Check that the dock is plugged in and turned on (red light). Ensure no obstacles block the path (reflective objects, chairs). Clean the charging pins with a dry cloth.

How long does the robot's battery last?

In Normal mode on hard floor, the battery lasts about 30 minutes. This time may vary depending on battery condition and usage conditions.

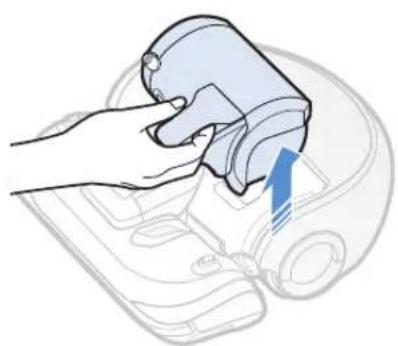

How to clean the dust bin?

Deactivate the emergency stop button, remove the bin, empty it, wash it with clean water as well as the filter. Dry the filter in the shade before reinstalling.

What do the information codes on the display mean?

The codes indicate problems like blockage, foreign objects in the brush or wheels, or dirty sensors. Deactivate the emergency stop button and follow the instructions in the manual to resolve the issue.

Can I use the robot on carpet?

Yes, but avoid thick carpets over 1 cm. The robot may not climb onto them and could damage the carpet or itself.

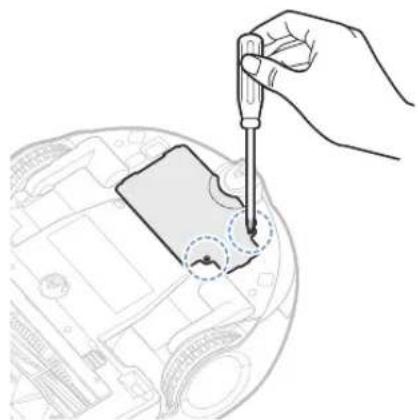

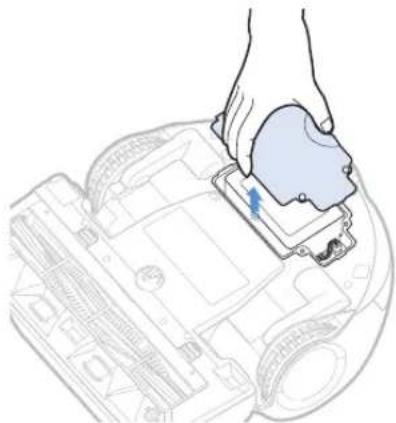

How to replace the battery?

The built-in battery should only be replaced by a Samsung authorized service center. Do not attempt to remove it yourself. Contact customer service.

The robot makes an abnormal noise, what to do?

Deactivate the emergency stop button and empty the dust bin. Check if foreign objects block the air intake or main brush. If the noise persists, contact a service center.

How to use the remote control?

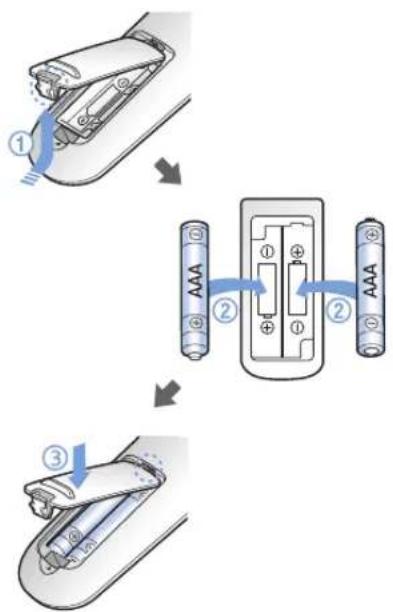

Insert the provided AAA batteries. Use the buttons to start/stop, select modes (Auto, Spot), control direction, activate silent mode or sound function.

What to do if the robot cleans diagonally?

This may be normal if the robot takes the shortest path. Check that the dock is aligned with the floor covering direction. If the problem persists, consult the manual.

USER MANUAL POWERbot SR20K9000UB SAMSUNG

Illustration of a robotic car with a sensor emitting signal waves (no text or symbols)

Simple icon of a house inside a circle with a battery symbol (no text or labels)

Line drawing of a hand holding a vacuum cleaner next to a box, placed on a tiled floor (no text or symbols)

Simple line drawing of a ladder with a ball at the bottom (no text or symbols)

Illustration of a hand holding a remote control and a device with a scroll (no text or symbols)

Handsaugen

Illustration of a hand holding a device with a blue arrow pointing to it, against a background of a car (no text or symbols)

Illustration of hands pouring liquid from a spray can into a trash bin (no text or symbols)

Illustration of a hand holding a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a tool to cut a cylindrical object with a coiled tube, no text or symbols present

Illustration of hands holding a computer case with internal components (no text or symbols visible)

Hand using a tool to cut a curved mechanical component (no text or symbols visible)

Hand using a screwdriver to adjust or install a component on a device (no text or symbols visible)

Line drawing of a hand inserting a component into a device casing (no text or symbols)

Technische Daten

Illustration of a robotic vacuum cleaner with hands operating it (no text or symbols visible)

Illustration of a robotic car with a sensor emitting signal waves (no text or symbols)

Simple icon of a house inside a circle with a battery symbol (no text or labels)

Line drawing of a hand holding a vacuum cleaner next to a box, placed on a tiled floor (no text or symbols)

Simple line drawing of three parallel horizontal lines with a small spherical object at the bottom (no text or symbols)

Line drawing of a hand holding a remote control device and a robotic device with motion lines (no text or symbols)

1 Aan/Uit/Opladen

Illustration of a hand holding a device with a blue arrow pointing to it, over a car interior (no text or symbols)

Illustration of hands pouring liquid from a spray can into a trash bin (no text or symbols)

Illustration showing a hand adjusting a device with a blue X mark and battery pack, next to a close-up of the device (no text or symbols)

voorsensor

Simple line drawing of a curved mechanical component with a blue dot marking a specific point (no text or symbols)

Venster achtersensor

Illustration of a hand holding a mechanical component with an upward arrow, no text or symbols present

Illustration of a hand using a tool to cut a cylindrical object with a coiled tube, no text or symbols present

Illustration of hands holding a computer case with visible internal components (no text or symbols)

Hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand using a screwdriver to apply a component on a device (no text or symbols visible)

Hand inserting a component into a computer case (no text or symbols visible)

Specifications

Illustration of a robotic car with a sensor emitting signal waves (no text or symbols)

Simple icon of a house inside a circle with a battery symbol (no text or labels)

Line drawing of a hand operating a mounted vacuum cleaner on a tiled floor (no text or symbols)

Simple line drawing of three parallel horizontal lines with a small circular object at the bottom (no text or symbols)

Nettoyage auto

Illustration of a hand holding a remote control and a device with motion lines (no text or symbols)

Nettoyage manuel

1 Mise en marche/Recharge

Illustration of a hand holding a device with a blue arrow pointing to it, over a car interior (no text or symbols)

Illustration of hands pouring liquid from a spray can into a trash bin (no text or symbols)


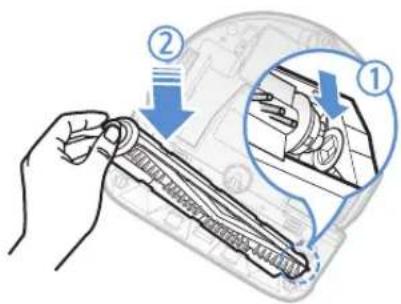

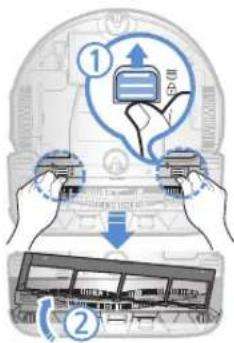

1 Retirez le cache de la brosse principale.

Illustration of a hand holding a mechanical component with an upward arrow, no text or symbols present

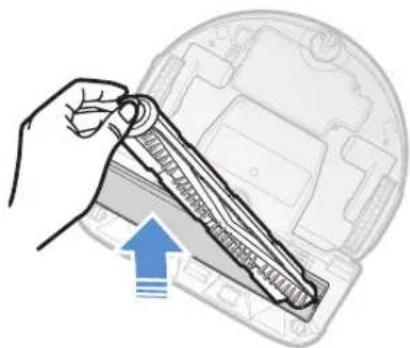

2 Retirez la brosse principale.

Illustration of a hand using a tool to cut a cylindrical object with a coiled tube, no text or symbols present

Illustration of hands holding a computer case with visible internal components (no text or symbols)

Hand using a tool to adjust or install a mechanical component (no visible text or symbols)

Hand using a screwdriver to adjust or install a component on a device (no text or symbols visible)

Line drawing of a hand inserting a component into a device casing (no text or symbols)

Spécifications

* Before operating this unit, please read the instructions carefully. * For indoor use only.

english

imagine the possibilities

Thank you for purchasing a Samsung product.

contents

03 Safety information

08 Installation

Accessories

10 Charging

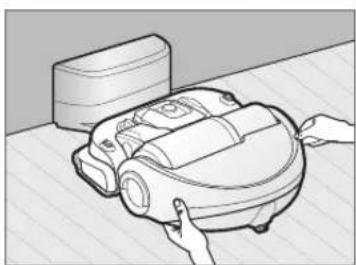

Automatic charging / Recharging / Low battery

12 Using POWERbot

Turning the power on/off / Starting Auto clean mode / Starting Spot clean mode / Recharging / Selecting cleaning modes

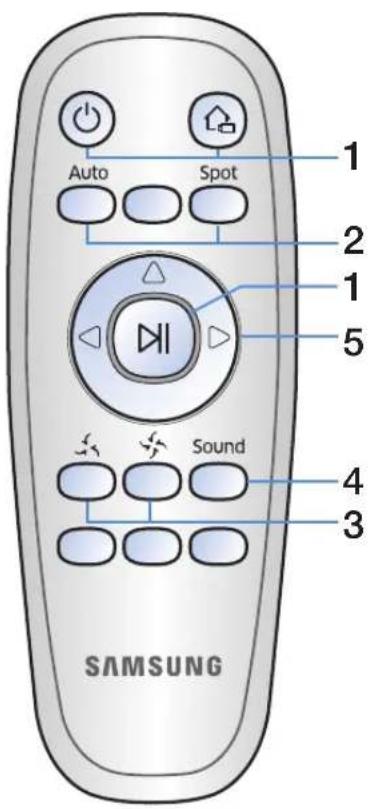

14 Using the remote control

Power/Recharging / Cleaning modes / Suction modes / Additional functions / Direction control

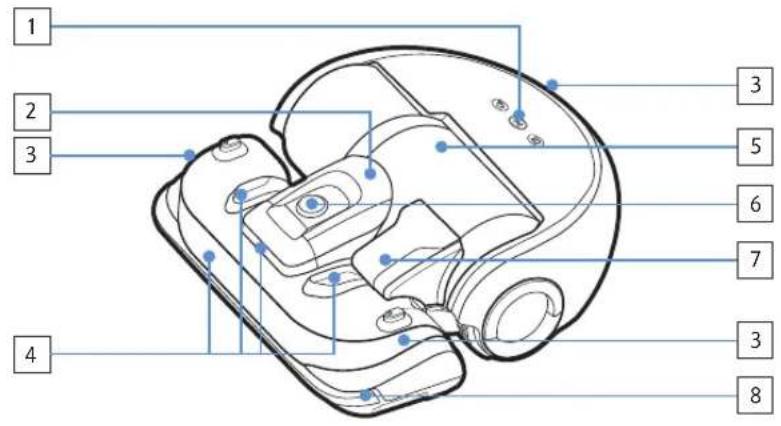

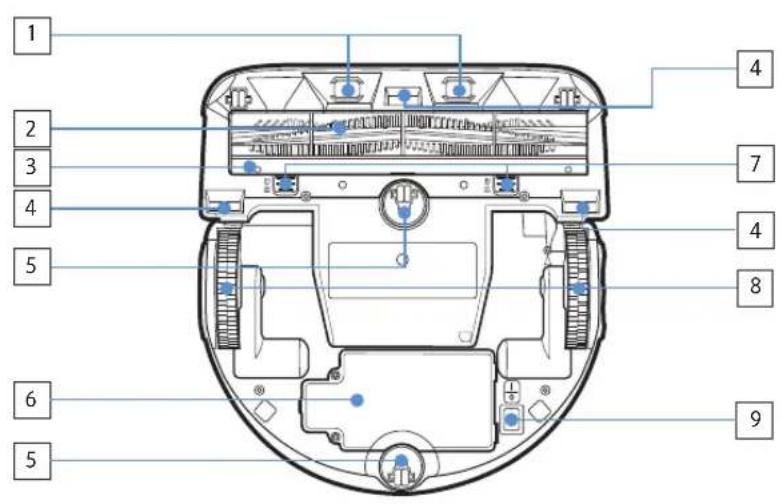

15 Name of each part

Top / Bottom / Display panel

16 Cleaning and maintaining

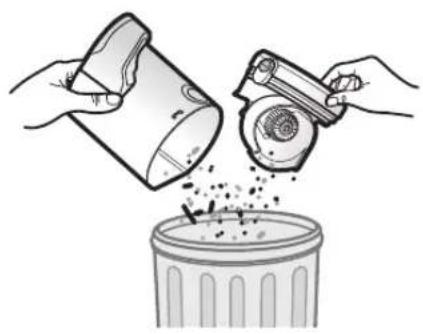

Cleaning the dustbin / Cleaning the sensors and the camera / Cleaning the Power brush / Cleaning the Driving wheel

18 Notes and cautions

Charging / In use / Cleaning and maintenance / About the battery

20 Information codes

21 Troubleshooting

22 Warnings about battery

23 Open Source Announcement

23 Specifications

Safety information

SAFETY INFORMATION

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
cAUtion	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

Note	Indicates that the following text contains additional important information.
	Indicates a detachable supply unit.

Safety information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING YOUR POWERbot.

Unplug from outlet when not in use and before conducting maintenance.

WARNING: to reduce the risk of fire, electric shock, or injury:

GENERAL

• Use only as described in this manual.
• Do not operate POWERbot or the battery charger / docking station if it has been damaged in any way.
• If the vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped in water, return it to a customer care center.

- Do not handle the battery charger / docking station or POWERbot with wet hands.

- Use only on dry, indoor surfaces.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Battery charger / Docking station

• Do not modify the polarized plug to fit a non-polarized outlet or extension cord.
• Do not use outdoors or on wet surfaces.
• Unplug the battery charger / docking station from the outlet when not in use and before servicing.
• Use only the battery charger / docking station supplied by the manufacturer to recharge.
• Do not use with a damaged cord or plug or a loose power outlet.
• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.
• Do not use extension cords or outlets with inadequate current carrying capacity.
• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

- Do not mutilate or incinerate batteries as they will explode at high temperatures.

- Do not attempt to open the battery charger / docking station. Repairs should only be carried out by a qualified customer care center.

- Do not expose the battery charger / docking station to high temperatures or allow moisture or humidity of any kind to come into contact with the battery charger / docking station.

POWERbot

- Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

- Do not use without a filter in place. When servicing the unit, never put fingers or other objects into the fan chamber in case the unit accidentally turns on.

- Do not put any objects into openings. Do not use with any openings blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.

- Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

- Do not pick up anything that is burning or smoke, such as cigarettes, matches, or hot ashes.

- Do not use to pick up flammable or combustible liquids such as gasoline, nor use on areas where they may be present.

- Locations with candles or desk lamps on the floor.

- Locations with unattended fires (fire or embers).

- Locations with distilled alcohol, thinner, ashtrays with burning cigarettes, etc.

- Do not use POWERbot in an enclosed space filled with vapours given off by oil based paint, paint thinner, moth proofing substances, flammable dust, or other explosive or toxic vapours.

- Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

Safety information

WARNING

Power related

▶ Please prevent any risk of electric shock or fire.

- Do not damage the power cord.

- Do not pull the power cord too hard or touch the power plug with wet hands.

- Do not use a power source other than 100-240 V\~ and also do not use a multi outlet to supply power to number of devices at the same time. (Do not leave the cord carelessly on the floor.)

- Do not use a damaged power plug, power cord or loose power outlet.

▶ Clean dust or any foreign matters on the pin and contact part of the power plug.

– There is a risk of electric shock or malfunction.

WARNING

Before use

▶ Do not use POWERbot near combustible materials.

- Place near candle, desktop lamps, fireplace or near combustible materials such as gasoline, alcohol, thinners etc.

The POWERbot is intended for household use therefore do not use it in an attic, basement, storage, industrial building, out of indoor space, places with moisture (such as bathroom, laundry), on the table or shelves.

- The POWERbot can be damaged or malfunction.

▶ Be sure POWERbot does not pass through or touch any kind of liquids.

- The POWERbot can be severely damaged and it may contaminate other areas if the wheels pass through liquid.

▶ Do not spill any liquids on the docking station.

– There is a risk of fire or electric shock.

▶ Do not use the docking station for anything other than its intended purpose.

- There is a risk of fire or severe damage to the docking station.

▶ Always keep the cliff sensor clean for your safety.

WARNING

In use

▶ If any abnormal sounds, smells or smoke come from POWERbot, immediately shut off the emergency switch at the bottom of POWERbot and contact a service center.

WARNING

Cleaning and maintenance

▶ When power cord is damaged, contact a service center to get it replaced by a certified repairman.

– There is a risk of fire or electric shock.

▶ Please check with a Samsung Electronics service center when exchanging batteries.

- Using batteries from other products can cause malfunction.

CAUTION

Before use

- Insert the dustbin before using POWERbot. - Be careful with the followings for proper automatic recharging.

- Always turn on the power of the docking station.

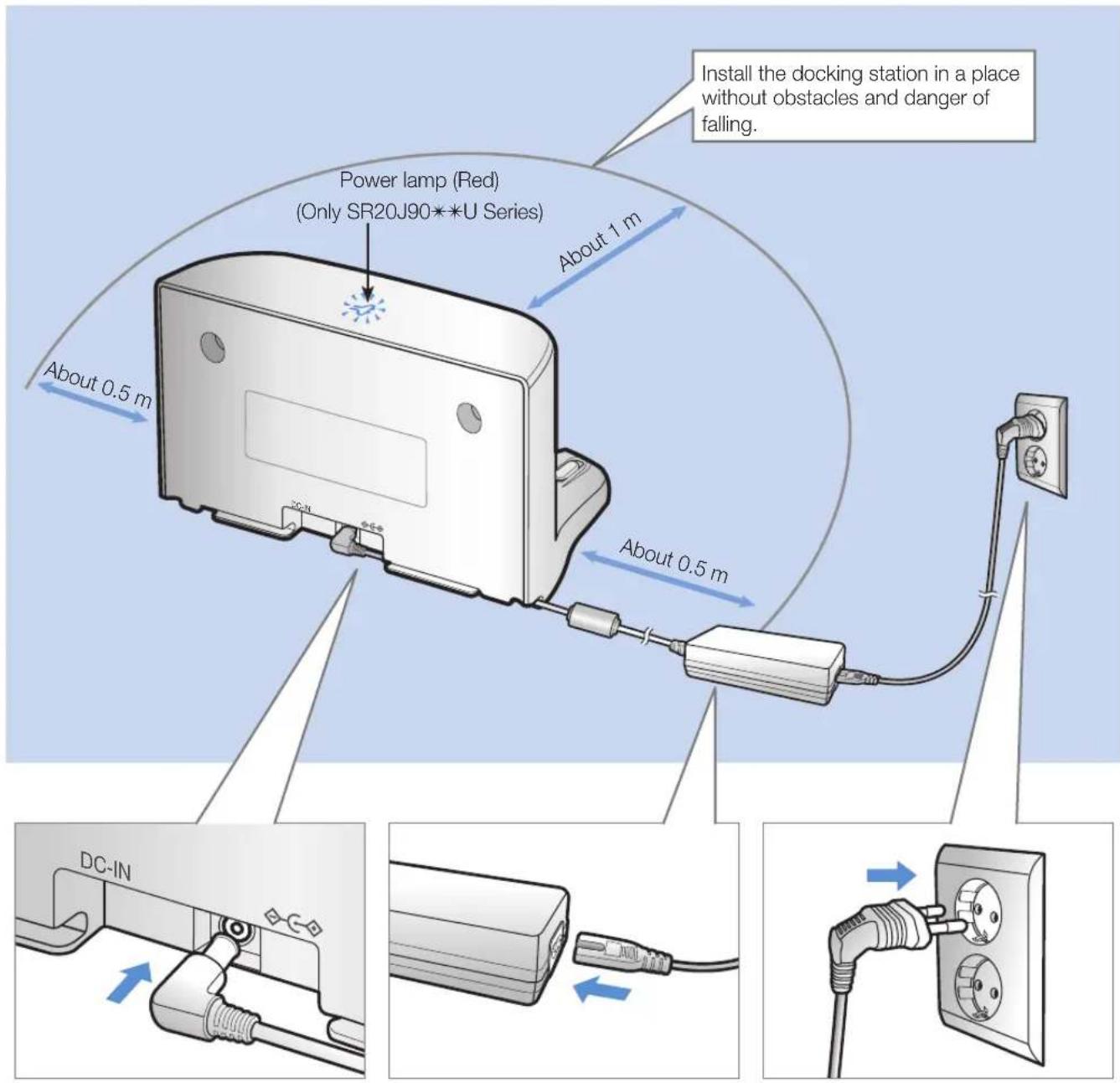

- Install the docking station where POWERbot can easily find.

- Do not leave any object in front of the docking station.

When installing the docking station, do not leave the cord carelessly on the floor since POWERbot may get tangled by it.

▶ Do not use POWERbot on black colored floors.

- The POWERbot may not be able to operate normally.

▶ Do not pick up POWERbot by the dustbin holder.

▶ Do not place any objects within 0.5 m to both sides and 1 m to the front of the docking station.

▶ Make sure the docking station's charging contact is not damaged or have any foreign matters on it.

▶ Do not install the docking station in an area with a dark floor.

- If the floor around the docking station is dark, recharging is hindered.

▶ Move any obstacles that may disturb POWERbot's movement (such as children's indoor swing or slides) before cleaning.

CAUTION

In use

▶ Using POWERbot on thick carpet may damage both POWERbot and the carpet.

- The POWERbot cannot pass over carpet that is thicker than 1 cm.

▶ Do not use POWERbot on tables or other high surfaces.

– There is a risk of damage if it falls.

The POWERbot may bump into chair, desk legs therefore move them away for faster and efficient cleaning.

▶ When POWERbot is operating, do not lift it up or carry it to another area.

▶ Do not hold by driving wheels of POWERbot when carrying it to another area.

▶ Do not put any objects on top of POWERbot since it may cause malfunction.

Remove any large papers or plastic bags immediately when using POWERbot since they may block the intake.

▶ Do not aim the red pointer directly at people or animals.

CAUTION

Cleaning and maintenance

▶ Prevent any damage to POWERbot by complying with the following.

- Do not clean POWERbot by spraying water directly onto it or use benzene, thinner, acetone or alcohol to clean it.

▶ Do not disassemble or repair POWERbot. This should only be done by a certified repairman.

▶ Always keep the obstacle sensor and cliff sensor clean.

- If foreign matter accumulates, sensors may malfunction.

Installation

The docking station must be plugged in and turned on at all times.

1 Connect the battery charger jack to the docking station

2 Connect the power cord to the battery charger

When using the battery charger, the side with the sticker attached must face down.

3 Connect the power plug to the outlet

The power indicator lamp (Red) will turn on.

Accessories

Remote control Batteries (AAA type) User manual Spare filter (option)
Cleaning brush (option) Power cord Battery charger

Note

▶ Install the docking station in a place where the floor and wall are level.
▶ It is best to install the docking station along the grain of wooden floors.
▶ If the emergency switch is off, the POWERbot will not charge even if it is docked on the docking station.

▶ Always turn on the power of the docking station.

• If power is not supplied to the docking station, the POWERbot cannot find it and cannot automatically recharge.
• If the POWERbot is left detached from the docking station, the battery will drain naturally.

▶ If the POWERbot is in sleep mode, power will not come on even if the emergency switch is turned off and then on. Press and hold the [Start/Stop] button on the POWERbot to turn off the sleep mode.

Charging

It takes approximately 160 minutes (SR20J90**U Series) or 240 minutes (SR20K9000U* Series) to completely charge the POWERbot when charging it for the first time after purchase. Once charged, the POWERbot can be used for approximately 30 minutes.

- Rated input voltage of this product is 100-240 V\~.

Illustration of a robotic vacuum cleaner with hands operating it (no text or symbols visible)

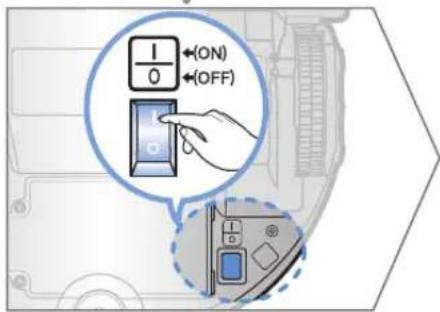

1 Turn on the emergency switch on the bottom

You must turn on the emergency switch to turn on the POWERbot.

2 Manually charge the POWERbot by placing it on the docking station

Make sure the charging pins on the POWERbot and the docking station are aligned. For SR20K9000U* series, turn on the POWERbot by pressing and holding the for more than 3 sec. to start charging.

3 Check the charging status

sequence to show charging progress. All the 6 icons appear when charging is complete.

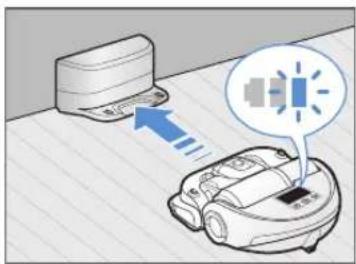

Automatic charging

Illustration of a robotic vacuum cleaner emitting sound waves from a mounted device (no text or symbols present)

When the battery indicator blinks during cleaning, the POWERbot will return to the docking station to charge itself automatically.

Recharging

Simple line icon of a house inside a circle with an arrow and battery symbol (no text or labels)

You can command the POWERbot to recharge at the docking station while it is in cleaning.

Low battery

Illustration of a hand operating a vacuum cleaner on a tiled floor (no text or symbols)

Manually charge the POWERbot by placing it on the docking station.

Steps to take if recharging not occurring:

Check the installation status of the docking station when:

▶ the docking station is located in a place where the POWERbot cannot easily access it.
▶ the distance between the docking station and POWERbot is over 5 m.

-It may take a long time for POWERbot to return to the docking station for recharging

Manually charge the POWERbot when:

▶ the docking station is located in a corner
▶ the battery is fully exhausted
▶ the POWERbot is immobilized by an obstacle (furniture etc.)
▶ the POWERbot can't climb a threshold near the docking station (The maximum height of a threshold the POWERbot can climb is about 1.5 cm.
▶ the battery indicator blinks
▶ the POWERbot is set to the Spot clean or Manual clean mode

Using POWERbot

You must turn on the emergency switch on the bottom of the unit before using POWERbot.

Turning the power on/off

Press the button for more than 3 seconds

- When POWERbot is not used for 30 minutes, power will turn off automatically.

Starting Auto clean mode

Press and release this button.

The POWERbot moves and cleans automatically until it cleans an entire space once.

The POWERbot moves and cleans all set places until the battery is depleted.

* Stop cleaning: Press and release the button

Starting Spot clean mode

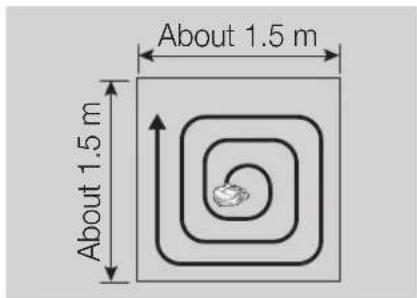

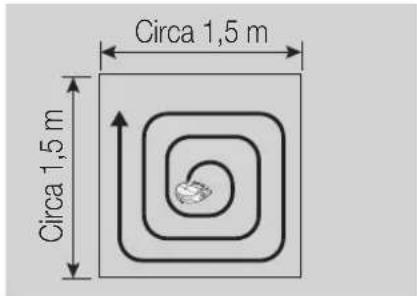

Press and release this button. The POWERbot cleans a localized area intensely.

Recharging

You can command POWERbot to recharge at the docking station automatically while it is cleaning by pressing this button.

Selecting cleaning modes

Cleaning mode	How to select Displayed icon
Auto clean
Spot clean
Manual clean	* The movement and direction of the POWERbot is controlled by the remote control.

* When the POWERbot is being charged, you can select the Auto clean mode only.
* If the POWERbot fails to return to the docking station, it will be turned into the sleep mode. Then the display panel of the main body will be turned off. Press [Start/Stop] or [Power] button to cancel the sleep mode.
* Charging and cleaning times may differ according to conditions of use.

Solid dark gray rectangle with no visible text, symbols, or features.

Cleaning method for each modes

Simple line drawing of a ladder with a ball at the bottom (no text or symbols)

Auto clean

Cleans automatically until it cleans an entire space once.

Cleans all set places until the battery is depleted.

Spot clean

Cleans a localized area intensely. It can be used to clean bread or cookie crumbs.

Illustration of a hand holding a remote control with a small device inside (no text or symbols)

Manual clean

You can control the POWERbot with the remote control and direct it to clean a desired spot.

Using the remote control

Inserting batteries

Open the battery cover by lifting it up while pressing the locking tab, and then insert the batteries as shown in the illustration. Then, close the cover until it clicks into place.

1 Power/Recharging

Power		Turn POWERbot's power on/off
Recharging		Select to recharge POWERbot at the docking station while it is cleaning.
Start/Stop		Select to start or stop cleaning

2 Cleaning modes

Auto clean		▶SR20J90**U Series-Select to clean automatically until it cleans an entire space once.▶SR20K9000U* Series-Select to clean all set places until the battery is depleted.
Spot clean		Select to clean a localized area intensely

3 Suction modes

Silence mode		Select to clean with lower operational noise
Normal mode		Select to clean with normal suction power

4 Additional functions

Sound

Sound

Each time you press this button,Sound Effects → Mute is selected in this sequence.

5 Direction control

Forward movement		Select to move forward
Left turn		Select to turn left
Right turn		Select to turn right

Name of each part

Top

1. Display panel
2. Dustbin holder
3. Remote control signal receiver
4. Obstacle sensor
5. Dustbin
6. Camera
7. Dustbin handle
8. Bumper sensor

Bottom

1. Charge pins
2. Power brush
3. Power brush cover
4. Cliff sensor
5. Roller
6. Battery cover
7. Power brush cover button
8. Driving wheel
9. Emergency switch

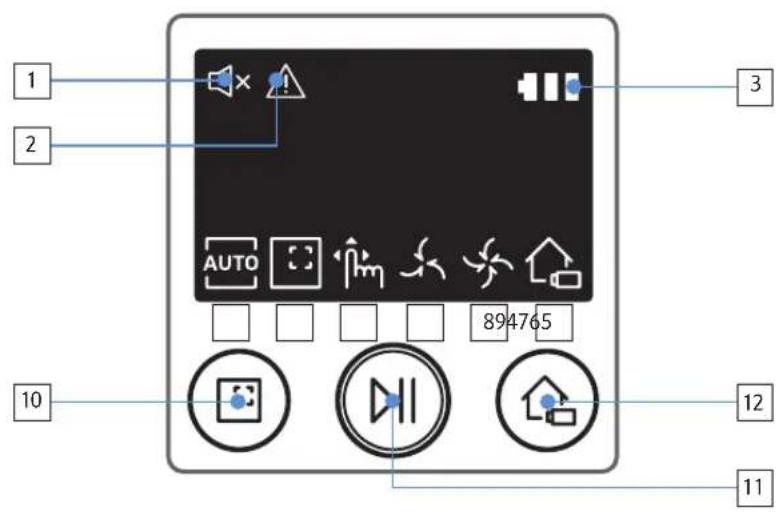

Display panel

1. Mute
2. Information indicator
3. Battery indicator
4. Auto clean
5. Spot clean
6. Manual clean
7. Silence mode
8. Normal mode
9. Recharging
10. Spot cleaning button
11. Start/Stop button
12. Recharging button

Cleaning and maintaining

You must turn off the emergency switch before cleaning POWERbot.

Cleaning the dustbin

Illustration of a hand holding a device with a blue arrow pointing to it, over a car interior (no text or symbols)

1 Remove the dustbin

2 Remove the dustbin cover

Illustration of hands pouring liquid from a spray can into a trash bin (no text or symbols)

3 Remove dust in the dustbin and cyclone unit

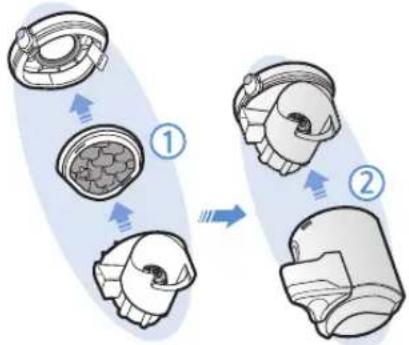

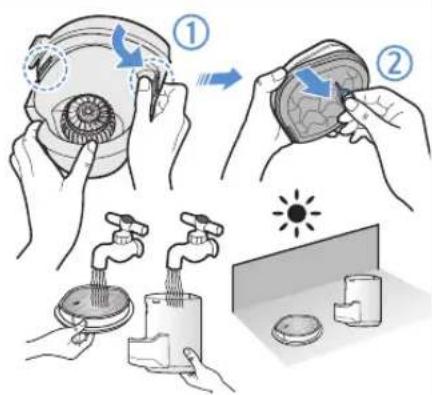

4 Detach the cyclone unit from the dustbin cover, and then wash the dustbin and the filter

5 Reassemble the dustbin

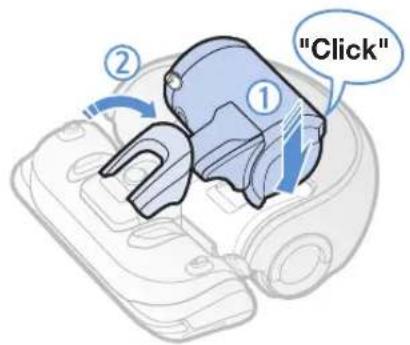

6 Reinsert the dustbin into the main body until it clicks

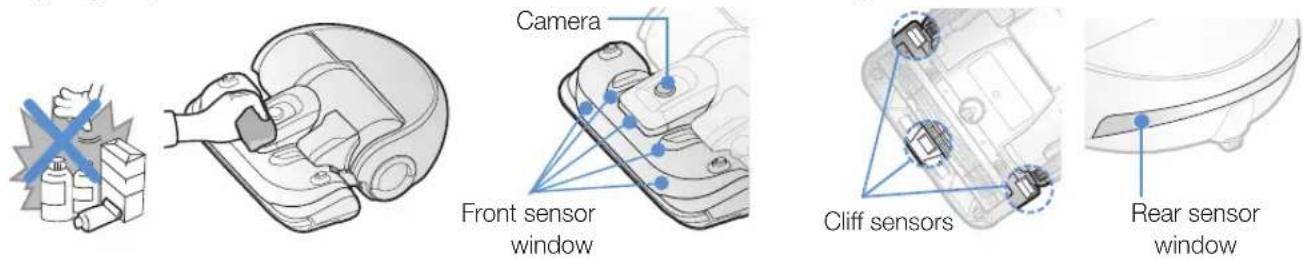

Cleaning the sensors and the camera

Lightly wipe with soft cloth. Do not use water or cleaning solutions.

cleaning the Power brush

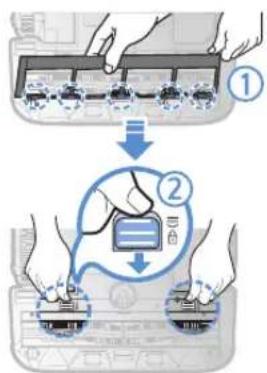

1 Remove the Power brush cover

Illustration of a hand holding a mechanical component with an upward arrow, no text or symbols present

2 Remove the Power brush

Illustration of a hand using a tool to cut a cylindrical object with a coiled tube, no text or symbols present

3 Clean the Power brush

4 Reassemble the Power brush

5 Reassemble the Power brush cover

cleaning the Driving wheel

Illustration of hands holding a computer motherboard with visible circuitry and components (no text or symbols)

1 Put a soft cloth on the floor and place POWERbot upside-down on the cloth.

Hand using a tool to adjust or install a mechanical component (no visible text or symbols)

2 Use a blunt rod or tweezers to remove foreign matter.

Notes and cautions

Charging

Note

▶ If the battery overheats during charging, it may take longer to charge.
▶ When automatic charging is not working, do the following:

• Turn the emergency switch (on the bottom of POWERbot) off and on again.
• Unplug the docking station's power plug and then plug it back on.
• Unplug the docking station, and then check whether there is any foreign matter on the charge pins and clean POWERbot and the charge pins of the docking station with a dry cloth or rag.
• Check for any obstacles such as reflective objects, chairs, etc. near the docking station.

▶ If POWERbot is left detached from the docking station, the battery will drain naturally.

– Try to keep POWERbot being charged on the docking station. (However, turn off the emergency switch and leave the docking station unplugged when planning to leave the house for long periods of time by going on a business trip or vacation, etc.)

In use

Note

▶ The POWERbot may get caught on thresholds, etc. during cleaning.
- To restart operation, shut off the emergency switch, move the POWERbot to an area where it can move easily, and then turn on the power again.
▶ The POWERbot cannot completely clean areas it cannot enter, such as corners, between the wall and sofa, etc.

- Please use another cleaning tool to clean them regularly.

▶ The POWERbot cannot vacuum clumps of dirt, so some may remain on the floor after cleaning.
- Please use another cleaning tool to clean them regularly.
▶ If the battery becomes low during Auto clean mode, POWERbot will recharge and finish cleaning the remaining area after recharging. (Repeat cleaning frequency: 1 time)
▶ You cannot select and have the POWERbot execute Spot/Manual clean mode while it is charging.
▶ Do not unnecessarily move the POWERbot or press buttons while it is in Auto clean mode. It assumes that cleaning is complete and starts cleaning again from the beginning.
▶ Close doors before cleaning with the POWERbot. The POWERbot can enter rooms through thresholds even though the thresholds are below 5 cm.
▶ Try not to use the POWERbot at areas near slides, indoor swing, pots, fireplaces, or places with flame or moisture.

– If not, it may cause the loss of property.

▶ Do not lie down around the POWERBOT that is running.

- Your hair may be caught in the power brush, resulting in physical injury.

Cleaning and maintenance

About the battery

Note

▶ If you washed the dustbin and filter with water
– Dustbin: Completely wipe out the water.
- Filter: Completely dry it in the shade before using.
▶ Purchase a filter at authorized Samsung service centers if you need more filters.

caution

▶ Watch your fingers when attaching or detaching the filter, since they may get stuck in the dustbin's intake.
▶ To avoid blockages by foreign matter, do not let the POWERbot vacuum up toothpicks, cotton swabs etc.
▶ If it is difficult to remove foreign matter from the Power brush, contact an authorized Samsung service center.
▶ Since the power brush removes dirt from the floor during cleaning, foreign matter such as thread, long hair, etc. may get caught in it. For the best cleaning results, check and clean it regularly.

Note

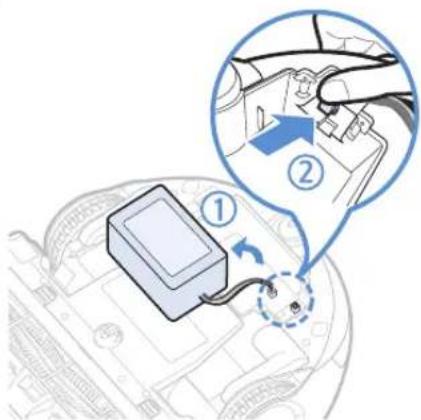

▶ Purchase batteries at authorized Samsung service centers and check for the genuine part symbol (SAMSUNGel name before purchasing.
This battery is exclusively for the Samsung Electronics POWERbot. Do not use it for any other product.
▶ Do not disassemble or modify the battery.
▶ Do not throw the battery out in fire or heat it.
▶ Do not connect any metallic object to the charging contacts (+, -).
▶ Store the battery indoors (at 0 °C\~40 °C).
▶ If the battery malfunctions, do not disassemble it yourself. Contact your nearest Samsung service center.
- Battery charging time and usage time may decrease the more the battery is used. If the battery’s lifespan has been exceeded and it no longer charges properly, have it replaced at a Samsung service center.
▶ The battery warranty period is 6 months from the date of purchase.

Information codes

1 The information codes below appear on the display panel

2 If a code appears, turn off the emergency switch and check the instructions below and take appropriate action

3 The information code will disappear when you turn on the emergency switch

Information codes Checklist
	The POWERbot is caught, stuck, trapped or lifted while moving around.►Turn off the emergency switch and move the POWERbot to another area.
	Foreign matter caught in the Power brush.►Turn off the emergency switch and remove the foreign matter from the Power brush.
	Foreign matter caught in the left Driving wheel.►Turn off the emergency switch and remove the foreign matter from the Driving wheel.
	Foreign matter caught in the right Driving wheel.►Turn off the emergency switch and remove the foreign matter from the Driving wheel.
	Bumper sensor needs to be checked.►Turn off the emergency switch and turn it back on.►Contact a service center if information code does not disappear.
	Foreign matter accumulated on the obstacle sensor.►Turn off the emergency switch and clean the front and rear sensor with a soft cloth.
	Foreign matter accumulated on the cliff sensor.►Turn off the emergency switch and clean the cliff sensor with a soft cloth.

Troubleshooting

Symptom Checklist
The POWERbot is not working at all.	▶Check if the emergency switch is on.▶Check if all the icons are displayed on the display panel.▶Check if the POWERbot's battery is depleted.▶Replace the batteries (AAA type) if the remote controller is not working.
The POWERbot has stopped during cleaning.	▶When POWERbot is immobilized by an obstacle such as a cord, threshold etc, pick it up and move it away from the obstacle.- If any fabric or string is caught in a drive wheel, turn off the emergency switch and remove the fabric or string before using it again.
Suction power is weak.	▶When there's too much dust in the dustbin, suction power may get weakened. Turn off the emergency switch and empty the dustbin.▶If the intake (on bottom of POWERbot) is blocked by foreign matter, turn off the emergency switch and remove foreign matter from the intake.▶When noise suddenly increase, turn off the emergency switch and empty the dustbin.▶If the dustbin is assembled incorrectly, suction power may get weakened. Turn off the emergency switch and refer to page 17 for reassembling.
The POWERbot cannot find the docking station.	▶Check if there's a power failure or whether the power plug is unplugged.▶Remove any obstacles around the docking station that may prevent POWERbot from returning to the docking station.▶When there's foreign matter on the charge pins, charging can be affected. Clean the foreign matter off the pins.
The POWERbot suddenly cleans diagonally.	▶Check if the docking station is installed along the grain of wooden floors or tiles.▶The POWERbot may clean in a diagonal direction if it is moving to another area using the shortest route. It may also move at a diagonal if it made contact with an obstacles at that angle, if it was charged at the docking station at an angle, or if the grain of the wooden/tile floor skewed is in that direction.
POWERbot does not clean a certain area.	▶Check if the docking station is installed near a narrow passage or door, and reinstall it in the other areas.- If the docking station is installed near a narrow passage or door, the POWERbot cannot pass through the passage or threshold.

Warnings about battery

You must not remove (or attempt to remove) the battery incorporated in this product on your own. To replace the battery, you must contact your service provider or an independent qualified professional. These instructions have been prepared for the exclusive use of your service provider or independent qualified professional.

FOR YOUR OWN SAFETY, DO NOT ATTEMPT TO REMOVE THE BATTERY ON YOUR OWN OR DISPOSE OF IT IN FIRE. DO NOT DISASSEMBLE, CRUSH OR PUNCTURE THE BATTERY.

How to remove the battery

Remove POWERbot from the docking station for disassembling. You must turn off POWERbot for safety before disassembling.

Hand using a pipette to inspect a component on a device (no text or symbols visible)

1 Lay down and invert POWERbot and then remove 2 screws.

Line drawing of a hand inserting a component into a device casing (no text or symbols)

2 Remove the dustbin cover

3 Remove the battery from the slot and disconnect the connector.

Correct disposal of batteries in this product

(Applicable in countries with separate battery return systems.)

The marking on the battery, manual or packaging indicates that the battery in this product should not be disposed of with other household waste. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66.

The battery incorporated in this product is not user replaceable. For information on its replacement, please contact your service provider. Do not attempt to remove the battery or dispose it in a fire. Do not disassemble, crush, or puncture the battery. If you intend to discard the product, the waste collection site will take the appropriate measures for the recycling and treatment of the product, including the battery

Open Source Announcement

The software included in this product contains open source software. You may obtain the complete corresponding source code for a period of three years after the last shipment of this product by sending an email to mailto:[e-mail].

It is also possible to obtain the complete corresponding source code in a physical medium such as a CD-ROM; a minimal charge will be required.

The following URL http://opensource.samsung.com/opensource/VR9000H/seq/0 leads to the download page of the source code and open source license information as related to this product. This offer is valid to anyone in receipt of this information.

Specifications

Classification Item Detail information
Mechanical specifications (POWERbot)	Size (Depth x Height x Length)	378 mm x 135 mm x 362 mm
	Weight 4.3 kg
	Sensor Ceiling shape recognition (Visionary mapping plus TM)
	Button type of POWERbot Touch type
Power specifications	Power voltage 100-240 V~, 50 Hz/60 Hz
	Power consumption 80 W
	Battery specifications Lithium ion 21.6 V/ 39 Wh
Cleaning	Charging type Automatic charging/Manual charging
	Cleaning mode Auto, Spot, Manual
	Charging time	SR20J90**U Series : Approximately 160 minutes SR20K9000U* Series : Approximately 240 minutes
	Cleaning time	Approximately 30 minutes (Normal mode/ On the basis of hard floor)

* Charging and cleaning times may differ according to conditions of use.
* This Vacuum cleaner is approved the following.
- Electromagnetic Compatibility Directive : 2004/108/EEC
- Low Voltage Directive : 2006/95/EC

SAMSUNG
