Product type	Built-in electric oven
Brand	AEG
Model	BSK778380T
Volume	71 L
Energy efficiency class	A++
Energy consumption (fan-forced)	0.52 kWh/cycle
Energy consumption (conventional)	1.09 kWh/cycle
Dimensions (H x W x D)	594 x 595 x 567 mm
Net weight	36.5 kg
Power supply	220-240 V ~ 50/60 Hz
Power cable length	1500 mm
Connectivity	Wi-Fi (2.4 GHz), My AEG Kitchen app
Main functions	Fan-forced, Grill, Turbo grill, Top/Bottom heat, Pizza, Steam cooking, Assisted cooking, Keep warm, Defrost, Pyrolytic cleaning
Included accessories	Wire shelf, Baking tray, Roasting pan, Food core temperature sensor, Telescopic runners
Cleaning type	Pyrolytic (3 levels: quick, normal, intensive), Descaling, Rinsing
Safety	Child lock, Automatic shut-off, Key lock
Lighting	Replaceable halogen lamp (resistant to 300 °C)
Spare parts and repairability	Original spare parts available via approved service; removable door and glass panels, replaceable lighting
Environmental information	Recyclable; do not dispose of with household waste

Frequently Asked Questions - BSK778380T AEG

How to use steam cooking?

Fill the water tank with cold water (max. 950 ml) until the acoustic signal, select a steam mode, set the temperature and start cooking. Do not use filtered or distilled water.

How to perform a pyrolytic cleaning?

Remove all accessories and food residues, then select the pyrolytic programme (quick 1h, normal 1h30, intensive 3h). Keep children and pets away.

How to use the food core temperature sensor?

Insert the sensor into the thickest part of the food, plug it into the front socket, set the desired core temperature. The oven stops automatically at the set temperature.

What to do before first use?

Clean the oven and accessories, perform an initial preheating at maximum temperature (fan-forced 1h + top/bottom heat 15 min), and set the water hardness.

How to set the time and timer?

Press the time display, set the time with the keys, then confirm. For the timer, press the clock icon, set the duration and confirm.

How to connect the oven to Wi-Fi?

Download the My AEG Kitchen app, enable Wi-Fi in the Settings/Connections menu, and follow the app instructions. The Wi-Fi password is personal.

What to do in case of error code F111?

This code indicates that the food core temperature sensor is not correctly plugged in. Check the sensor connection in the front socket.

How to descale the oven?

Use the Descaling function: pour 250 ml of descaling solution into the water tank, top up with water to the max level, then start the programme (total duration ~135 min). Replace the water for the second phase.

How to remove and clean the oven door?

Open the door, lift the locking levers, close it to 70°, then remove it. Disassemble the trim and glass panels to clean them with soapy water. Do not wash in the dishwasher.

What is the usable volume of the oven?

The oven has a volume of 71 litres, allowing you to cook large quantities of food on several levels.

USER MANUAL BSK778380T AEG

Simple line drawing of a kitchen oven (no text or symbols)

МОНТАЖ / POSTAVLJANJE / INSTALLATION / PAIGALDAMINE / INSTALLATION / MONTAGE / ÜZEMBE HELYEZÉS / INSTALLAZIONE / UZSTÄDİŞANA / MONTAVIMAS / INSTALACJA / ИНСТАЛИРАЊЕ / NAMESTITEV / INSTALACIÓN

70 60 520 33 100 200 200 min. 578 max. 590 min. 550 20 min. 560 559⁺¹ 18 21546 114 4 589 471 594 595⁻¹ 460 min. 1500 H05 V V - F (°mm) 245 490

(*mm) 80 60 520 33 100 200 600 min. 550 20 min. 560 559⁺¹ 18 21546 114 4 589 471 594 595⁻¹ 460 60 33 20 5 1 min. 1500 H05 V V - F 245 490

ЗА ОТЛИЧНИ РЕЗУЛТАТИ

Line drawing of a rectangular plate with horizontal grooves and a grid pattern (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. КОНТРОЛЕН ПАНЕЛ

Technical line drawing of a ladder with two circular insets showing different structural details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Термосонда

Line drawing of a kitchen appliance with a tray and piping, no text or symbols present

Two laboratory setups: a rectangular tank with a probe and wire connected to a beaker with a probe inserted, both without any text or symbols.

Line drawing of a hand holding a wall-mounted device (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down an upward arrow on a layered document or sheet (no text or symbols)

Technical line drawing of a vehicle front panel with no visible text or symbols

Hand holding a spoon inside an electrical outlet, with a curved arrow indicating rotation (no text or symbols)

12. ОТСТРАНЯВАНЕ НА НЕИЗПРАВНОСТИ

ВНИМАНИЕ!

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Senzor za hranu

Za mjerenje temperature unutar hrane.

Simple line drawing of a medical or electrical device with a probe, tubing, and connector (no text or symbols)

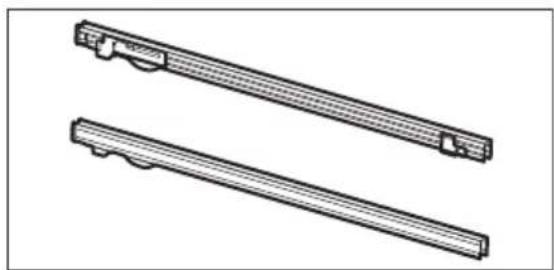

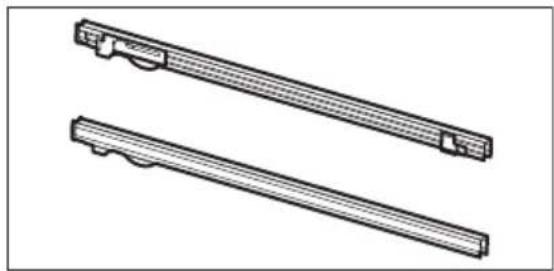

Teleskopske vodilice

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

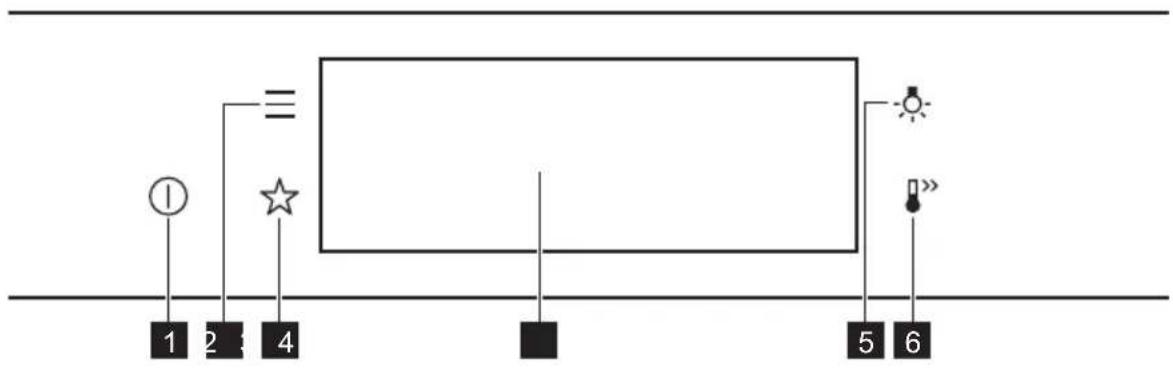

4. UPRAVLJAČKA PLOČA

4.1 Pregled upravljačke ploče

① ② ③ ④ 5 6

6. SVAKODNEVNA UPORABA

UPOZORENJE!

Technical line drawing of a metal frame structure with two magnified insets showing internal details (no text or symbols)

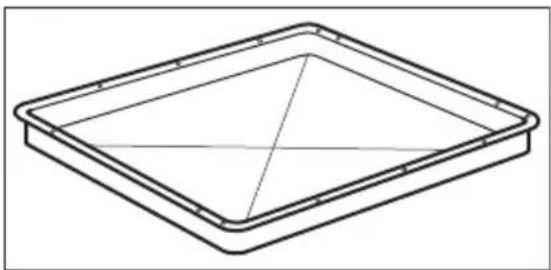

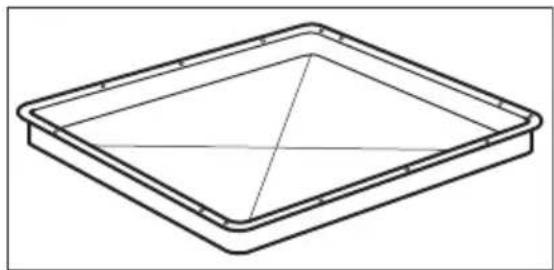

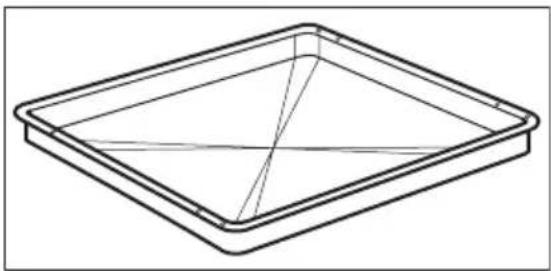

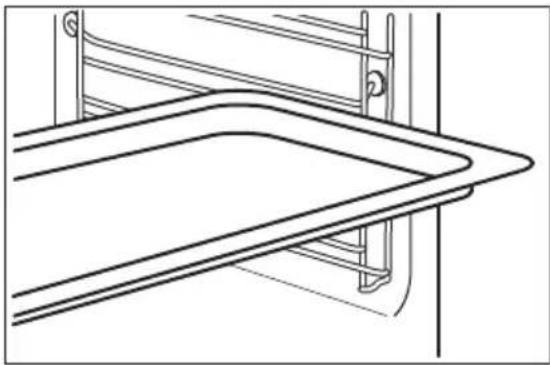

Pekač za pecivo / Duboka plitica:

Gurnite pladanj za pečenje između vodilica police.

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

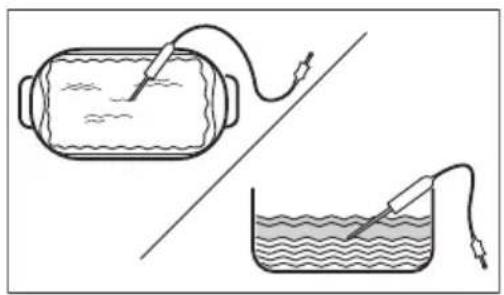

8.2 Senzor za hranu

Senzor za hranu - mjeri temperaturu unutar hrane. Možete ga koristiti sa svakom funkcijom pećnice.

Potrebno je podesiti dvije temperature:

Temperaturu pećnice minimum 120 °C.	Temperaturu jezgre.

Line drawing of a kitchen appliance with a tray and electrical outlet (no text or symbols)

Diagram showing two methods of heating a submerged object and a submerged container with a probe, both without any text or labels.

1. korak Utaknite Senzor za hranu u utičnicu na prednjoj strani pećnice. Na zaslonu se prikazuje aktualna temperatura: Senzor za hranu.

2. korak - pritisnite za postavljanje temperature jezgre senzora.

3. korak • • • - pritisnite za postavljanje preferirane opcije:

4. Zvučni alarm - kad hrana dosegne temperaturu jezgre, oglašava se signal.

5. Zvučni alarm i zaustavljanje kuhanja - kad hrana dosegne temperaturu jezgre, oglasava se signal a pećnica se isključuje.

6. korak Odaberite opciju i nekoliko puta pritisnite: za prijelaz na glavni zaslon.

7. korak Pritisnite: \$START

Line drawing of a hand adjusting a metal frame structure with a bolt (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down an upward arrow on a layered document or sheet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a spoon inside a wall-mounted socket, with a curved arrow indicating rotation (no text or symbols)

12. RJEŠAVANJE PROBLEMA

UPOZORENJE!

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service and repair information: www.aeg.com/support

Register your product for better service: www.registeraeg.com

Buy Accessories, Consumables and Original spare parts for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

CONTENTS

1. SAFETY INFORMATION....74
2. SAFETY INSTRUCTIONS.... 76
3. PRODUCT DESCRIPTION....79
4. CONTROL PANEL....80
5. BEFORE FIRST USE....81
6. DAILY USE....84
7. CLOCK FUNCTIONS....88
8. HOW TO USE: ACCESSORIES.... 89
9. ADDITIONAL FUNCTIONS....91
10. HINTS AND TIPS....92
11. CARE AND CLEANING....95
12. TROUBLESHOOTING.... 100
13. ENERGY EFFICIENCY....103
14. MENU STRUCTURE....104
15. IT'S EASY!......106
16. ENVIRONMENTAL CONCERNS....106

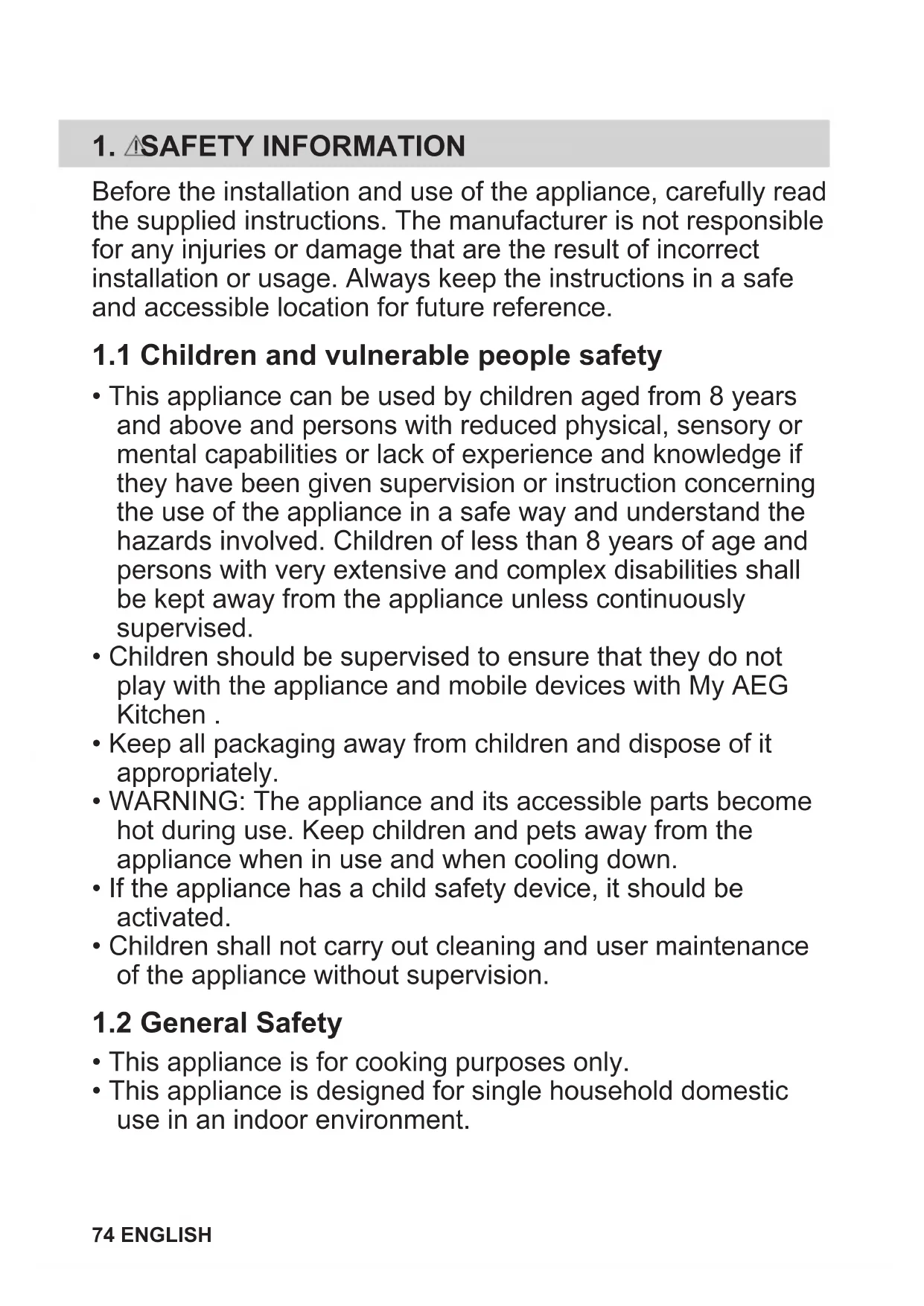

1. ⚠SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance and mobile devices with My AEG Kitchen.
• Keep all packaging away from children and dispose of it appropriately.
• WARNING: The appliance and its accessible parts become hot during use. Keep children and pets away from the appliance when in use and when cooling down.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is for cooking purposes only.
• This appliance is designed for single household domestic use in an indoor environment.

- This appliance may be used in, offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

- Only a qualified person must install this appliance and replace the cable.

- Do not use the appliance before installing it in the built-in structure.

- Disconnect the appliance from the power supply before carrying out any maintenance.

- If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements or the surface of the appliance cavity.

- Always use oven gloves to remove or insert accessories or ovenware.

- Use only the food sensor (core temperature sensor) recommended for this appliance.

- To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

- Do not use a steam cleaner to clean the appliance.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

- Before pyrolytic cleaning, remove all accessories and excessive deposits/spills from the appliance cavity.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not pull the appliance by the handle.
  • Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the appliance door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the electric power supply.
• The built-in unit must meet the stability requirements of DIN 68930.

Cabinet minimum height (Cabinet under the worktop minimum height)	578 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance	594 mm
Height of the back of the appliance	576 mm
Width of the front of the appliance	595 mm
Width of the back of the appliance	559 mm
Depth of the appliance 567 mm
Built in depth of the appliance	546 mm
Depth with open door 1027 mm

Ventilation opening minimum size. Opening placed on the bottom rear side

560x20 mm

Mains supply cable length.	1500 mm
Cable is placed in the right corner of the back side

Mounting screws 4x25 mm

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
  • Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.

• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.

2.3 Use

WARNING!

Risk of injury, burns and electric shock or explosion.

• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not share your Wi-Fi password.

WARNING!

Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
• do not put ovenware or other objects in the appliance directly on the bottom.
  – do not put aluminium foil directly on the bottom of cavity of the appliance.

– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.

• Discoloration of the enamel or stainless steel has no effect on the performance of the appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
  • Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never closed when the appliance operates. Heat and moisture can build up behind a closed furniture panel and cause subsequent damage to the appliance, the housing unit or the floor. Do not close the furniture panel until the appliance has cooled down completely after use.

2.4 Care and cleaning

WARNING!

Risk of injury, fire, or damage to the appliance.

• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.

2.5 Pyrolytic cleaning

WARNING!

Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.

• Before carrying out the pyrolytic cleaning and initial preheating remove from the oven cavity:
  – any excess food residues, oil or grease spills / deposits.
  – any removable objects (including shelves, side rails, etc., provided with the appliance) especially any non-stick pots, pans, trays, utensils, etc.
• Read carefully all the instructions for pyrolytic cleaning.
• Keep children away from the appliance while the pyrolytic cleaning operates. The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking residues and construction materials, as such consumers are advised to:
  – provide good ventilation during and after the pyrolytic cleaning.
  – provide good ventilation during and after the initial preheating.
• Do not spill or apply water on the oven door during and after the pyrolytic cleaning to avoid damaging the glass panels.
• Fumes released from all pyrolytic ovens / cooking residues as described are not harmful to humans, including children, or persons with medical conditions.
• Keep pets away from the appliance during and after the pyrolytic cleaning and initial preheating. Small pets (especially birds and reptiles) can be highly sensitive to temperature changes and emitted fumes.
• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high temperature pyrolytic cleaning operation of all pyrolytic ovens and can be also a source for low level harmful fumes.

2.6 Steam Cooking

WARNING!

Risk of burns and damage to the appliance.

• Released Steam can cause burns:
• Be careful when you open the appliance door when the function is activated. Steam can release.
• Open the appliance door with care after the steam cooking operation.

2.7 Internal lighting

WARNING!

Risk of electric shock.

• Concerning the lamp(s) inside this product and spare part lamps sold separately:
  These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.

2.8 Service

• To repair the appliance contact the Authorised Service Centre.

- Use original spare parts only.

2.9 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

- Remove the door catch to prevent children or pets from becoming trapped in the appliance.

3. PRODUCT DESCRIPTION

3.1 General overview

1 2 3 4 5 6 7 8 9 10 ① ② ③ ④ ⑤ ⑥

Control panel
Display
Water drawer
Socket for the food sensor
Heating element
Lamp
Fan
Descaling pipe outlet
Shelf support, removable
Shelf positions

3.2 Accessories

Wire shelf

For cookware, cake tins, roasts.

Baking tray

For cakes and biscuits.

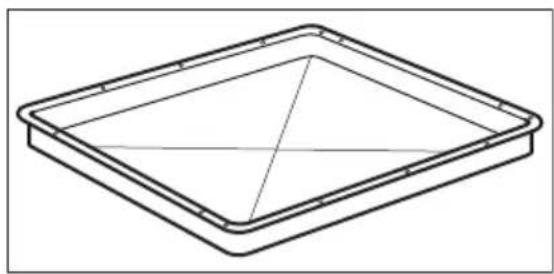

Grill- / Roasting pan

To bake and roast or as a pan to collect fat.

Line drawing of a rectangular grid-patterned tray or rack (no text or symbols)

Simple line drawing of a square tray with internal grid lines (no text or symbols)

Line drawing of a square tray with internal diagonal lines (no text or symbols)

Food sensor

To measure the temperature inside food.

Simple line drawing of a medical or electrical device with a probe, tubing, and connector (no text or symbols)

Telescopic runners

For inserting and removing trays and wireshelf more easily.

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. CONTROL PANEL

4.1 Control panel overview

1 2 3 4 5 6

1 ON / OFF Press and hold to turn the appliance on and off.
2 Menu Lists the appliance functions.
3 Favourites Lists the favourite settings.
4 Display Shows the current settings of the appliance.
5 Lamp switch To turn the lamp on and off.
6 Fast Heat Up To turn on and off the function: Fast Heat Up.

Press Move

Press and hold

Touch the surface with fingertip. Slide fingertip over the surface. Touch the surface for 3 seconds.

4.2 Display

A B 12:30 85°C 150°C START G F DE C

Display with key functions set.

A. Wi-Fi
B. Time of day
C. START/STOP
D. Temperature
E. Heating functions
F. Timer
G. Food sensor (selected models only)

Display indicators

Basic indicators - to navigate on the display.

OK

To confirm the selection / setting.

To go one level back in the menu.

To undo the last action.

To turn the options on and off.

Sound alarm function indicators - when the set time of cooking ends, the signal sounds.

The function is on.

The function is on. Cooking stops automatically.

Sound alarm is off.

Timer indicators

To set the function: Delayed start.

To cancel the setting.

Wi-Fi indicator - the appliance can be connected to Wi-Fi.

Wi-Fi connection is turned on.

Remote operation indicator - the appliance can be controlled remotely.

Remote operation is turned on.

5. BEFORE FIRST USE

WARNING!

Refer to Safety chapters.

5.1 Initial Cleaning

Step 1 Step 2 Step 3

Remove all accessories and removable shelf supports from the appliance.

Clean the appliance and the accessories only with a microfibre cloth, warm water and a mild detergent.

Place the accessories and the removable shelf supports in the appliance.

5.2 First connection

The display shows welcome message after the first connection.

You have to set: Language, Display brightness, Key tones, Buzzer volume, Water hardness, Time of day.

5.3 Wireless connection

To connect the appliance you need:

• Wireless network with the Internet connection.
• Mobile device connected to the same wireless network.

Step 1

To download My AEG Kitchen app: Scan the QR code on the rating plate with the camera on your mobile device to be redirected to AEG Homepage. The rating plate is on the front frame of the appliance cavity. You can also download the app directly from the app store.

Step 2 Follow the app onboarding instructions.

Step 3 Turn on the appliance.

Step 4

Press: Select: Settings / Connections.

Step 5

- slide or press to turn on: Wi-Fi.

Step 6 The appliance wireless module starts within 90 sec.
Frequency 2.4 GHz WLAN
2400 - 2483.5 MHz
Protocol IEEE 802.11b DSSS, 802.11g/n OFDM
Max Power EIRP < 20 dBm (100 mW)
Wi-Fi module NIUS-50

5.4 Software licences

The software in this product contains components that are based on free and open source software. AEG acknowledges the contributions of the open software and robotics communities to the development project.

To access the source code of these free and open source software components whose license conditions require publishing, and to see their full copyright information and applicable license terms, visit: http://aeg.opensoftwarerepository.com (folder NIUS).

5.5 Initial preheating

Preheat the empty oven before the first use.

Step 1 Remove all accessories and removable shelf supports from the oven.
Step 2	Set the maximum temperature for the function:☐Let the oven operate for 1 h.
Step 3	Set the maximum temperature for the function:☑Let the oven operate for 15 min.

The oven can emit an odour and smoke during preheating. Make sure that the room is ventilated.

5.6 How to set: Water hardness

When you connect the oven to the mains you have to set the water hardness level.

Use the test paper or contact your water supplier to check the water hardness level.

Step 1 Step 2 Step 3 Step 4

Put the test paper into water for about 1 sec. Do not put the test paper under running water.

Shake the test paper to remove the excess of water.

After 1 min, check water hardness with the table below.

Set the water hardness level: Menu / Settings / Setup / Water hardness.

The colours of the test paper continue to change. Do not check water hardness later than 1 min after test.
You can change the water hardness level in the menu: Settings / Setup / Water hardness.

The table shows water hardness range (dH) with the corresponding level of Calcium deposit and the water classification. Adjust the water hardness level according to the table.

Water hardness Test paper Calcium deposit (mmol/l)				Calcium de-posit (mg/l)	Water classifi-cation
Level dH
10 - 70 - 1.30 - 50 soft
28 - 141.4 - 2.551 - 100 mc
315 - 21		2.6 - 3.8	101 - 150	hard
4≥22		≥3.9	≥151	very hard

When the tap water hardness level is 4, fill the water drawer with still bottled water.

6. DAILY USE

WARNING!

Refer to Safety chapters.

6.1 How to set: Heating functions

Step 1 Turn on the oven. The display shows the default heating function.
Step 2 Press the symbol of the heating function to enter the submenu.
Step 3	Select the heating function and press: OKThe display shows: temperature.
Step 4	Set: temperature. Press: OK
Step 5	Press: STARTFood Sensor - you can plug the sensor at any time before or during cooking.
STOP - press to turn off the heating function.
Step 6 Turn off the oven.

6.2 How to set: Steam heating function

Step 1 Turn on the oven.Select the symbol of the heating function and press it to enter the submenu.
Step 2	Press Set the steam heating function.
Step 3	Press: The display shows the temperature settings.
Step 4 Set the temperature.
Step 5	Press: OK
Step 6 Press the cover of the water drawer to open it.
Step 7	Fill the water drawer with cold water to the maximum level (around 950 ml) until the signal sounds or the display shows the message. Do not fill the water drawer over its maximum capacity. There is a risk of water leakage, overflow and furniture damage.
	WARNING!Use only cold tap water. Do not use filtered (demineralised) or distilled water.Do not use other liquids. Do not pour flammable or alcoholic liquids into the water drawer.
Step 8 Push the water drawer to its initial position.
Step 9	Press: STARTSteam appears after approximately 2 min. When the oven reaches the set temperature, the signal sounds.
Step 10	When the water drawer runs out of water, the signal sounds. Refill the water drawer.
Step 11	Turn off the oven.
Step 12	Empty the water drawer after cooking ends.Refer to "Care and Cleaning" chapter, Tank emptying.
Step 13	Residual water can condensate in the cavity. After cooking, carefully open the oven door. When the oven is cold, dry the cavity with a soft cloth.

6.3 How to set: Assisted Cooking

Every dish in this submenu has a recommended function and temperature. You can adjust the time and the temperature.

For some of the dishes you can also cook with:

• Weight Automatic
• Food Sensor

The degree to which a dish is cooked:

• Rare or Less
• Medium
  • Well done or More

Step 1 Turn on the oven.

Step 2

Press:

Step 3

Press: . Enter: Assisted Cooking.

Step 4 Choose a dish or a food type.

Step 5

Press: $START

6.4 Heating functions

STANDARD

Heating function Application

Grill

To grill thin pieces of food and to toast bread.

Turbo Grilling

To roast large meat joints or poultry with bones on one shelf position. To make gratins and to brown.

Heating function Application
	To bake on up to three shelf positions at the same time and to dry food. Set the temperature 20 - 40 °C lower than for Conventional Cooking.
True Fan Cooking
	To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy.
Frozen Foods
	To bake and roast food on one shelf position.
Conventional Cooking
	To bake pizza. To make intensive browning and a crispy bottom.
Pizza Function
	To bake cakes with crispy bottom and to preserve food.
Bottom Heat
	To speed up the rising of the yeast dough. It prevents dough surface from drying and keeps the dough elastic.
Dough Proving

SPECIALS

Heating function Application
	To preserve vegetables (e.g., pickles).
Preserving
	To dry sliced fruit, vegetables and mushrooms.
Dehydrating
	To preheat plates for serving.
Plate Warming
	To defrost food (vegetables and fruit). The defrosting time depends on the amount and size of the frozen food.
Defrost
	For dishes such as lasagna or potato gratin. To make gratins and to brown.
Au Gratin	To prepare tender, succulent roasts.
Slow Cooking
	To keep food warm.
Keep Warm
	This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temperature. The residual heat is used. The heating power may be reduced. For more information refer to "Daily Use" chapter, Notes on: Moist Fan Baking.
Moist Fan Baking

STEAM

Heating function Application
	Food reheating with steam prevents surface drying. Heat is distributed in a gentle and even way, which allows to recover taste and aroma of food as just prepared. This function can be used to reheat food directly on a plate. You can reheat more than one plate at the same time, using different shelf positions.
Steam Regenerating
	Use this function to prepare bread and bread rolls with a very good professional-like result in terms of crispiness, colour and crust gloss.
Bread Baking
	The function is suitable for meat, poultry, oven dishes and casseroles. Thanks to the combination of steam and heat, meat gets a tender and juicy texture along with a crusty surface.
Humidity Low

6.5 Notes on: Moist Fan Baking

This function was used to comply with the energy efficiency class and ecodesign requirements (according to EU 65/2014 and EU 66/2014). Tests according to:

IEC/EN 60350-1

The oven door should be closed during cooking so that the function is not interrupted and the oven operates with the highest energy efficiency possible.

When you use this function the lamp automatically turns off after 30 sec.

For the cooking instructions refer to "Hints and tips" chapter, Moist Fan Baking. For general energy saving recommendations refer to "Energy Efficiency" chapter, Energy Saving.

7. CLOCK FUNCTIONS

7.1 Clock functions description

Clock function	Application
Cooking time	To set the length of cooking. Maximum is 23 h 59 min.
End action	To set what happens when the timer ends counting.
Delayed start	To postpone the start and / or end of cooking.

Clock function	Application
Time extension	To extend cooking time.
Reminder To set a countdown. Maximum is 23 h59 min. This function has no effect on the operation of the appliance.
Uptimer Monitors how long the function operates. Uptimer - you can turn it on and off.

7.2 How to set: Clock functions

How to set the clock

Step 1 Press: Time of day.

Step 2 Set the time. Press: OK

How to set cooking time

Step 1 Choose the heating function and set the temperature.

Step 2 Press: ☑

Step 3 Set the time. Press: OK

How to choose end option

Step 1 Choose the heating function and set the temperature.

Step 2 Press: ☑

Step 3 Set the cooking time.

Step 4 Press: ● ● ●

Step 5 Press: End action.

Step 6 Choose the preferred: End action.

Step 7 Press: OK Repeat the action until the display shows the main screen.

How to delay start of cooking

Step 1 Set the heating function and the temperature.

Step 2 Press: ☑

How to delay start of cooking

Step 3 Set the cooking time.

Step 4Press: ● ● ●

Step 5 Press: Delayed start.

Step 6 Choose the value.

Step 7Press: OK Repeat the action until the display shows the main screen.

How to extend cooking time

When 10% of cooking time is left and the food seems not to be ready, you can extend cooking time. You can also change the heating function.

Press +1min to extend the cooking time.

How to change timer settings

Step 1Press: ⏻

Step 2 Set the timer value.

Step 3Press: OK

You can change the set time during cooking at any time.

8. HOW TO USE: ACCESSORIES

8.1 Inserting accessories

A small indentation at the top increases safety. The indentations are also anti-tip

devices. The high rim around the shelf prevents cookware from slipping of the shelf.

Wire shelf:

Push the shelf between the guide bars of the shelf support.

Technical line drawing of a wooden bench with two magnified views showing internal structure (no text or symbols)

Baking tray / Deep pan:

Push the tray between the guide bars of the shelf support.

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Food Sensor

Food Sensor - measures the temperature inside the food. You can use it with every heating function.

There are two temperatures to be set:

[BYAH]	[BXYA]
The oven temperature: minimum 120 °C.	The core temperature.

For the best cooking results:

Ingredients should be at room temperature.

Do not use it for liquid dishes. During cooking it must remain in the dish.

The oven calculates an approximate end of cooking time. It depends on the quantity of food, the set oven function and the temperature.

How to use: Food Sensor

Step 1 Turn on the oven.

Step 2 Set a heating function and, if necessary, the oven temperature.

Step 3 Insert: Food Sensor.

Meat, poultry and fish Casserole

Insert the tip of Food Sensor into the centre of meat, fish, in the thickest part if possible. Make sure that at least 3/4 of Food Sensor is inside of the dish.

Insert the tip of Food Sensor exactly in the centre of the casserole. Food Sensor should be stabilized in one place during baking. Use a solid ingredient to achieve that. Use the rim of the baking dish to support the silicone handle of Food Sensor. The tip of Food Sensor should not touch the bottom of a baking dish.

Line drawing of a kitchen appliance with a tray and outlet, showing a cable inserted into the tray (no text or symbols)

Two laboratory setups: a rectangular tank with a probe and wire connected to a beaker with a probe, both without any text or symbols.

Step 4 Plug Food Sensor into the socket at the front of the oven.The display shows the current temperature of: Food Sensor.
Step 5	- press to set the core temperature of the sensor.
Step 6	• • • - press to set the preferred option:• Sound alarm - when food reaches the core temperature, the signal sounds.• Sound alarm and stop cooking - when food reaches the core temperature, the signal sounds and the oven stops.
Step 7	Select the option and repeatedly press: OKto go to main screen.
Step 8	Press: STARTWhen food reaches the set temperature, the signal sounds. You can choose to stop or to continue cooking to make sure the food is well done.
Step 9 Remove Food Sensor plug from the socket and remove the dish from the oven.
	WARNING!There is a risk of burns as Food Sensor becomes hot. Be careful when you unplug it and remove it from the food.

9. ADDITIONAL FUNCTIONS

9.1 How to save: Favourites

You can save your favourite settings, such as the heating function, the cooking time, the

temperature or the cleaning function. You can save 3 favourite settings.

Step 1 Turn on the appliance.

Step 2 Select the preferred setting.

Step 3

Press: Select: Favourites.

Step 4 Select: Save current settings.

Step 5

Press + to add the setting to the list of: Favourites. Press OK

press to reset the setting.

press to cancel the setting.

9.2 Function lock

This function prevents an accidental change of the heating function.

Step 1 Turn on the appliance.

Step 2 Set a heating function.

Step 3

press at the same time to turn on the function.

To turn off the function repeat step 3.

9.3 Automatic switch-off

For safety reasons the appliance turns off after some time, if a heating function works and you do not change any settings.

(°C) (h)

30 - 115 12.5

120 - 195 8.5

200 - 245 5.5

(°C) (h)

250 - maximum 3

The Automatic switch-off does not work with the functions: Light, Food sensor, End time, Slow Cooking.

9.4 Cooling fan

When the appliance operates, the cooling fan turns on automatically to keep the surfaces of the appliance cool. If you turn off the appliance, the cooling fan can continue to operate until the appliance cools down.

10. HINTS AND TIPS

10.1 Cooking recommendations

i

The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used.

Your appliance may bake or roast differently to the appliance you had before. The hints below show recommended settings for temperature, cooking time and shelf position for specific types of the food.

If you cannot find the settings for a special recipe, look for the similar one.

For more cooking recommendations refer to cooking tables on our website. To find the Cooking Hints, check the

PNC number on the rating plate on the front frame of the appliance cavity.

10.2 Moist Fan Baking

For the best results follow suggestions listed in the table below.

		(°C) (min)
Sweet rolls, 16 pieces	baking tray or dripping pan 180 2 25 - 35
Swiss Roll baking tray or dripping pan 180 2 15 - 25
Whole fish, 0.2 kg baking tray or dripping pan 180 3 15 - 25
Cookies, 16 pieces baking tray or dripping pan 180 2 20 - 30
Macaroons, 24 pieces	baking tray or dripping pan 160 2 25 - 35
Muffins, 12 pieces baking tray or dripping pan 180 2 20 - 30
Savory pastry, 20 pieces	baking tray or dripping pan 180 2 20 - 30
Short crust biscuits, 20 pieces	baking tray or dripping pan 140 2 15 - 25
Tartlets, 8 pieces baking tray or dripping pan 180 2 15 - 25

10.3 Moist Fan Baking - recommended accessories

Use the dark and non-reflective tins and containers. They have better heat absorption than the light colour and reflective dishes.

Pizza pan	Baking dish	Ramekins	Flan base tin
Dark, non-reflective28 cm diameter	Dark, non-reflective26 cm diameter	Ceramic8 cm diameter, 5cm height	Dark, non-reflective28 cm diameter

10.4 Cooking tables for test institutes

Information for test institutes

Tests according to: EN 60350, IEC 60350.

Baking on one level - baking in tins

		°C min
Fatless sponge cake True Fan Cooking 160 45 - 60 2
Fatless sponge cake Conventional Cooking 160 45 - 60 2
Apple pie, 2 tins ∅20 cm True Fan Cooking 160 55 - 65 2
Apple pie, 2 tins ∅20 cm Conventional Cooking 180 55 - 65 1
Short bread True Fan Cooking 140 25 - 35 2
Short bread Conventional Cooking 140 25 - 35 2

Baking on one level - biscuits Use the third shelf position.

		°C min
Small cakes, 20 per tray, preheat the empty oven	True Fan Cooking 150 20 - 30
Small cakes, 20 per tray, preheat the empty oven	Conventional Cooking 170 20 - 30

Multilevel baking - biscuits

		°C min
Short bread True Fan Cooking 140 25 - 45		2 / 4
Small cakes, 20 per tray, pre-heat the empty oven	True Fan Cooking 150 25 - 35		1 / 4
Fatless sponge cake	True Fan Cooking 160 45 - 55		2 / 4
Apple pie, 1 tin per grid (∅ 20 cm)	True Fan Cooking 160 55 - 65		2 / 4

Grill

Preheat the empty oven for 5 minutes.

Grill with the maximum temperature setting.

		min
Toast	Grill	1 - 2	5
Beef steak, turn halfway through	Grill	24 - 30	4

11. CARE AND CLEANING

WARNING!

Refer to Safety chapters.

11.1 Notes on cleaning

Cleaning Agents

Clean the front of the appliance only with a microfibre cloth with warm water and a mild detergent.

Use a cleaning solution to clean metal surfaces.

Clean stains with a mild detergent.

Everyday Use

Clean the cavity after each use. Fat accumulation or other residue may cause fire.

Do not store the food in the appliance for longer than 20 minutes. Dry the cavity only with a microfibre cloth after each use.

Accessories

Clean all accessories after each use and let them dry. Use only a microfibre cloth with warm water and a mild detergent. Do not clean the accessories in a dishwasher.

Do not clean the non-stick accessories using abrasive cleaner or sharp-edged objects.

11.2 How to remove: Shelf supports

Remove the shelf supports to clean the oven.

Step 1 Turn off the oven and wait until it is cold.

Step 2 Carefully pull the shelf supports up and out of the front catch.

Step 3 Pull the front end of the shelf support away from the side wall.

Step 4 Pull the supports out of the rear catch.

Hand holding a wall-mounted sensor or fixture component (no text or symbols visible)

Install the shelf supports in the opposite sequence.

11.3 How to use: Pyrolytic Cleaning

Clean the oven with Pyrolytic Cleaning.

WARNING!

There is a risk of burns.

CAUTION!

If there are other appliances installed in the same cabinet, do not use them at the same time as this function. It can cause damage to the oven.

Before the Pyrolytic Cleaning:
Turn off the oven and wait until it is cold.	Remove all accessories. Clean the oven floor and the inner door glass with warm water, a soft cloth and a mild detergent.
Do not fill the water tank during cleaning. It restarts the cleaning cycle.
Step 1 Turn on the oven.
Step 2Press:Cleaning.
Step 3 Put the baking tray on the first shelf position to collect water from the water tank.OK- press to start water tank emptying.
Step 4 When the tank emptying ends remove the baking tray and removable shelf supports. Wipe the oven cavity and the inner door glass with a soft cloth. Press:OK
Step 5 Select the cleaning mode.
Option Cleaning mode Duration
Pyrolytic cleaning, quick Light cleaning 1 h
Pyrolytic cleaning, normal Normal cleaning 1 h 30 min
Pyrolytic cleaning, intense Thorough cleaning 3 h
When the cleaning starts, the lamp is off and the cooling fan works at a higher speed.STOP- press to stop the cleaning before it is completed.Do not use the oven until the door lock symbol disappears from the display.

When the cleaning ends:
Turn off the oven and wait until it is cold.	Clean the cavity with a soft cloth. Remove the residue from the bottom of the cavity.

11.4 Cleaning Reminder

When the reminder appears, cleaning is recommended.

Use the function: Pyrolytic Cleaning.

11.5 How to use: Descaling

Before you start:
Turn off the oven and wait until it is cold.	Remove all accessories. Make sure that the water drawer is empty.
Duration of the first part:around 100 min
Step 1 Place the deep pan on the first shelf position.
Step 2 Pour 250 ml of the descaling agent in the water drawer.
Step 3 Fill the remaining part of the water drawer with water to the maximum level until the signal sounds or the display shows the message.
Step 4 Select:Menu / Cleaning.
Step 5 Turn on the function and follow the instruction on the display.The first part of descaling starts.
Step 6 After the first part is over, empty the deep pan and put it back on the first shelf position.
Duration of the second part:around 35 min
Step 7 Fill the remaining part of the water drawer with water to the maximum level until the signal sounds or the display shows the message.
Step 8 When the function ends, remove the deep pan.
iWhen this function works, the lamp is off.

When descaling ends:
Turn off the oven. When the oven is cold, dry the cavity with a soft cloth.	Leave the oven door open and wait until the cavity is dry.
i If some limestone residue remains in the oven after descaling, the display prompts to repeat the procedure.

11.6 Descaling reminder

There are two reminders which prompt you to descale the oven. You cannot disable the descaling reminder.

Type Description

Soft reminder Recommends you to descale the oven.

Hard reminder Obligates you to descale the oven. If you do not descale the oven when the hard reminder is on, the steam functions are disabled.

11.7 How to use: Rinsing

Before you start:

Turn off the oven and wait until it is cold. Remove all accessories.

Step 1 Place the deep pan on the first shelf position.

Step 2 Fill the water drawer with water to the maximum level until the signal sounds or the display shows the message.

Step 3 Select: Menu / Cleaning / Rinsing.Duration: around 30 min

Step 4 Turn on the function and follow the instruction on the display.

Step 5 When the function ends, remove the deep pan.

i When this function works, the lamp is off.

11.8 How to use: Tank emptying

Use it after cooking with steam heating function to remove the residual water from the water drawer.

Before you start:

Turn off the oven and wait until it is cold. Remove all accessories.

Step 1 Place the deep pan on the first shelf position.

Step 2 Select: Menu / Cleaning / Tank emptying.Duration: 6 min

Step 3 Turn on the function and follow the instruction on the display.

Step 4 When the function ends, remove the deep pan.

i When this function works, the lamp is off.

11.9 How to remove and install: Door

You can remove the door and the internal glass panels to clean it. The number of glass panels is different for different models.

WARNING!

The door is heavy.

CAUTION!

Carefully handle the glass, especially around the edges of the front panel. The glass can break.

Step 1 Fully open the door.

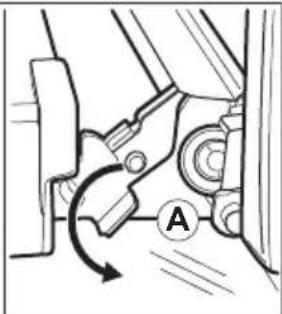

Step 2 Lift and press the clamping levers (A) on the two door hinges.

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Step 3 Close the oven door to the first opening position (approximately 70^ angle). Hold the door at both sides and pull it away from the oven at an upwards angle. Put the door with the outer side down on a soft cloth on a stable surface.

Step 4 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal.

Step 5 Pull the door trim to the front to remove it.

Step 6 Hold the door glass panels on their top edge one by one and pull them up out of the guide.

2 B 1

Step 7 Clean the glass panel with water and soap. Dry the glass panel carefully. Do not clean the glass panels in the dishwasher.

Step 8 After cleaning, do the above steps in the opposite sequence.

Diagram of a hand pressing down an upward arrow on a layered document or sheet (no text or symbols)

Step 9 Install the smaller panel first, then the larger and the door.

11.10 How to replace: Lamp

WARNING!

Risk of electric shock.

The lamp can be hot.

Before you replace the lamp:

Step 1 Step 2 Step 3
Turn off the oven. Wait until the oven is cold.	Disconnect the oven from the mains.	Put a cloth on the bottom of the cavity.

Top lamp

Step 1 Turn the glass cover to remove it.

Technical line drawing of a mechanical component with no visible text or symbols

Step 2 Remove the metal ring and clean the glass cover.

Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp.

Step 4 Attach the metal ring to the glass cover and install it.

Side lamp

Step 1 Remove the left shelf support to get access to the lamp.

Step 2 Use a narrow, blunt object (e.g. a teaspoon) to remove the glass cover.

Step 3 Clean the glass cover.

Step 4 Replace the lamp with a suitable 300 °C heat-resistant lamp.

Step 5 Install the glass cover.

Step 6 Install the left shelf support.

Hand holding a spoon inside an electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

12.1 What to do if...

The appliance does not turn on or does not heat up

Possible cause

Remedy

The appliance is not connected to an electrical supply or it is connected incorrectly.

Check if the appliance is correctly connected to the electrical supply.

The clock is not set. Set the clock, for details refer to Clock functions chapter, How to set: Clock functions.

The door is not closed correctly. Fully close the door.

The fuse is blown. Make sure the fuse is the cause of the problem. If the problem recurs, contact a qualified electrician.

The appliance Child Lock is on. Refer to "Menu" chapter, Submenu for: Options.

Components

Description

Remedy

The lamp is burnt out. Replace the lamp, for details refer to "Care and Cleaning" chapter, How to replace: Lamp.

Power cut always stops cleaning. Repeat cleaning if it's interrupted by power failure.

Problems with Wi-Fi signal

Possible cause

Remedy

Trouble with wireless network signal. Check if your mobile device is connected to the wireless network. Check your wireless network and router. Restart the router.

New router installed or router configuration changed. To configure appliance and mobile device again, refer to "Before first use" chapter, Wireless connection.

The wireless network signal is weak. Move router as close to the appliance as possible.

The wireless signal is disrupted by another microwave oven placed near the appliance.

Turn off the microwave oven. Avoid using another microwave oven and the Remote Control of the appliance at the same time. Microwaves disrupt Wi-Fi signal.

12.2 How to manage: Error codes

When the software error occurs, the display shows error message.

In this section, you will find the list of the problems that you can handle on your own.

Code and description Remedy

C2 - the Food sensor is in the appliance cavity during Pyrolytic Cleaning.

Take out the Food sensor.

C3 - the door is not fully closed during Pyrolytic Cleaning.

Close the door.

F111 - Food sensor is not correctly inserted into the socket.

Fully plug Food sensor into the socket.

F240, F439 - the touch fields on the display do not work properly.

Clean the surface of the display. Make sure there is no dirt on the touch fields.

F601 - there is a problem with Wi-Fi signal. Check your network connection. Refer to "Before first use" chapter, Wireless connection.

F604 - the first connection to Wi-Fi failed. Turn the appliance off and on and try again. Refer to "Before first use" chapter, Wireless connection.

F908 - the appliance system cannot connect with the control panel.

Turn the appliance off and on.

When one of these error messages continues to appear on the display, it means a faulty subsystem may have been disabled. In such a case contact your dealer or an Authorized Service Centre. If one of these errors occurs, the rest of the appliance functions will continue to work as usually.

Code and description Remedy

F602, F603 - Wi-Fi is not available. Turn the appliance off and on.

12.3 Service data

If you cannot find a solution to the problem yourself, contact your dealer or an Authorised Service Centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity. Do not remove the rating plate from the appliance cavity.

We recommend that you write the data here:

Model (MOD.) ......

Product number (PNC) ....

Serial number (S.N.) ....

13. ENERGY EFFICIENCY

13.1 Product Information and Product Information Sheet

Supplier's name AEG
Model identification	BSE778380T 944188814BSK778380T 944188827
Energy Efficiency Index 61.2
Energy efficiency class A++
Energy consumption with a standard load, conventional mode 1.09 kWh/cycle
Energy consumption with a standard load, fan-forced mode 0.52 kWh/cycle
Number of cavities 1
Heat source Electricity
Volume 71 l
Type of oven Built-In Oven
Mass	BSE778380T 36.5 kg
	BSK778380T 36.5 kg

IEC/EN 60350-1 - Household electric cooking appliances - Part 1: Ranges, ovens, steam ovens and grills - Methods for measuring performance.

13.2 Energy saving

The appliance has features which help you save energy during everyday cooking.

Make sure that the appliance door is closed when the appliance operates. Do not open the appliance door too often during cooking. Keep the door gasket clean and make sure it is well fixed in its position.

Use metal cookware to improve energy saving.

When possible, do not preheat the appliance before cooking.

Keep breaks between baking as short as possible when you prepare a few dishes at one time.

Cooking with fan

When possible, use the cooking functions with fan to save energy.

Residual heat

If a programme with Duration is activated and the cooking time is longer than 30 min, the heating elements automatically turn off earlier in some appliance functions.

The fan and lamp continue to operate. When you turn off the appliance, the display shows the residual heat. You can use that heat to keep the food warm.

When the cooking duration is longer than 30 min, reduce the appliance temperature to minimum 3 - 10 min before the end of cooking. The residual heat inside the appliance will continue to cook.

Use the residual heat to warm up other dishes.

Keep food warm

Choose the lowest possible temperature setting to use residual heat and keep a meal warm. The residual heat indicator or temperature appears on the display.

Cooking with the lamp off

Turn off the lamp during cooking. Turn it on only when you need it.

Moist Fan Baking

Function designed to save energy during cooking.

When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings.

14. MENU STRUCTURE

14.1 Menu

Menu item Application
Assisted Cooking Lists automatic programmes.
Cleaning Lists cleaning programmes.
Favourites Lists the favourite settings.
Options To set the appliance configuration.
Settings Connections To set the network configuration.
	Setup To set the appliance configuration.
	Service Shows the software version and configuration.

14.2 Submenu for: Cleaning

Submenu Application

Tank emptying Procedure for removing the residual water from the water drawer after use of the steam functions.

Pyrolytic cleaning, quick Duration: 1 h.

Pyrolytic cleaning, normal Duration: 1 h 30 min.

Pyrolytic cleaning, intense Duration: 3 h.

Descaling Procedure for cleaning the steam generation circuit from residual limestone.

Rinsing Procedure for rinsing and cleaning the steam generation circuit after frequent use of the steam functions.

14.3 Submenu for: Options

Submenu	Application
Light	Turns the lamp on and off.

Submenu Application

Child Lock Prevents accidental activation of the appliance. When the option is on,the text Child Lock appears in the display when you turn on the appli-ance. To enable the appliance use, choose the code letters in the al-phabetical order. When the option is on, and the appliance is turned off the appliance door is locked. Access to the timer, the remote operation and the lamp is available with the option on.

Fast Heat Up Shortens the heat up time. It is available only for some of the appli-ance functions.

Cleaning Reminder Turns the reminder on and off.

Time indication Turns the clock on and off.

Digital clock style Changes the format of the displayed time indication.

14.4 Submenu for: Connections

Submenu Description

Wi-Fi To enable and disable: Wi-Fi.

Remote operation To enable and disable remote control.Option visible only after you turn on: Wi-Fi.

Auto remote operation To start remote operation automatically after pressing START.Option visible only after you turn on: Wi-Fi.

Network To check network status and the signal power of: Wi-Fi.

Forget network To disable current network from auto connection with the appliance.

14.5 Submenu for: Setup

Submenu Description

Language Sets the appliance language.

Display brightness Sets the display brightness.

Key tones Turns the tone of the touch fields on and off. It is not possible to mutethe tone for: 1

Buzzer volume Sets the volume of key tones and signals.

Water hardness Sets the water hardness.

Time of day Sets the current time and date.

14.6 Submenu for: Service

Submenu	Description
Demo mode Activation / deactivation code: 2468
Software version	Information about software version.

Submenu Description

Reset all settings Restores factory settings.

15. IT'S EASY!

Before the first use you have to set:

Language

Display brightness

Key tones Buzzer volume Water hardness Time of day

Start using the appliance

Quick start Turn on the appli-ance and start cook-ing with the default temperature and time of the function.	Step 1 Step 2 Step 3
	Press and hold: Ⓐ select the preferred function.	Press: START
Quick Off Turn off the appli-ance, any screen or message at any time.	➊ - press and hold until the appliance turns off.

Start cooking

Step 1 Step 2 Step 3 Step 4 Step 5
1- press to turn on the appliance.	□ ...- select the heating function.	°C- set the tempera-ture.	OK- press to confirm.	START- press to start cook-ing.

Get to know how to cook quickly

Use the automatic programmes to prepare a dish quickly with the default settings:
Assisted Cooking	Step 1 Step 2 Step 3 Step 4
	Press: Press: .	Press:	Assisted Cooking.	Choose the dish.

Use quick functions to set the cooking time

10% Finish assistUse 10% Finish assist to add extra time when 10% of the cooking time is left.

To extend the cooking time press +1min.

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol 📋. Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and

electronic appliances. Do not dispose of appliances marked with the symbol 📀 with the household waste. Return the product to

your local recycling facility or contact your municipal office.

PARIMATE TULEMUSTE SAAVUTAMISEKS

Simple line drawing of a medical or electrical device with a curved tube and connector (no text or symbols)

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. JUHTPANEEL

Technical line drawing of a ladder with two magnified views showing internal structure (no text or symbols)

Küpsetusplaat / Sügav pann:

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Toidusensor

Line drawing of a kitchen appliance with a tray and attached electrical outlet (no text or symbols)

Illustration of a cylindrical device connected to a probe and a beaker with a wire, both without any text or symbols.

Simple line drawing of an oval-shaped object with no text or symbols

Pitsapann

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Küpsetusnõu

Portsjoninõu

Simple line drawing of a circular bowl or container (no text or symbols)

Pirukavorm

Line drawing of a hand adjusting a metal shelf with a wall-mounted knob (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Diagram of a hand pressing down on a layered sheet with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a car rear bumper with no text or symbols

1. samm Eemaldage metallröngas ja puhastage klaaskate.

2. samm Asendage lambipirn sobiva 300 °C taluva kuumakindla pirniga.

3. samm Kinnitage metallrõngas klaaskattele ja kinnitage see.

Küljelamp

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. VEAOTSING

HOIATUS!

Line drawing of a rectangular plate with horizontal grooves and a grid pattern (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a square tray with internal lines and shading (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. BANDEAU DE COMMANDE

Technical line drawing of a metal frame structure with two magnified views showing internal details (no text or symbols)

Line drawing of a bathroom sink with horizontal railings and curved fixtures (no text or symbols)

Line drawing of a fish inside a incubator with a tool inserted, showing no text or symbols

Diagram showing two experimental setups: a cylindrical device with a probe and wire connected to a liquid, and a beaker with a probe inserted into a liquid.

Simple line drawing of an oval-shaped object with no text or symbols

Plaque à pizza

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Plat de cuisson

Ramequins

Simple line drawing of a bowl or container with no text, numbers, or symbols

Line drawing of a hand inserting a small lock into a metal rack (no text or symbols)

Diagram of a hand pressing down on a folded paper or sheet with an upward arrow indicating motion (no text or symbols)

Technical line drawing of a vehicle rearview structure with no visible text or symbols

Hand holding a spoon inside an electrical outlet, with a curved arrow indicating rotation (no text or symbols)

12. DÉPANNAGE

AVERTISSEMENT!

Line drawing of a rectangular grid-patterned plate or tray (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal diagonal lines (no text or symbols)

Temperatursensor

Pure electrical circuit lines without any symbols

Teleskopschienen

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. BEDIENFELD

Technical line drawing of a wooden ladder with two magnified views showing internal structure details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

8.2 Temperatursensor

Line drawing of a bird incubator with an arrow indicating a feeding or feeding process (no text or symbols present)

Two laboratory setups: a cylindrical container with a probe and wire, and a beaker with a probe inserted into liquid (no text or symbols)

Simple line drawing of an oval shape with no text or symbols

Pizzapfanne

Simple line drawing of a circular container with a small handle at the bottom (no text or symbols)

Backform

Simple line drawing of a bowl or container with no text or symbols

Tortenbodenform

Line drawing of a hand installing or adjusting a metal frame structure (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down on a folded paper or document with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a spoon inside an electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. FEHLERSUCHE

WARNUNG!

Line drawing of a rectangular plate with grid pattern (no text or symbols)

Sütő tálca

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. KEZELÖPANEL

Technical line drawing of a wooden ladder with two magnified views showing internal structure details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

Line drawing of a cooking setup with a tray, ladder, and plug (no text or symbols)

Two laboratory setups: a cylindrical container with a probe and wire connected to a probe, and a beaker with a probe inserted into liquid (no text or symbols visible)

Simple line drawing of an oval-shaped object with no text or symbols

Pizzaserpenyő

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Sütőedény

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortasütő forma

Line drawing of a hand installing or adjusting a metal frame structure (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a rotating component with labeled point A (no text or symbols beyond label)

Diagram of a hand pressing down an upward arrow on a layered document or notebook (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a spoon inside an electrical outlet, with a curved arrow indicating rotation (no text or symbols)

12. HIBAELHÁRÍTÁS

FIGYELMEZTETÉS!

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Pure electrical circuit lines without any symbols

Two technical line drawings of mechanical components or brackets, no text or symbols present

4. PANNELLO DEI COMANDI

Technical line drawing of a wooden ladder with two magnified views showing internal structure details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

8.2 Termosonda

Line drawing of a kitchen appliance with a tray and a hanging outlet, showing no text or symbols

Two laboratory setups: a cylindrical container with a probe and wire, and a beaker with a probe inserted into liquid (no text or symbols)

Simple line drawing of an oval shape with no text or symbols

Teglia da pizza

Simple line drawing of a circular container with a small handle at the bottom (no text or symbols)

Pirofila

Simple line drawing of a bowl or container with no text, numbers, or symbols

Tortiera per flan

Four icons representing kitchen, oven, thermometer, and directional arrows with a 'C min' label

Frollini al burro Cottura ventilata 140 25 - 45 2 / 4

Line drawing of a hand adjusting a metal frame structure with a circular valve (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down on a folded paper or document with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car front bumper with no text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. RISOLUZIONE DEI PROBLEMI

AVVERTENZA!

Line drawing of a rectangular grid-patterned plate or tray (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and a central cross (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Termozonde

Simple line drawing of a medical or electrical device with a curved tube and connector (no text or symbols)

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. VADĪBAS PANELIS

Technical line drawing of a ladder structure with two magnified views showing internal details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Termozonde

Line drawing of a kitchen appliance with a tray and cable, no text or symbols present

Illustration of a cylindrical device connected to a probe and a beaker with a probe, both without any text or symbols.

Simple line drawing of an oval-shaped object with no text or symbols

Picas panna

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Cepšanas trauks

Podini

Simple line drawing of a bowl or container with no text, numbers, or symbols

Auglu pīrāga forma

Tumša, neatstarojoša 28 cm diametrs

Tumša, neatstarojoša 26 cm diametrs

Keramika 8 cm diamets, 5 cm augstums

Tumša, neatstarojoša 28 cm diametrs

Line drawing of a hand adjusting a metal frame structure with a circular component (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down on a folded paper or document with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a car intake tray with no text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. PROBLÉMRISINÄŠANA

BRĪDINĀJUMS!

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Simple line drawing of a rectangular tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Maisto termometras

Simple line drawing of a medical or electrical device with a probe, tubing, and connector (no text or symbols)

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. VALDYMO SKYDELIS

4.1 Valdymo skydelio apžvalga

① ② ③ ④ 5 6

Technical line drawing of a ladder with two magnified views showing internal structure details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Maisto termometras

Simple oval shape with concentric rings, no text or symbols present

Picos kepimo skarda

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Kepimo indas

Indeliai atskiroms valgio porcijoms paruošti

Simple line drawing of a bowl or container with no text, numbers, or symbols

Apkepo skarda

Tamsi, neatspindinti 28 cm skersmens

Tamsi, neatspindinti 26 cm skersmens

Line drawing of a hand inserting a lock into a metal frame (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Technical line drawing of a car rear bumper with no text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. TRIKČIŲ ŠALINIMAS

ISPÈJIMAS!

Žr. saugos skyrius.

12.1 Ka daryti, jeigu...

Prietaisas nejsijungia arba nekaista

Galima priežastis

Veiksmai

Prietaisas neprijungtas arba netinkamai prijungtas prie elektros maitinimo tinklo.

Pure electrical circuit lines without any symbols

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. PANEL STEROWANIA

Technical line drawing of a ladder with two magnified views showing internal structure (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

8.2 Termosonda

Line drawing of a kitchen appliance with a tray and piping, no text or symbols present

Two laboratory setups: one with a test tube connected to a probe, the other with a beaker and probe inserted (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Blacha do pizzy

Simple line drawing of a circular container with a small protrusion on the side (no text or symbols)

Forma do pieczenia

Kokilki

Simple line drawing of a bowl or container with no text, numbers, or symbols

Forma do tarty

Line drawing of a hand inserting a small component into a metal frame (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Diagram of a hand pressing down on a folded paper or document with an upward arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. ROZWIAZYWANIE PROBLEMÓW

OSTRZEŻENIE!

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and shading (no text or symbols)

Pure electrical circuit lines without any symbols

Two 3D mechanical parts with grooves and mounting holes, shown from different angles (no text or symbols)

4. КОМАНДНА ТАБЛА

4.1 Преглед командне табле

1 2 3 4 5 6

Technical line drawing of a metal frame structure with two magnified views showing internal details (no text or symbols)

Line drawing of a curved architectural or mechanical component with railings, no text or symbols present

8.2 Температурни сензор

Line drawing of a kitchen appliance with a tray and cable, no text or symbols present

Two laboratory setups: one with a test tube connected to a probe, the other with a beaker and probe inserted (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Плех за пицу

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Посуда за печење

Simple line drawing of a bowl or container with no text, numbers, or symbols

Плех за флан

Line drawing of a hand holding a wall-mounted device (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down an upward arrow on a layered document or sheet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Корак 2 Скините метални прстен и очистите стаклени поклопац.

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

Line drawing of a rectangular grid-patterned plate (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a rectangular tray with internal lines and triangular segments (no text or symbols)

Sonda za hrano

Za merjenje temperature v notranjosti hrane.

Simple line drawing of a medical or electrical device with a curved tube and connector (no text or symbols)

Teleskopska vodila

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. UPRAVLJALNA PLOŠČA

Technical line drawing of a metal frame structure with two magnified insets showing internal details (no text or symbols)

Pekač za pecivo / Globok pekač:

Pekač potisnite med vodili nosilca rešetk.

Line drawing of a curved architectural or mechanical component with railings and supports (no text or symbols)

8.2 Sonda za hrano

Line drawing of a kitchen appliance with a tray and electrical outlet, no text or symbols present

Two laboratory setups: one with a rectangular container connected to a probe, the other with a beaker containing liquid and connected by wires (no text or symbols)

Simple line drawing of an oval-shaped object with no text or symbols

Posoda za pico

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Pekač za peko

Majhne posodice za pečenje in ser- viranje

Simple line drawing of a bowl or container with no text, numbers, or symbols

Model za testo za kolač

Temen, neodbojen premer 28 cm

Temen, neodbojen premer 26 cm

Keramika premer 8 cm, viši- na 5 cm

Temen, neodbojen premer 28 cm

Line drawing of a hand adjusting a metal frame structure with a bolt (no text or symbols)

Nosilce rešetk namestite v obratnem zaporedju.

Technical diagram showing mechanical assembly with sectional view and rotation arrow labeled A

Diagram of a hand pressing down an upward arrow on a layered document or sheet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

1. korak Odstranite kovinski obroček in očistite stekleni pokrov.
2. korak Žarnico zamenjajte z ustrezno žarnico, odporno proti visoki temperaturi 300 °C.
3. korak Na steklen pokrov pripnite kovinski obroček in ga namestite.

Stranska žarnica

1. korak Za dostop do žarnice odstranite levi nosilec rešetk.
2. korak Za odstranitev steklenega pokrova uporabite ozek, top predmet (na primer čajno žličko).
3. korak Očistite stekleni pokrov.
4. korak Žarnico zamenjajte z ustrezno žarnico, od-porno proti visoki temperaturi 300 °C.
5. korak Namestite stekleni pokrov.
6. korak Namestite levi nosilec rešetk.

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

12. ODPRAVLJANJE TEŽAV

UPOZORNENIE!

Line drawing of a rectangular grid-patterned plate or tray (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Simple line drawing of a square tray with internal diagonal lines (no text or symbols)

Pure electrical circuit lines without any symbols

Technical line drawing of two mechanical components with grooves and mounting brackets (no text or symbols)

4. PANEL DE CONTROL

4.1 Vista general del panel de control

Paso 5

Pulse: $START

Technical line drawing of a wooden ladder with two magnified views showing internal structure details (no text or symbols)

Bandeja / Bandeja honda:

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

8.2 Sonda térmica

Line drawing of a fish inside a tray with an attached electrical outlet (no text or symbols)

Diagram showing two experimental setups: a cylindrical container with a probe and connected tubing, and a beaker with a probe inserted into liquid (no text or symbols present)

Simple line drawing of an oval-shaped object with no text or symbols

Bandeja para pizza

Simple line drawing of a circular sieve or pan with a handle (no text or symbols)

Bandeja para hornear

Simple line drawing of a bowl or container with no text, numbers, or symbols

Molde para base

Line drawing of a hand inserting a spring into a wall-mounted device (no text or symbols)

Technical diagram showing mechanical assembly with sectional view and rotation arrow, labeled with points A and B

Diagram of a hand pressing down an upward arrow on a folded paper or document (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Hand holding a spoon inside a wall-mounted electrical socket, with a curved arrow indicating rotation (no text or symbols)

Five circular icons representing shopping, devices, tools, and items (no text or symbols)

CE
